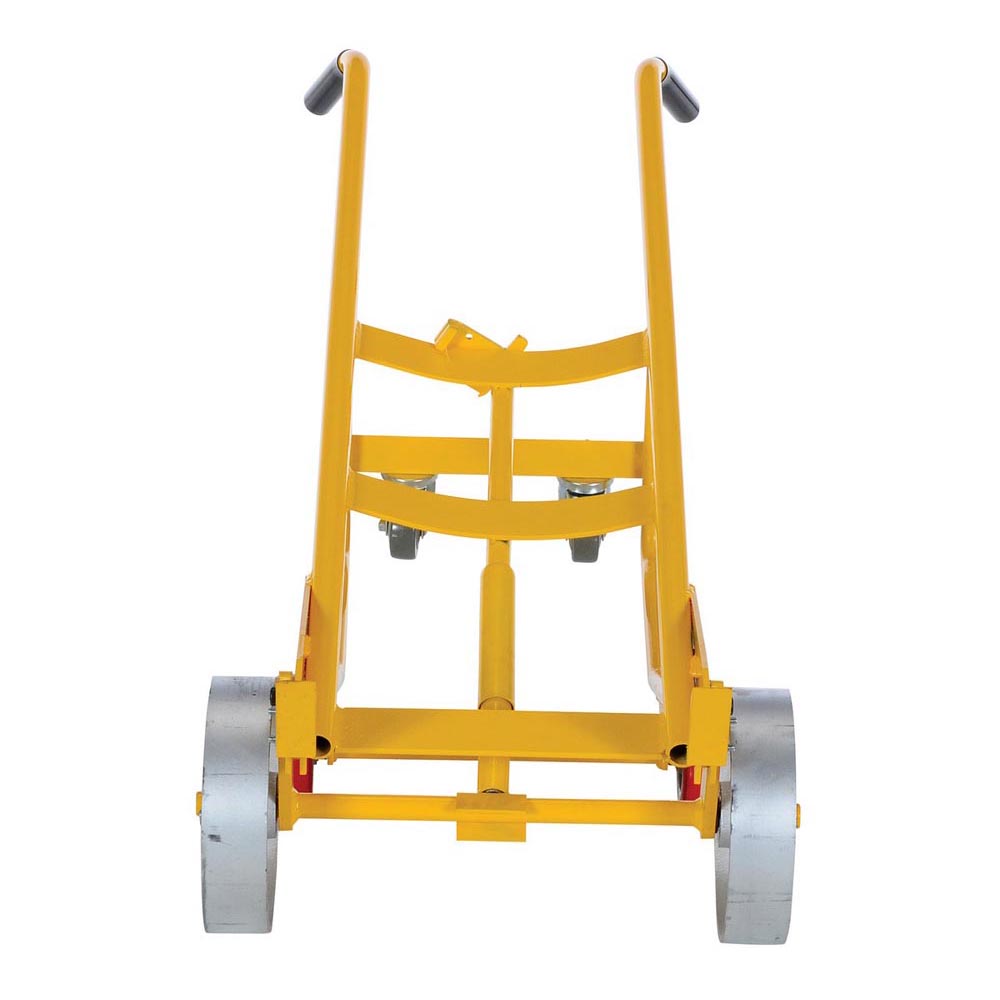

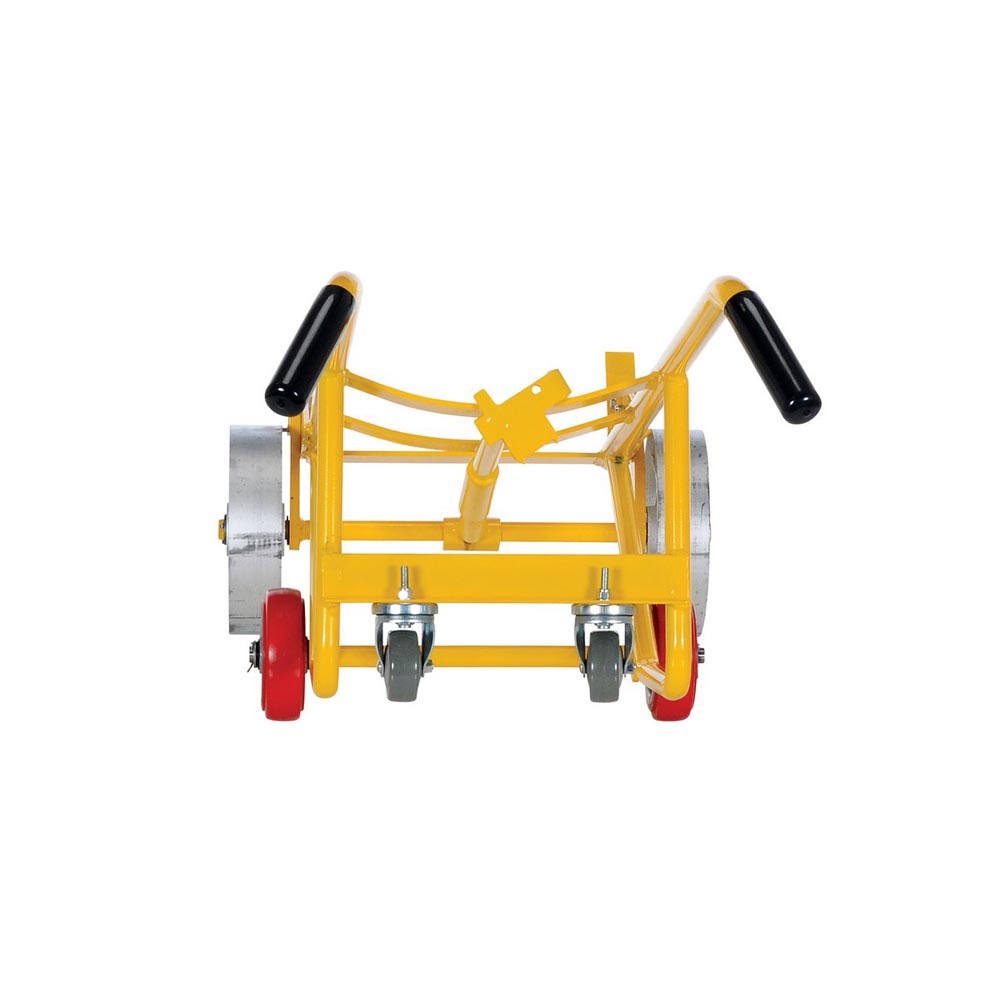

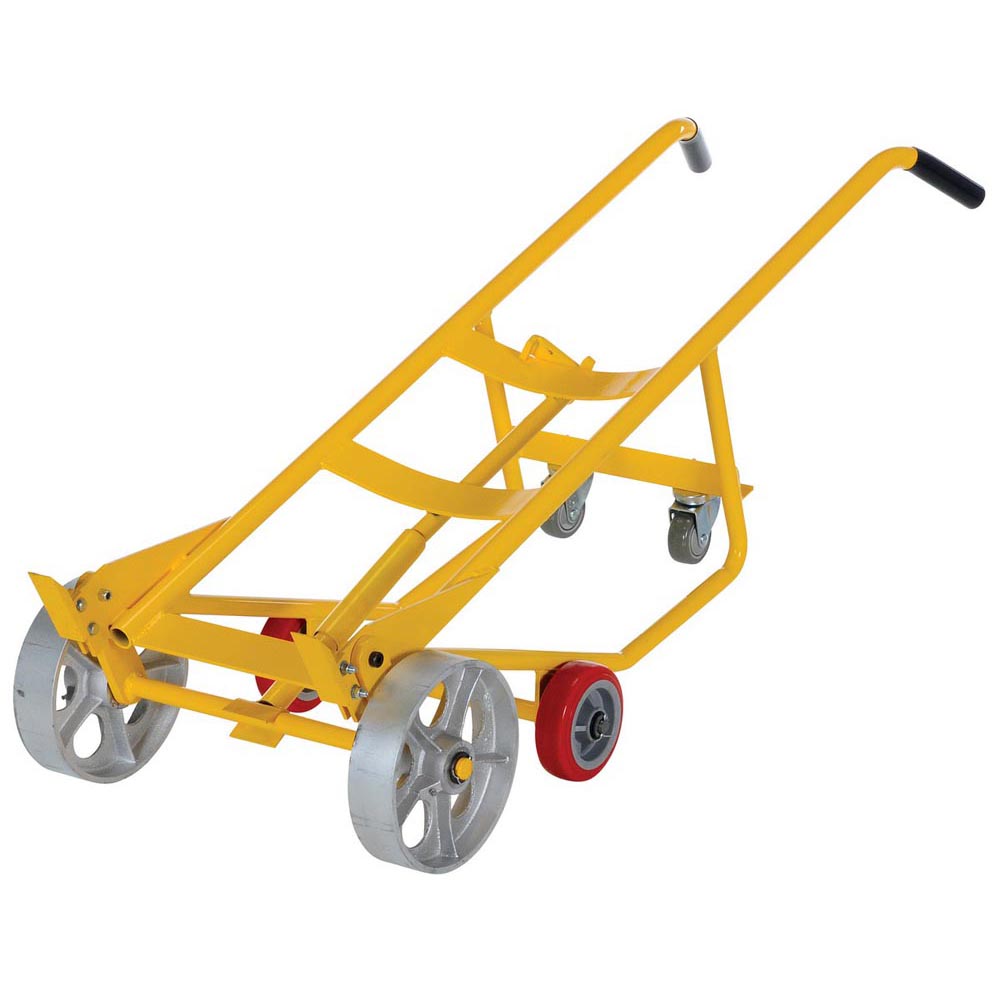

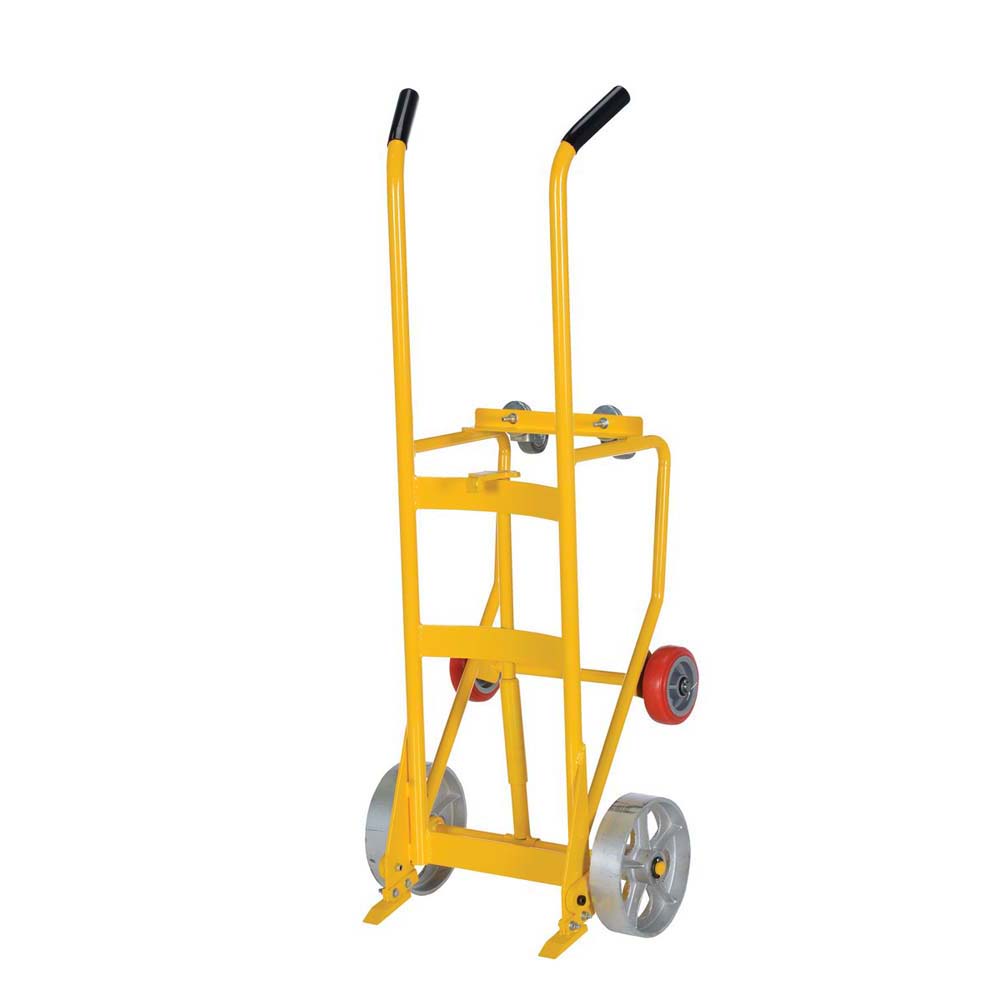

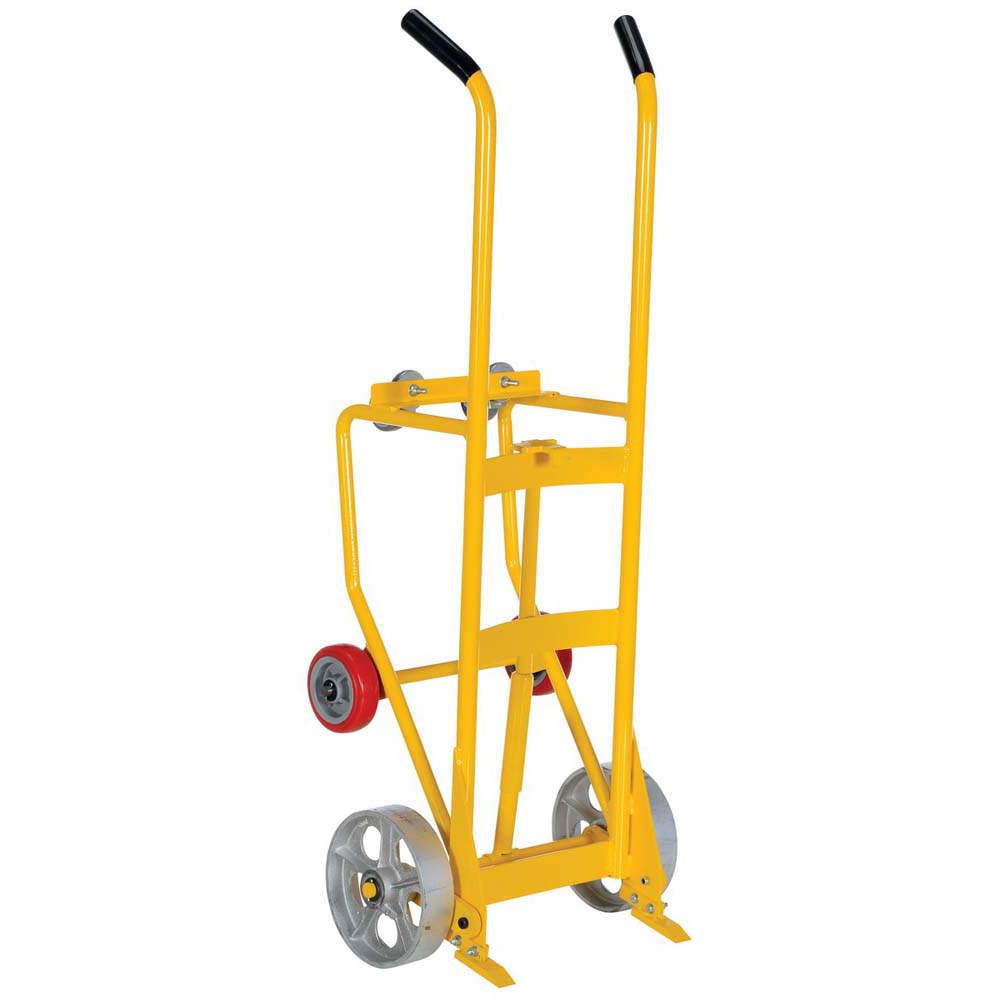

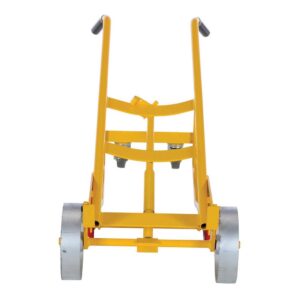

Vestil RDBT-SS Drum Truck Cradle with Semi-Steel Wheels

This Multi-Purpose Drum Truck/Cradle is one of the most versatile drum trucks in the industry. This innovative product allows the operator to easily tip back the truck in order to transport drums ergonomically on four (4) wheels. Unit doubles as a drum cradle for storage and dispensing all in one. This unique design also allows the operator to place drums and retrieve off of a pallet. Standard with a wheeled undercarriage that positions the drum horizontally for drainage or storage. An integral self-storing bung wrench is standard. This attractive feature not only opens numerous drums, but helps to keep the drum snug on the truck. Powder coat finish.

• Multi-Purpose drum truck/cradle is versatile for ideal operation

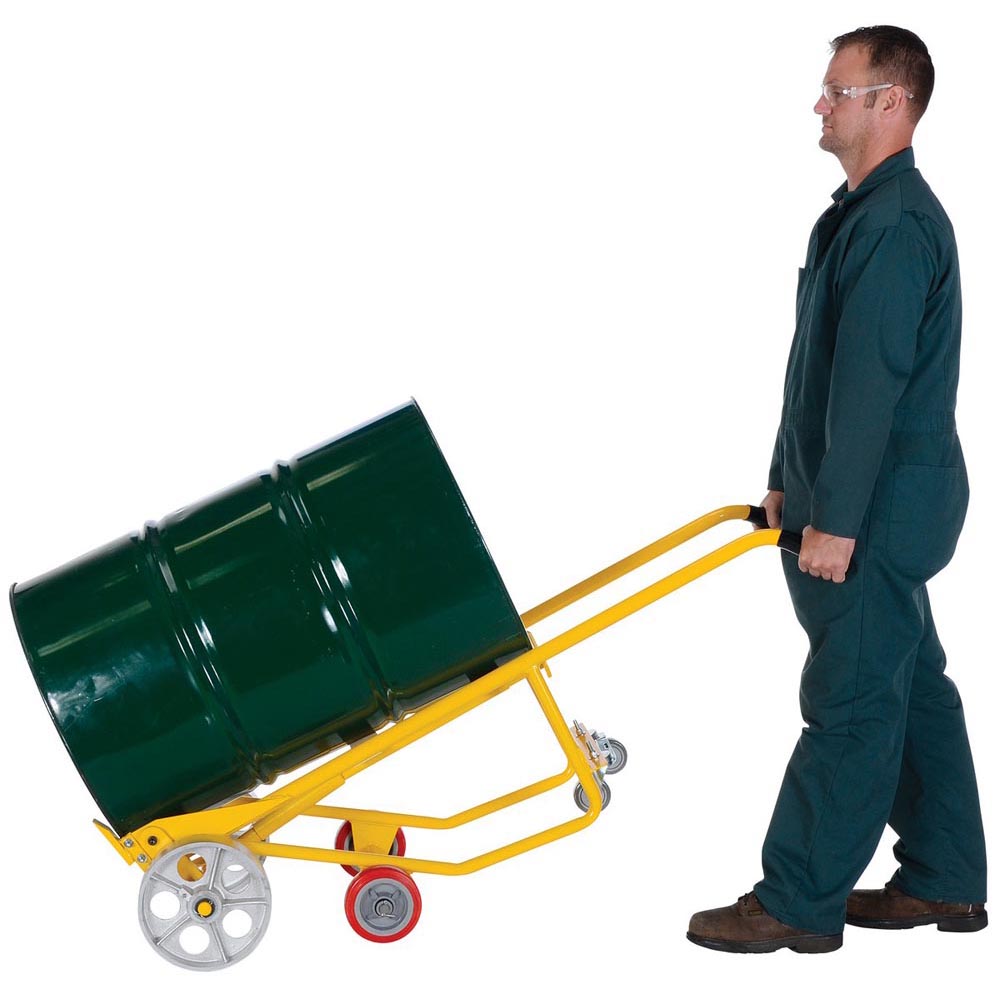

• Tip back the truck in order to transport drums ergonomically on four wheels

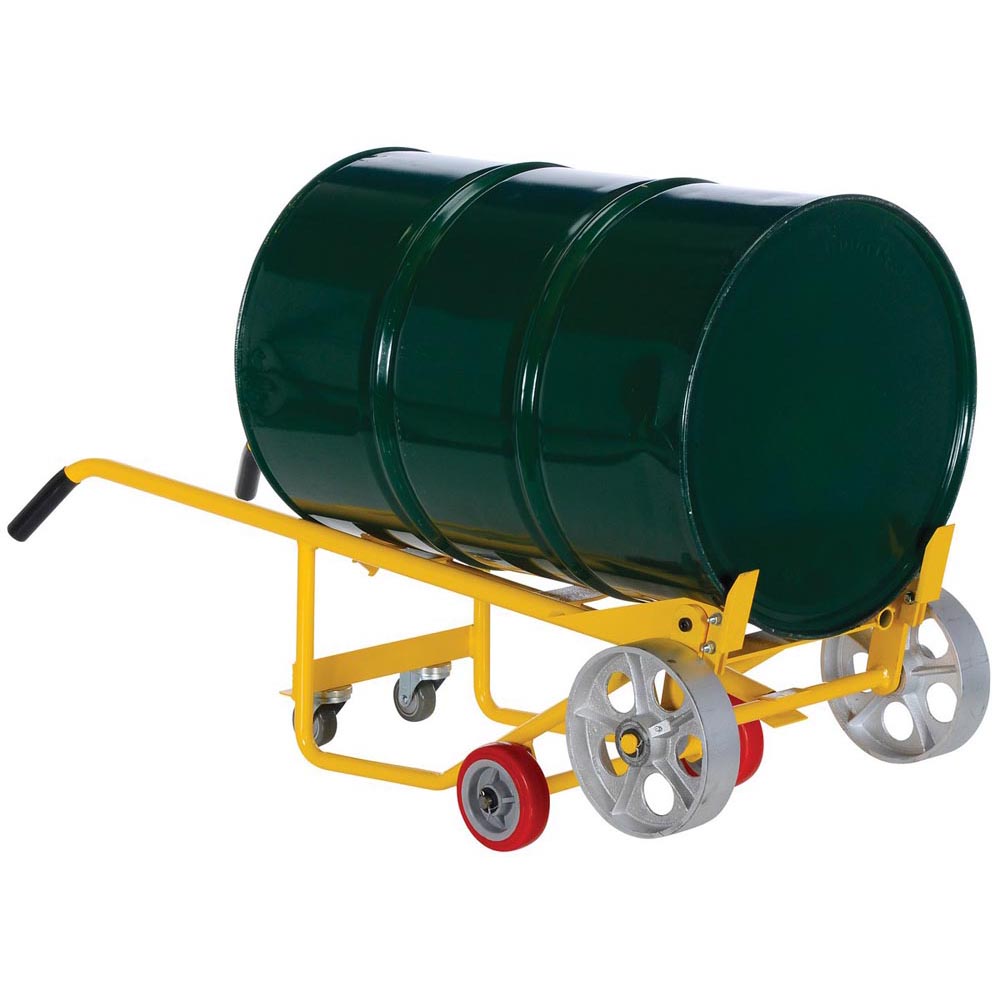

• Features a wheeled undercarriage that positions the drum for drainage or storage
• Includes an integral self-storing bung wrench

Specification

• Uniform Capacity (lb.): 1,000
• Semi-Steel Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
• Poly on Poly Wheel Quantity/Diameter/Width (in.): (2) 6 x 2
• Poly on Poly Swivel Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4
• Drain Height (in.): 12-13/16
• Tip Angle (degree): 3
• Accepts: 55-gallon steel, plastic or fiber drums
• Nose plate Depth (in.): 4
• Nose plate Width (in.): 1-1/2
• Nose plate Thickness (in.): 1/2
• Number of Vertical Supports (quantity): 2
• Usable Width (in.): 17-1/16

Documents

Click for RDBT-SS Approval Drawings
