Vestil S-FORK-4/6-RL Hoisting Hook Single Fork Rigid Latch

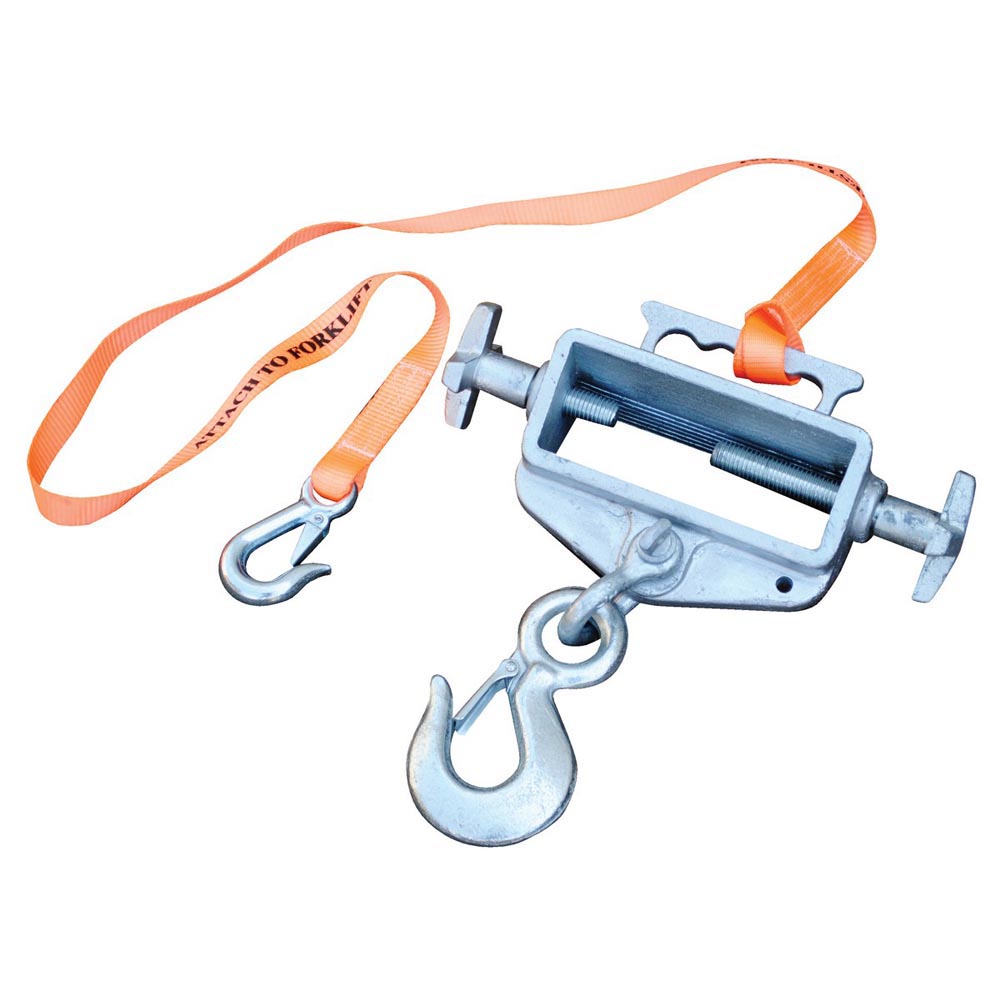

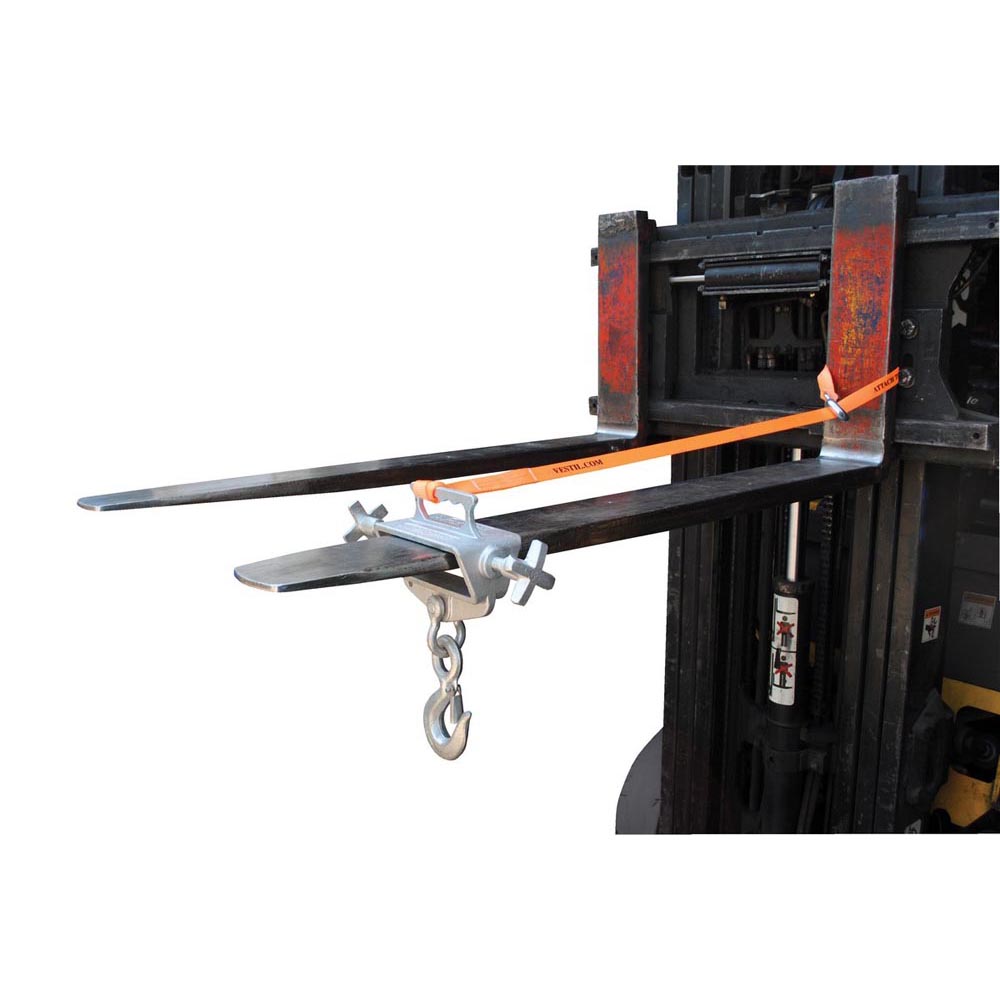

Convert your fork truck into a hook with anchor in a matter of seconds. The easy to attach Hoisting Hook does not require the assistance of special tools. Secured to the fork truck by means of a long safety restraint and screw clamps. Unit is zinc plated. Hook with shackle included.

• Hook shackle provides additional versatility to unit
• Unique design does not require tools to install
• Safety restraint and screw clamps secure unit to forks
• Zinc plated coating provides a durable long lasting finish

Specification

• Uniform Capacity (lb.): 4,000
• Safety Restraint Length (in.): 48
• Usable Fork Pocket Width (in.): 6
• Usable Fork Pocket Height (in.): 2-1/4
• Compatible Fork Thickness (in.): 2-1/4
• Compatible Fork Width (in.): 2-1/2
• Hook Type: Single Rigid
• Hook Opening (in.): 0.96
• Inner Hook Diameter (in.): 1

Documents

Click for S-FORK-4/6-RL Approval Drawings

Click for Manual
