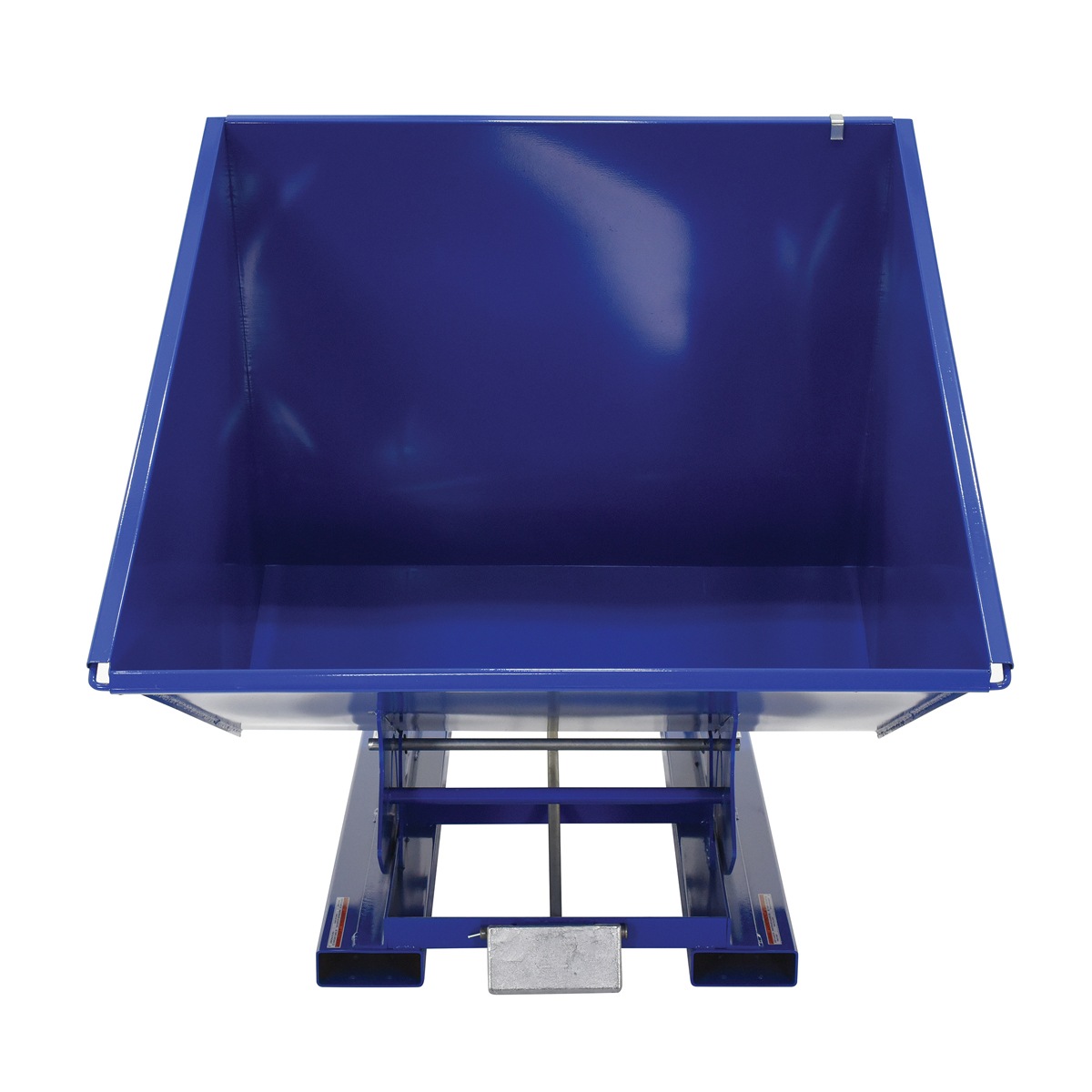

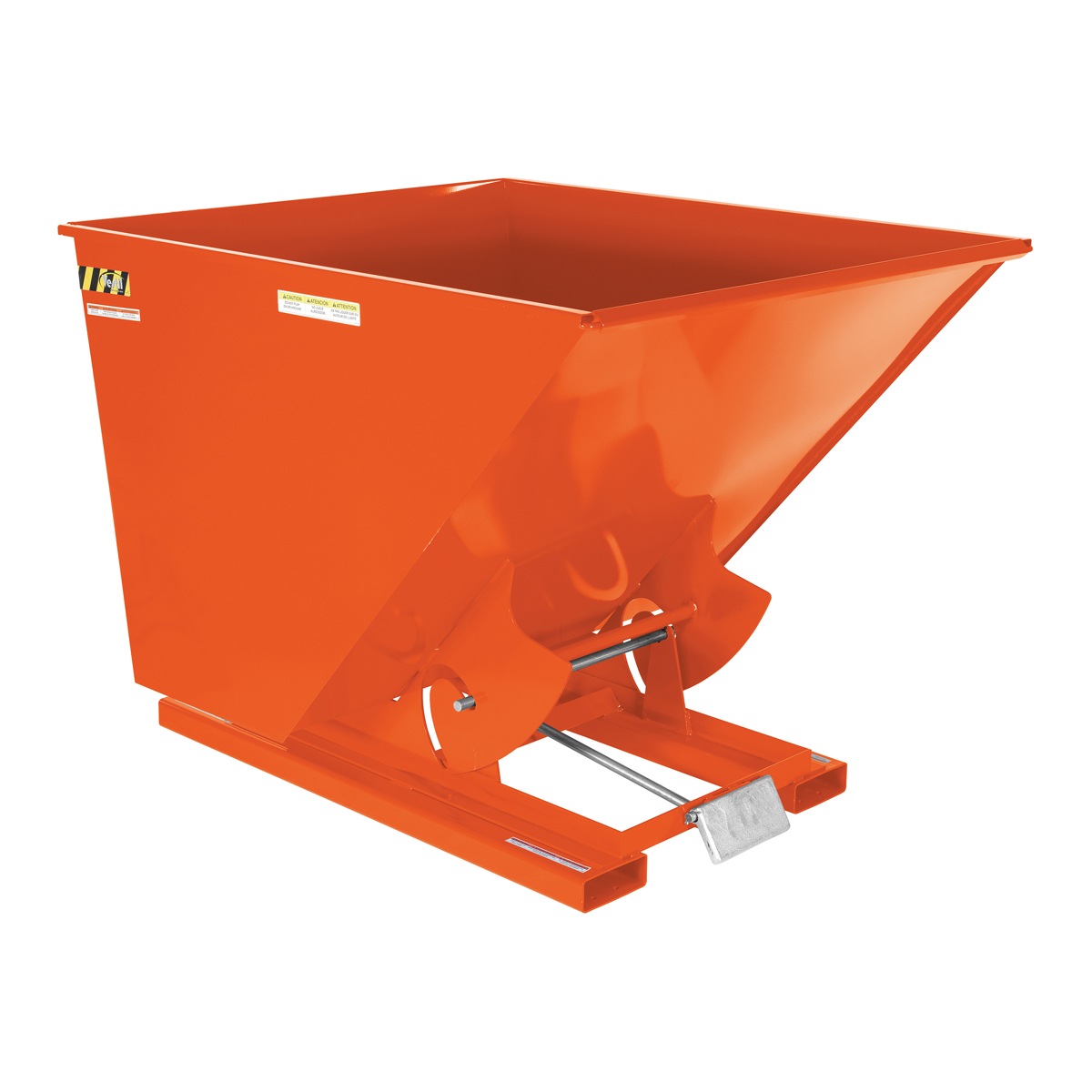

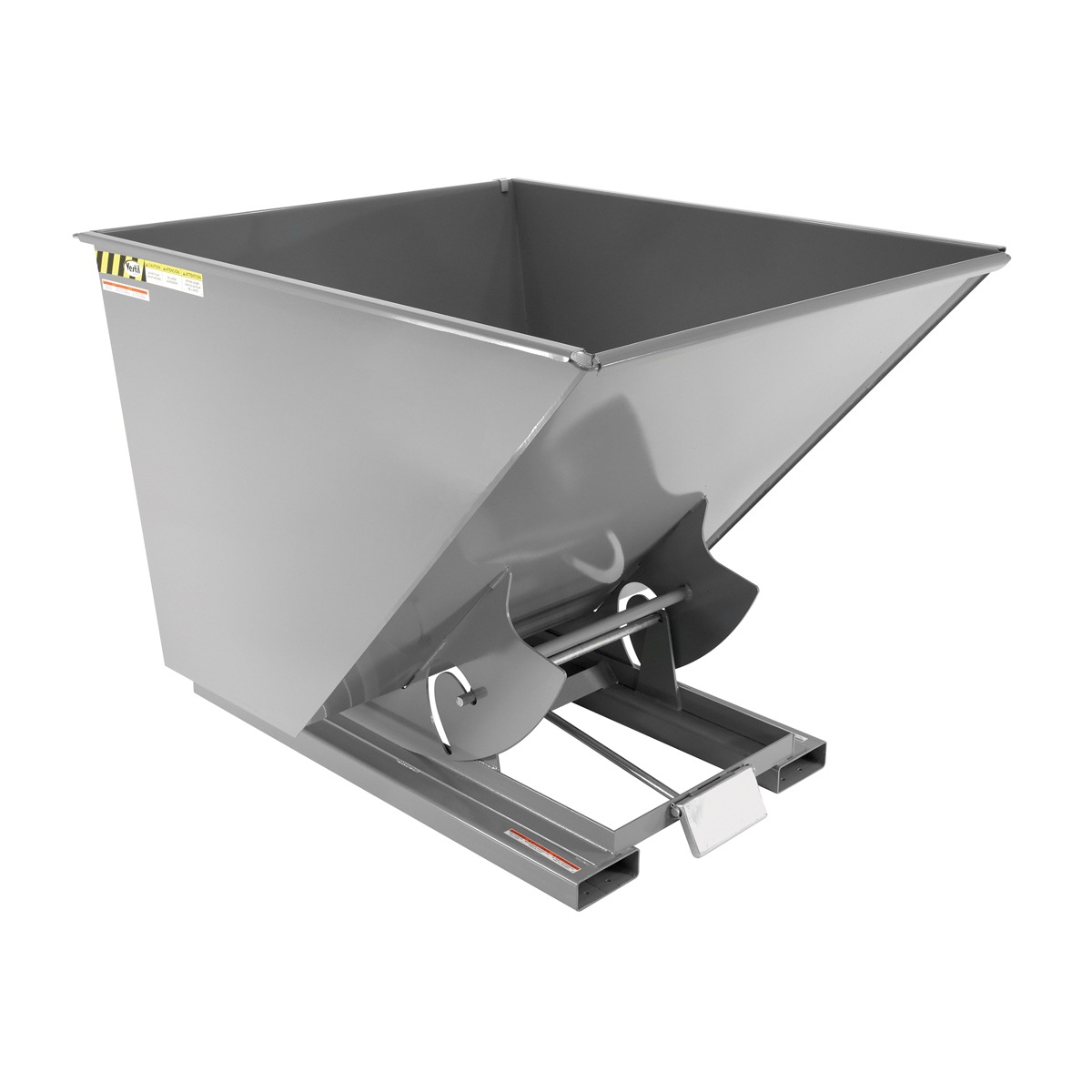

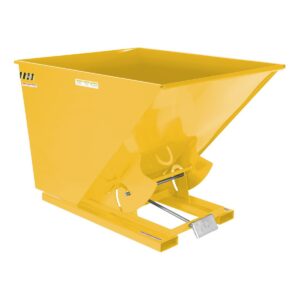

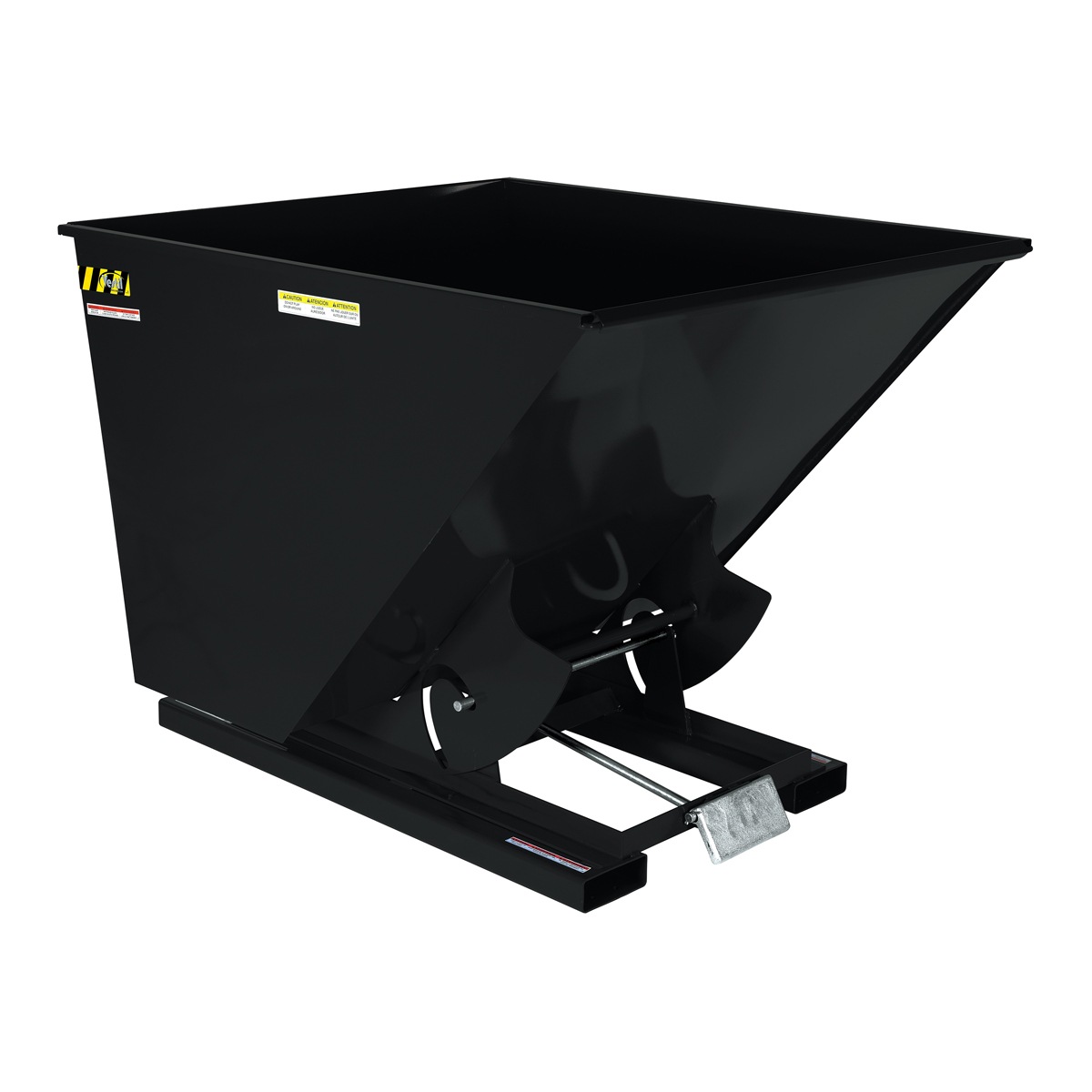

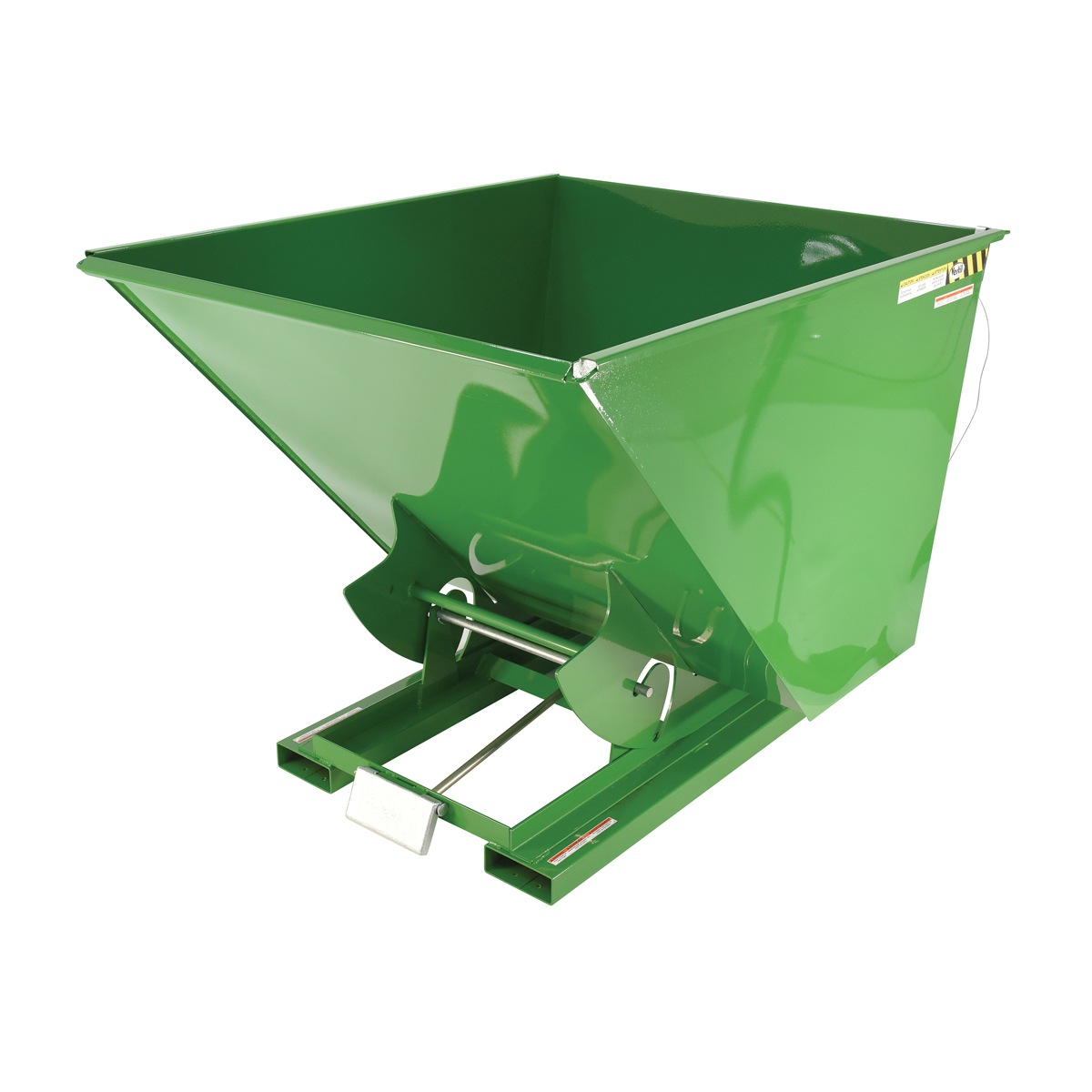

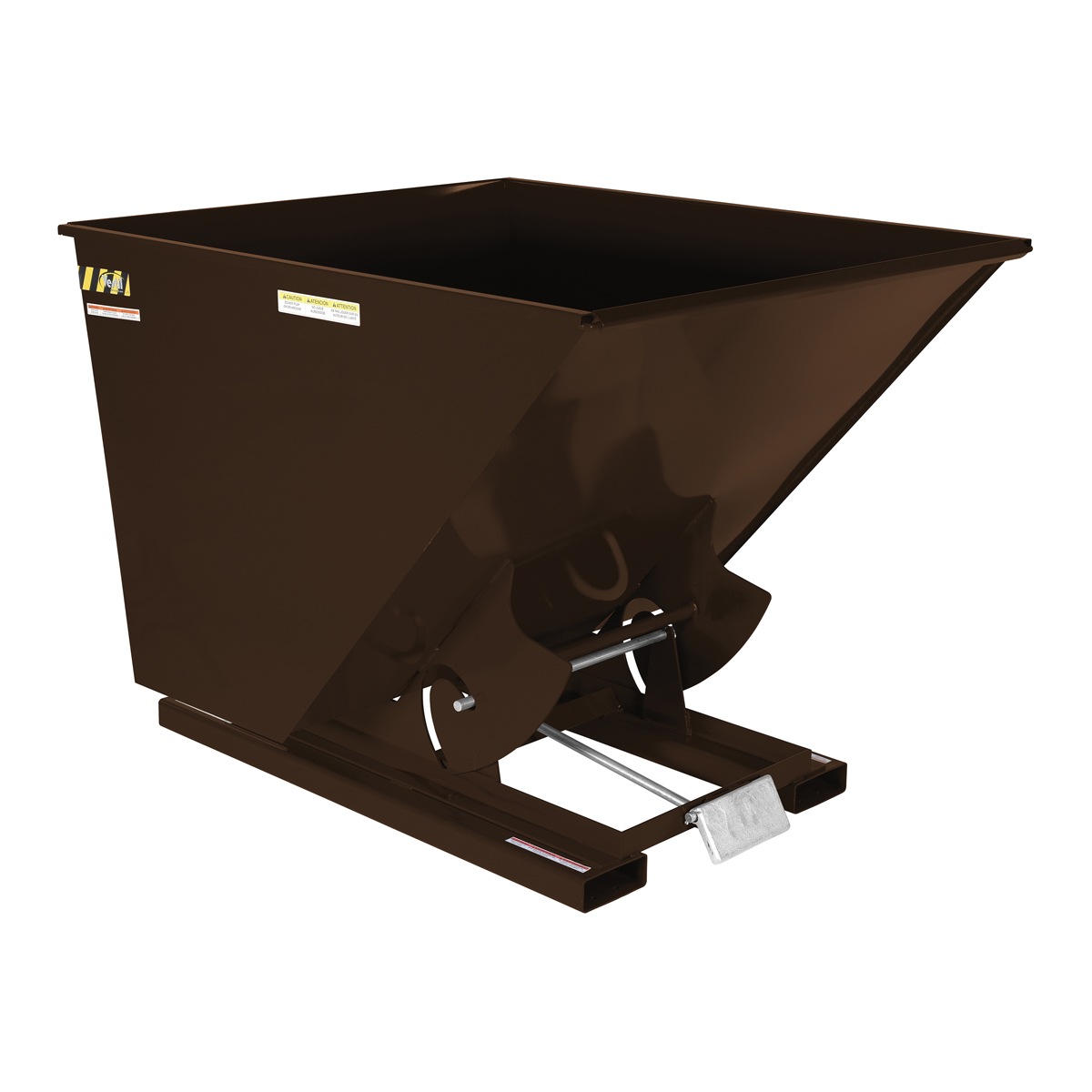

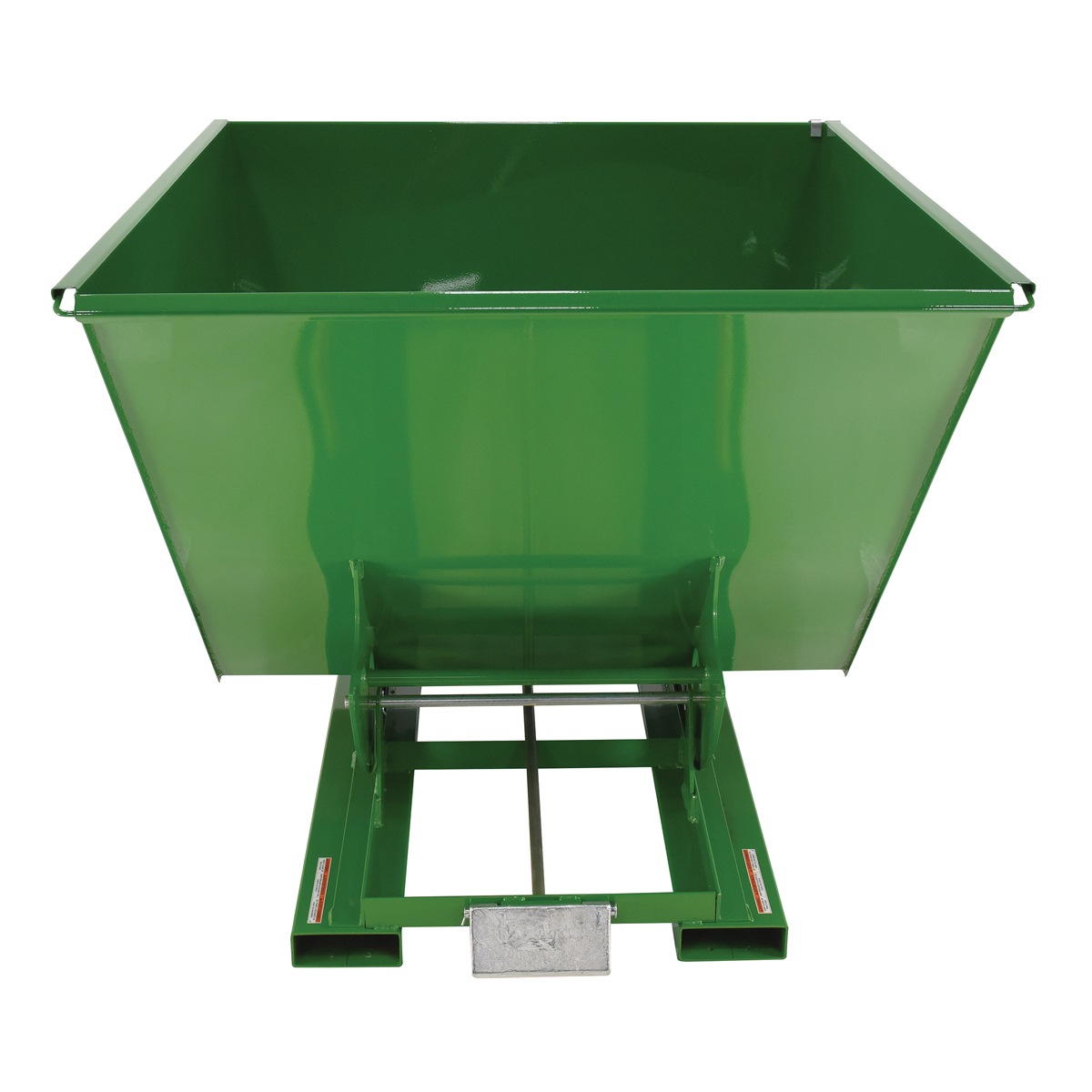

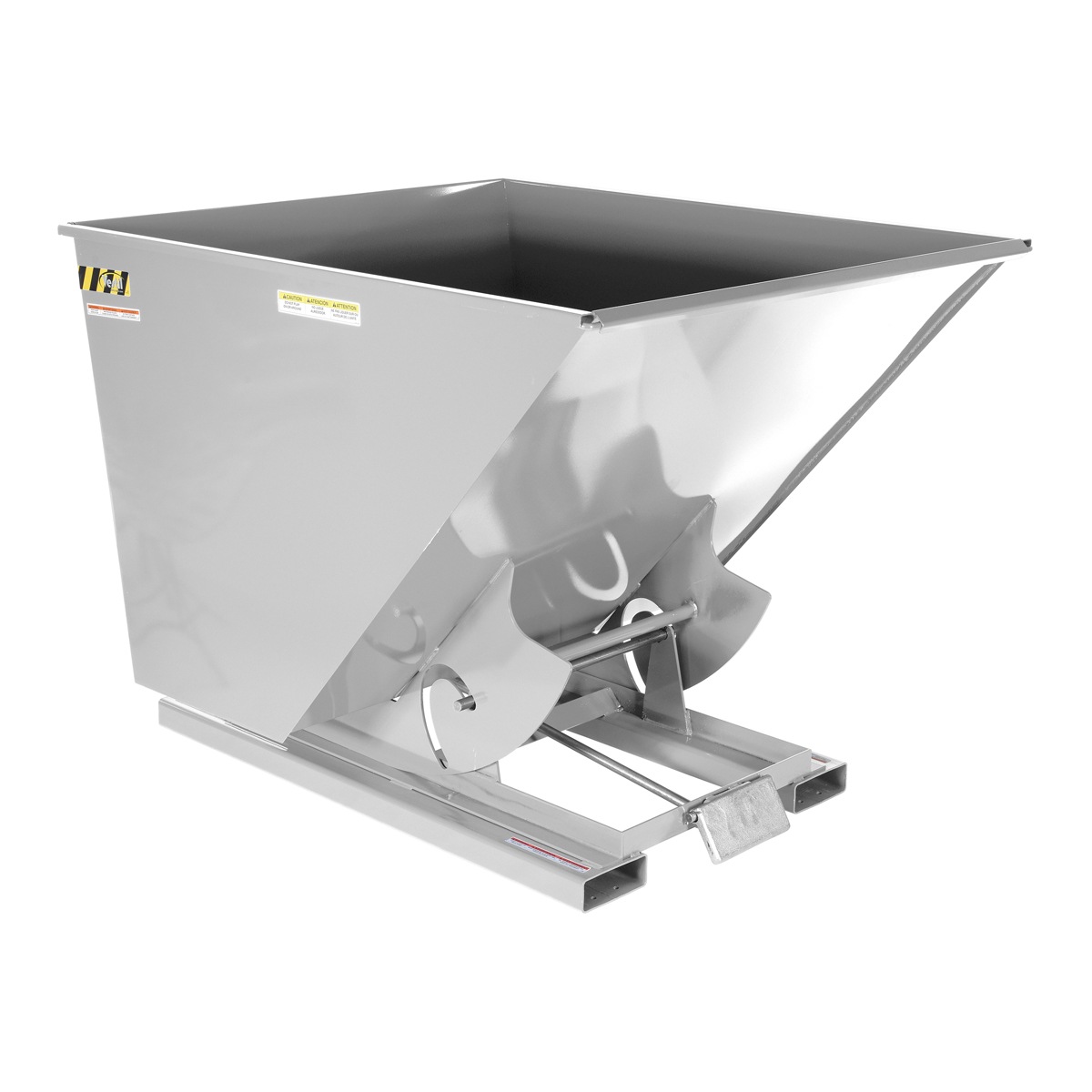

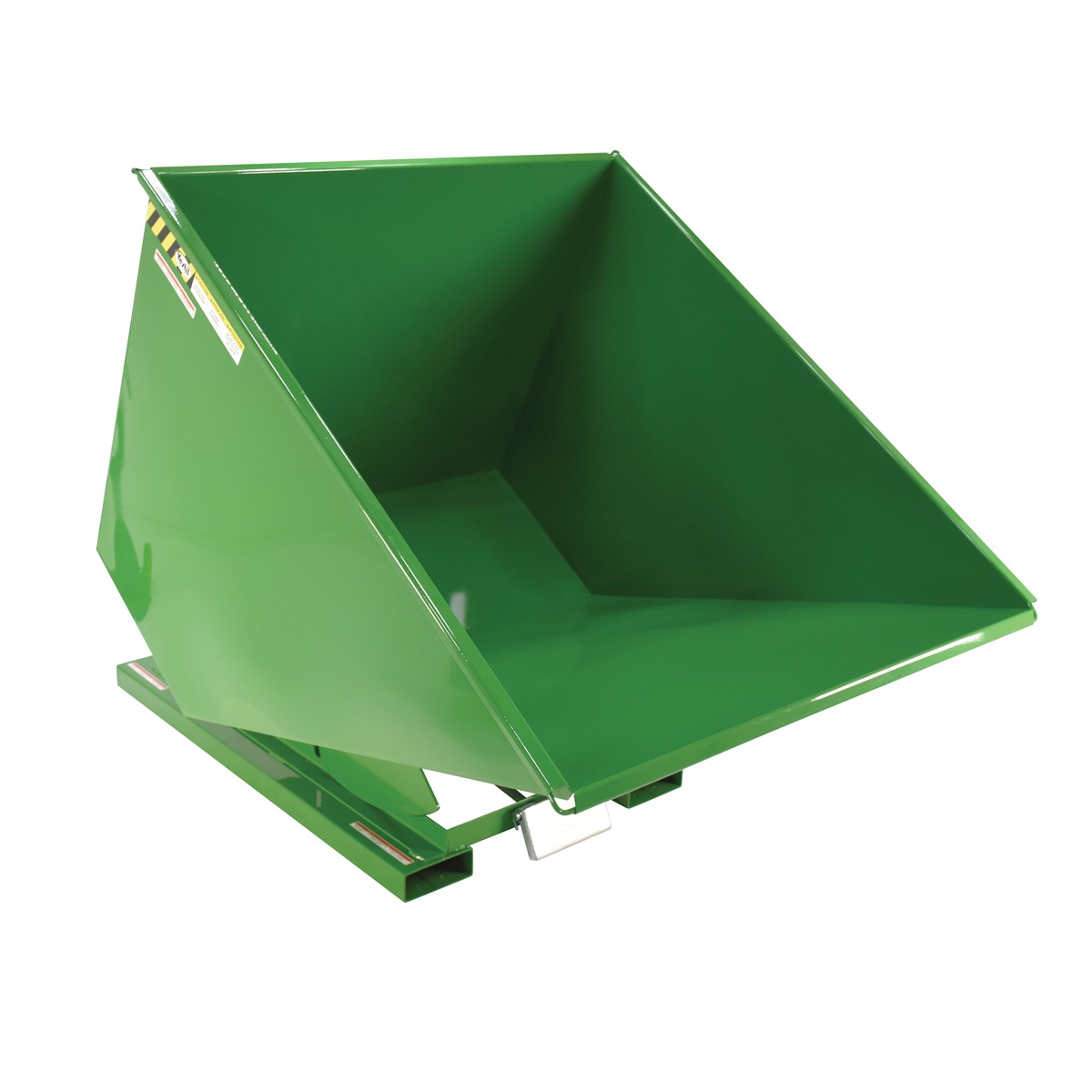

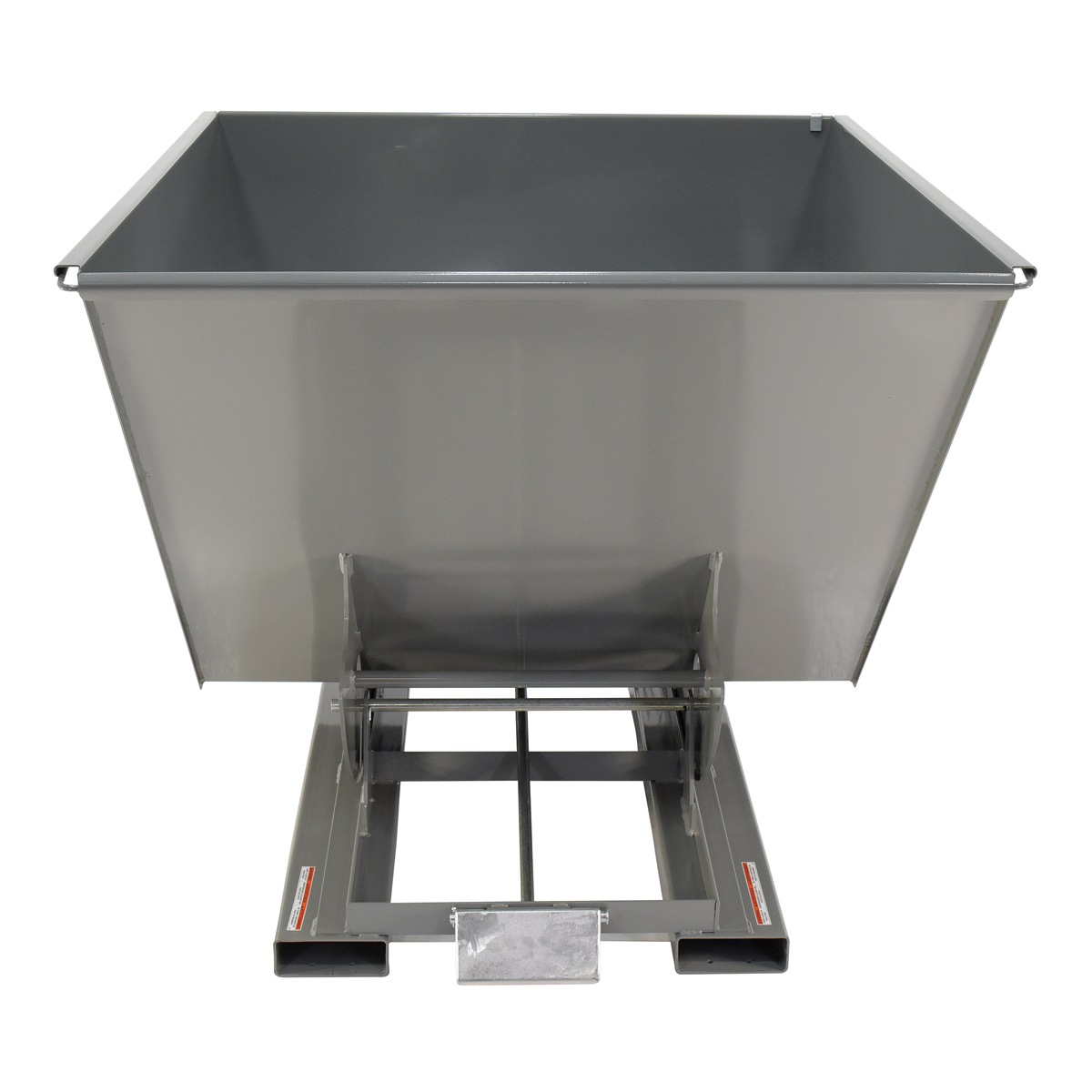

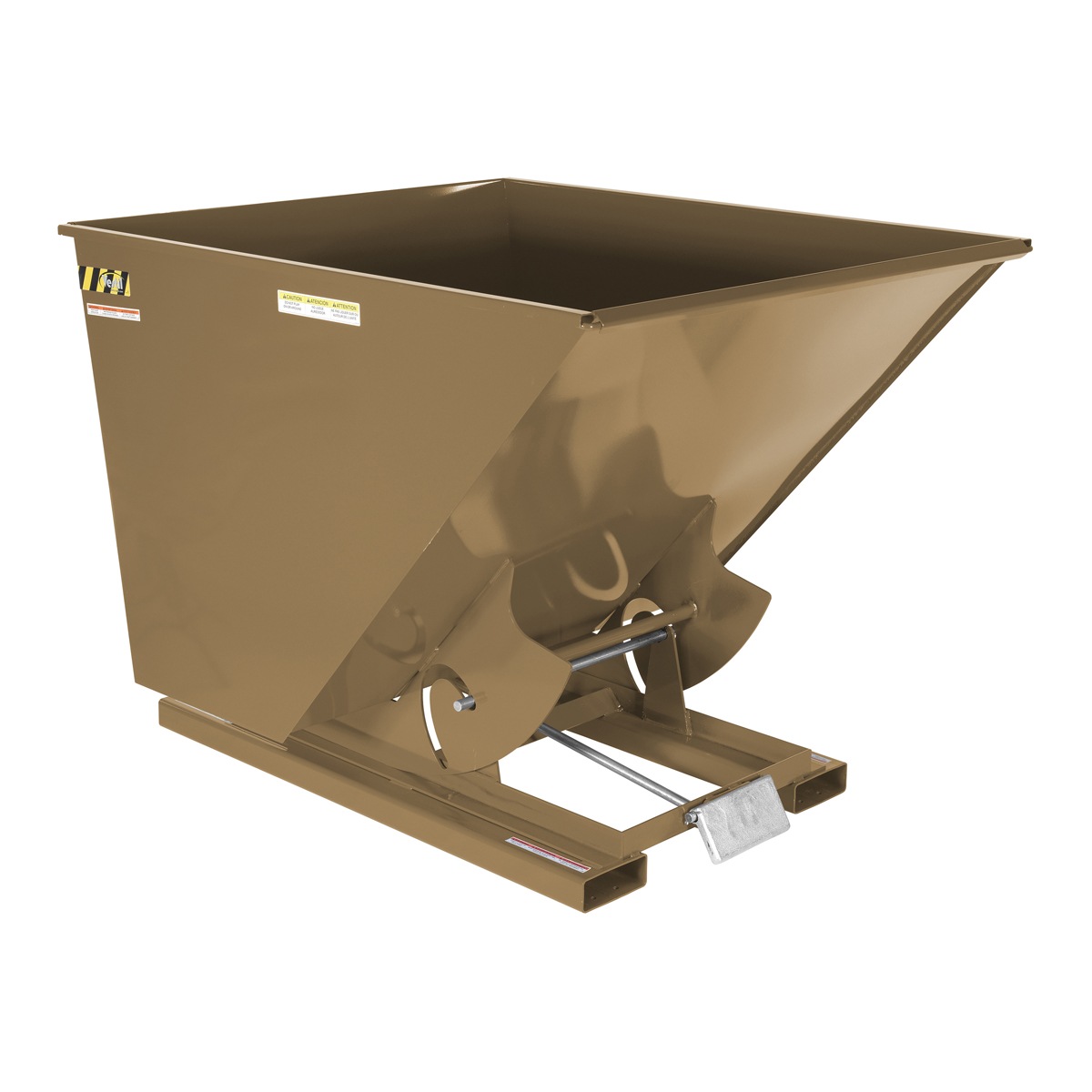

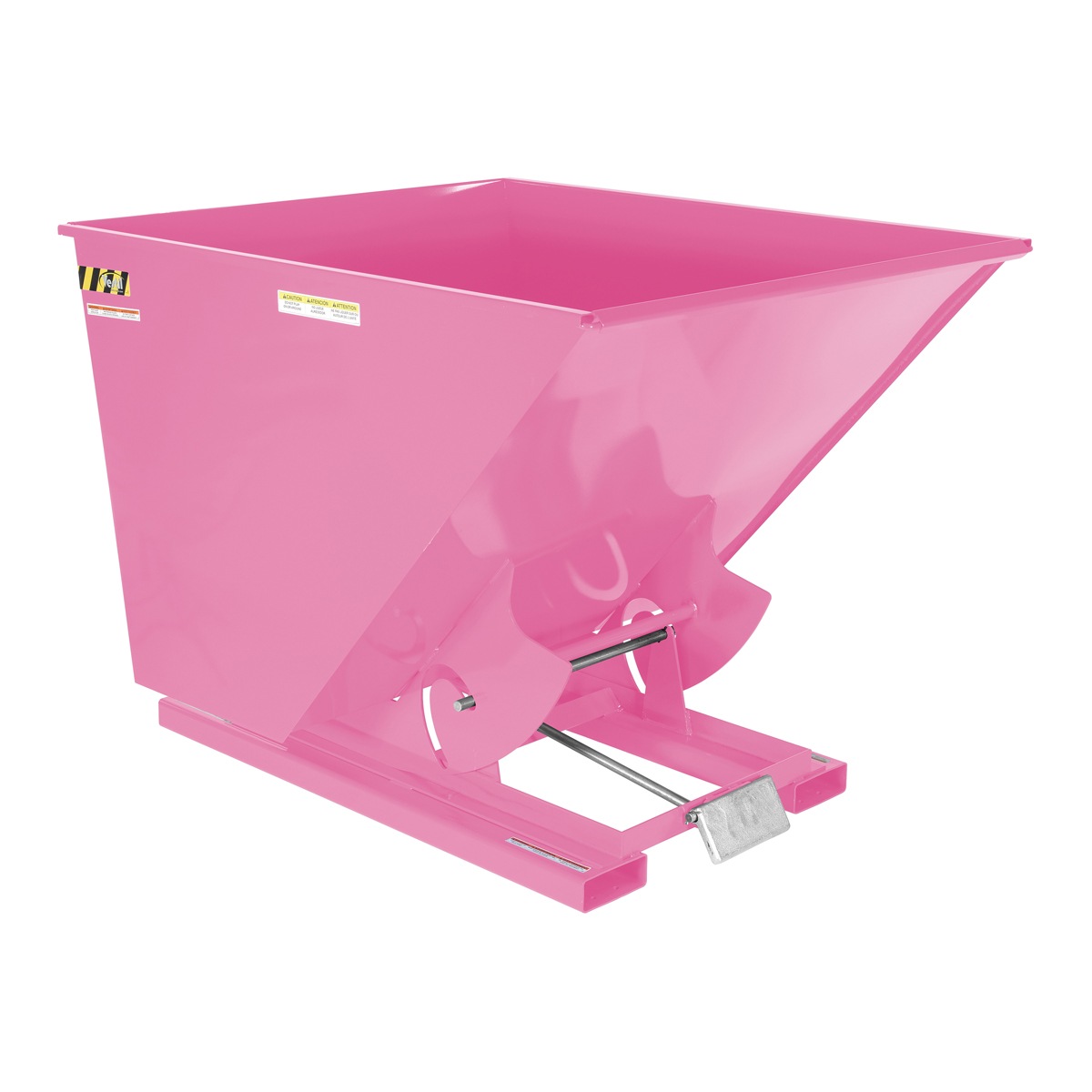

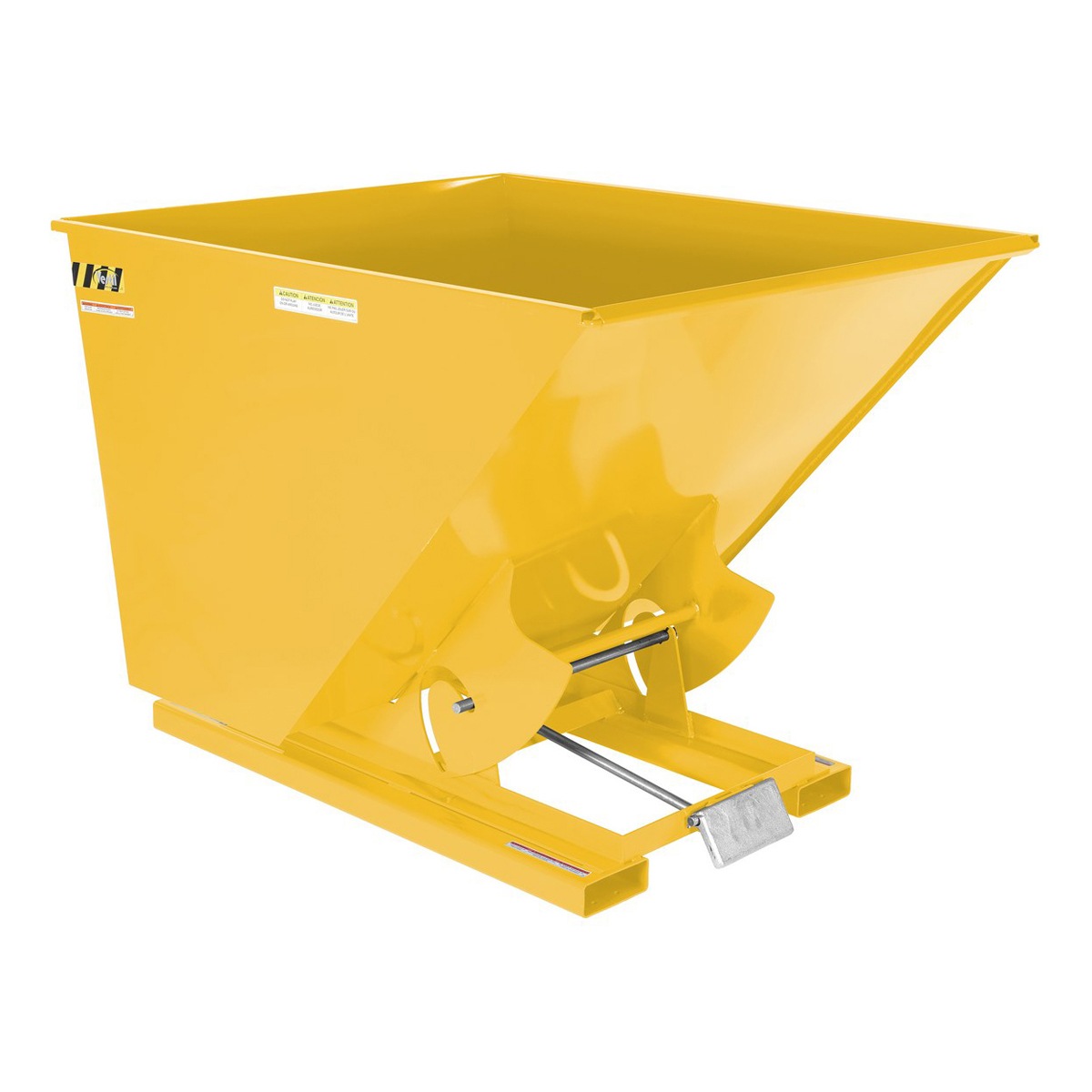

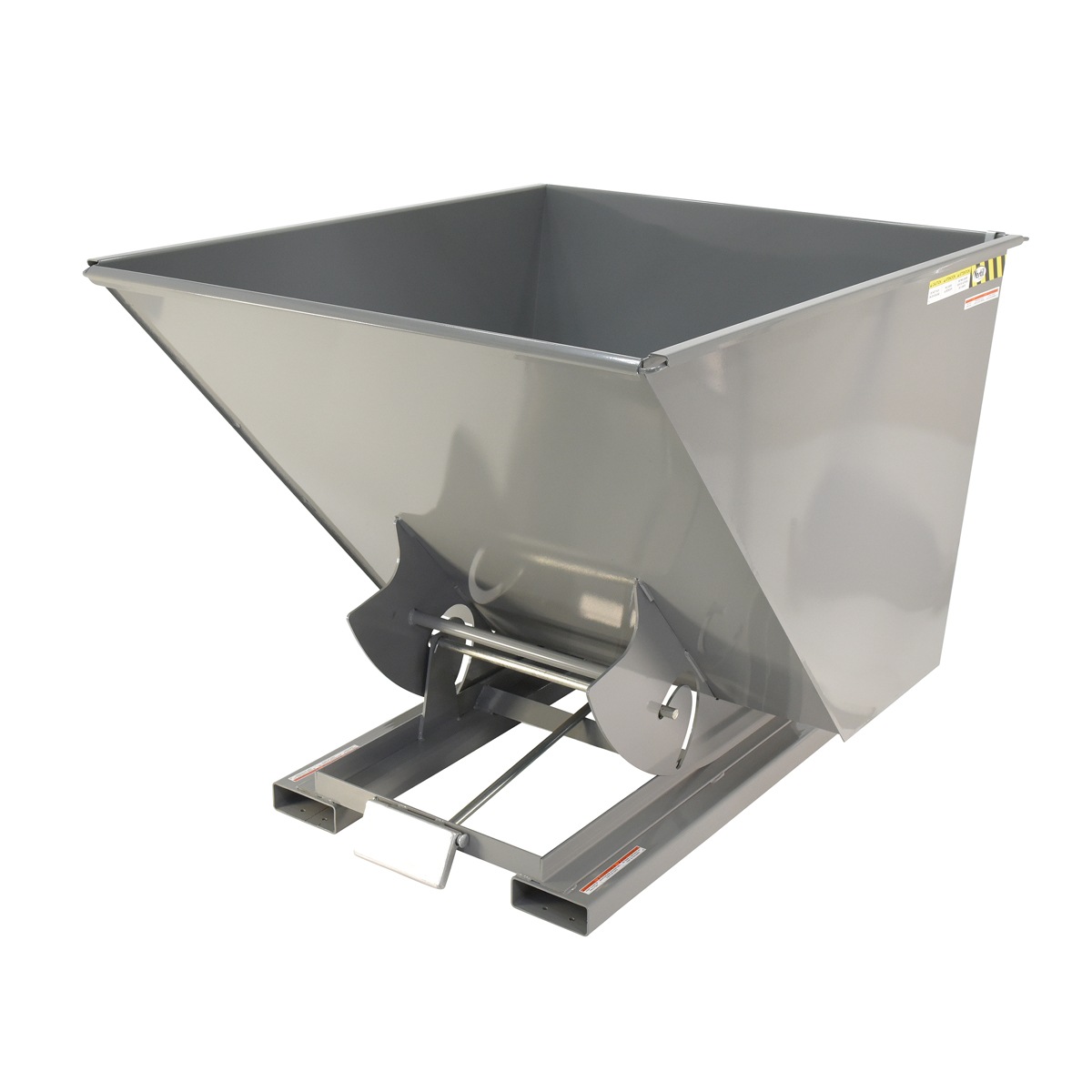

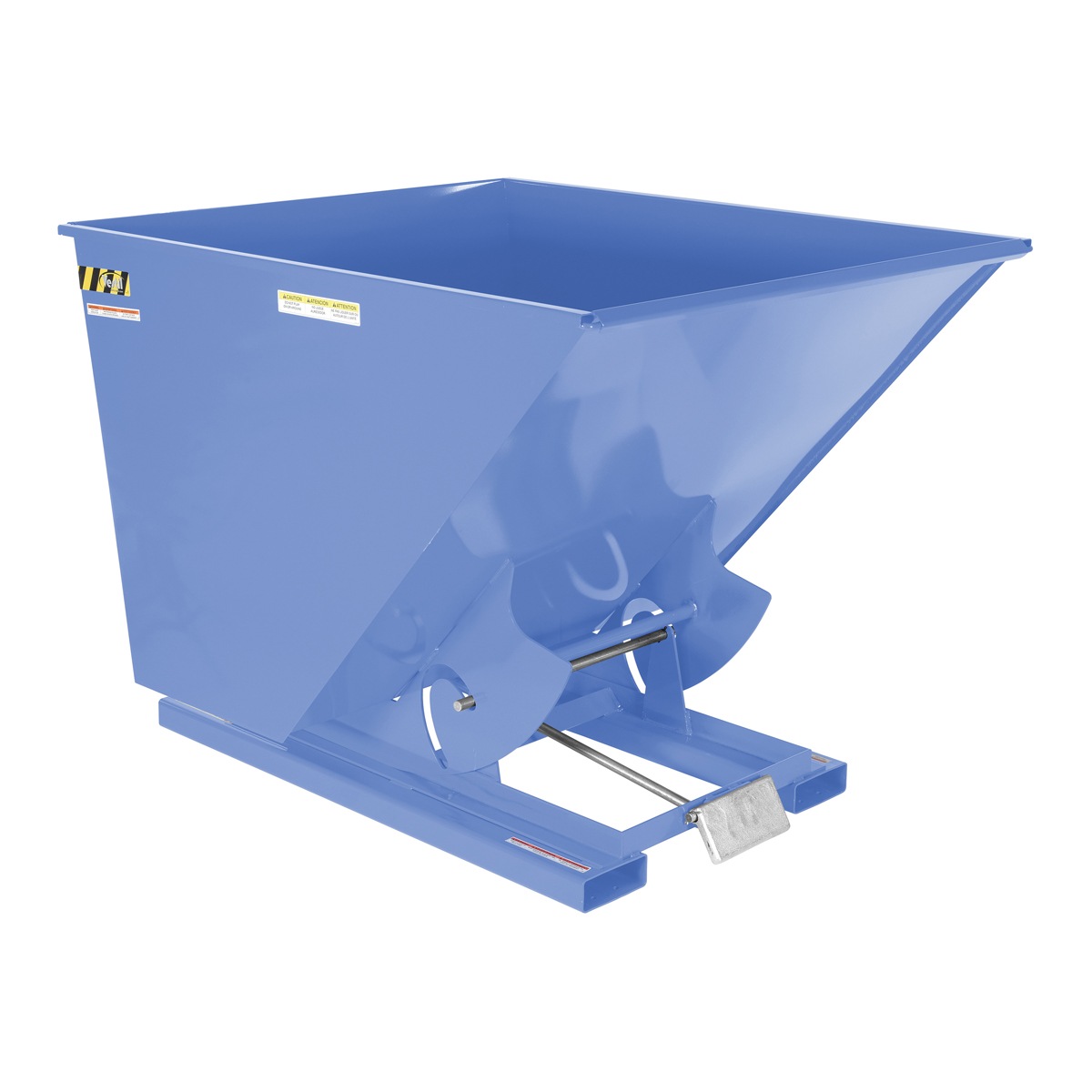

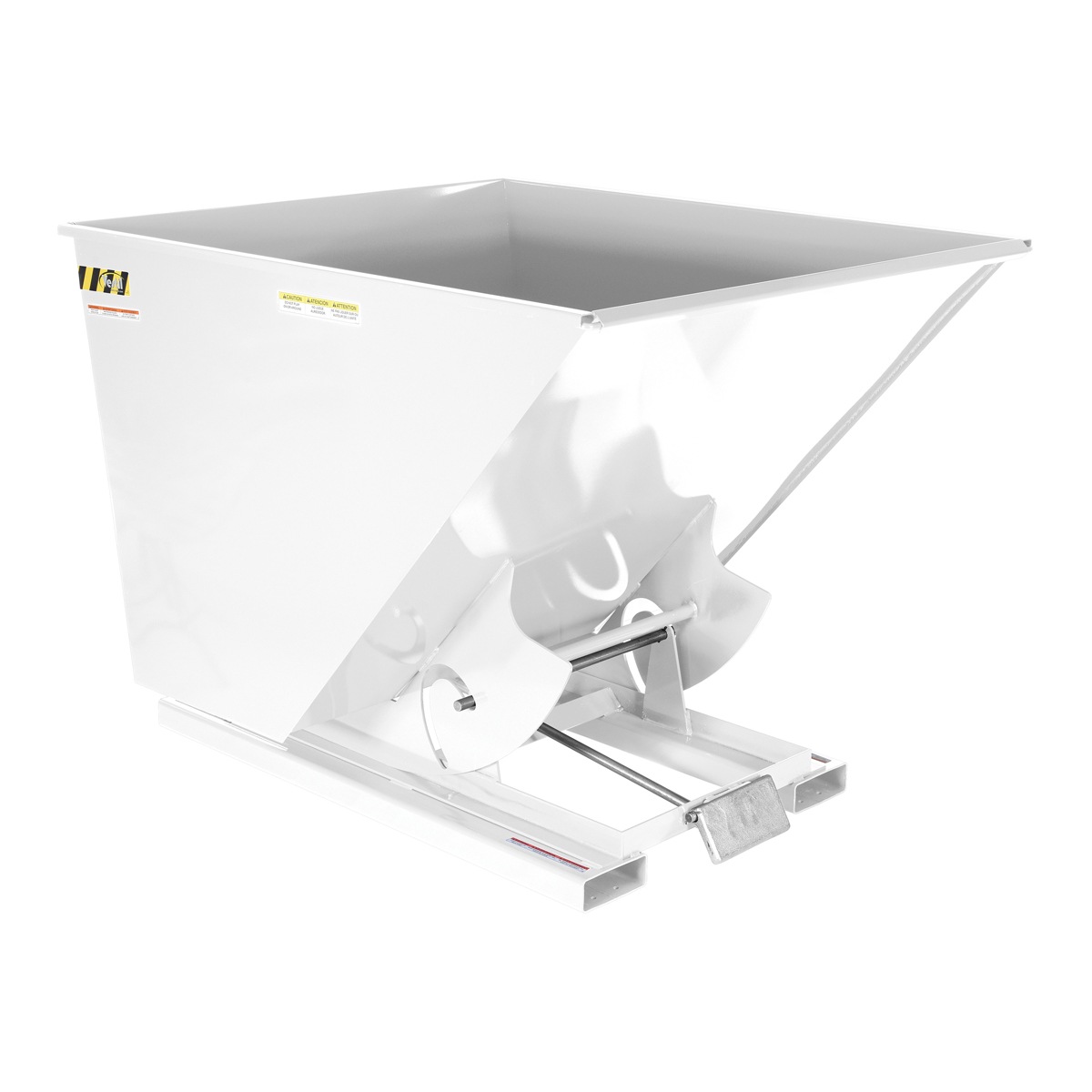

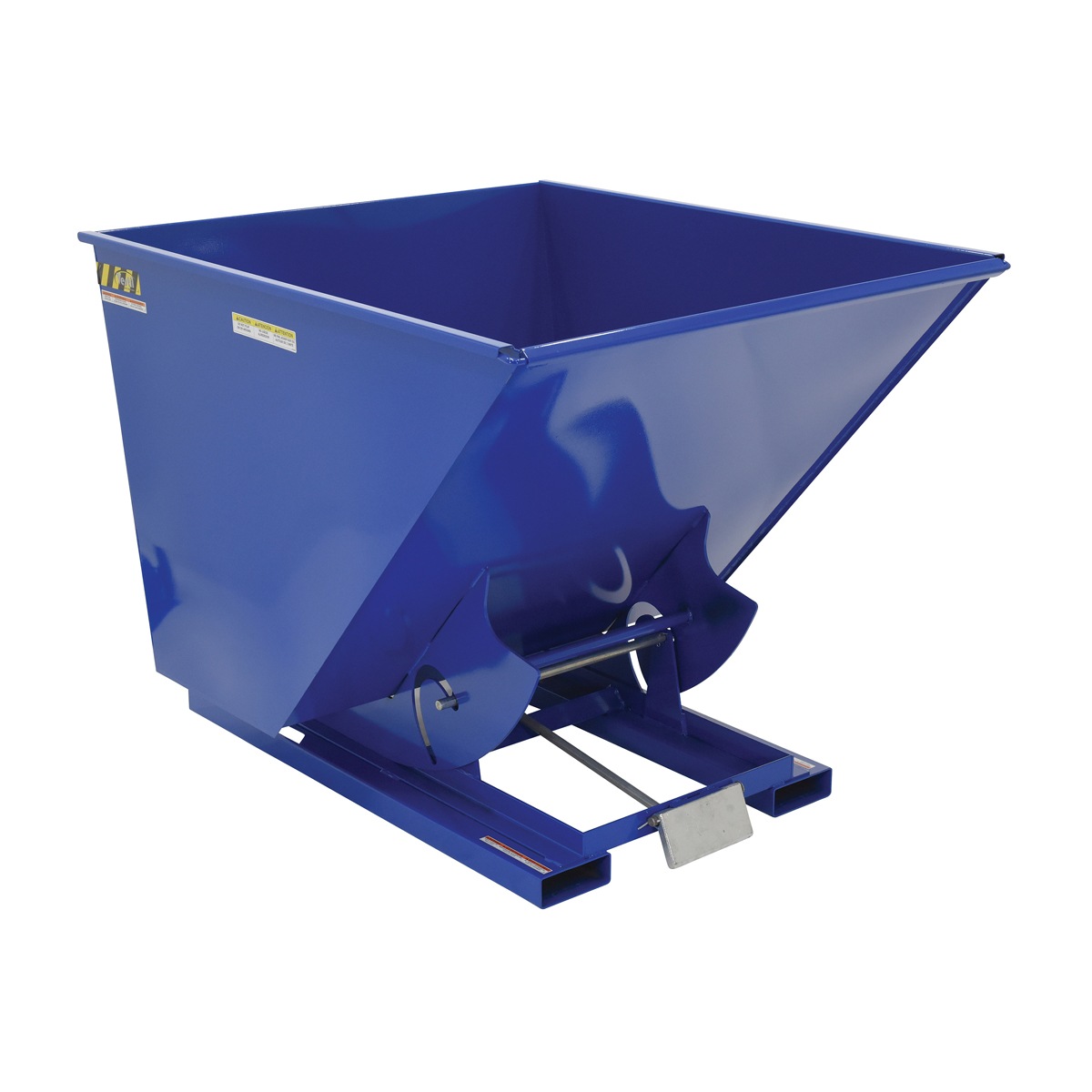

Vestil Self-Dump Hopper HD 2 CU YD

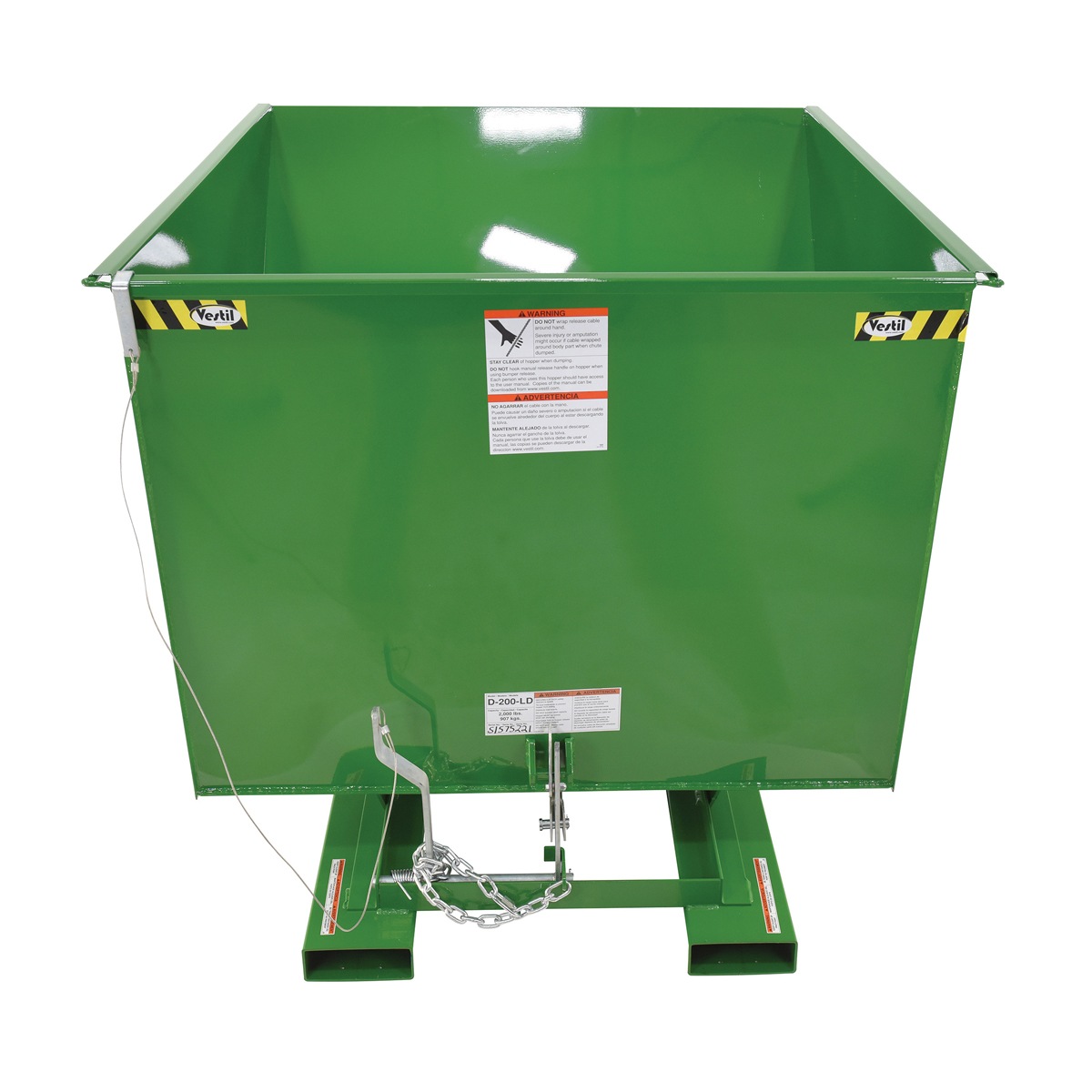

This Light Duty Self-Dumping Steel Hopper with Bumper Release is ideal for the manufacturing and distributing facilities. The Hopper returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. (Length Dimension is measured at top of chute.) Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA General Industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process.

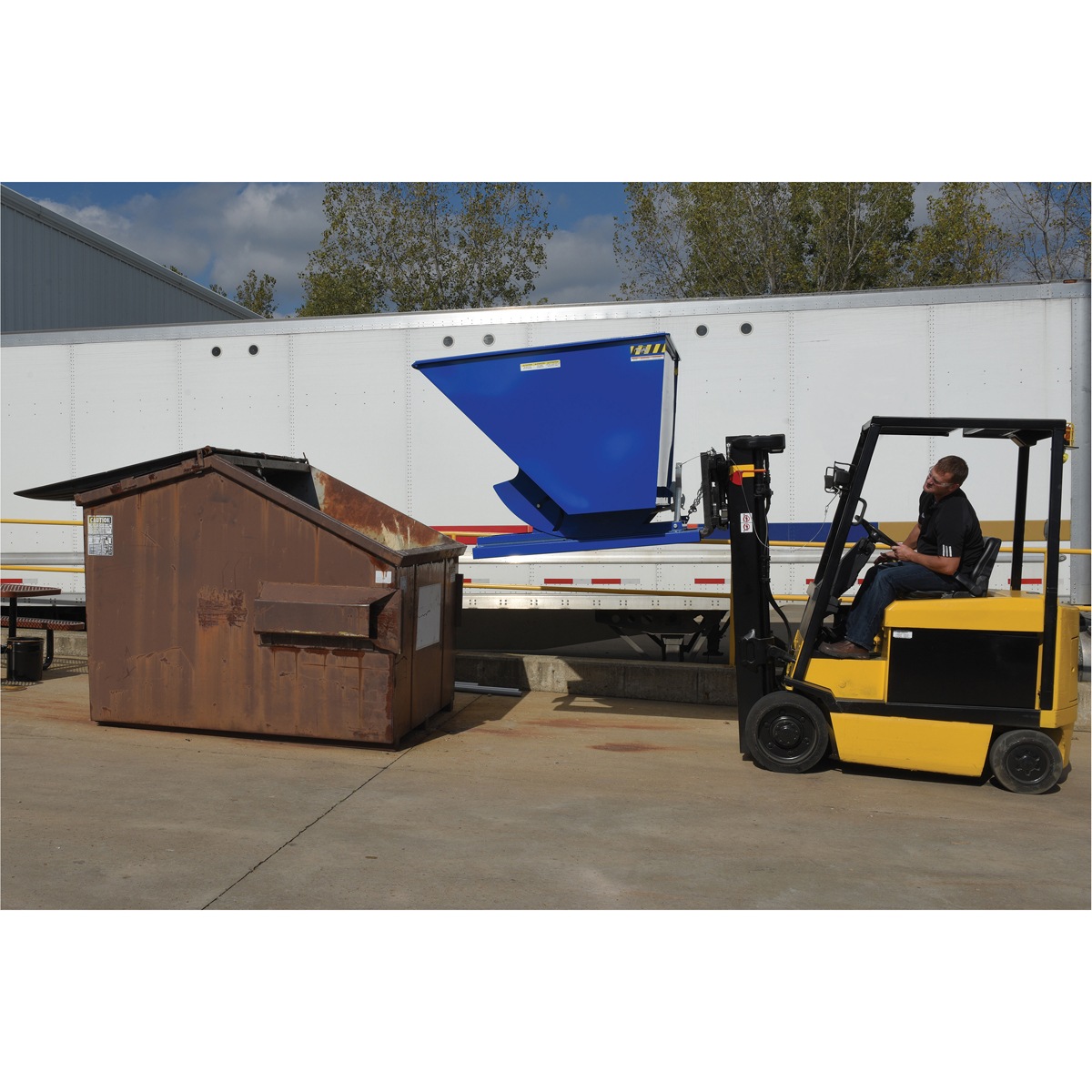

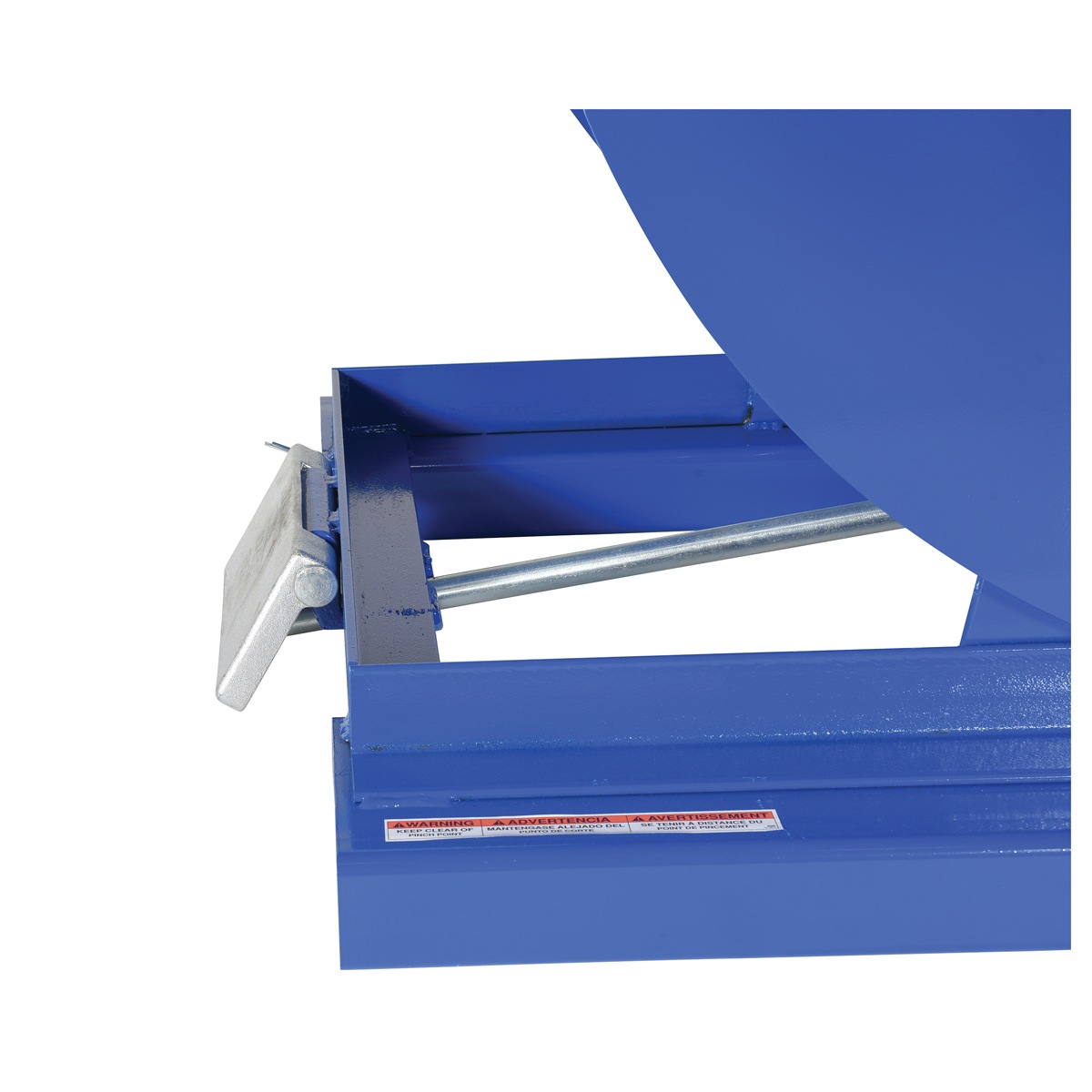

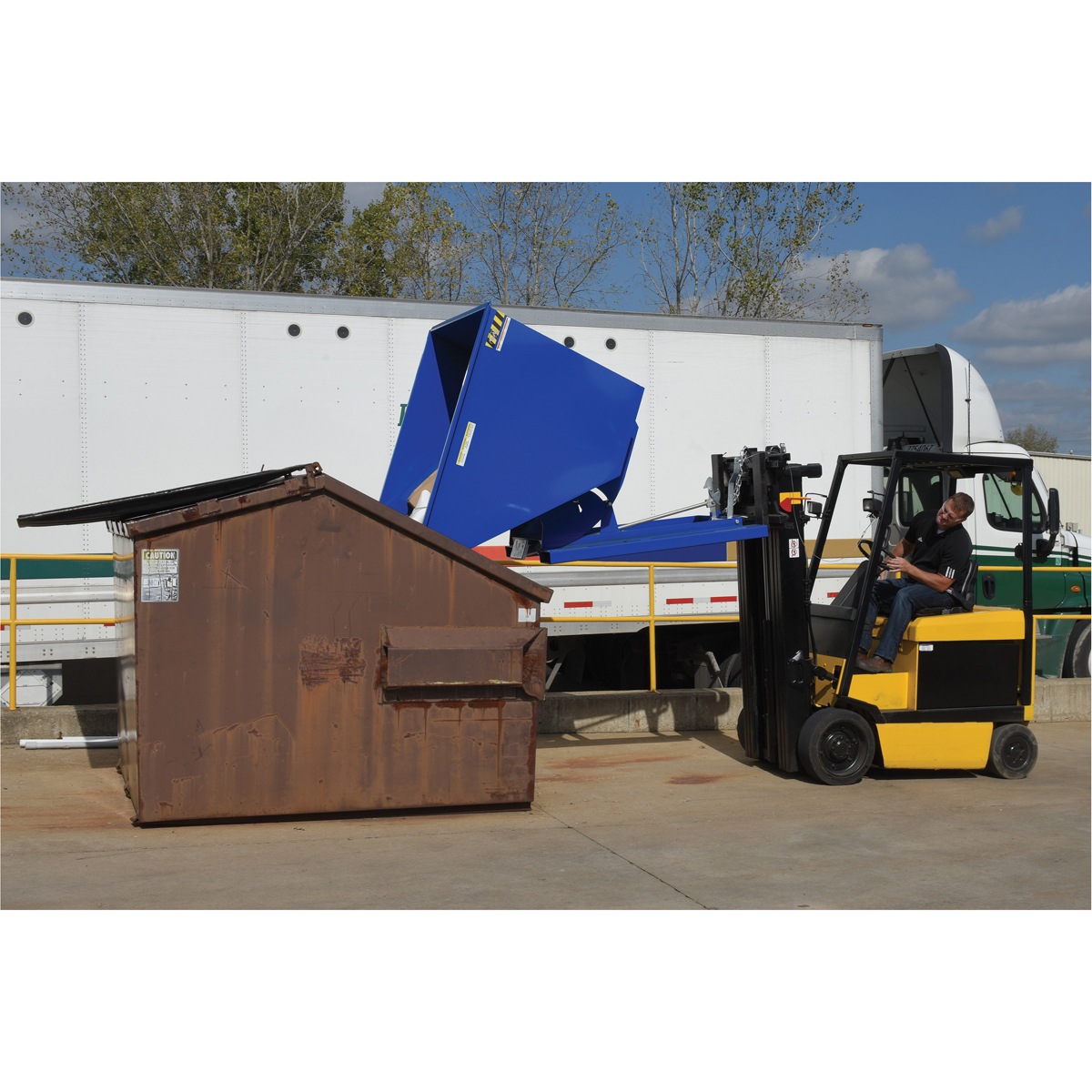

• Automatic bumper release dumps when it contacts the side of the dumpster

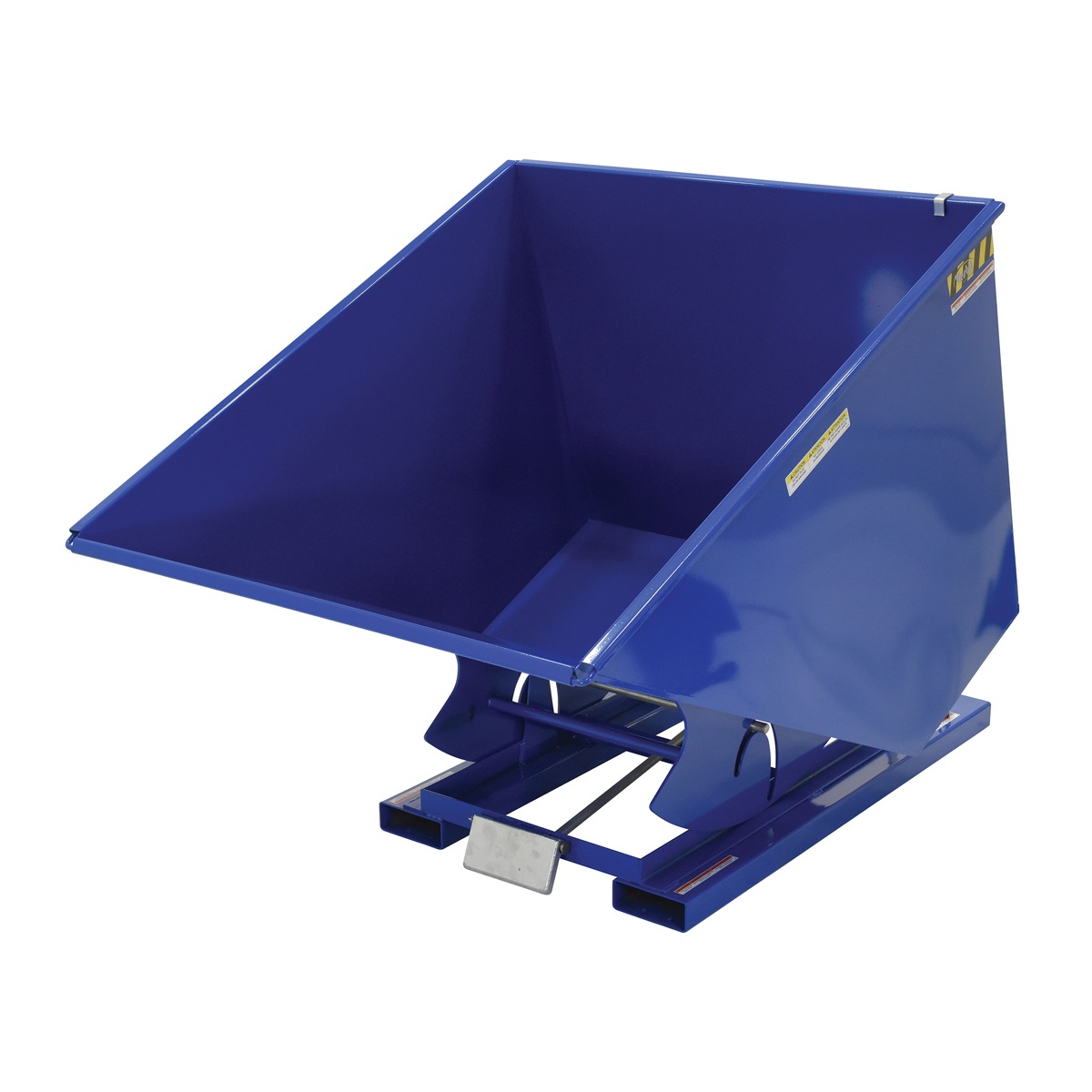

• Returns to upright and locked position automatically

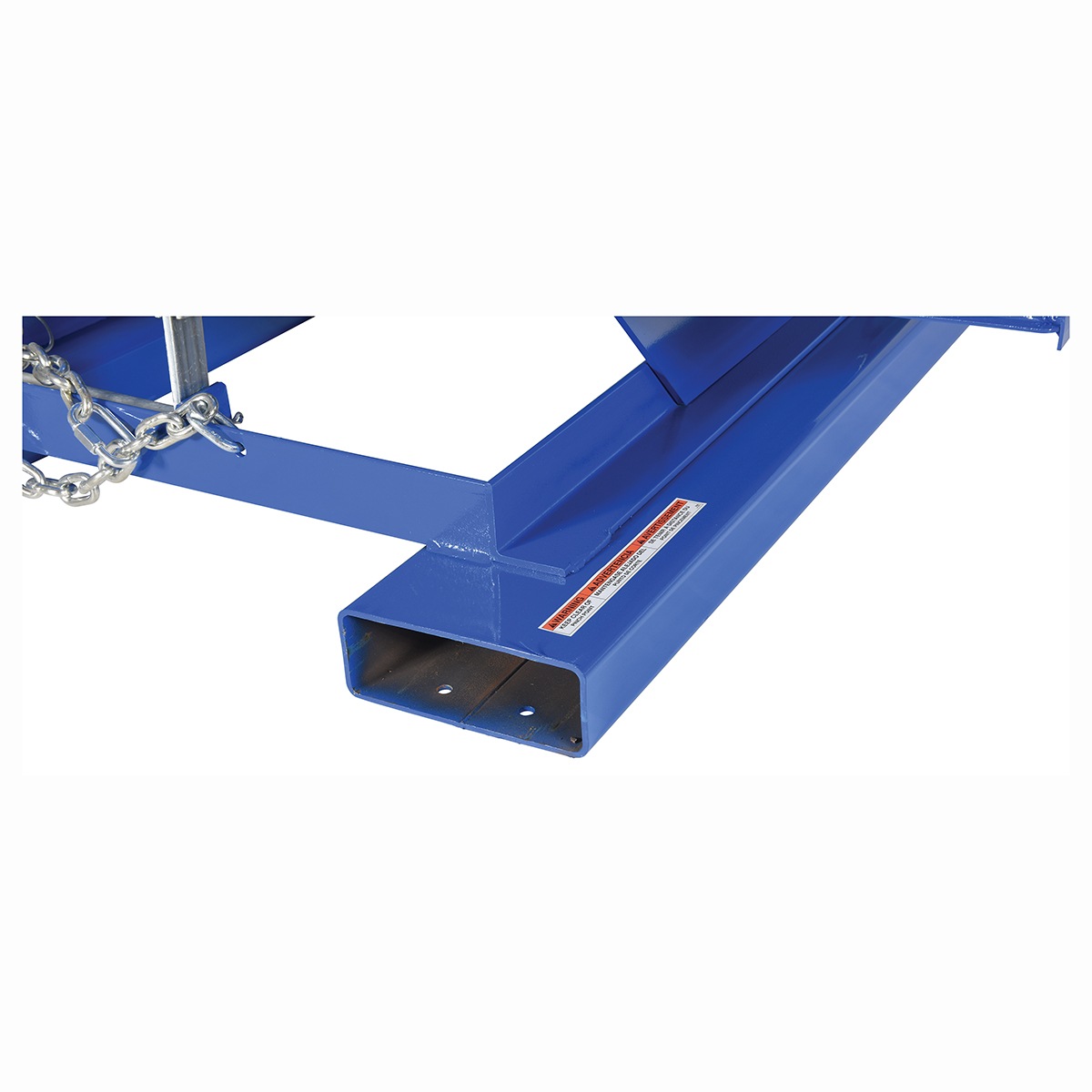

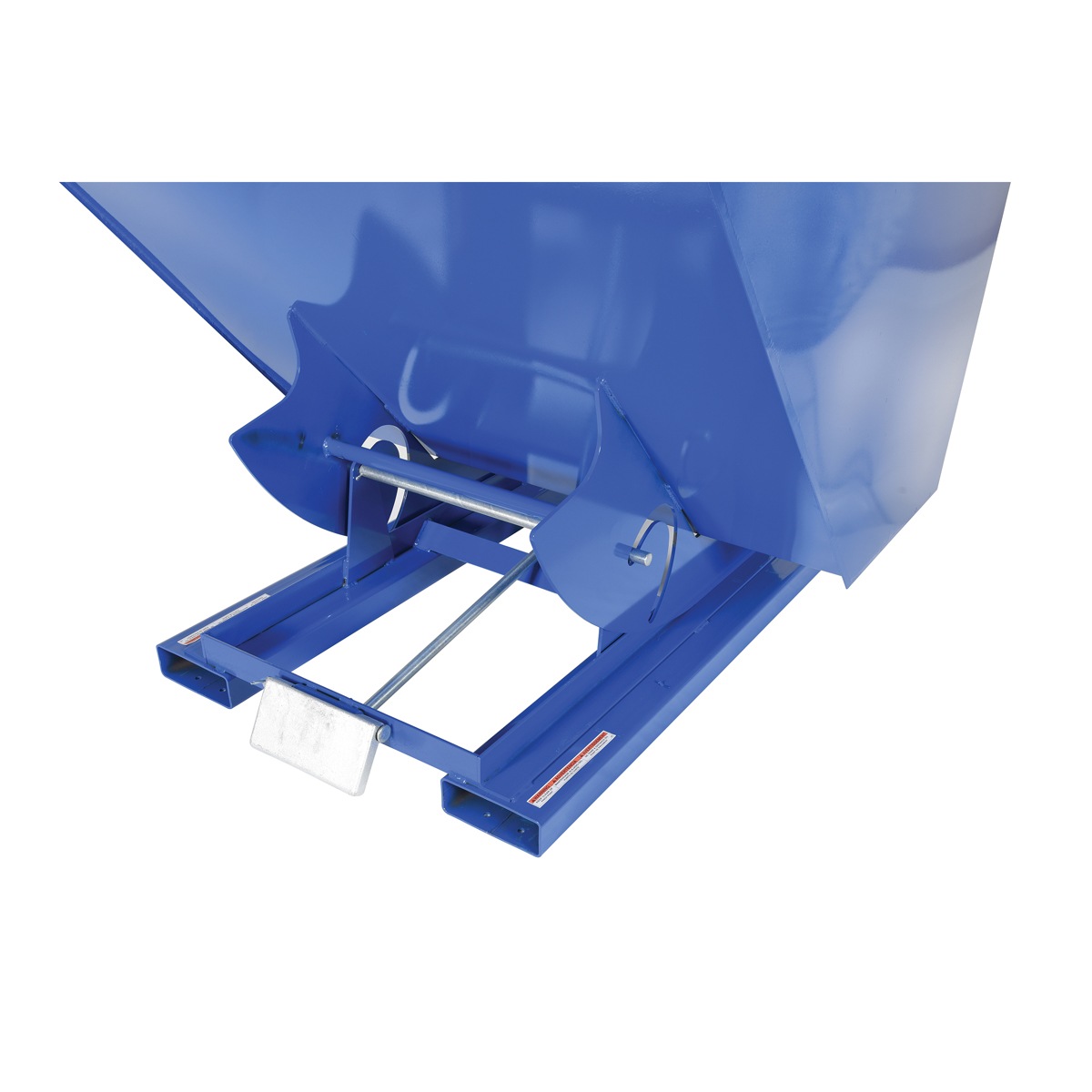

• Full-length fork tube provide a solid base

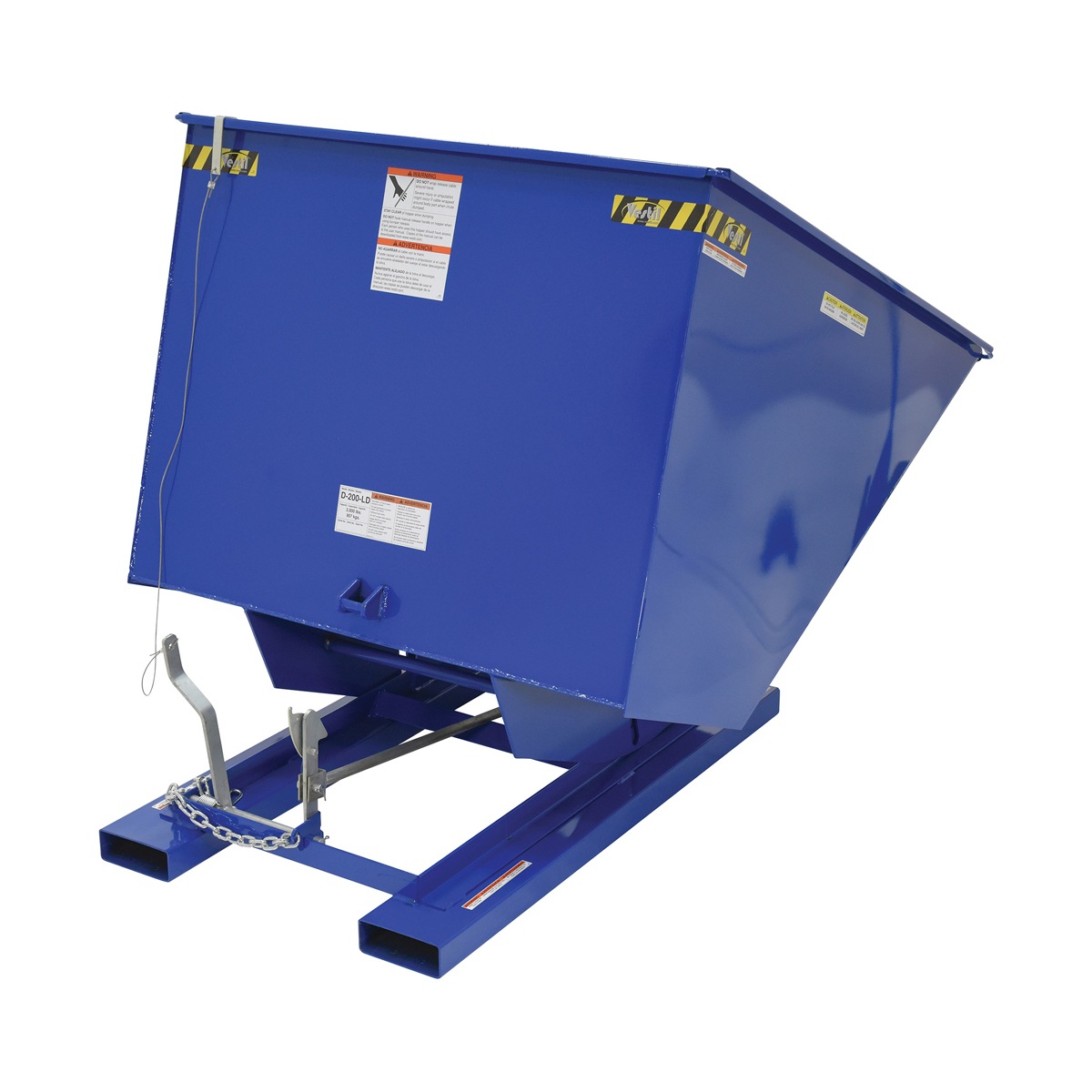

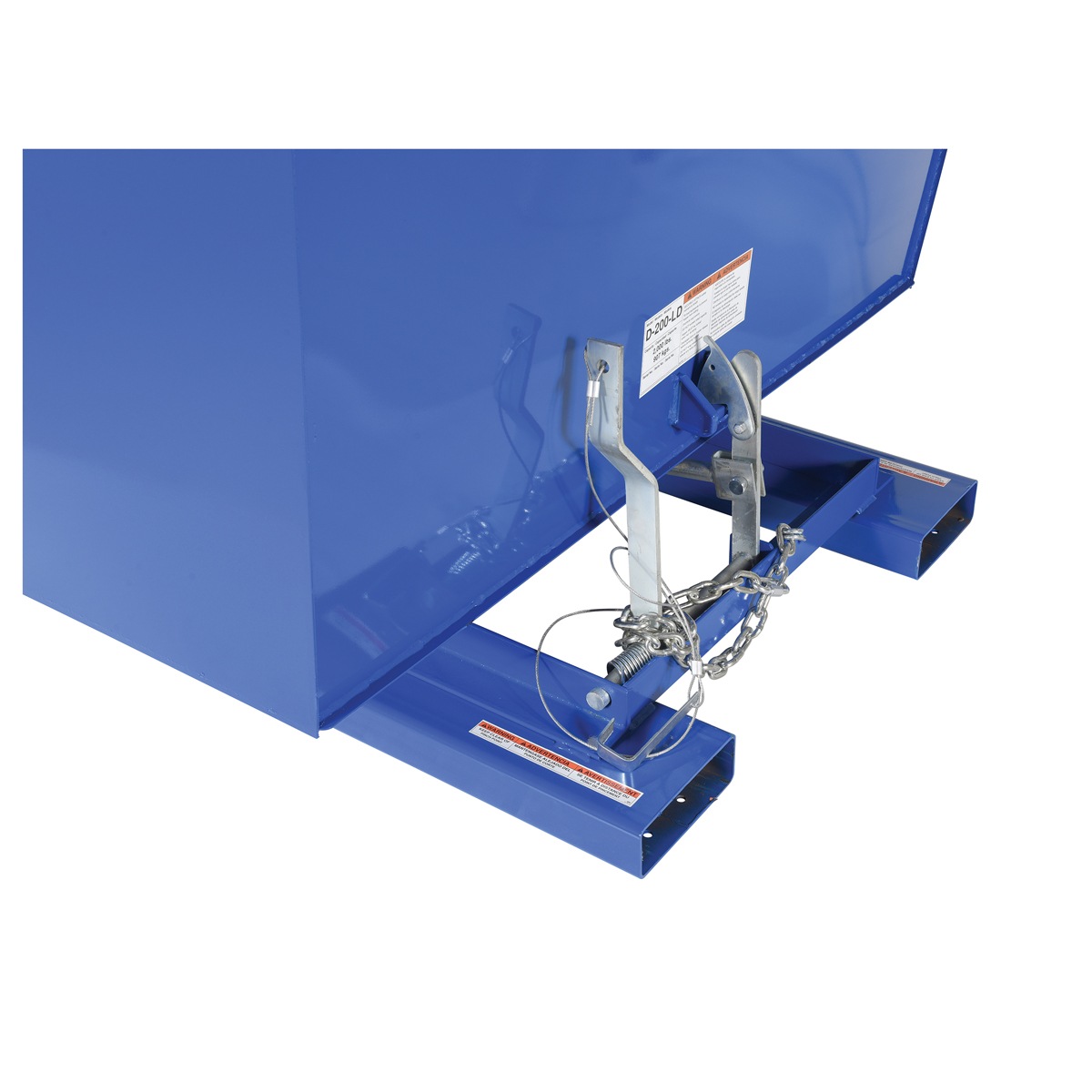

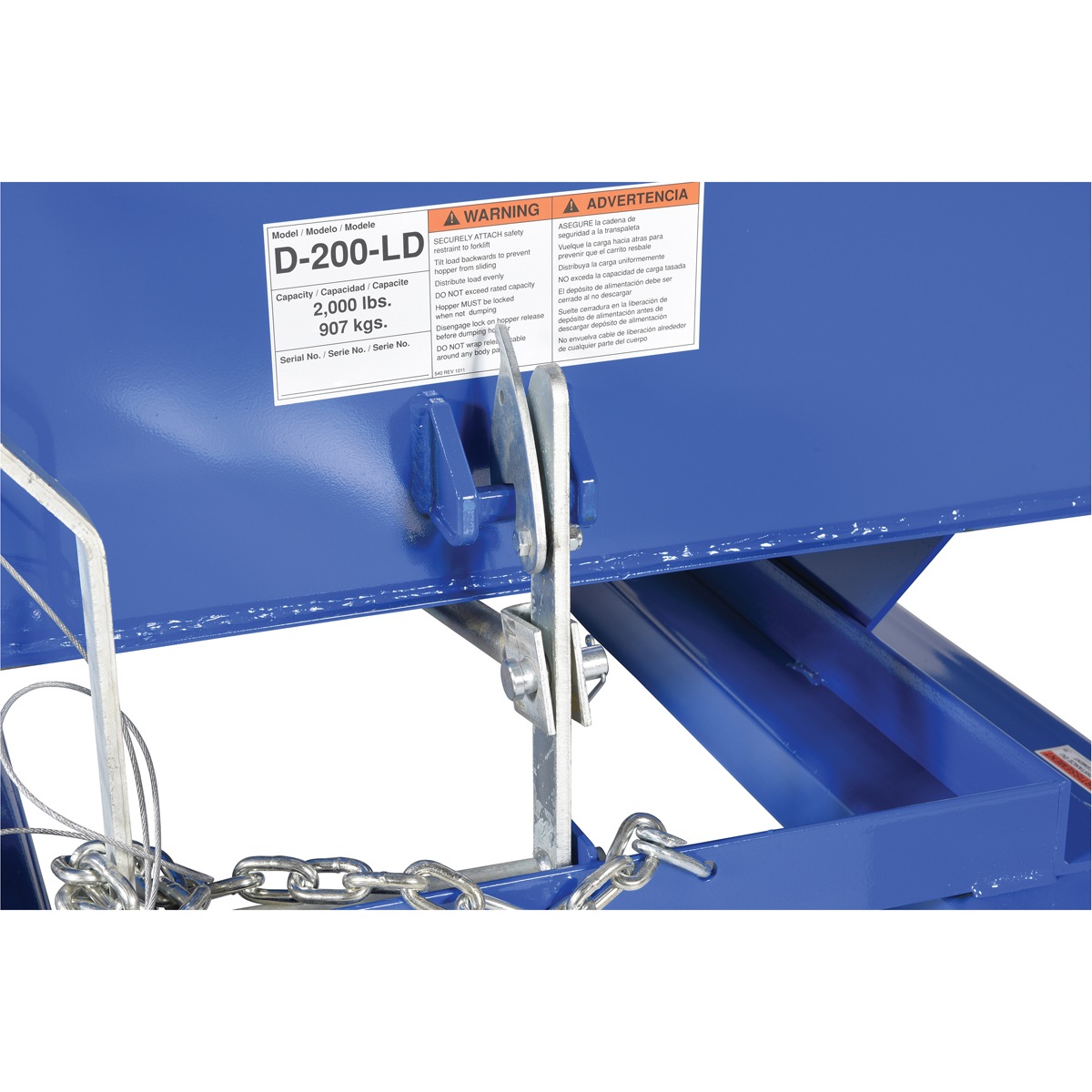

• Safety restraint secures the hopper to the fork truck

Specification

• Uniform Capacity (lb.): 2,000
• Steel (gauge): 12
• Volume (cu. yd.): 2
• Fork Pocket Center (in.): 28
• Usable Fork Pocket Width (in.): 7-1/2
• Usable Fork Pocket Height (in.): 2-1/2
• Cable Length (in.): 48
• OSHA: 29 CFR 1910.178(m)(5)(iii)

Documents

Click for D-200-LD Approval Drawings
