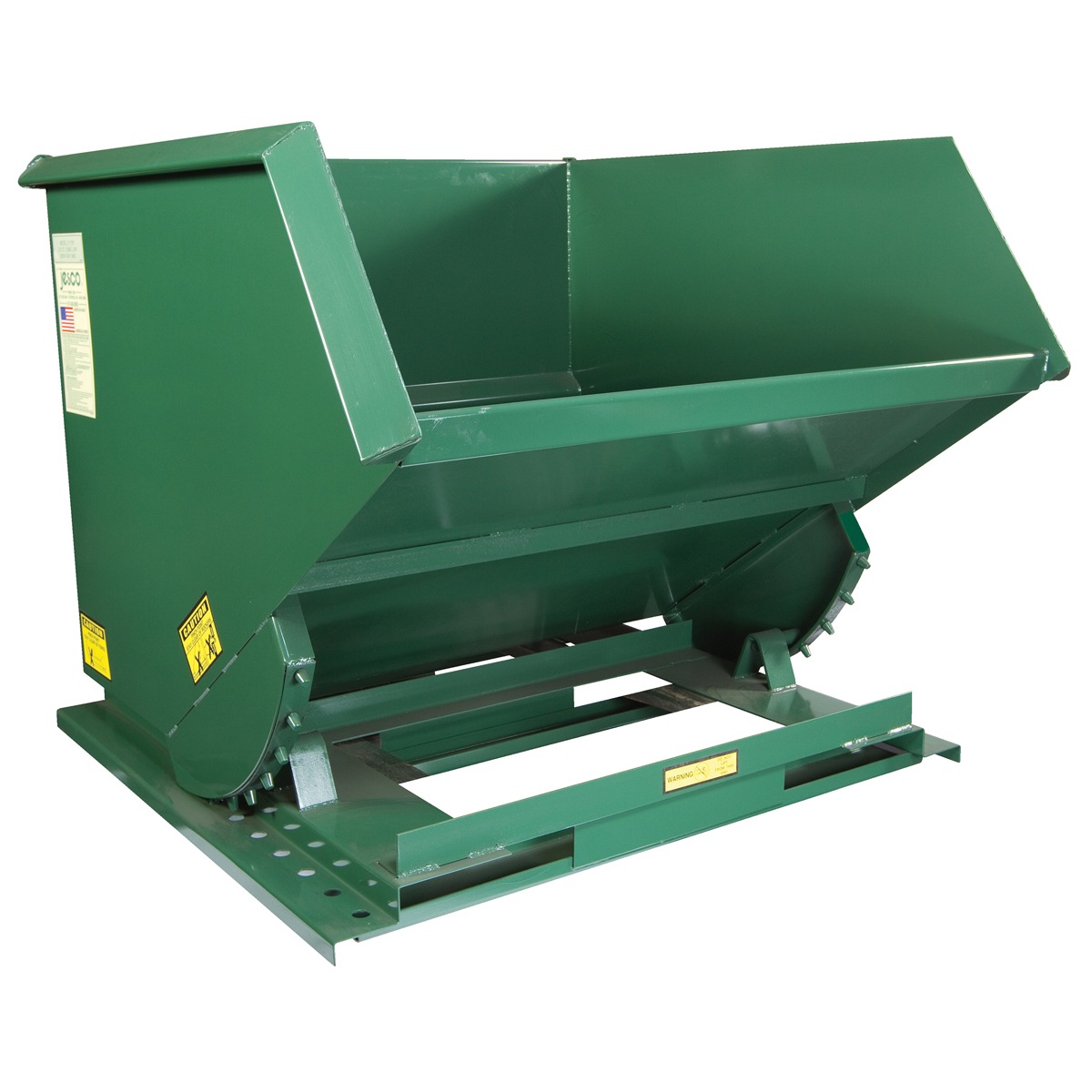

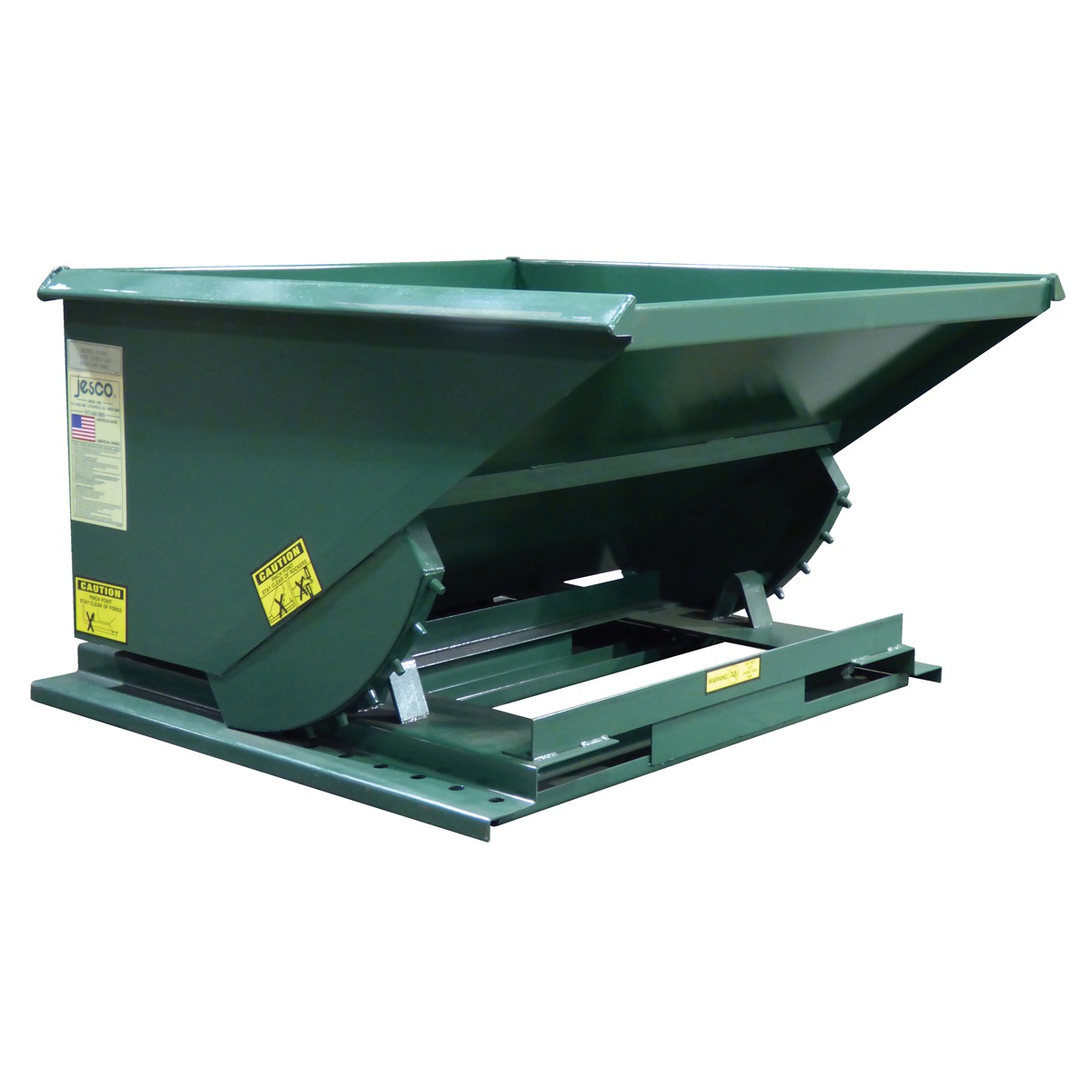

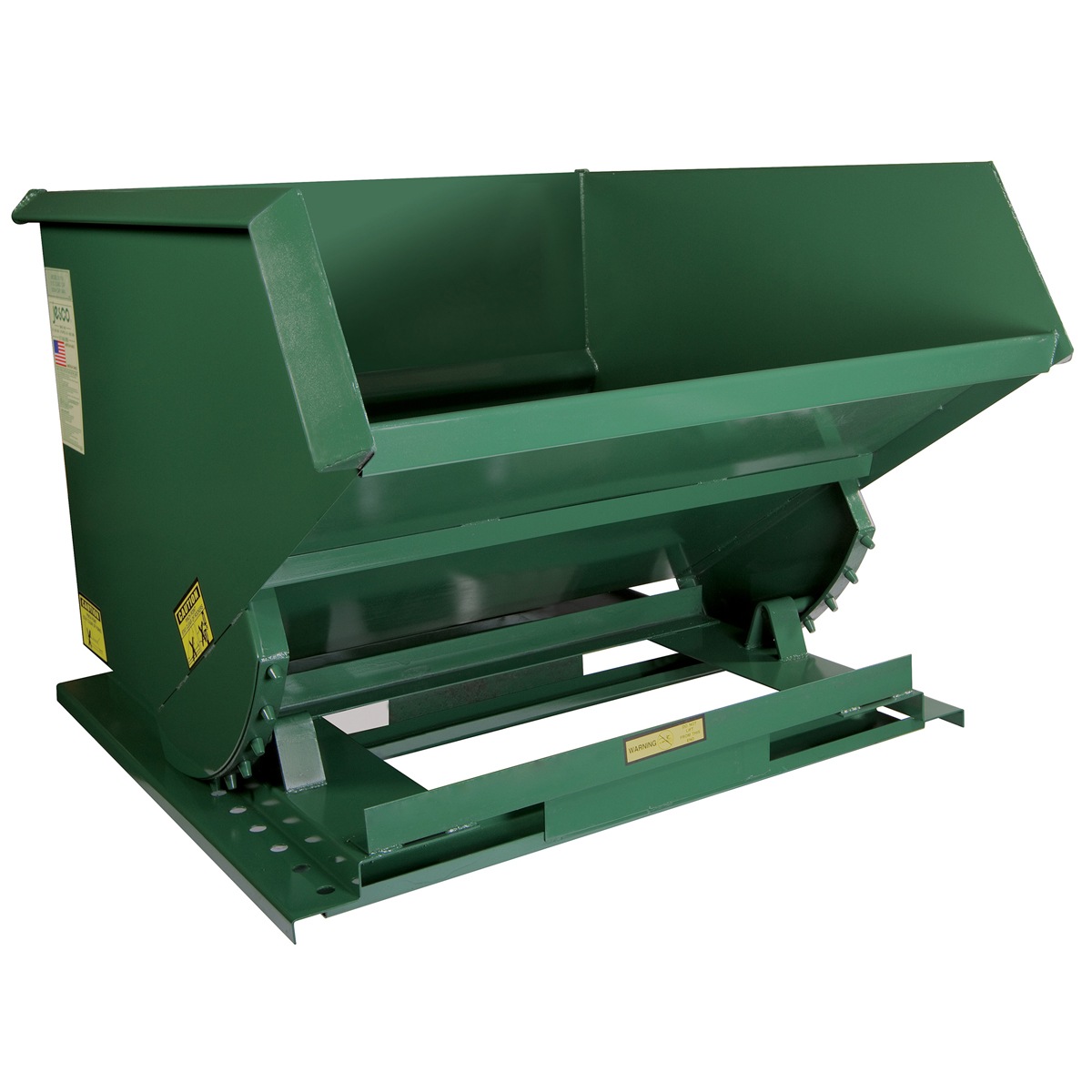

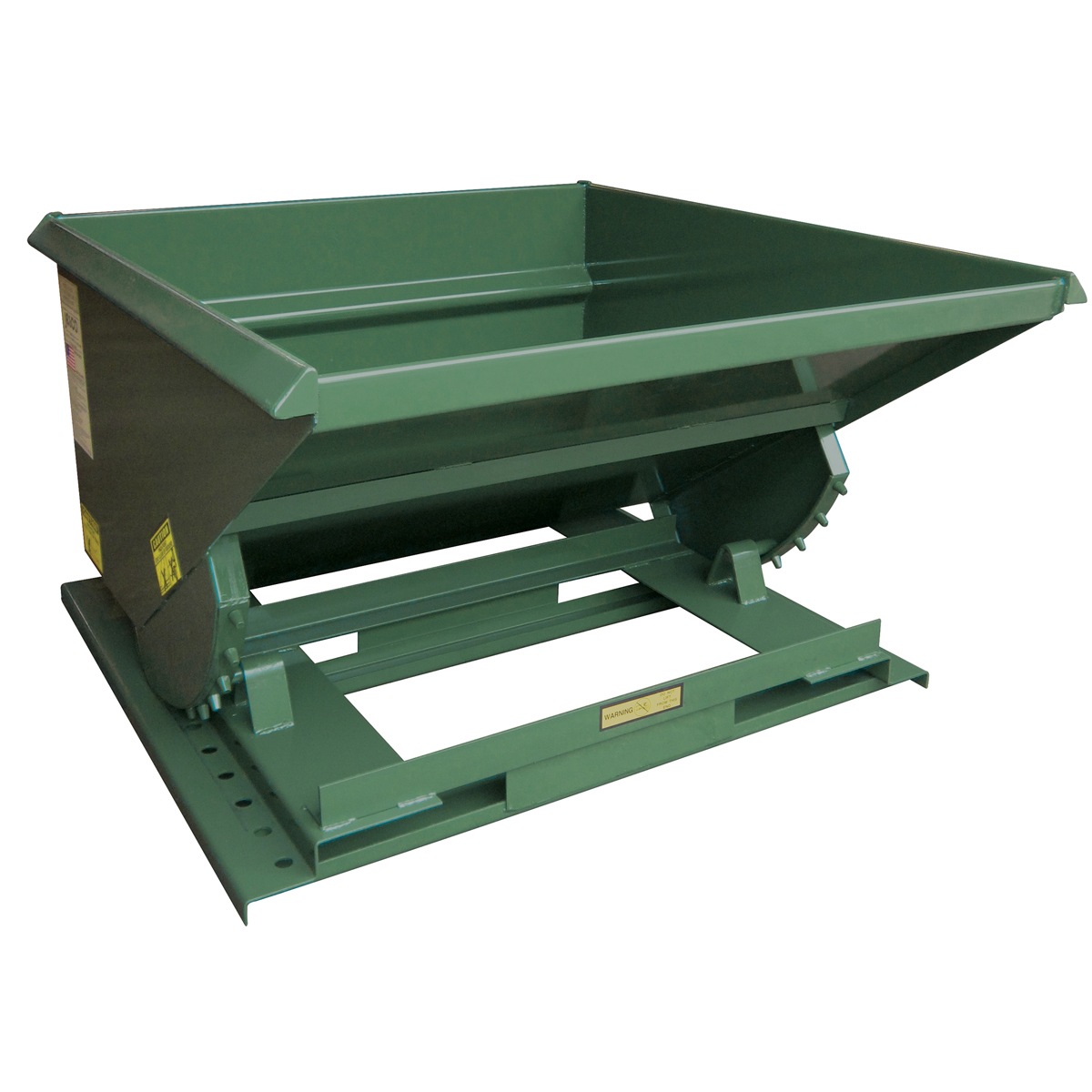

Vestil Self-Dump Medium Duty Hopper Yard 4 K

All welded Steel Self-Dumping Hopper handles bulk materials and scrap easily. Must transport and dump with a forklift or make the unit mobile with the optional casters. Self dumping hoppers are engineered to dump when the safety latch is tripped and to return to an upright locked position when empty. This Hopper comes with a trip rope assembly and has a formed stackable base. The included safety restraint should be properly secured to a fork truck before dumping. Standard paint finish is vista green.

• High capacity hopper handles bulk materials and scrap easily
• Unique design returns to upright & locked position when empty
• Safety retaining chain secures unit to forklift
• Vista green paint provides an attractive appearance

Specification

• Uniform Capacity (lb.): 4,000
• Steel (gauge): 10
• Base Steel (gauge): 8
• Stackable: Yes

Documents

Click for Manual

Click for HOP-200-MD Approval Drawings
