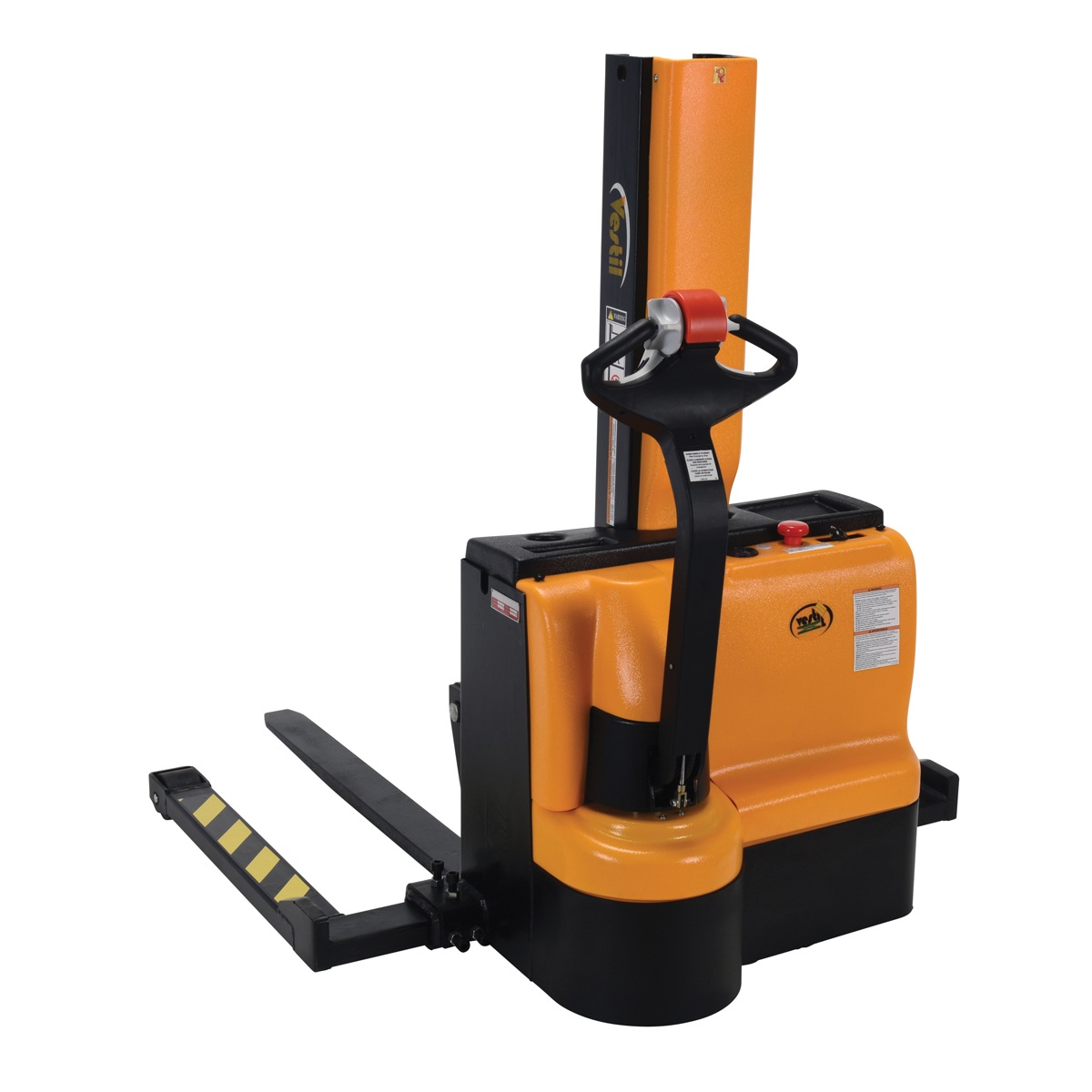

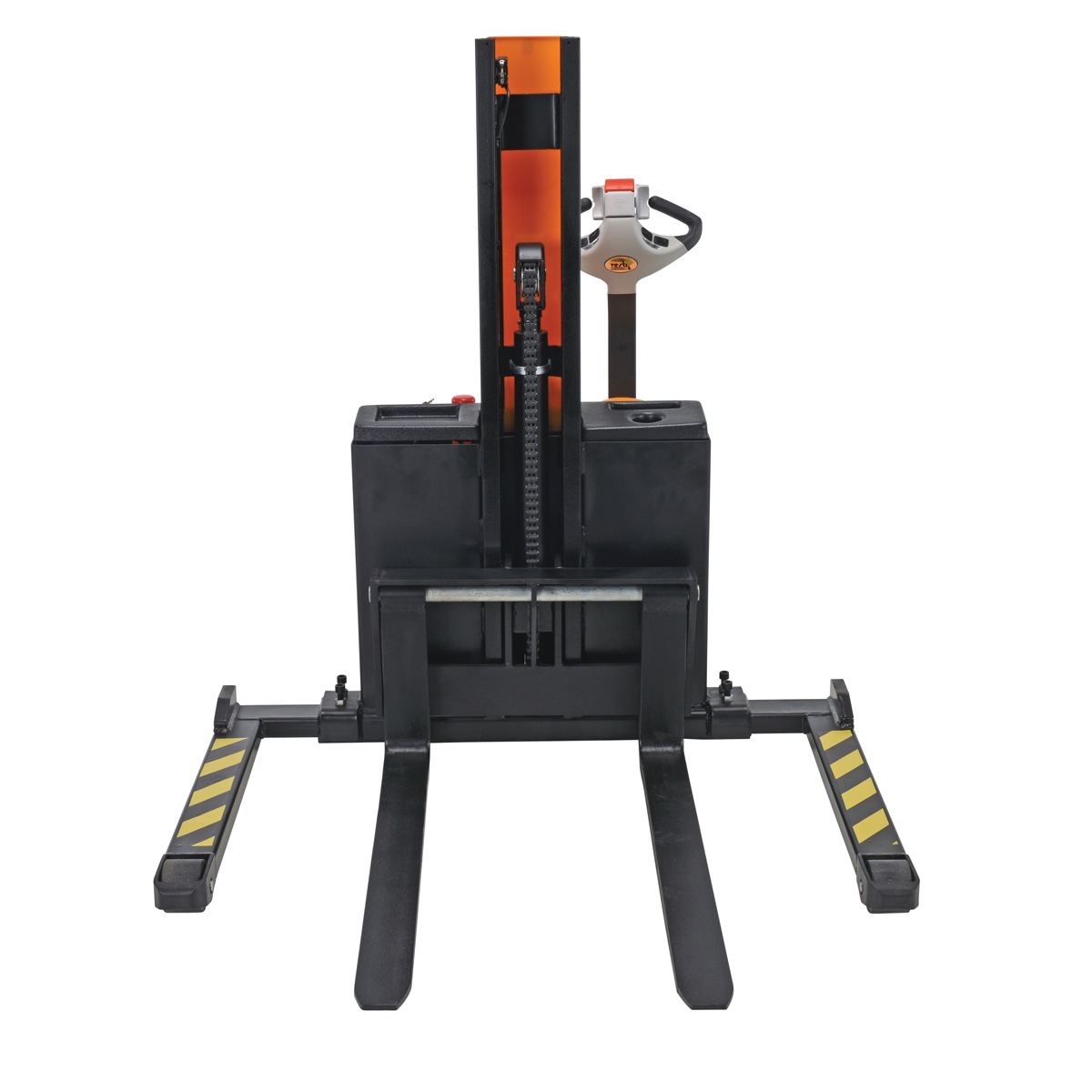

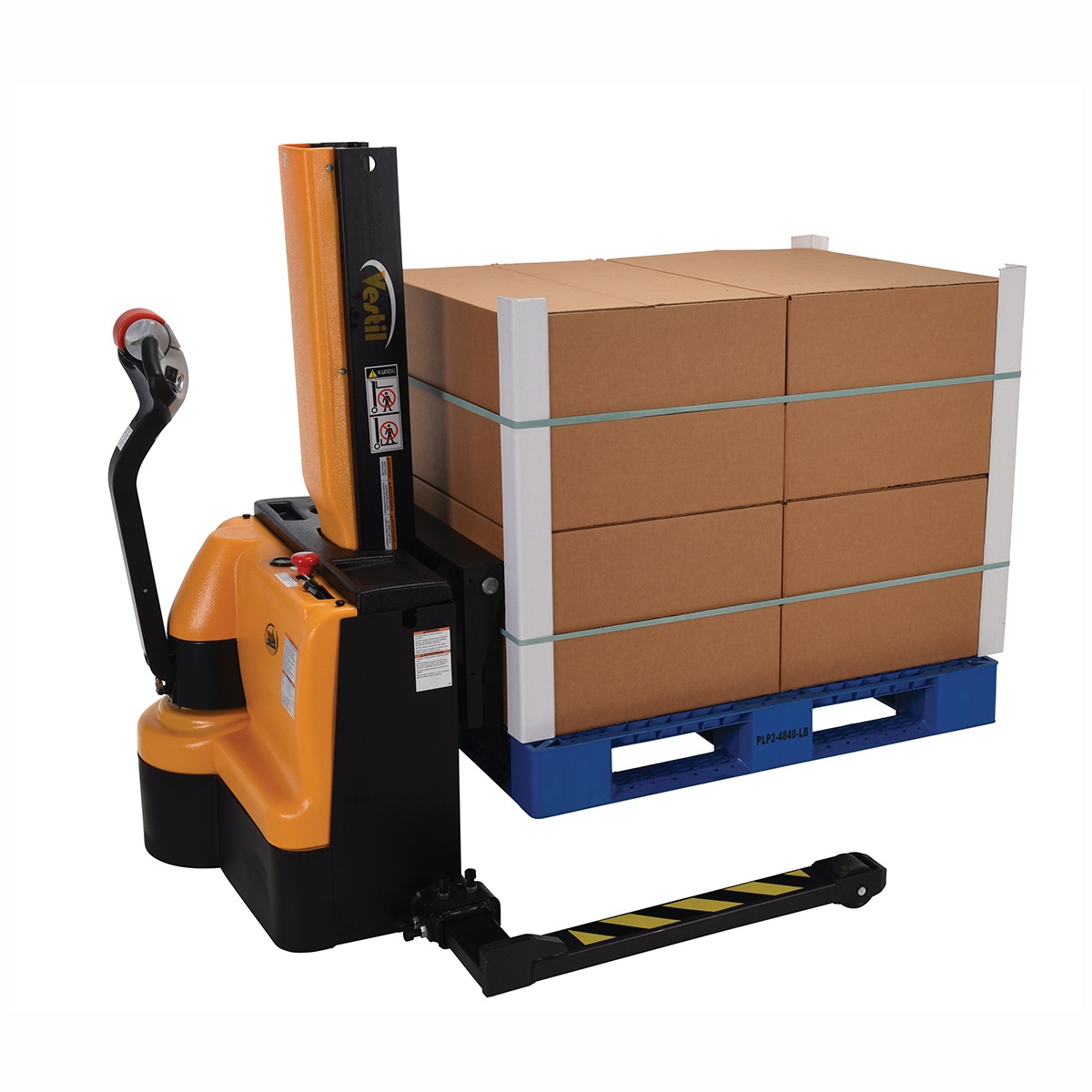

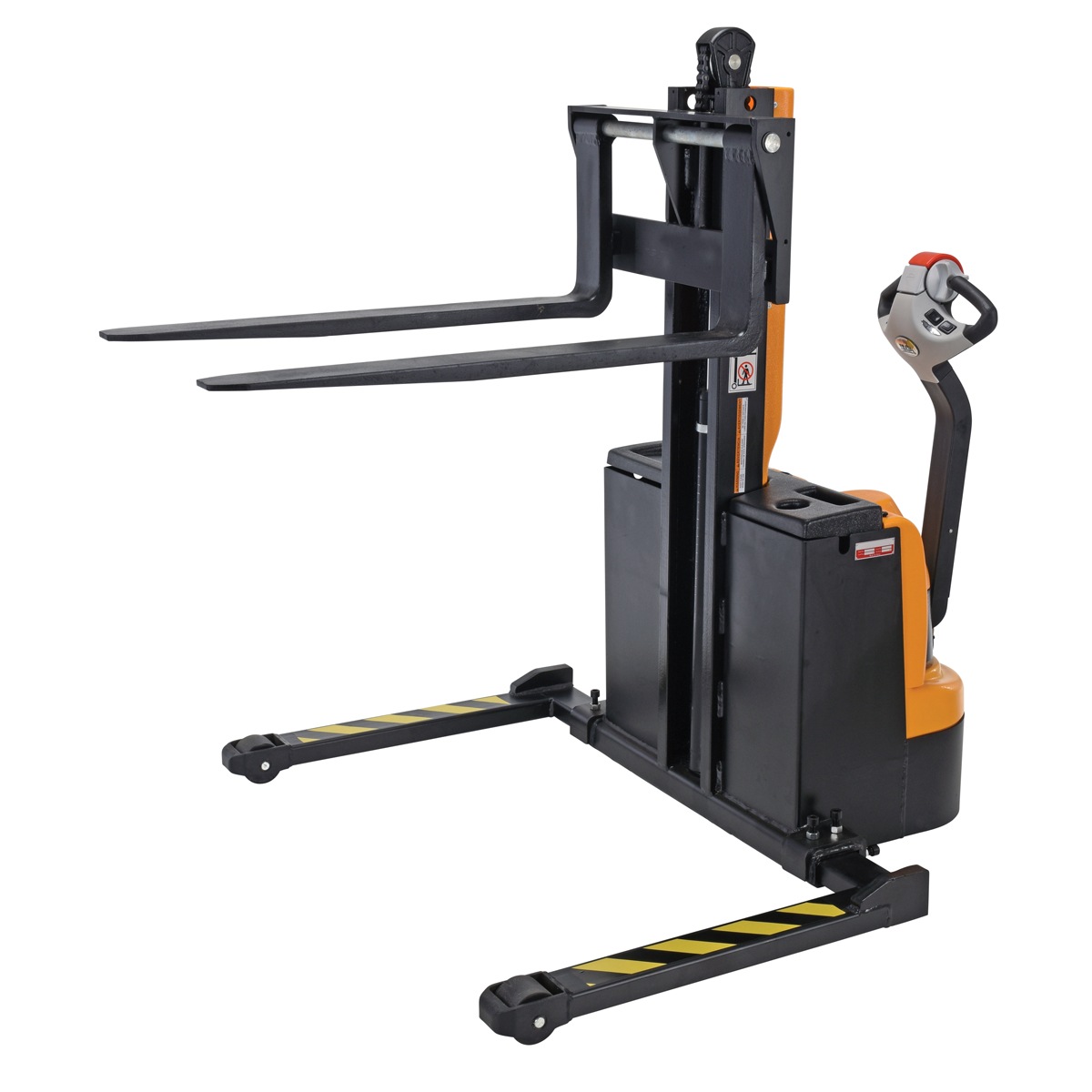

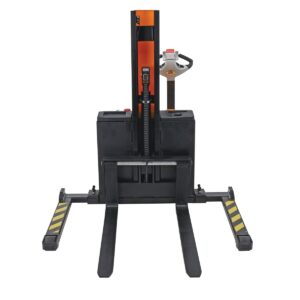

Vestil SNM3-43-AA Stacker Pwr Lift/Dr ADJ Frk 43In 3000 LB

The Narrow Mast Stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger and gauge are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

• Narrow mast stacker is ideal for shipping and manufacturing facilities
• Stacker is an efficient solution to loading and unloading in closely confined areas
• Throttle design lifts and controls speed adjustments for ideal operation and optimal results
• Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency

Specification

• Uniform Capacity (lb.): 3,000
• Fork Width (in.): 8.3 to 26-3/4
• Fork Length (in.): 42
• Lowered Height (in.): 2-1/8
• Raised Height (in.): 43
• Power Source: (2)DC/12V
• Steer/Load Wheels Material: Poly-On-Steel
• Front Caster (qty.): 2
• Front Caster Diameter (in.): 4
• Front Caster Width (in.): 3
• Back Caster Quantity: 1
• Back Caster Diameter (in.): 6
• Back Caster Width (in.): 2
• Drive Motor 1.0 KW: 1.0 KW
• Lift Motor: 2.0 KW
• Operation at Full Charge (hrs.): 3-4
• Operation at intermittent use (hrs.): 8
• Style: Adjustable Forks/Adjustable Support Legs (works with pallets & skids)
• Adjustable Handle Height (in.): 48
• Handle Diameter (in.): 1-5/16

Documents

Click for SNM3-43-AA Approval Drawings
