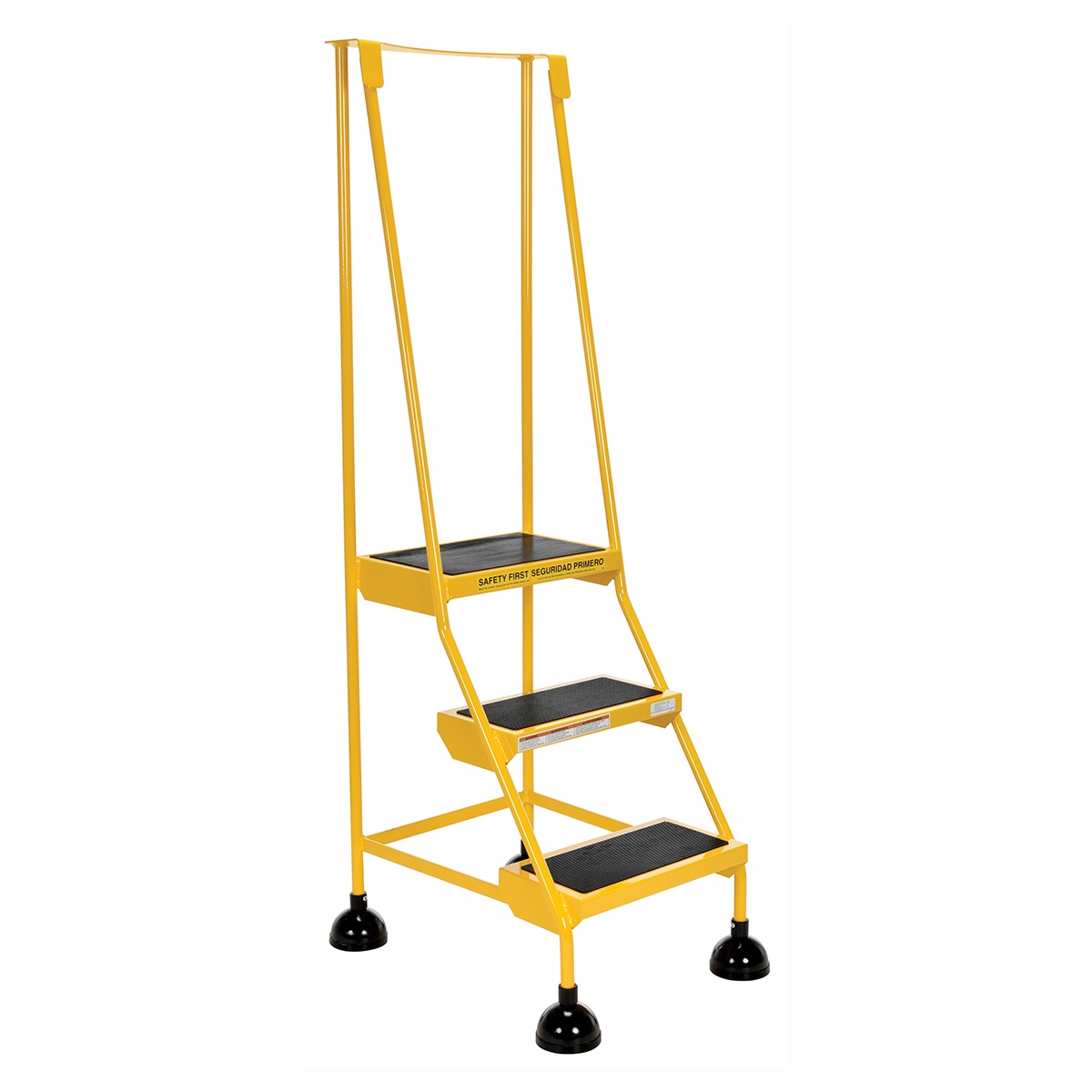

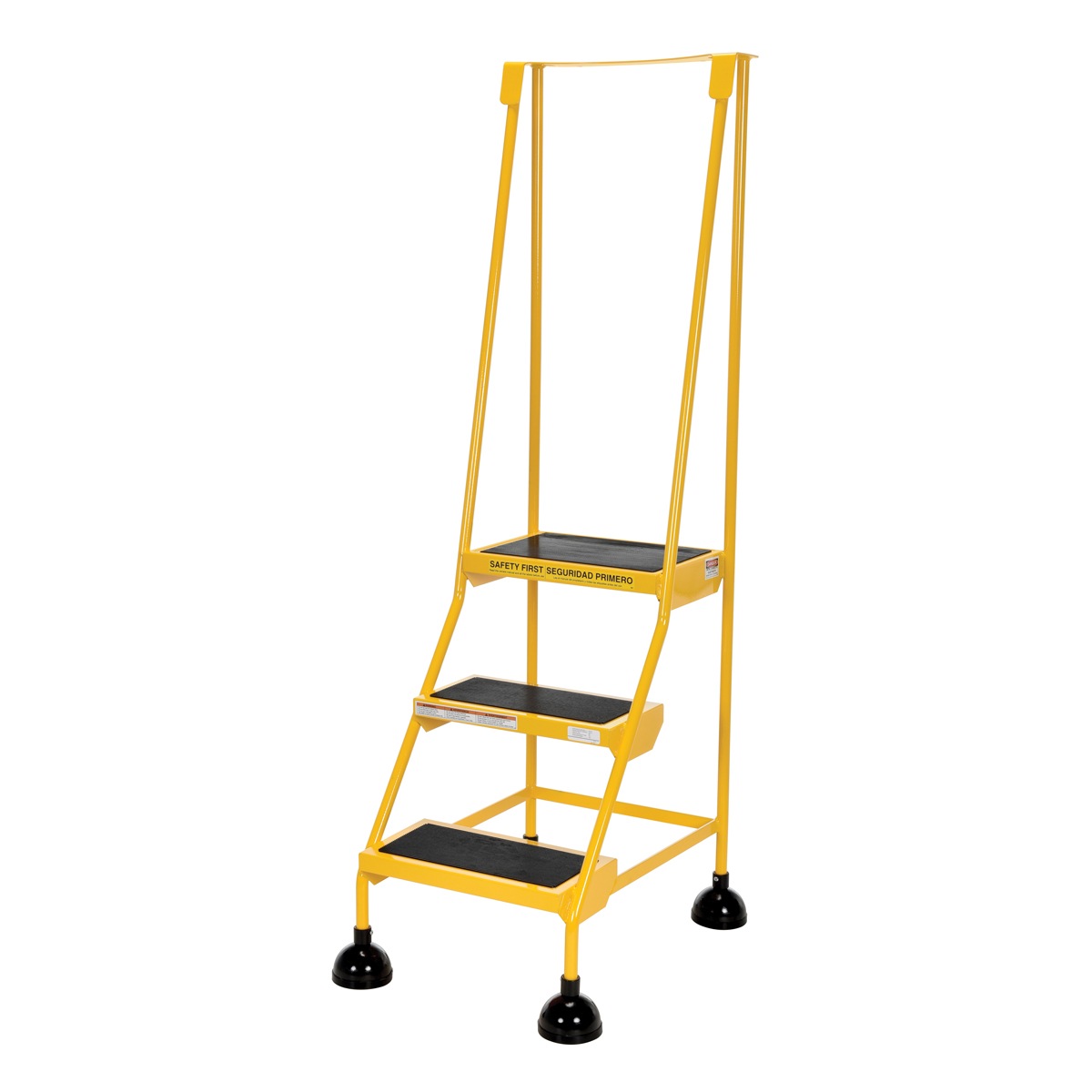

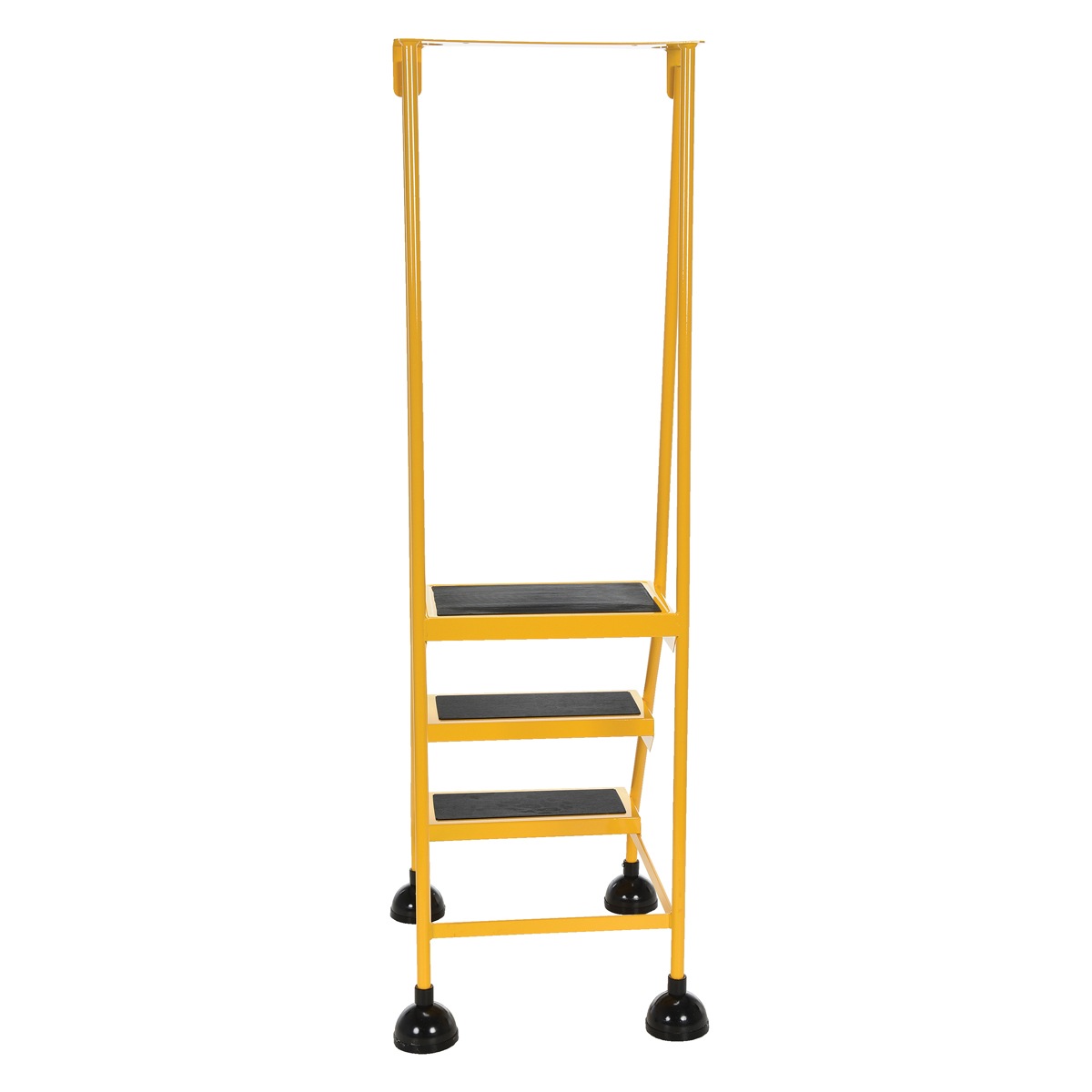

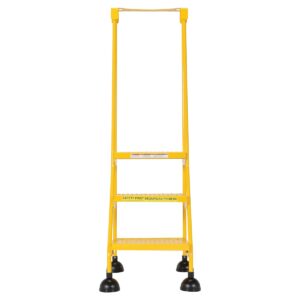

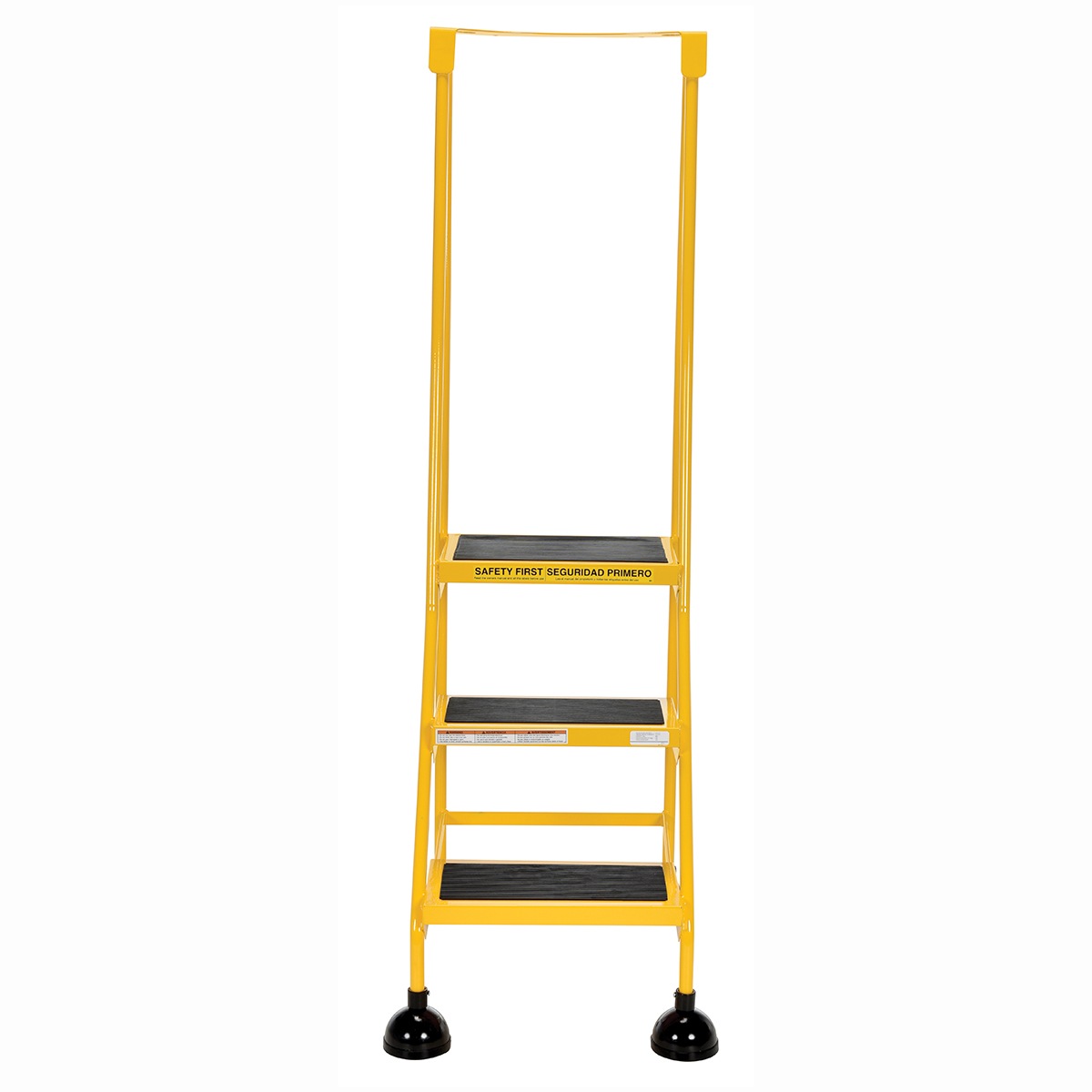

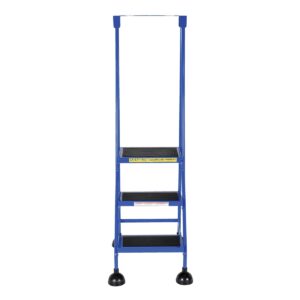

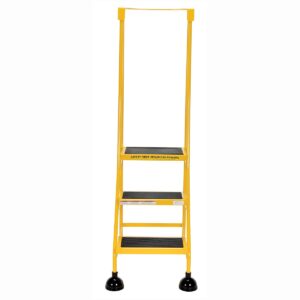

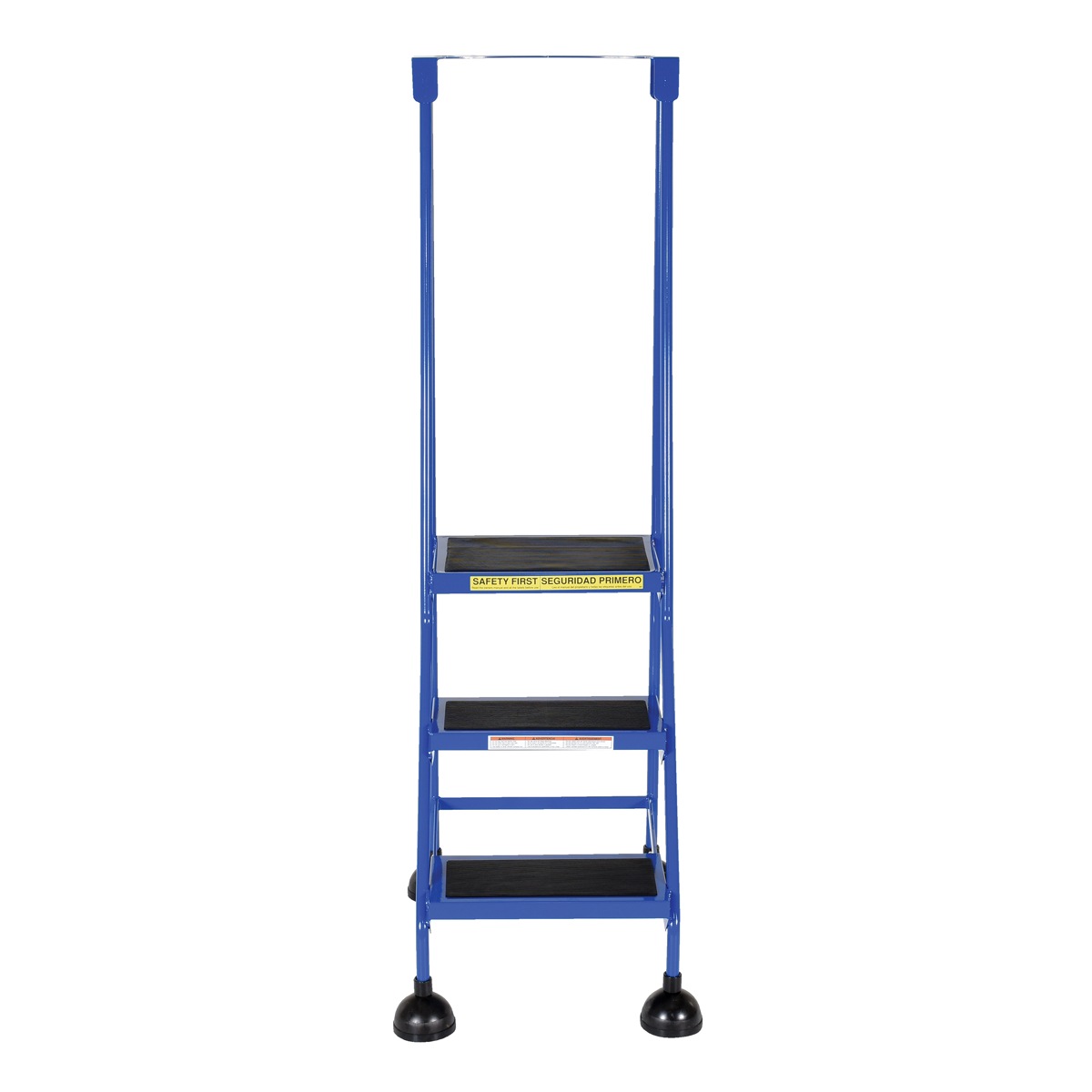

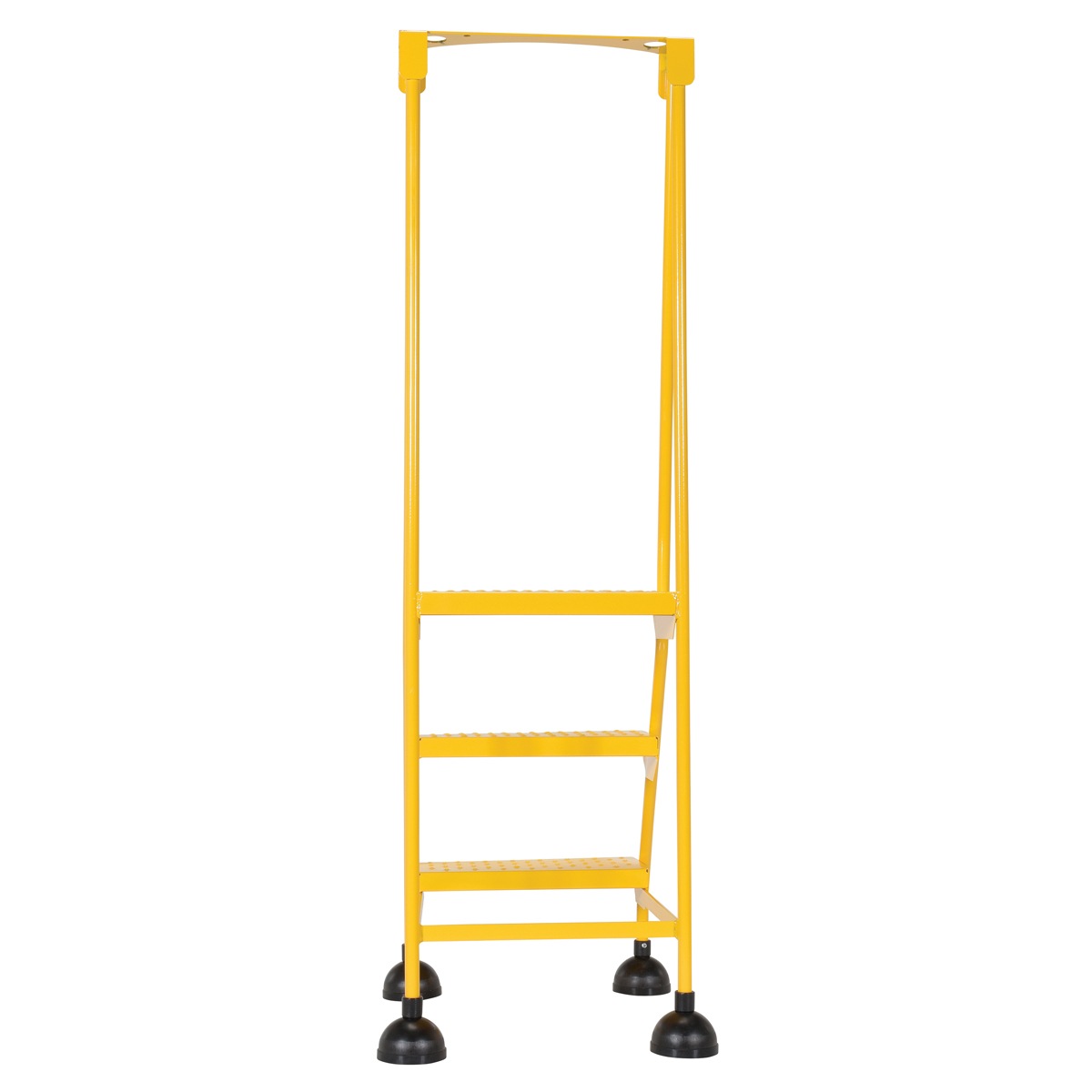

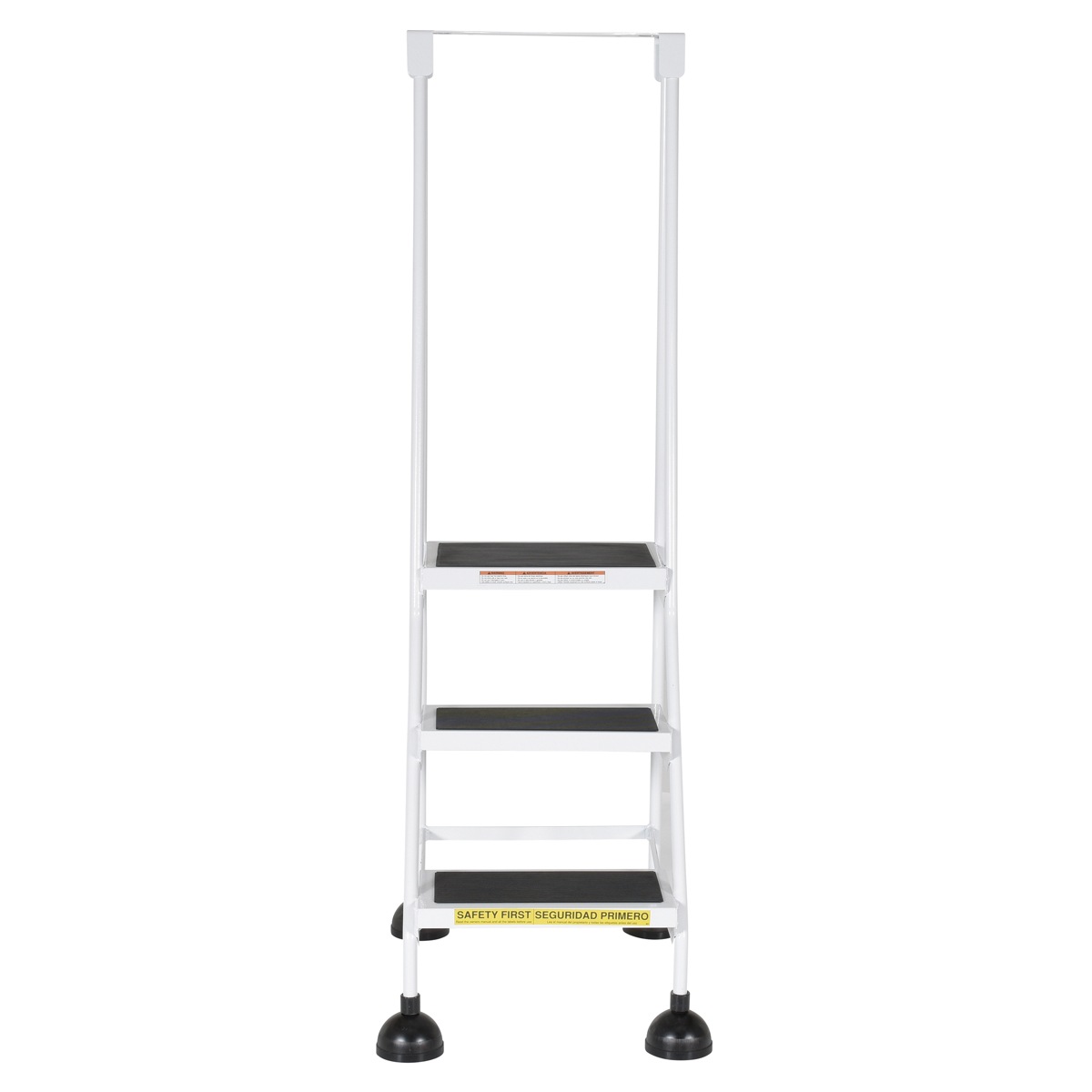

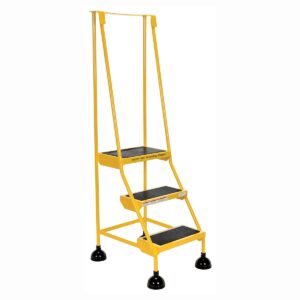

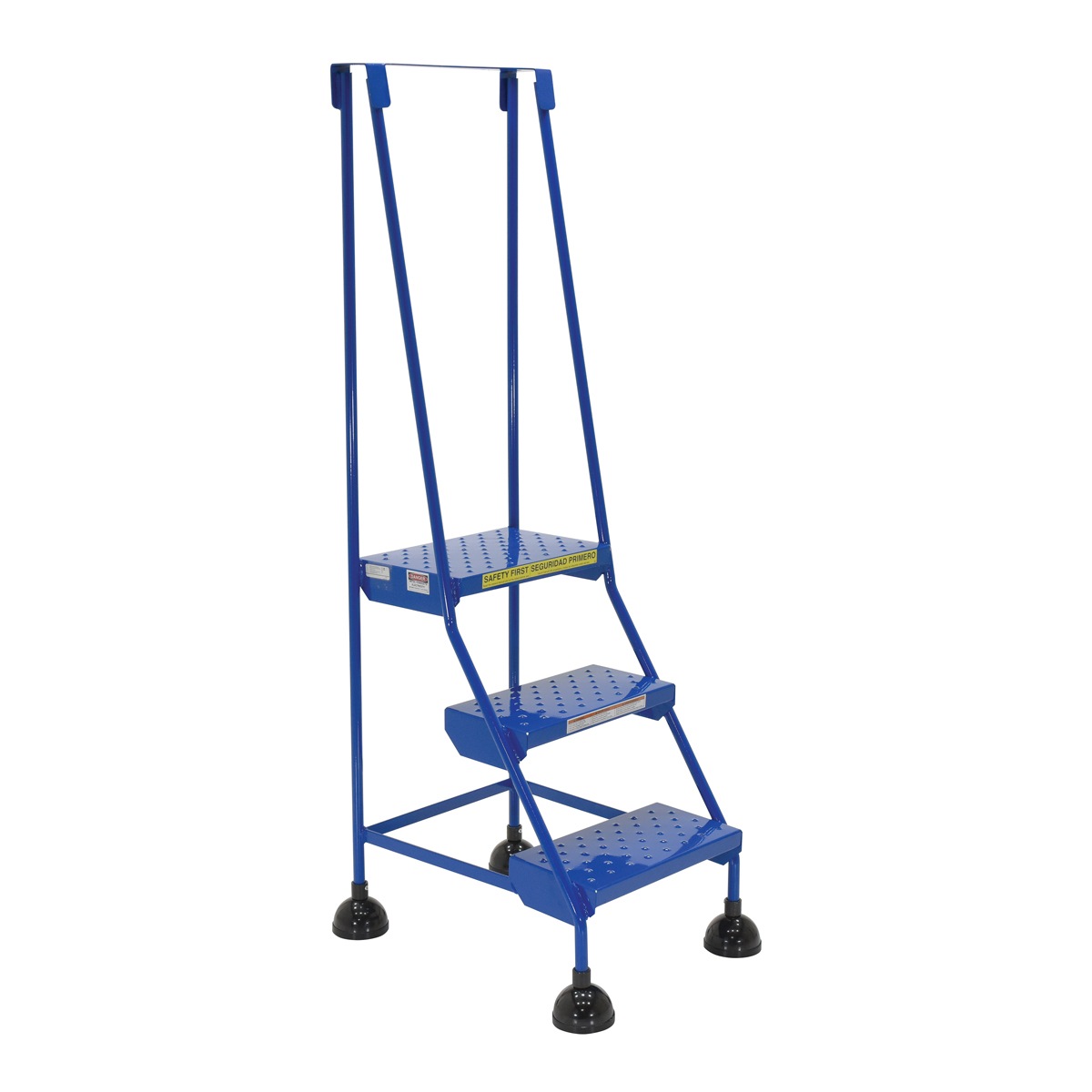

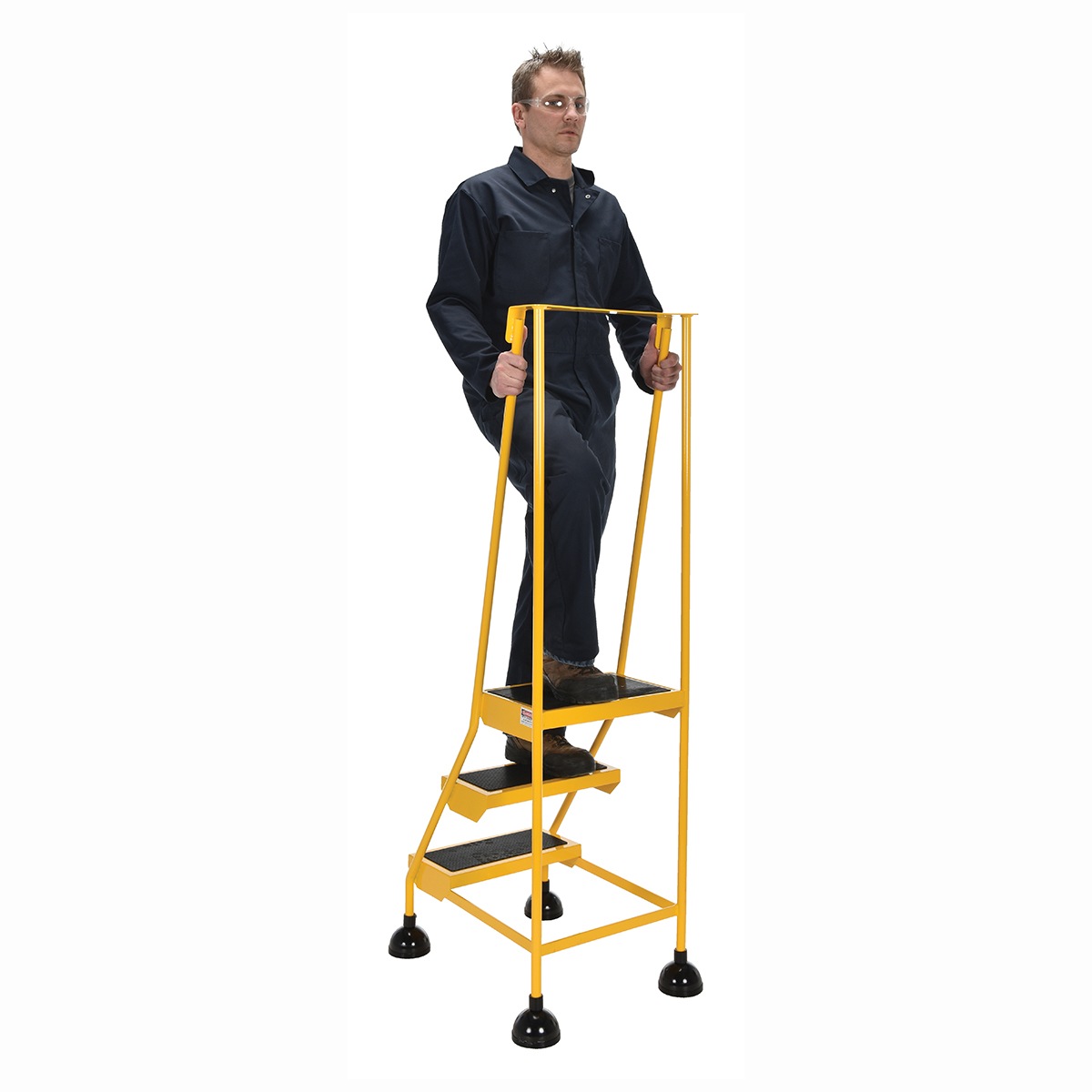

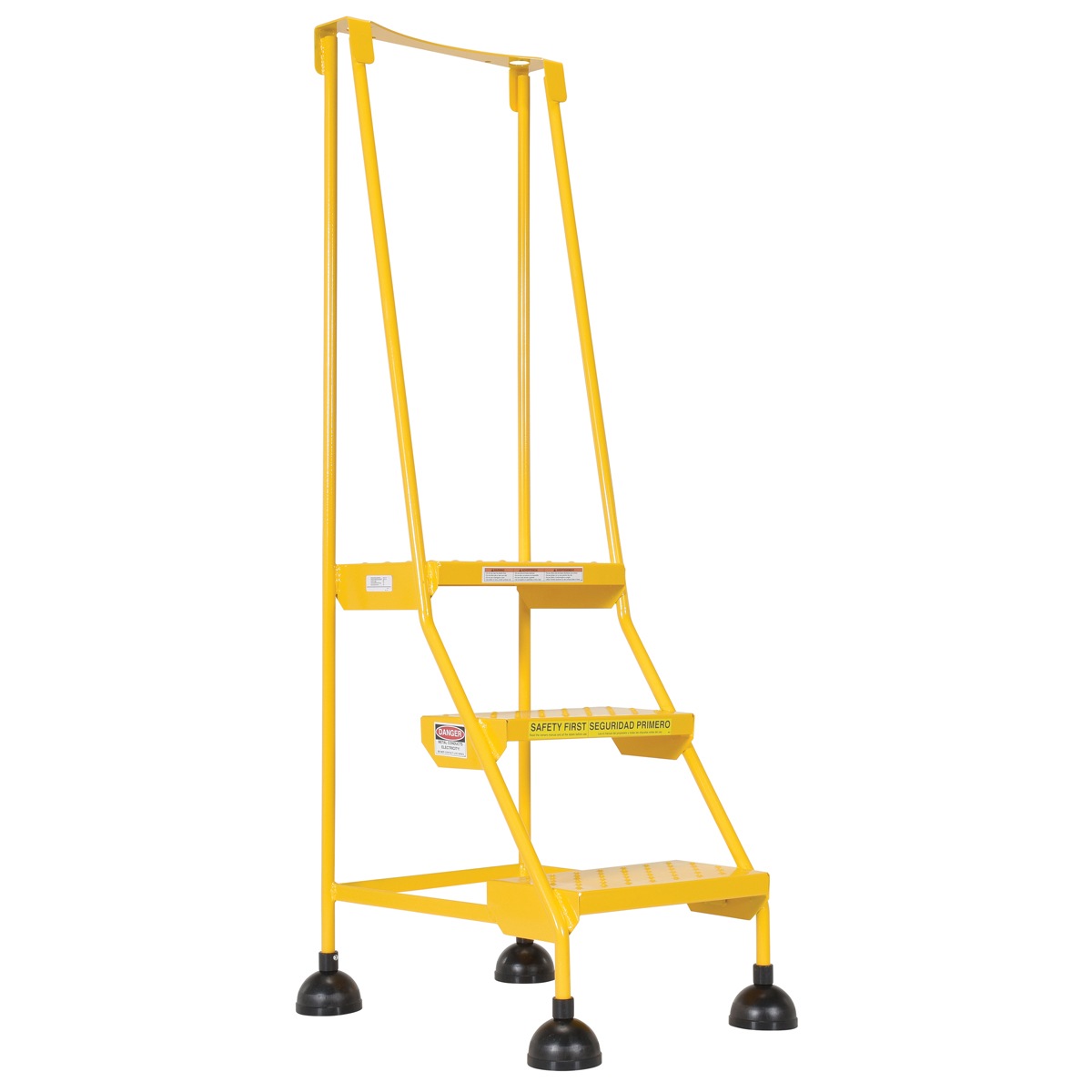

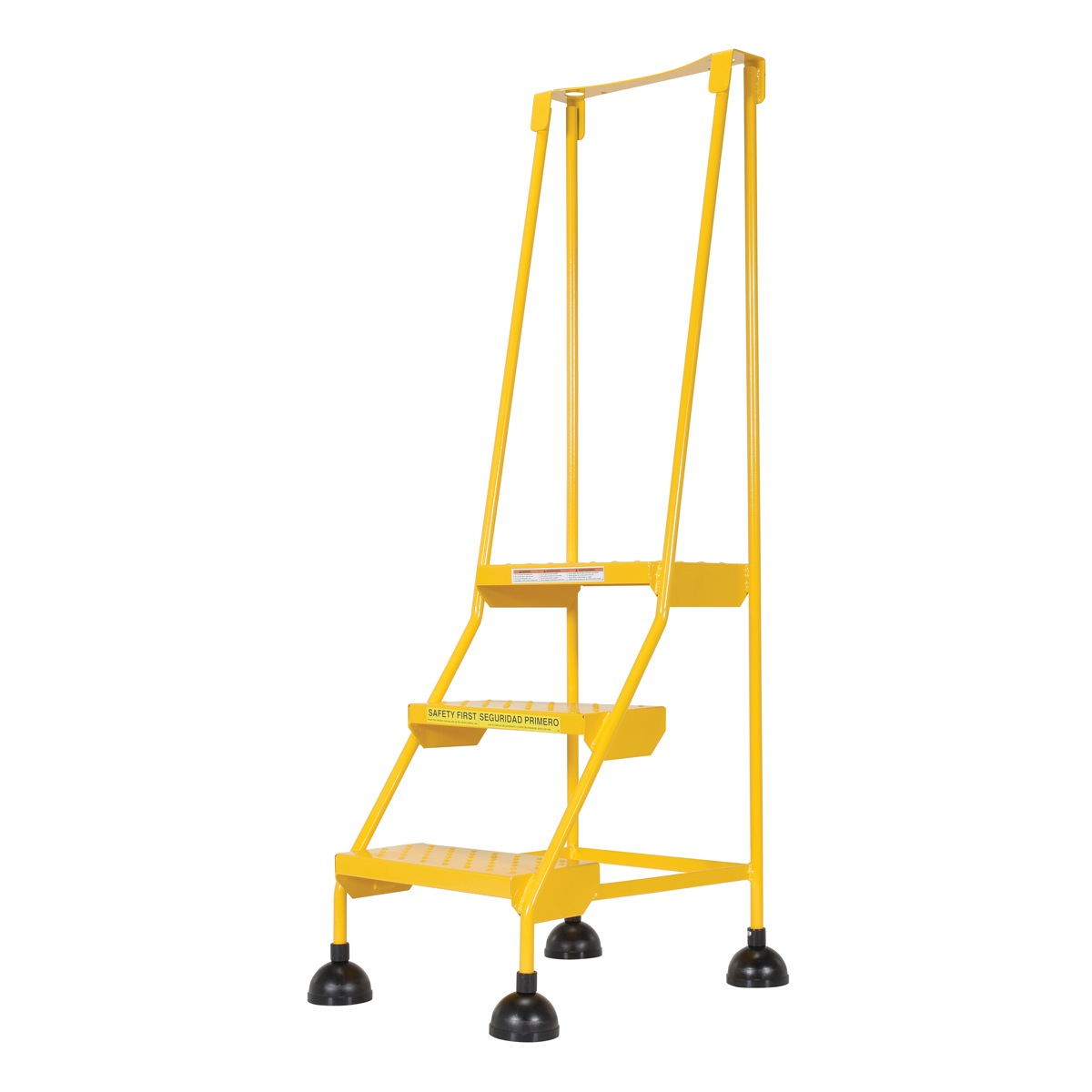

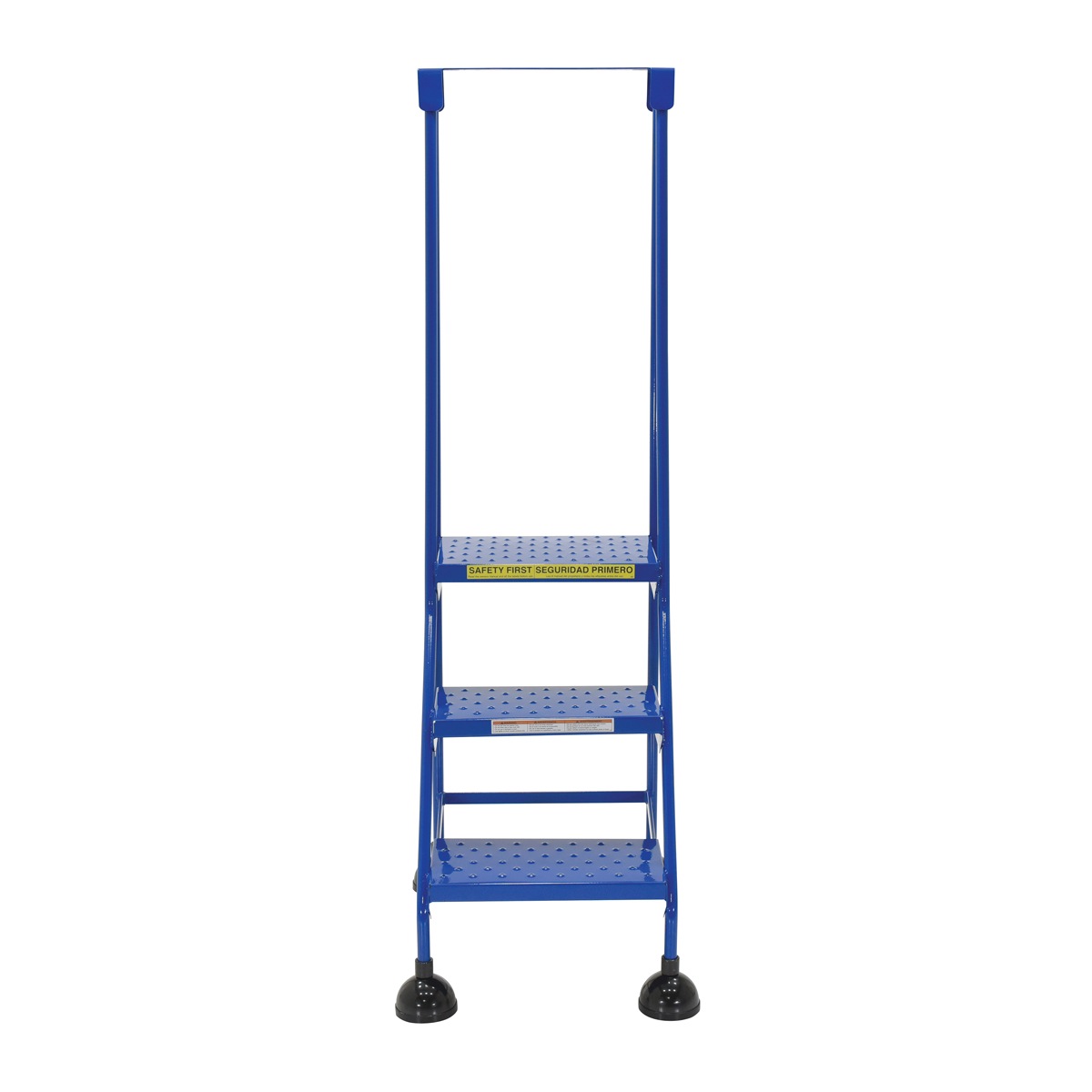

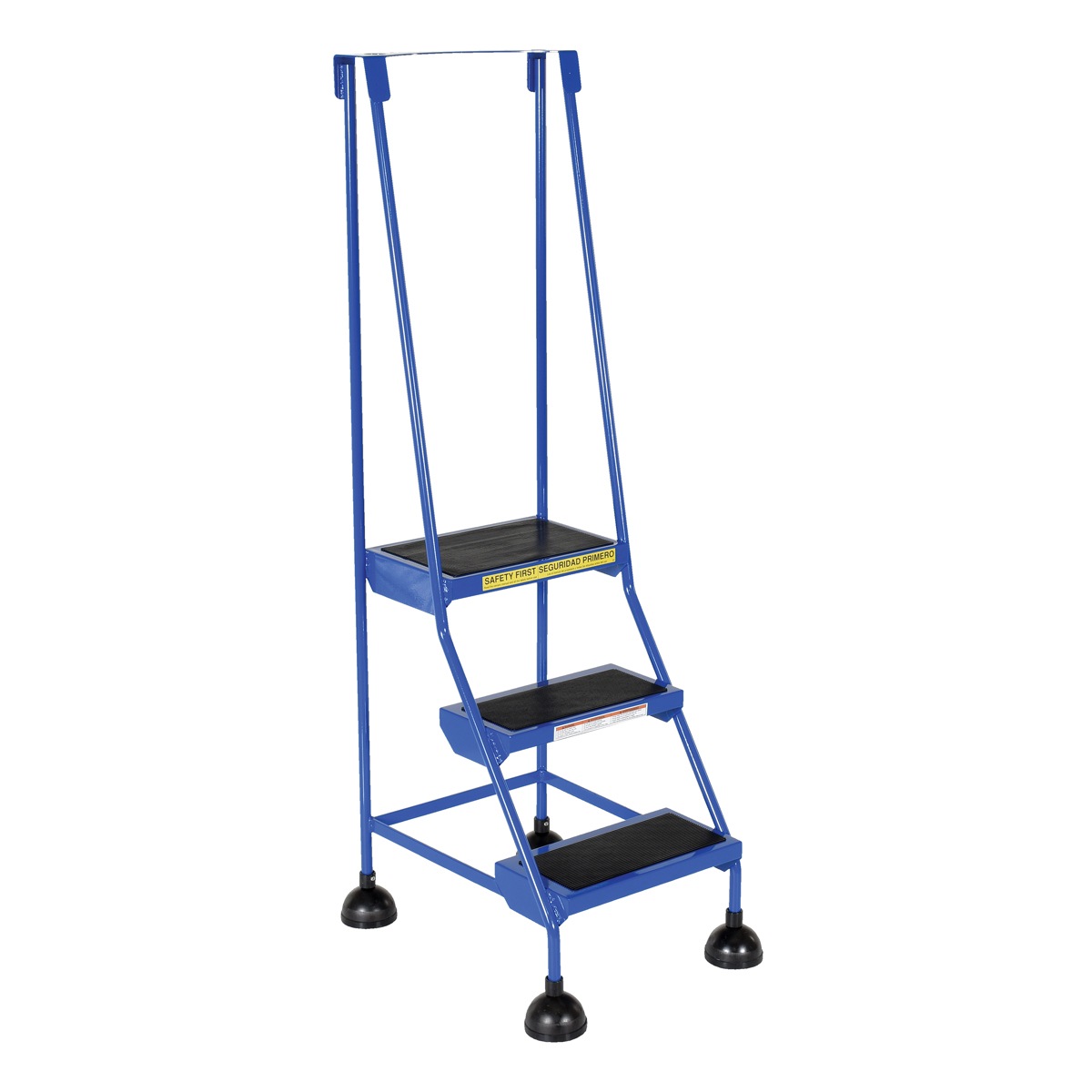

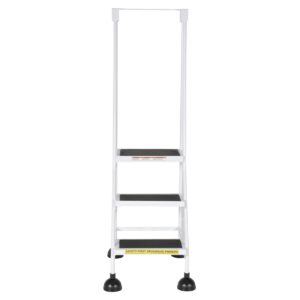

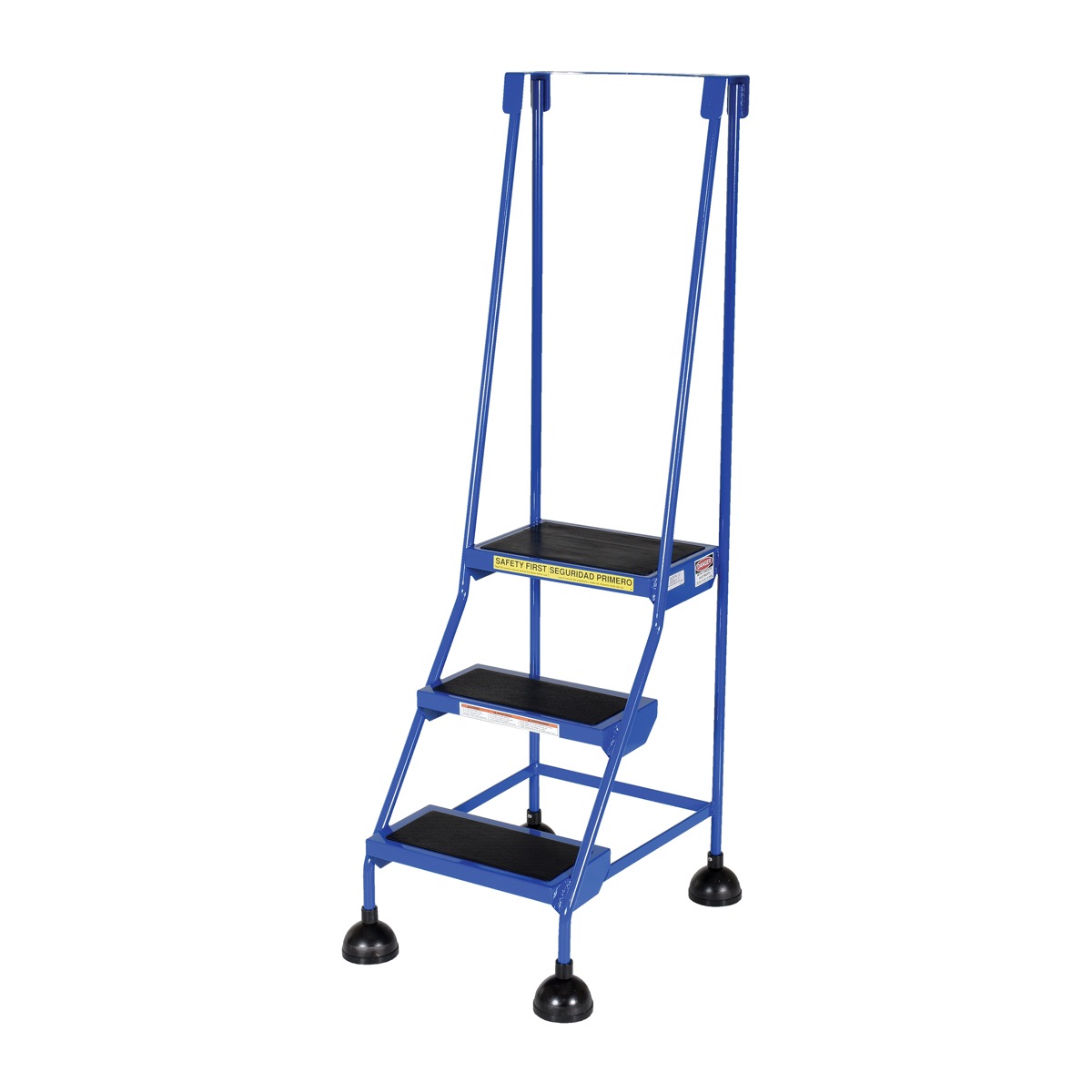

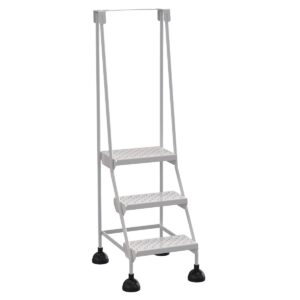

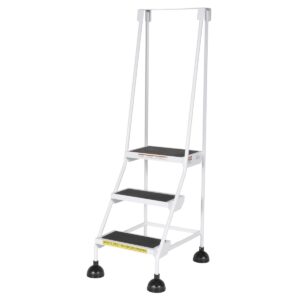

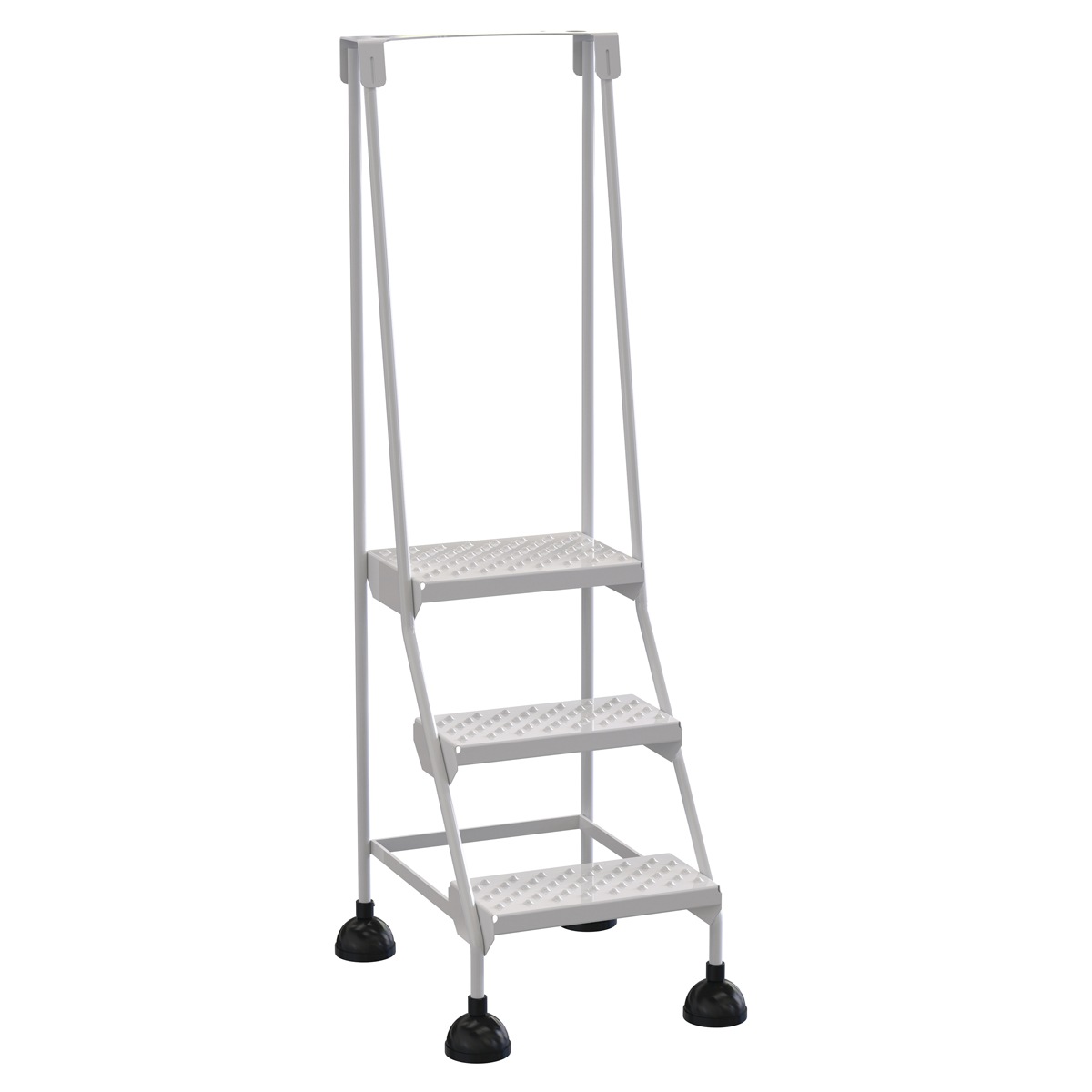

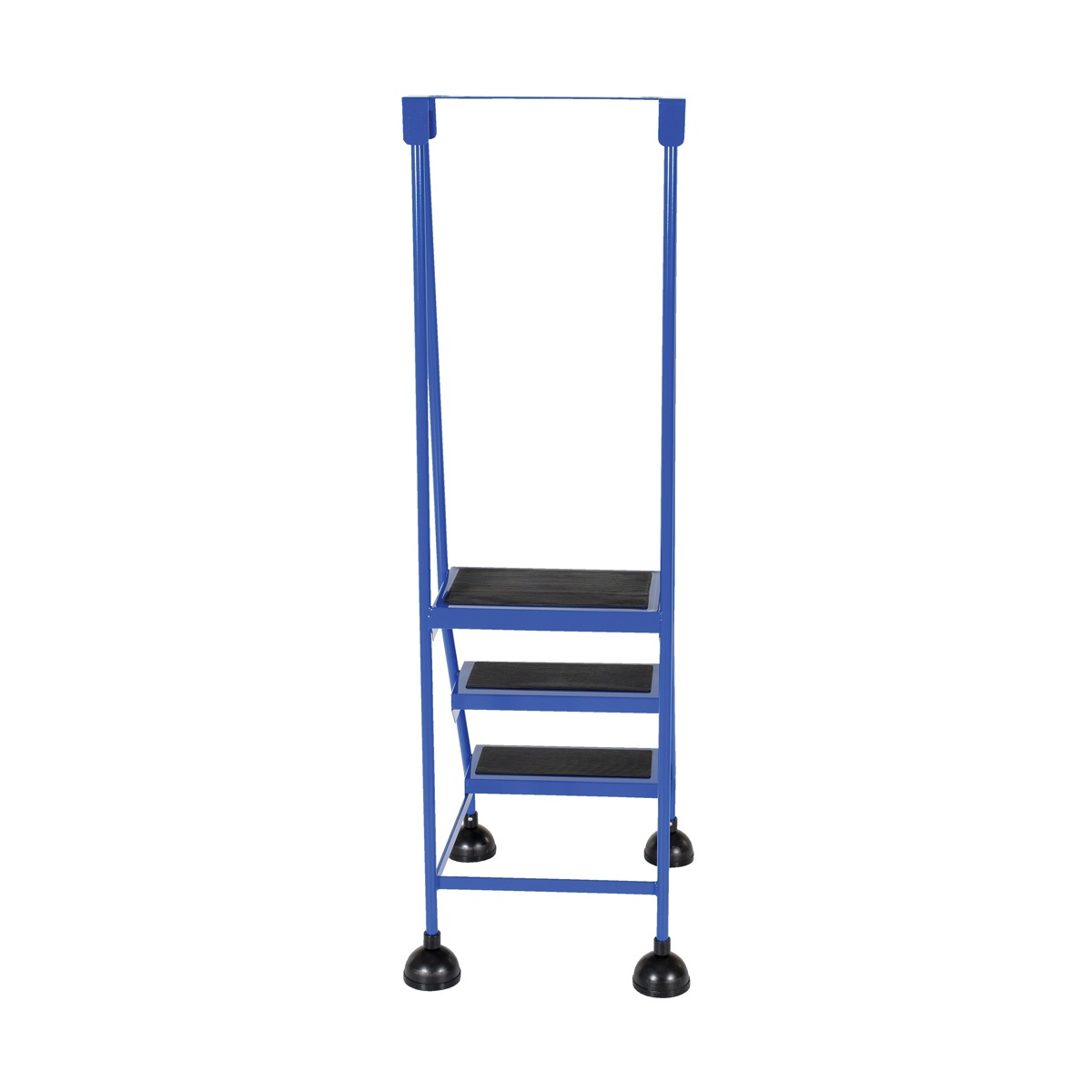

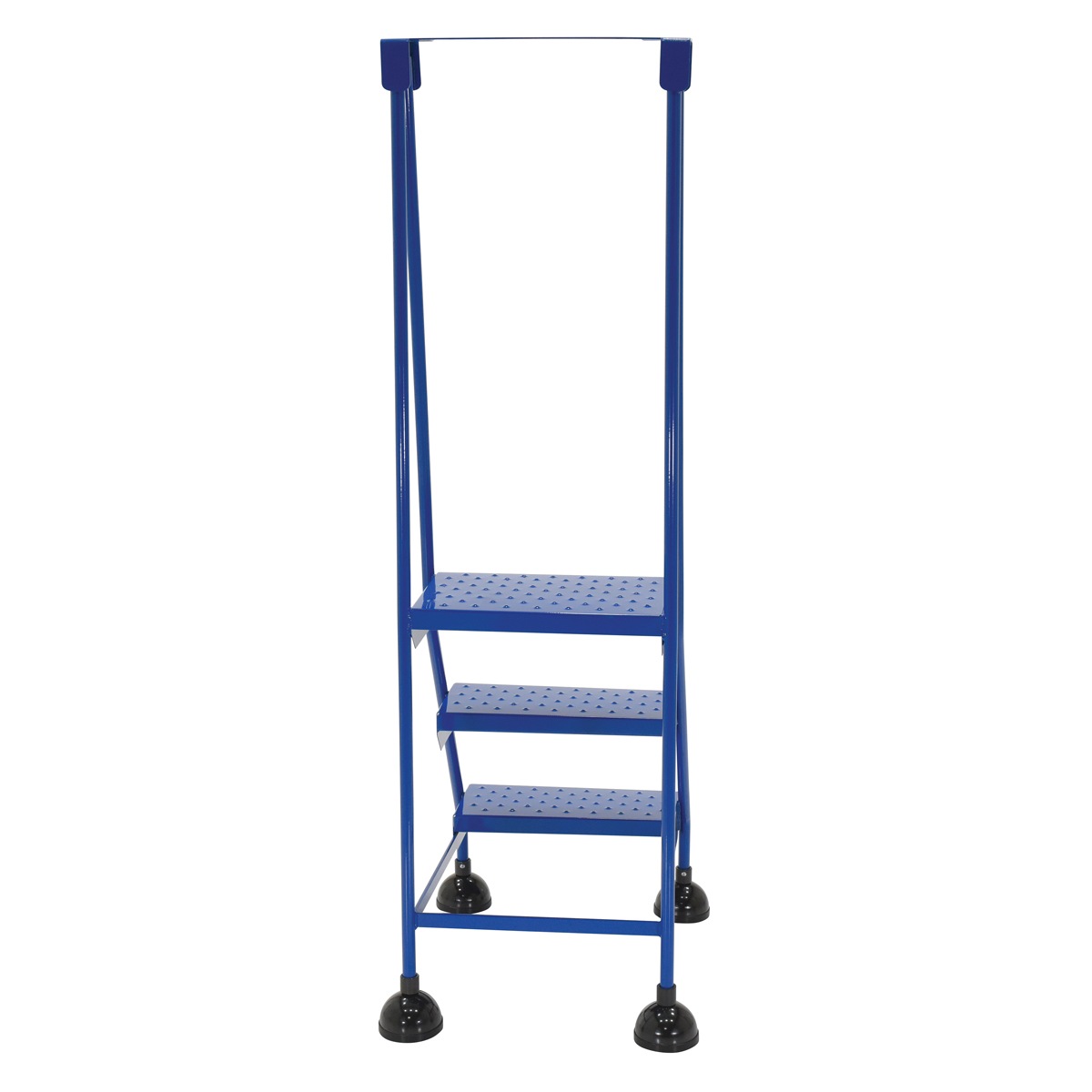

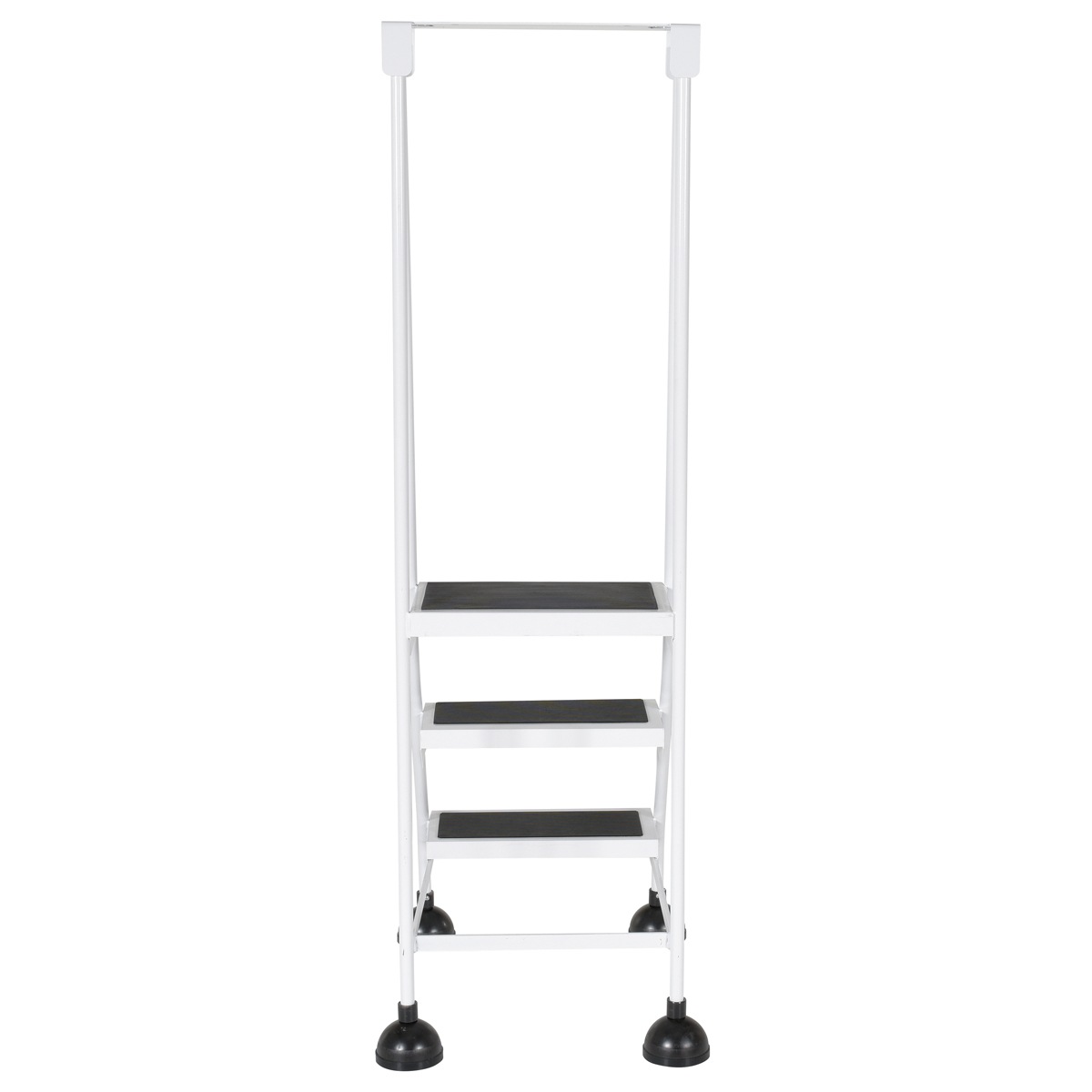

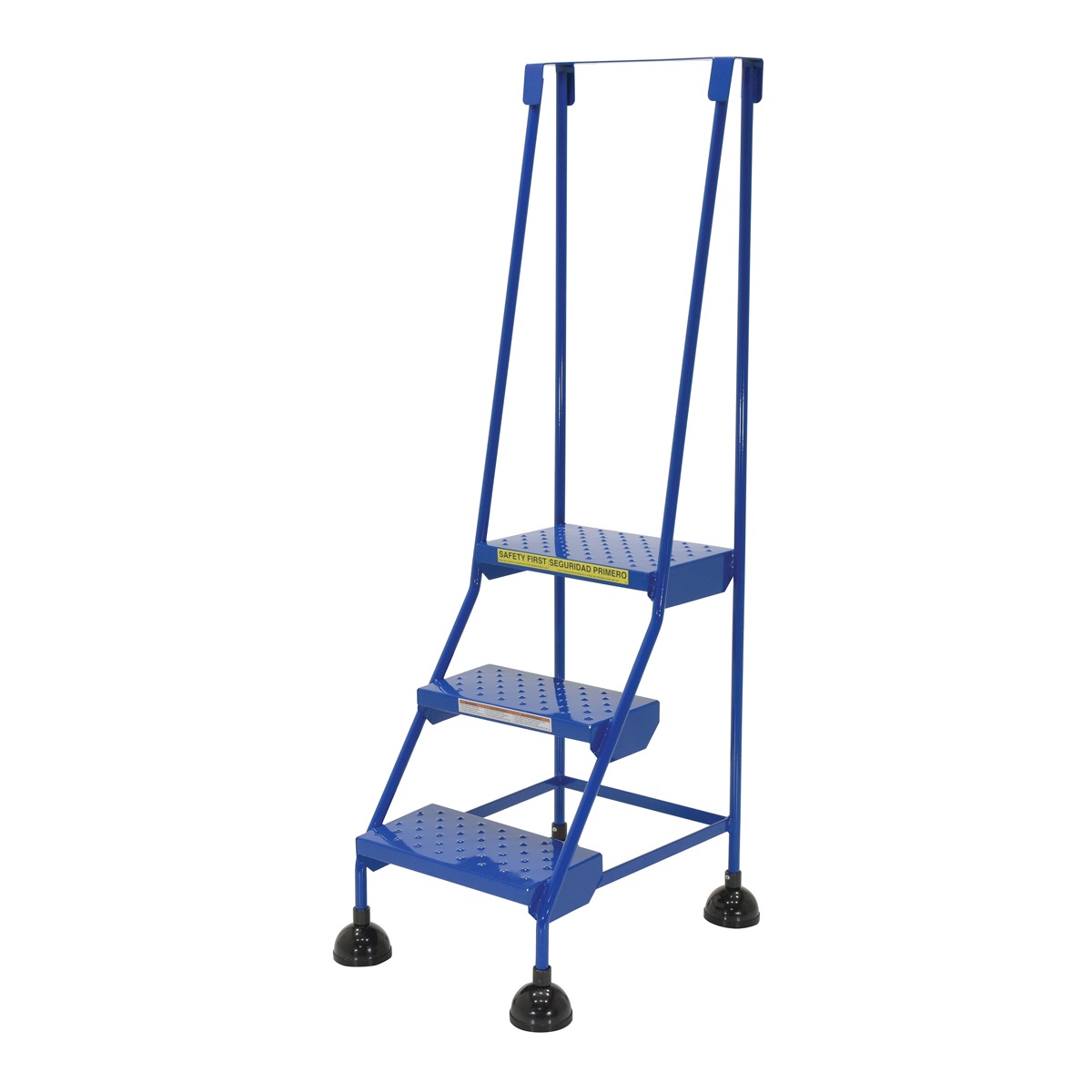

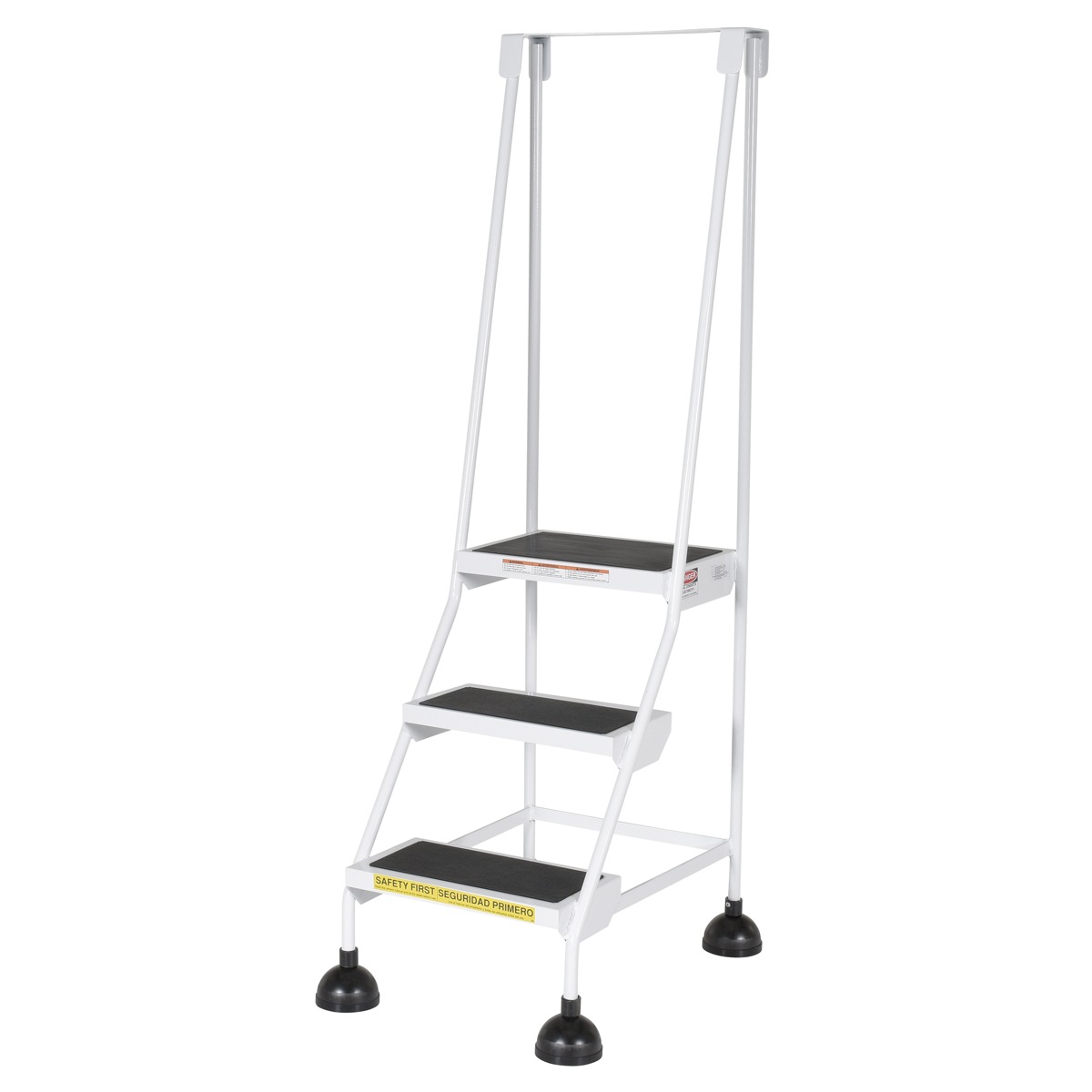

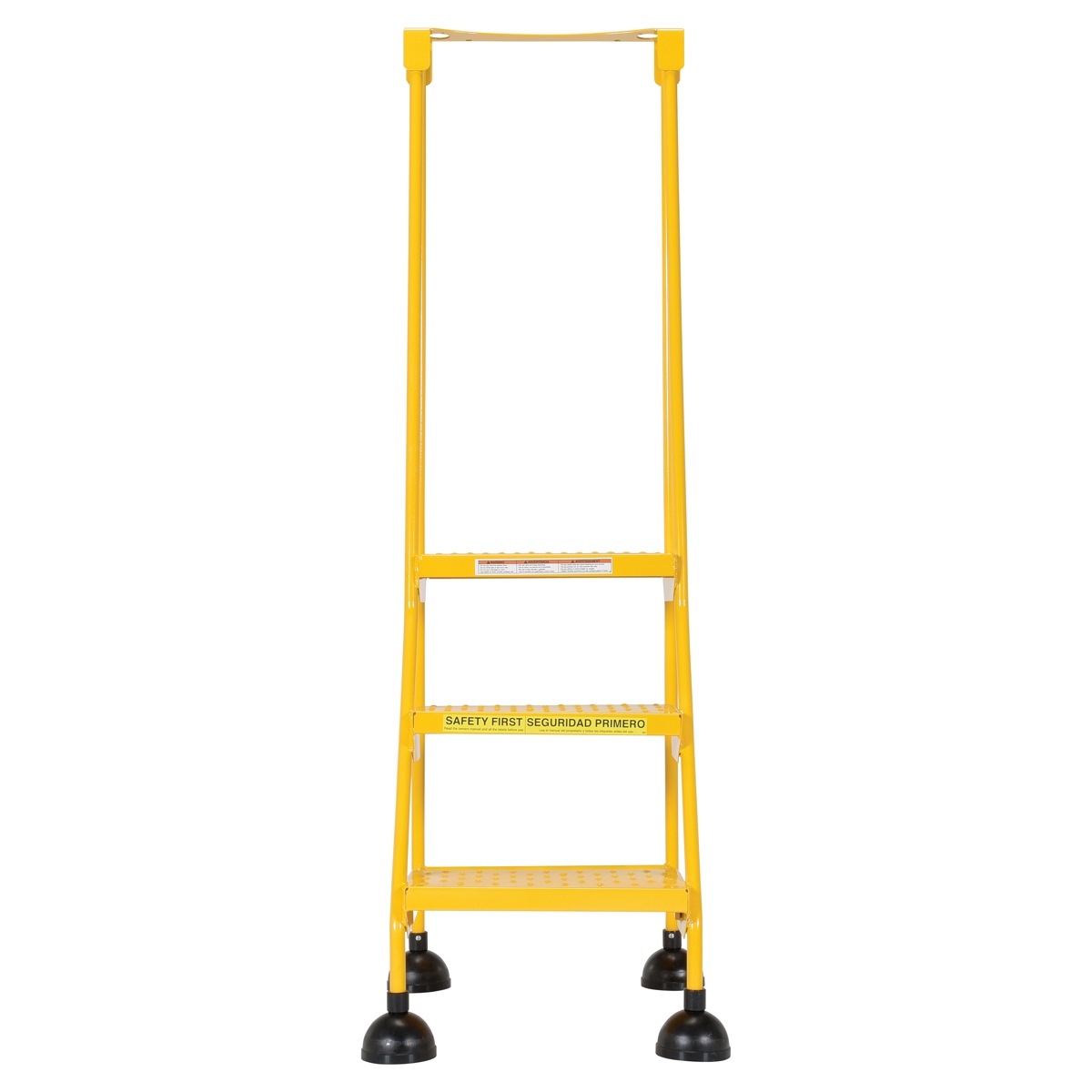

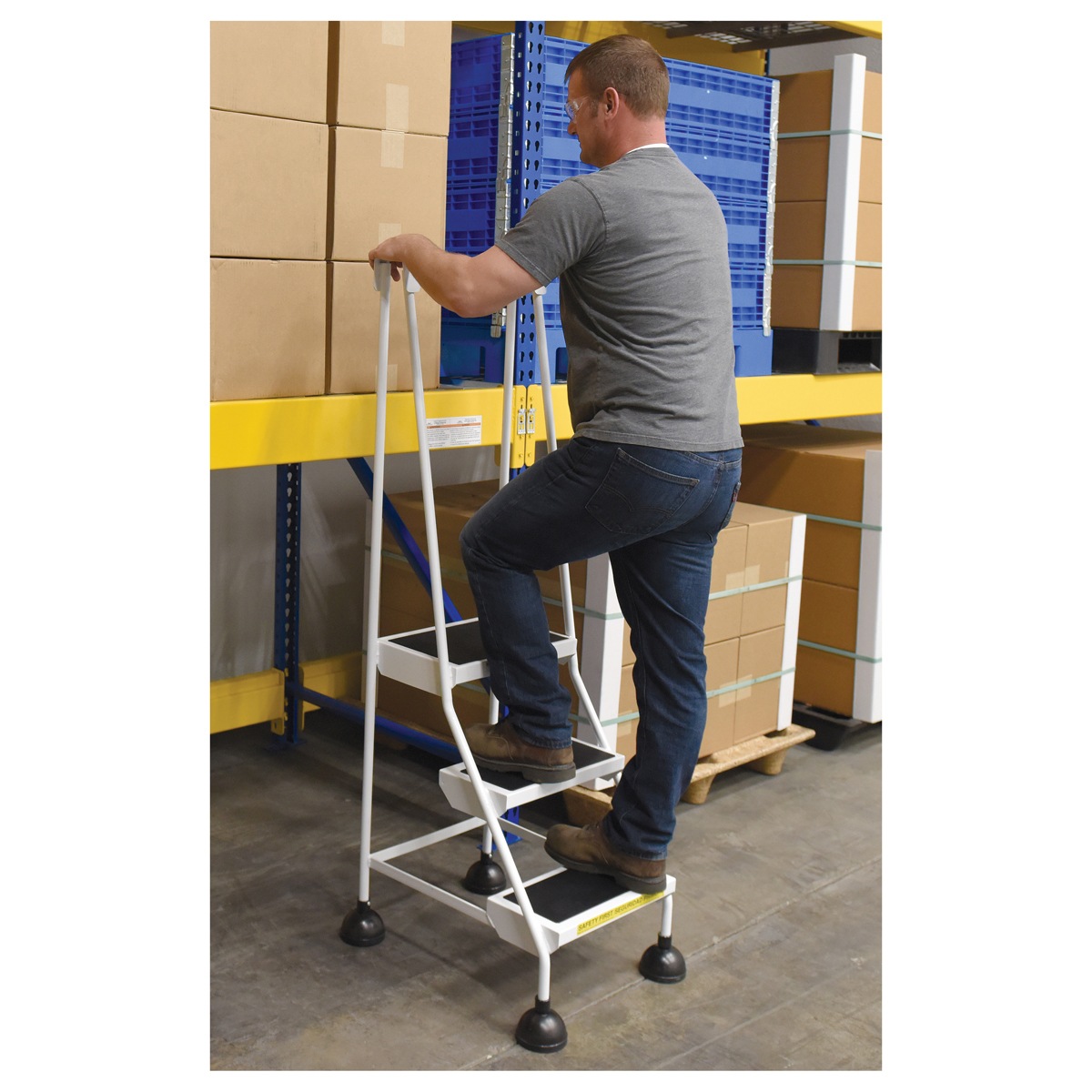

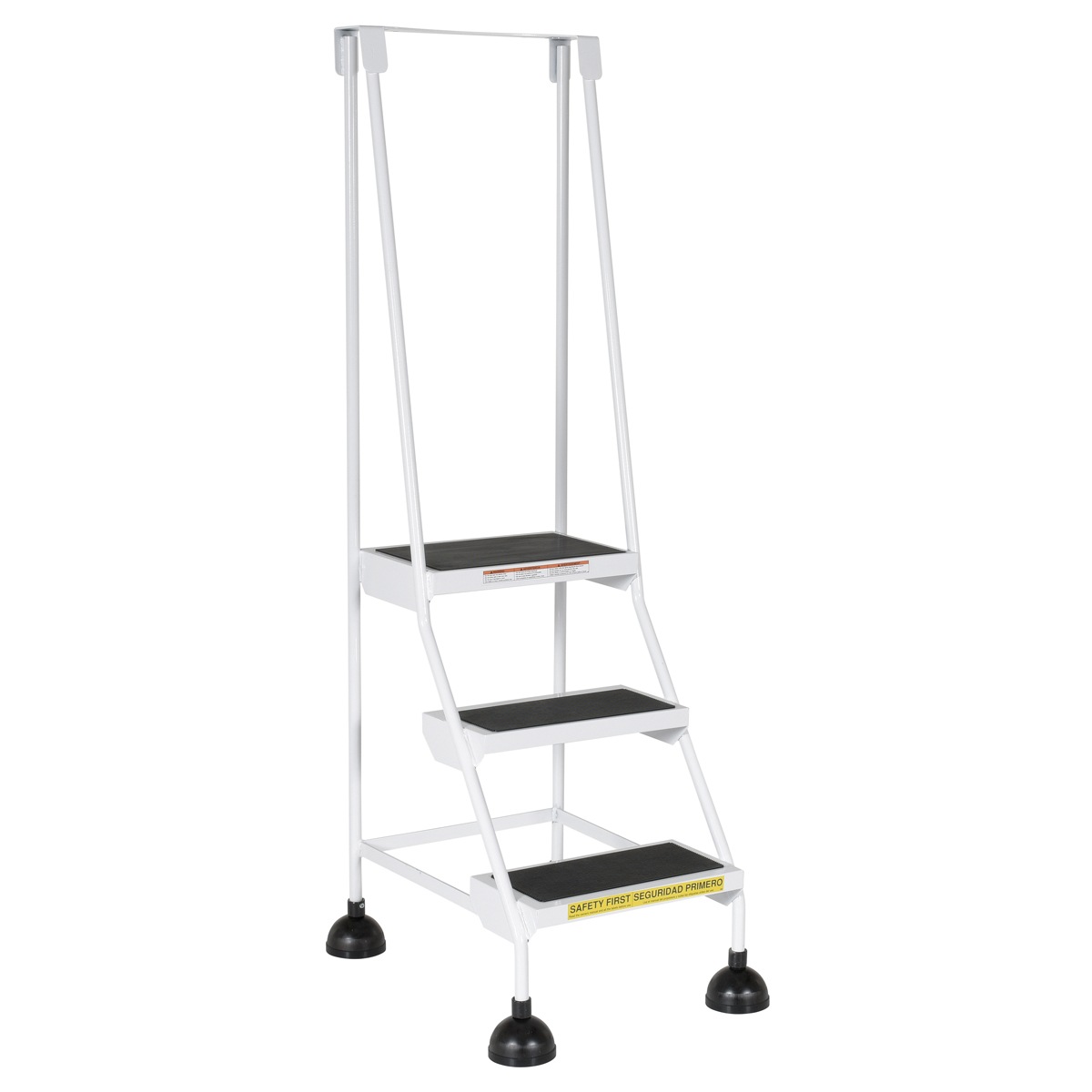

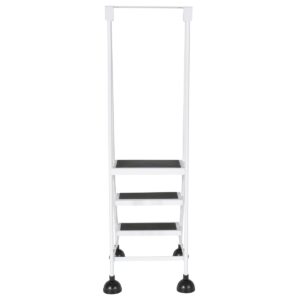

Vestil Spring Loaded Roll Ladder 3 Step

Commercial users of rolling ladders now have an attractive and economical alternative to the traditional warehouse rolling ladders. This Commercial Spring Loaded Ladder has a sleek design, also provides maximum safety and convenience. The all directional spring-loaded swivel casters feature steel dome protection and include rubber pad bottoms to minimize movement. This ladder has rubber steps. The powder coat finish provides a durable attractive appearance.

• Ladder design is an attractive and economical alternative to traditional warehouse rolling ladders
• Non-slip serrated rubber step surface provides a positive grip
• Rubber dome covers protect the spring-loaded casters
• Powder coat finish provides a durable attractive appearance

Specification

• Uniform Capacity (lb.): 300
• Top Step Height (in.): 28-11/16
• Step Angle (degrees): 58
• Top Step Width (in.): 16
• Top Step Depth (in.): 11
• Step (excluding top step) Width (in.): 16
• Step (excluding top step) Depth (in.): 8
• Steps (qty.): 3
• Handrail Height (in.): 34-3/4
• Caster Quantity/Diameter/Width (in.): (4) 1-1/2 x 3/4
• Caster Material: Phenolic
• OSHA: 1910.29
• ANSI: A14.7

Documents

Click for LAD-3-B Approval Drawings

Click for LAD-3-B-P Approval Drawings

Click for LAD-3-W Approval Drawings

Click for LAD-3-W-P Approval Drawings

Click for LAD-3-Y Approval Drawings

Click for LAD-3-Y-P Approval Drawings
