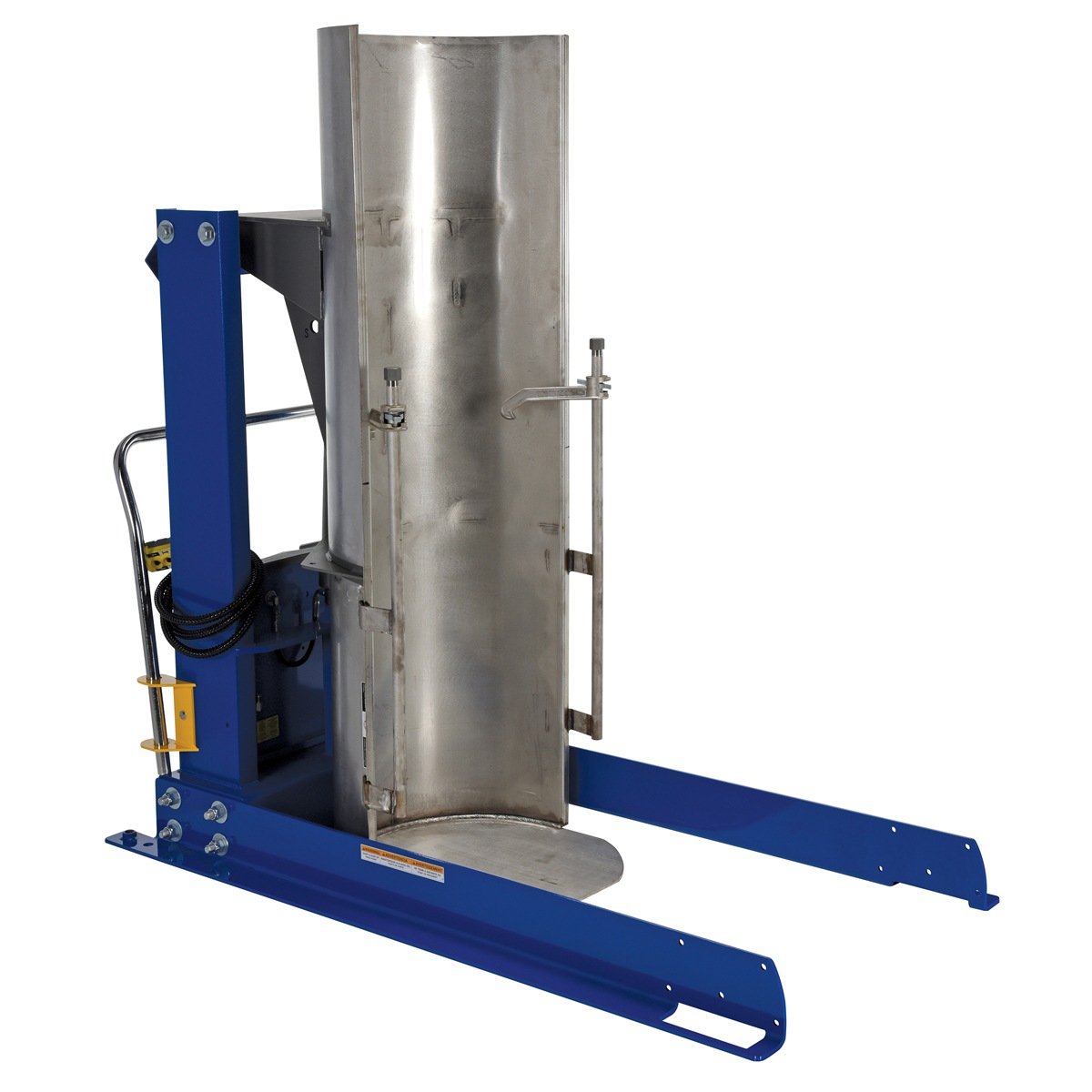

Vestil Stationary HYD Drum Dumper SSC

The Hydraulic Drum Dumper is what you need to dump heavy drums. Works with plastic, steel, and fiber drums. Dumper has a solid steel chute. This portable unit has casters with floor lock screws. All steel construction. Upper travel limit switch, emergency brass safety velocity fuse in cylinder, and vertical adjustment drum restraints are standard. Dumper is operated with a hand held control on a coil cord standard.

• Internal pre-wired heavy-duty electric motor conveniently dumps drums
• Adjustable drum restraints work with all types of 30 and 55 gallon drums
• Drum rotation design may be stopped at any point
• Solid steel construction offers long lasting reliable use

Specification

• Accepts: 30 and 55-gallon drums
• Motor Horsepower: 3/4
• Single Phase (volts): 115
• Motor (Hz): 60
• Power Cord Length (ft.): 8
• Hand Held Control Cord Length (ft.): 8
• Drum Rotation (deg.): 135
• Dump Angle (deg.): 45
• Chute Diameter (in.): 24
• Motor Style: 56 Frame
• Cylinder Diameter (in.): 2-1/2
• Cylinder Length (in.): 18
• Chute Reach (in.): 14
