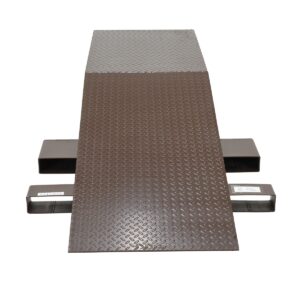

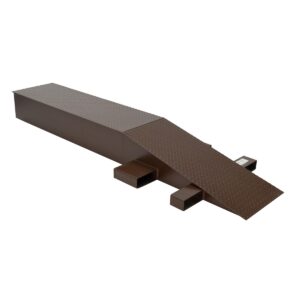

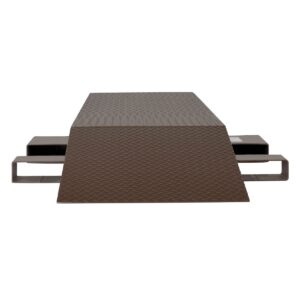

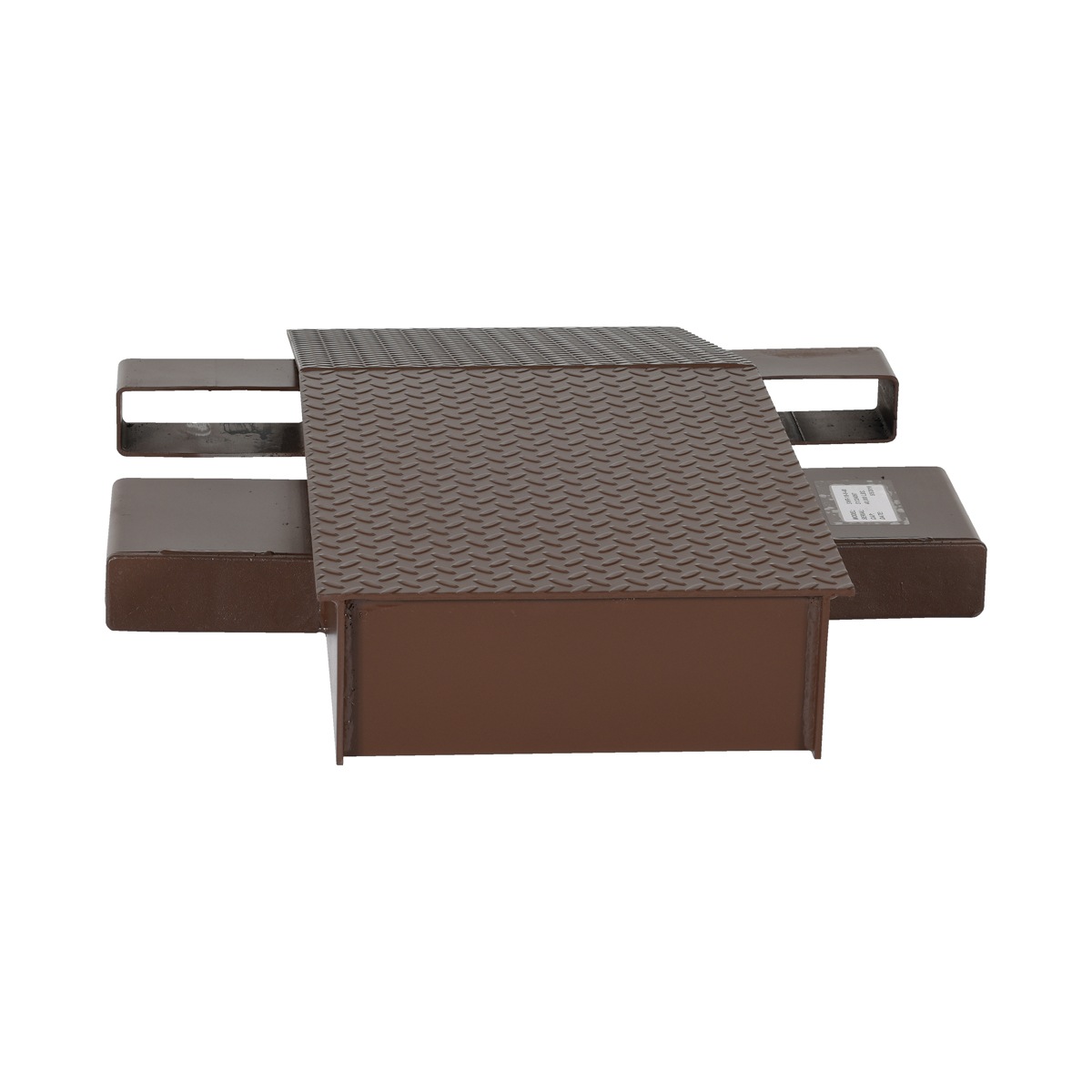

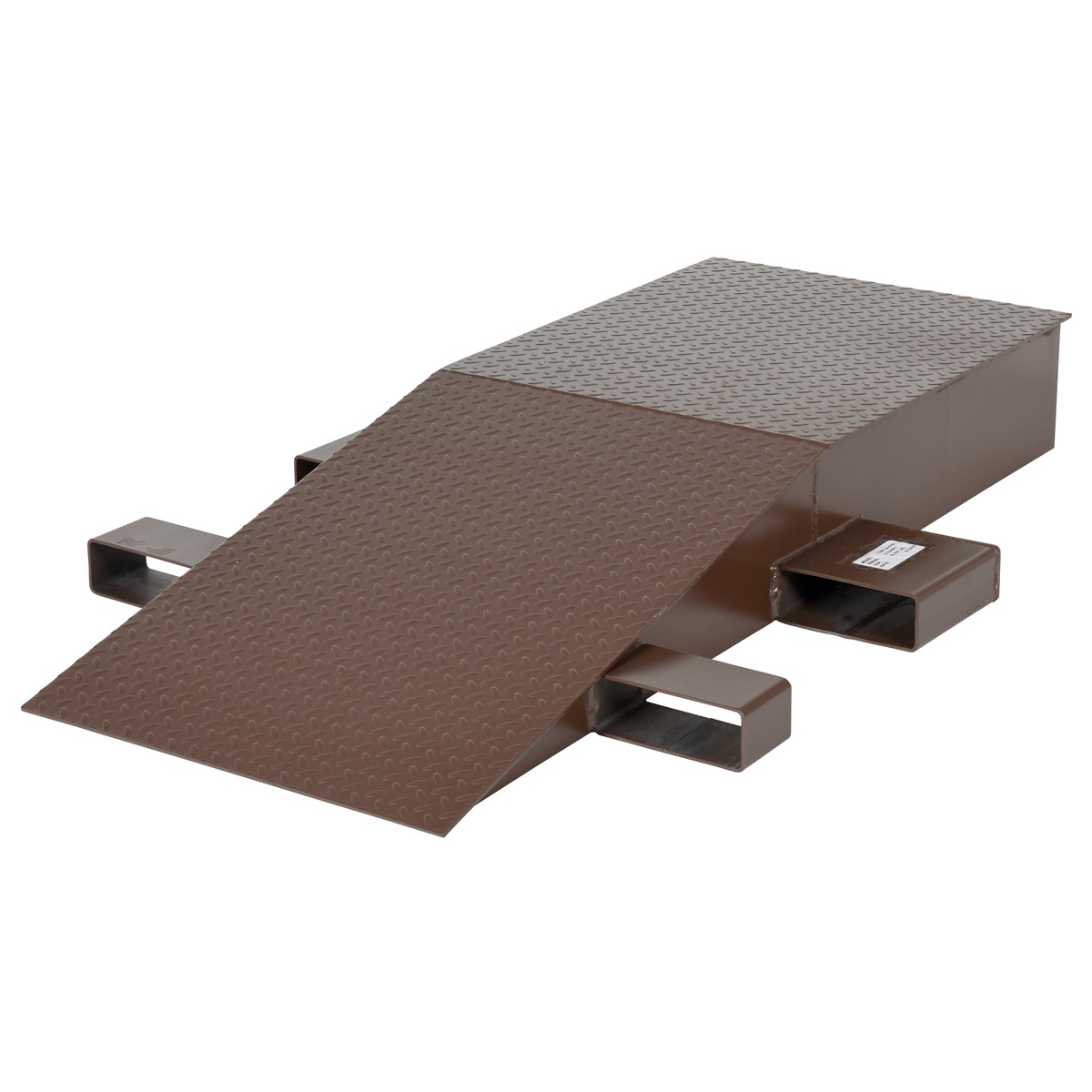

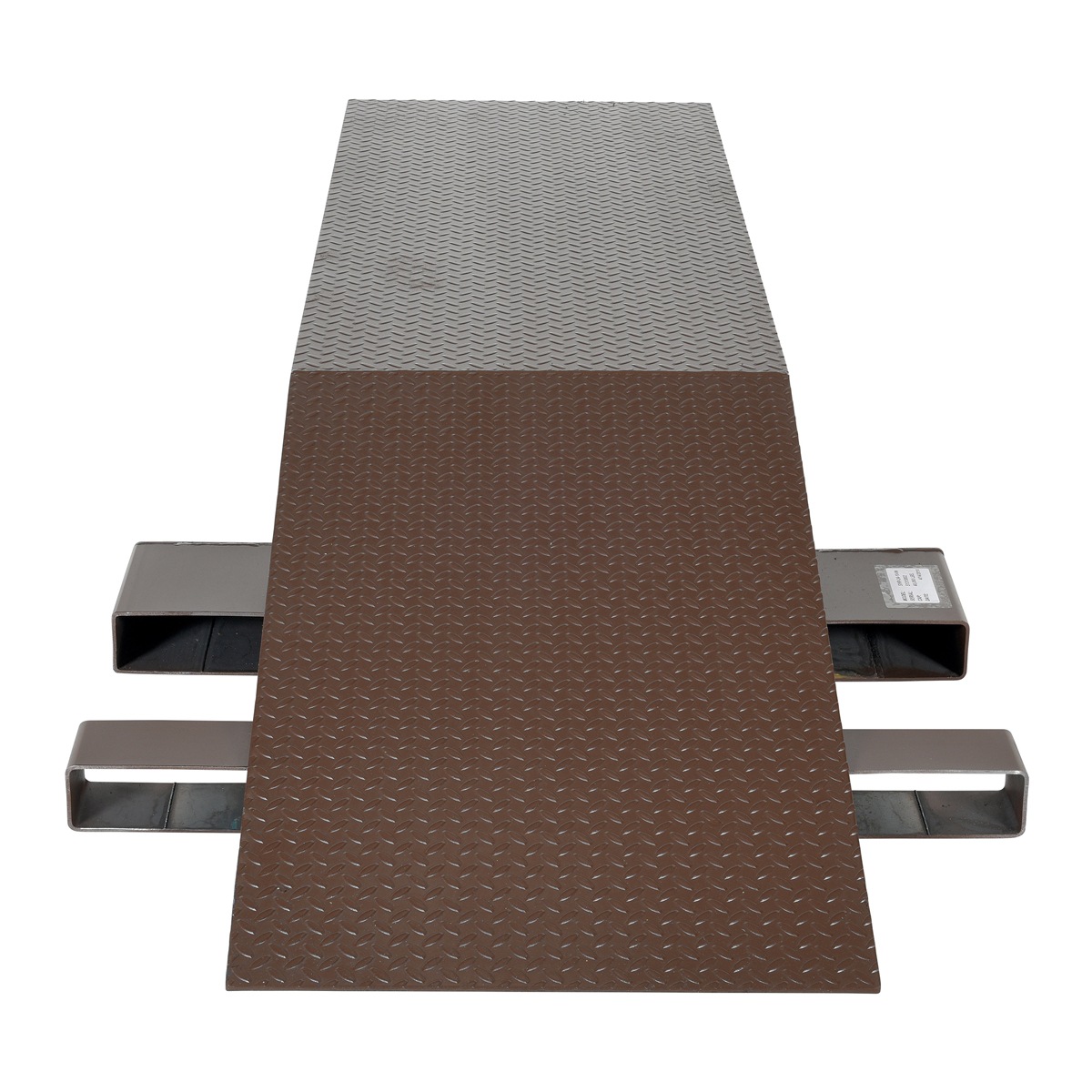

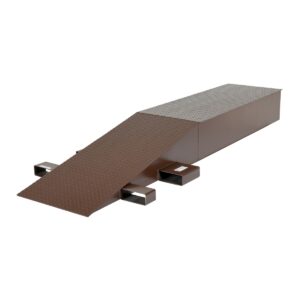

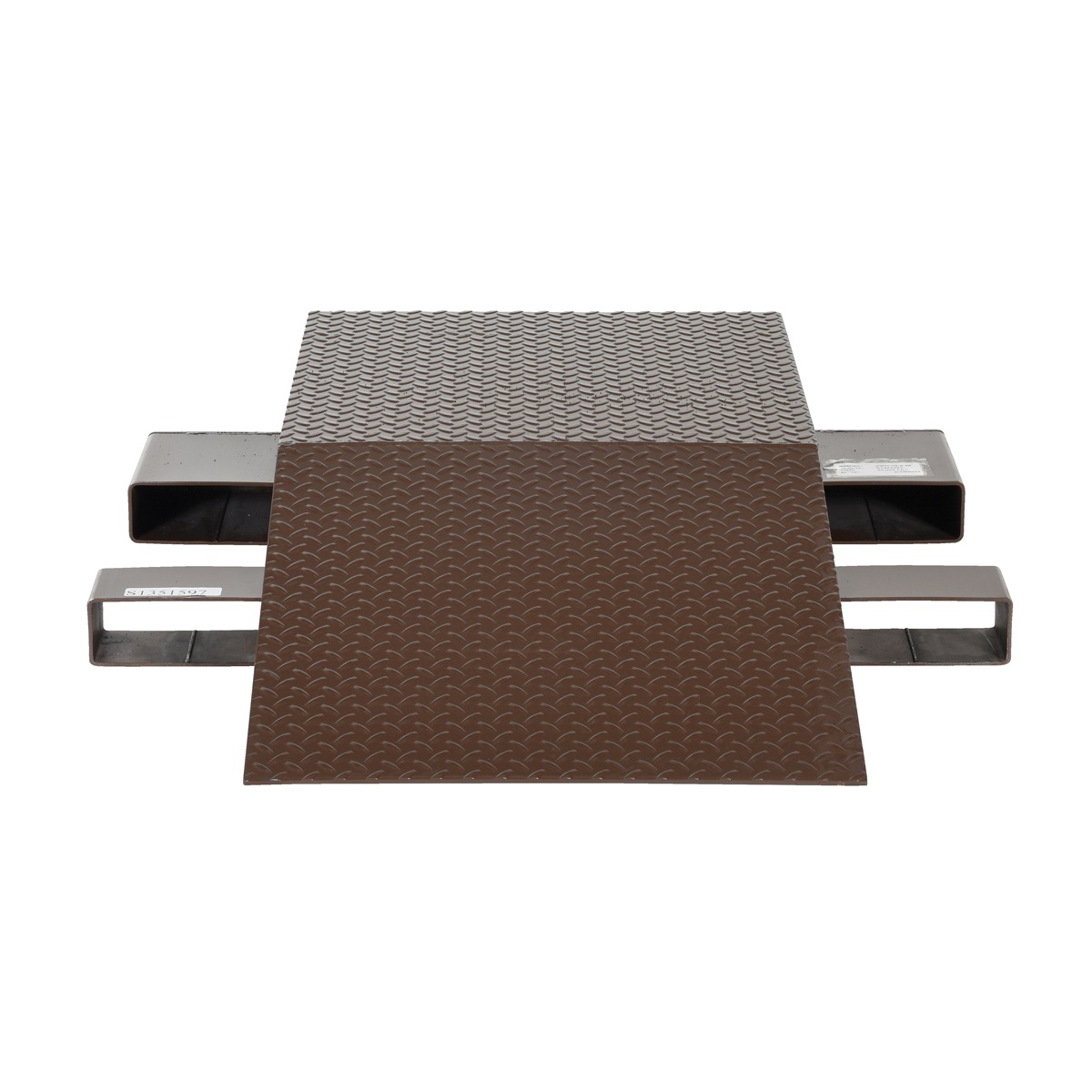

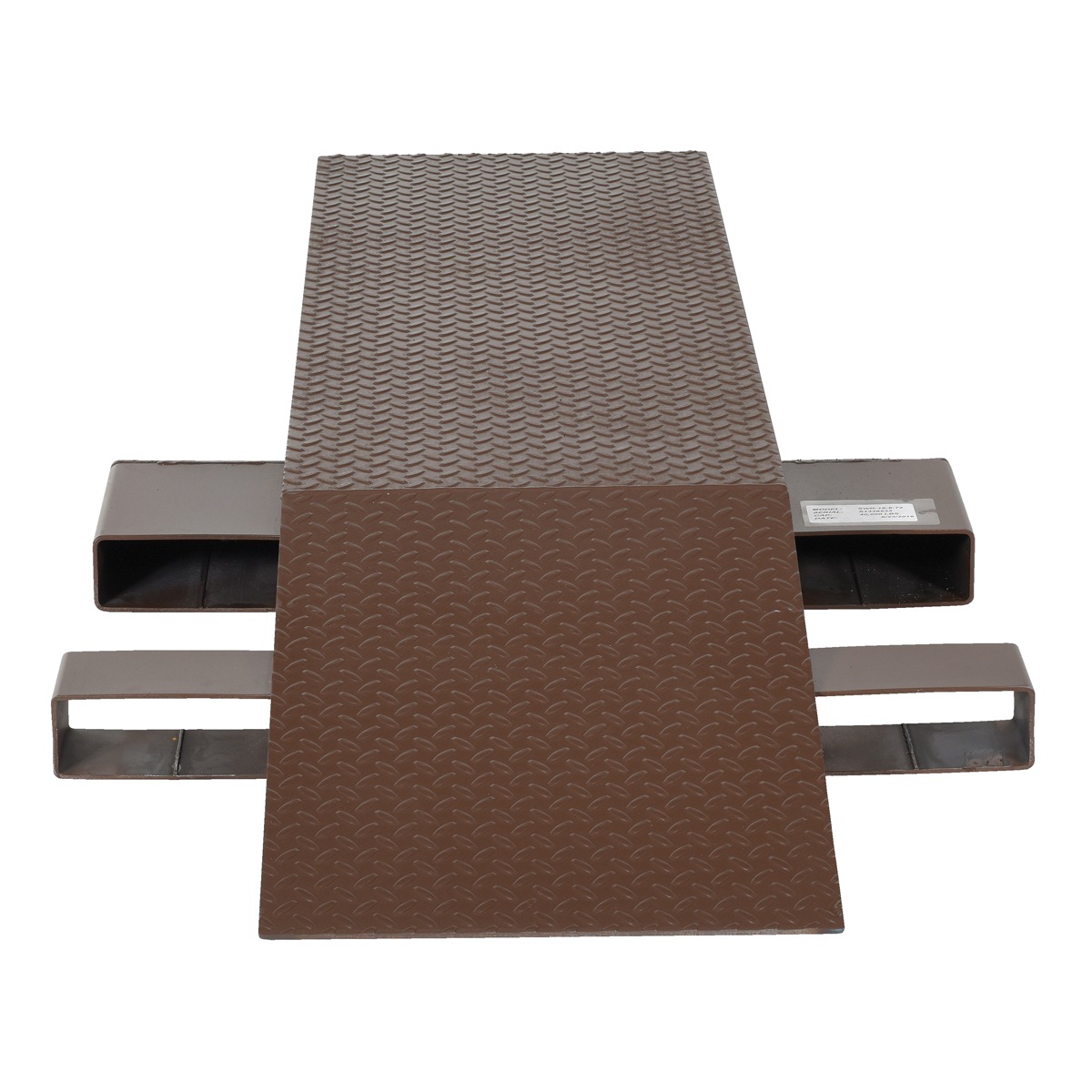

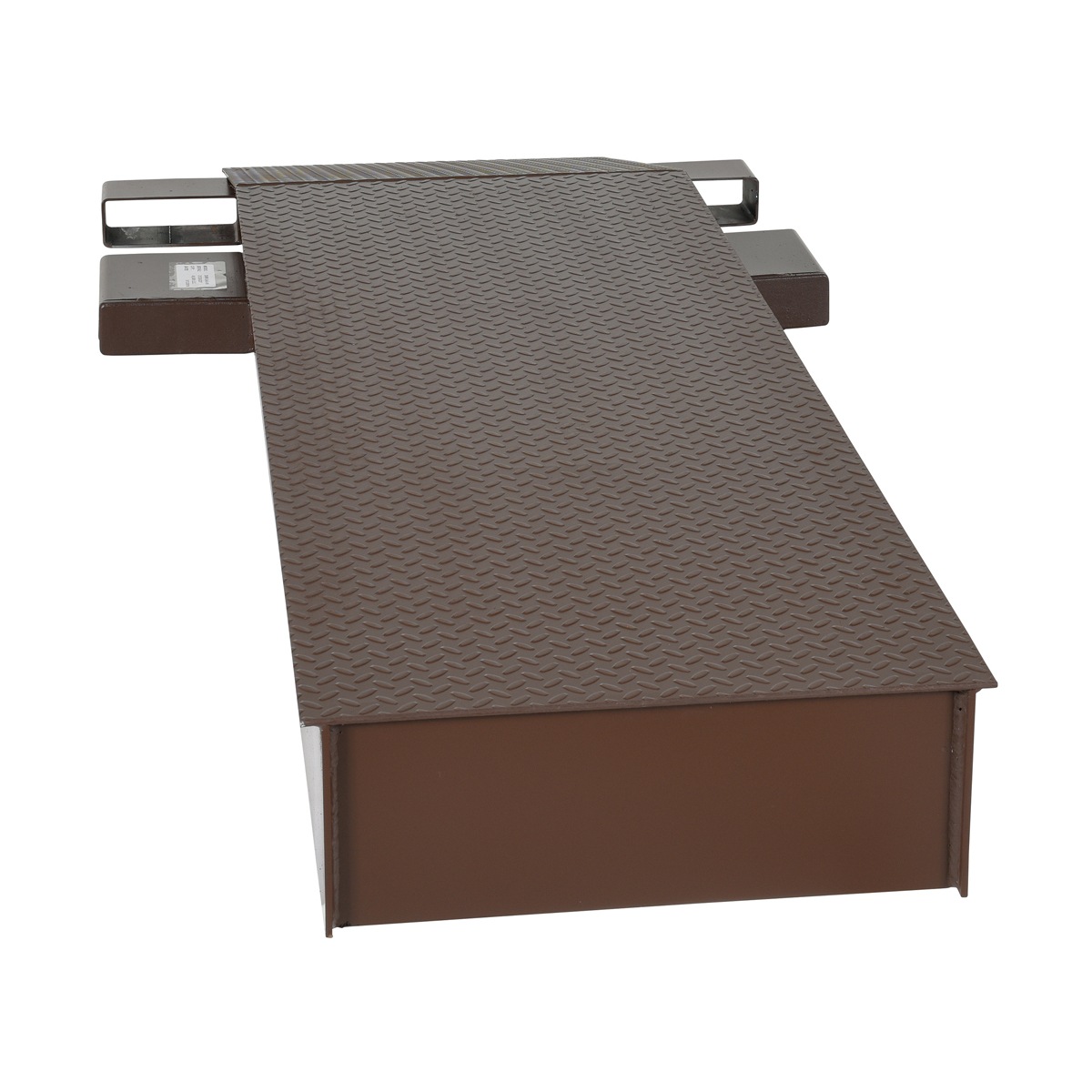

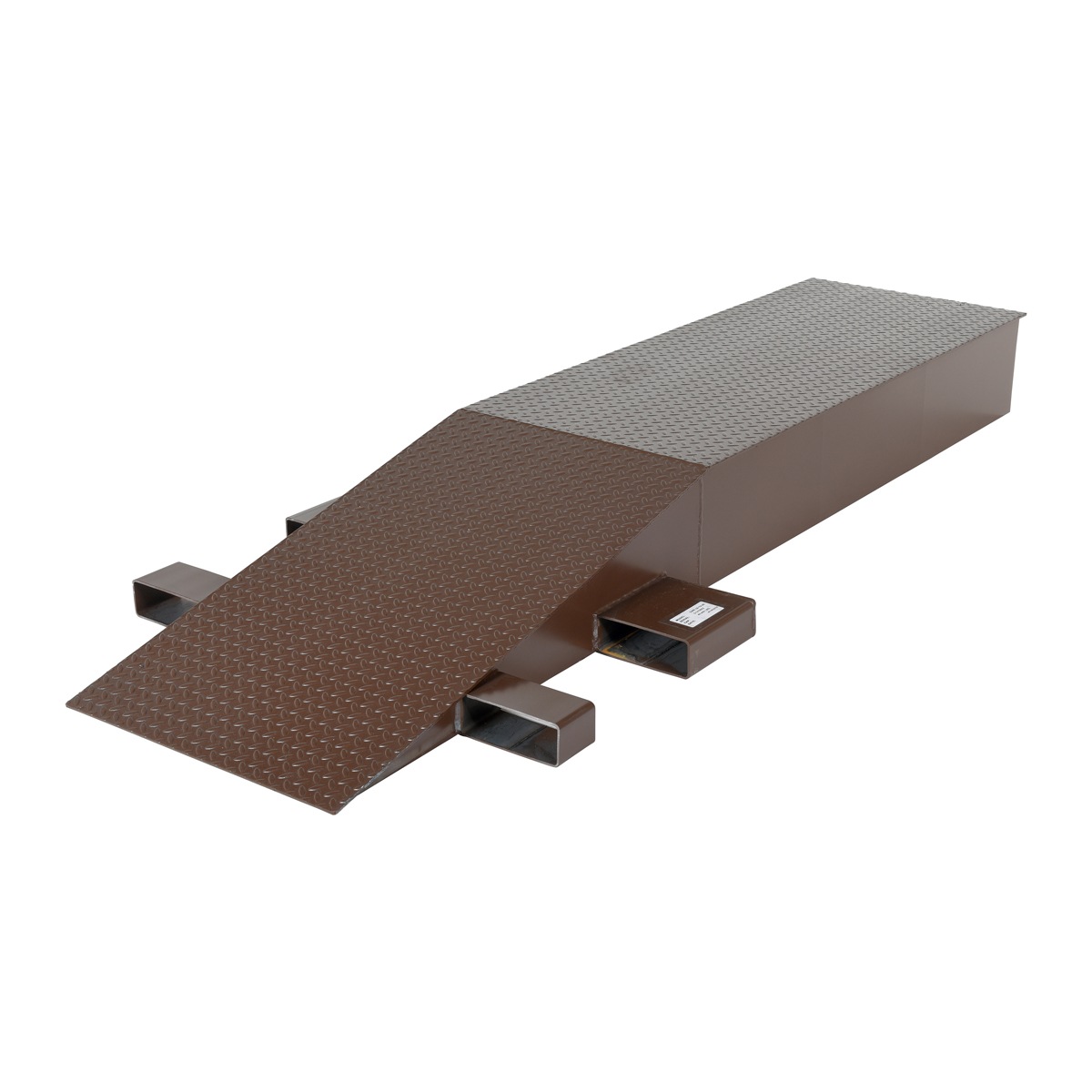

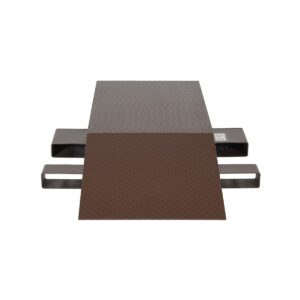

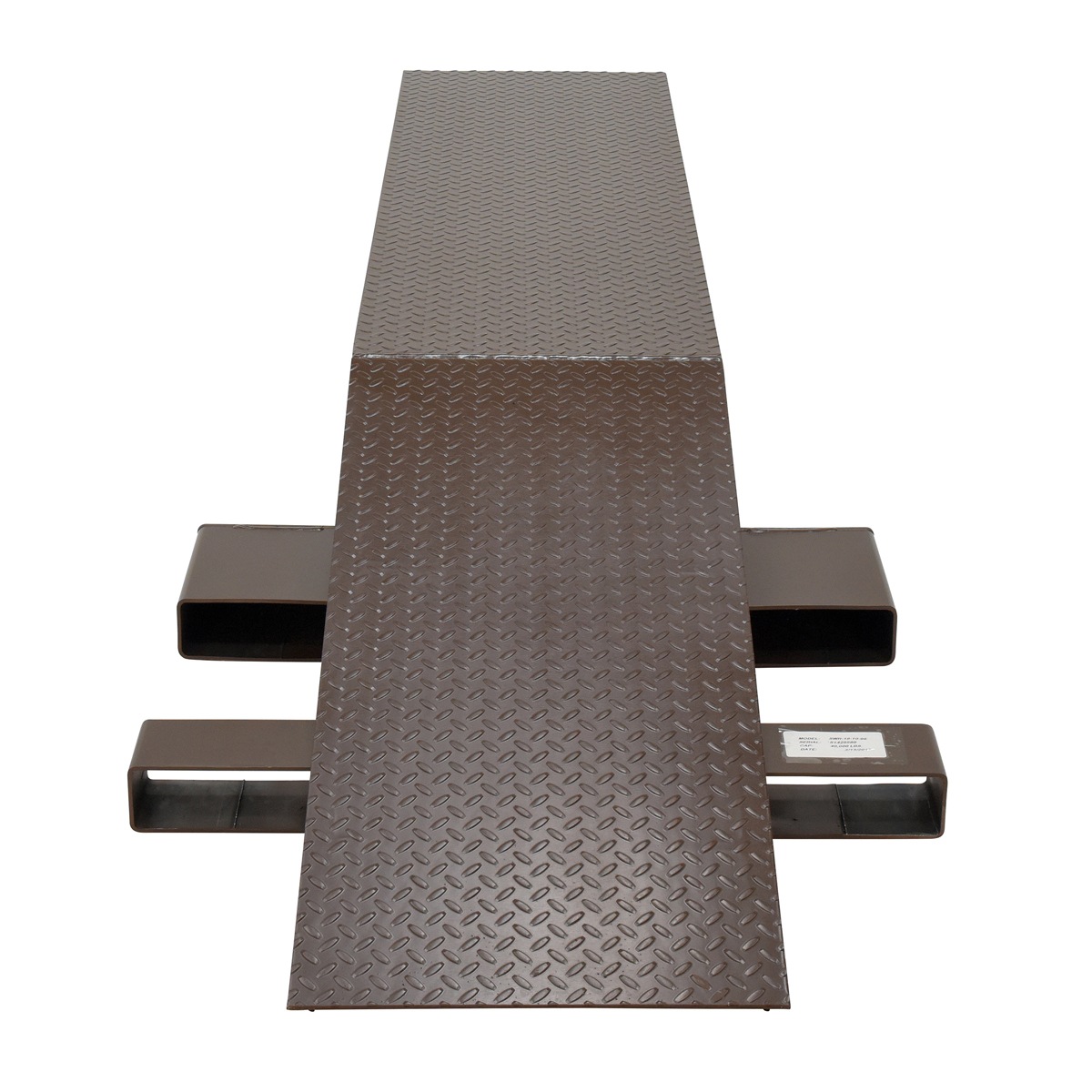

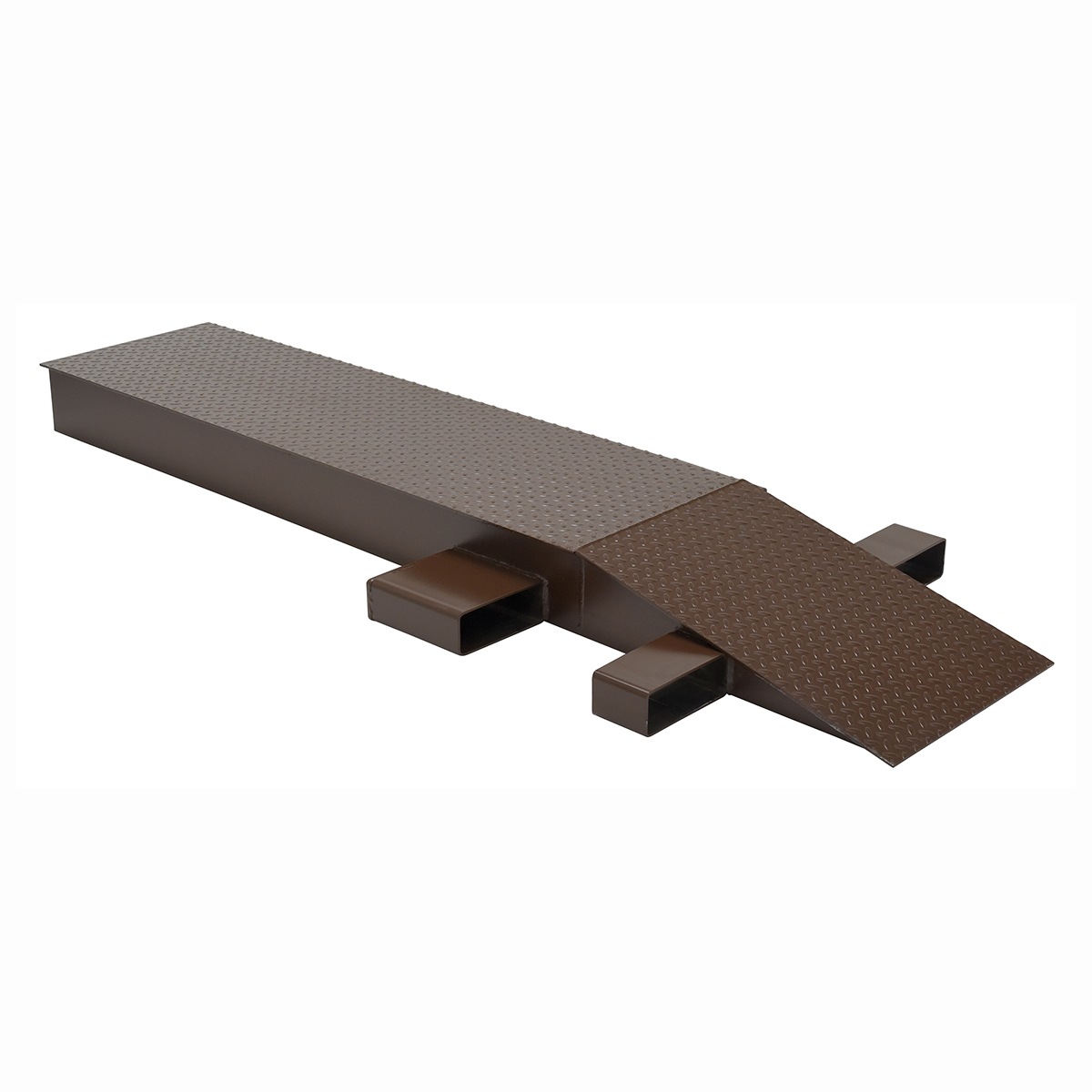

Vestil Steel Wheel Riser
Price range: $560.38 through $1,323.98
Description

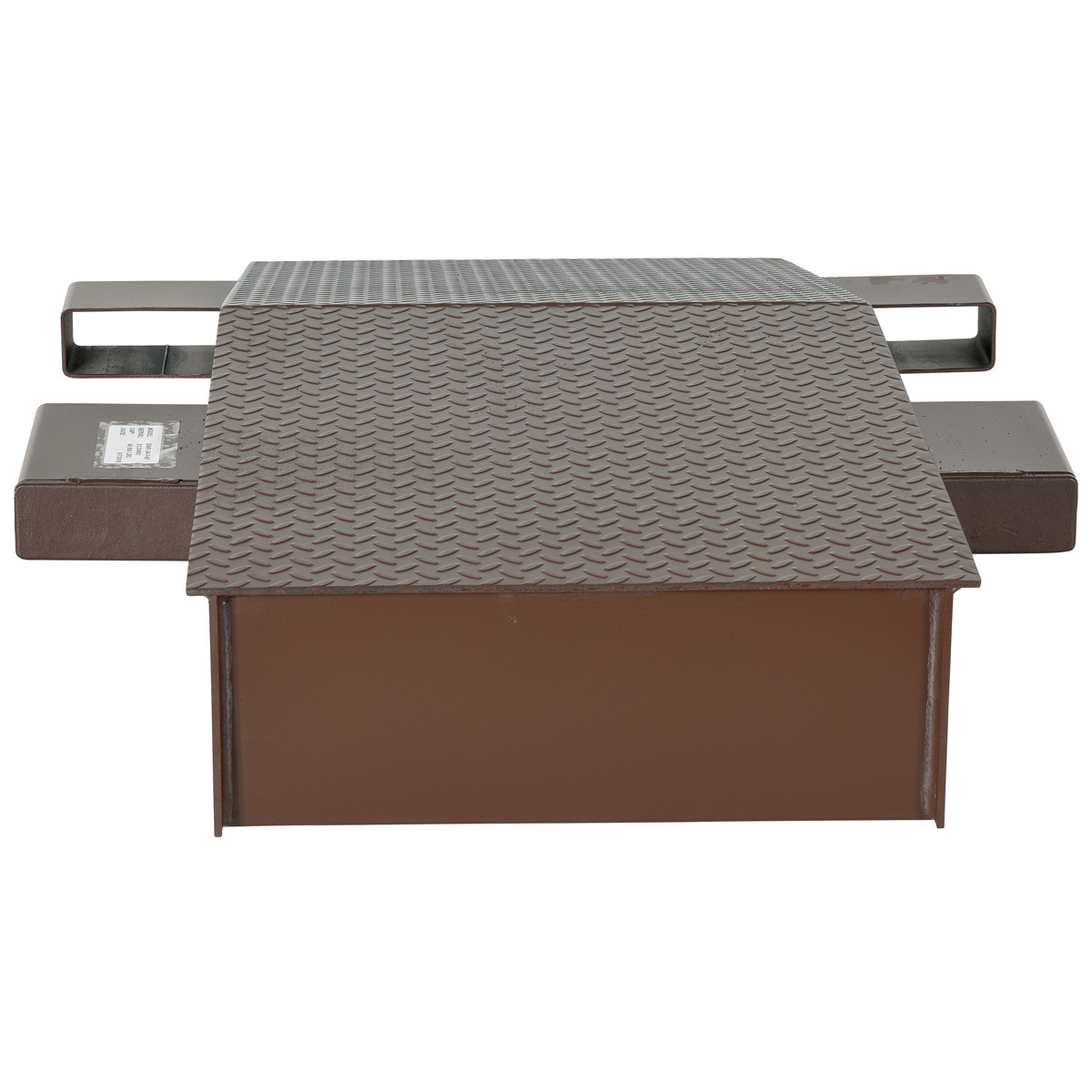

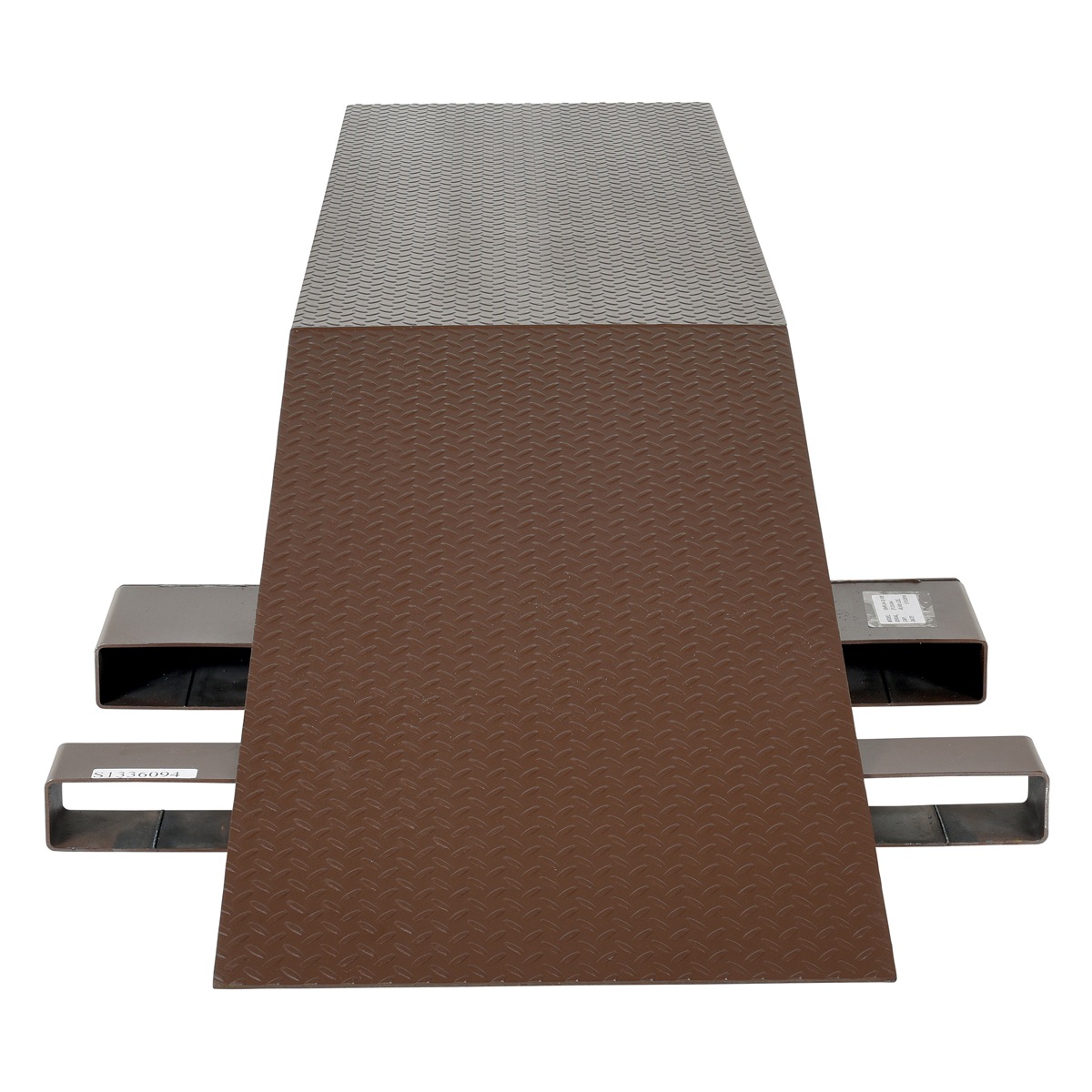

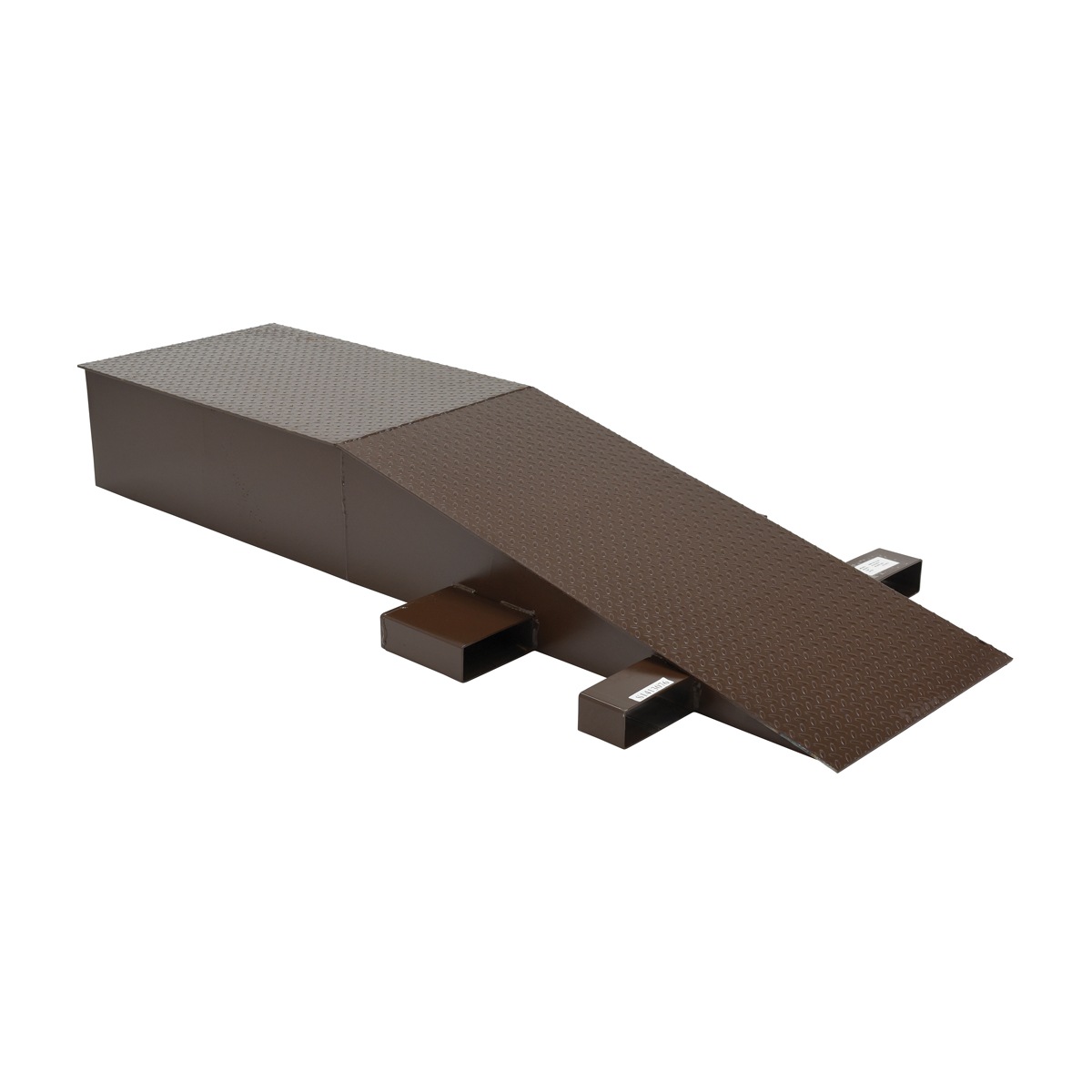

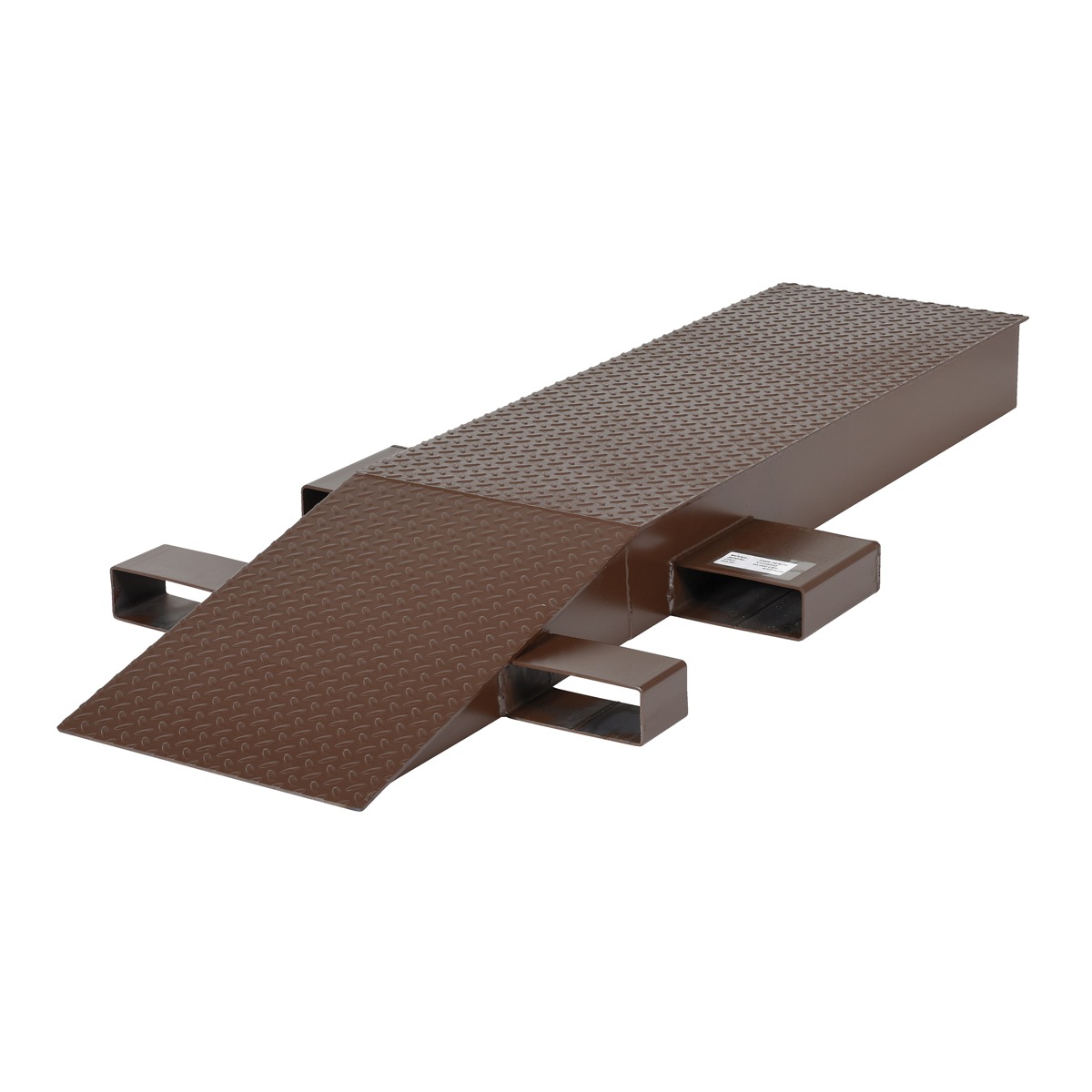

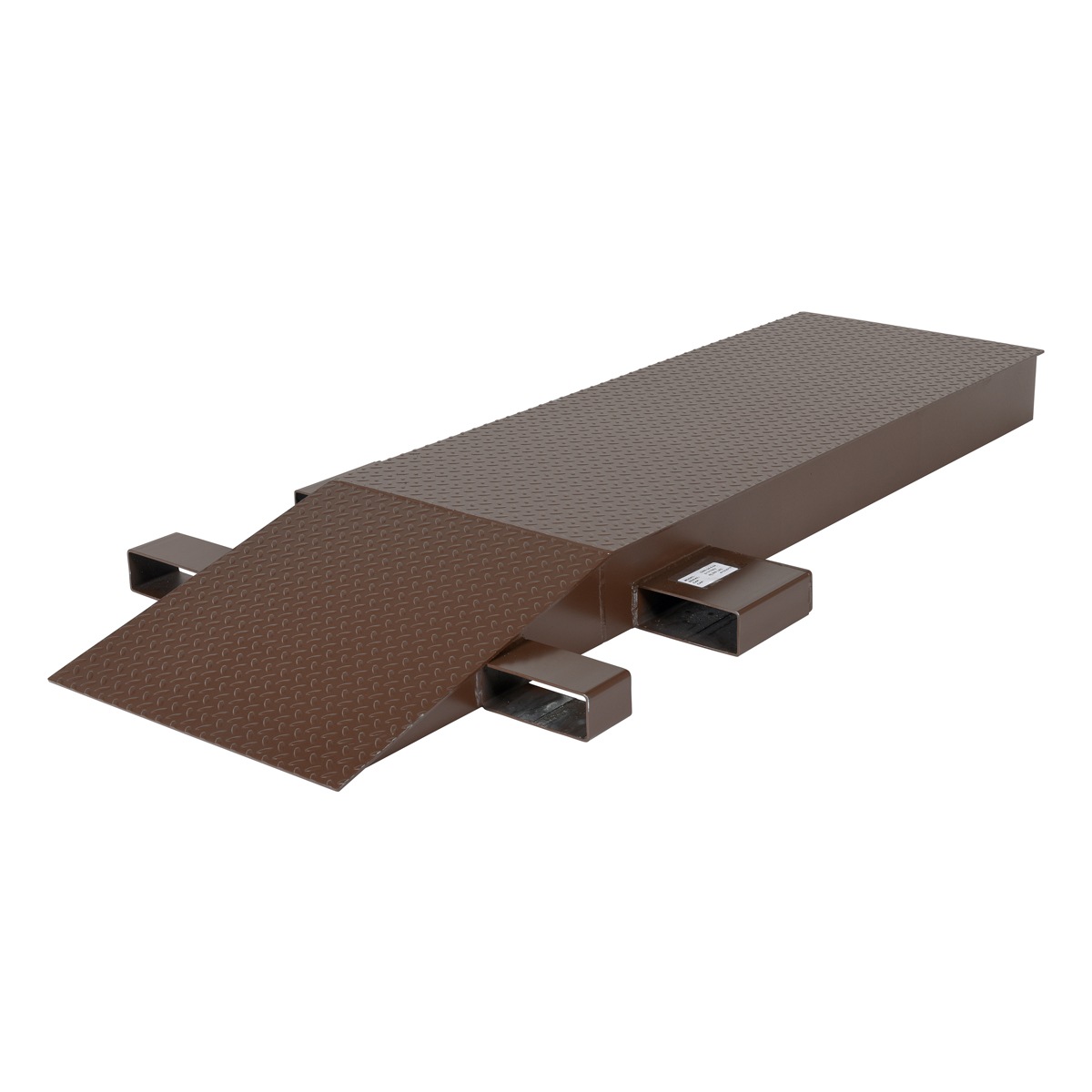

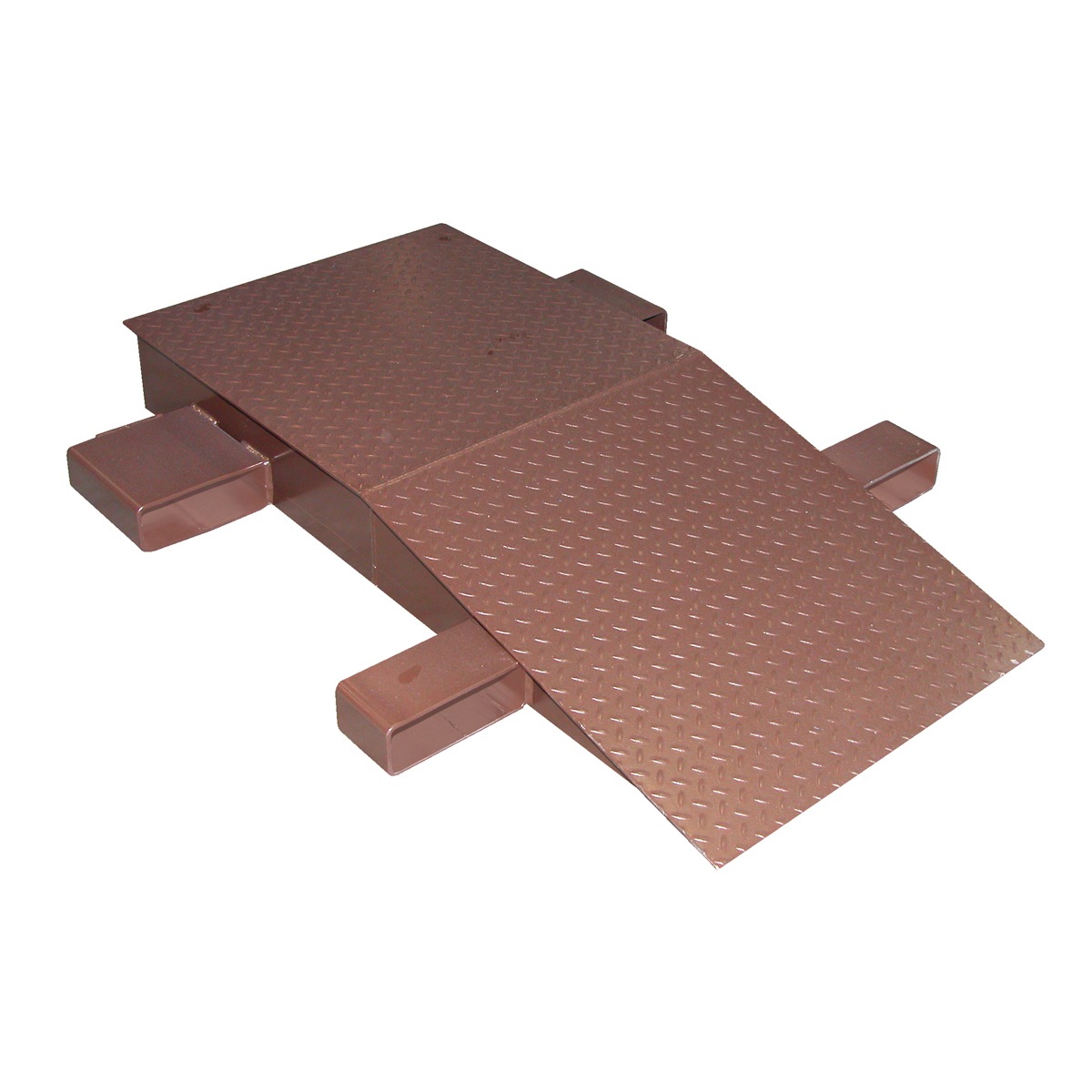

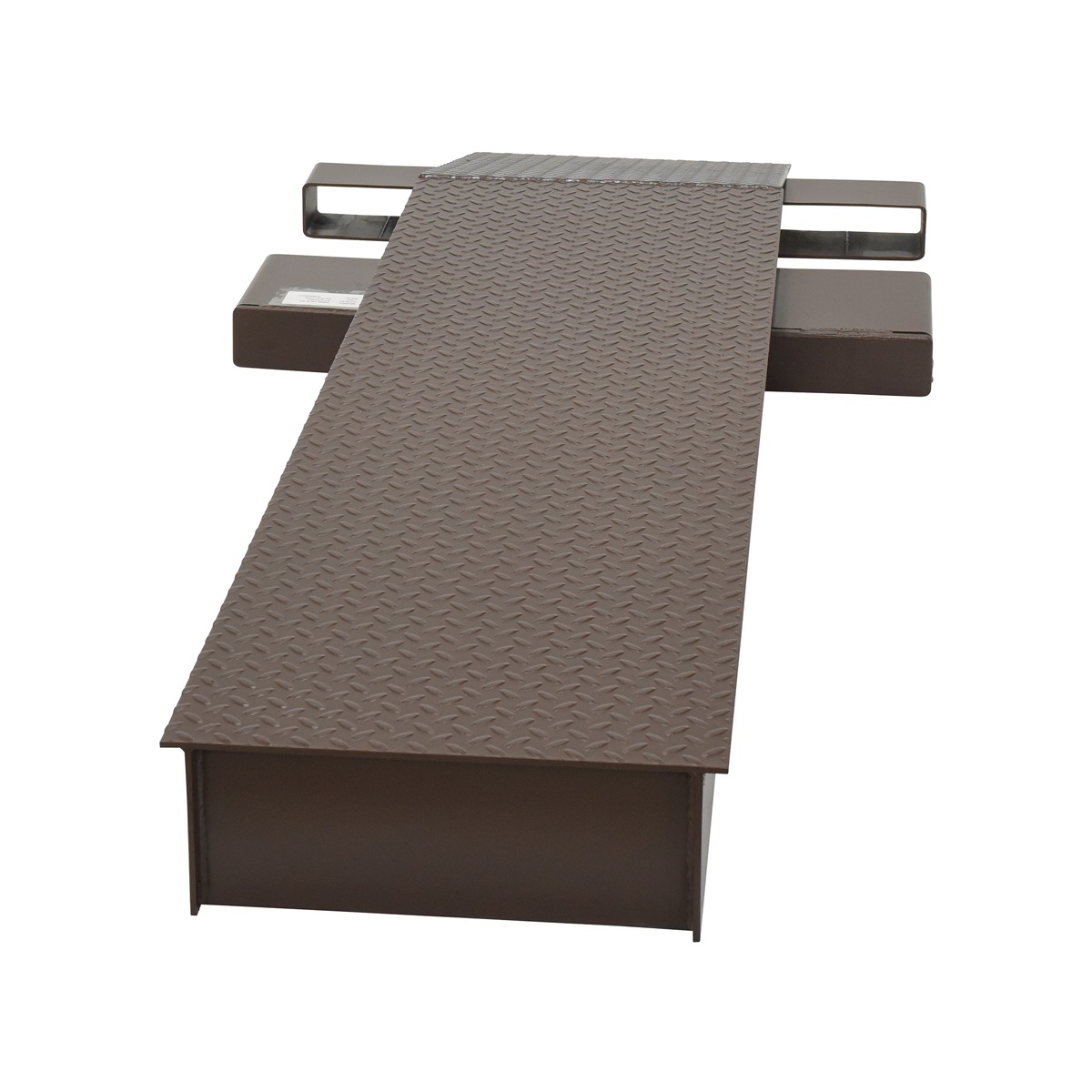

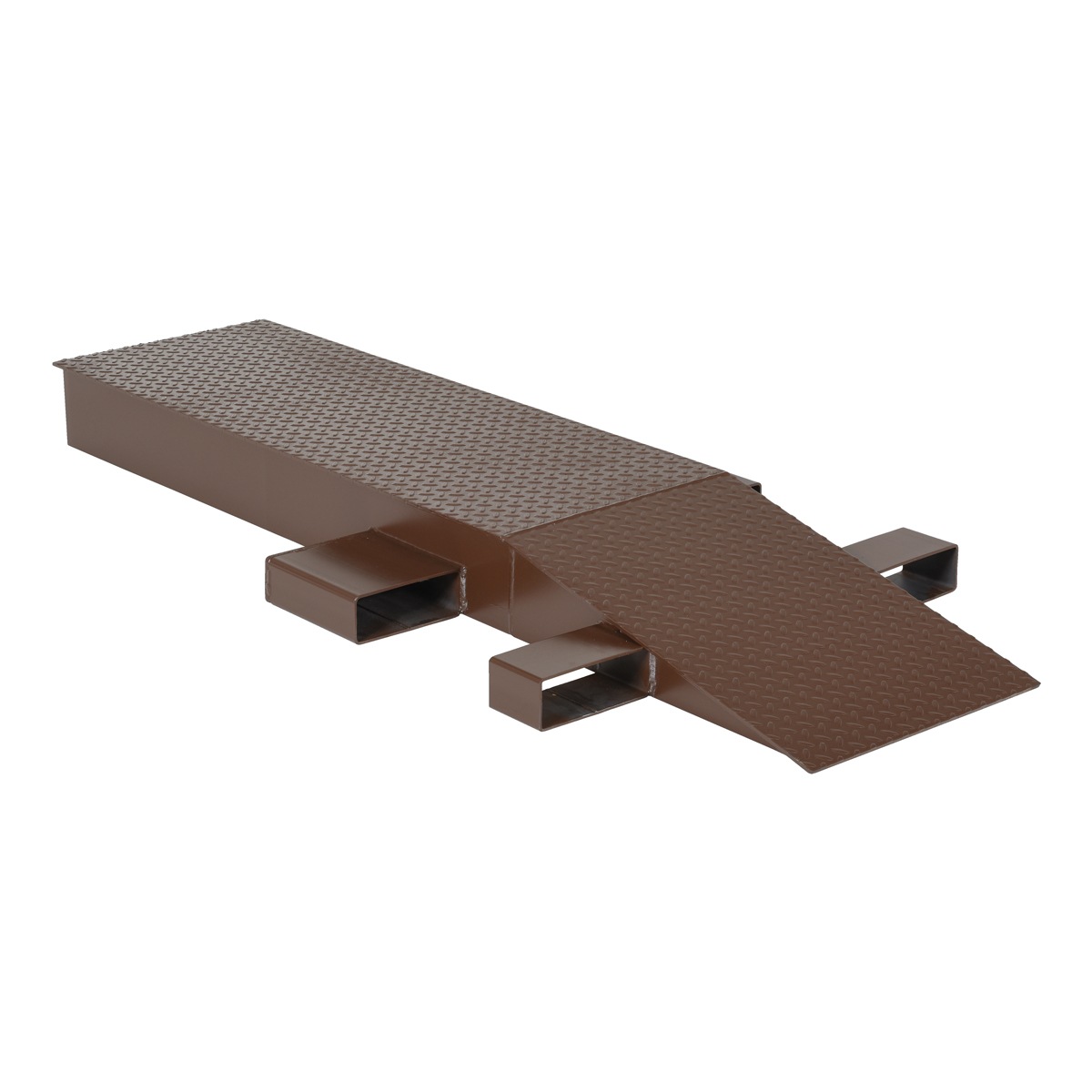

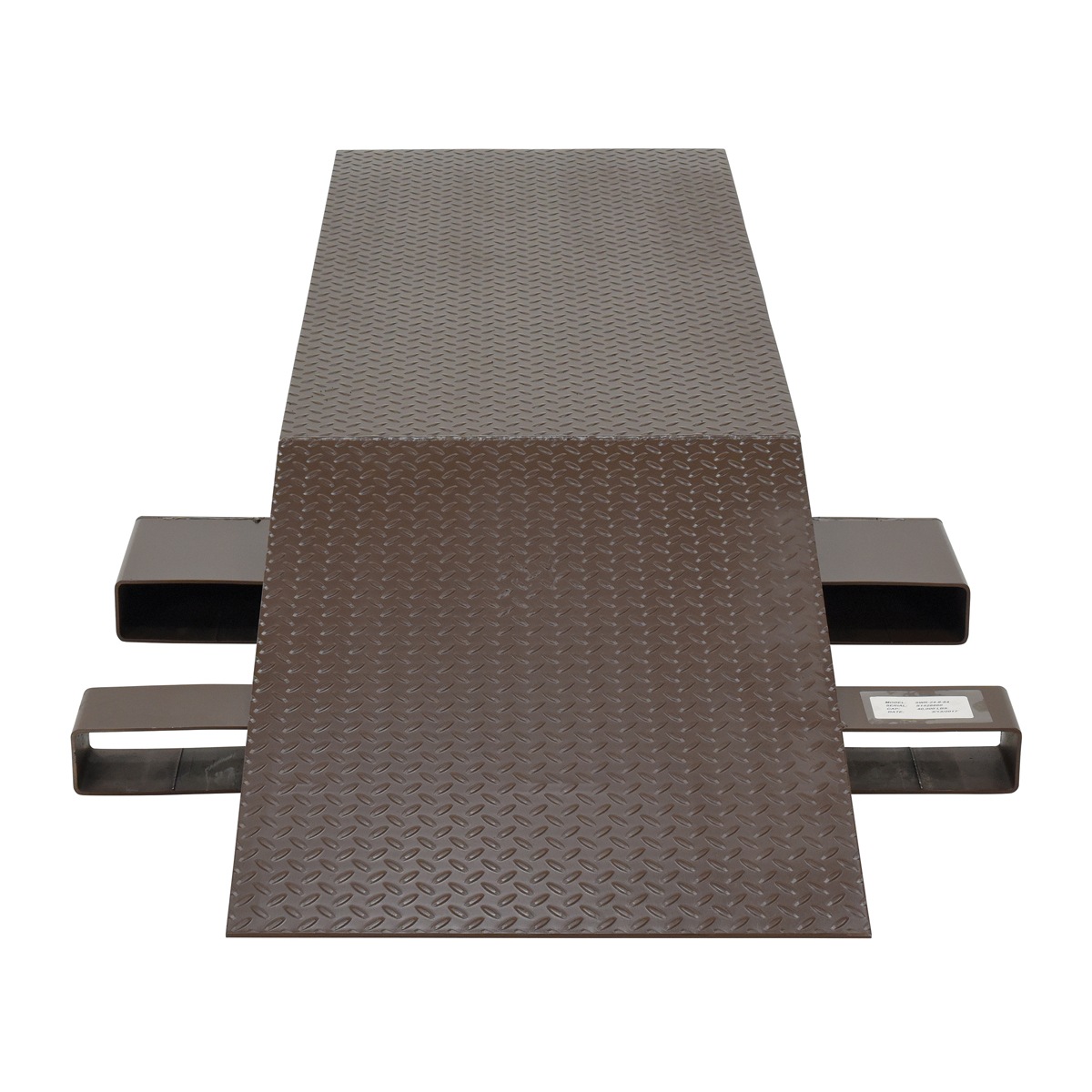

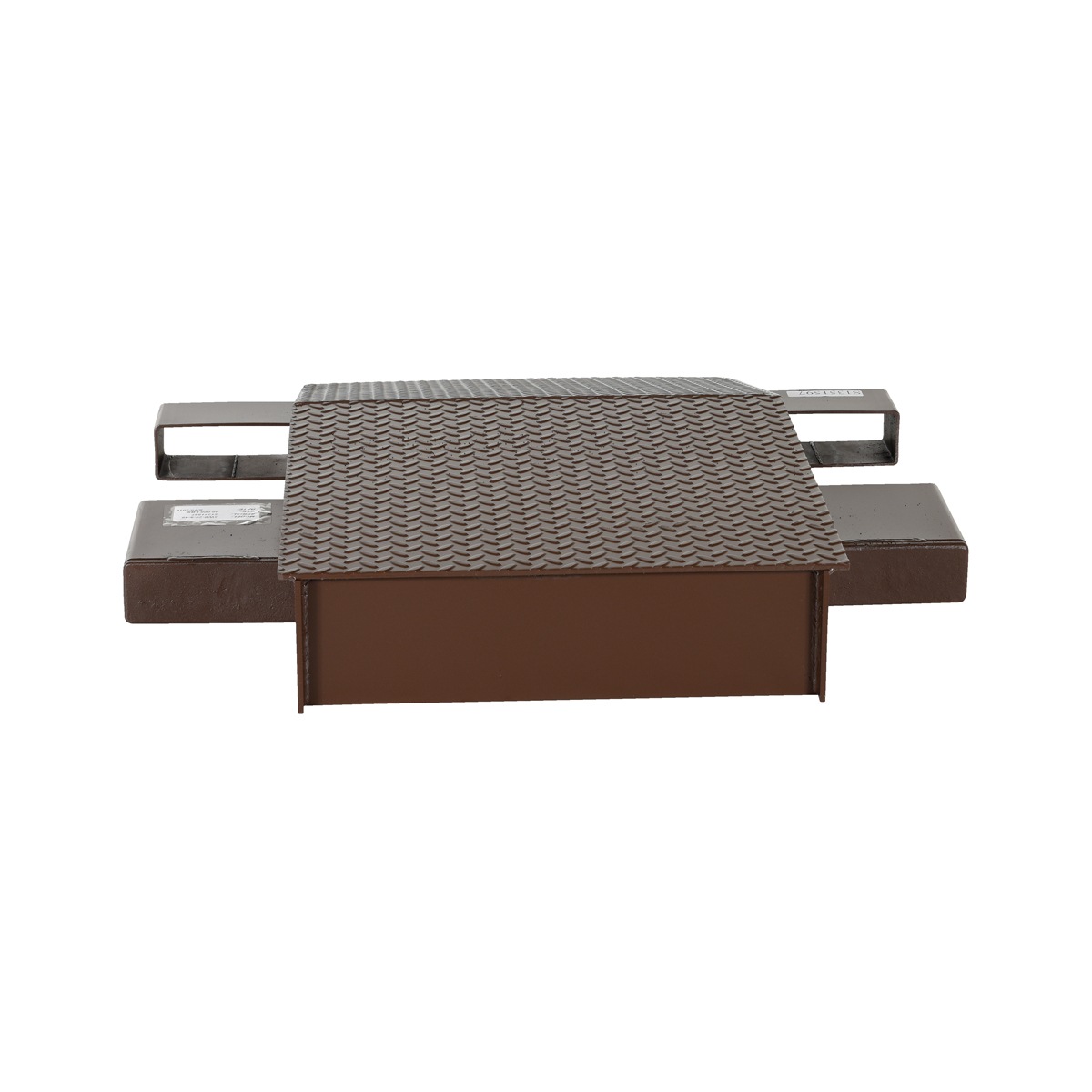

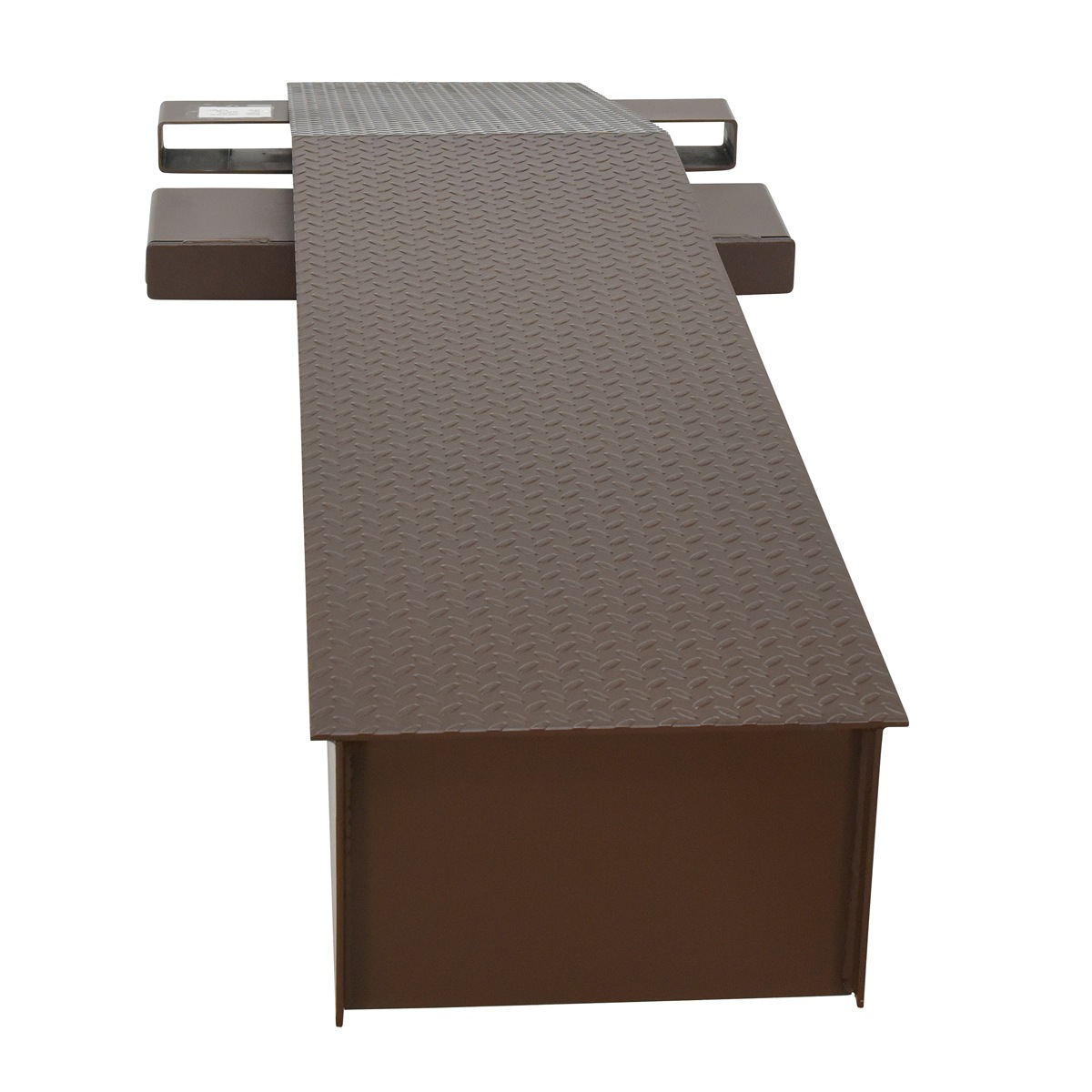

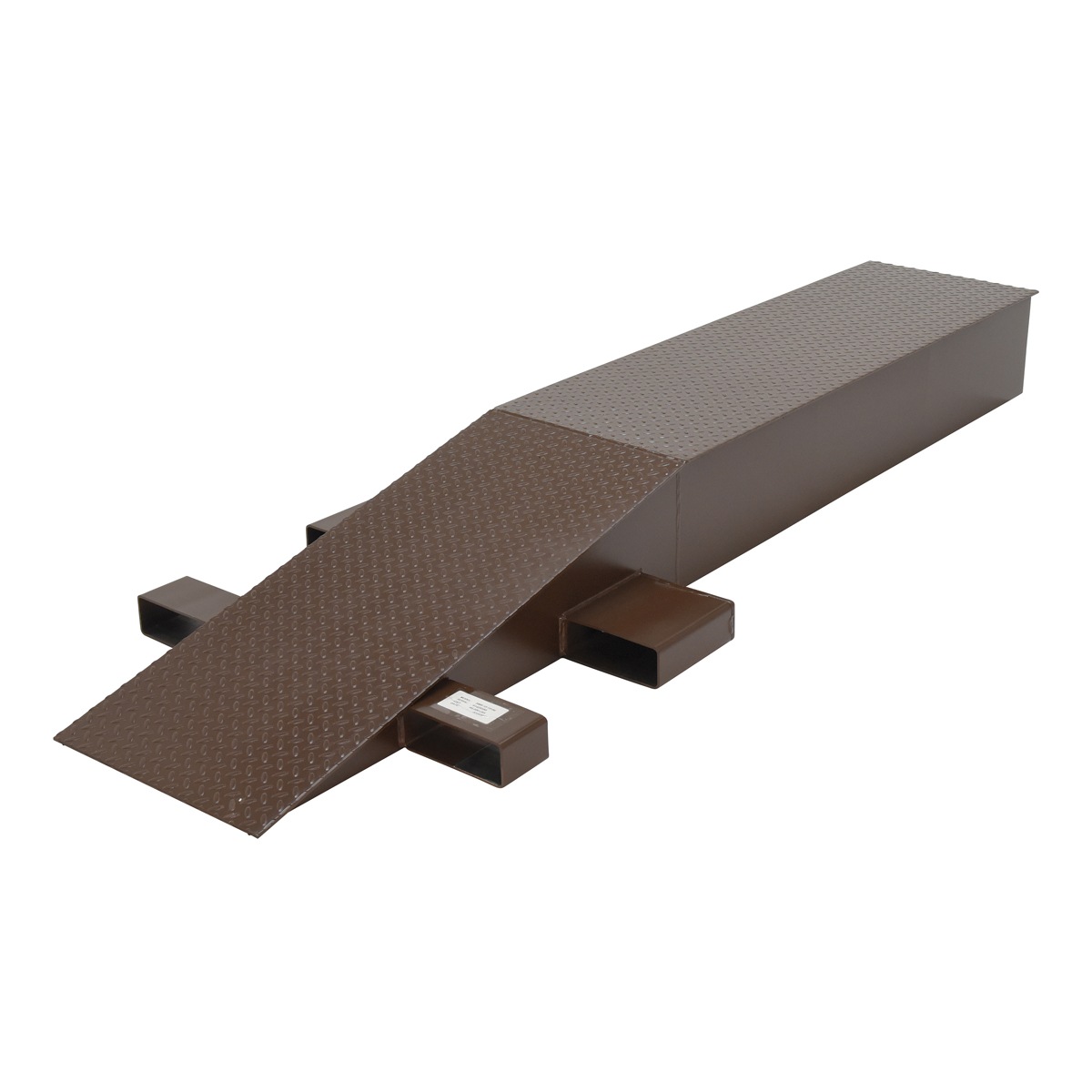

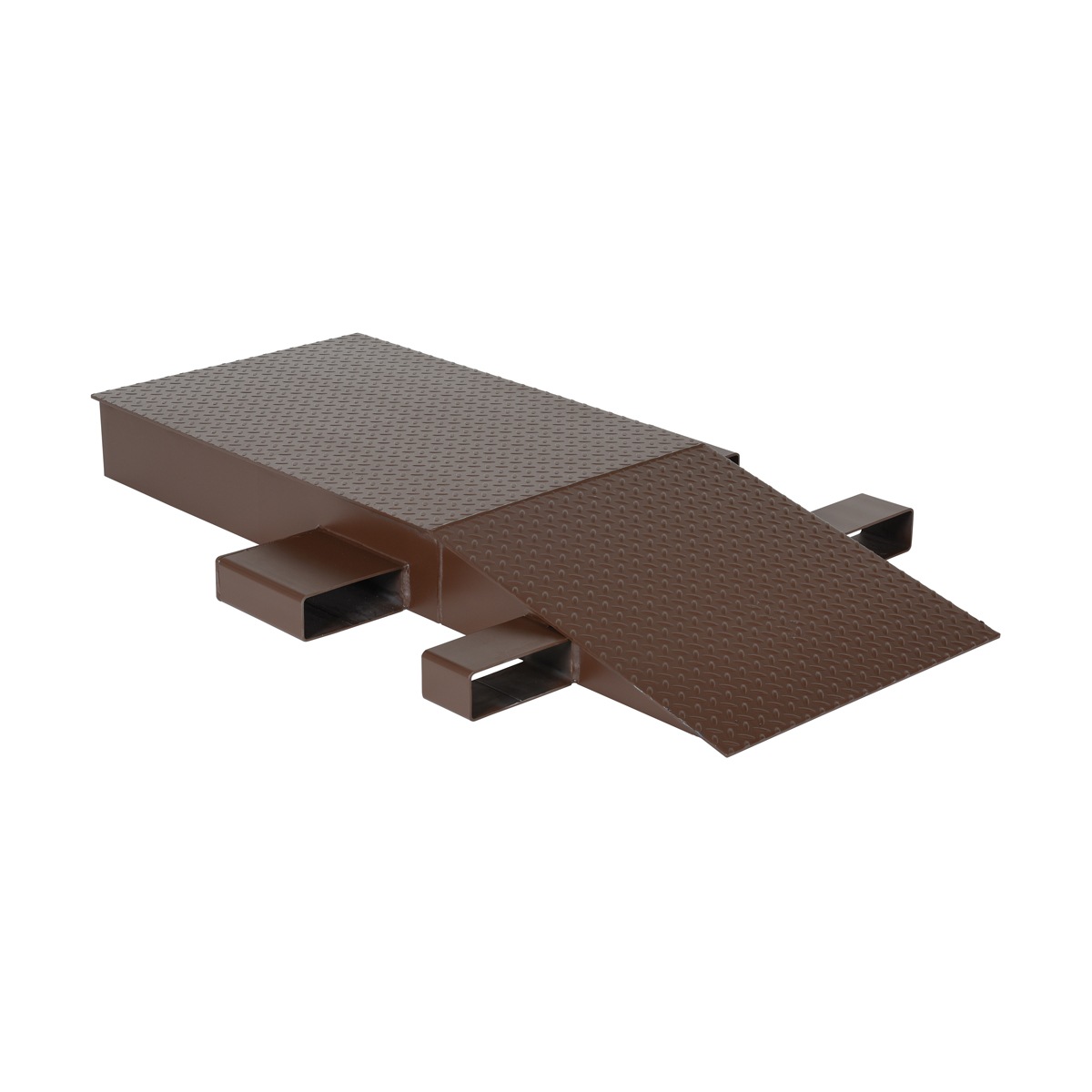

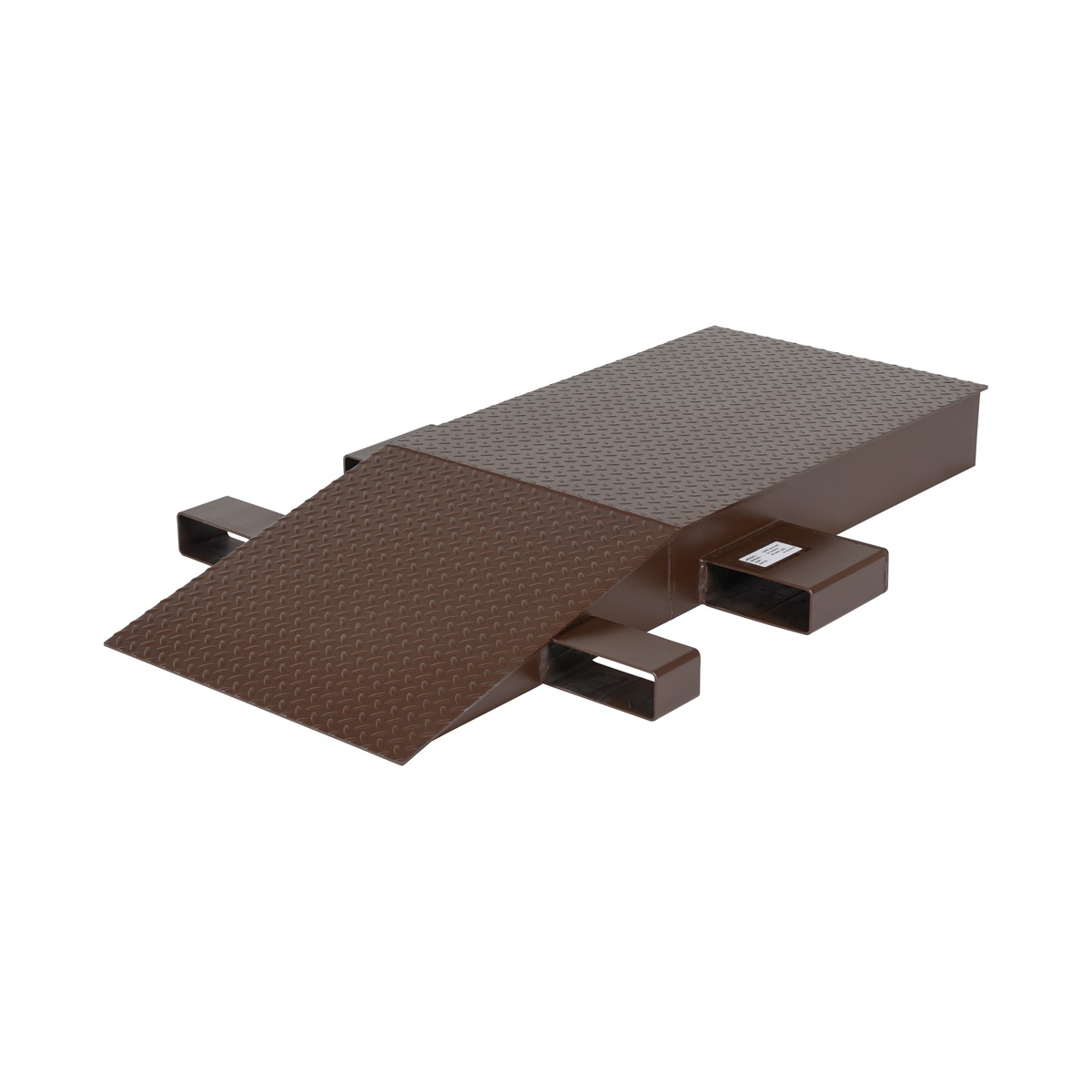

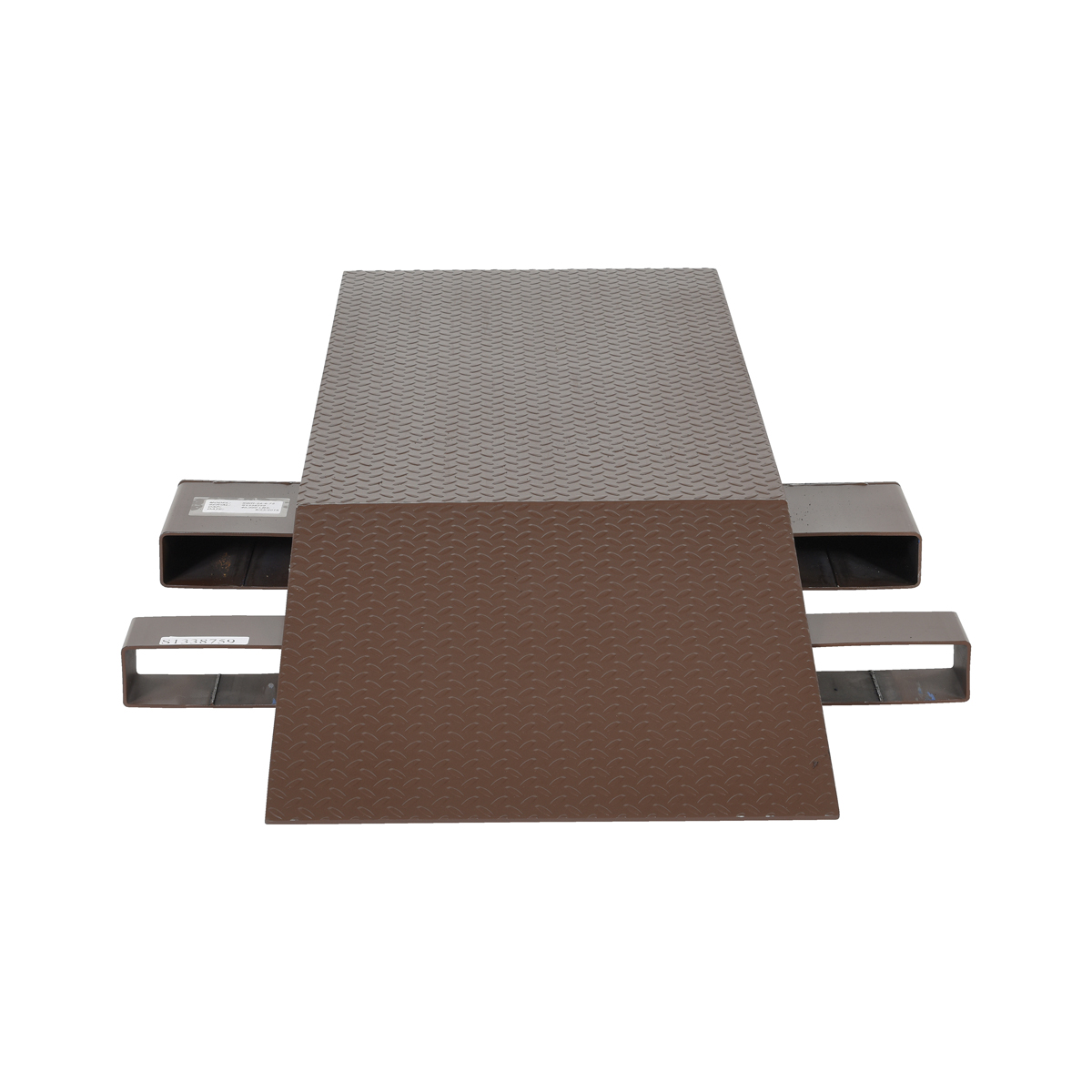

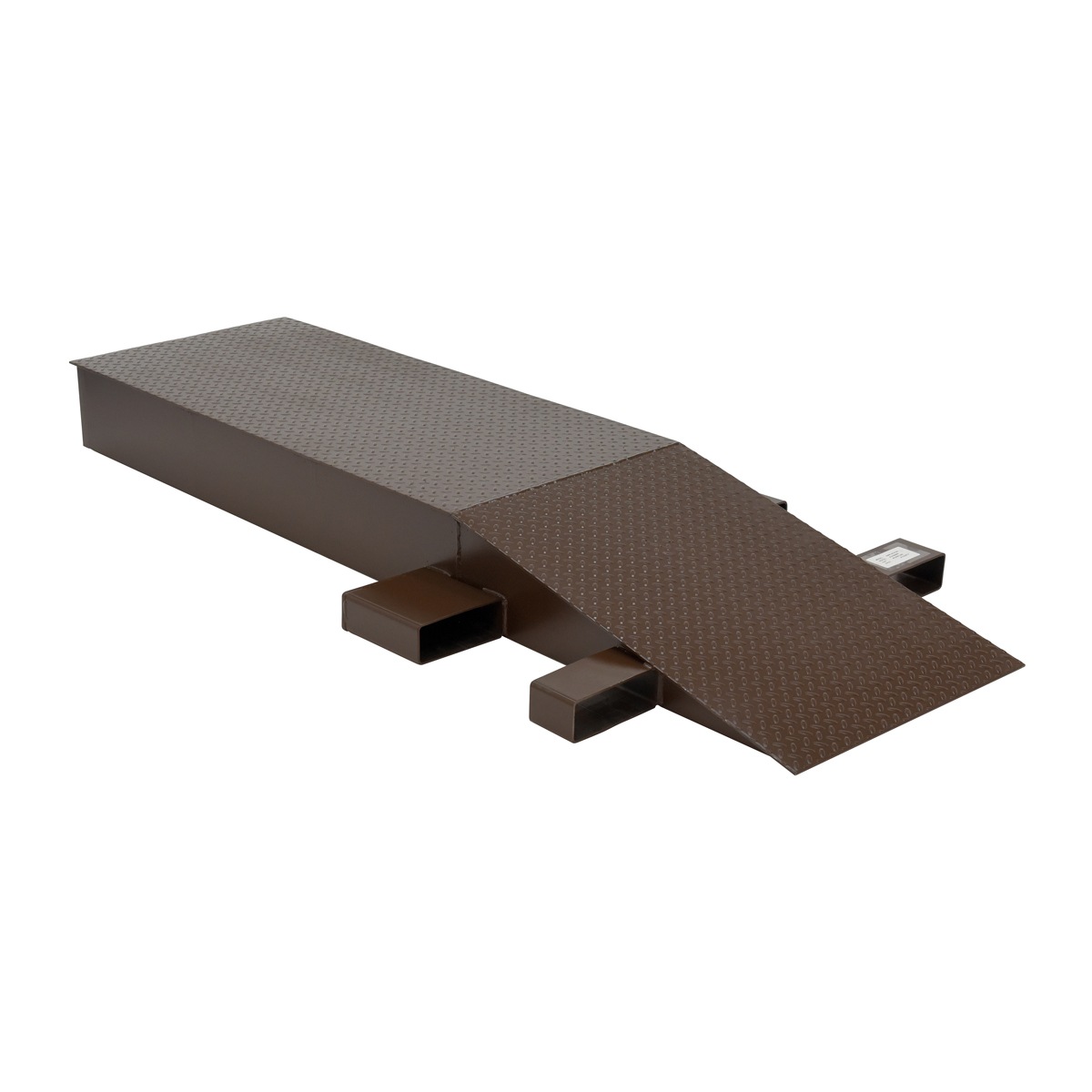

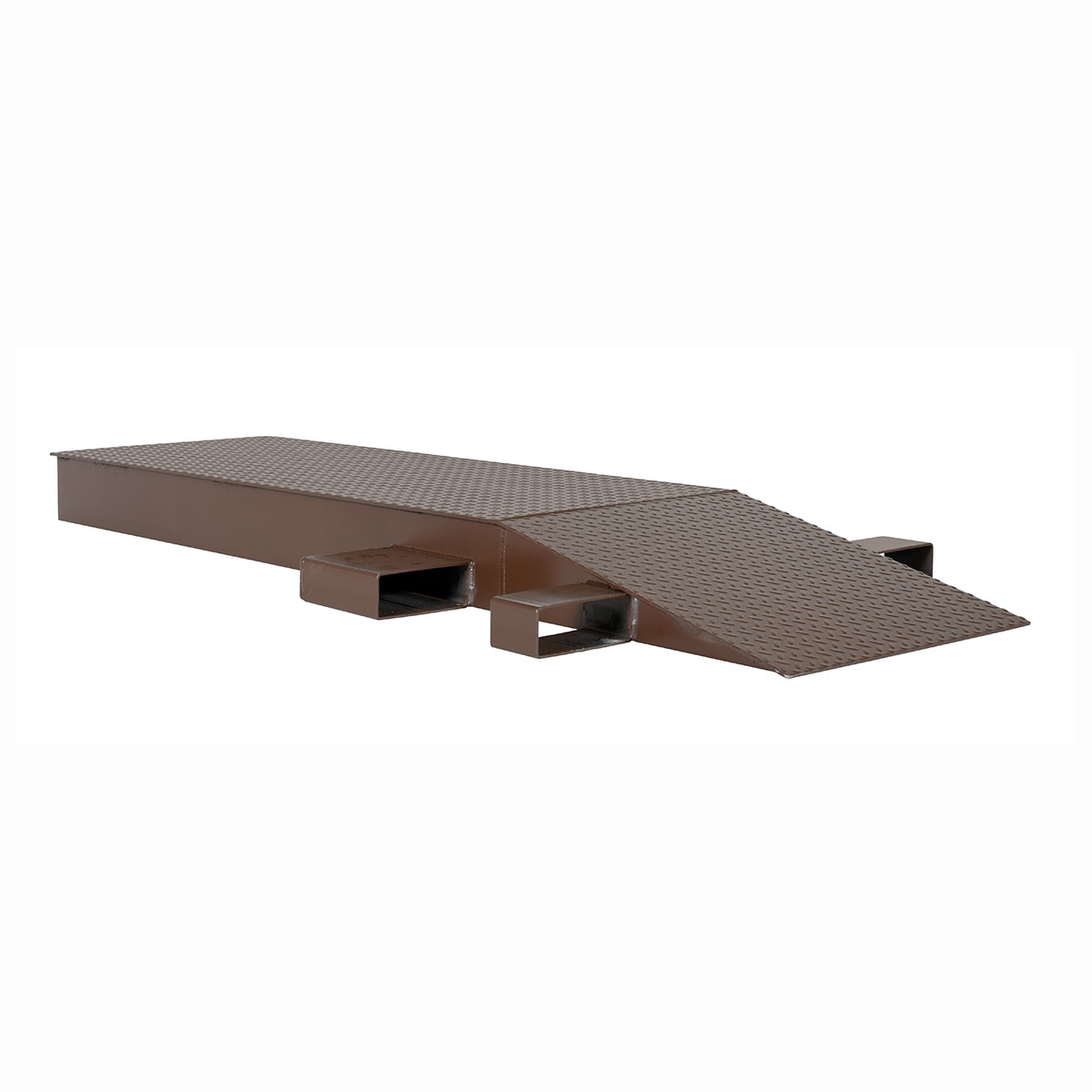

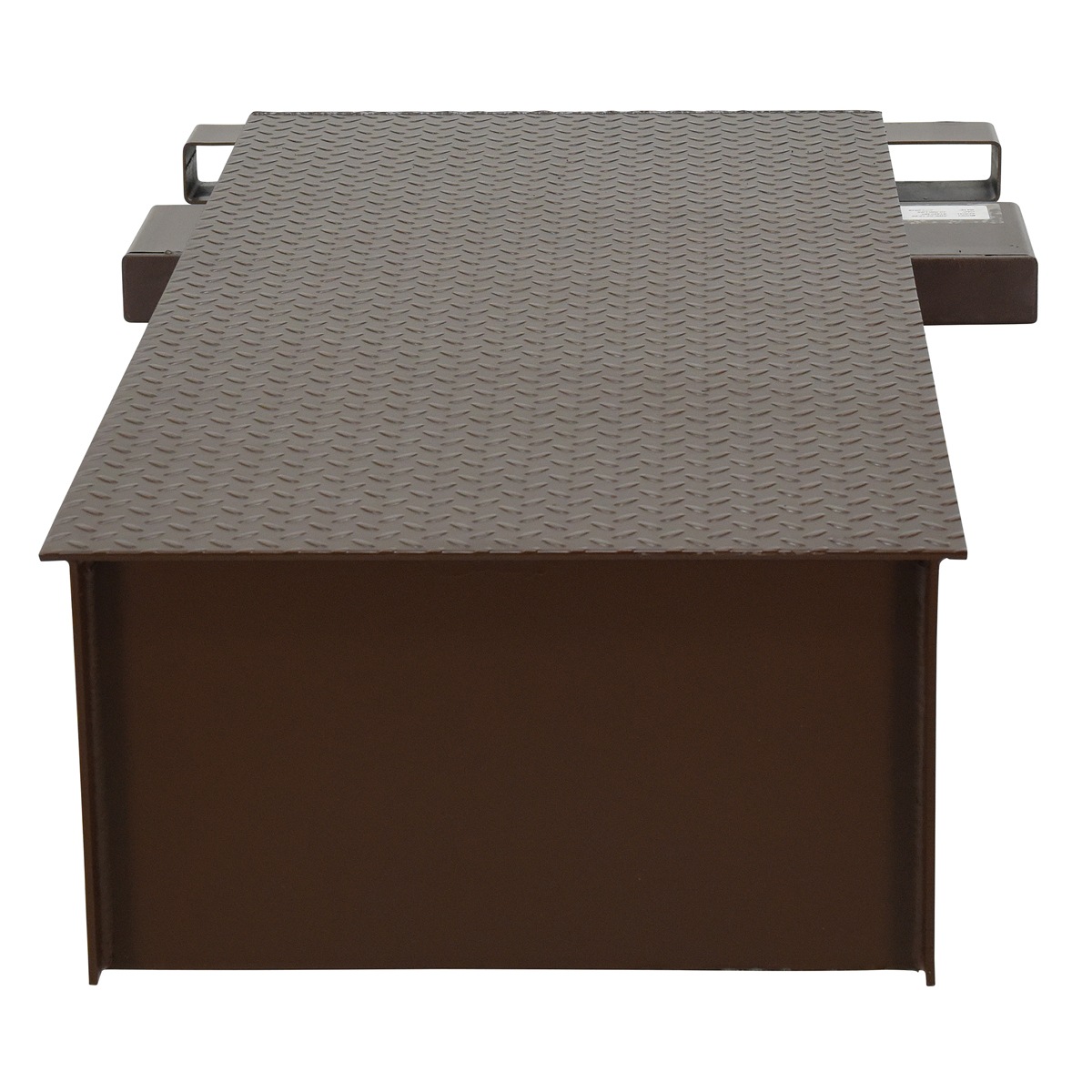

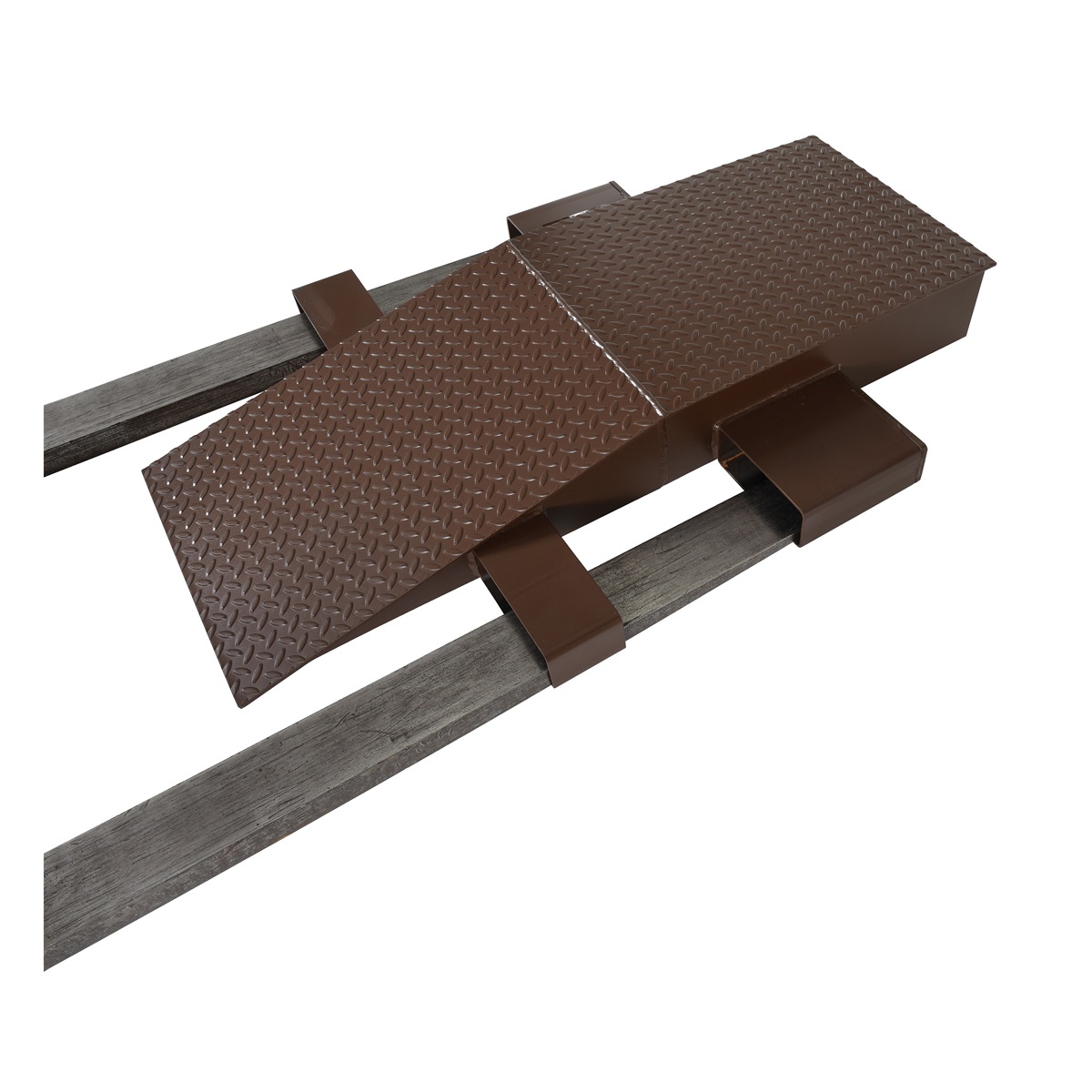

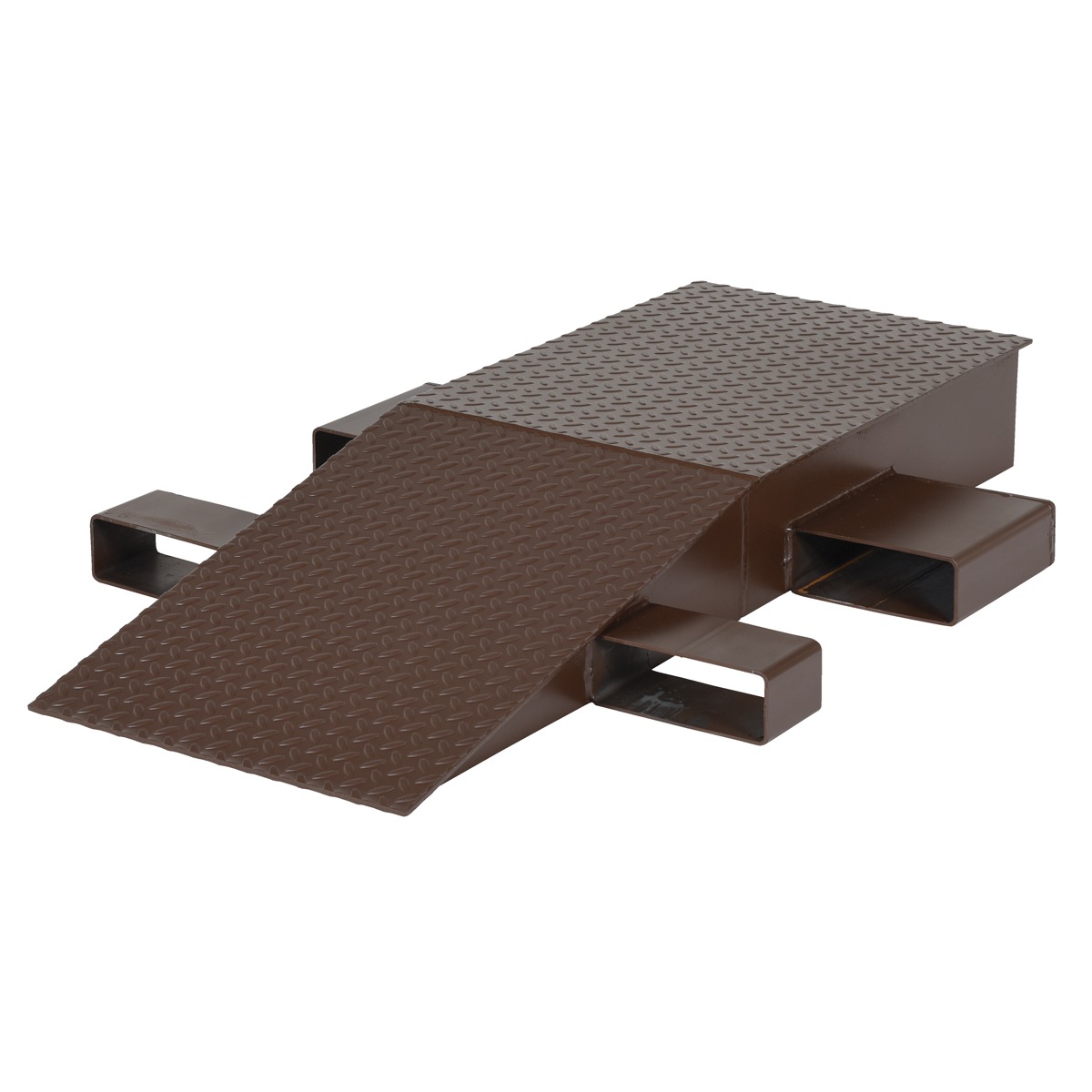

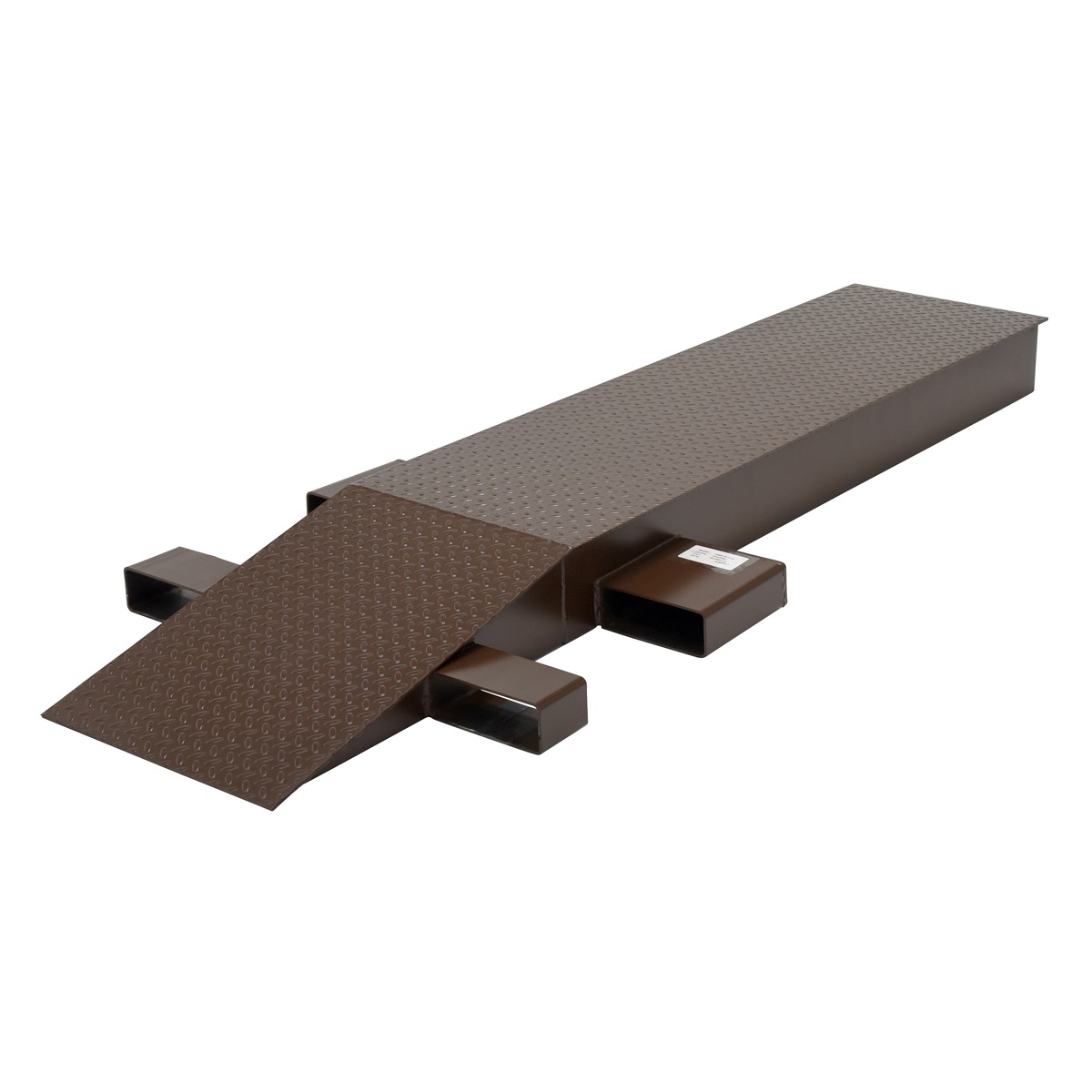

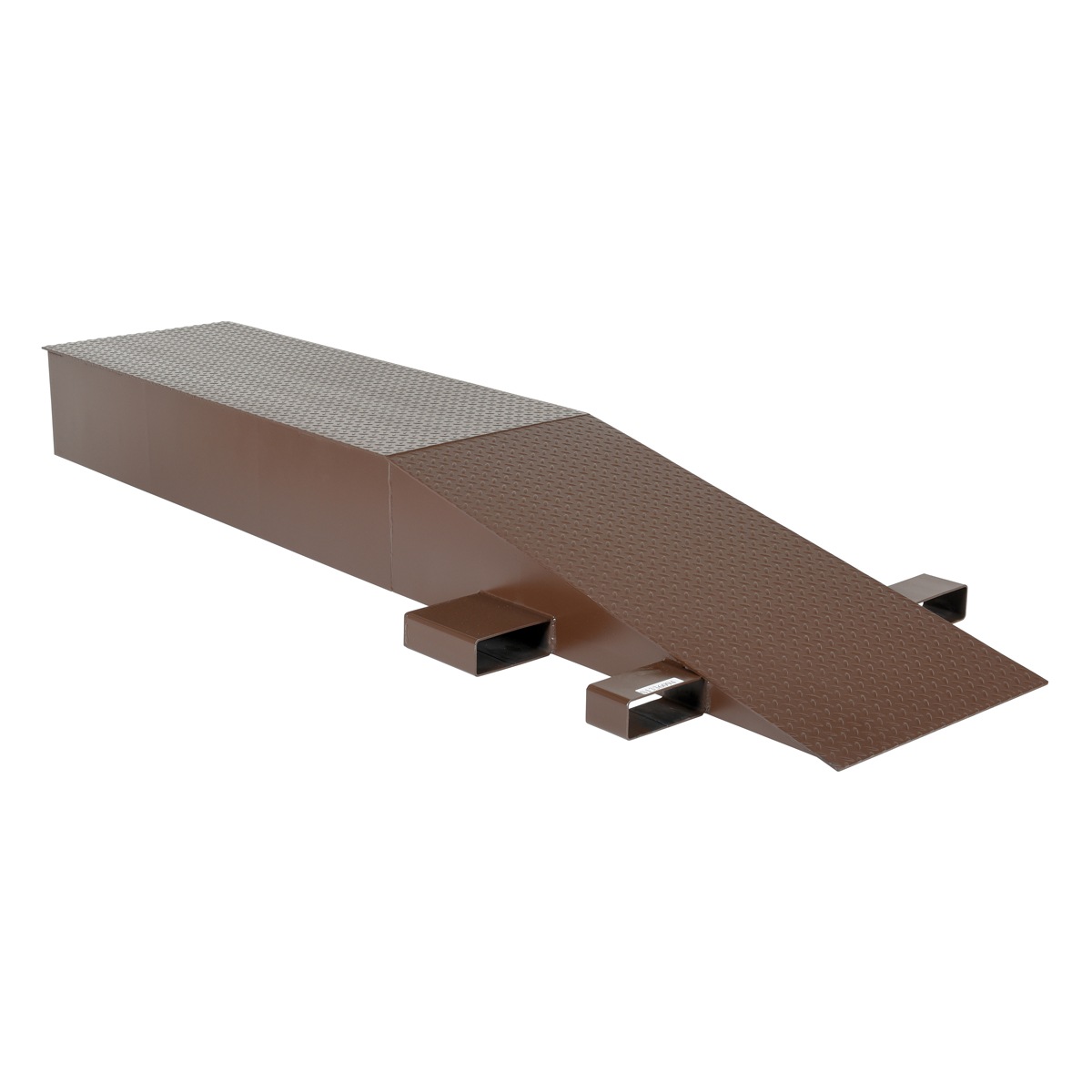

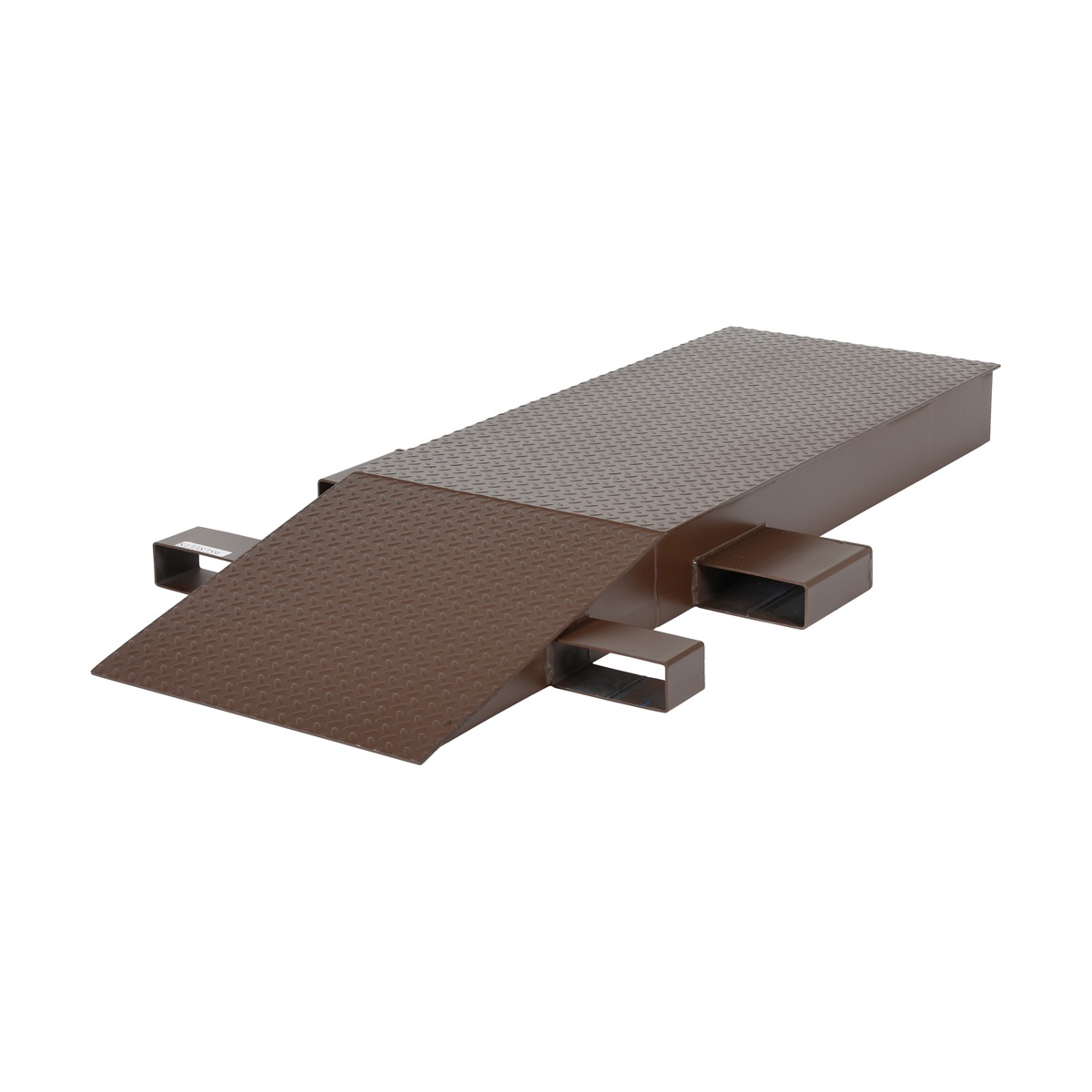

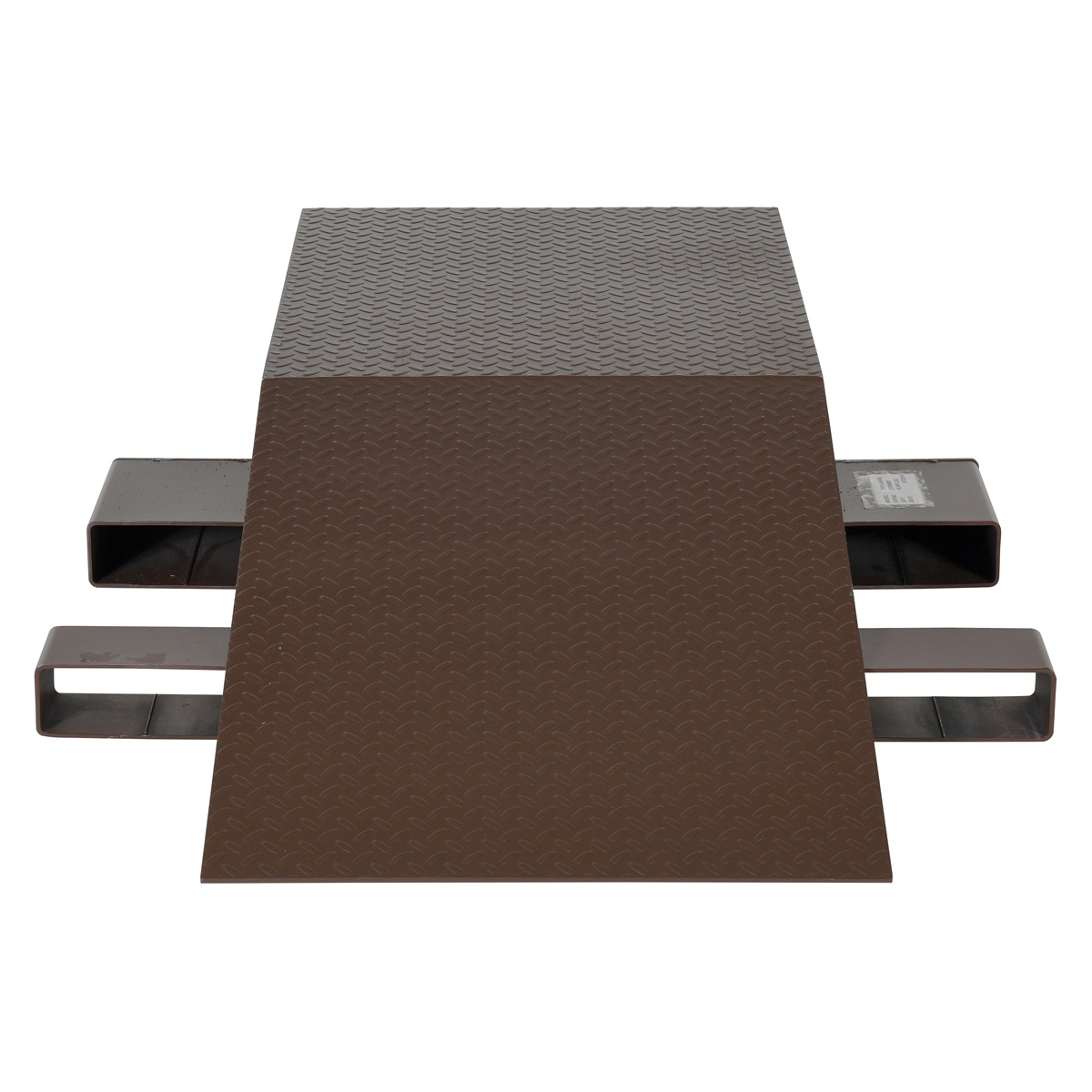

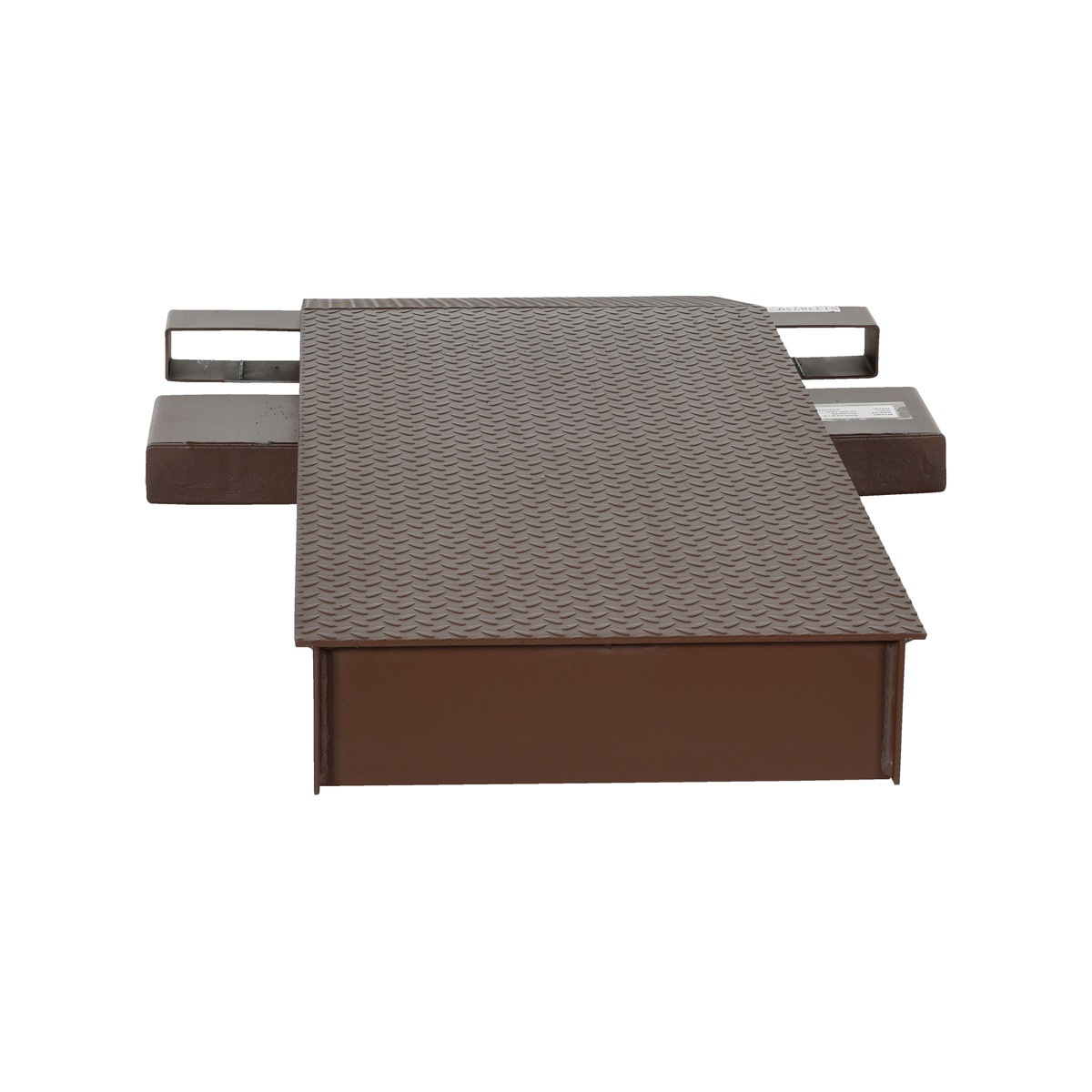

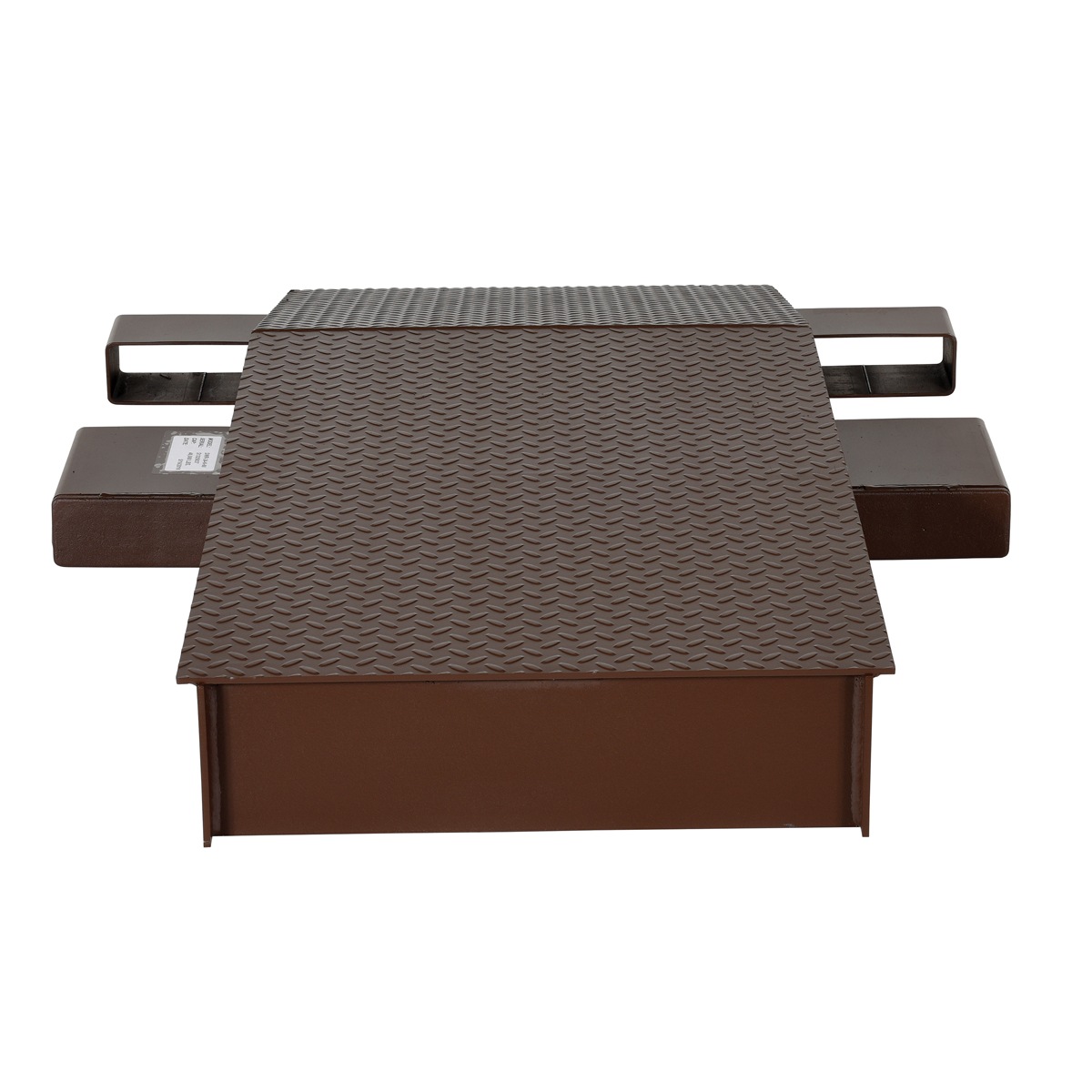

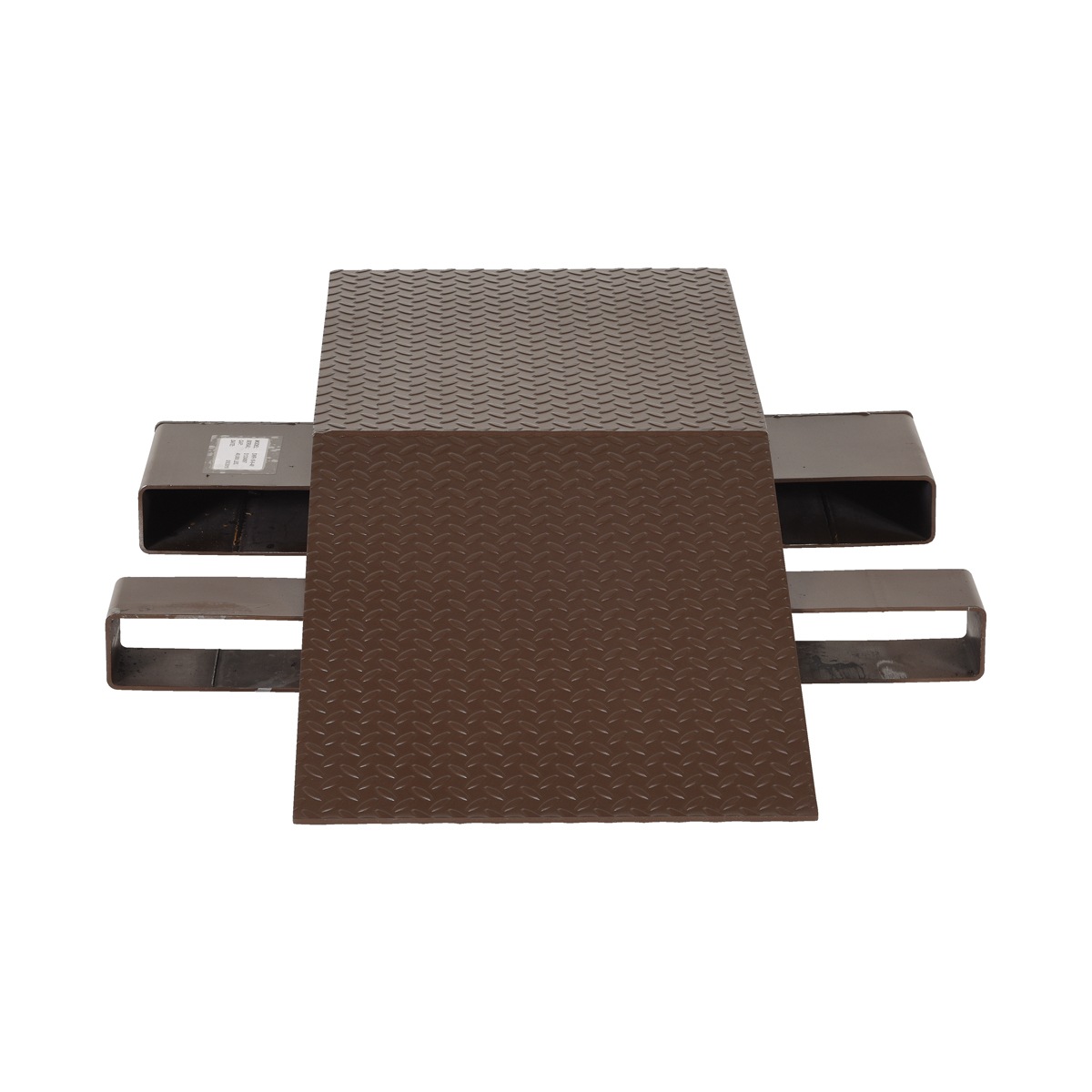

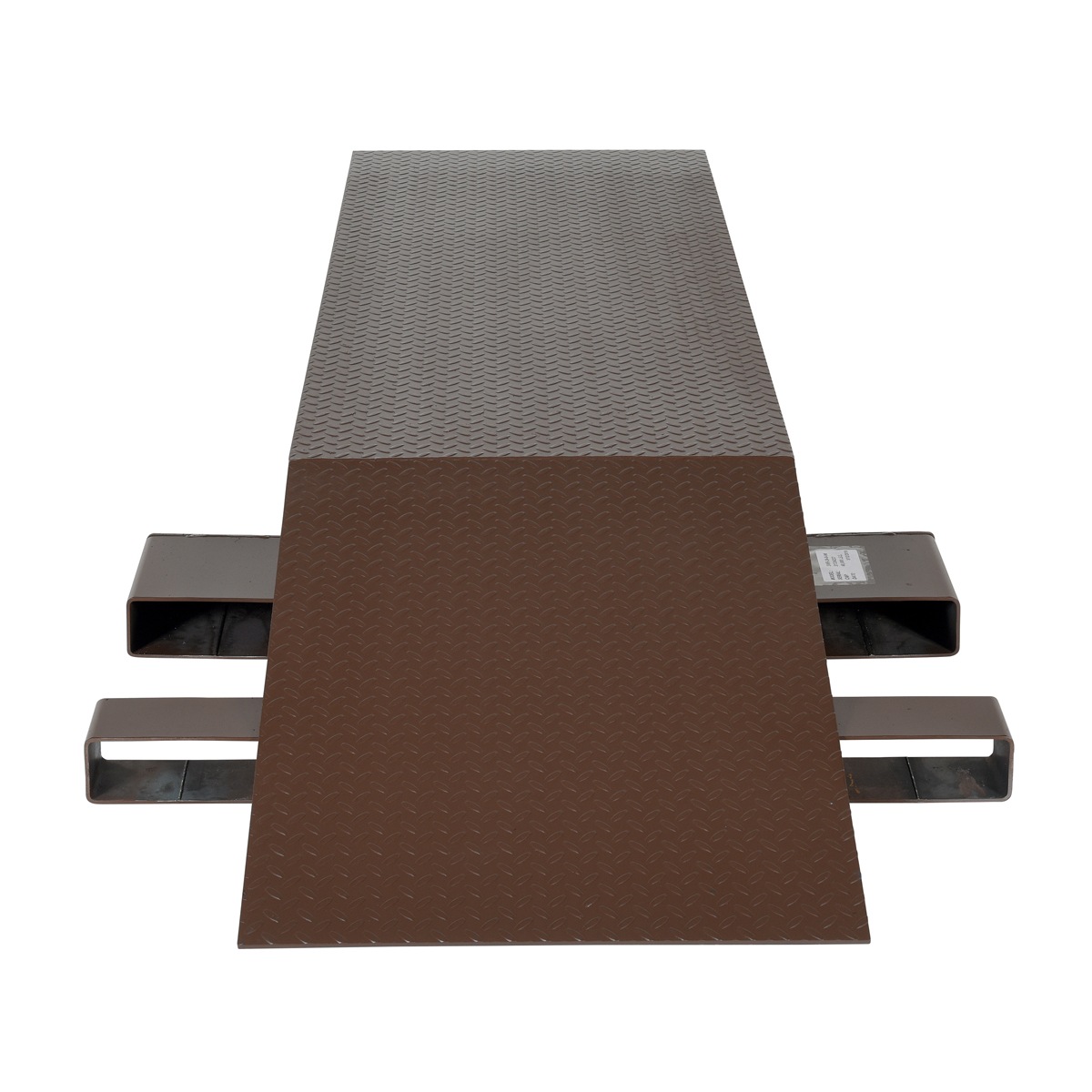

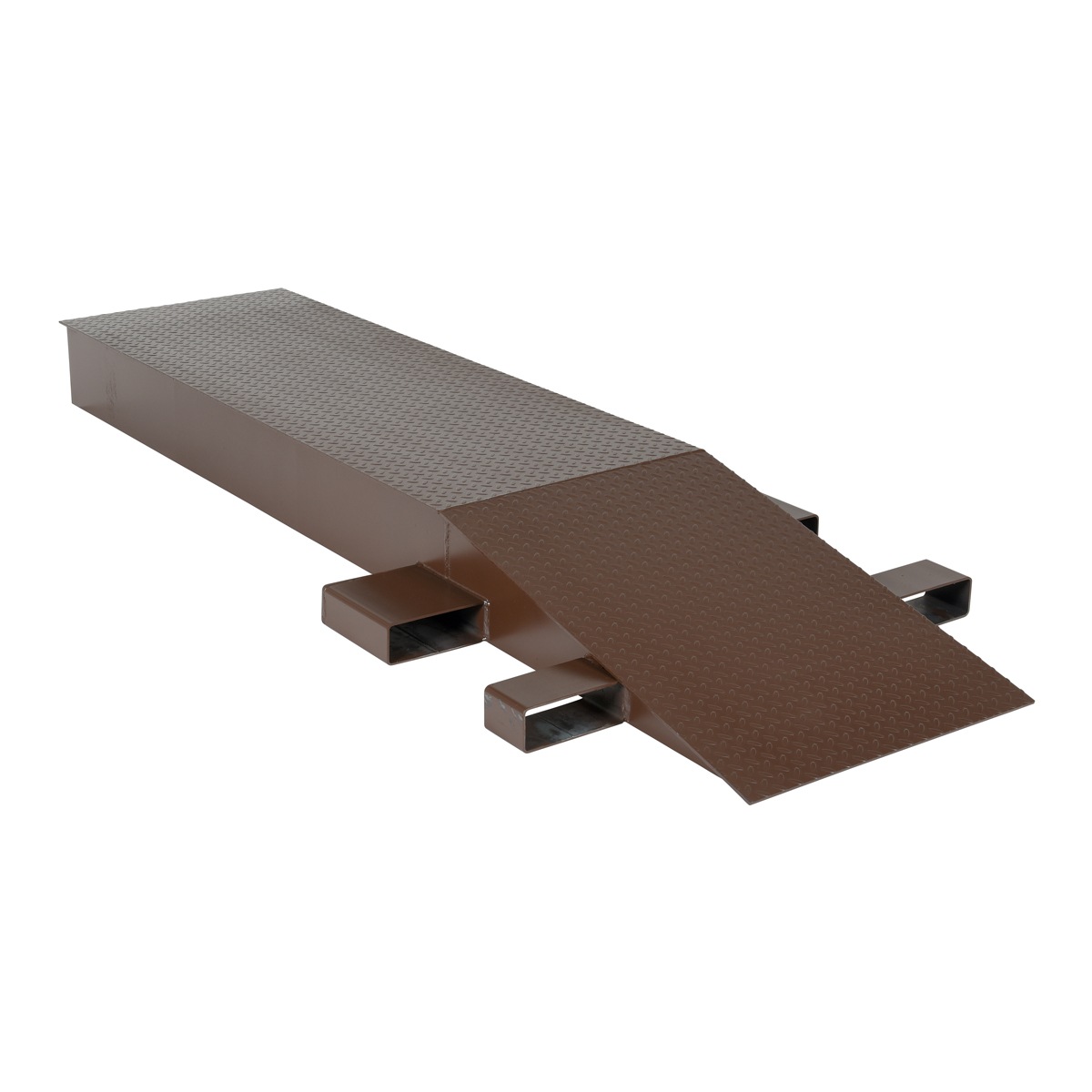

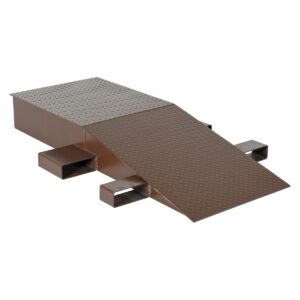

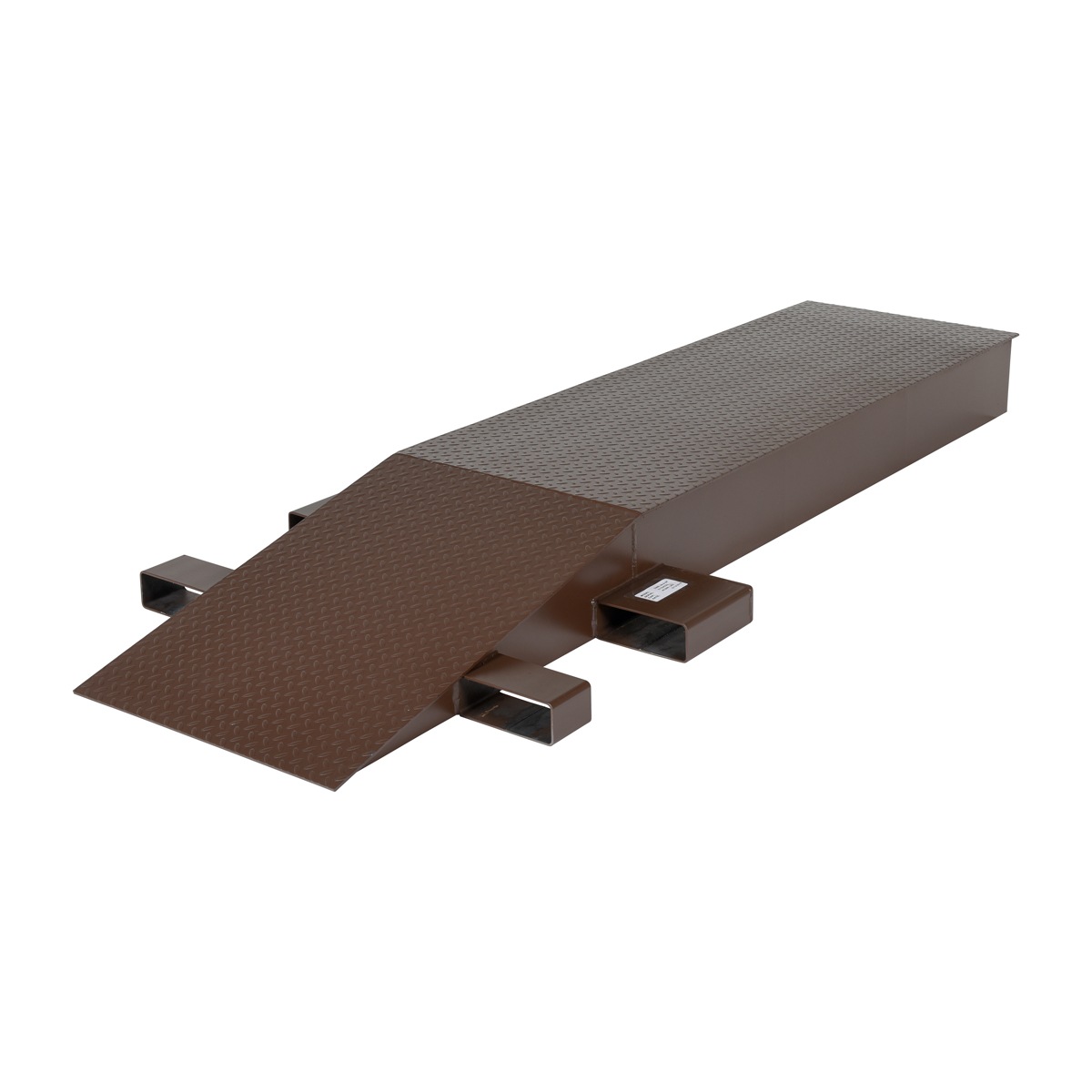

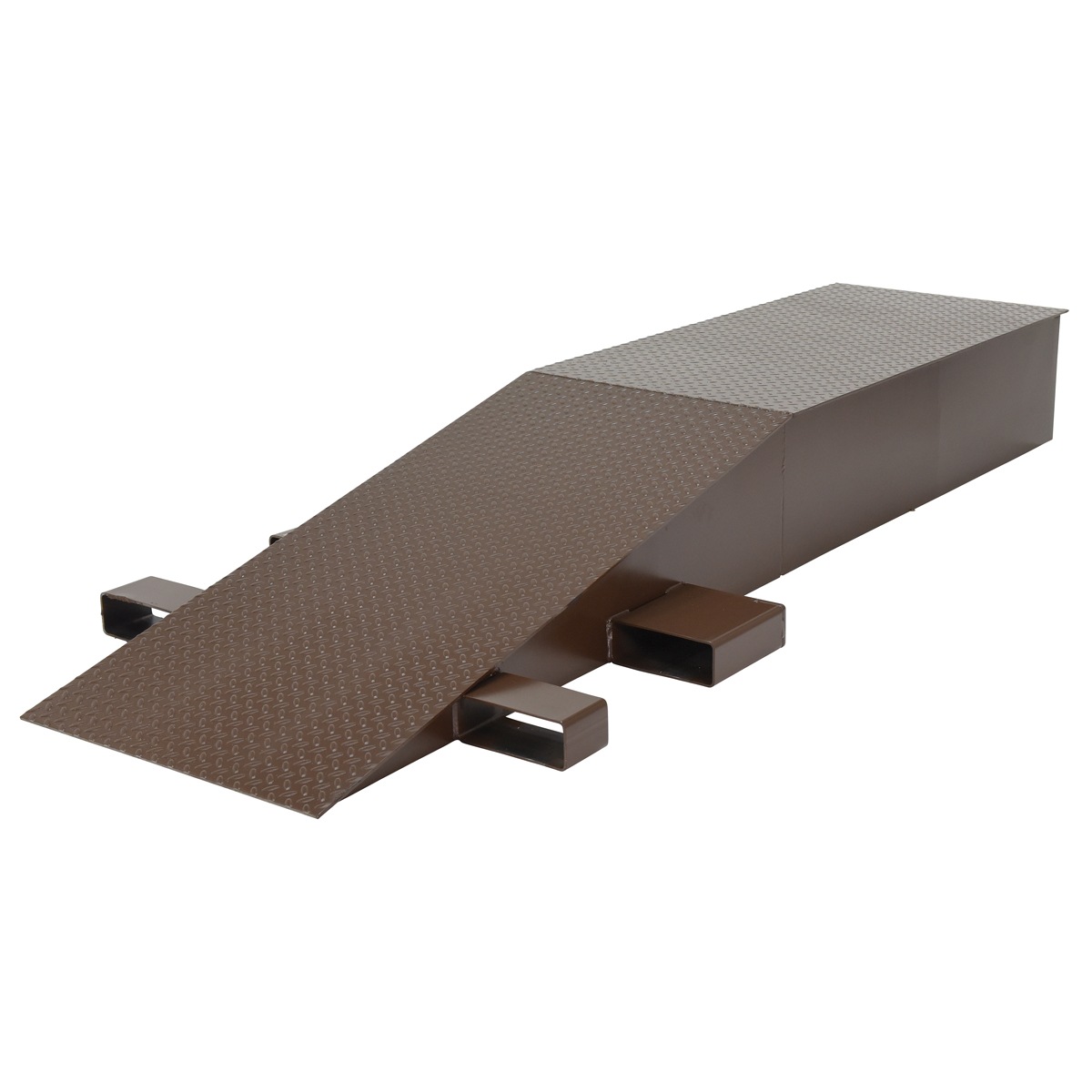

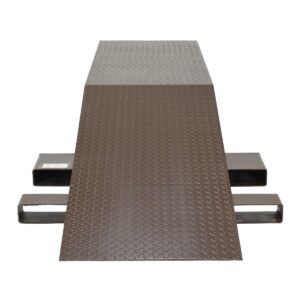

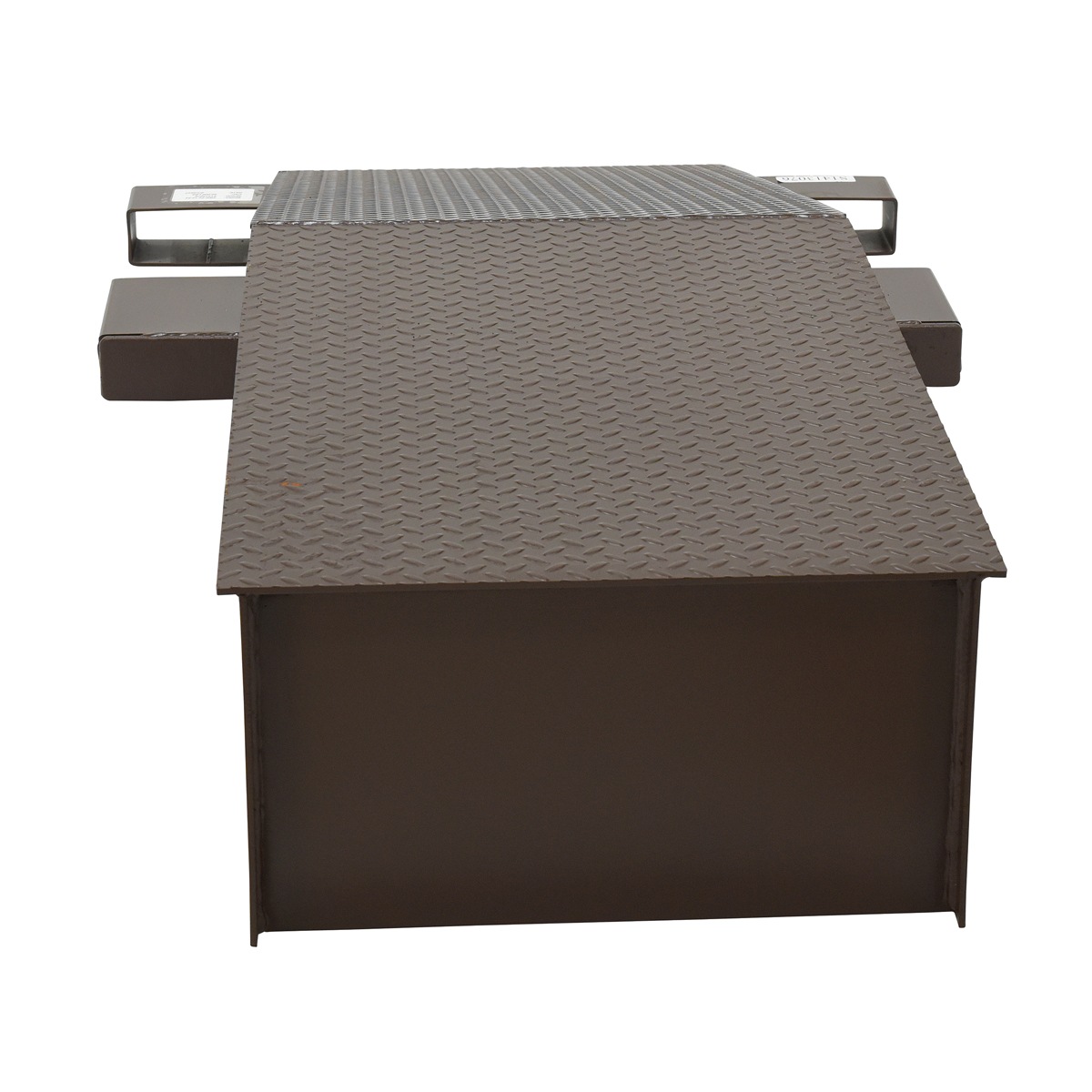

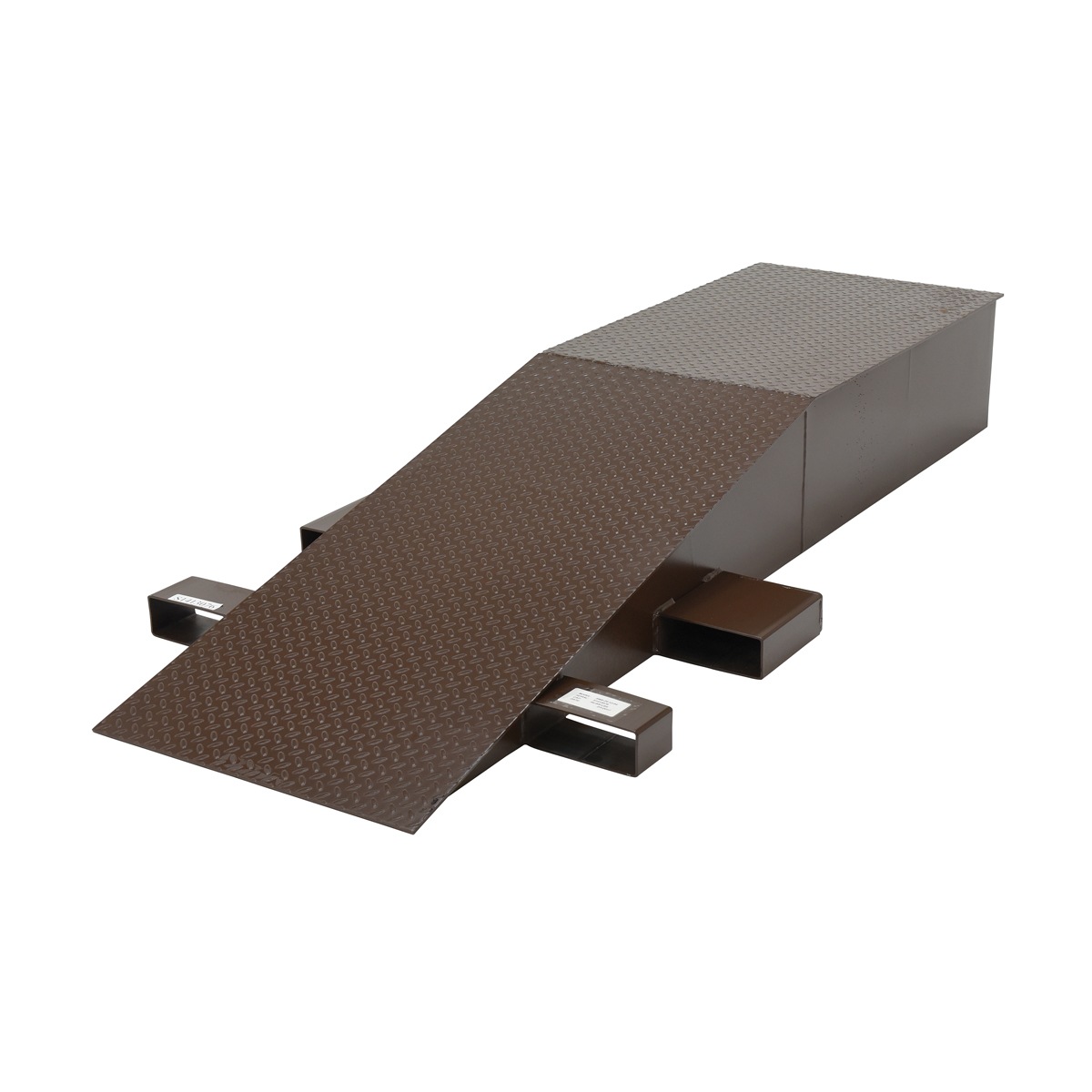

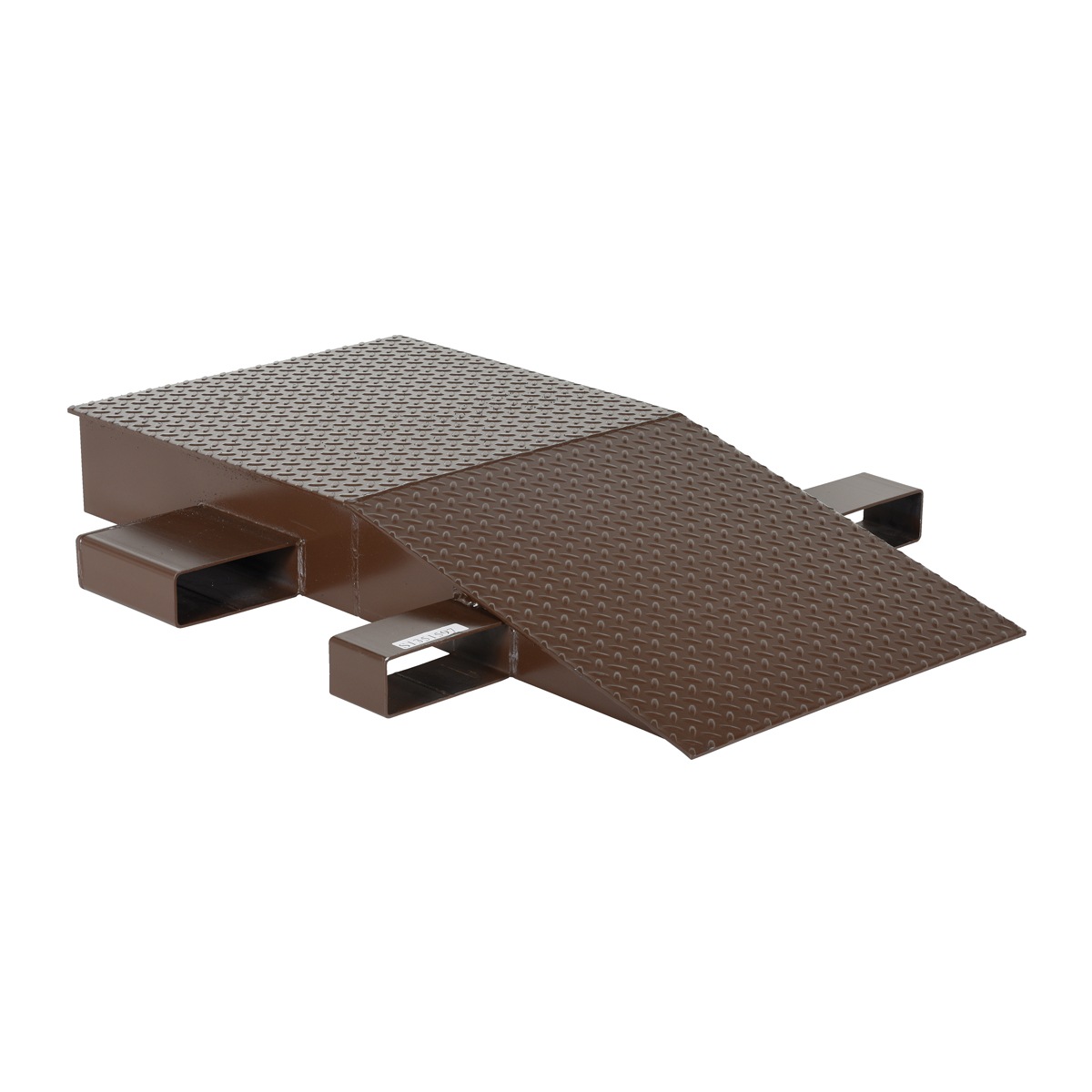

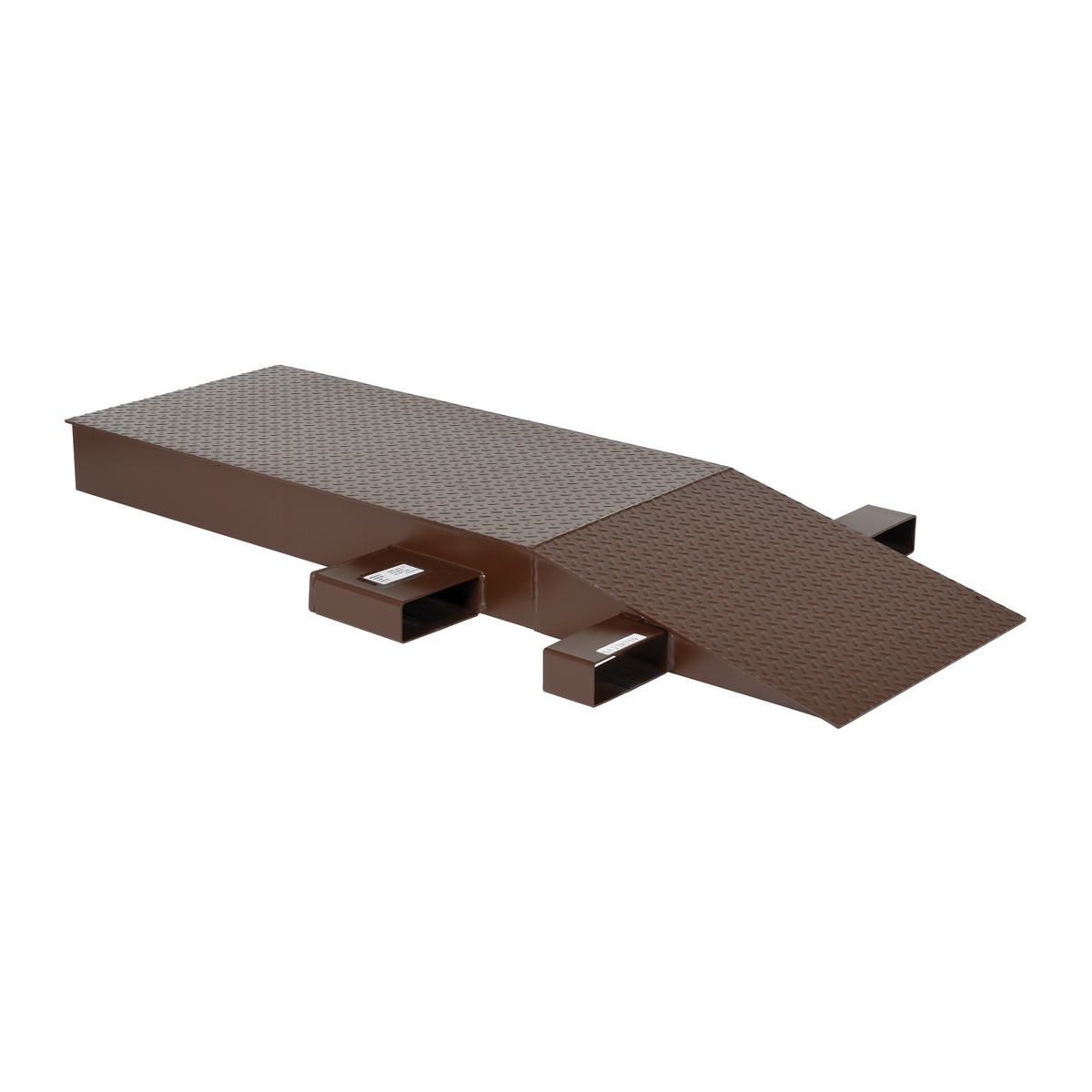

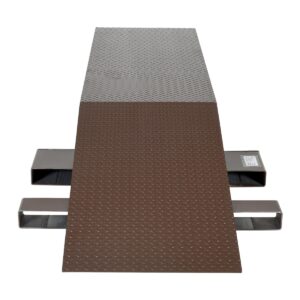

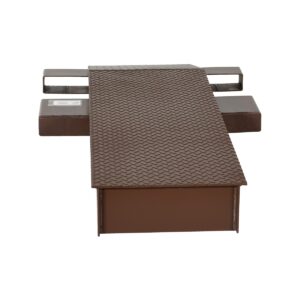

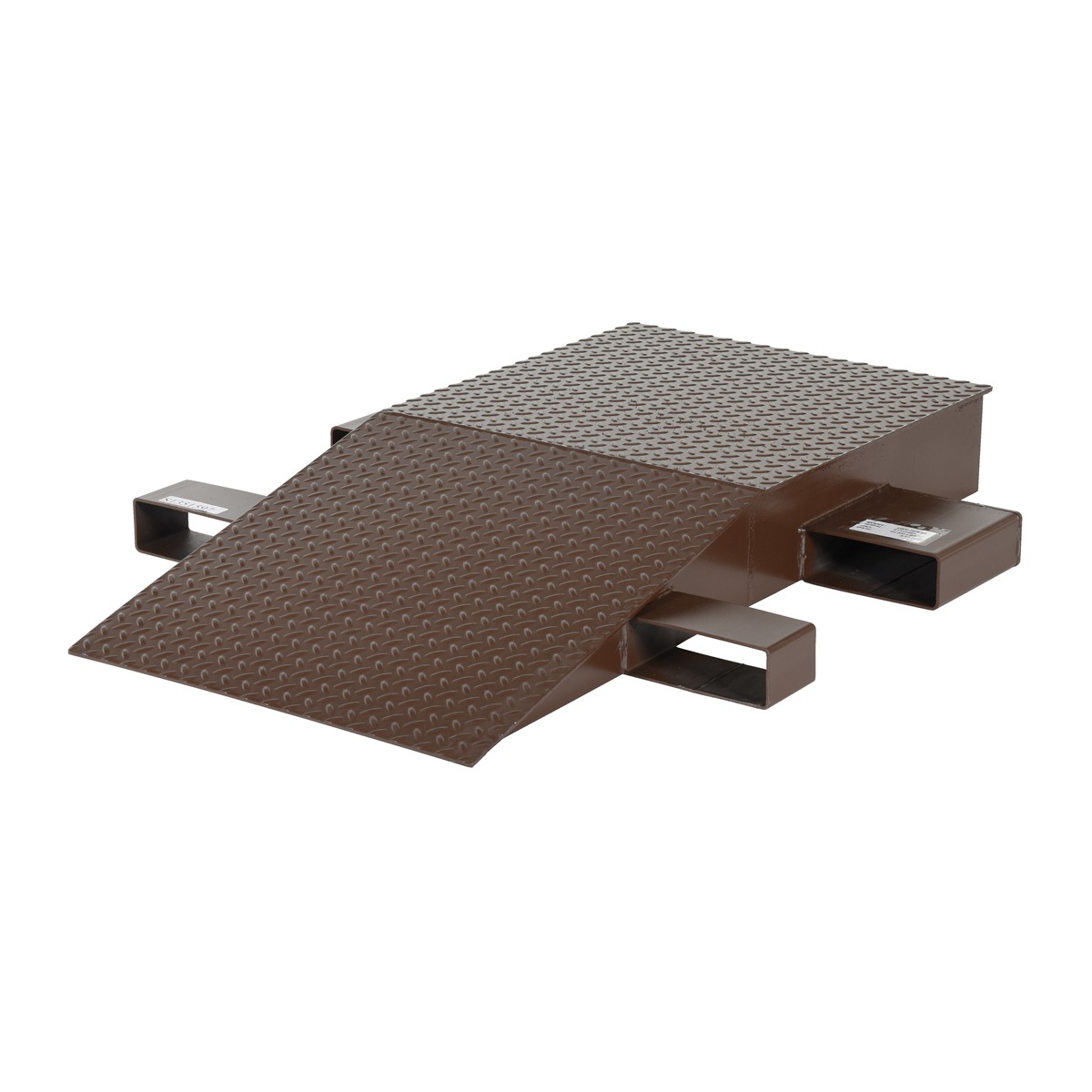

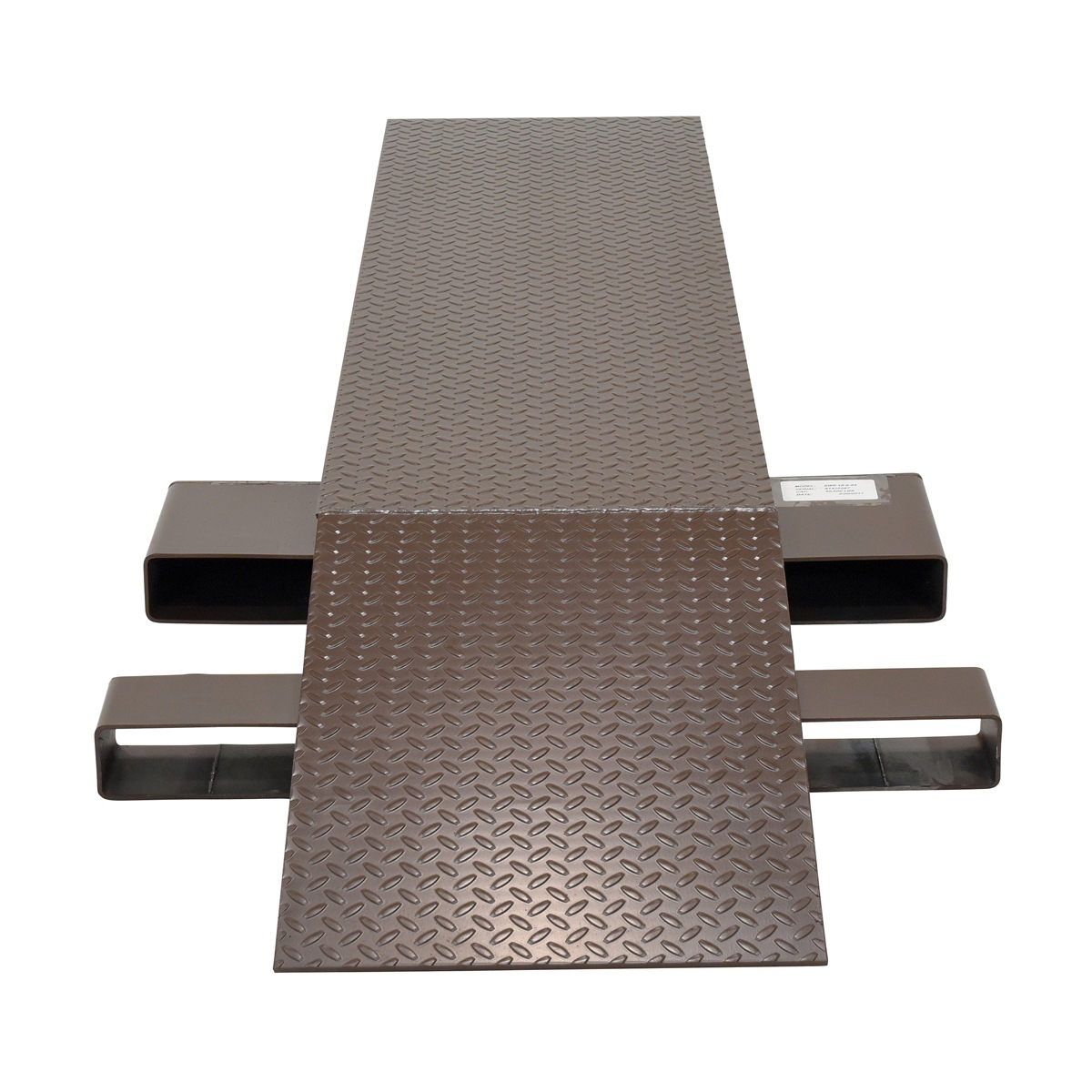

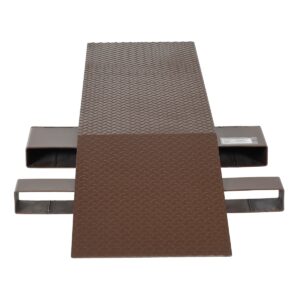

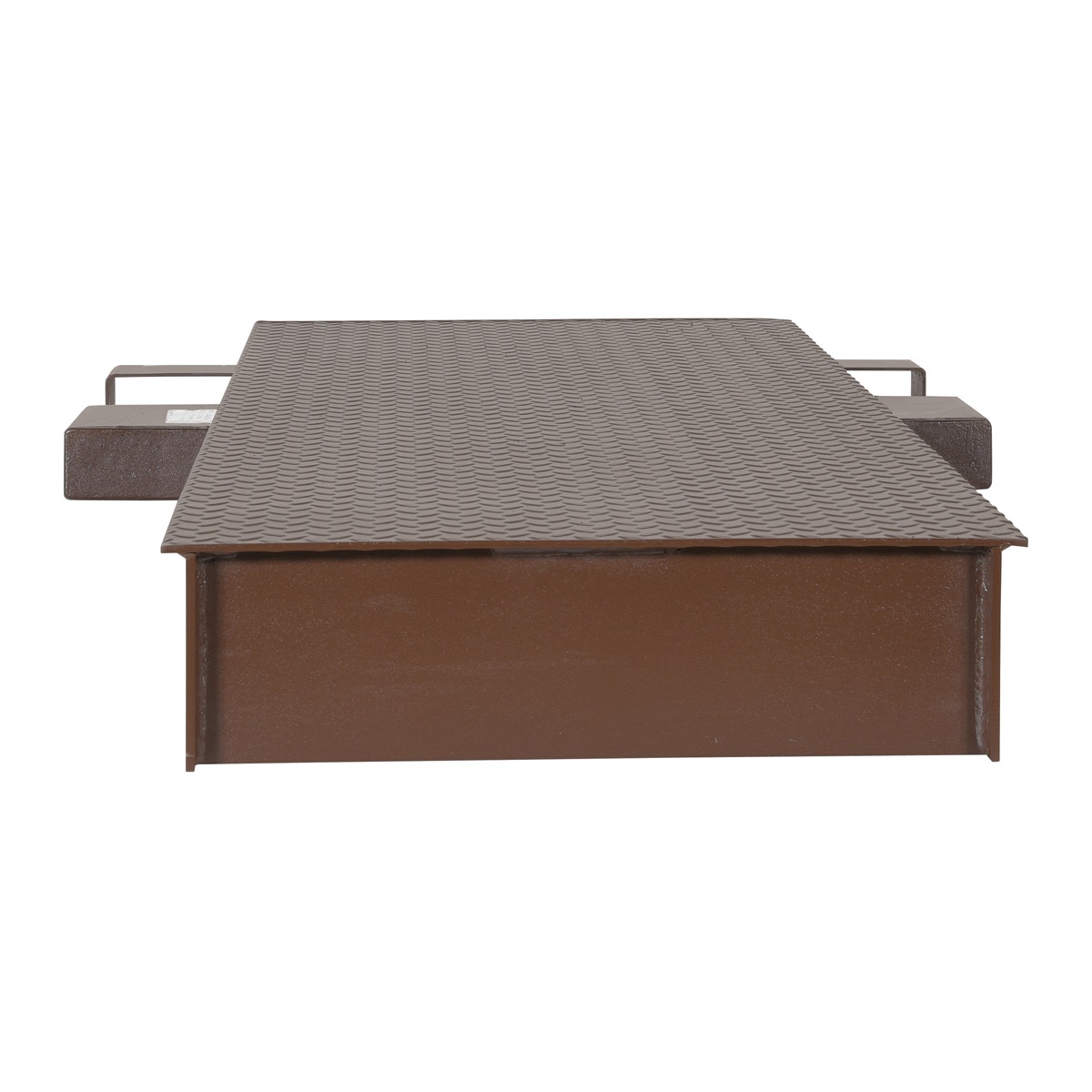

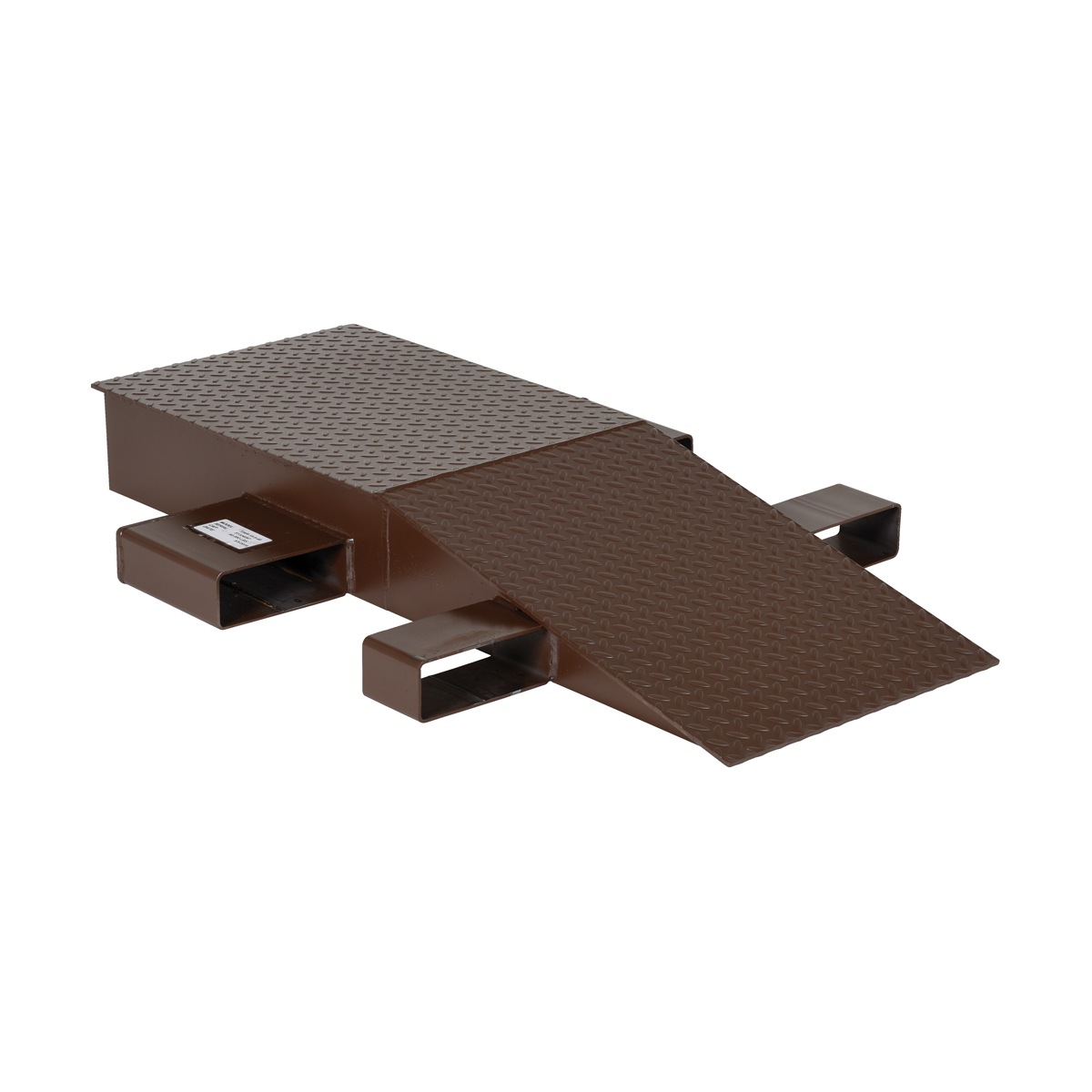

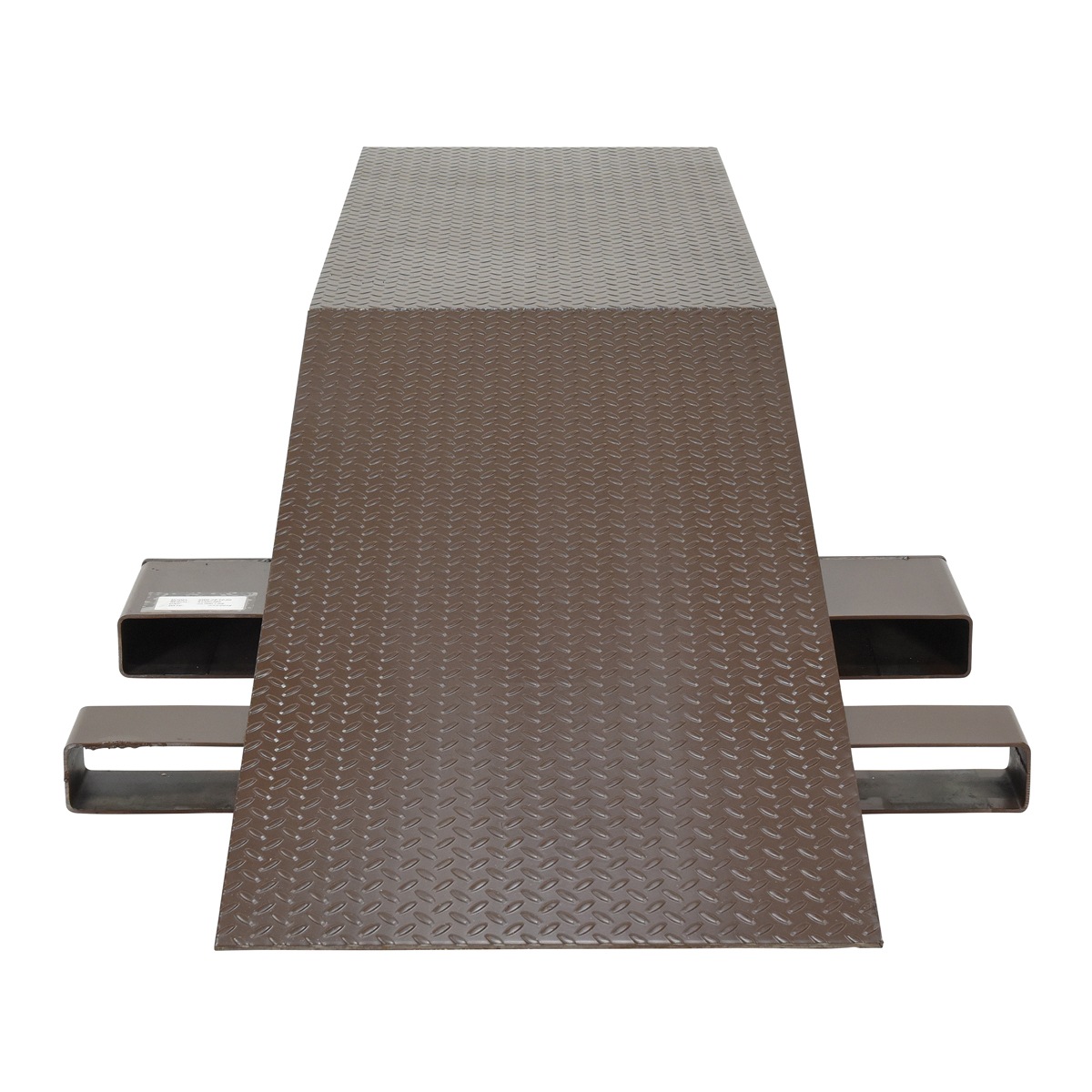

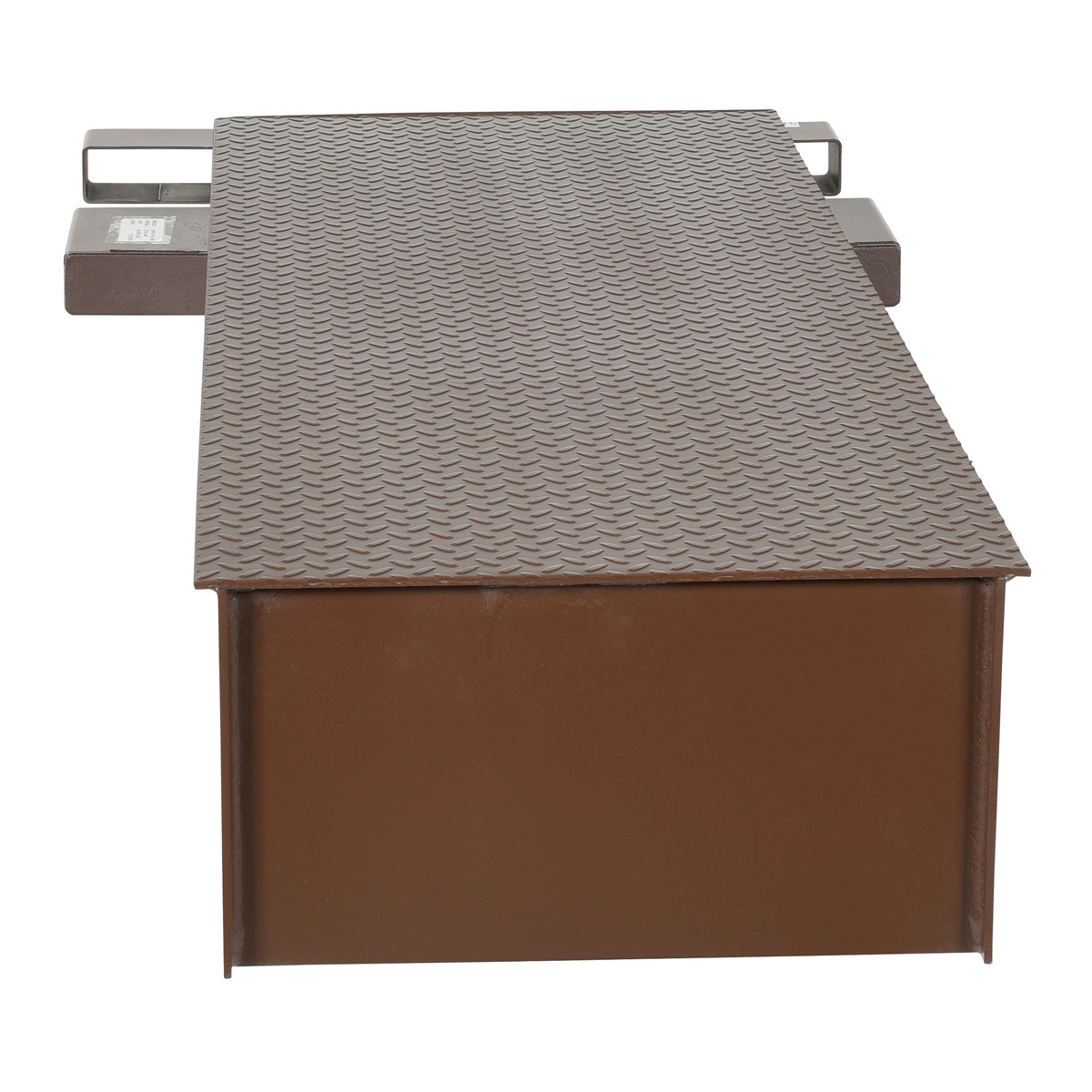

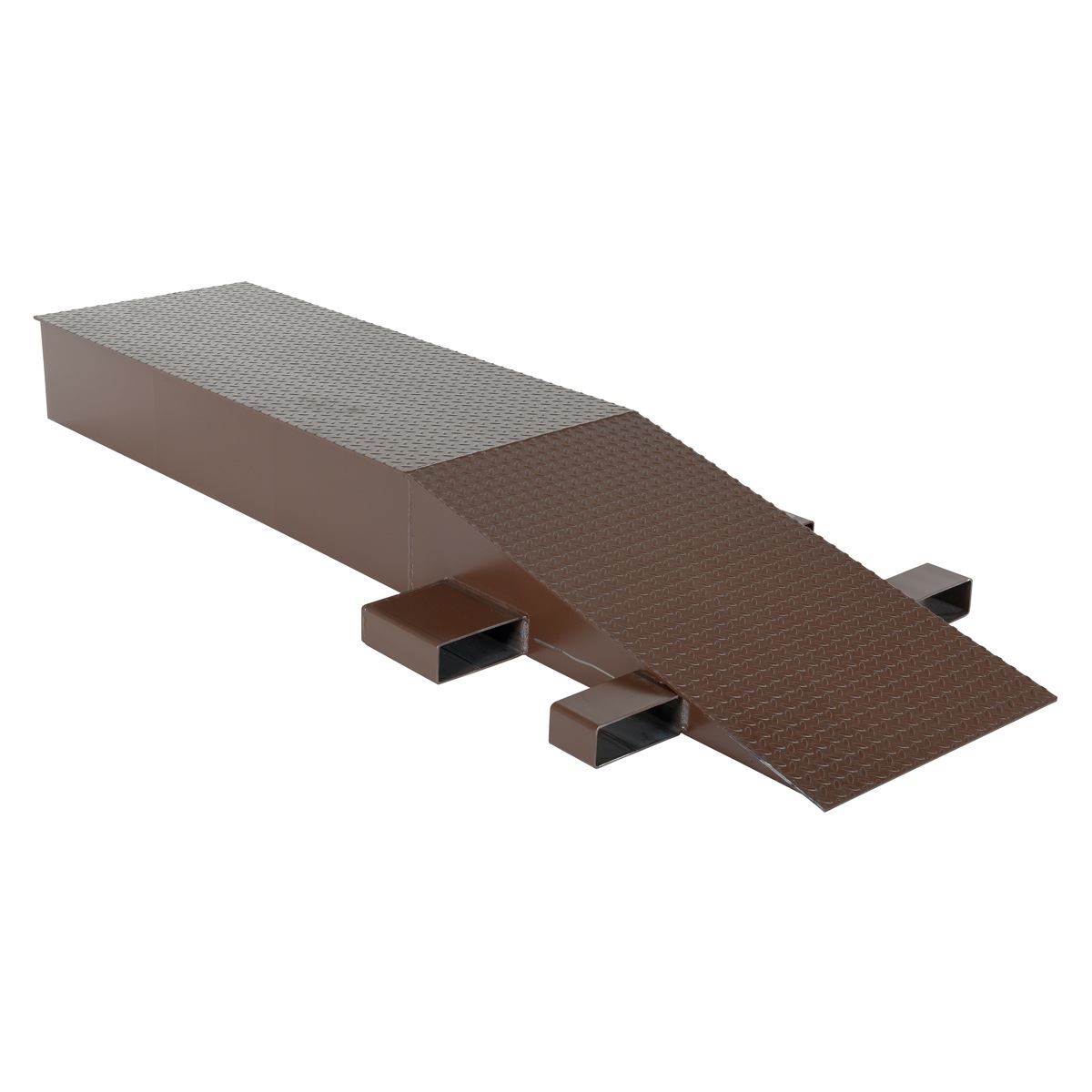

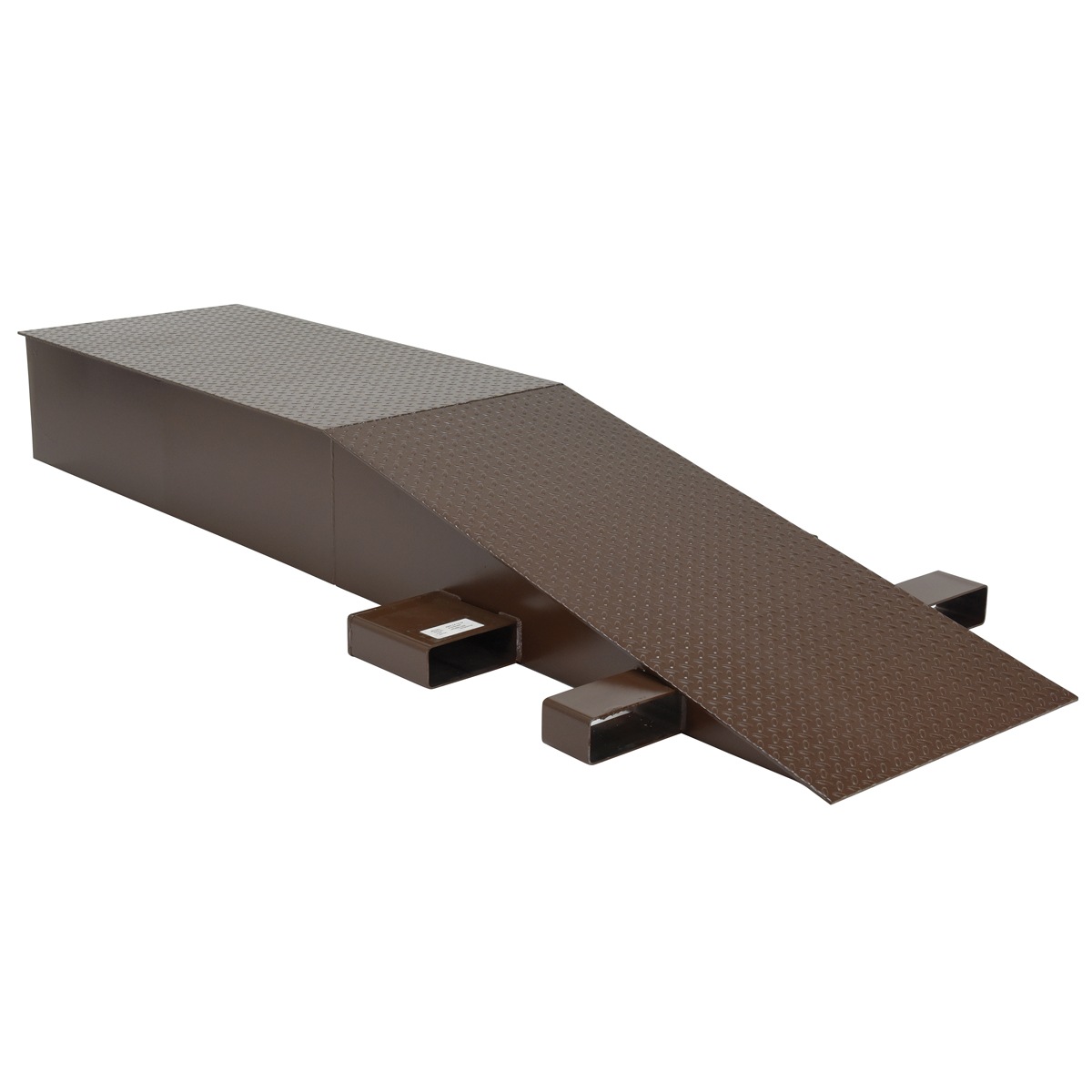

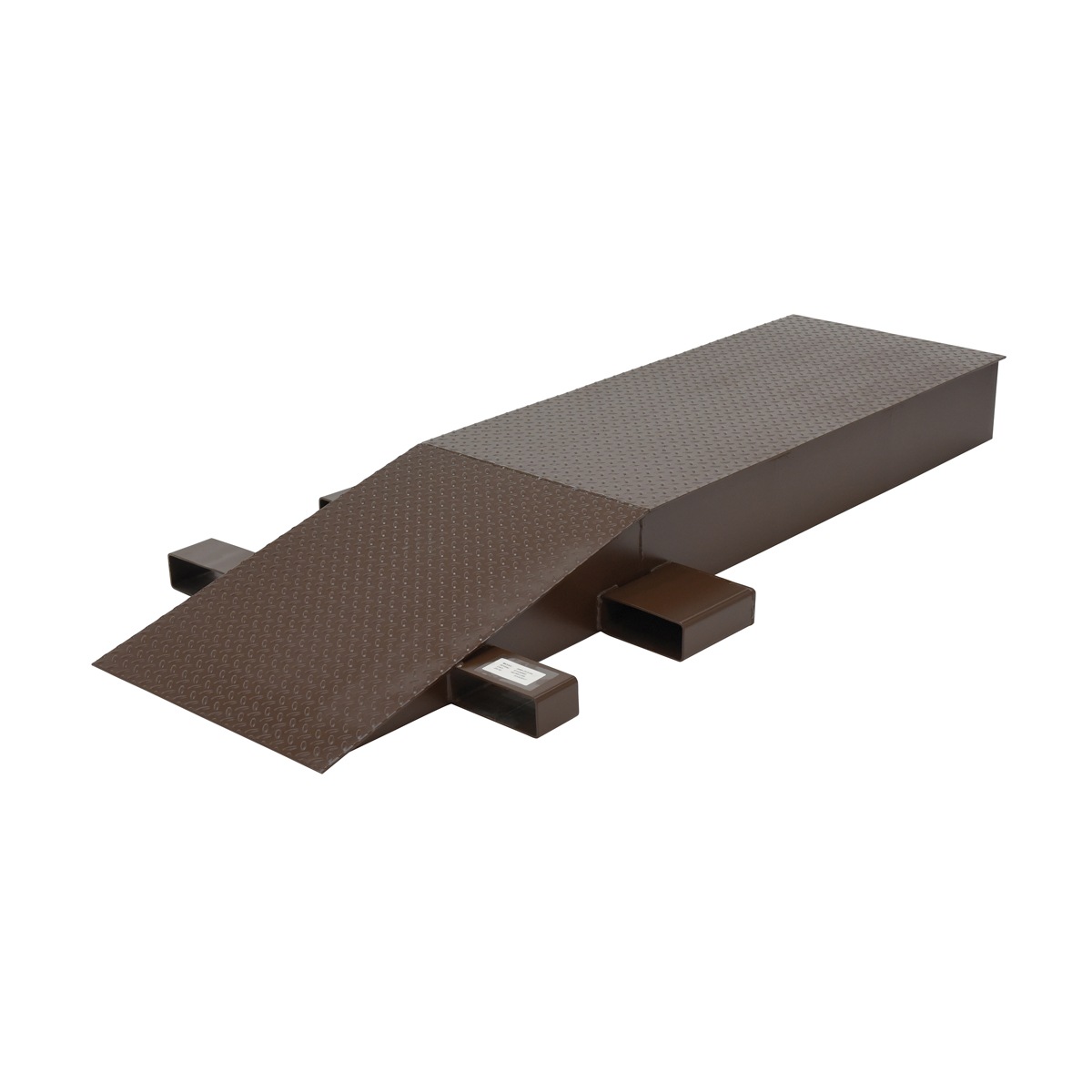

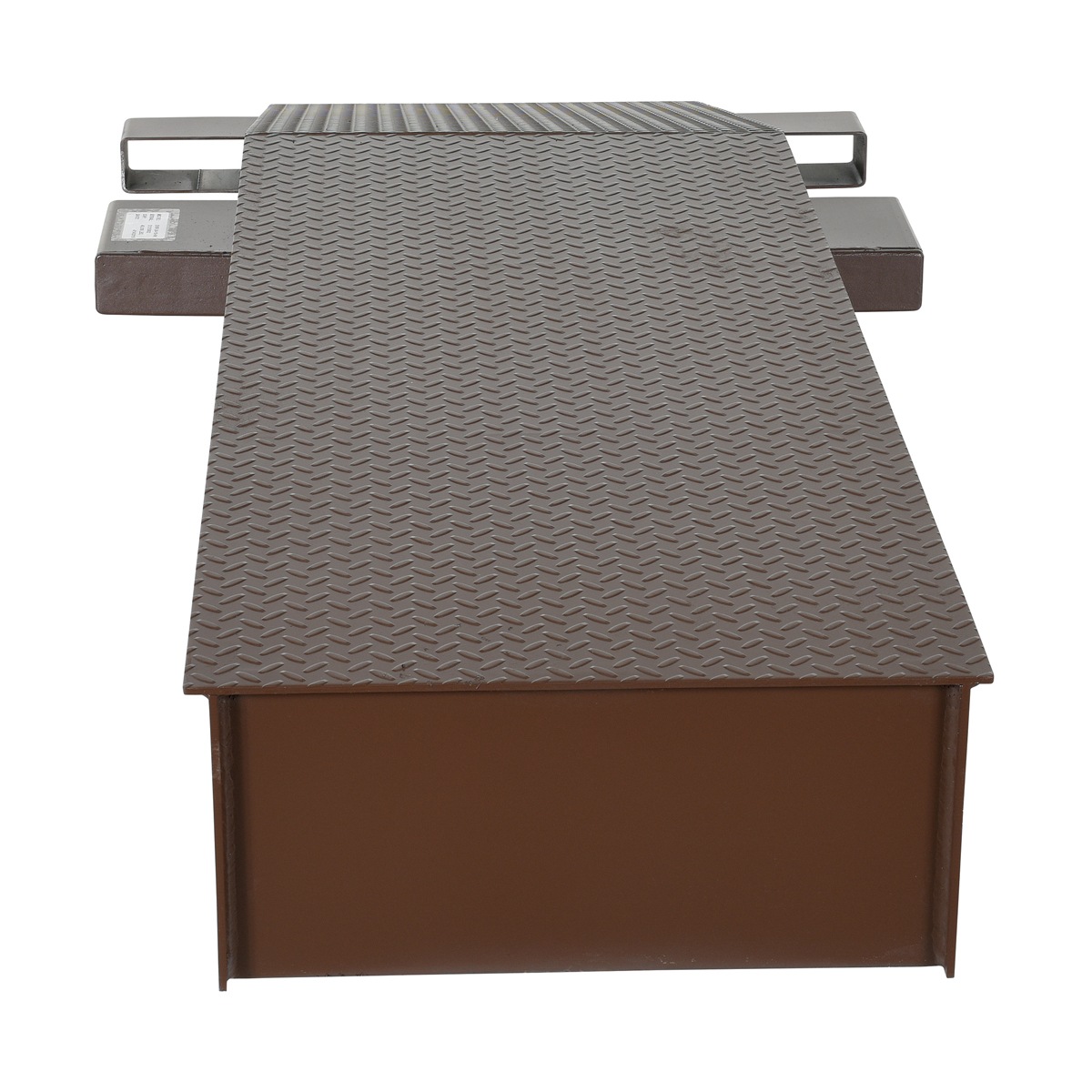

The Steel Wheel Riser is equipped with fork slots for ease in fork truck transporting. Ramps may be stacked for compact storage when not in use. This Wheel Riser is designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI, requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel construction. Wheel riser is priced and sold each.
- Ramp design can be stacked for compact storage when not in use
- Raised diamond treadplate surface provides a non-slip grip

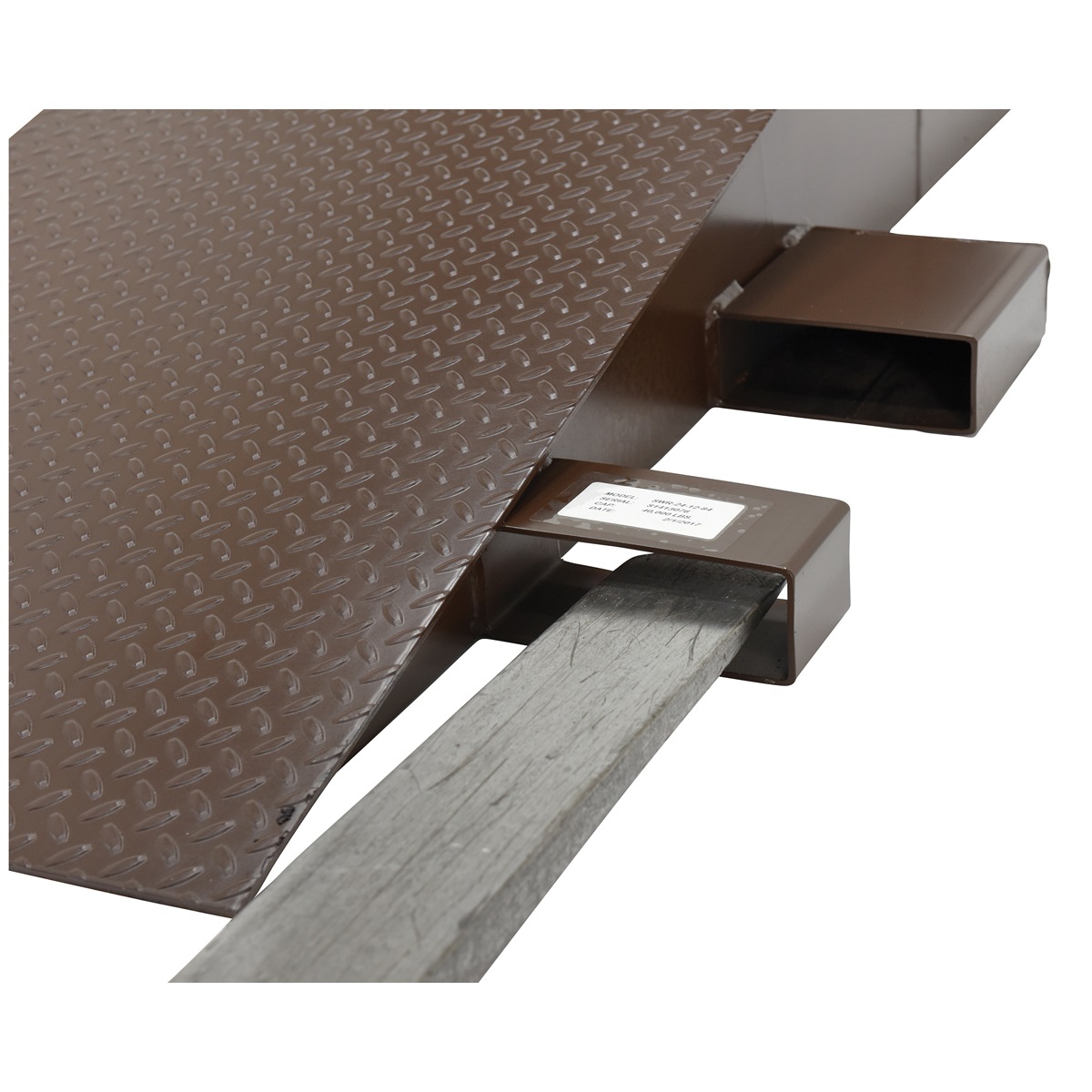

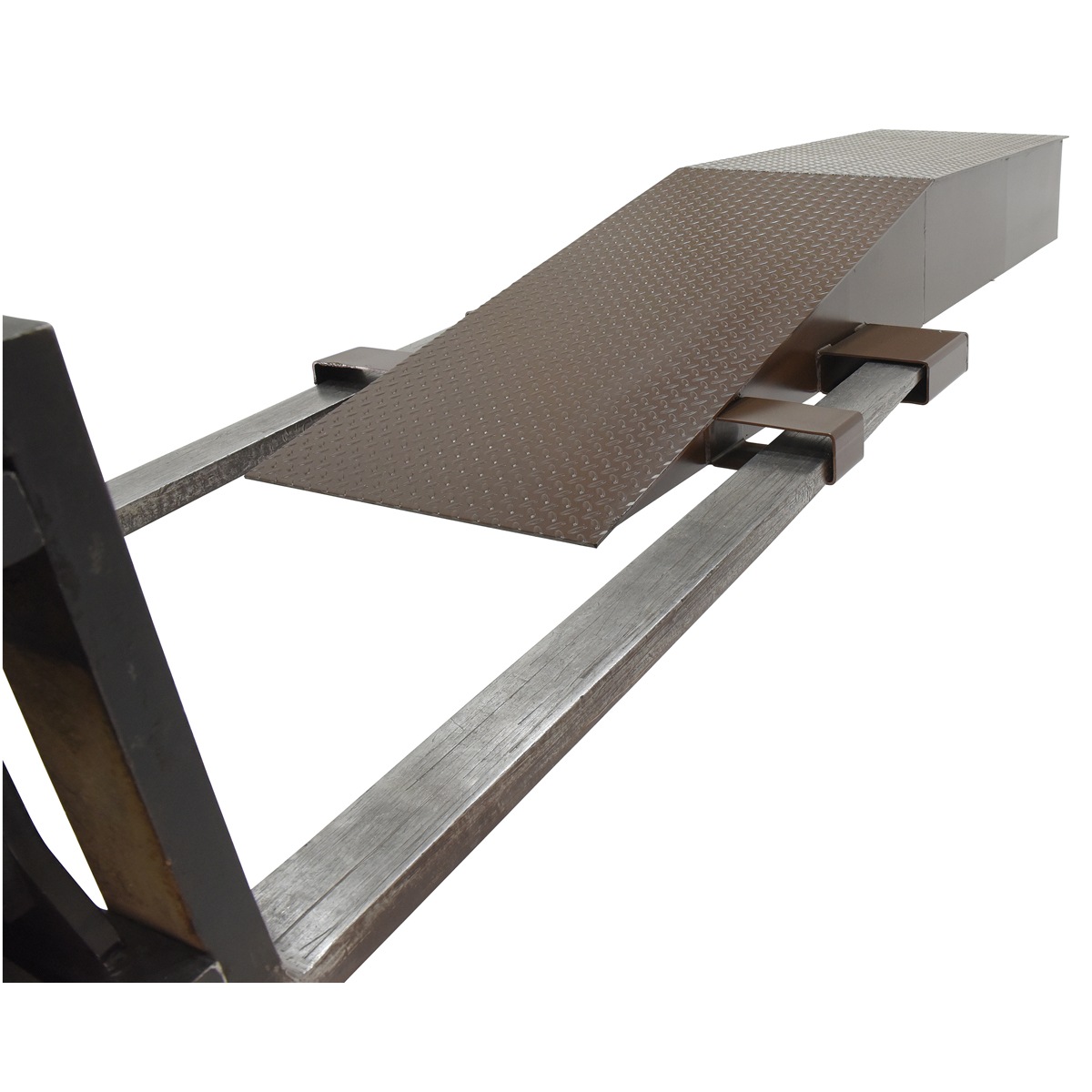

- Built-in fork pockets allow movement with a fork truck
- Built in compliance with OSHA/ANSI B56.1 part 3 sec 7
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 108L X 18W X 12.25H, 108L X 24W X 12.25H, 48L X 18W X 6.25H, 48L X 24W X 6.25H, 60L X 18W X 10.25H, 60L X 18W X 6.25H, 60L X 18W X 8.25H, 60L X 24W X 10.25H, 60L X 24W X 6.25H, 60L X 24W X 8.25H, 72L X 18W X 10.25H, 72L X 18W X 12.25H, 72L X 18W X 6.25H, 72L X 18W X 8.25H, 72L X 24W X 10.25H, 72L X 24W X 12.25H, 72L X 24W X 6.25H, 72L X 24W X 8.25H, 84L X 18W X 10.25H, 84L X 18W X 12.25H, 84L X 18W X 6.25H, 84L X 18W X 8.25H, 84L X 24W X 10.25H, 84L X 24W X 12.25H, 84L X 24W X 6.25H, 84L X 24W X 8.25H, 96L X 18W X 10.25H, 96L X 18W X 12.25H, 96L X 18W X 8.25H, 96L X 24W X 10.25H, 96L X 24W X 12.25H, 96L X 24W X 8.25H |
Specification
Specification
- Uniform Capacity Per Pair – Sold Each] (lb.): 40000
- Top Treadplate Thickness (in.): 1/4
- Usable Fork Pocket Width (in.): 7-1/2
- Usable Fork Pocket Height (in.): 2-1/2
- OSHA: 1910.30 (a)
- ANSI: B56.1 part 3 sec 7
Documents
Documents
Click for SWR-18-10-60 Approval Drawings
Click for SWR-18-10-72 Approval Drawings
Click for SWR-18-10-84 Approval Drawings
Click for SWR-18-10-96 Approval Drawings
Click for SWR-18-12-108 Approval Drawings
Click for SWR-18-12-72 Approval Drawings
Click for SWR-18-12-84 Approval Drawings
Click for SWR-18-12-96 Approval Drawings
Click for SWR-18-6-48 Approval Drawings
Click for SWR-18-6-60 Approval Drawings
Click for SWR-18-6-72 Approval Drawings
Click for SWR-18-6-84 Approval Drawings
Click for SWR-18-8-60 Approval Drawings
Click for SWR-18-8-72 Approval Drawings
Click for SWR-18-8-84 Approval Drawings
Click for SWR-18-8-96 Approval Drawings
Click for SWR-24-10-60 Approval Drawings
Click for SWR-24-10-72 Approval Drawings
Click for SWR-24-10-84 Approval Drawings
Click for SWR-24-10-96 Approval Drawings
Click for SWR-24-12-108 Approval Drawings
Click for SWR-24-12-72 Approval Drawings
Click for SWR-24-12-84 Approval Drawings
Click for SWR-24-12-96 Approval Drawings
Click for SWR-24-6-48 Approval Drawings
Click for SWR-24-6-60 Approval Drawings
Click for SWR-24-6-72 Approval Drawings
Click for SWR-24-6-84 Approval Drawings
Click for SWR-24-8-60 Approval Drawings
Click for SWR-24-8-72 Approval Drawings
