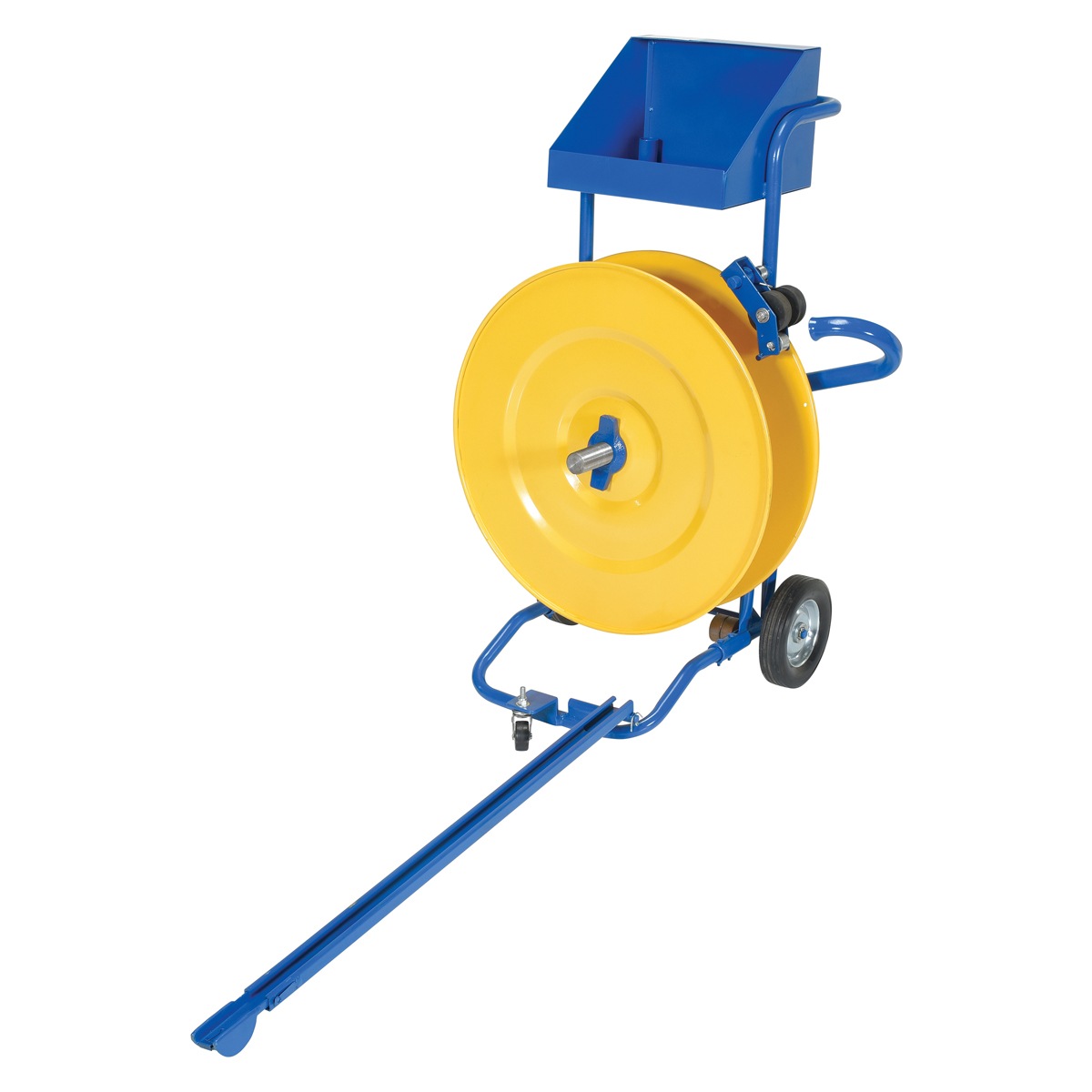

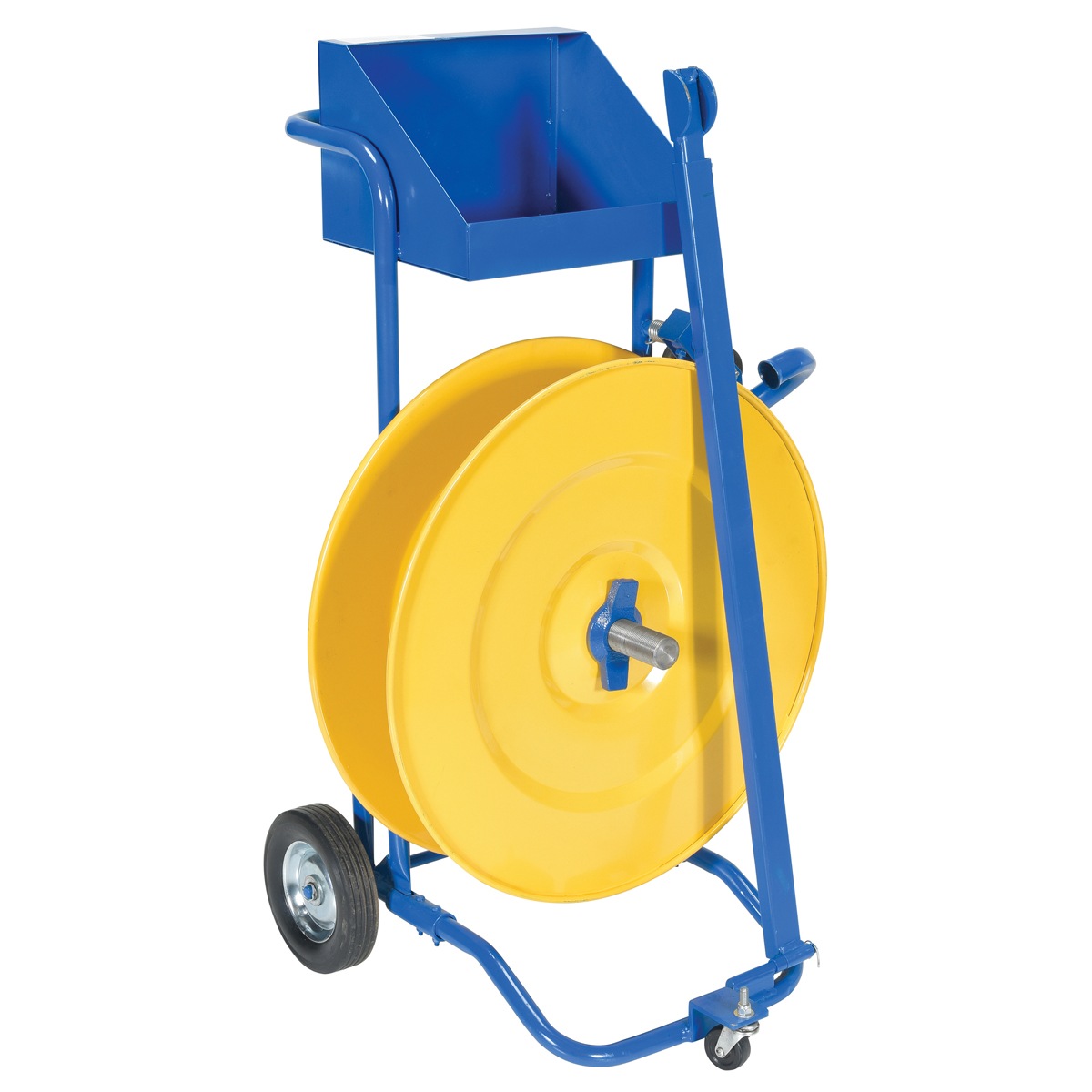

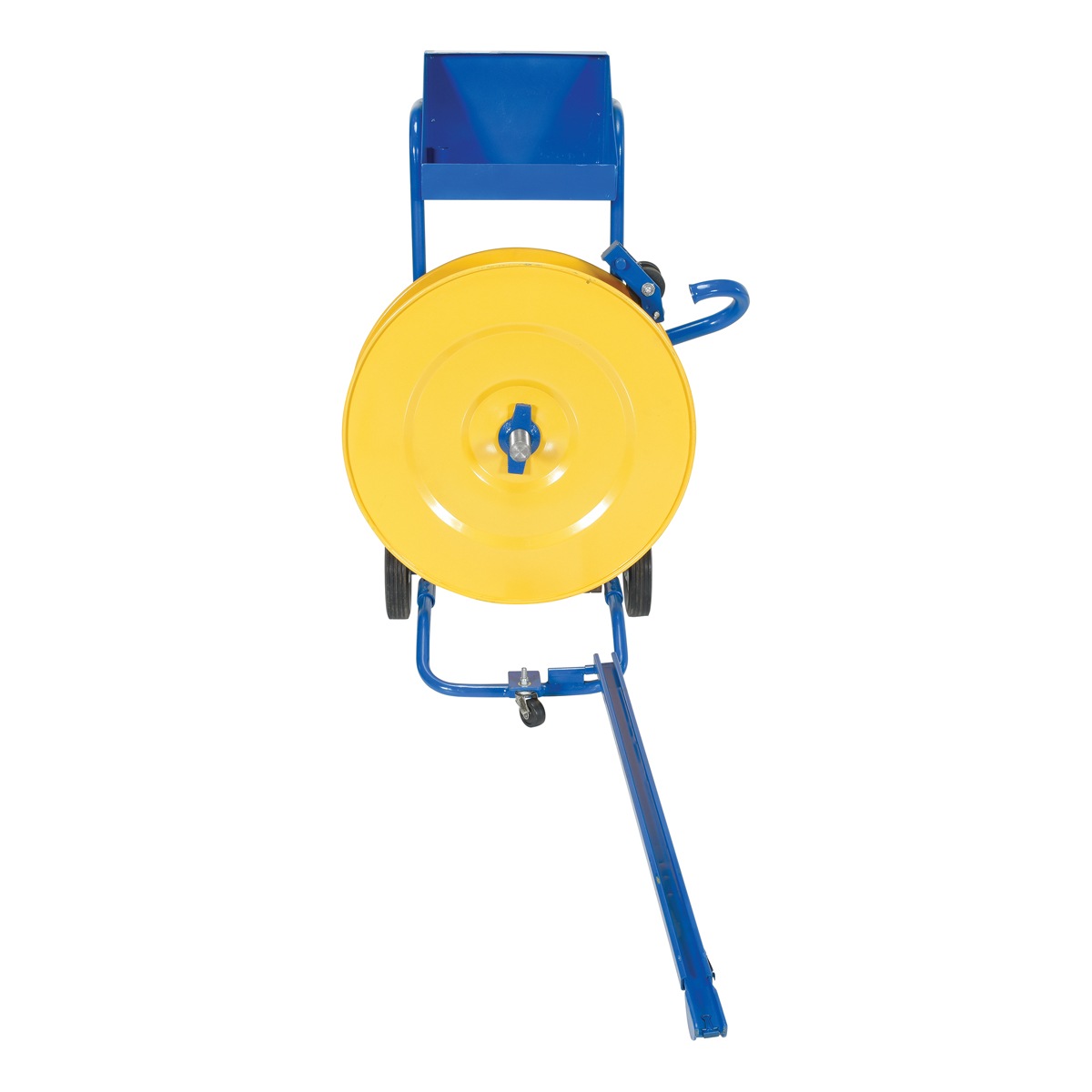

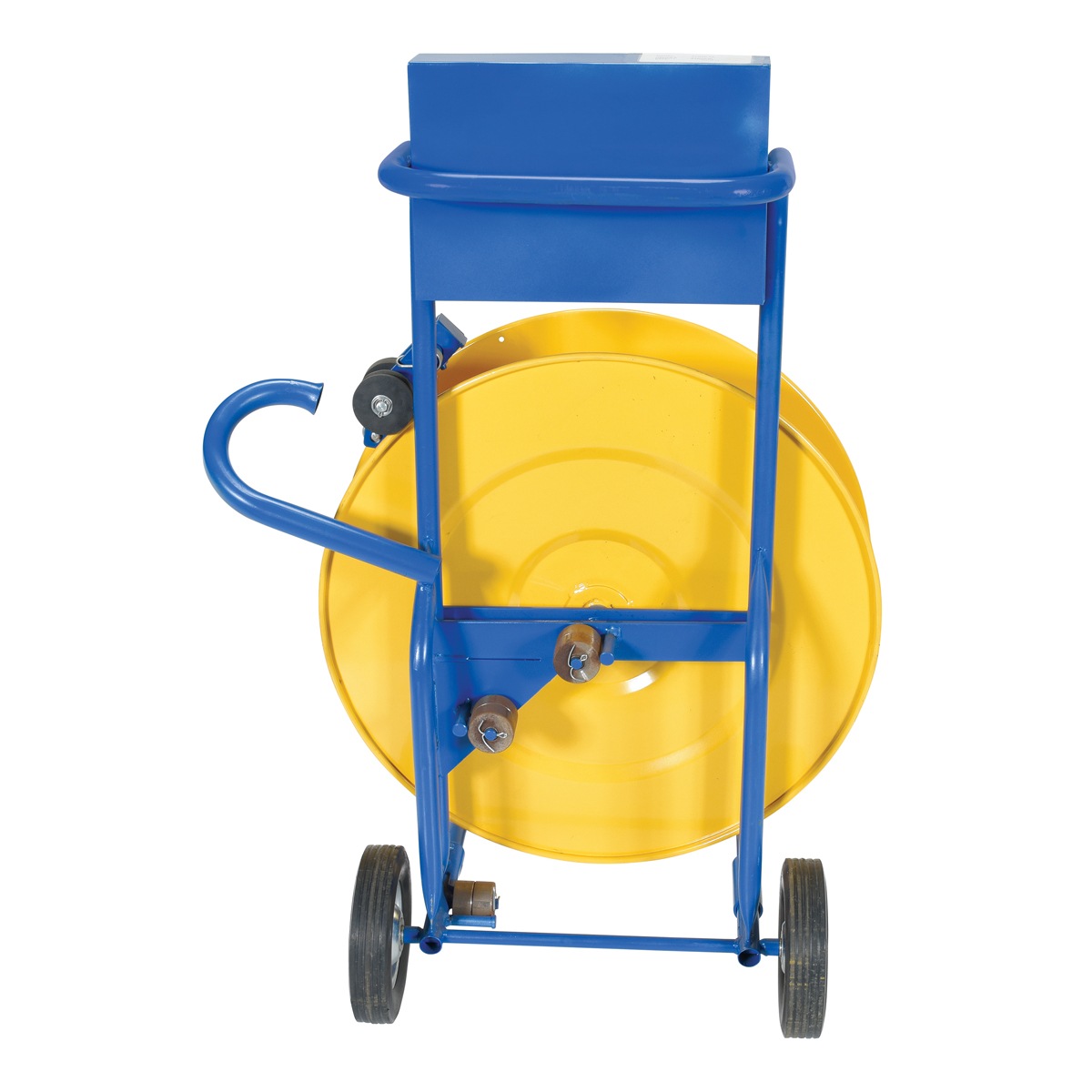

Vestil STRAP-P2 Manual Pallet Probe Strapping Cart

The Manual Pallet Probe Strapping Cart is a quick and simple answer to a long time dilemma – getting poly strapping through your pallet. The unit increases productivity and requires low maintenance. To use, simply transport cart to your loaded pallet, extend arm, and run strapping to end clip. After strapping is secure, roll cart probe into pallet along center stringer. The strapping arm will then protrude out the other end allowing the operator to pull the strapping up and over pallet. Unit accepts polypropylene strapping. Strapping is not included.

• Poly strapping through your pallet is quick and simple
• Increases productivity and requires low maintenance
• Roll cart probe into pallet along center string
• Strapping arm protrudes out allowing the strapping over pallet

Specification

• Arm Length Retracted/Extended (in.): 40 to 64
• Maximum Strapping Diameter (in.) 24: 24
• Tray Width (in.): 13
• Tray Length (in.): 11-1/2
• Tray Height (in.): 9
• Front Caster Diameter/Width (in.): 2 x 3/4
• Rear Caster Diameter/Width (in.): 10 x 2-1/2
• Strapping Size (in.): 3/4

Documents

Click for STRAP-P2 Approval Drawings
