Vestil SWA-48-PMO Wrap Machine with Powered Mast 4000 LB

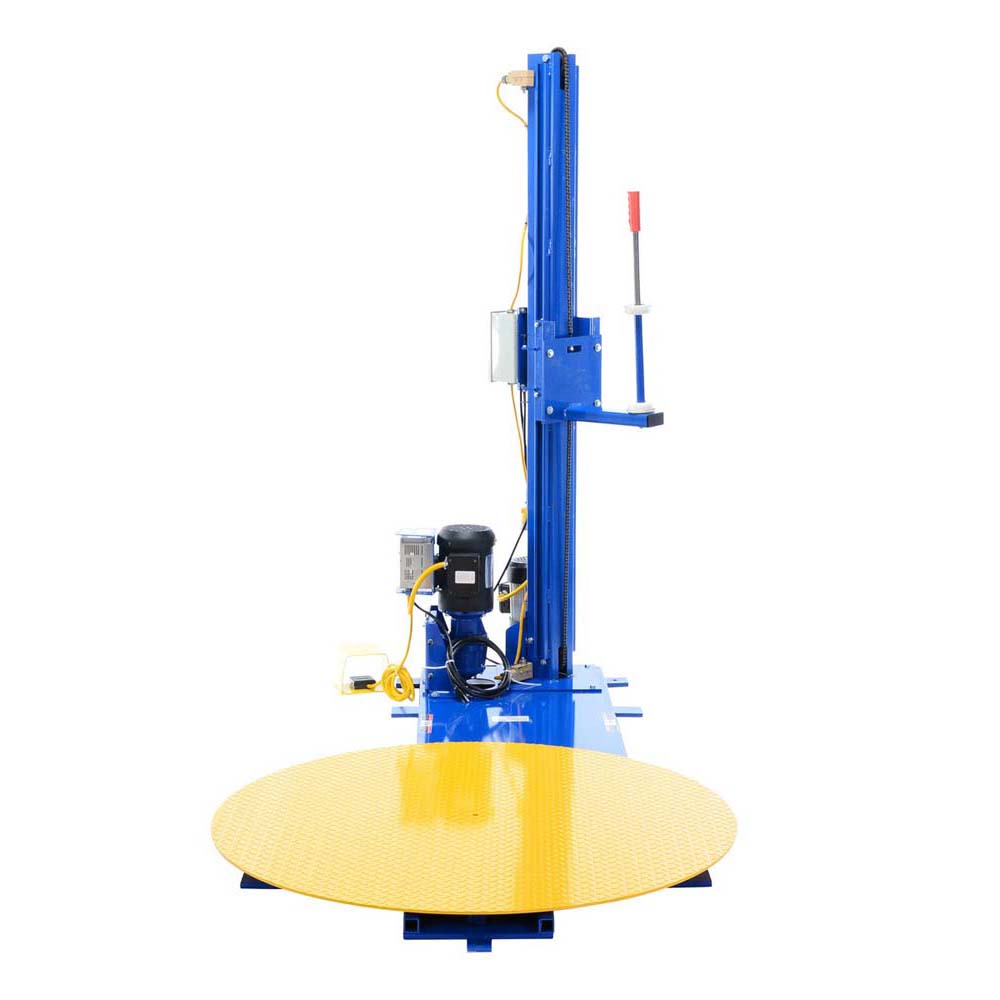

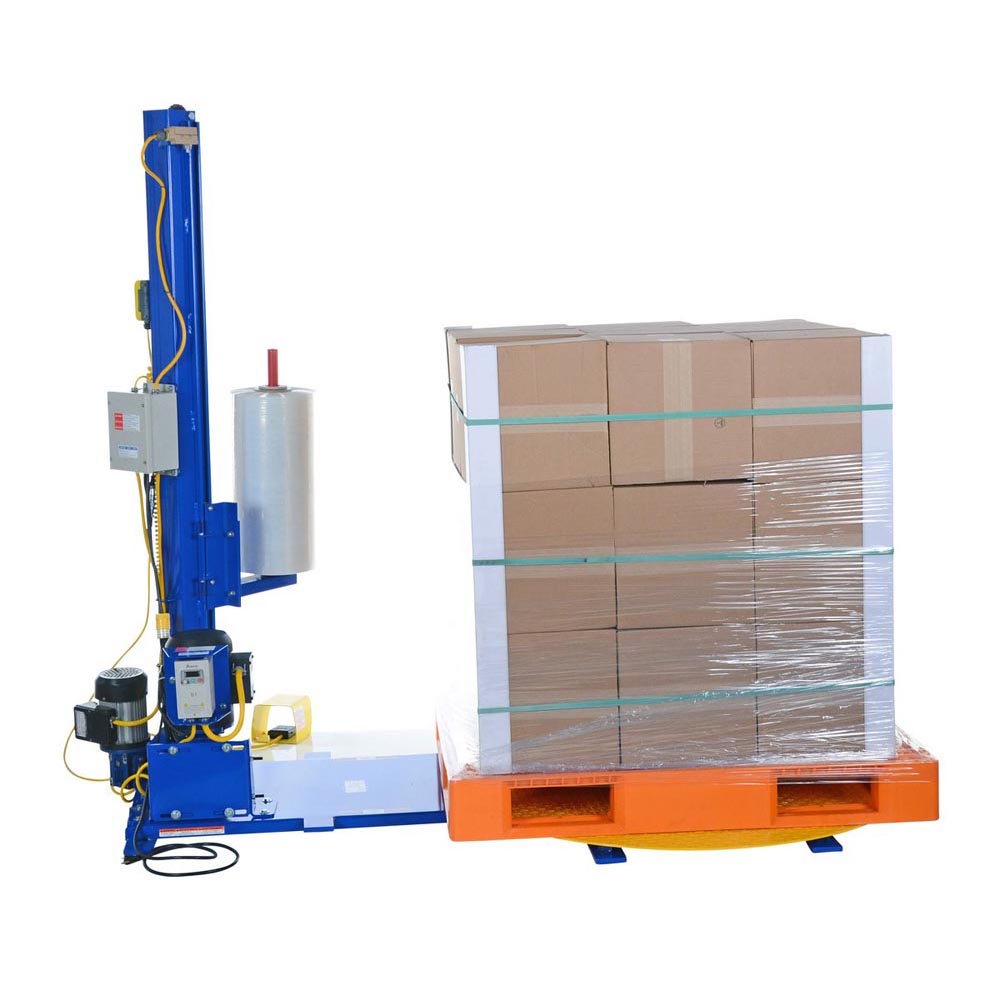

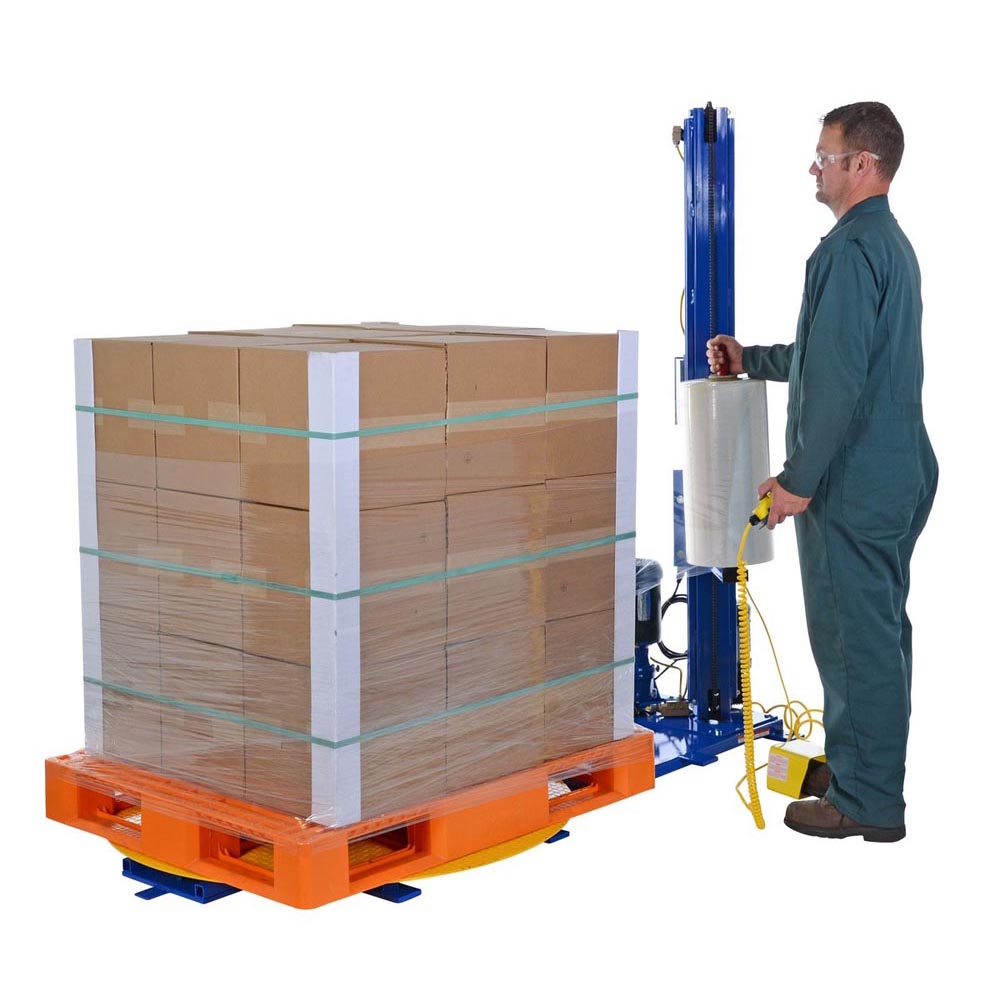

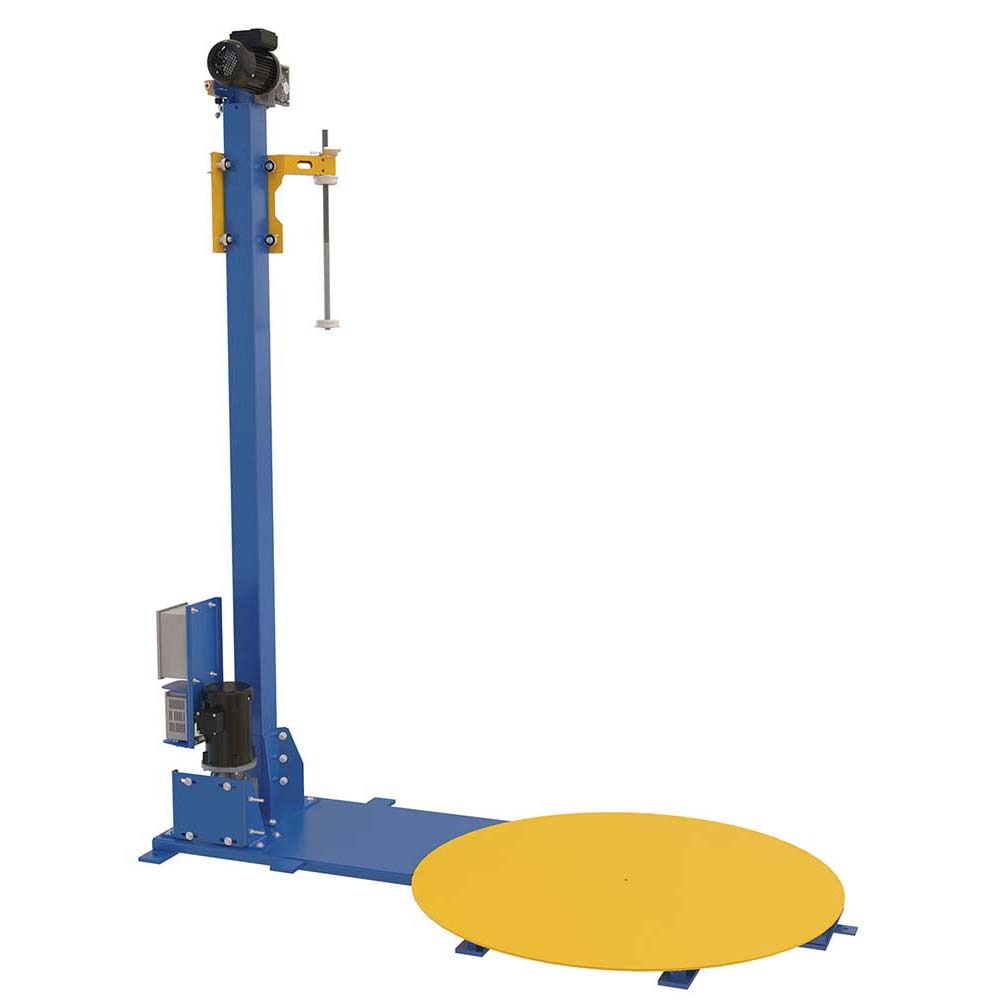

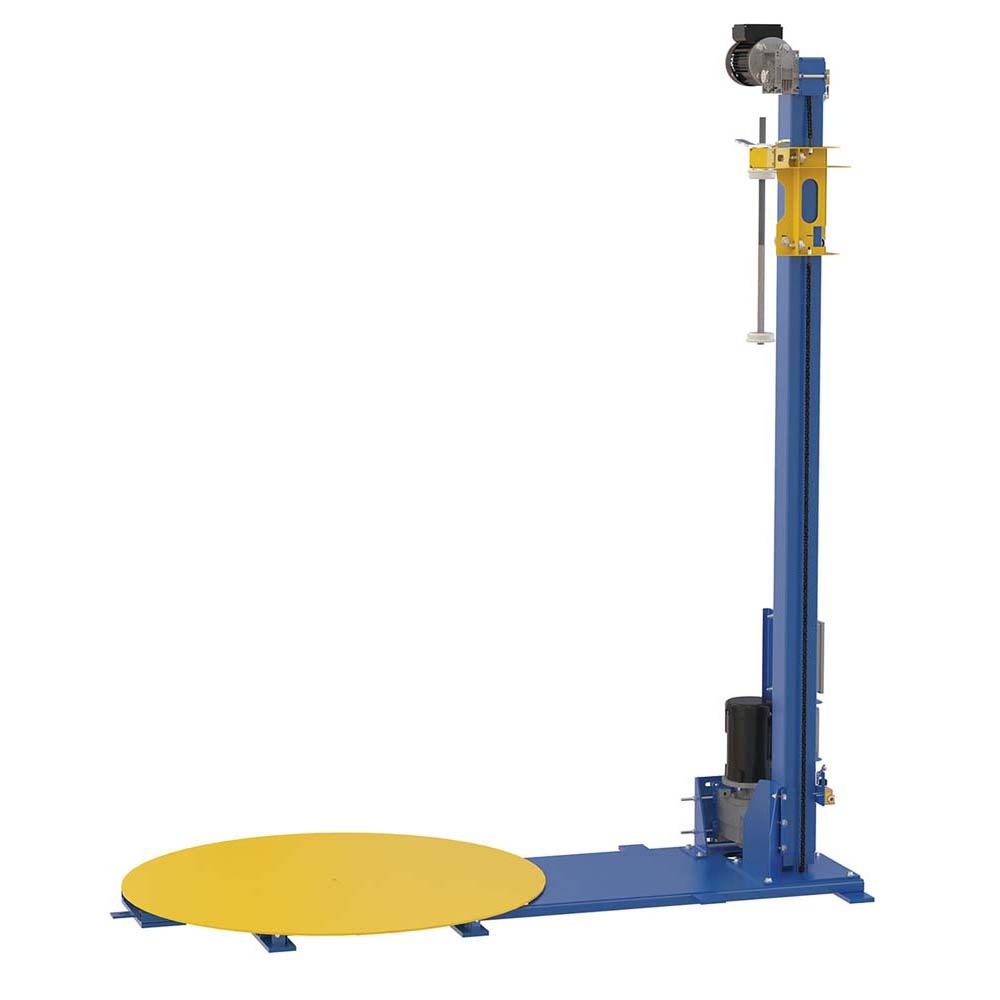

The Semi-Automatic Stretch Wrap Machine with a Powered Mast increases productivity in the shipping department or at the end of a production line. This Stretch Wrap Machine is complete with a powered turntable and counter-balanced stretch film mast. The unit is easy to operate, simply depress the foot pedal and manually move the mast up and down. The motor has a soft start/stop and variable speed control. It comes with one film rod with special spacers that can be used with any height roll stretch wrap material between ten (10) and twenty (20) inches.

• Stretch wrap design increases shipping productivity
• Simple depress foot pedal powers turntable
• Powered mast allows user to wrap the needed areas
• Steel construction provides a long lasting rugged use

Specification

• Uniform Capacity (lb.): 4,000
• Turntable Diameter (in.): 48
• Wrap Height (in.): 80-5/16
• Turntable Height (in.): 2-3/8
• Maximum Load Diameter (in.): 62
• Voltage/Phase: 115/1
• Motor Amps (Full Load): 6
• R.P.M Variables: 3-12
• Motor Horsepower: 1/2
• Minimum Stretch Wrap Height (in.): 10
• Max. Stretch Wrap Width (in.): 20
• Minimum/Maximum Stretch Wrap Core Diameter (in.): 3
• Maximum Stretch Wrap Outside Diameter (in.): 11
• Power Cord Length (ft.): 8

Documents

Click for SWA-48-PMO Approval Drawings

Click for Manual
