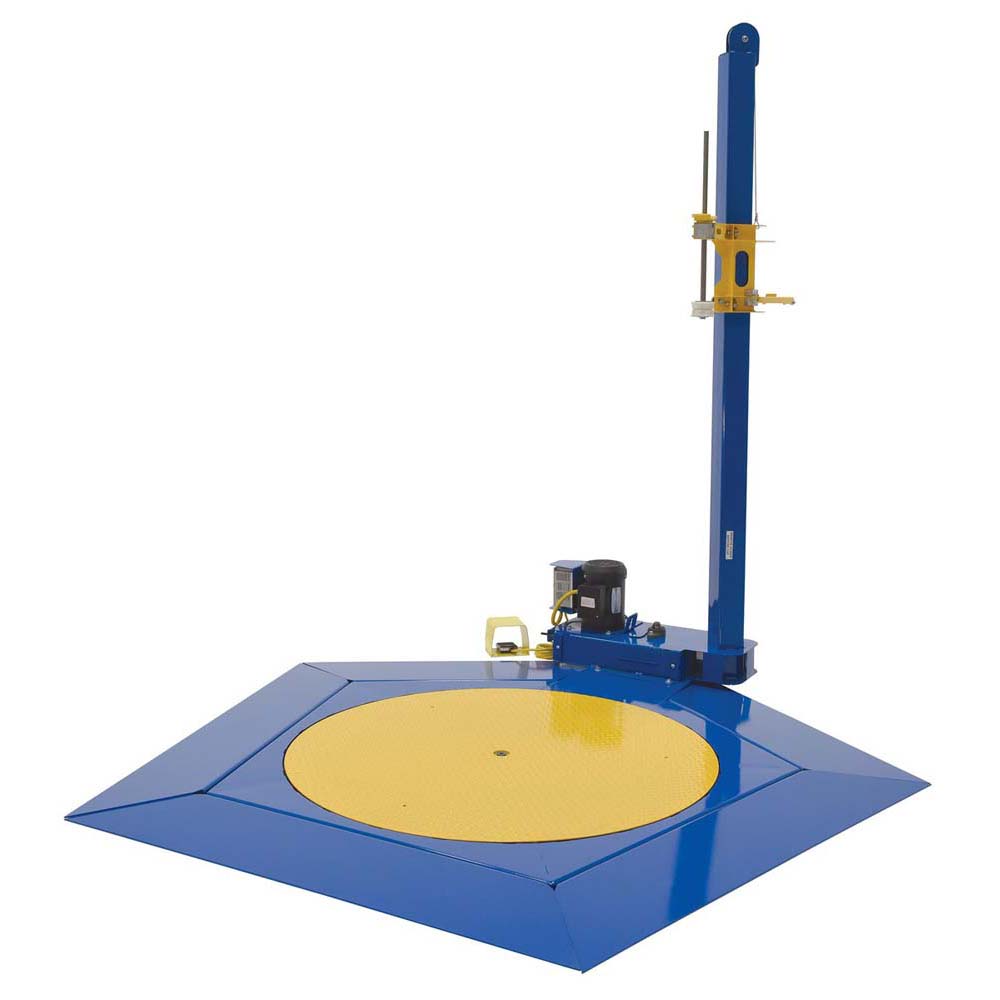

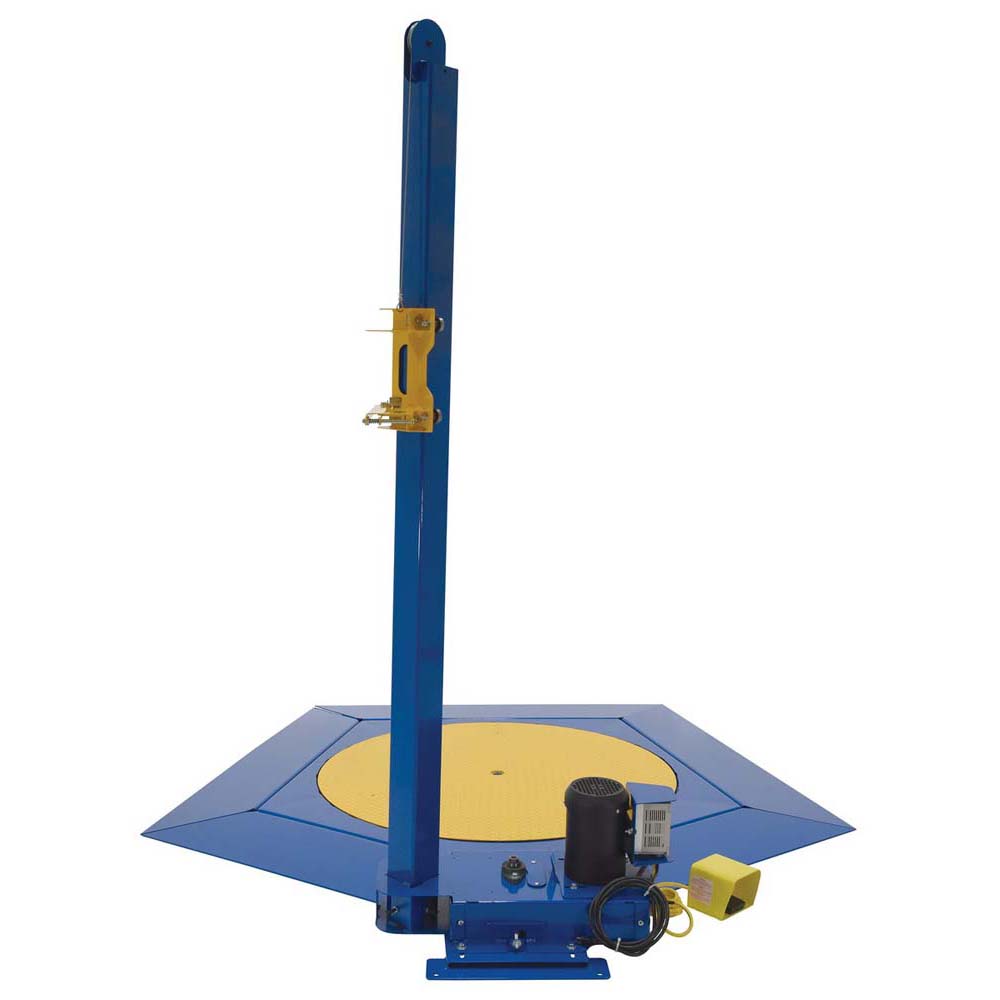

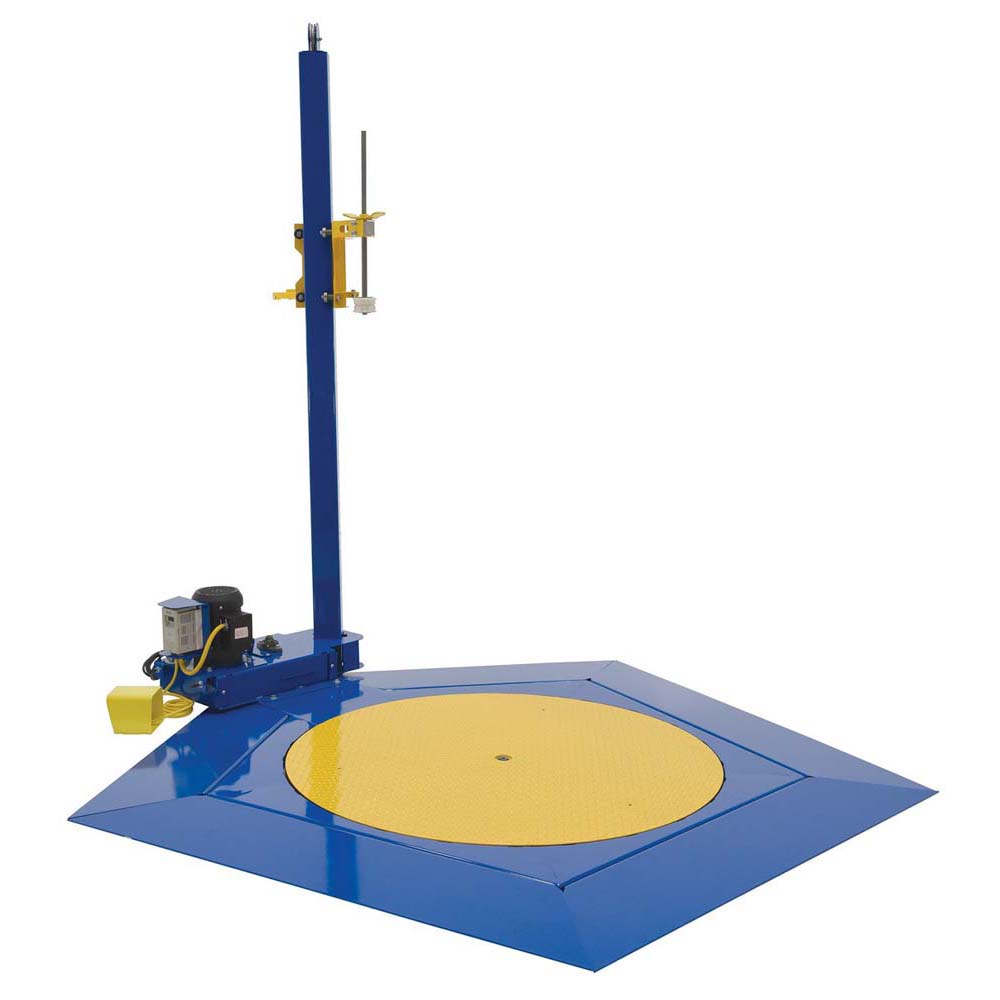

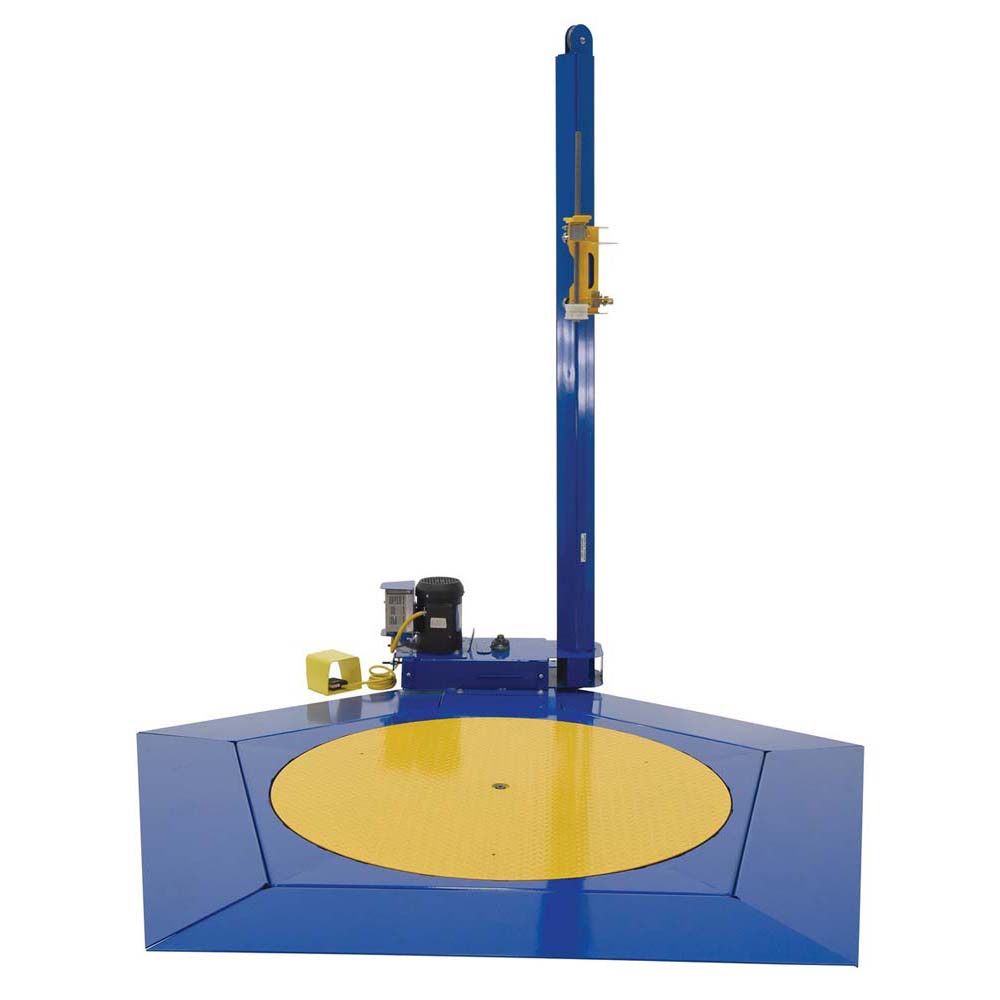

Vestil SWA-51-AR5 Semi-Auto Stretch Wrap Mach 4000 LB

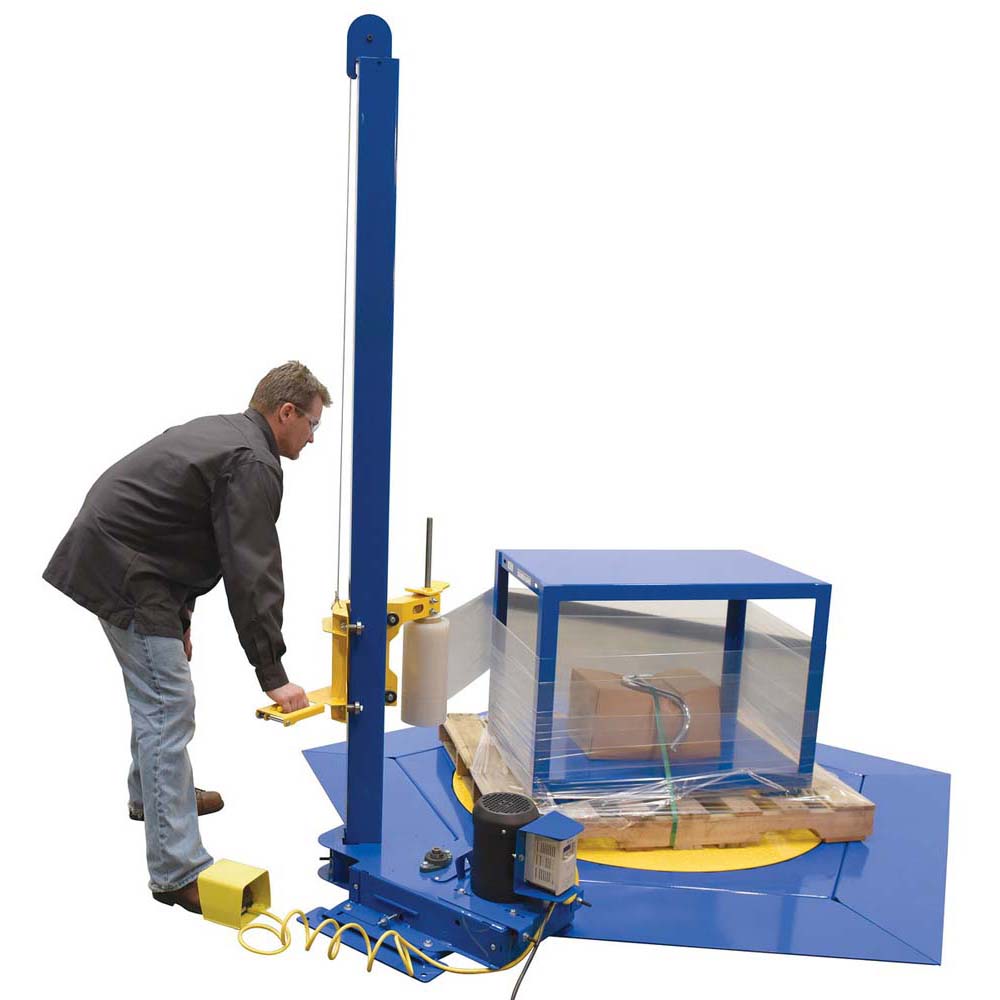

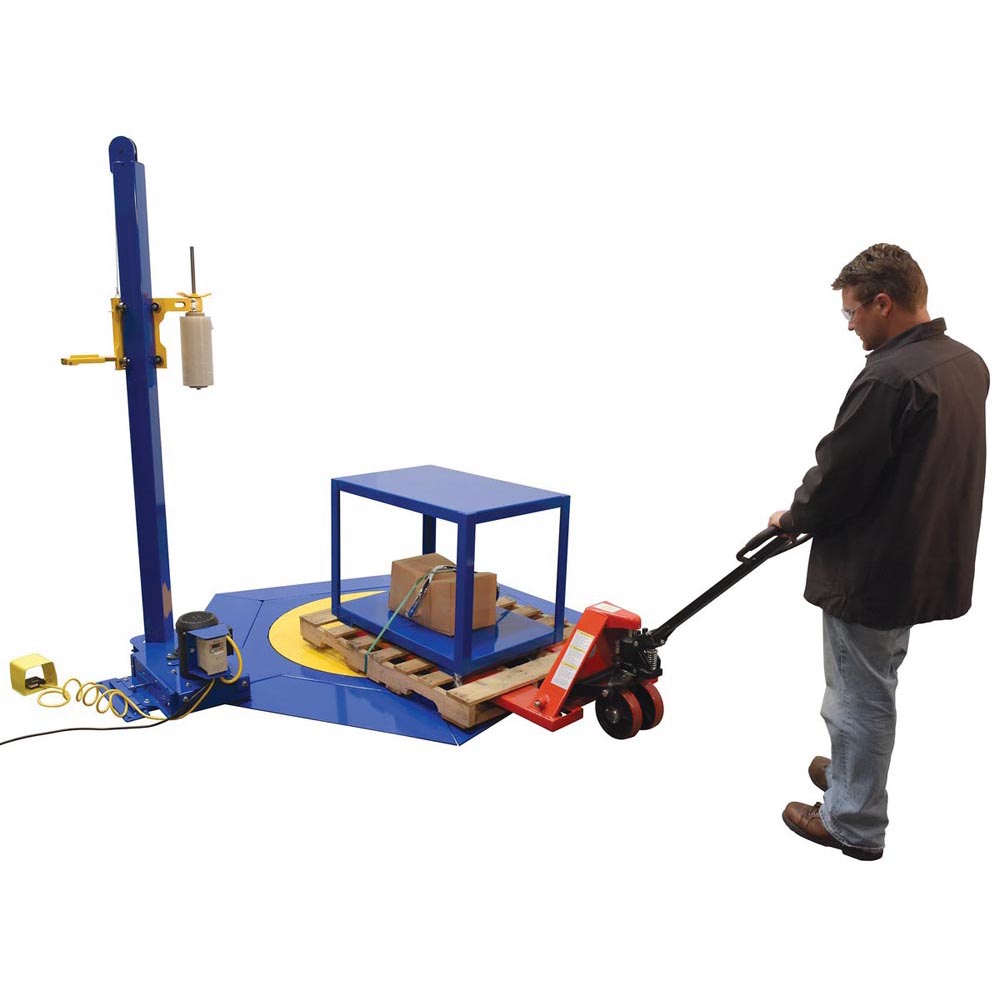

The Low Profile Stretch Wrap Machine features a thin-spin carousel with the added benefit of a stretch wrap machine with powered rotation. The rotation is controlled by a foot switch, while the power input has a variable AC motor that allows adjustable deck speed and includes soft-start/ stop. RPM is variable from 3 to 12. The loading and unloading is possible by the use of a manual or powered pallet truck. The unit has a built-in perimeter ramp and comes standard with a manual stretch wrap mast. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely, making film application fast and easy. Optional 115V, 1 phase AC powered mast option (PMO) includes hand control with up and down buttons. Maximum load is 6411/16″ in diameter (wrap height is 83.” high).

• Approachable from all sides
• Minimizes surfaces change during transition
• Manually controlled for better positioning
• Large capacity for wrapping oversized products

Specification

• Uniform Capacity (lb.): 4,000
• Turntable Diameter (in.): 51
• Wrap Height (in.): 83-1/4
• Turntable Height (in.): 1
• Maximum Load Diameter (in.): 64-11/16
• Voltage/Phase: 115/1
• Adjustable Deck Speed R.P.M: 3-12
• Ramp Access Degree: 300
• Foot Switch Cord Length (in.): 96

Documents

Click for SWA-51-AR5 Approval Drawings

Click for Manual
