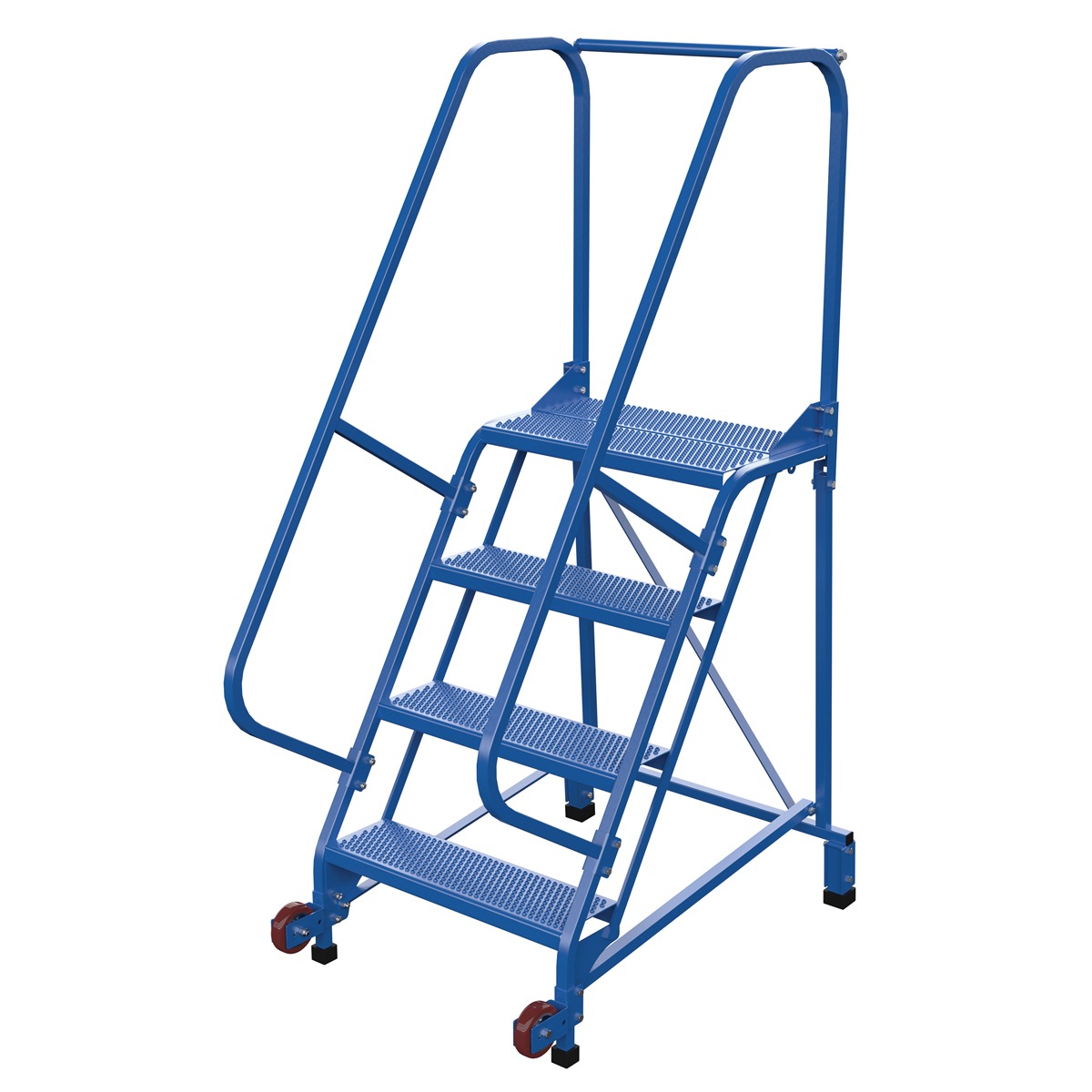

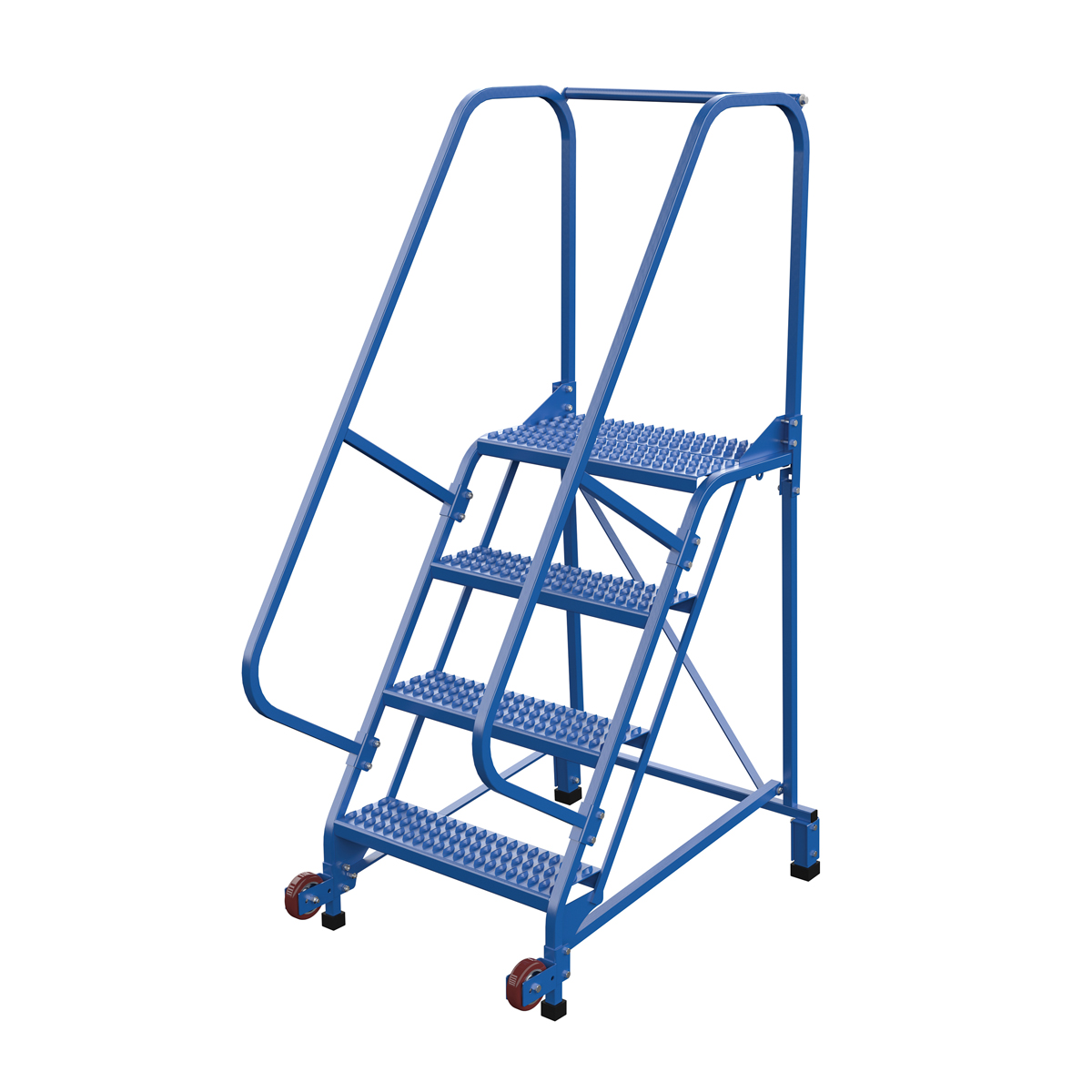

Vestil Tip-N-Roll Ladder 4 Step 58°

This Tip-N-Roll Mobile Ladder has a non-straddle base for standard applications. When tilted, ladder rolls smoothly on wheels. This ladder has grip strut steps.

• Tilt back wheel design provides easy ladder portability
• Top tread design provides a safe non-slip grip
• Rubber feet provide added floor protection
• Heavy-duty formed steel construction offers maximum strength

Specification

• Uniform Capacity (lb.): 350
• Number of Steps: 4
• Step Angle (degrees): 58
• Step Width (in.): 24
• Step Depth (in.): 7
• Top Step Depth (in.): 14
• Top Step Height (in.): 40
• Usable Length (in.): 33-3/8
• Wheel Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
• Wheel Type: Rigid Poly-on-Poly
• OSHA: 1910.29
• ANSI: A14.7
• Ground Clearance Height (in.): 5-1/2

Documents

Click for Manual

Click for LAD-TRN-60-4-G Approval Drawings

Click for LAD-TRN-60-4-P Approval Drawings
