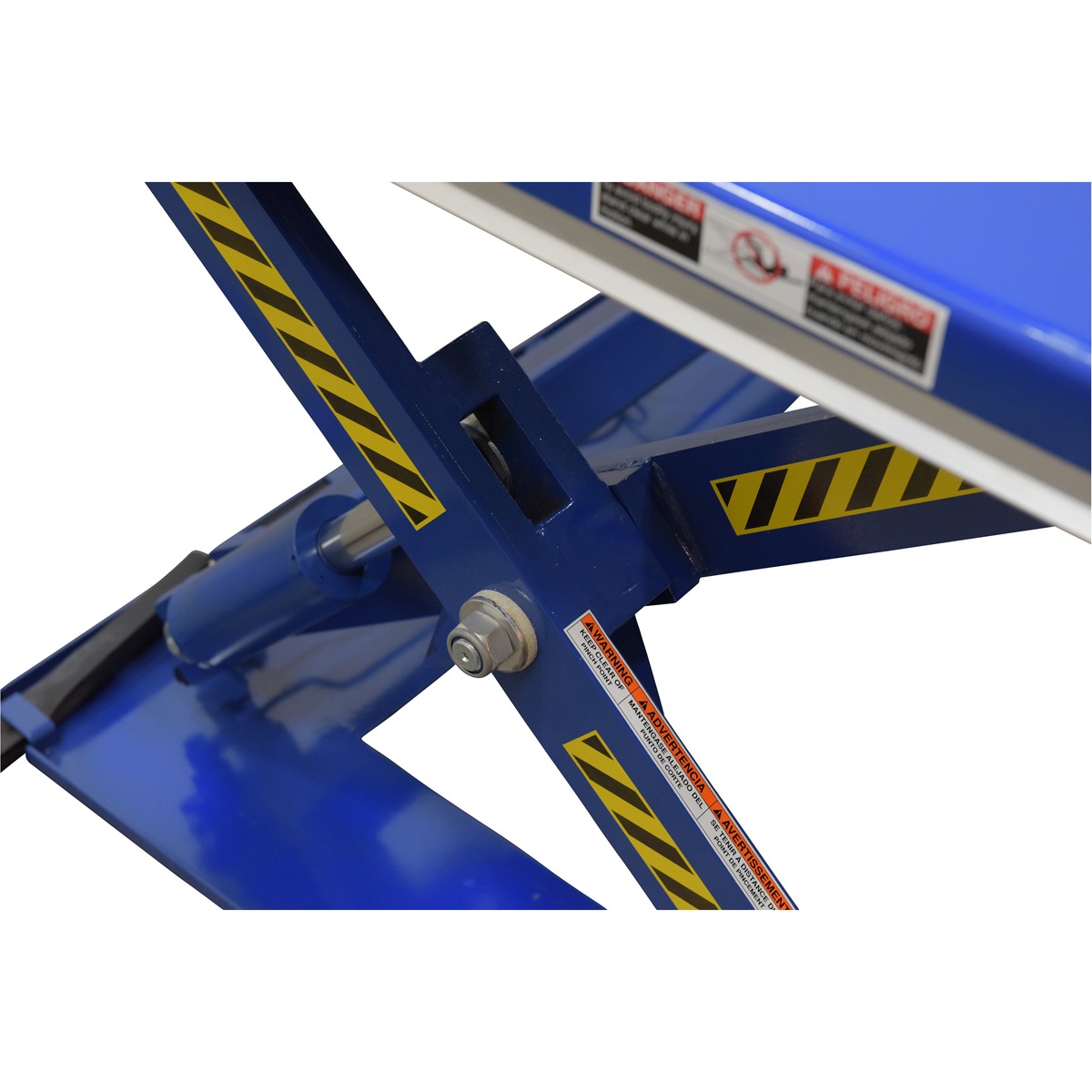

Vestil U Type Electric Lift Table Capacity

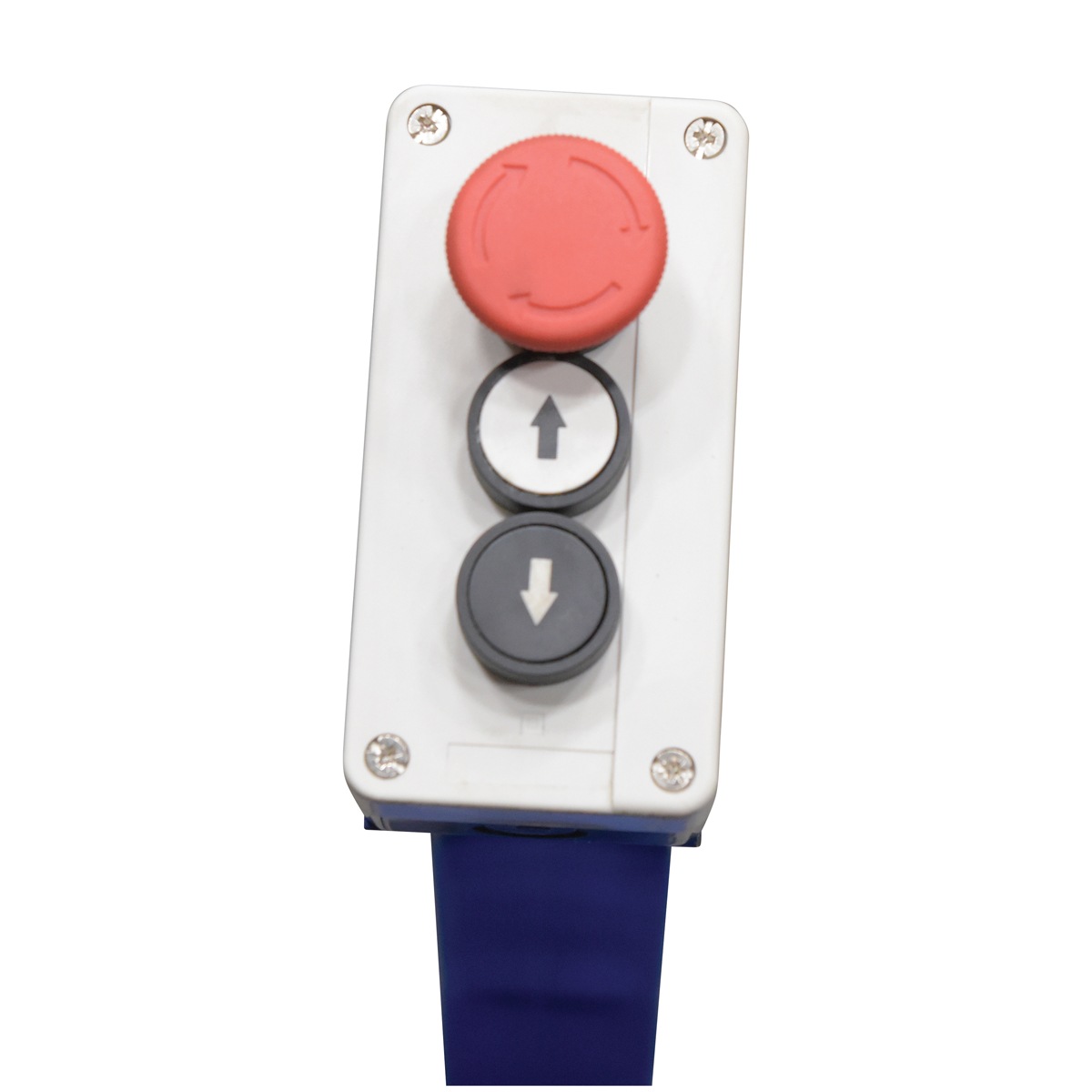

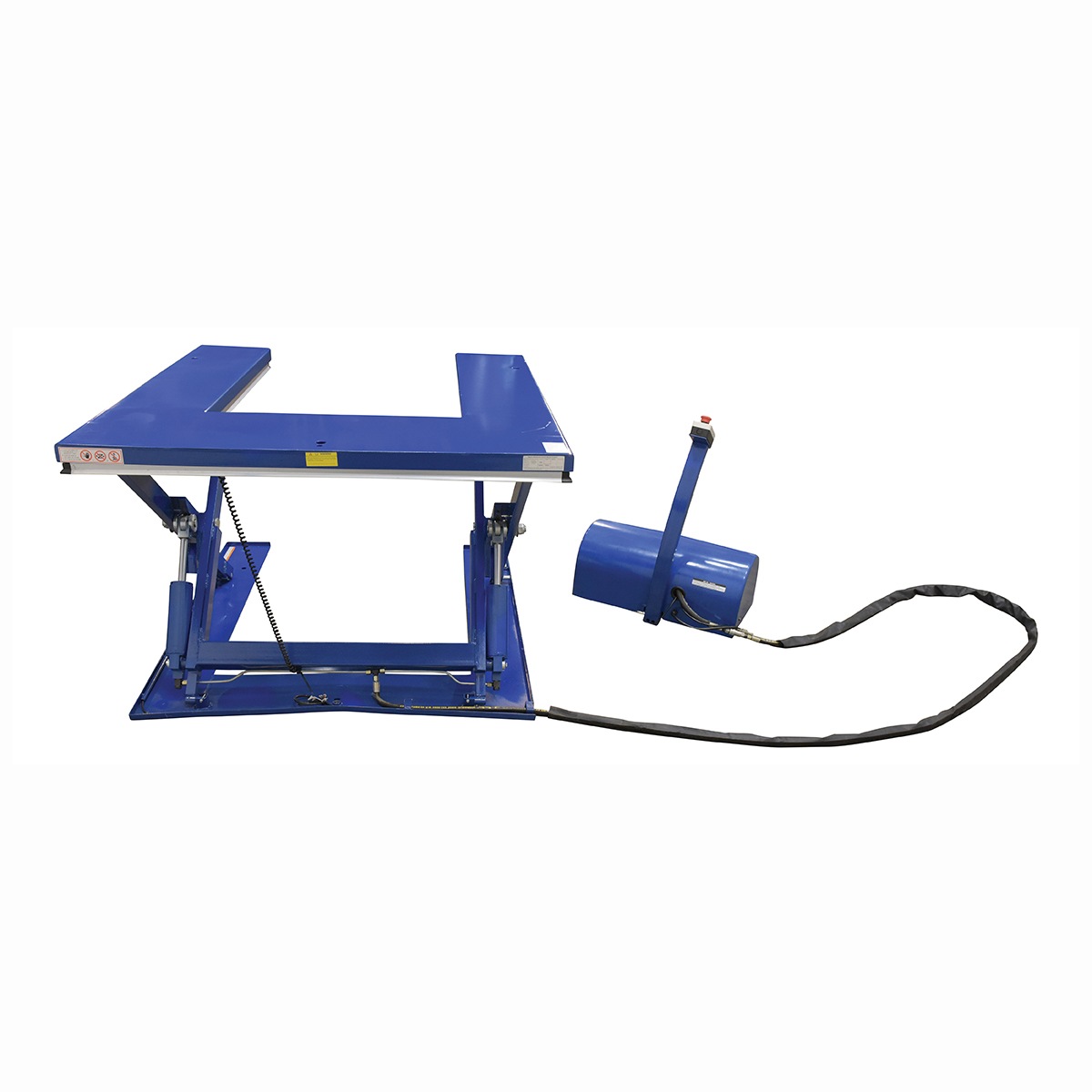

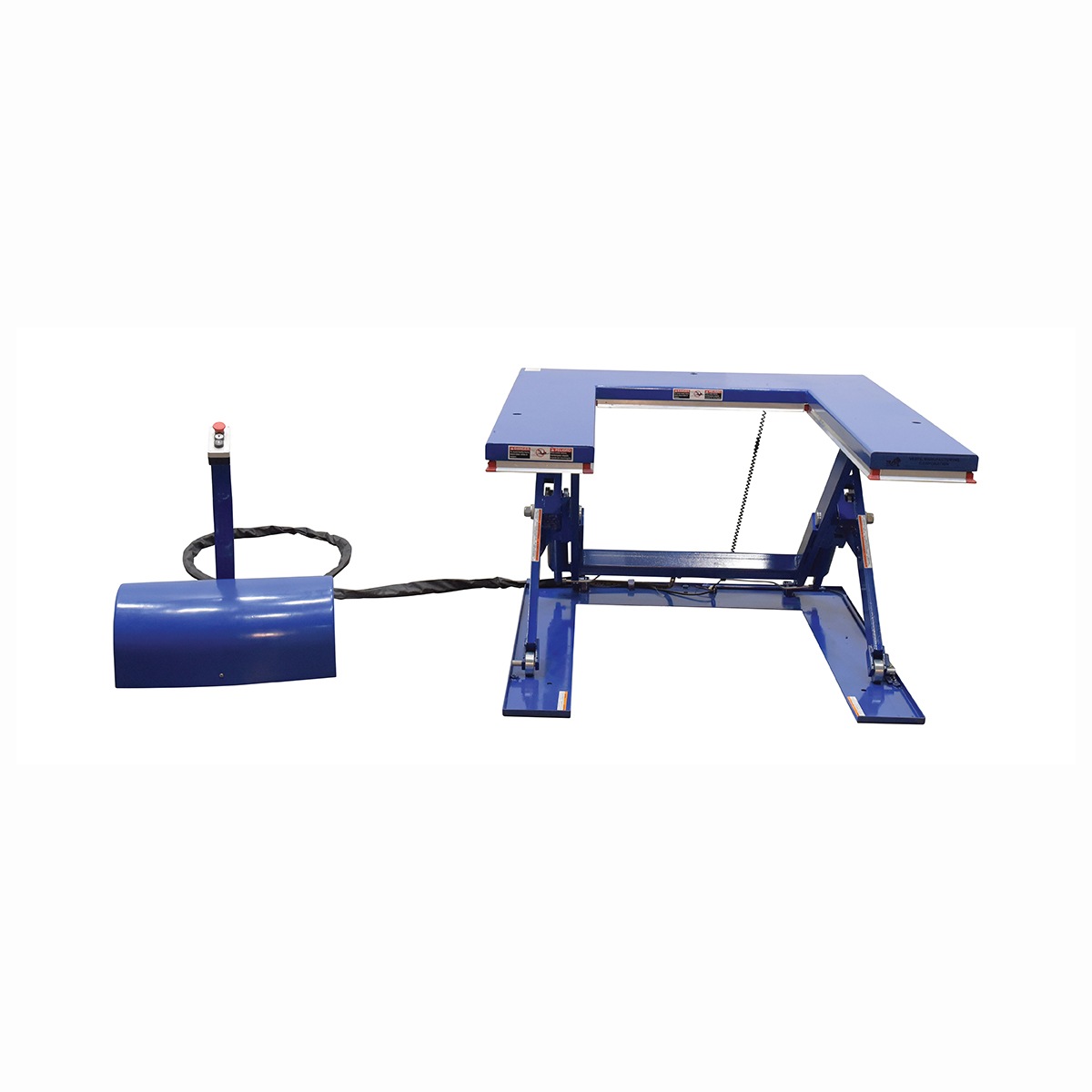

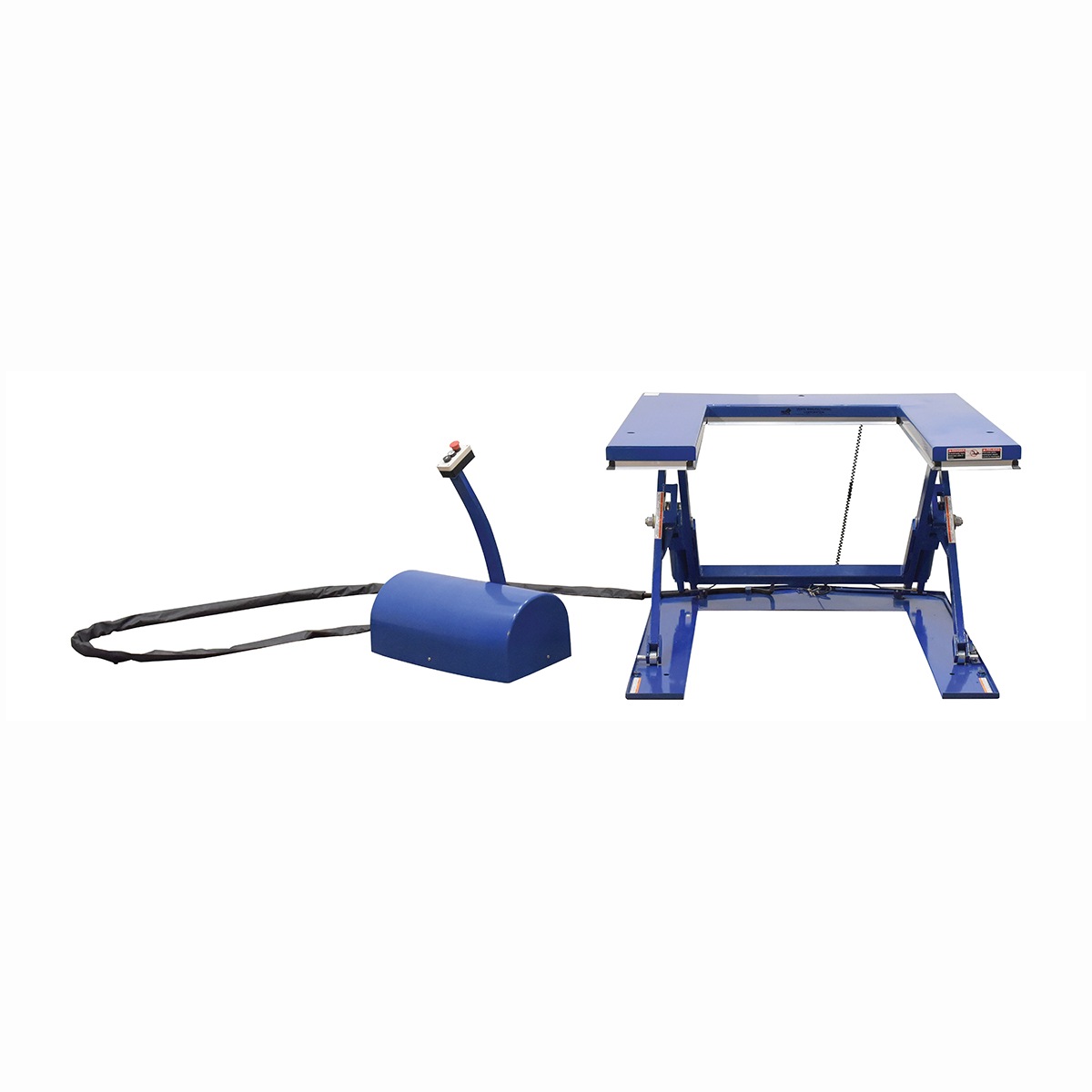

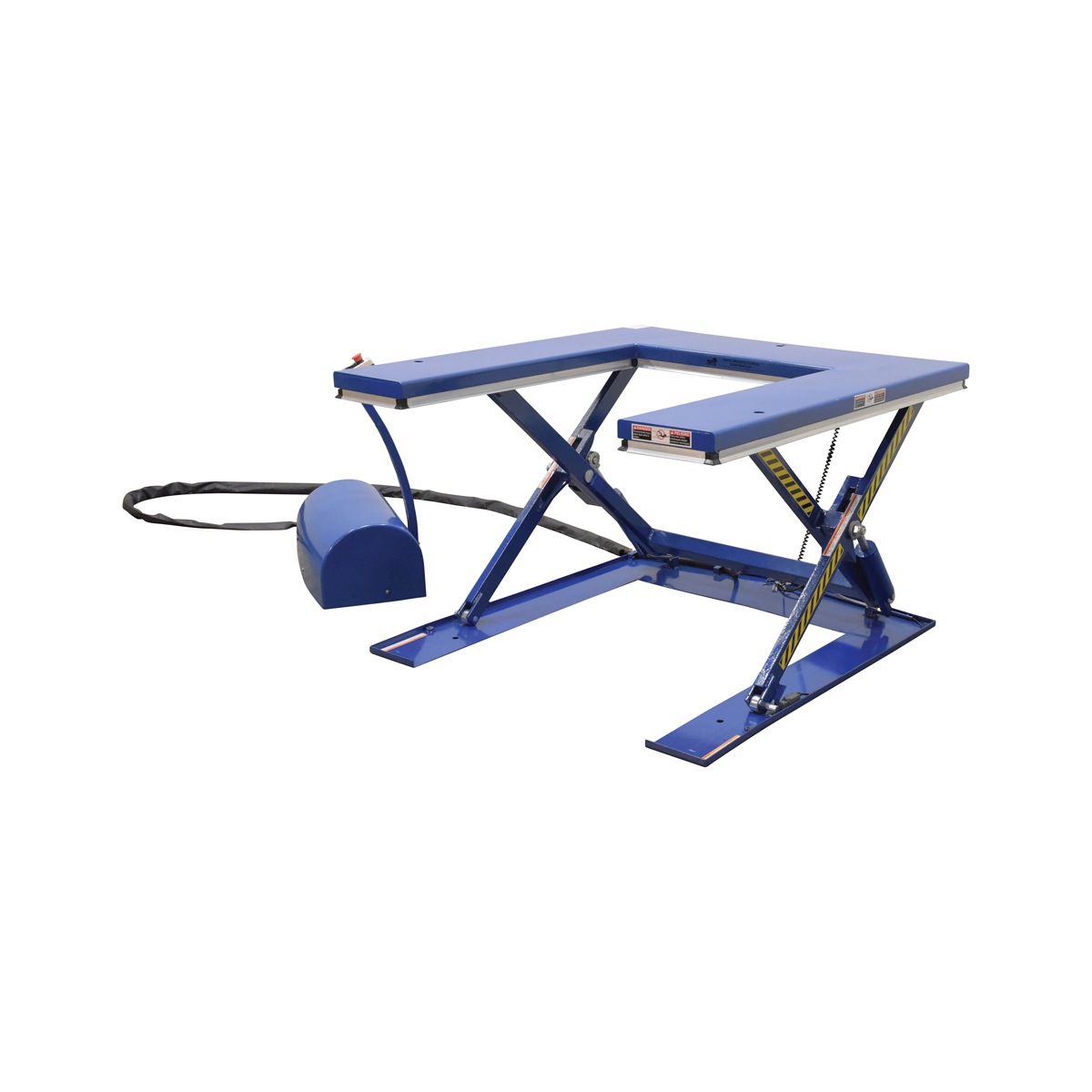

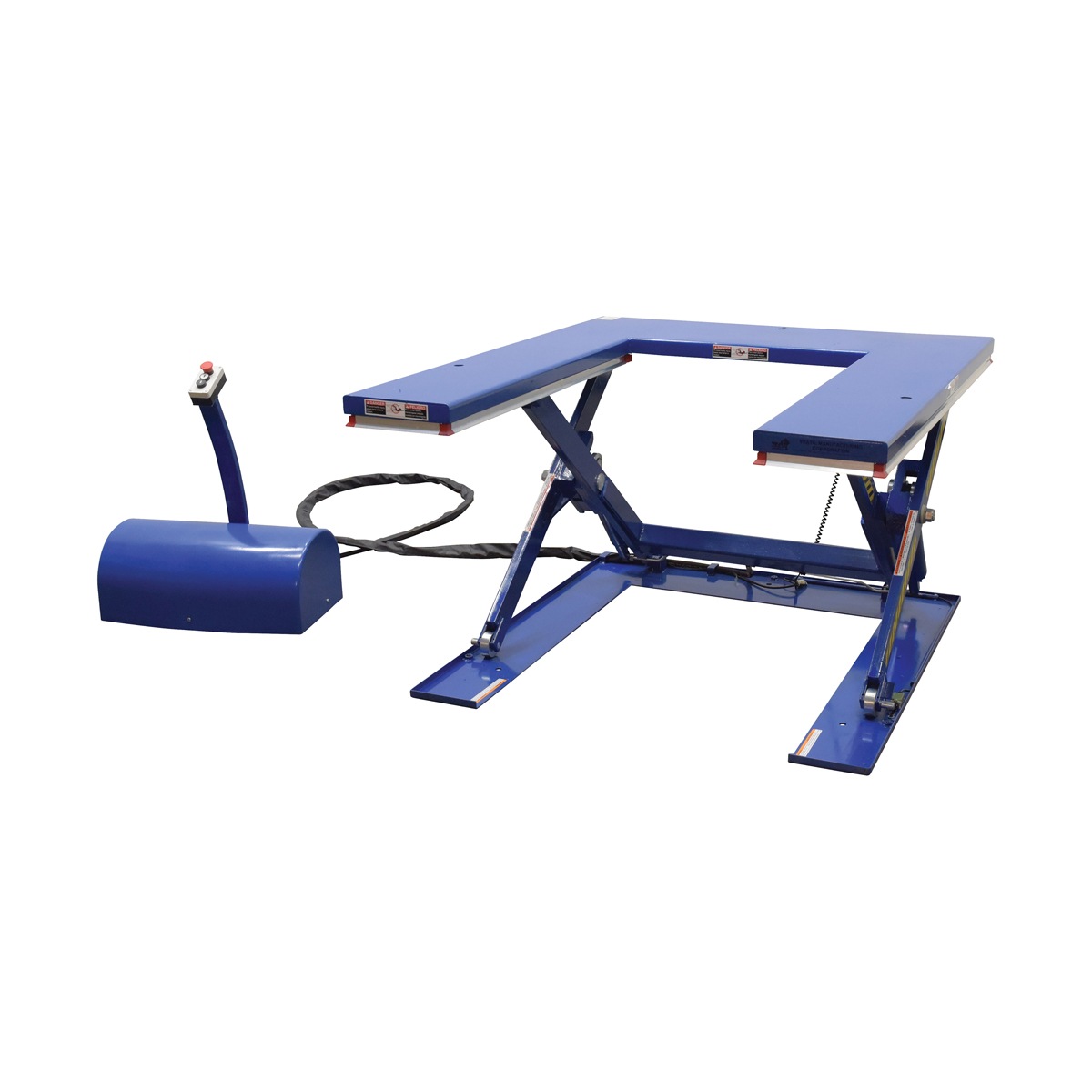

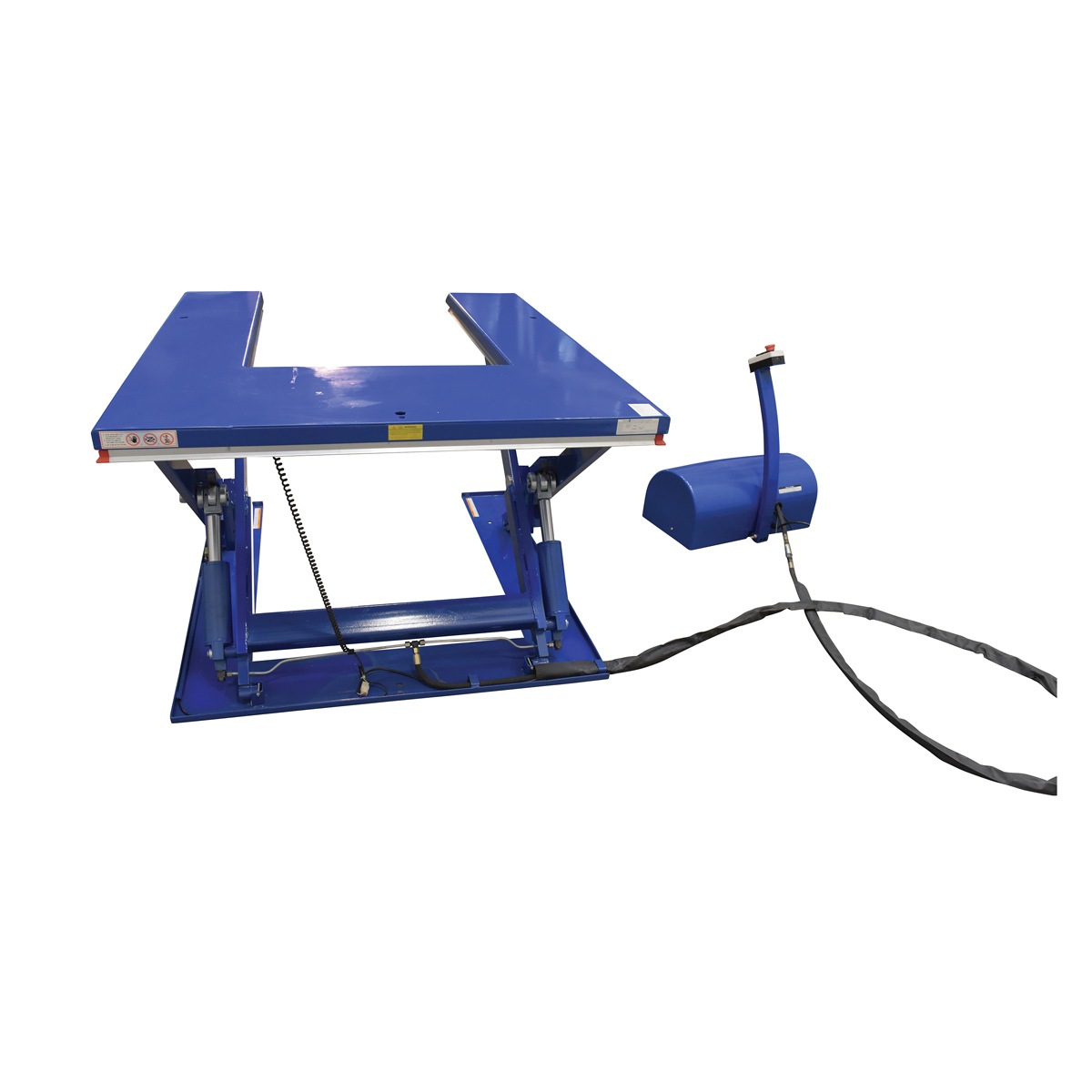

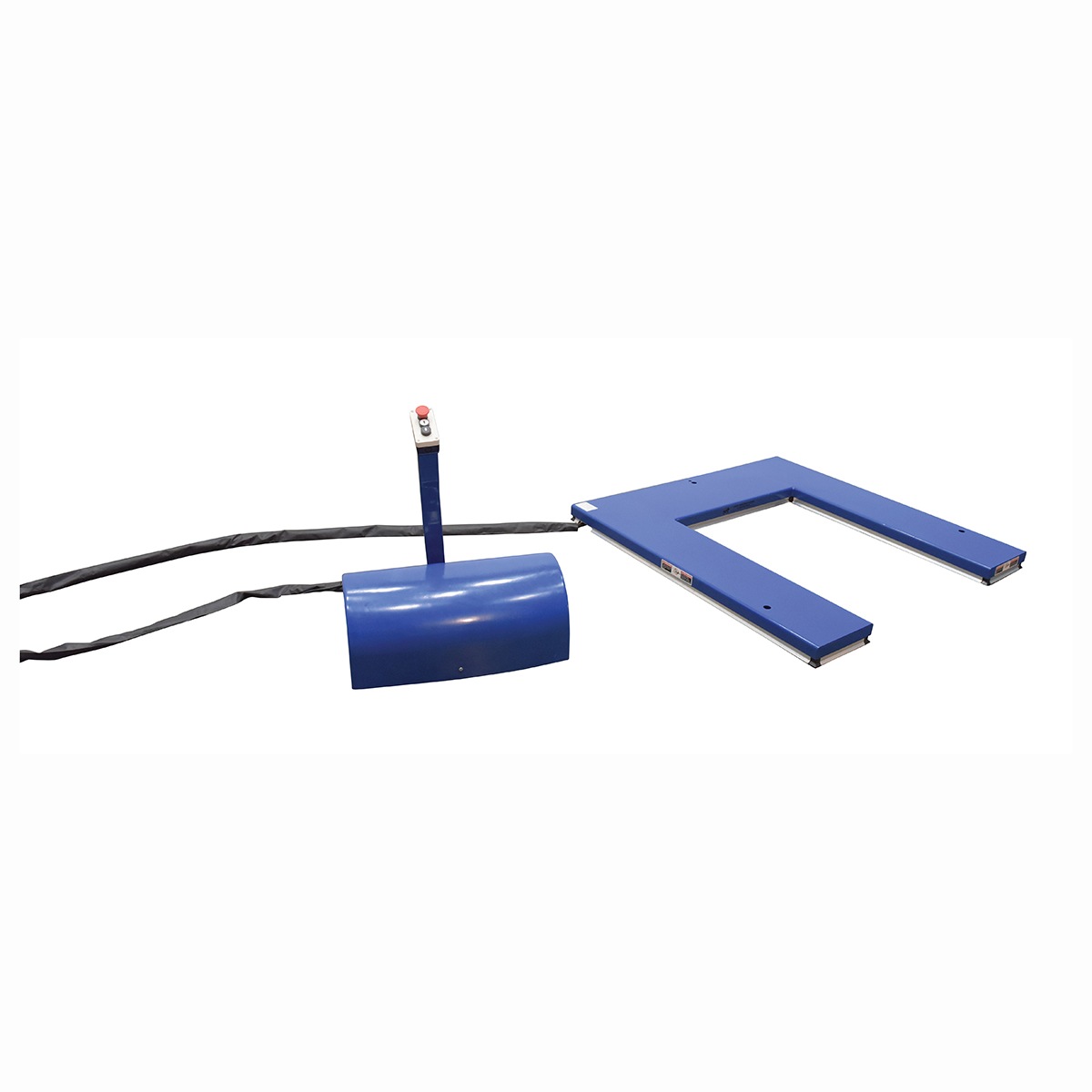

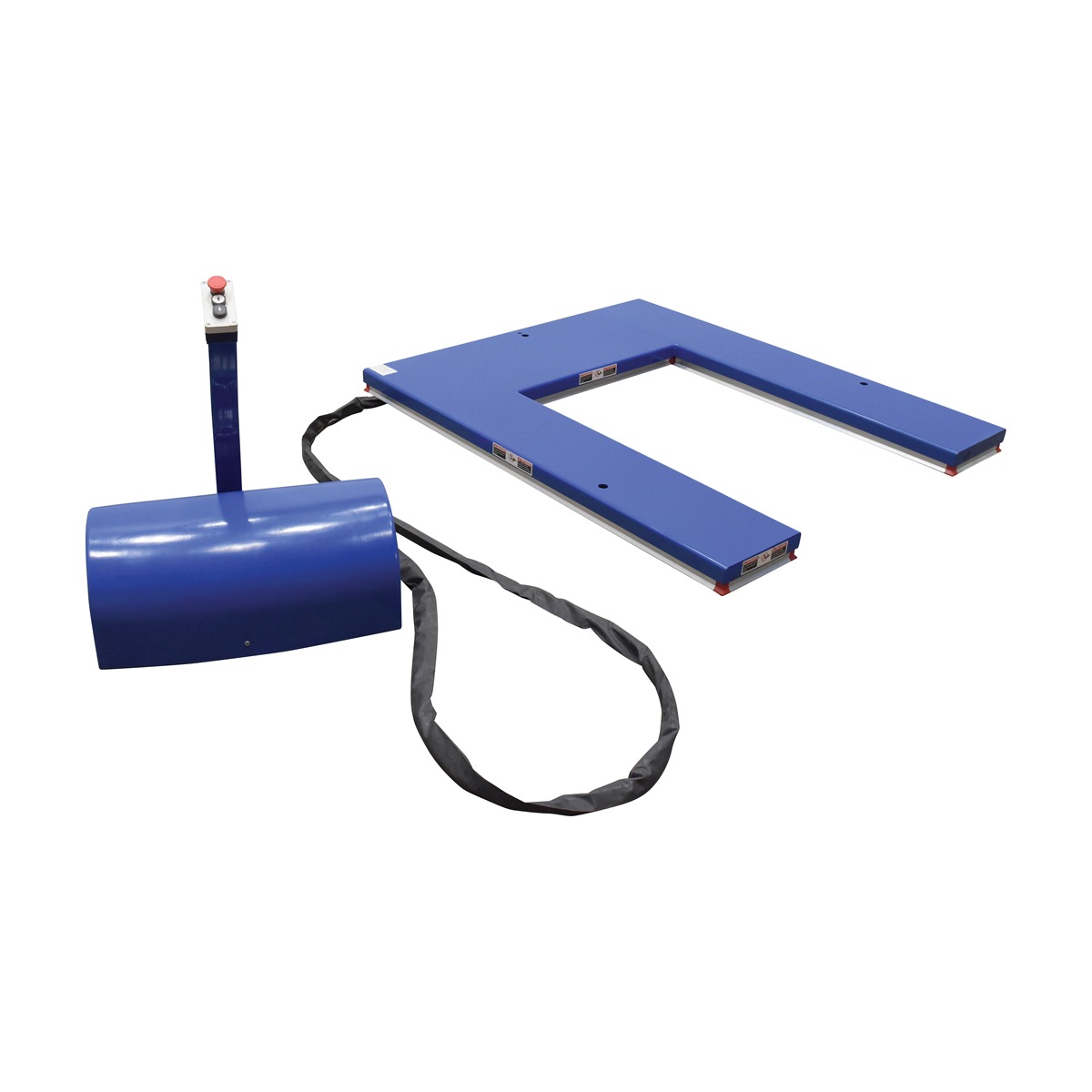

The Low Profile Electric Lift Tables with the unique, steel constructed, “U” design provides an open center that enables a pallet truck to place a load on the platform. This lift table features an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. The remote power pack comes complete with a cover to protect the motor from dust and debris. The UP and DOWN push button raises and lowers the unit and is located on the control box. Safety features include: toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. The power supply has pedestal mounted push buttons. When using a pallet truck in conjunction with model, only open bottom pallets are to be used.

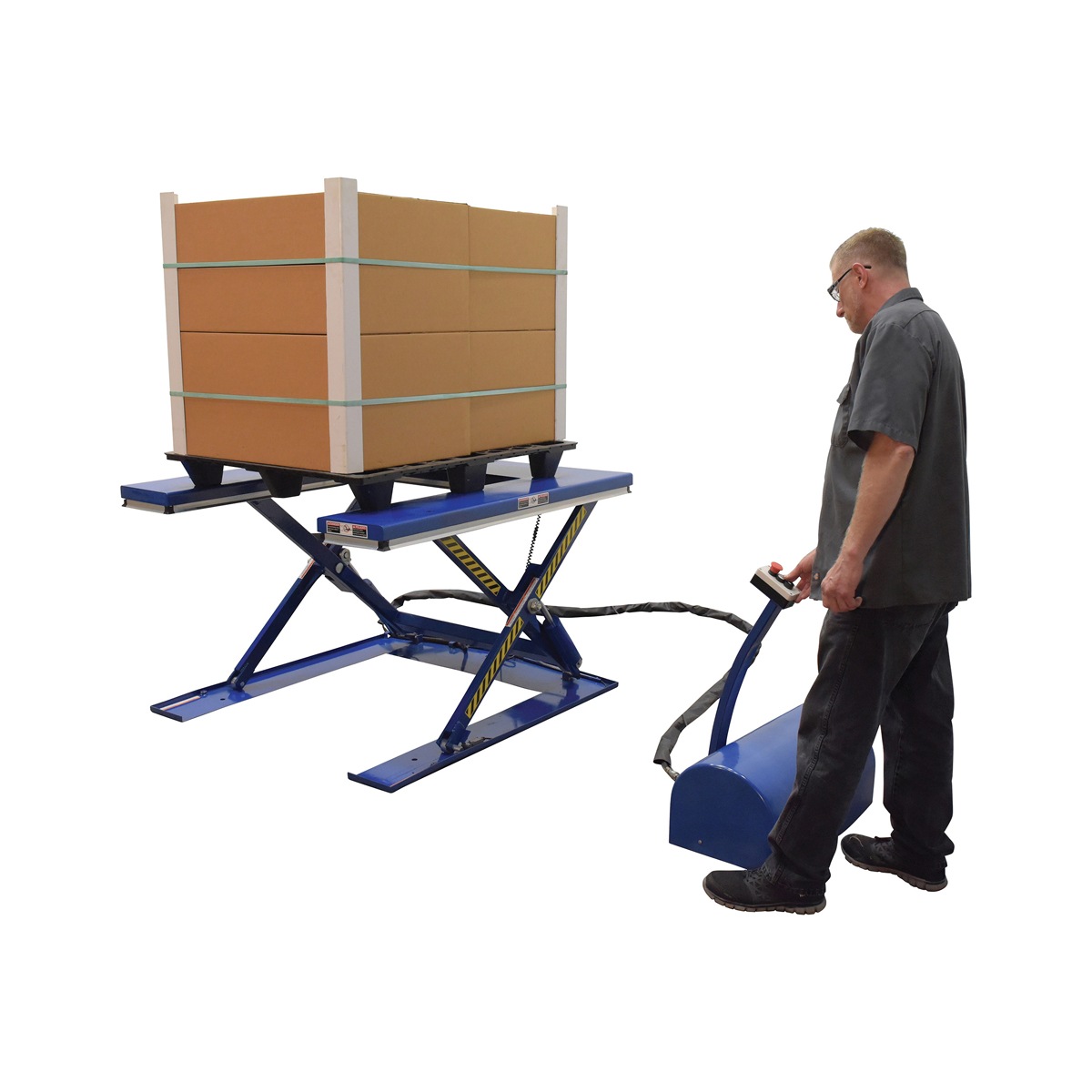

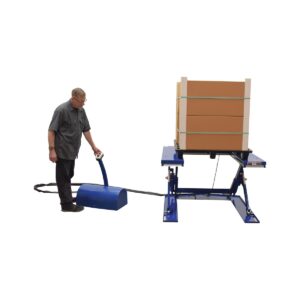

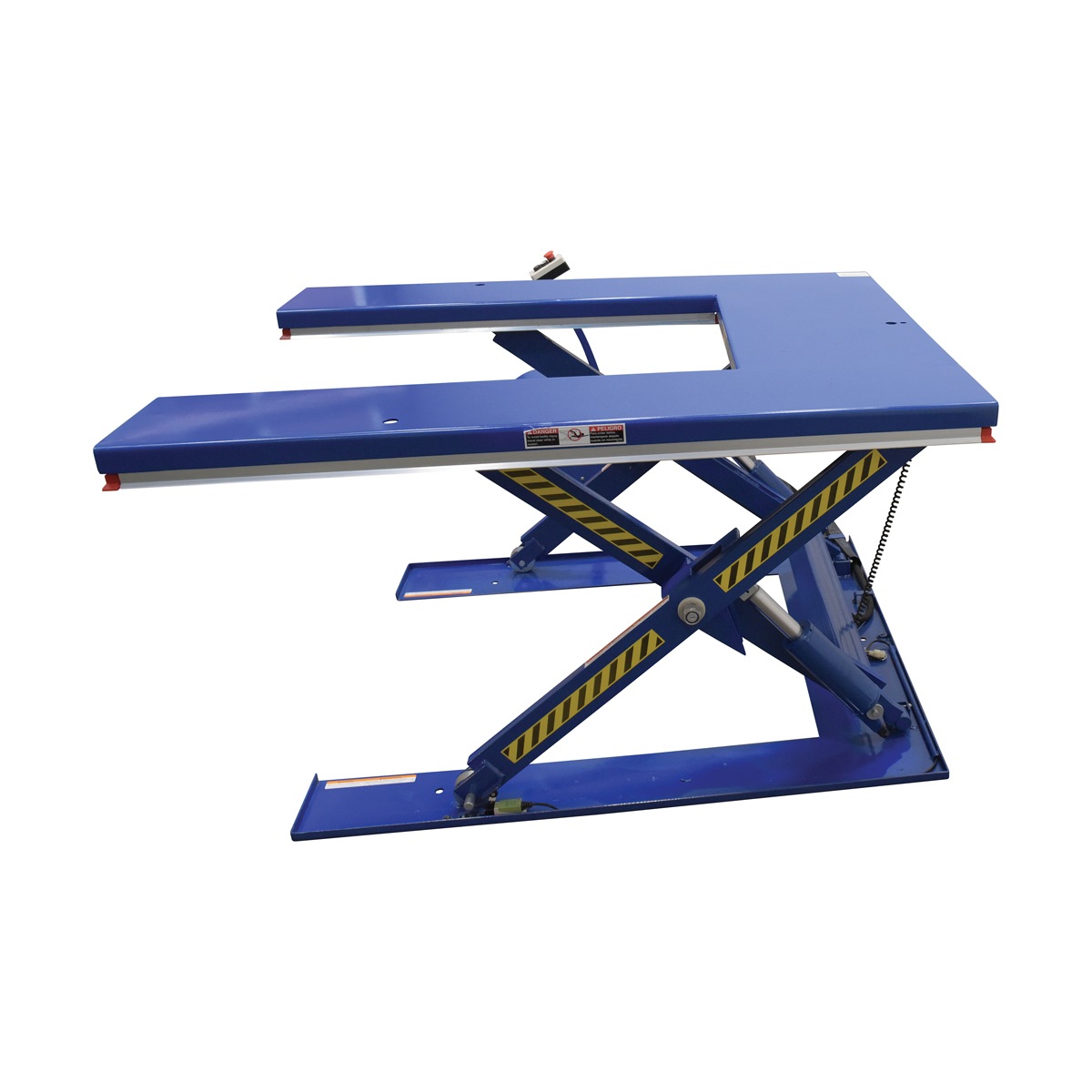

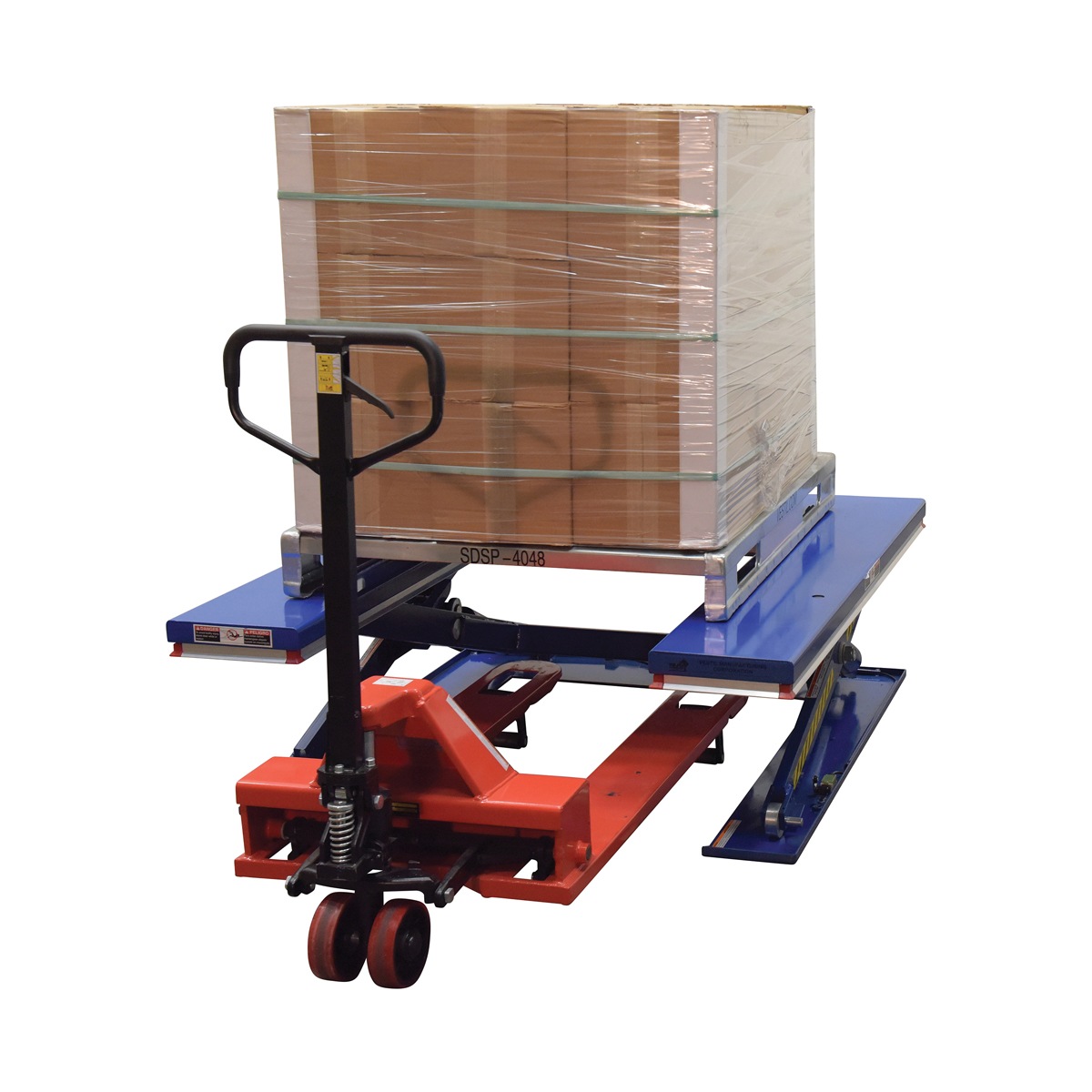

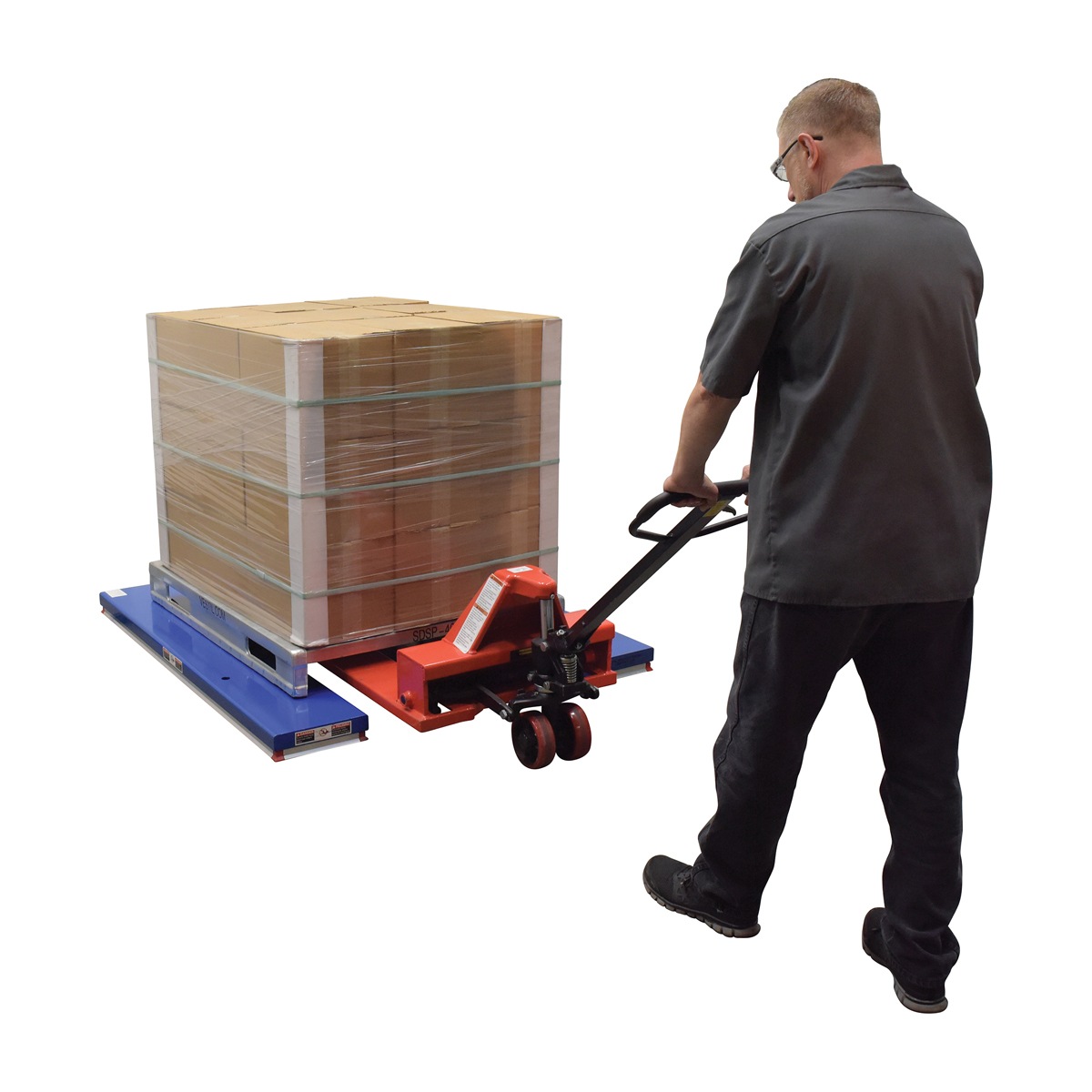

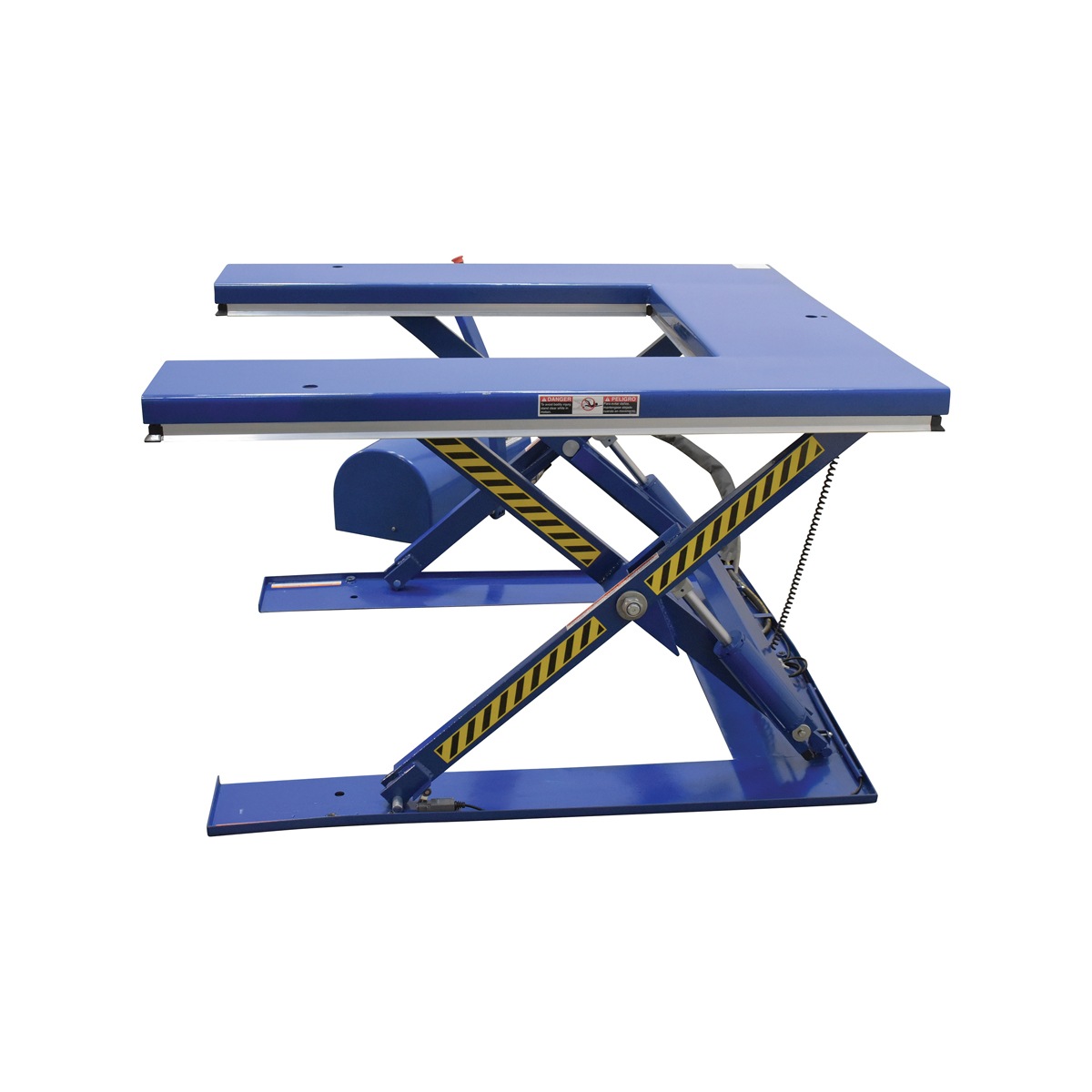

• Low profile “U” type electric lift table has an open center that enables a pallet truck to place a load on the platform
• Equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed

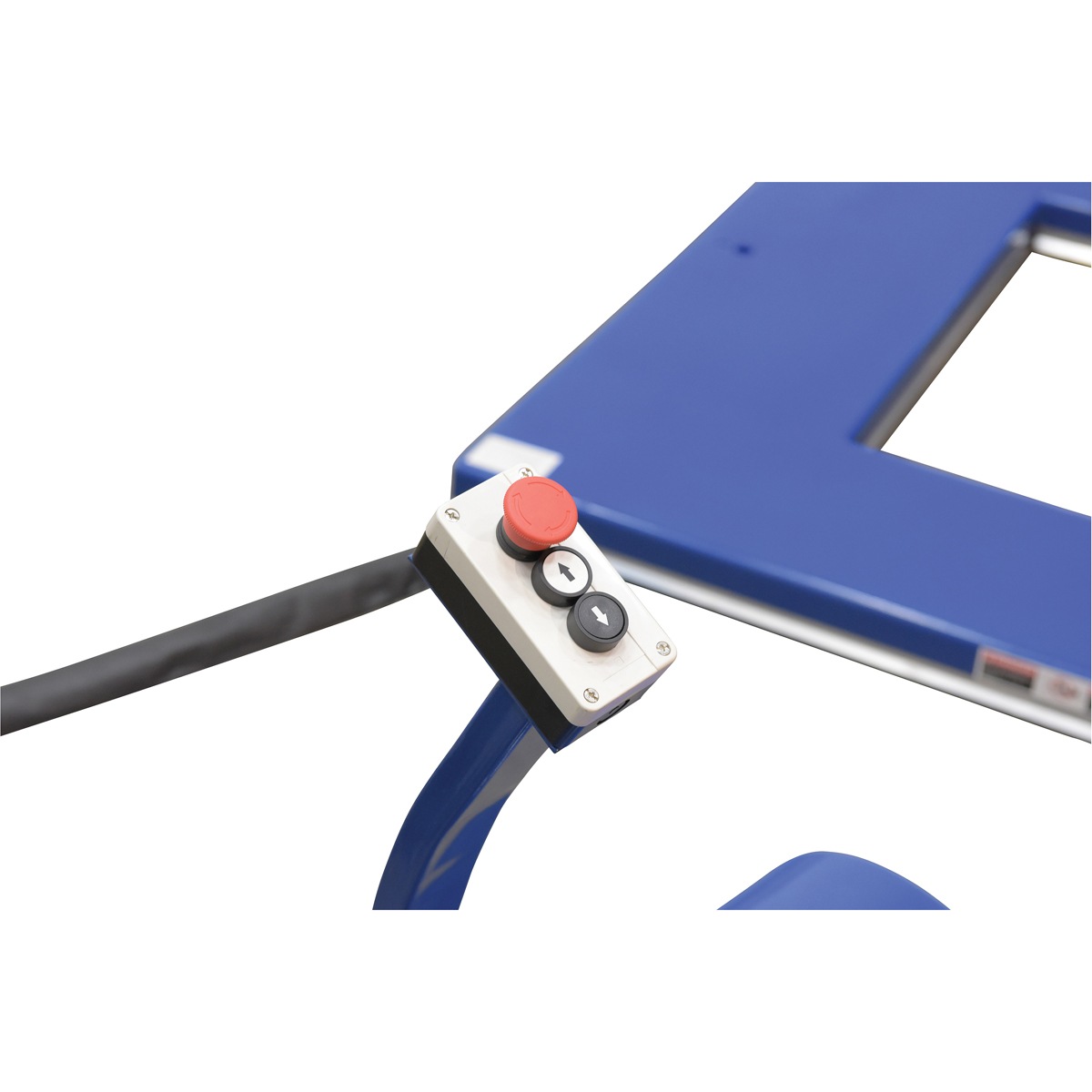

• UP and DOWN push button raises and lowers the unit
• Features toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop buttons for safety

Specification

• Raised Height (in.): 33-1/2
• Voltage/Phase: 115/Single
• Control Box Voltage: 24
• Deck Inside Width (in.): 29-3/4
• Remote Power Unit Width (in.): 14-3/4
• Remote Power Unit Length (in.): 26-3/4
• Remote Power Unit Height (in.): 9-1/2

Documents

Click for Manual

Click for EHU-2 Approval Drawings

Click for EHU-3 Approval Drawings
