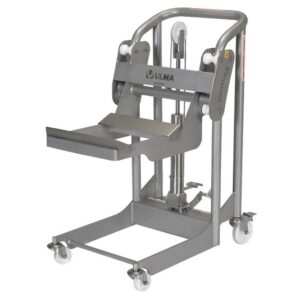

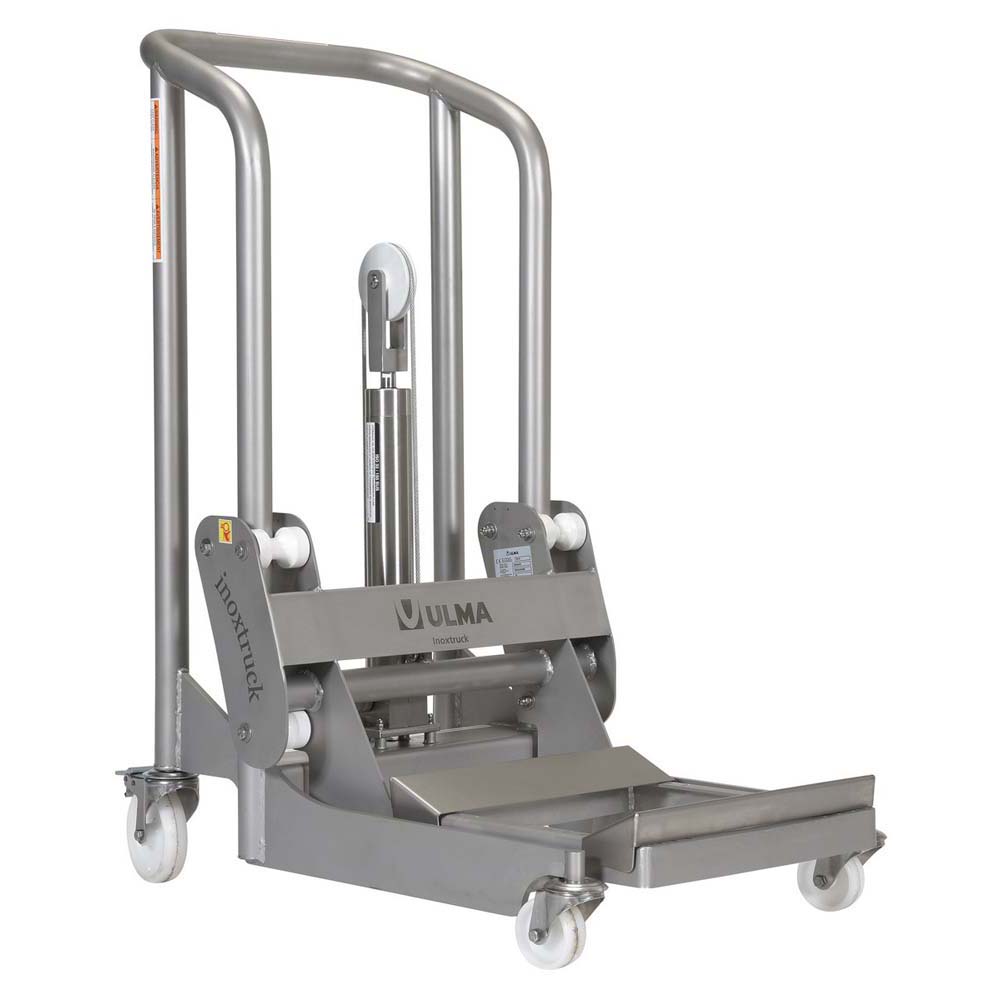

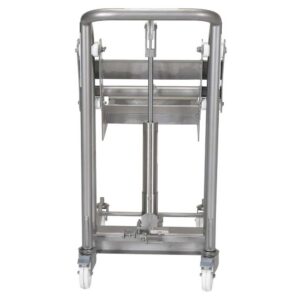

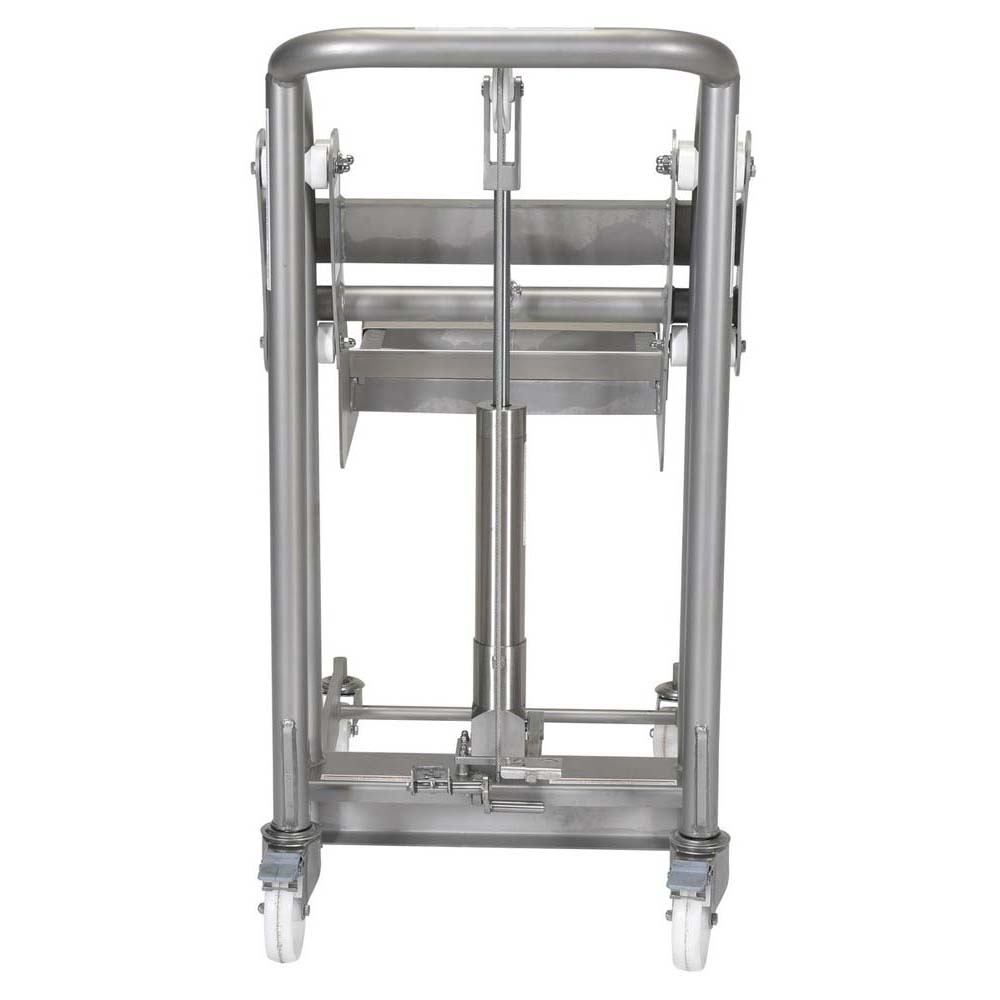

Vestil ULM-HRH-850 Stainless Steel Hydraulic Foot Pump Roll Handler

A Stainless Steel Hydraulic Foot Pump Roll Handler is great for an assortment of areas including the food handling service industries. The 304L stainless steel construction, including hydraulic cylinders and piston The design is sleek, smooth, and easily washable for before and after use in hygienic areas. The raising and lowering of the platform to the precise position is made easy by the hydraulic foot pump design, which diminishes needless bending when loading/unloading material. A rounded handle style allows for a proper two handed grip when maneuvering around work areas, while the perfect open cradle platform lets the user load material from three sides. Cradle adjusts in 1″ increments up to 16″ wide. The handler rolls smoothly on four swivel casters with two attached rear brakes for safe functionality when in a resting position.

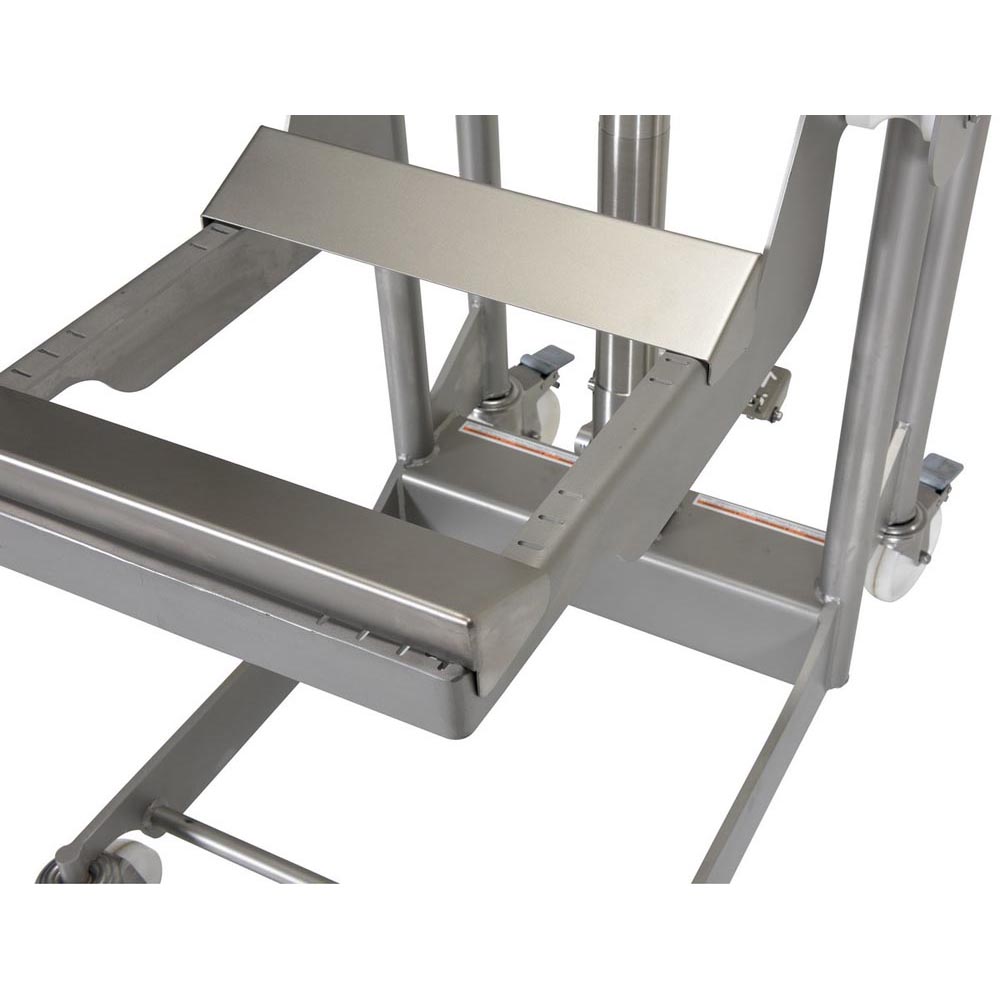

• Cradle platform for easy loading and unloading

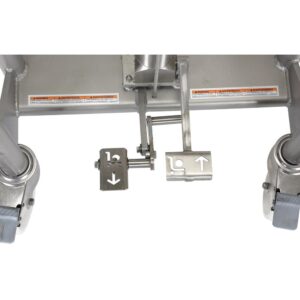

• Hydraulic foot pump to precise positioning
• Promotes ergonomic posture
• Stainless steel finish for easy cleaning

Specification

• Uniform Capacity (lb.): 850
• Cradle Adjustment Increments (in.): 1
• Maximum Width (in.): 16
• Cradle Width/Length (in.): 16 x 16
• Maximum Roll Diameter (in.): 24
• Service Range (in.): 5-3/8 to 23
• Wheel Type: Nylon
• Wheel Diameter/Width (in.): 3-1/8 x 4-7/8

Documents

Click for ULM-HRH-850 Approval Drawings

Click for Manual
