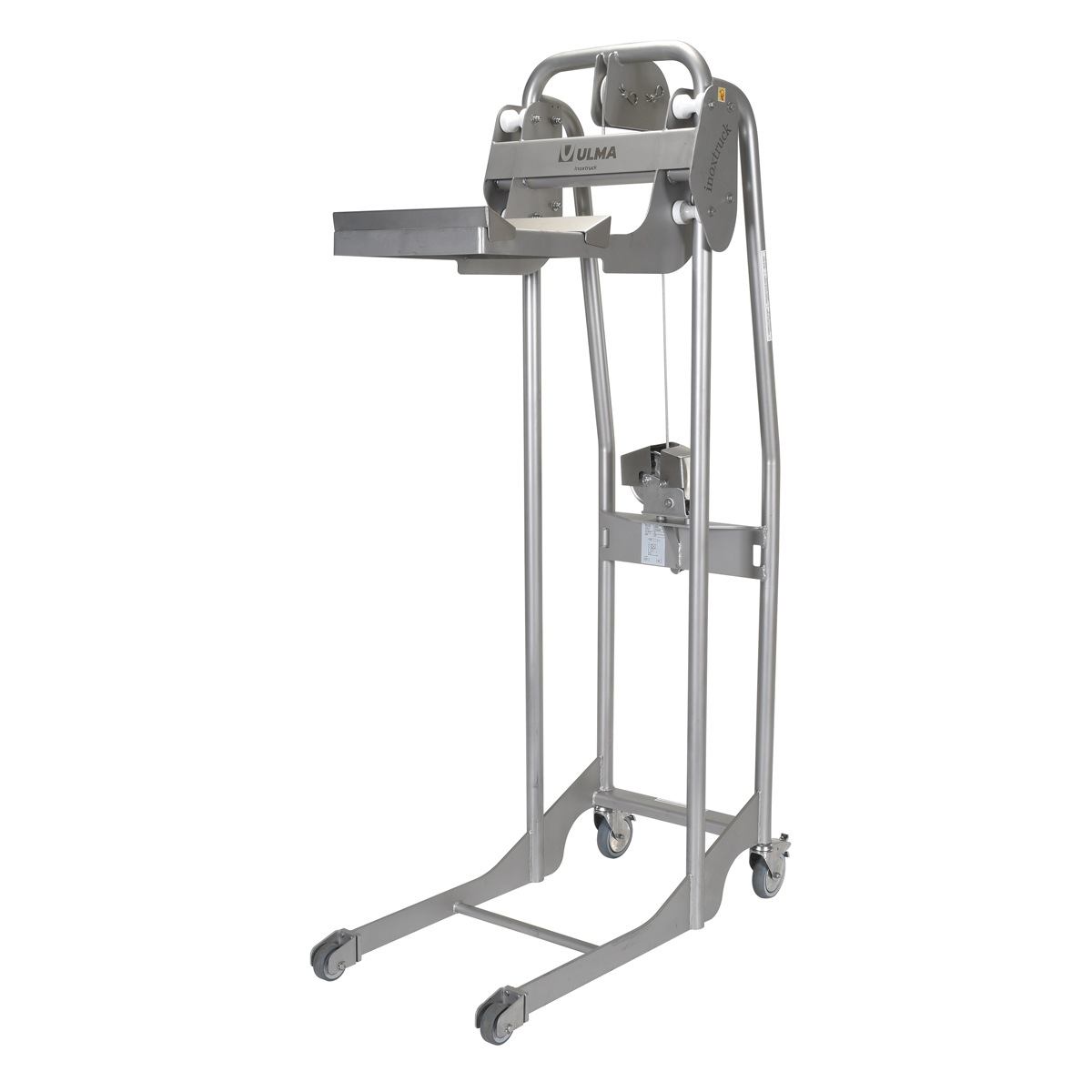

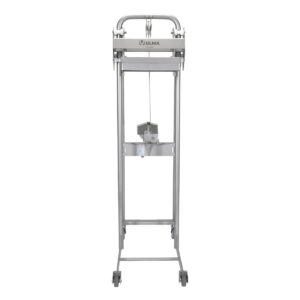

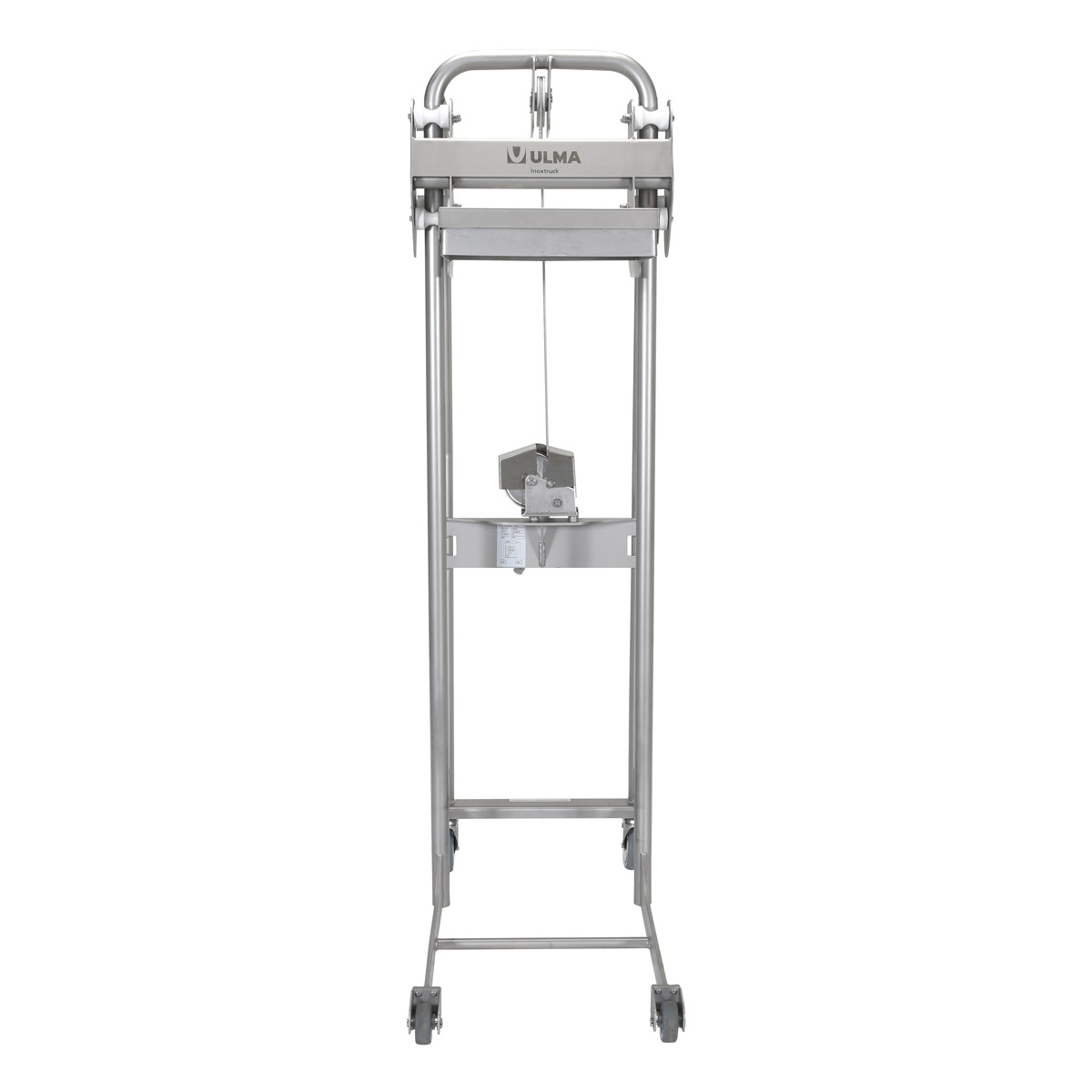

Vestil ULM-WMS-550 Stainless Steel Manual Load Stacker

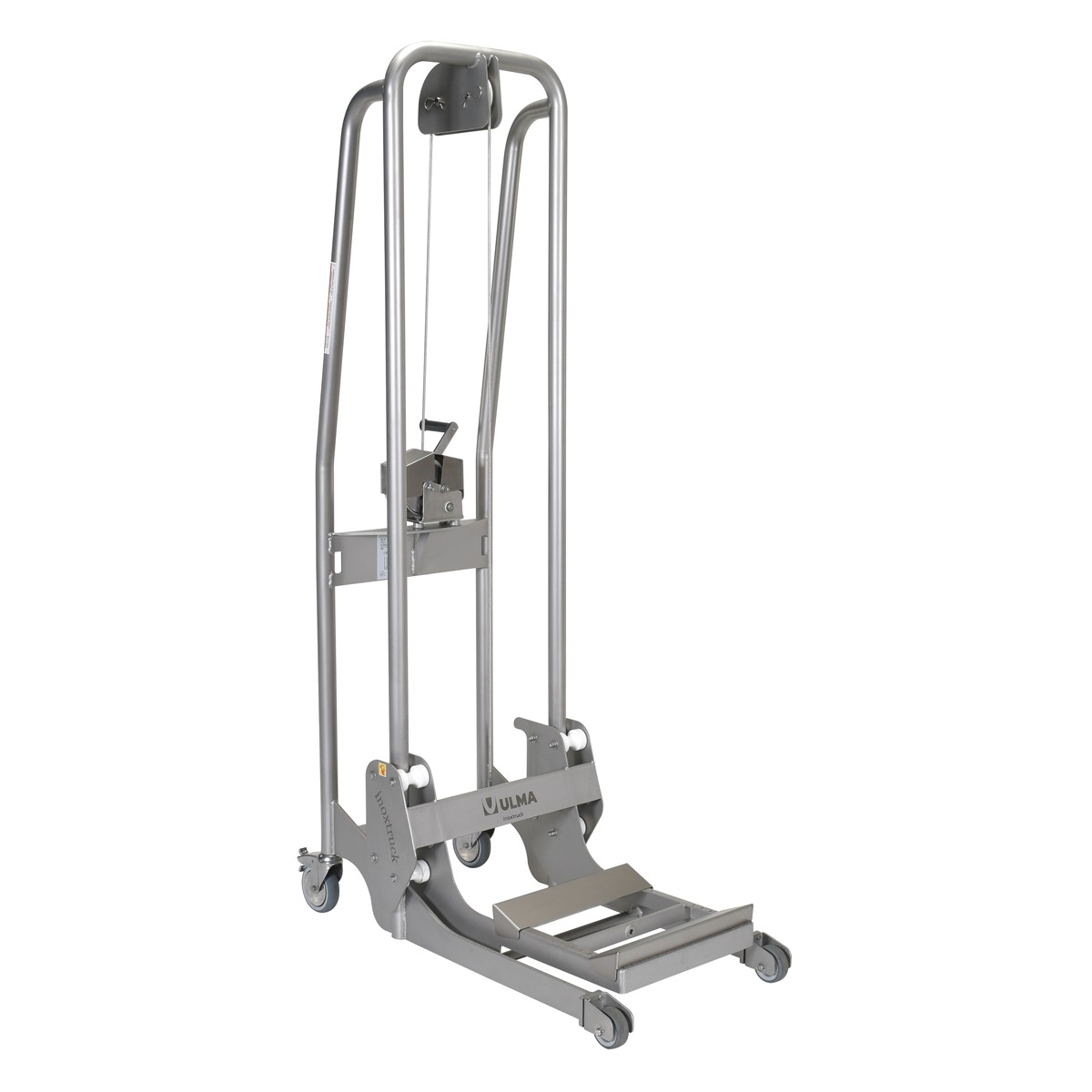

The 304L Stainless Steel Manual Load Stacker is a great way to transport products in sanitary settings. The compact 304L stainless steel design including hydraulic cylinders and piston not only helps transport heavy loads around the work area, but also fits in a compact area for space saving when not in use. The unit is raised manually for a more precise height positioning which diminishes bending and twisting when loading/unloading materials. Due to the cradle design, goods can be placed on the stacker from three sides without the need to change the placement of the stacker. Rolling casters are attached to provide a smooth transfer of products, while the braking system maintains safety once the unit is in place.

• Stainless steel construction for use in sterilized environments
• Open design for simple washing and drying after use

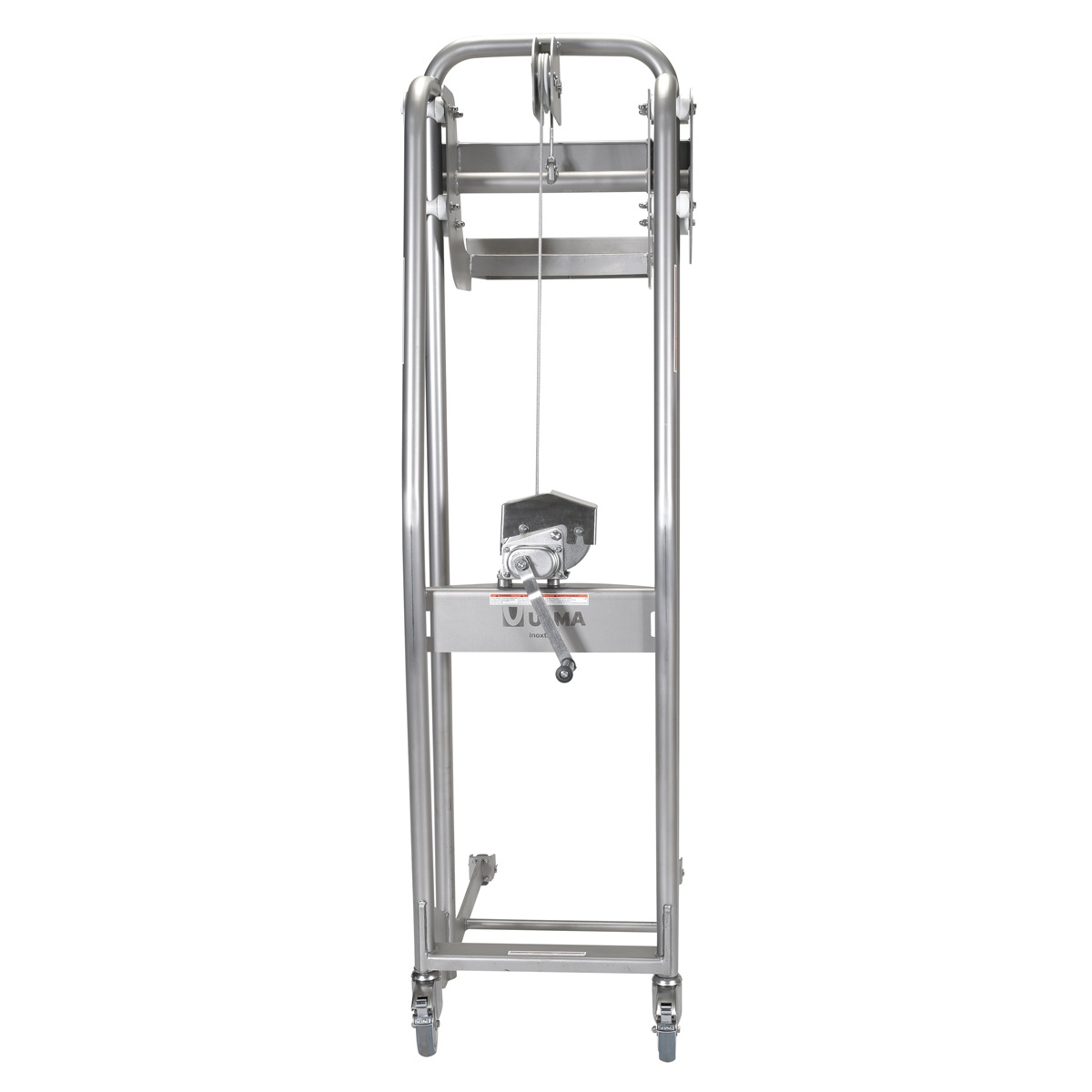

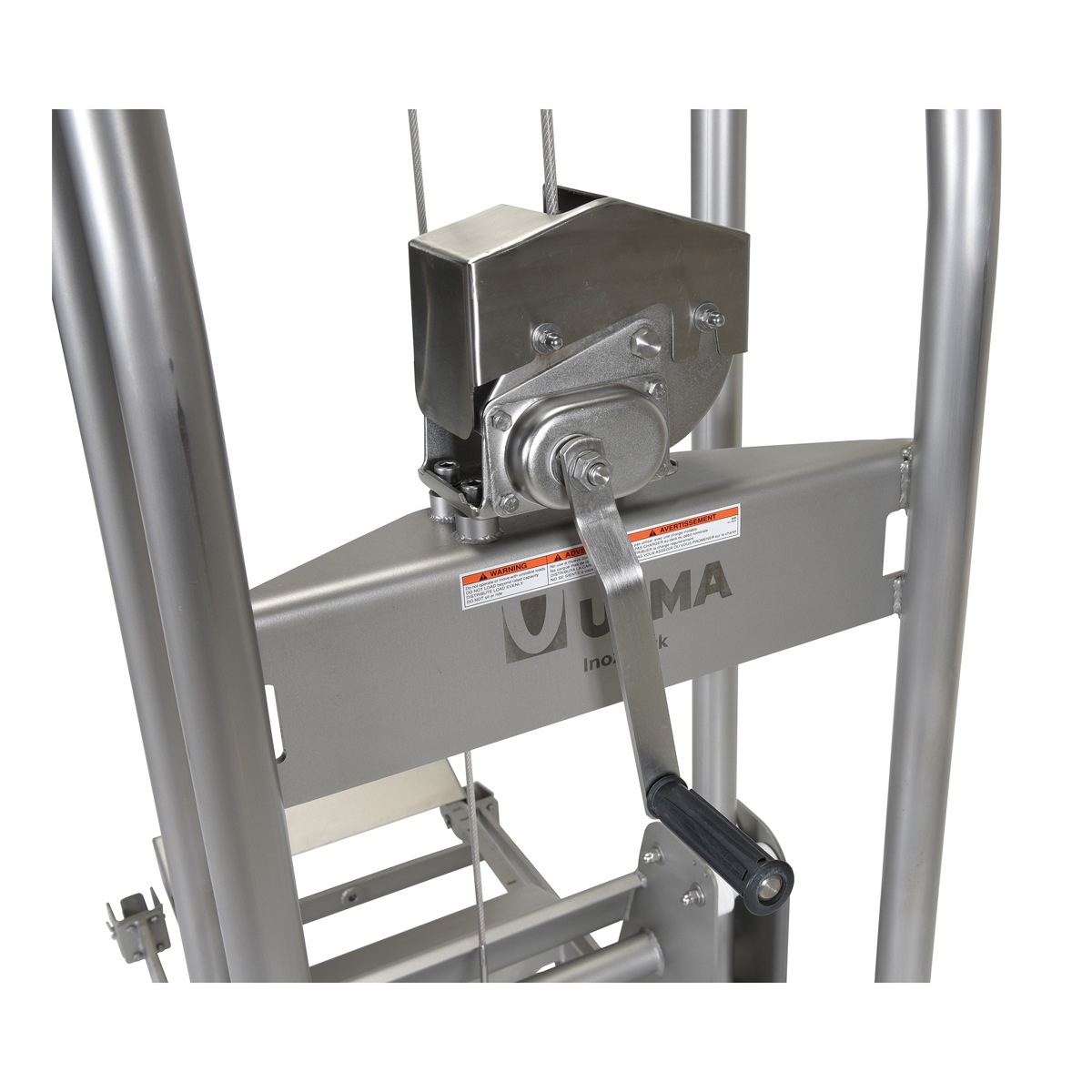

• Manual raising and lowering unit for precise positioning
• Ergonomic structure to diminish bending and twisting

Specification

• Uniform Capacity (lb.): 440
• Cradle Width/Length (in.): 16 x 16
• Cradle Adjustment Increments (in.): 1
• Cradle Maximum Width (in.): 16
• Maximum Roll Diameter (in.): 24
• Service Range (in.): 5-1/8 to 62
• Wheel Type: Thermo Plastic Rubber
• Wheel Diameter/Width (in.): 3-1/8 x 4-3/4
