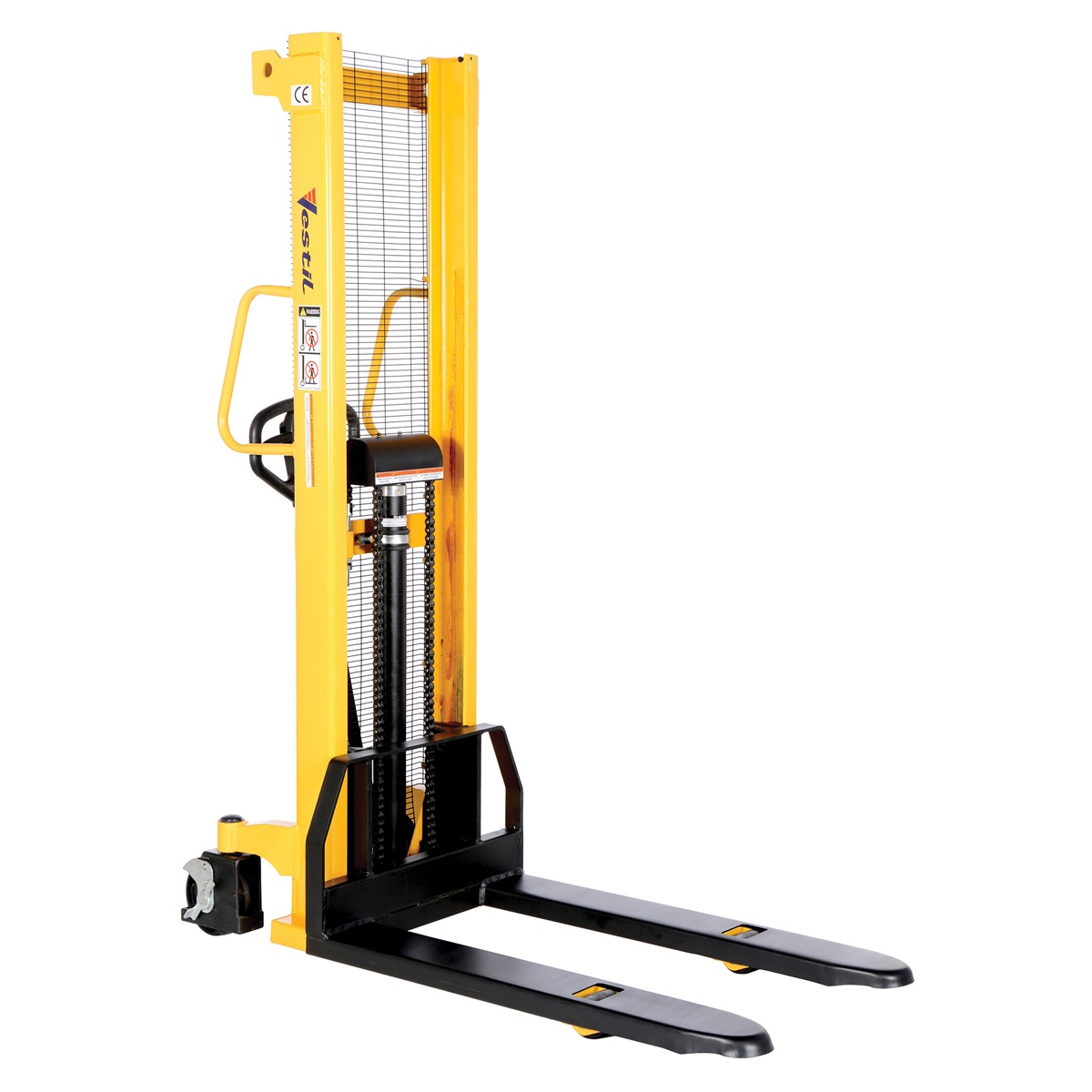

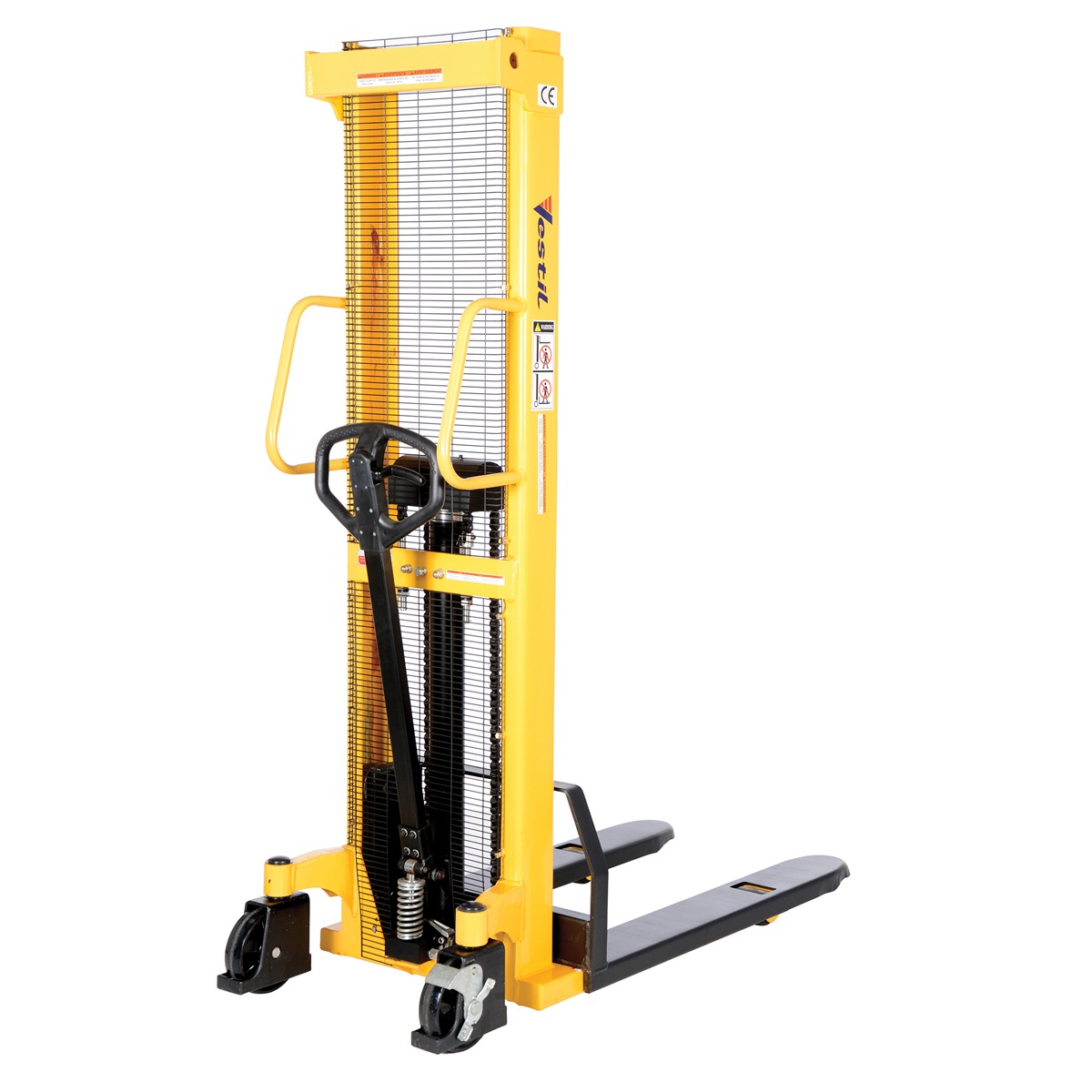

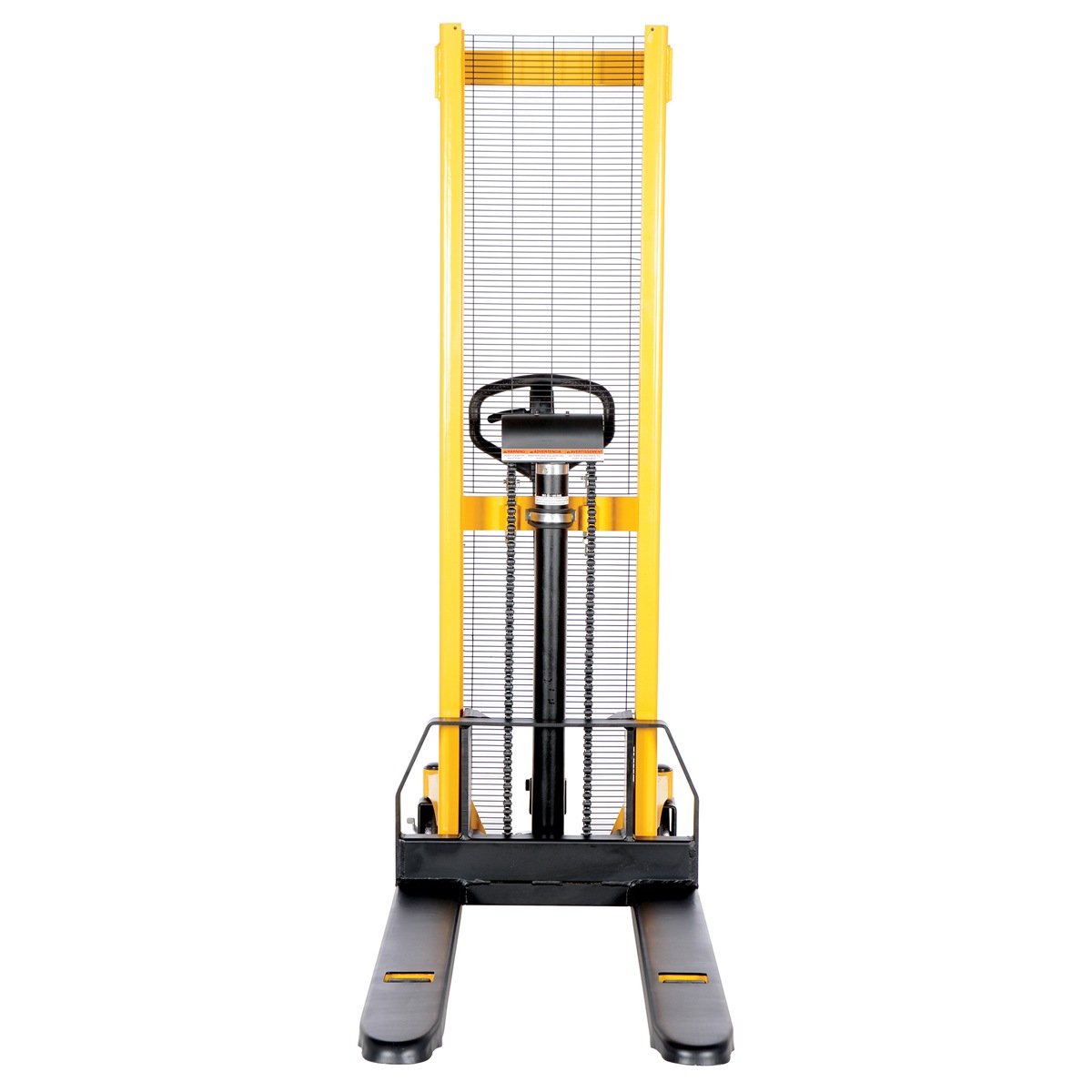

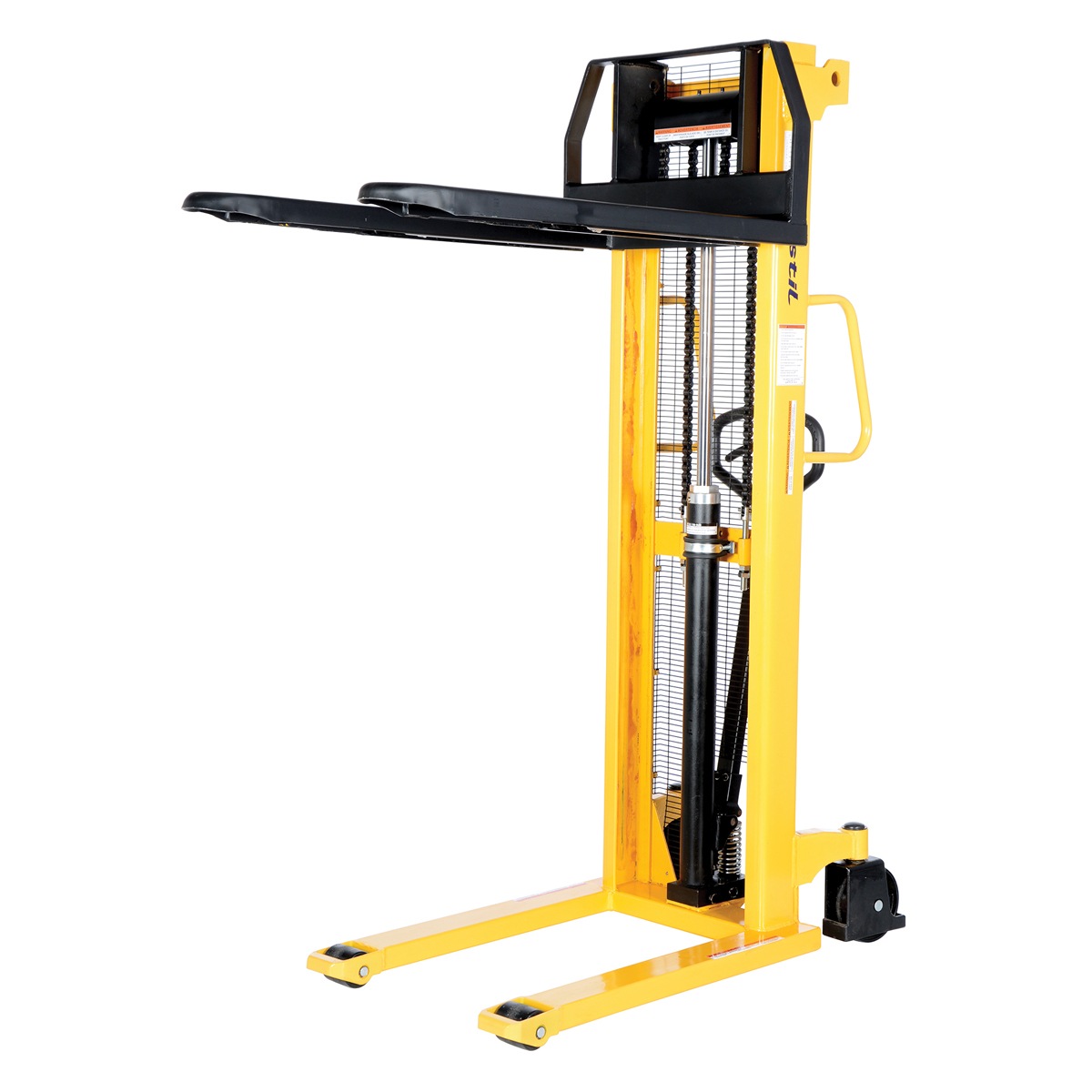

Vestil VHPS-2000-FF Manual Stacker Fixed Forks/Legs 2K

The Manual Stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The Hydraulic Hand Pump is sturdy and compact to fit through standard doors. The forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. The unit has two (2) rigid and two (2) swivel wheels standard.

• Stacker design meets the most challenging tasks
• Unique design is maintenance free and easy to use
• Full height push handle allows for easy steering
• Rolls on smooth casters for stable maneuvering

Specification

• Uniform Capacity (lb.): 2000
• Service Range (in.): 3-3/4 to 63
• Horizontal Load Center (in.): 24
• Straddle Leg Minimum (in.): 34 (I.D)
• Straddle Leg Maximum (in.): 50 (I.D)
• Fork Adjustment Minimum (in.): 6 (O.D)
• Fork Adjustment Maximum (in.): 24 (O.D)
• Lift per Handle Pump (in.): 3/4
• Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
• Rear Caster Type: Swivel with Brake
• Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2-29/32
• Front Caster Type: Rigid
• Individual Fork Width (in.): 4
• Fork Length (in.): 42-1/8
