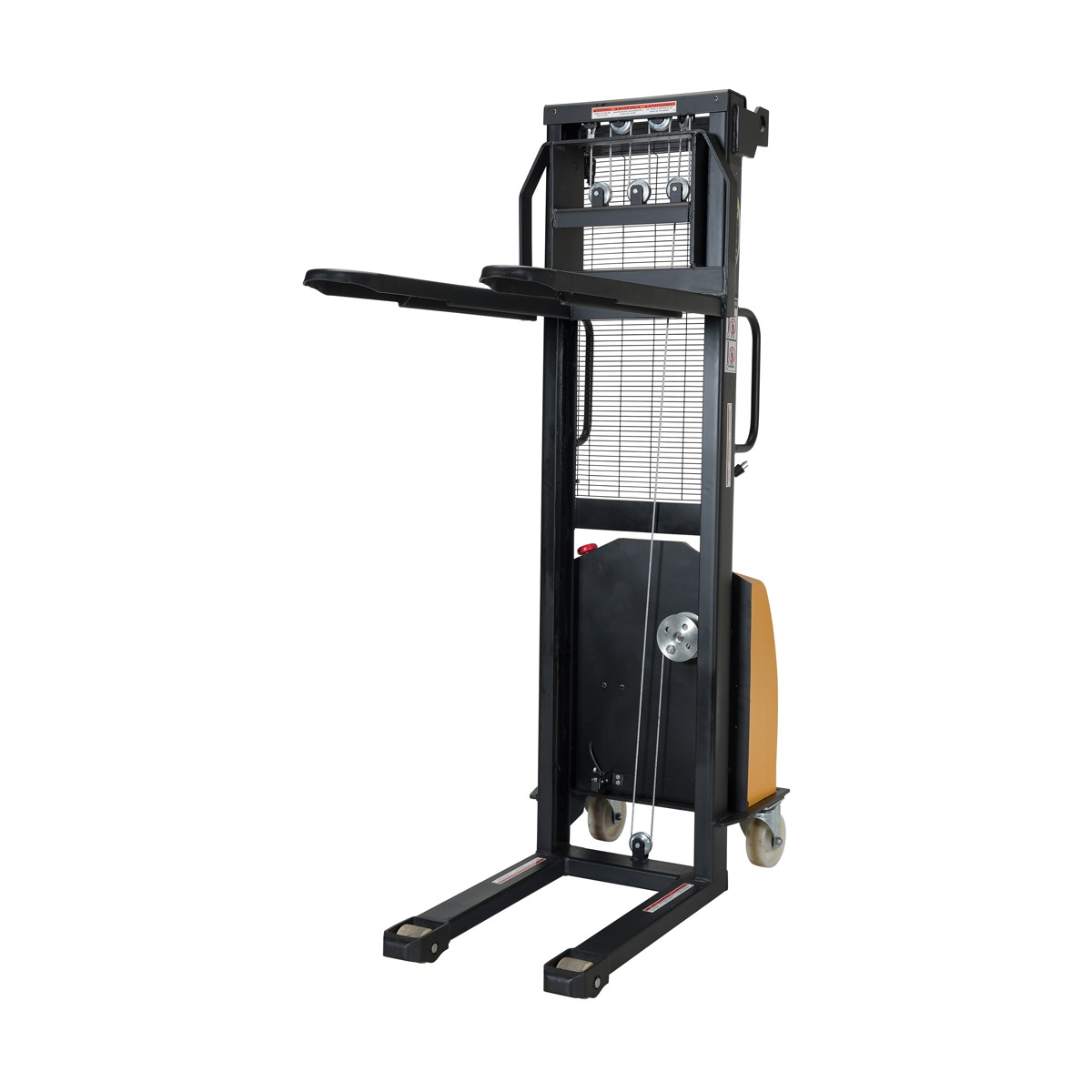

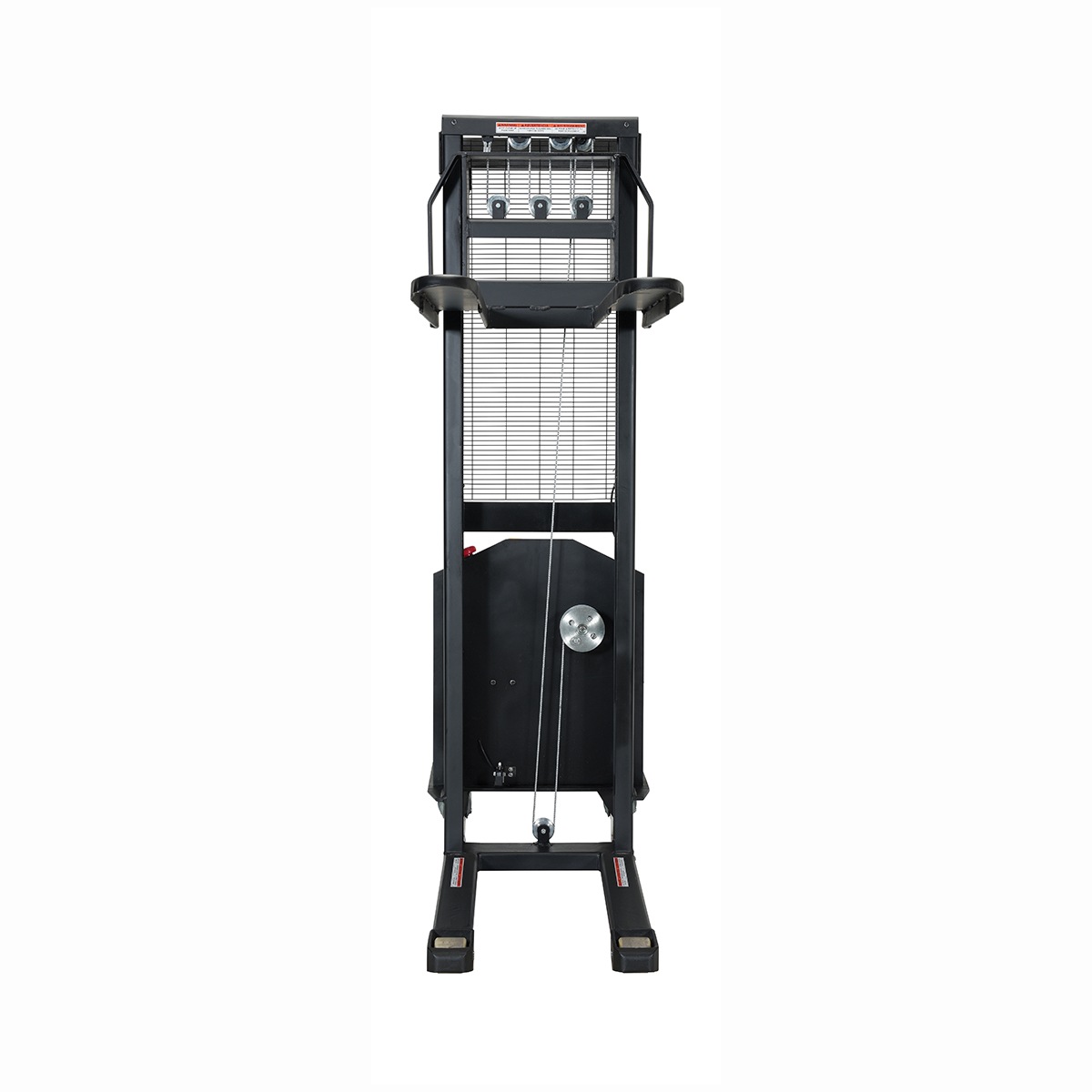

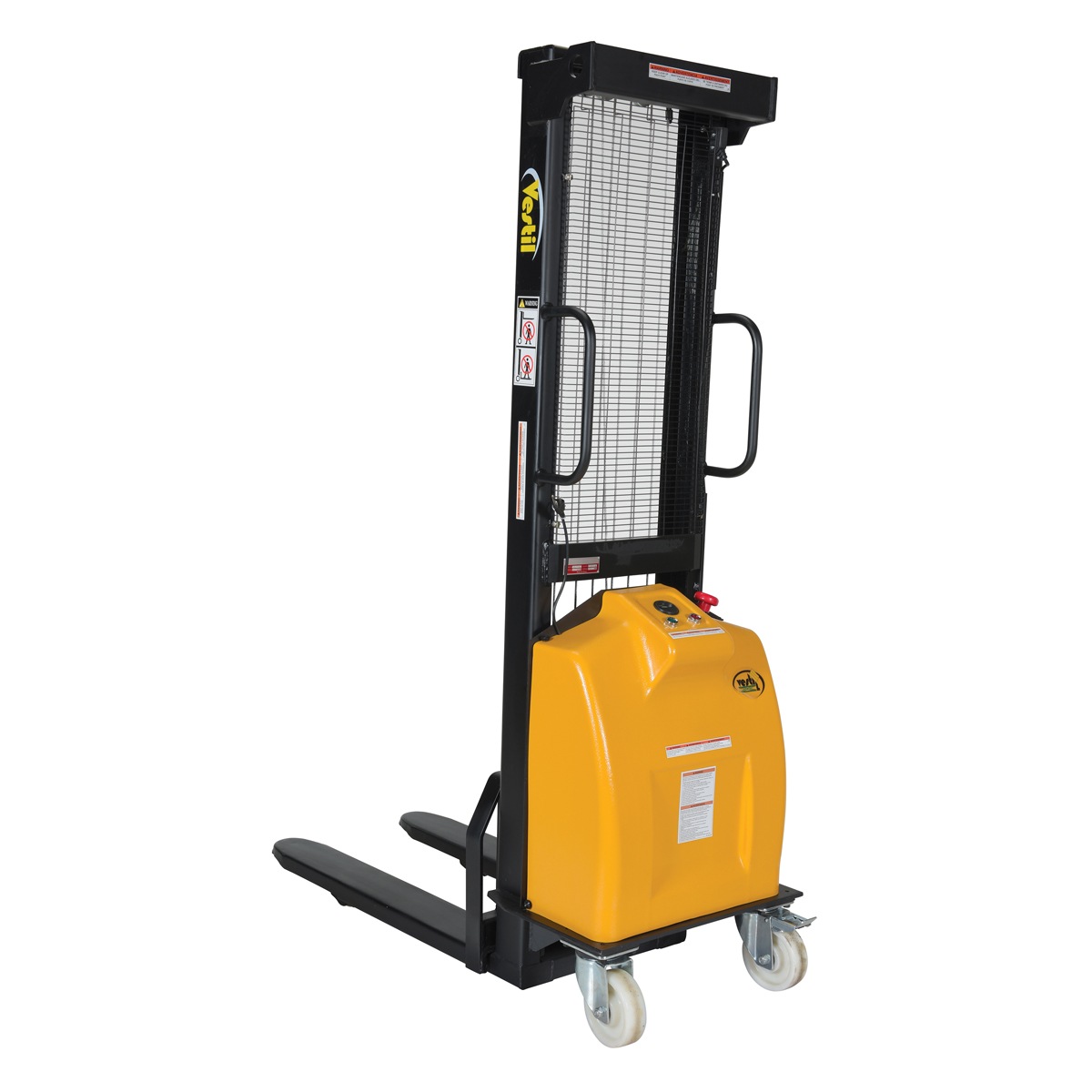

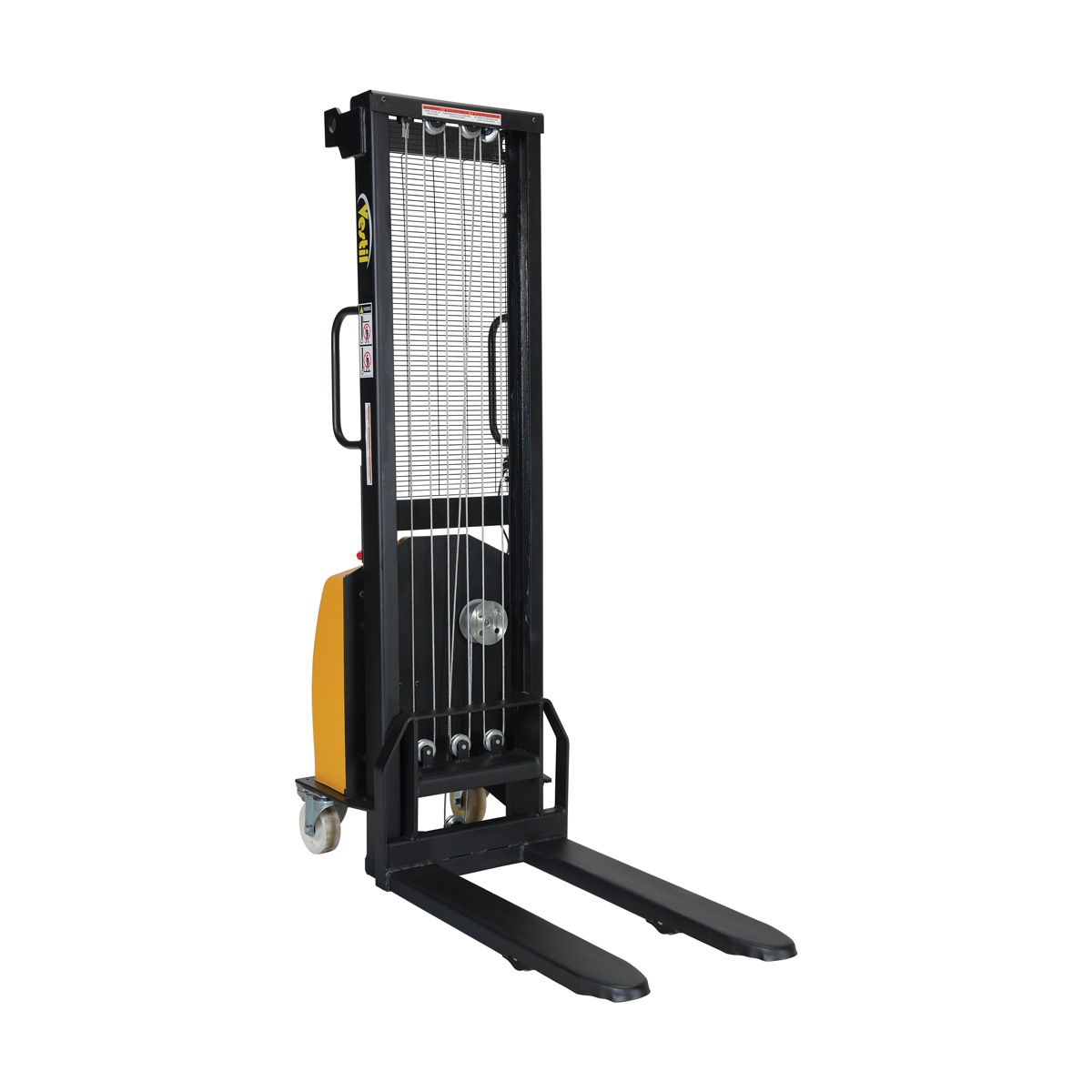

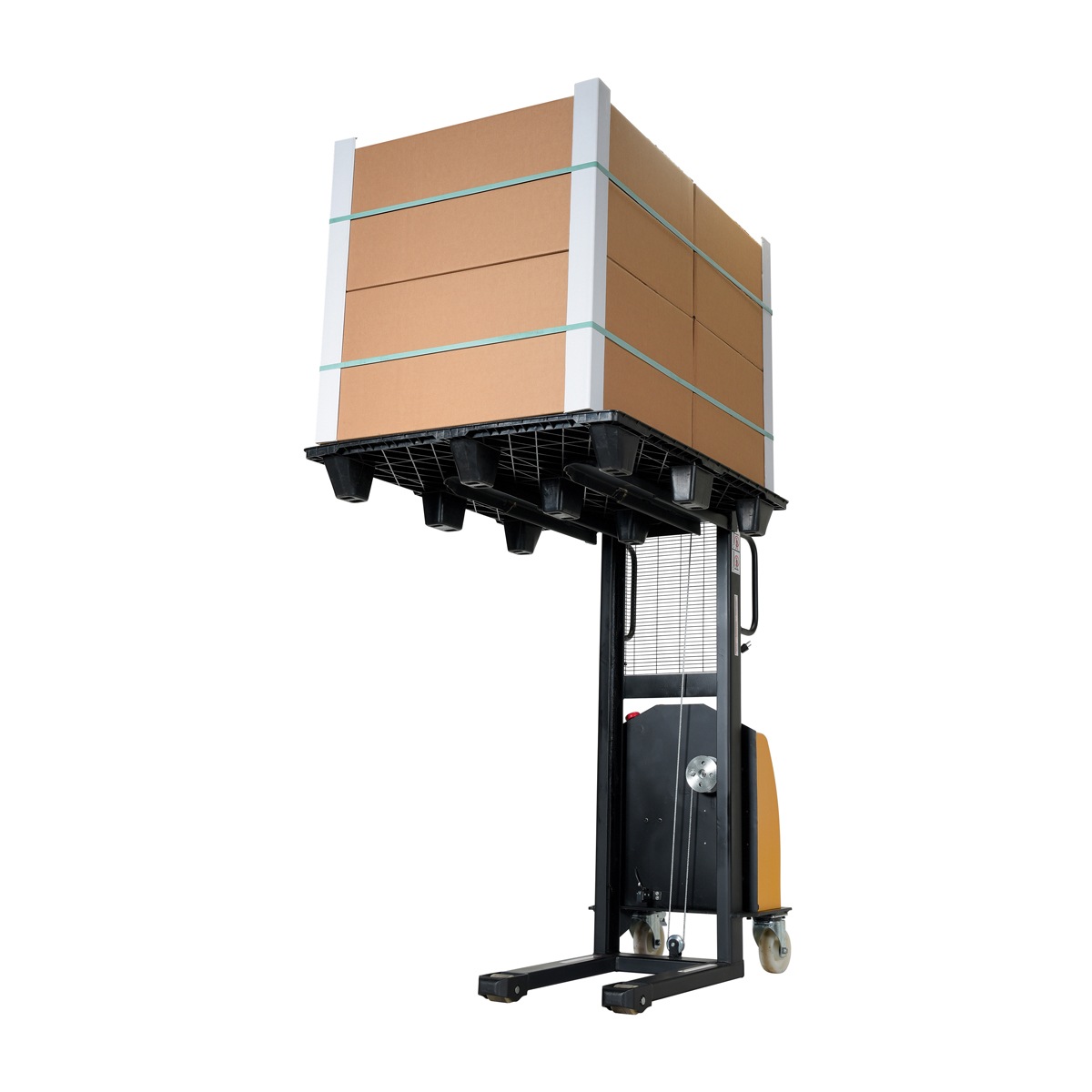

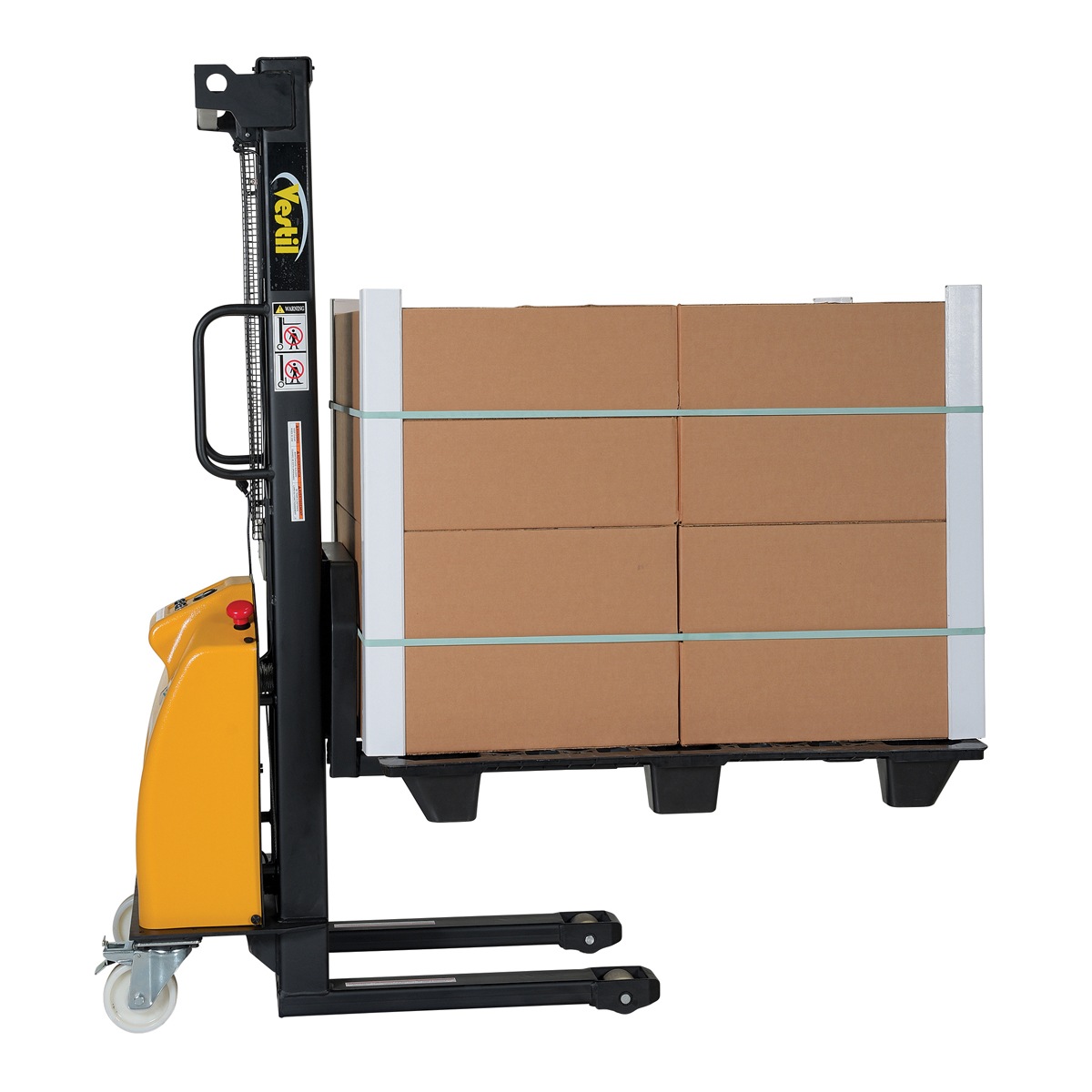

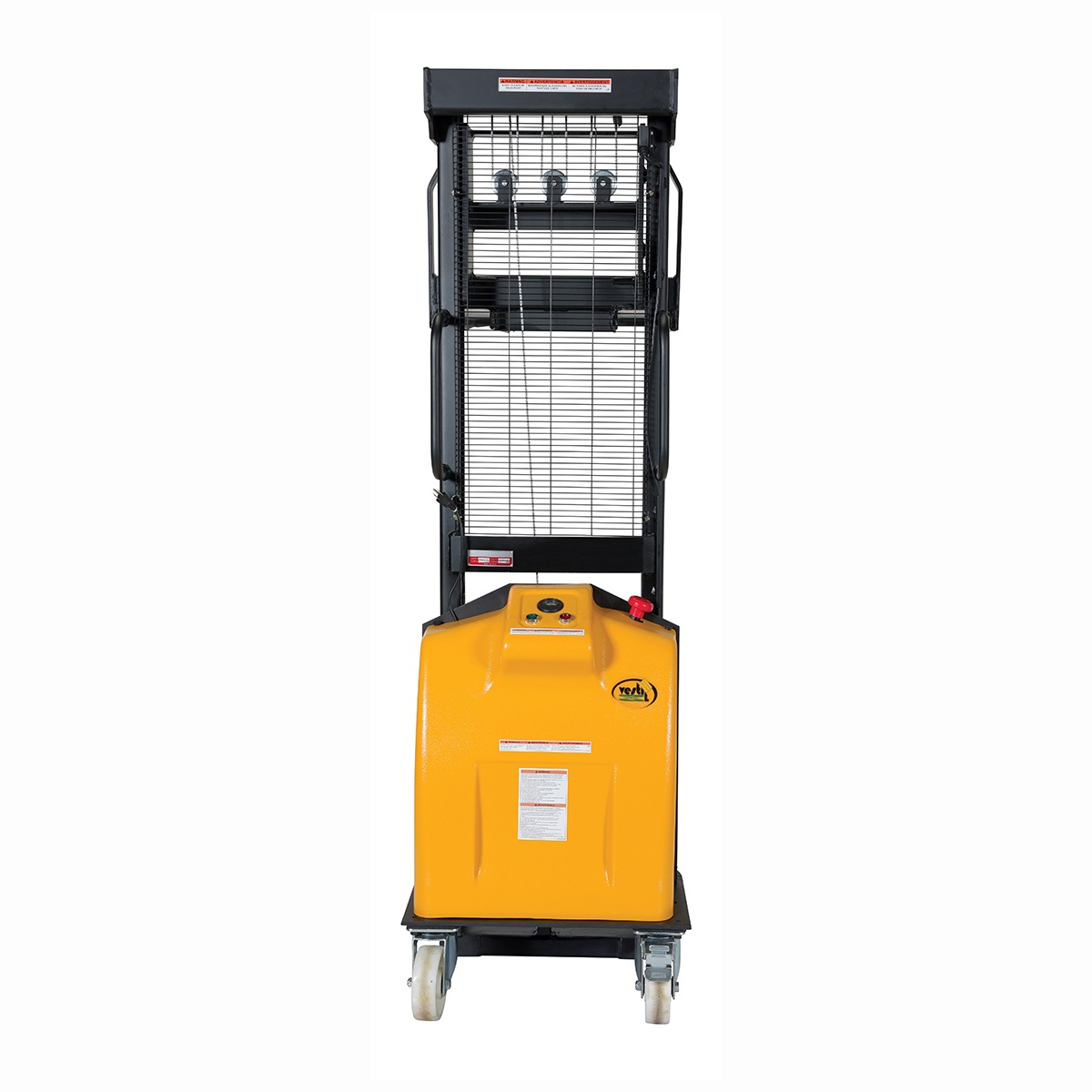

Vestil VWS-770-FF-DC Stacker DC Winch Fixed

The Electric Winch Stacker features a heavy duty mast and a DC winch for easier and safer lifting. Lift and lower by DC winch and steel cable mechanism. A full height push-handle is included for easy steering and excellent visibility through welded mesh guard. The unit rolls smoothly on two rigid and two swivel wheels with brakes for easy maneuvering.

• Fixed forks for constant width
• Ergonomic handle for full posture transferring
• DC operated for constant power supply
• Robust steel construction for added longevity

Specification

• Uniform Capacity (lb.): 770
• Lowered Height (in.): 3-3/8
• Raised Height (in.): 59
• Horizontal Load Center (in.): 24
• Caster Material: Poly-On-Poly
• (2) Rigid Front Caster Diameter (in.): 4
• (2) Swivel with Brake Rear Casters Diameter (in.): 6
• Fork Length (in.): 30
• Operation: DC Winch
• Battery Quantity/Volts: (1) 12V

Documents

Click for VWS-770-FF-DC Approval Drawings
