Vestil Warehouse Ladder Grip 13 Stp

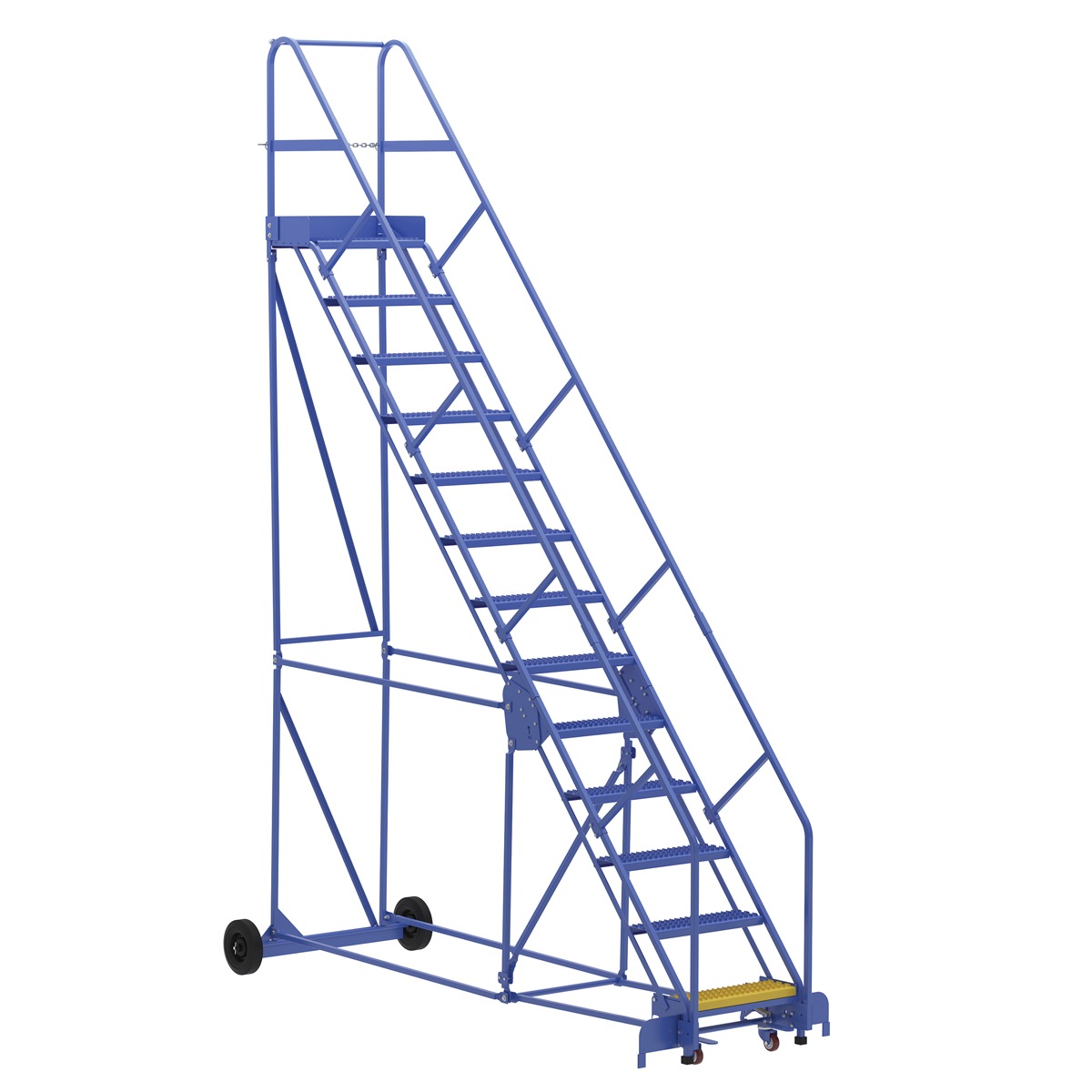

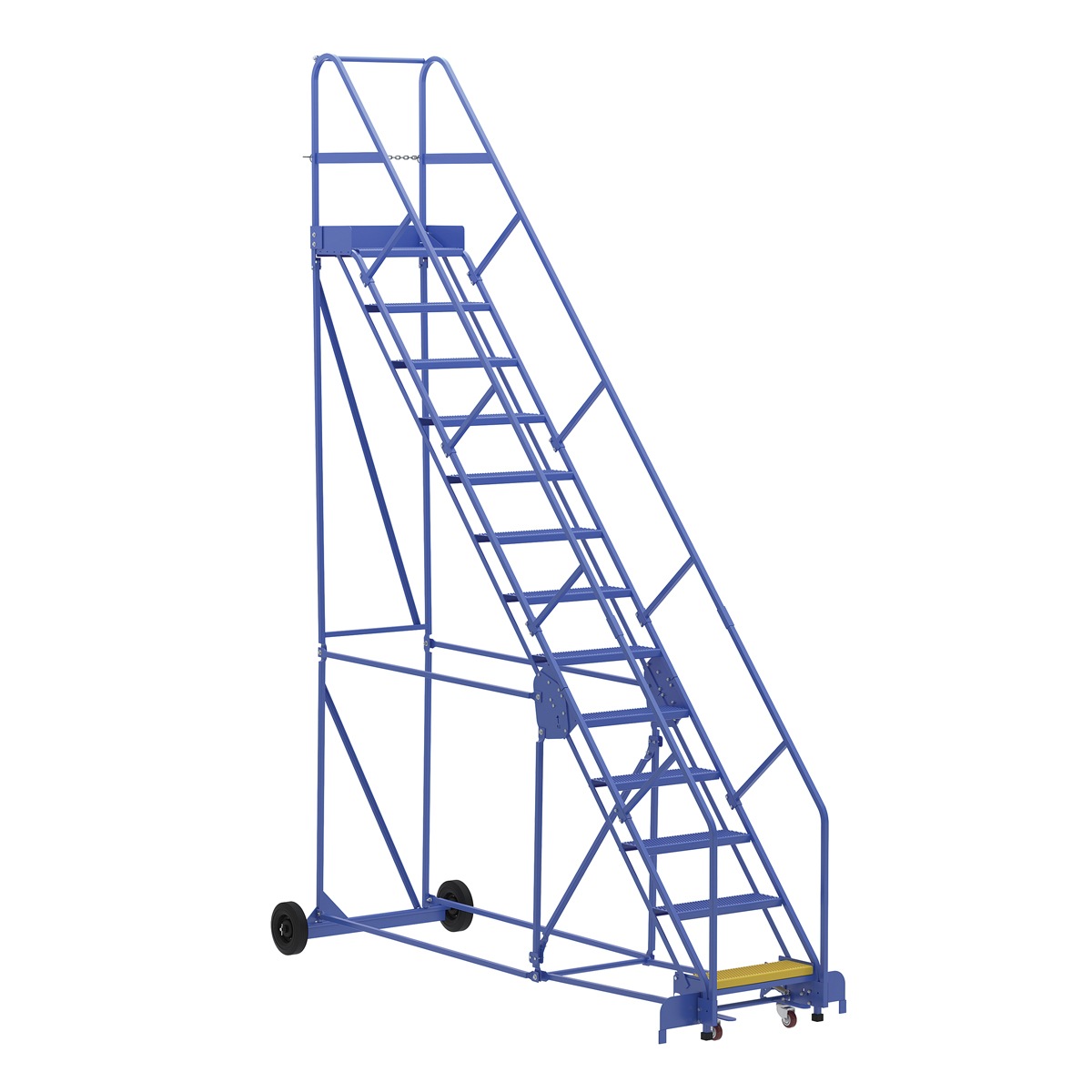

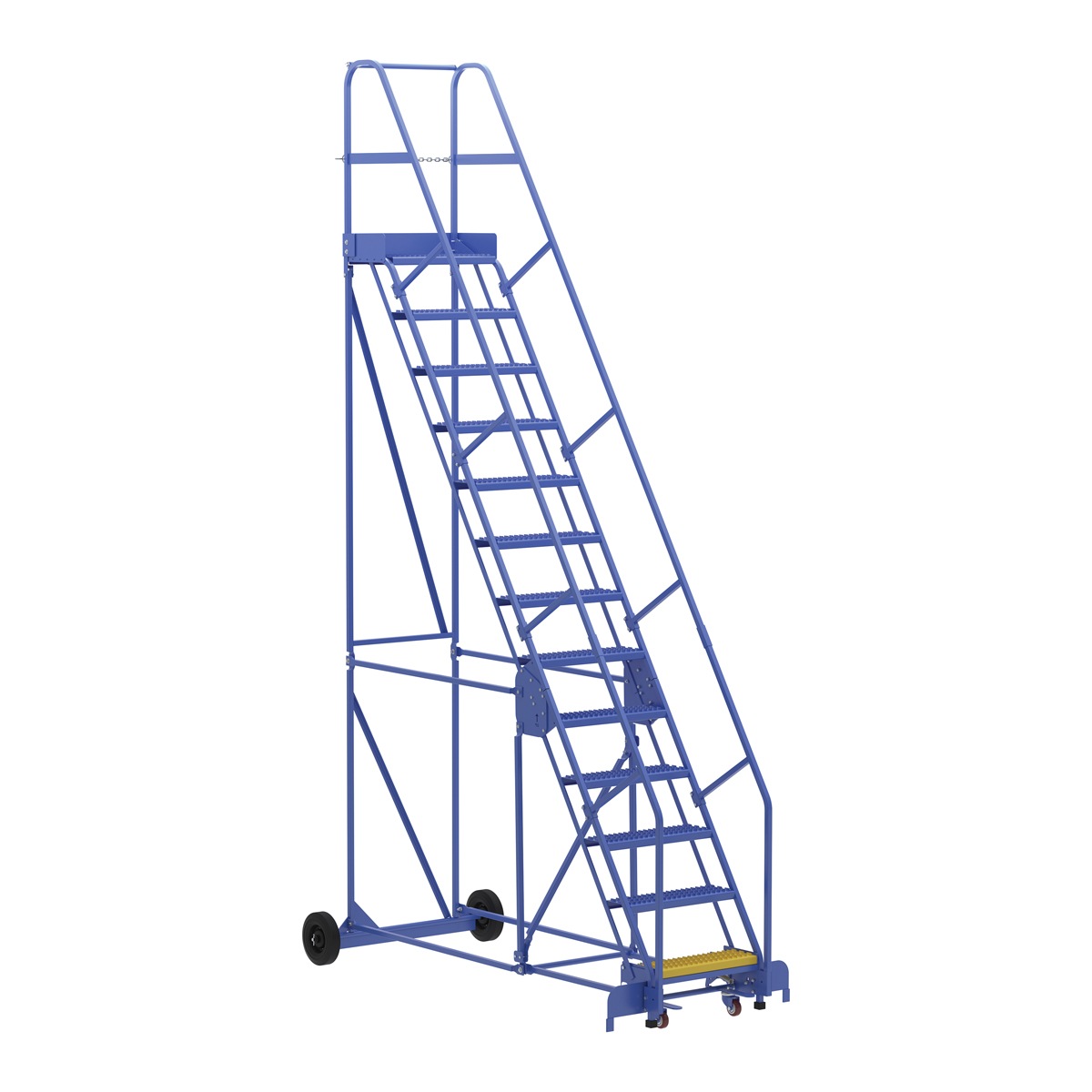

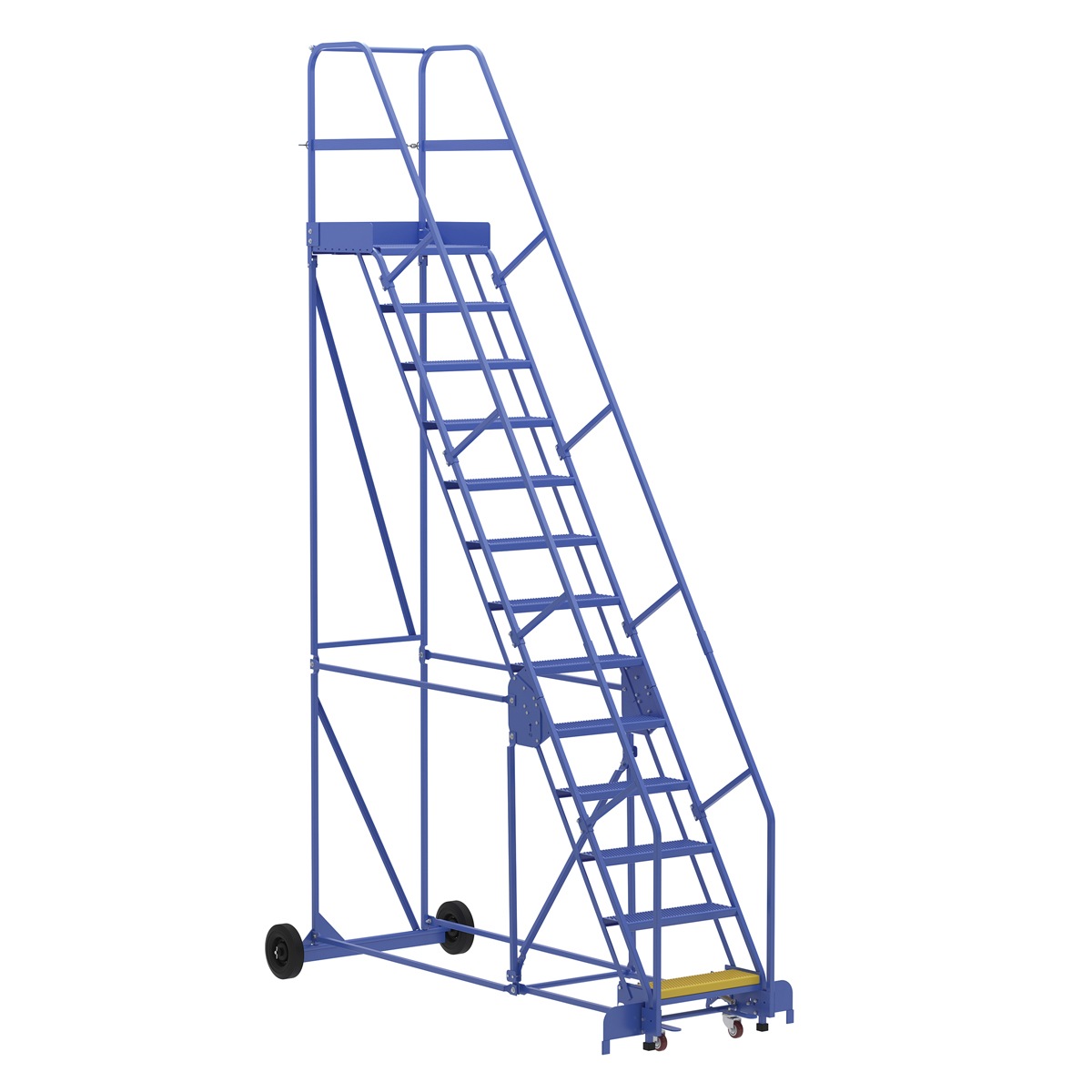

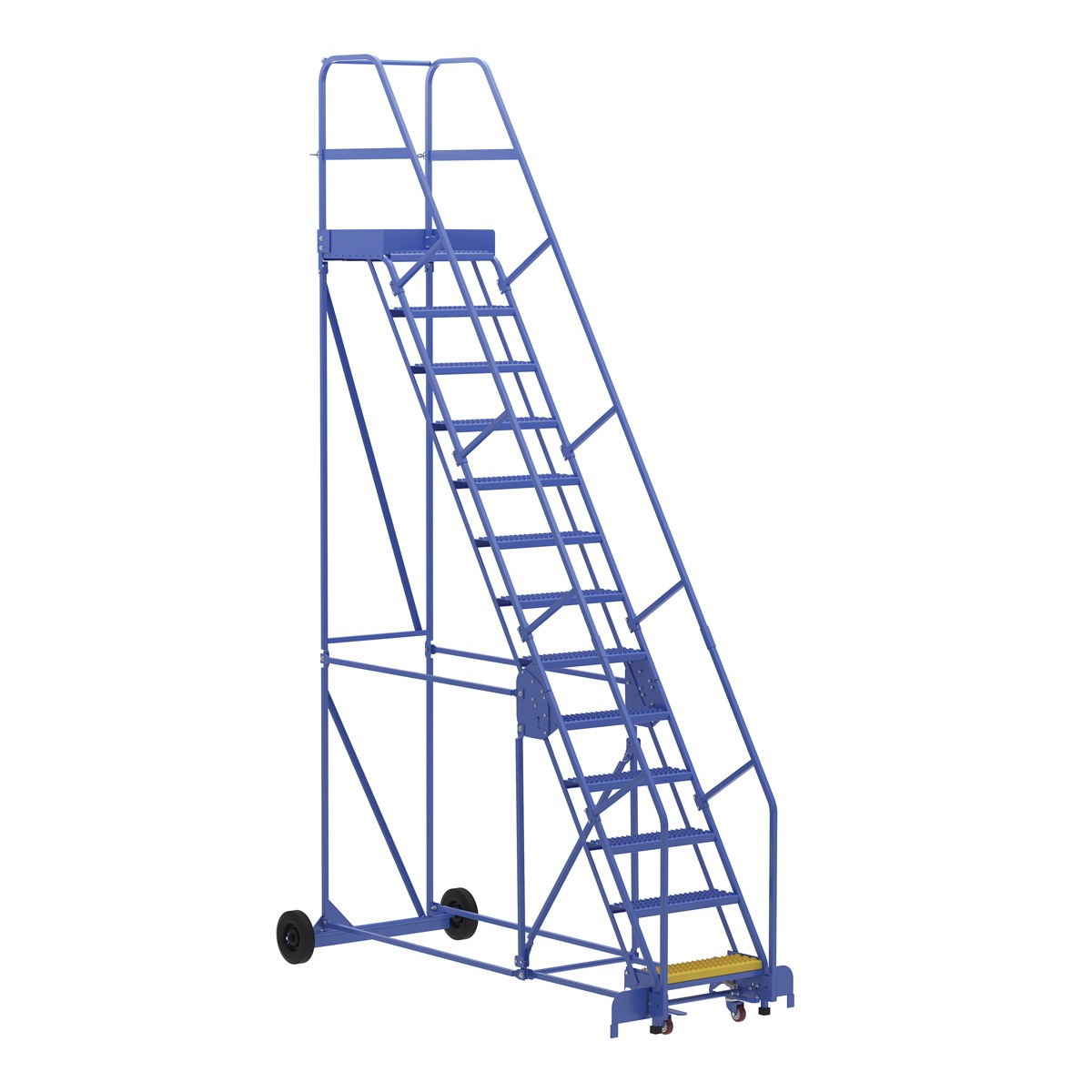

The Rolling Warehouse Ladder is a great addition to material handling and shipping facilities. The powder coated steel construction maintains a strong, durable design throughout a lifetime of use. The steps include a grip strut design that promotes stability while climbing and/or descending the ladder. The bottom step is colored yellow for additional safety and minimization of injuries when traversing the ladder with heavy loads.

• Steel construction for lasting durability
• Grip Strut steps for safe traversing
• Rolling design for maneuvering in condensed areas
• Bottom Step is colored yellow for utmost safety

Specification

• Uniform Capacity (lb.): 350
• Number of Steps (qty.): 13
• Top Step Height (in.): 130
• Step Depth (in.): 7
• Usable Width (in.): 23-9/16
• Step Spacing (in.): 10
• Front Swivel Poly Caster Quantity/Diameter/Width (in.): (2) 3×1-1/4
• Rear Rigid Hard Rubber Caster Quantity/Diameter/Width (in.): (2) 10×2-1/2
• OSHA: 1910.29
• ANSI: A14.7

Documents

Click for LAD-13-14-G Approval Drawings

Click for LAD-13-14-G-EZ Approval Drawings

Click for LAD-13-14-P Approval Drawings

Click for LAD-13-14-P-EZ Approval Drawings

Click for LAD-13-21-G Approval Drawings

Click for LAD-13-21-G-EZ Approval Drawings

Click for LAD-13-21-P Approval Drawings

Click for LAD-13-21-P-EZ Approval Drawings
