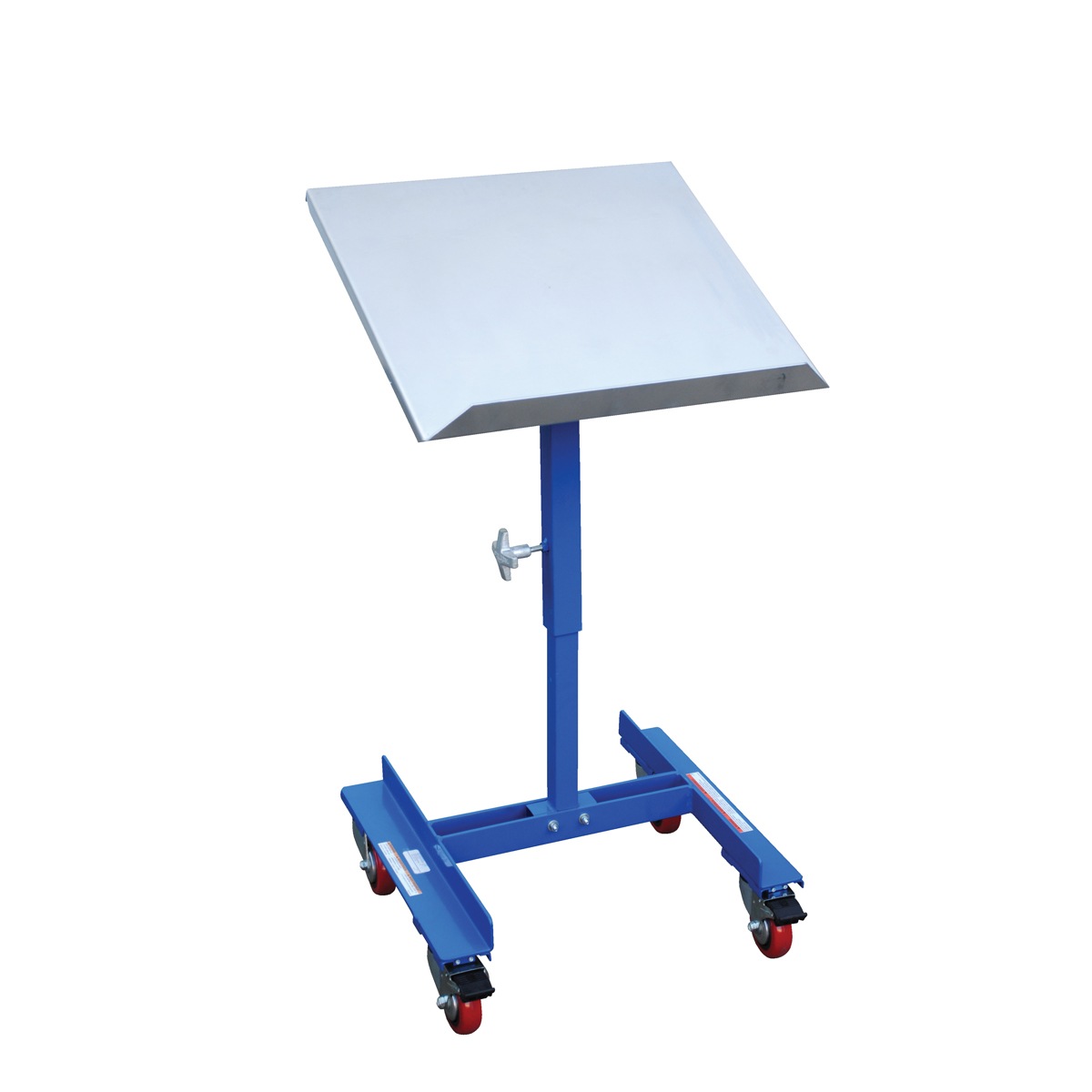

Vestil WT-2221 Mobile Tilting Work Table 150 LB 22 X 21

The Mobile Tilting Work Table is designed to bring work to an ergonomically correct position, helping to foster more comfortable and productive work environment. Working in a comfortable position also reduces fatigue and risk of injuries. The platform height and tilt angle are manually adjustable. The polyurethane swivel casters (two double locking) allow unit to be transported from one work area to another while loaded.

• Highly maneuverable and flexible product design is ergonomic and user friendly

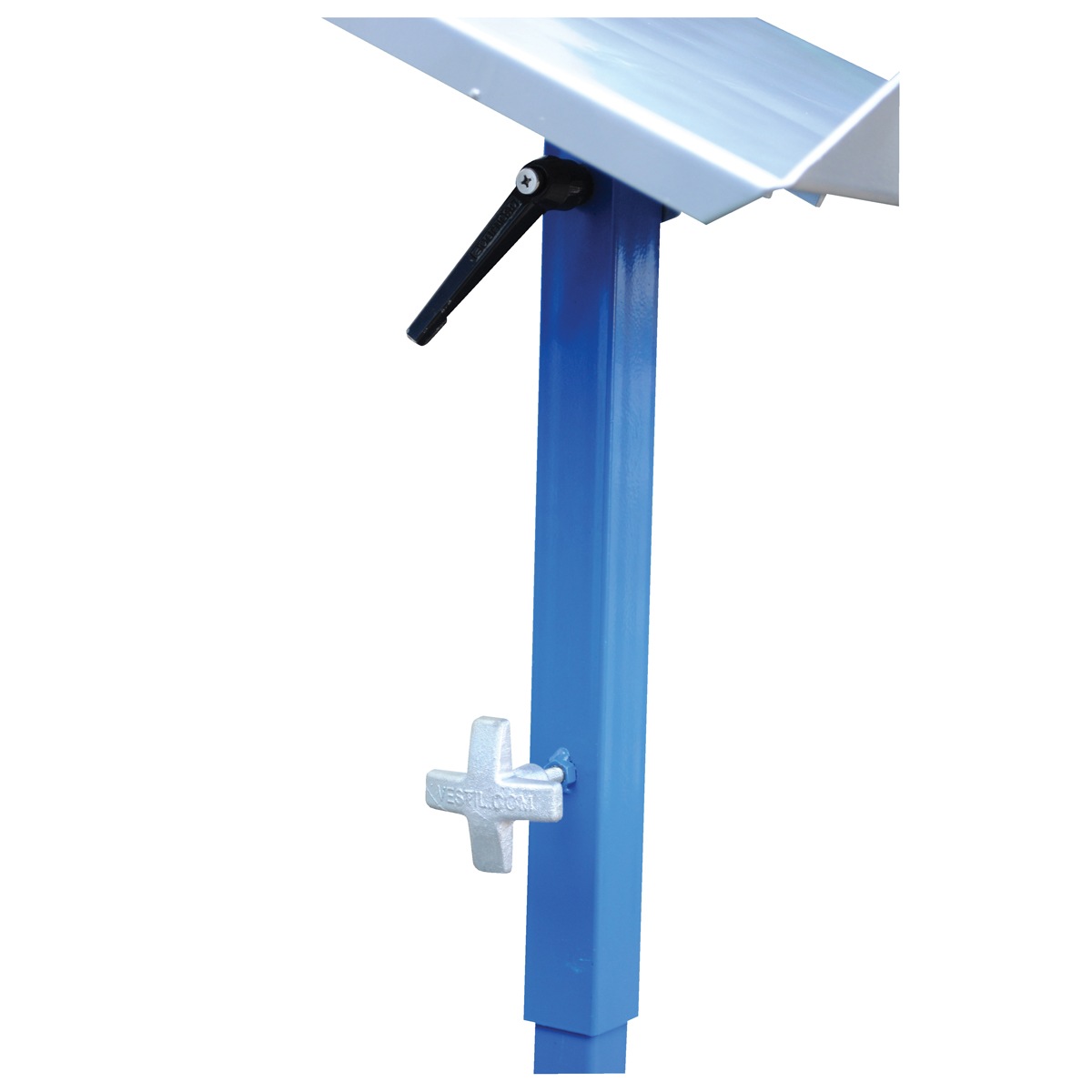

• Platform height and platform tilt is adjustable to fit best position for user

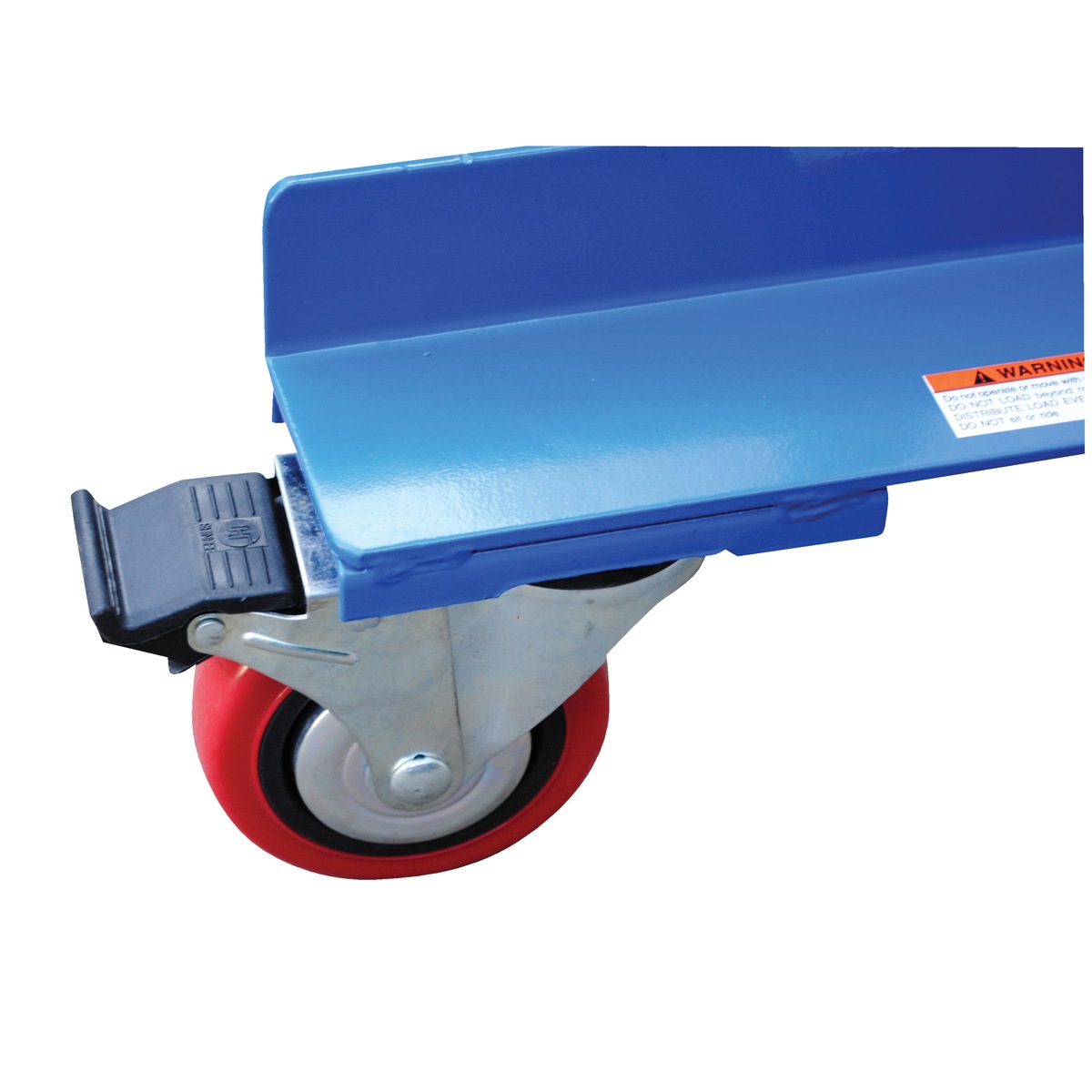

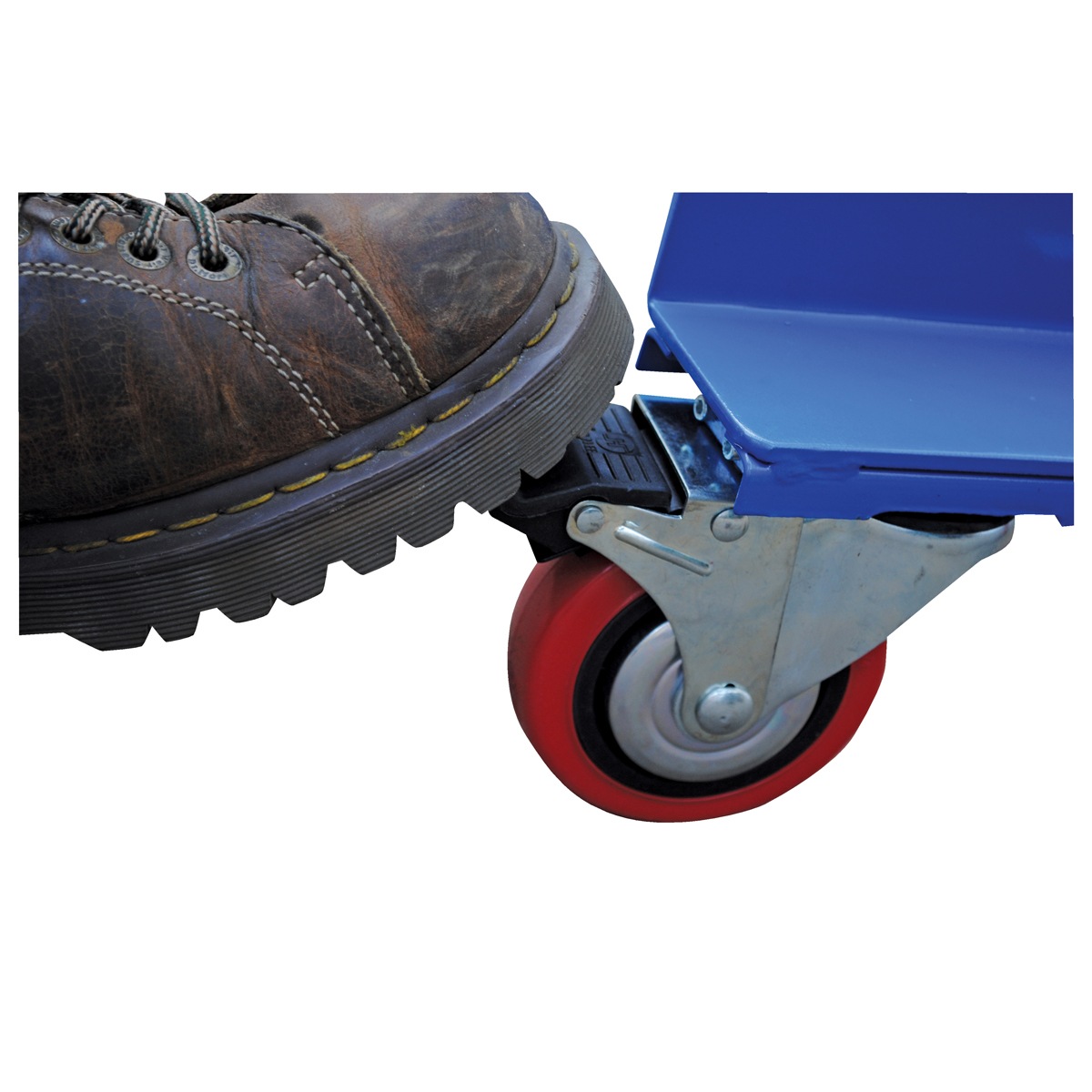

• Each unit includes four swivel casters (two double-locking) for maneuverability
• Welded steel construction provides long lasting use

Specification

• Uniform Capacity (lb.): 150
• Platform Width (in.): 22
• Platform Length (in.): 21
• Lip Height (in.): 2
• Platform Tilt Degree: 45
• Lowered Height (in.): 28-3/8
• Raised Height (in.): 38-3/8
• Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
• Caster Type: (2) Swivel, (2) Swivel Double Locking
• Caster Material: Polyurethane
• Operation: (1)Turn Knob (1) Lever Handle

Documents

Click for WT-2221 Approval Drawings

Click for Manual
