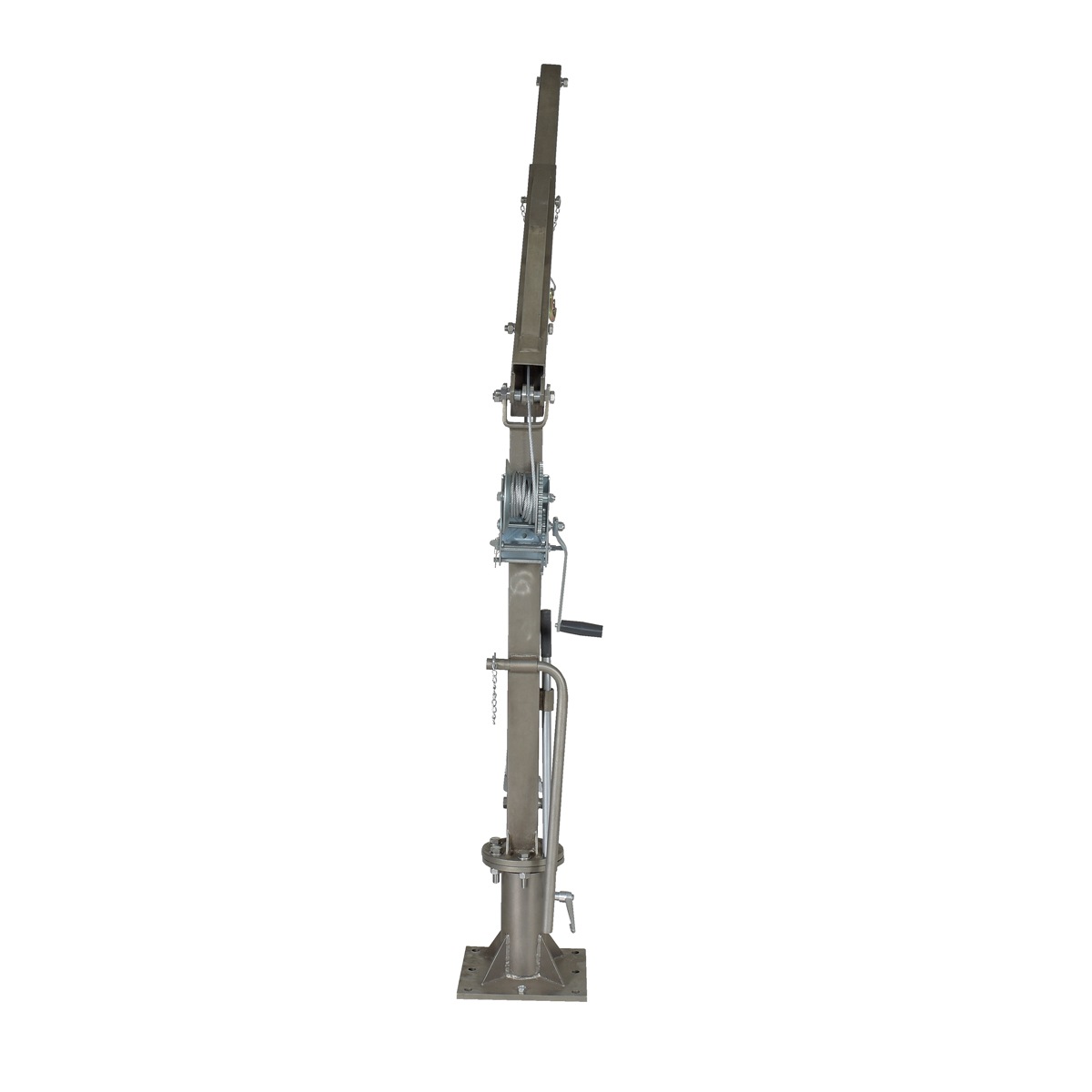

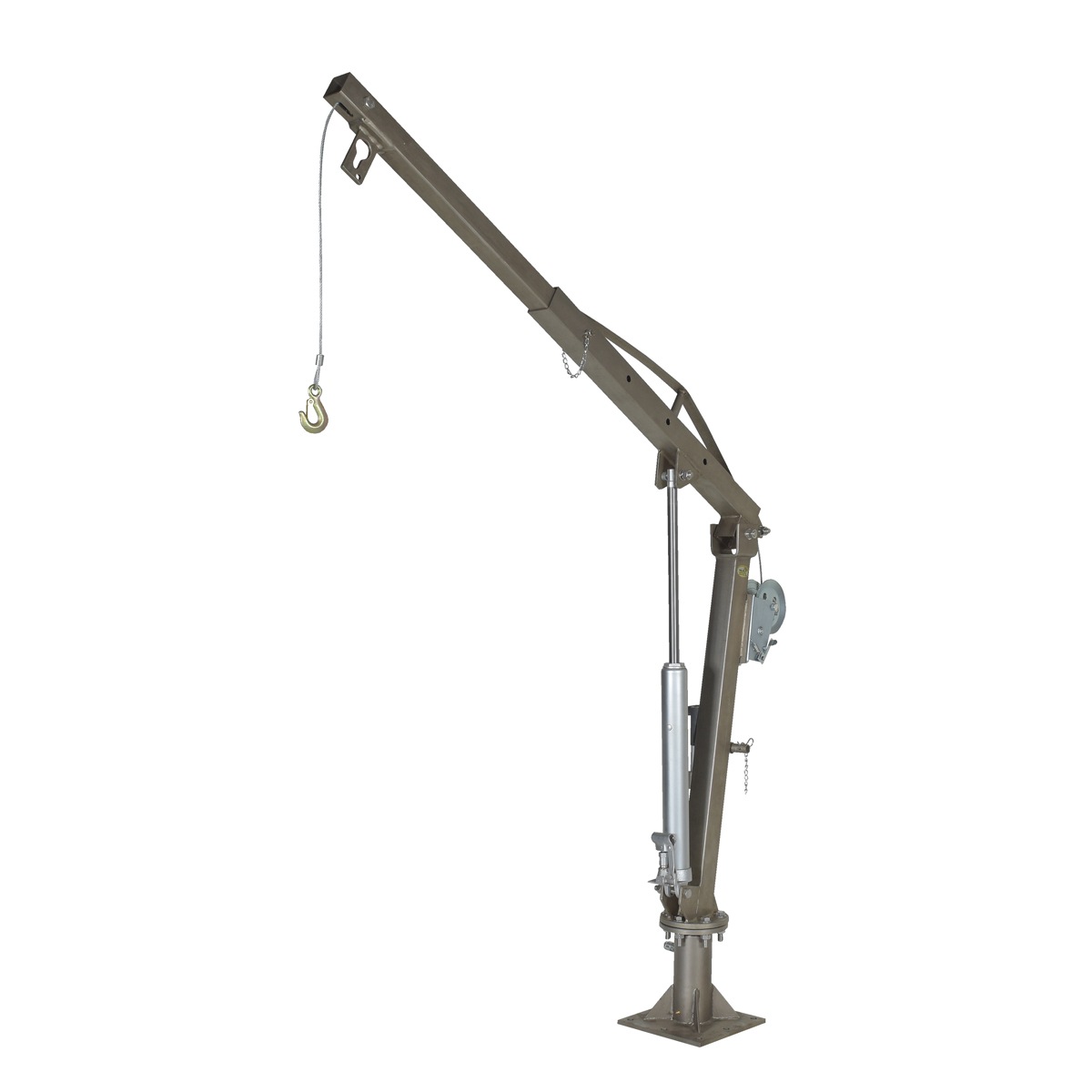

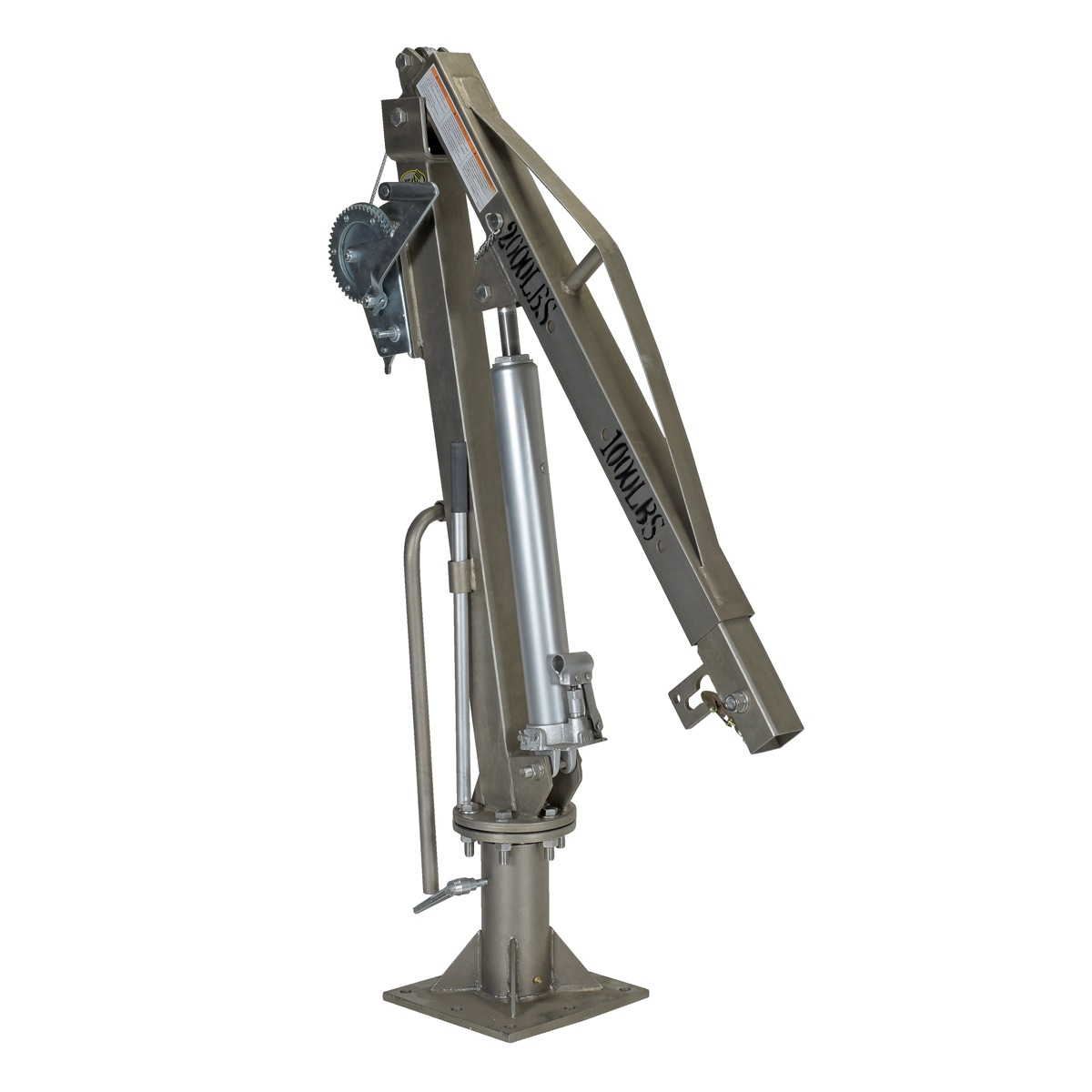

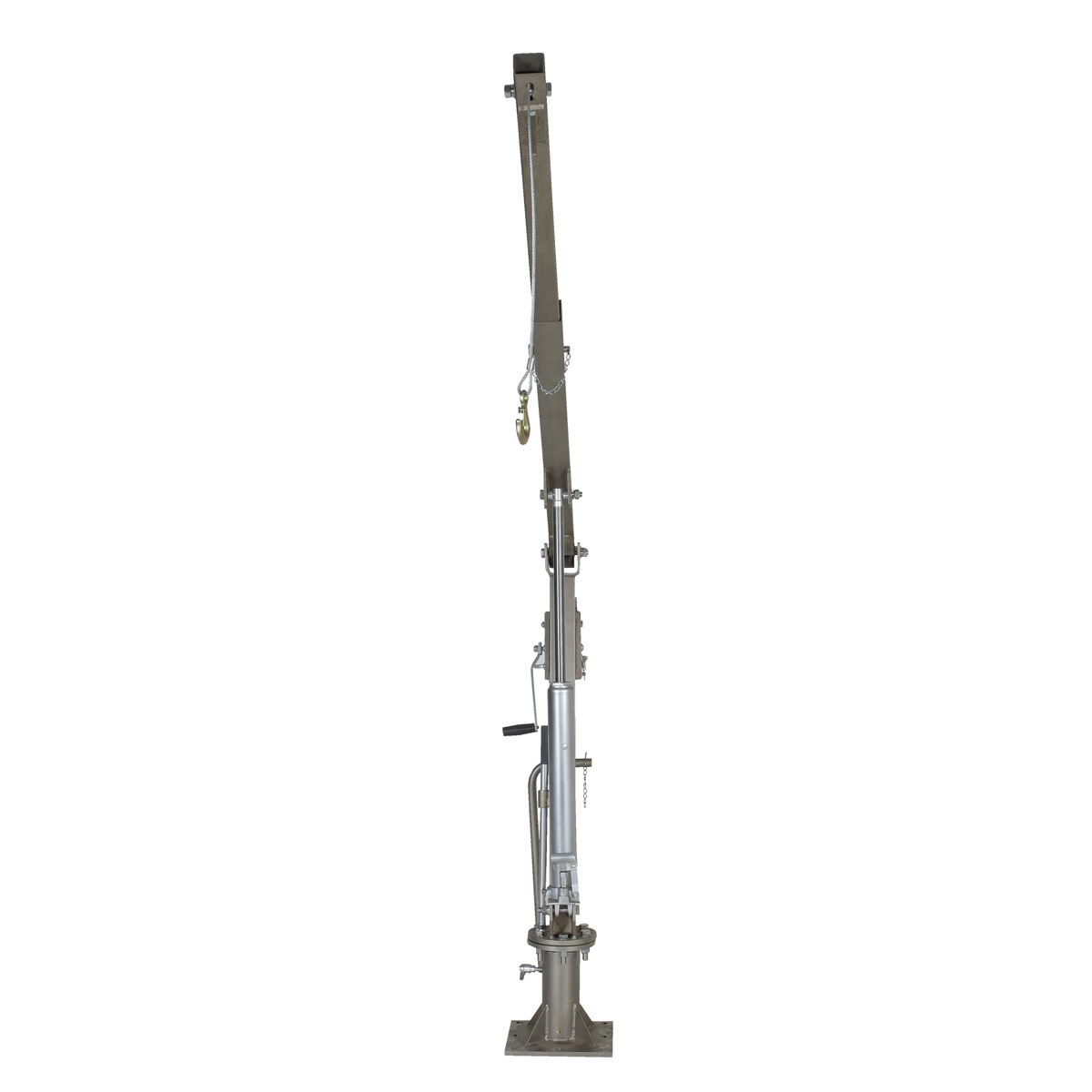

Vestil WTJ-4-SS Winch Truck Jib Crane 1K Extended Stainless Steel

This Stainless Steel Winch Operated Truck Jib Crane lifts items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

• Powered cable winch makes lifting and maneuvering easy
• Boom telescopes in and out for greater reach and versatility
• 360° swivel design allows for maximum accessibility
• Pre-drilled base plate makes mounting quick and easy

Specification

• Uniform Manual Cable Winch Capacity (lb.): 500
• Extended Fixed Hook Capacity (lb.): 1,000
• Extended Boom Reach (in.): 52
• Extended Lift Range (in.): 0 to 85-7/8
• Retracted Fixed Hook Capacity (lb.): 2,000
• Retracted Boom Reach (in.): 31
• Retracted Lift Range (in.): 15-1/2 to 74-1/2
• Overall Cable Length (ft.): 32
• Usable Cable Length (ft.): 24
• Cable Diameter (in.): 3/16
• Mounting Plate Length (in.): 11
• Mounting Plate Width (in.): 11
• Base Height (in.): 11-1/2
• Rotation (degrees): 360
• Piston Stroke (in.): 16-3/8
• Piston Stroke Per Pump (in.): 1/16
• Cable Retracts/Extension Per Crank (in.): 1-1/2
• Number of Cranks to Retract/Extend Cable: 72
