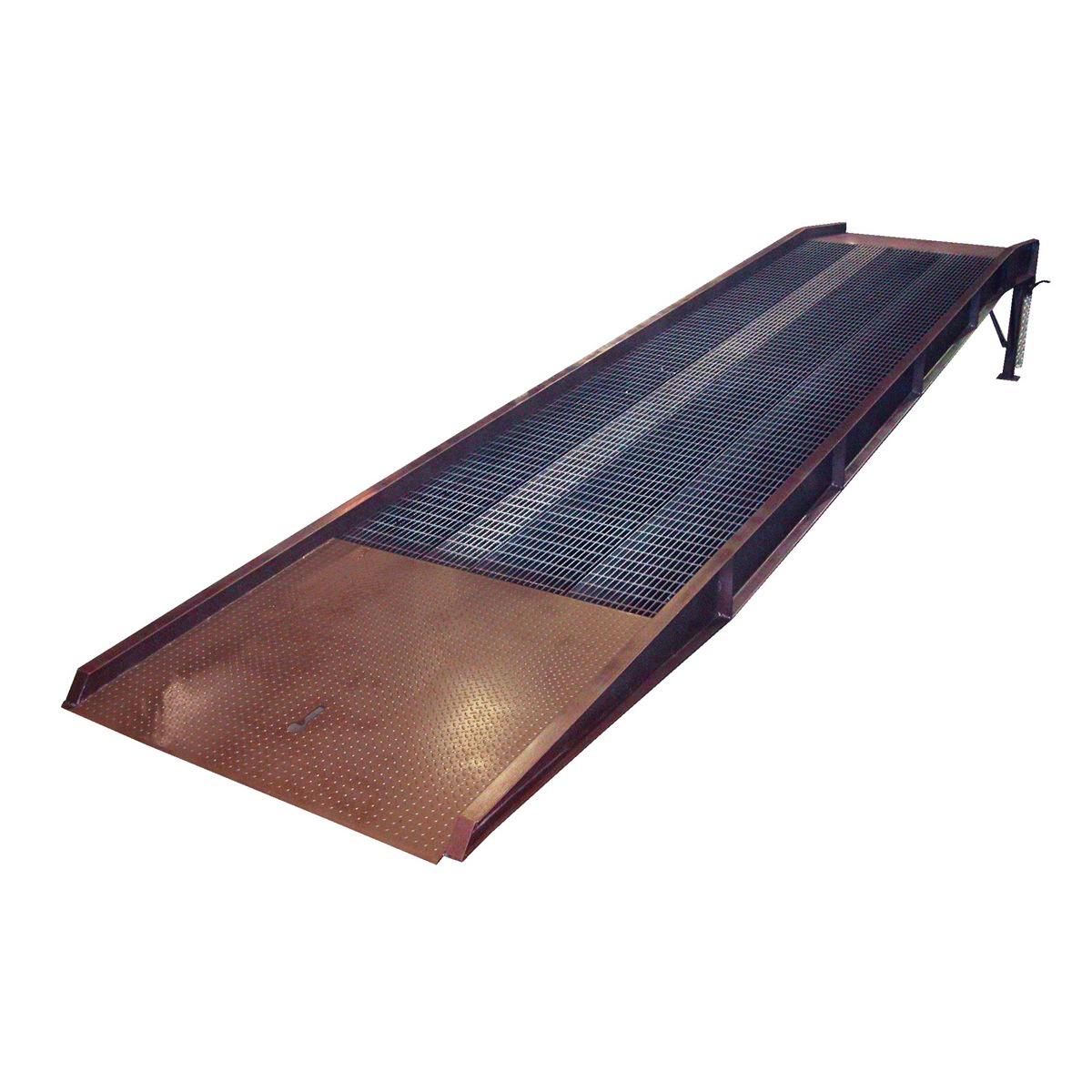

Vestil YRDS-16-8536-M Steel Yard Ramp Mech Docklevel 16K 85X36

The Stationary Steel Yard Ramp with Mechanical Edge-O-Dock at truck end quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites and includes an efficient manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, and rubber bumpers.

• Steel side curbs prevent fork truck run-off
• Overlap style lip with safety chains secures ramp to trailer
• Open grating design allows snow, ice and rain to fall through
• Manual two-speed crank easily adjusts to different dock heights

Specification

• Uniform Capacity (lb.): 16000
• Usable Ramp Width (in.): 78
• Dock Leveler Width (in.): 72
• Caster Material: Steel
• Caster Diameter (in.): 8-5/8
• Caster Width (in.): 3-5/8
• Safety Curb (in.): 4
• Usable Lip Support Edge Length (in.): 13-1/2
• Lowered Height (in.): 45
• Raised Height (in.): 62
• Straight Ramp (in.): 360
• Level Off (in.): 6-7/8
