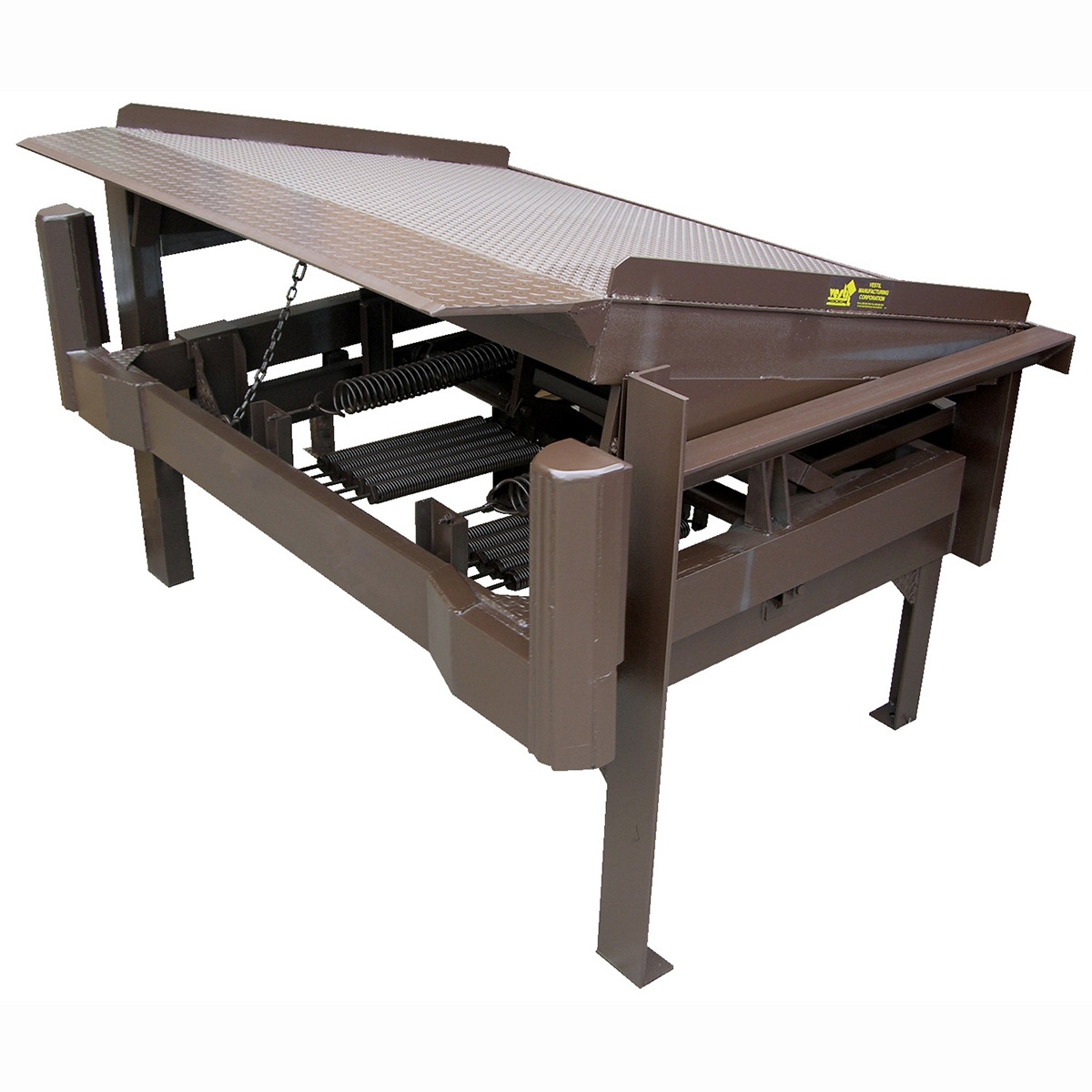

Vestil Actuated Dockleveler-Front of Dock

This is a fully automatic loading ramp where there is no dock attendant needed. It is a dock leveler unit with legs for in front of dock placement. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically. Please specify dock height when ordering.

• Fully-automatic loading ramp where no dock attendant needed
• Dock leveler unit with legs for in front of dock placement for ideal use
• Consists of a lift by-pass and toe guards on each side for optimal safety
• Deck returns to level supported position automatically

Specification

• Uniform Capacity (lb.): 20000
• Molded Bumper Width (in.): 5
• Molded Bumper Height (in.): 16
• Molded Bumper Depth (in.): 2
• PSI Checker Plated Deck: 55000
• Platform Thickness (in.): 1/4
• Service Range Above Dock (in.): 12
• Service Range Below Dock (in.): 8
• Long Lip (in.): 12 (extends 6-1/2 (in.) into truck)
• Deck Width (in.): 72
