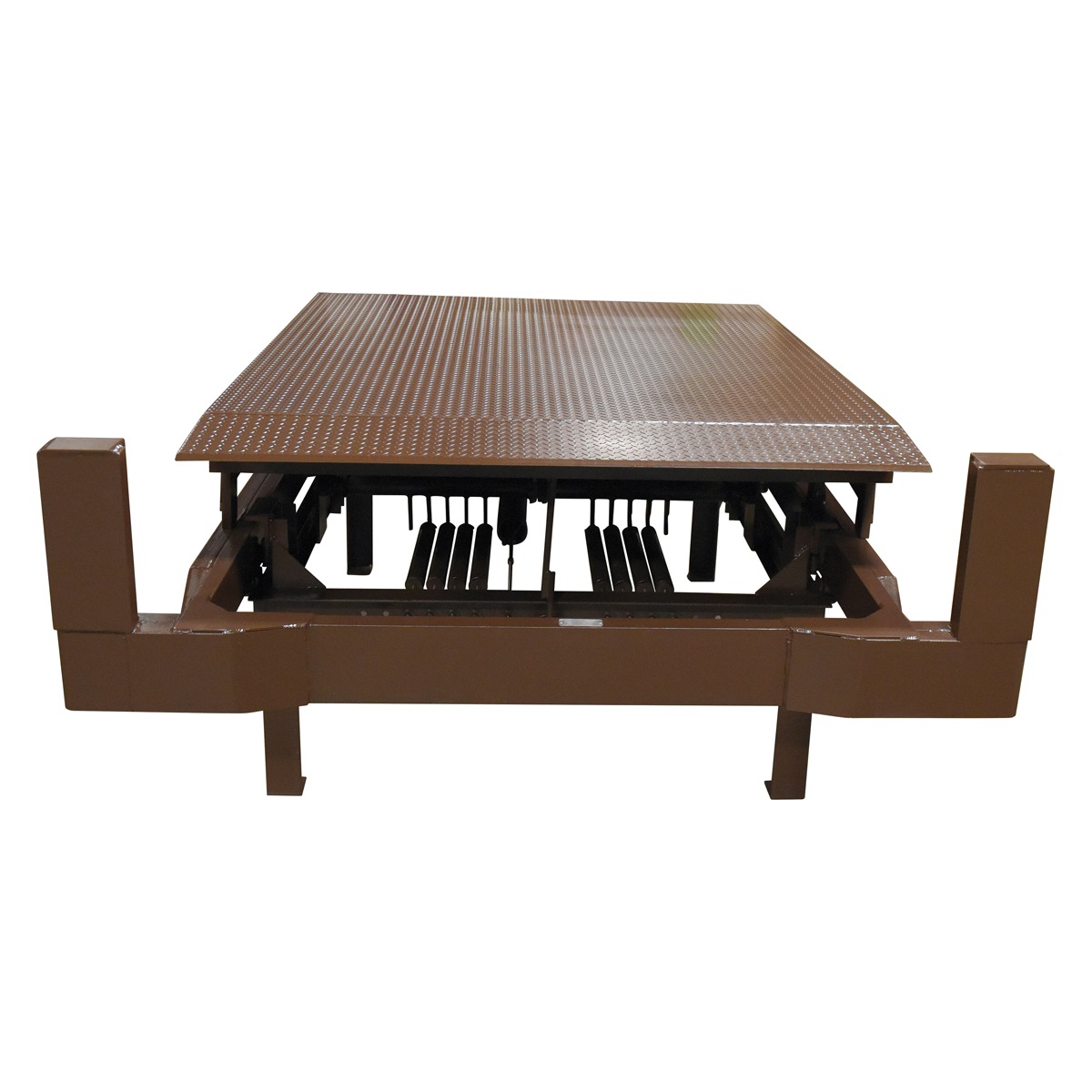

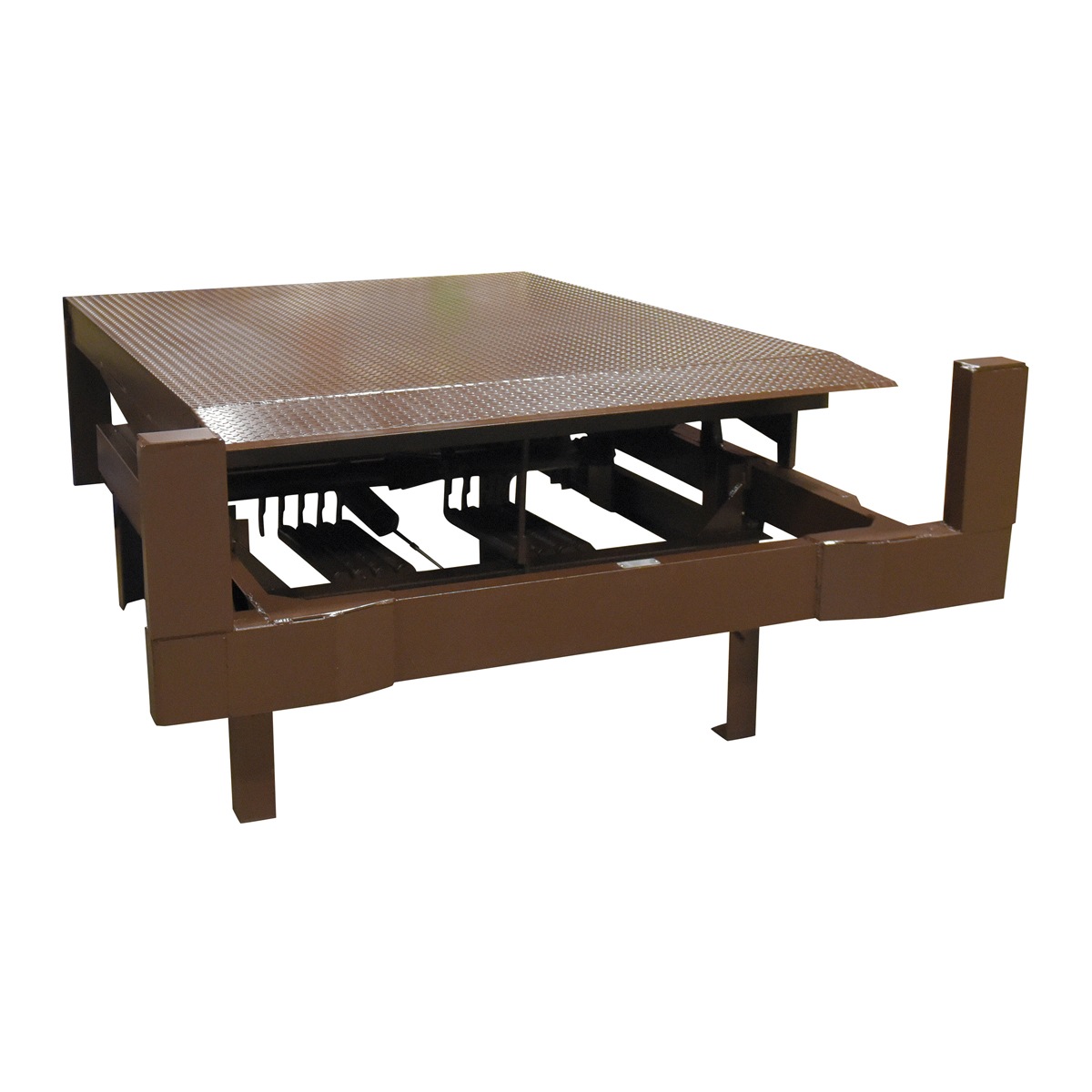

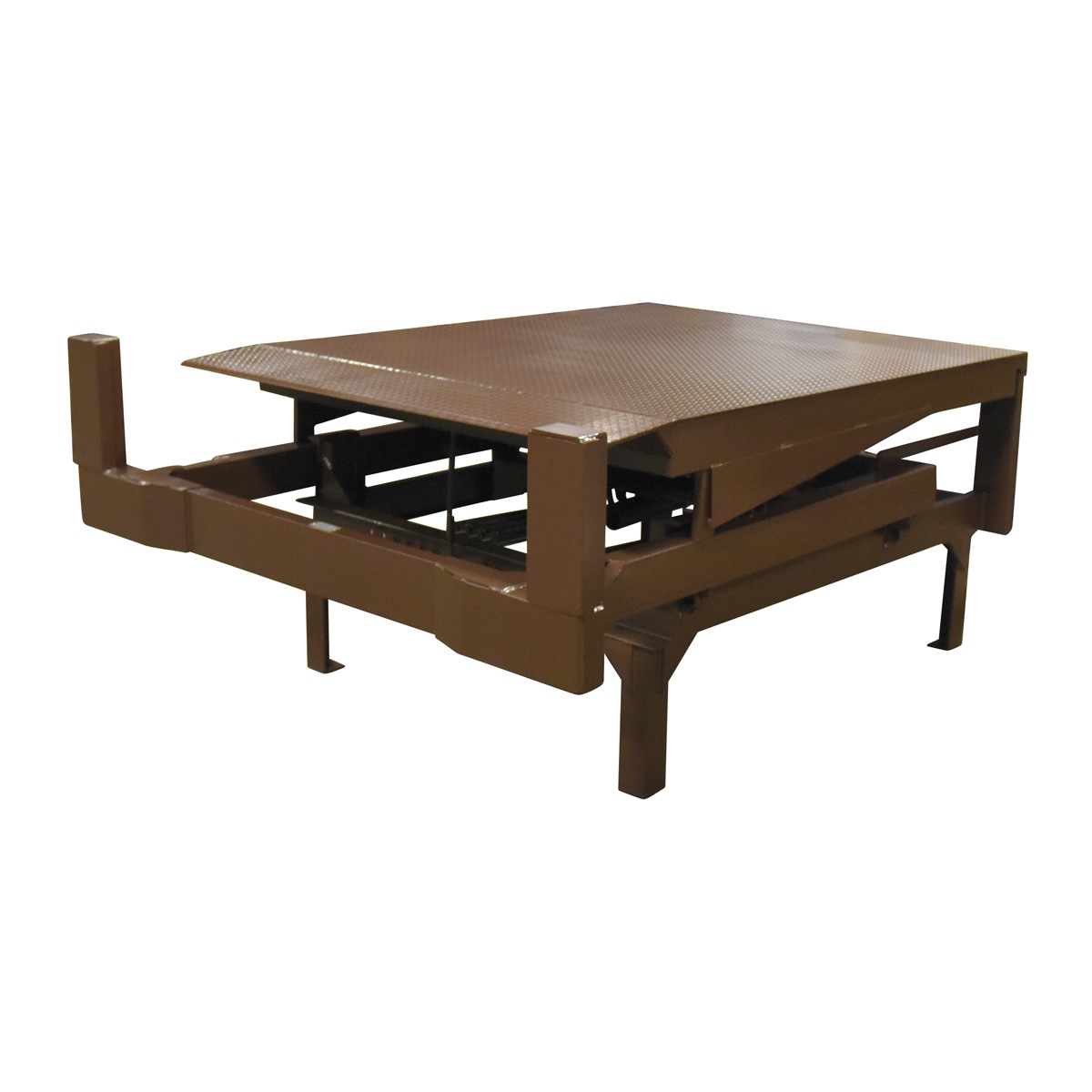

Vestil SU-800-SCB Actuated Dockleveler W/ Legs 107.25 X 88

This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with legs needing a full 48 (in.) deep pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

• Fully automatic loading ramp where no dock attendant needed
• It consists of a lift by-pass for safety and toe guards on each side
• Dock and trailer must be raised for the process to work
• Deck floats down to rest on trailer

Specification

• Uniform Capacity (lb.): 20000
• Molded Bumper Width (in.): 5
• Molded Bumper Height (in.): 16
• Molded Bumper Depth (in.): 2
• PSI Checker Plated Deck: 55000
• Service Range Above Dock (in.): 12
• Service Range Below Dock (in.): 8
• Long Lip (in.): 12 (extends 6-1/2 (in.) into truck)
• Pit Width (in.): 74
• Pit Length (in.): 80-1/2
• Pit Depth (in.): 48
