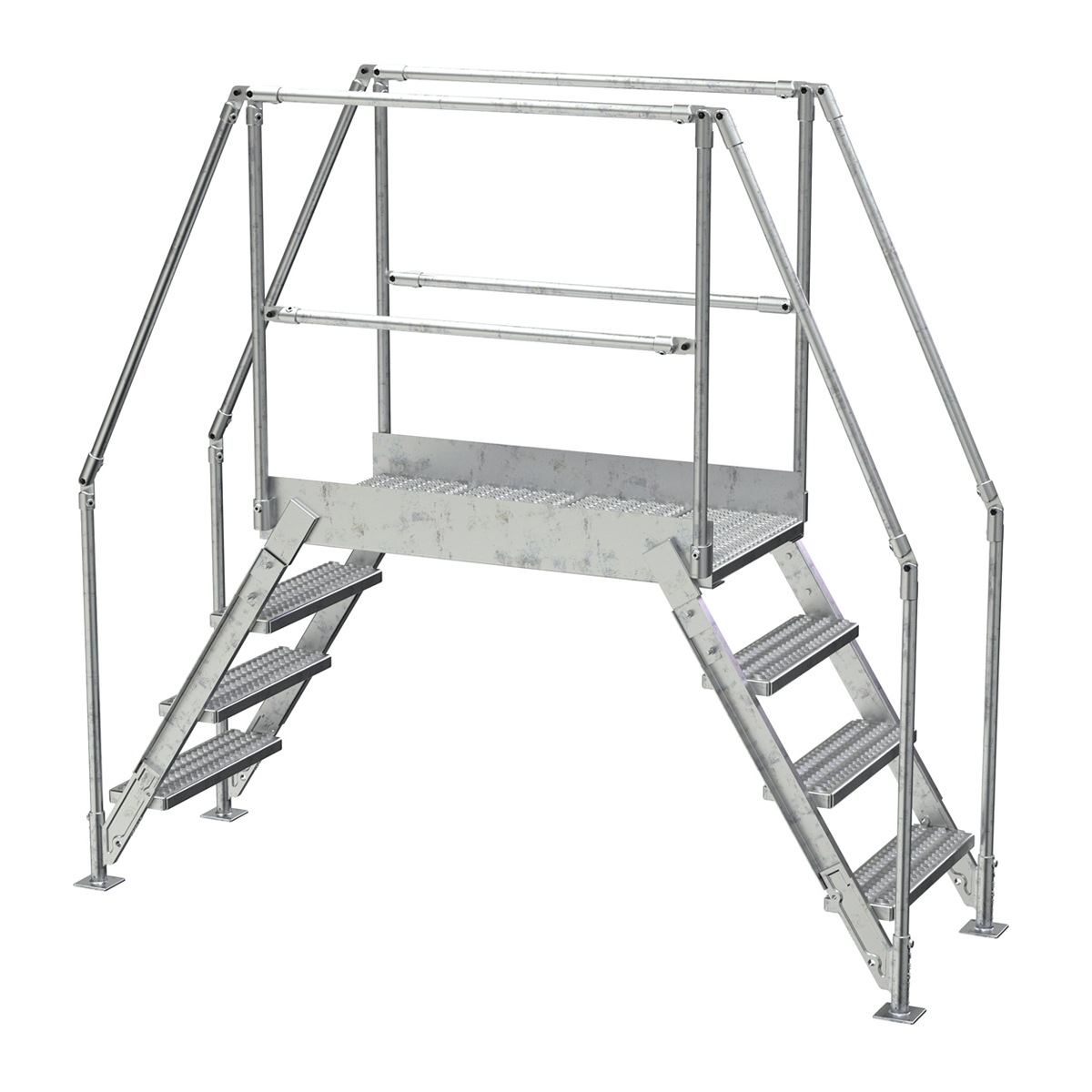

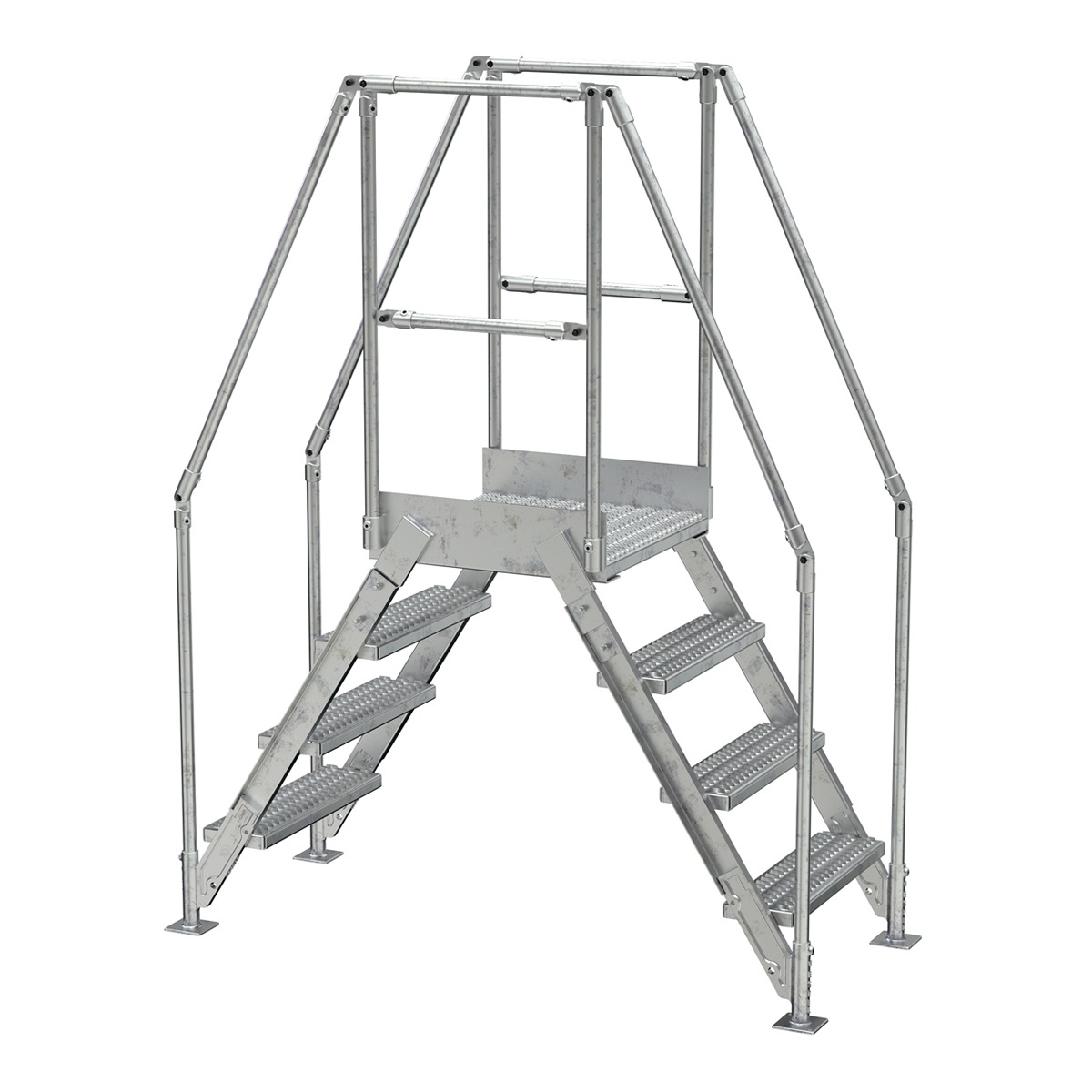

Vestil Aluminum Cross Over Ladder 4 Step

In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform.? Hardware is included.

• Aluminum construction offers long lasting use
• Pre-drilled holes for secure mounting to surface
• Secure steps for traversing up or down
• Quality crafted handrails for balance

Specification

• Uniform Capacity (lbs.): 500
• # of Steps (Ea.): 4
• Step Angel (Degree): 58
• Top Step Height (In.): 40
• Top Step Width (In.): 26
• Step Width (In.): 26
• Step Depth (In.): 7
• Step Spacing (In.): 10
• Mounting Plate Width (in.): 4
• Mounting Plate Length (in.): 4
• Mounting Plate Thickness (in.): 1/4
• Mounting Hole (Qty.): 2
• Mounting Hole Diameter (In.): 7/16
• Top Handrail Height (In.): 83
• Midrail Height (In.): 22″
