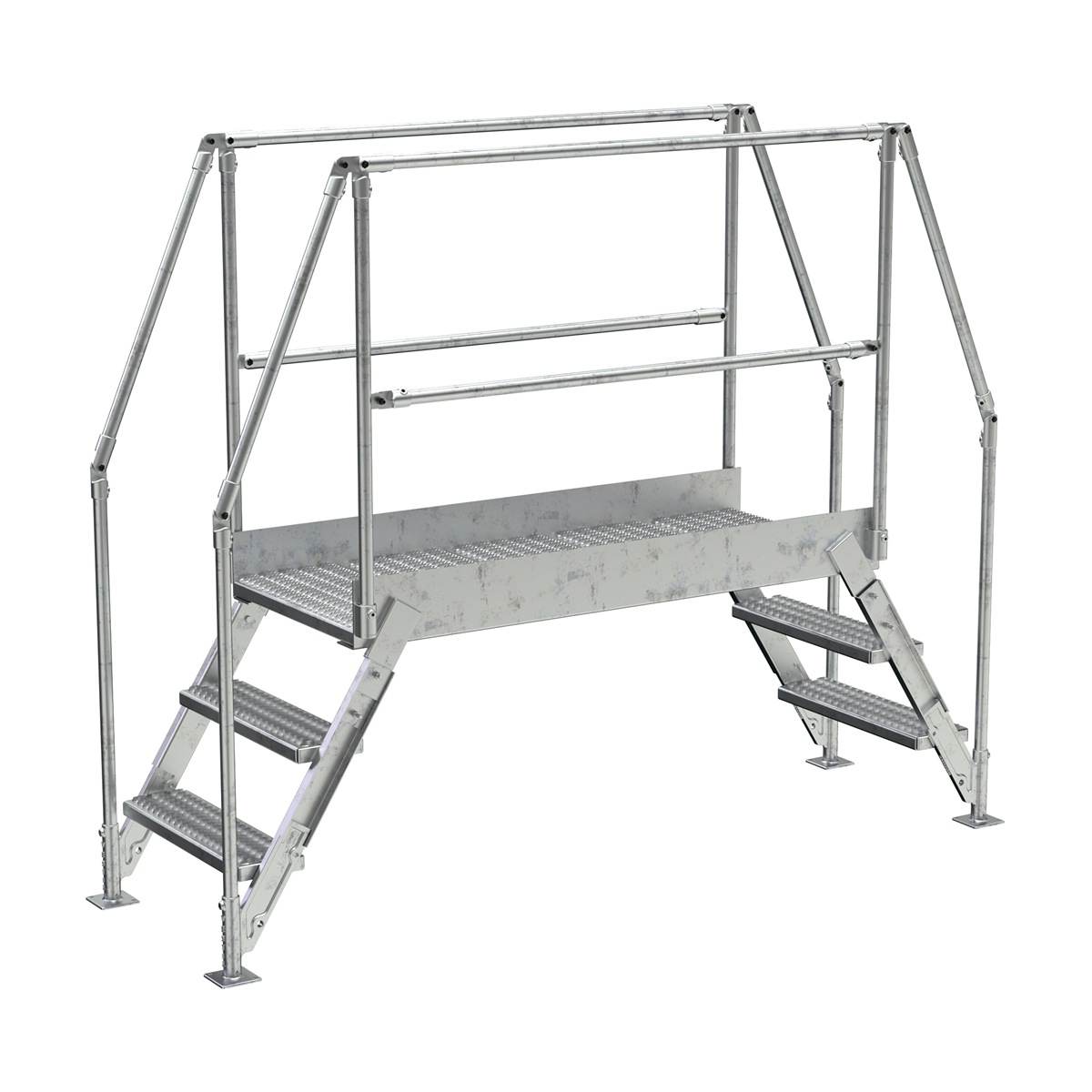

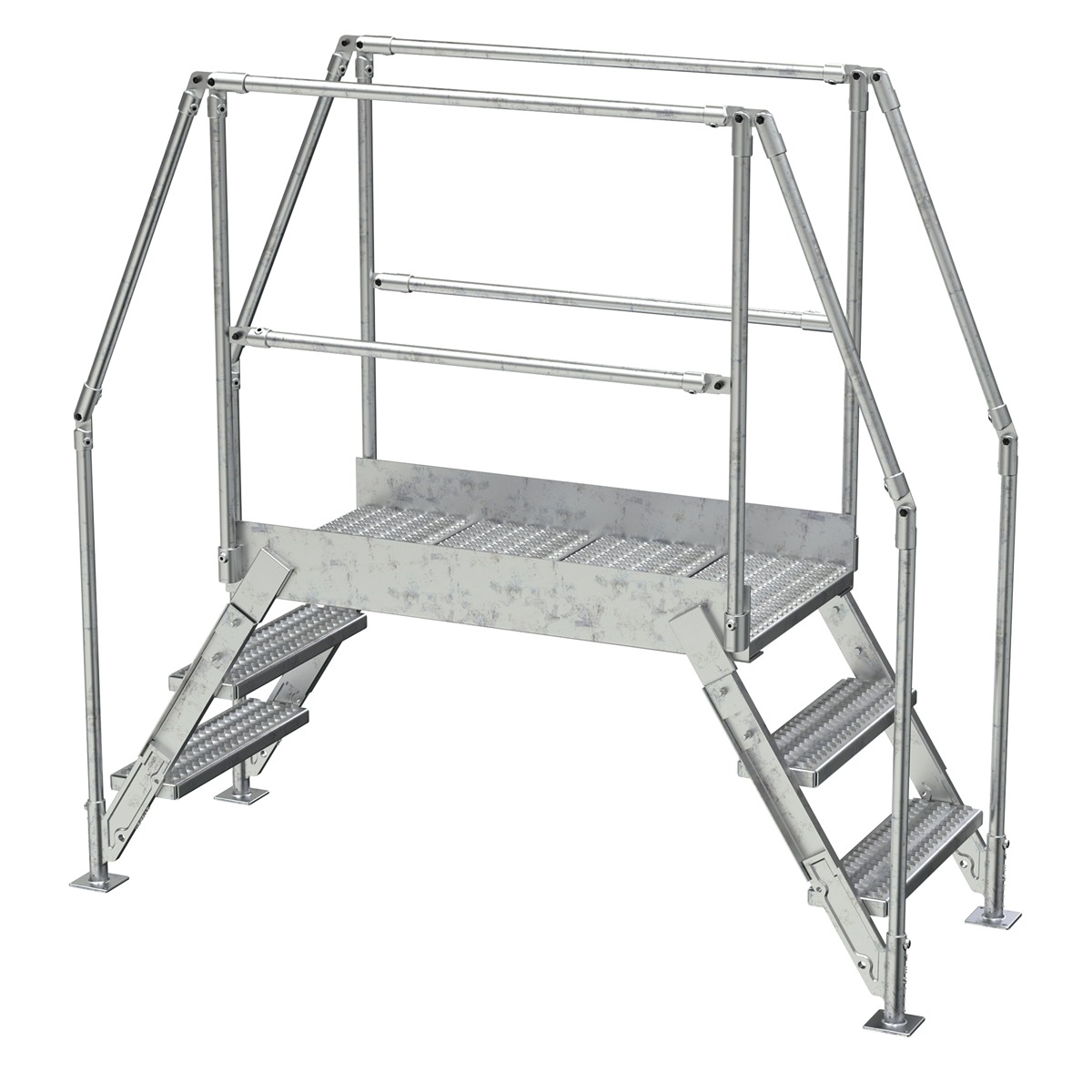

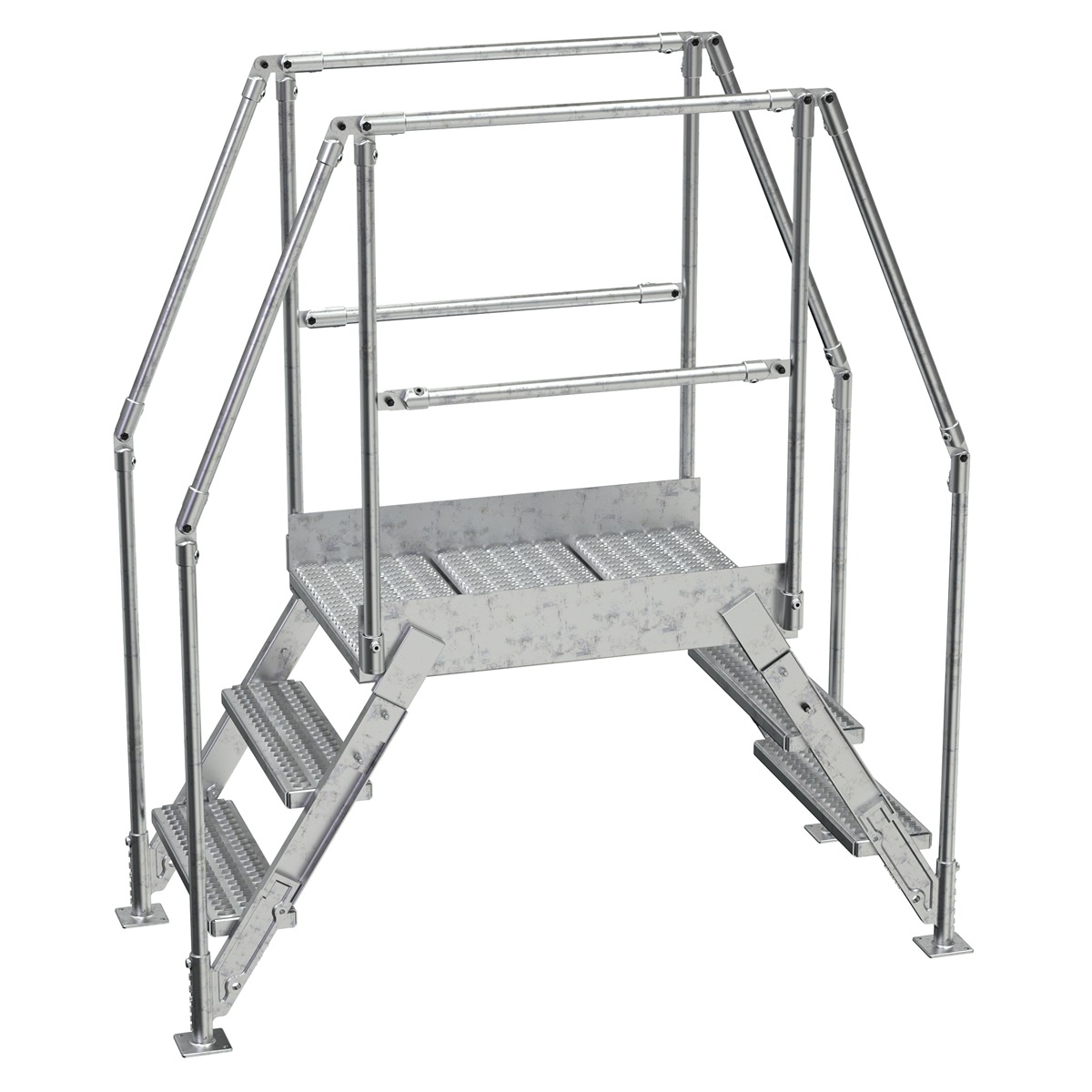

Vestil Galvanized Cross-Over Ladder 3 Step
Price range: $1,842.38 through $2,183.70
Description
The Cross-Over Ladder mounts where you need permanent access at crossover points. The upper platform features removable two sided handrail with mid-rail and fixed toeboards to prevent objects from rolling off. Serrated steps for extra grip and safety. Ground legs include floor mounting pads. Unit must be anchored to the floor. Cross-Over Ladder is all welded steel construction but can be knocked-down for storage and shipping. Hot Dip Galvanized finish.
- Meets OSHA 29 CFR 1910.24 and ANSI A14.7 standards
- Serrated steps for extra grip and safety
- 100% welded steel construction offers rugged long lasting use
- Ground legs include rubber feet for safety and stability
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 54.5" X 72.15", 66.5" X 72.15", 78" X 72.15", 90.5" X 72.15" |
Specification
Specification
- Uniform Capacity (lb.): 500
- Platform Height (in.): 30
- Platform Width (in.): 23-1/2
- Handrail Height (in.): 42-5/8
- Mid-Rail (in.): 21
- Toeboard (in.): 4
- Step Width (in.): 23-1/2
- Step Depth (in.): 7
- Step Spacing (in.): 10
- Step Angle (degrees): 58
- Number of Steps: 3
- Clearance Span Height (in.): 28-1/4
- OSHA: 29 CFR 1910.24
