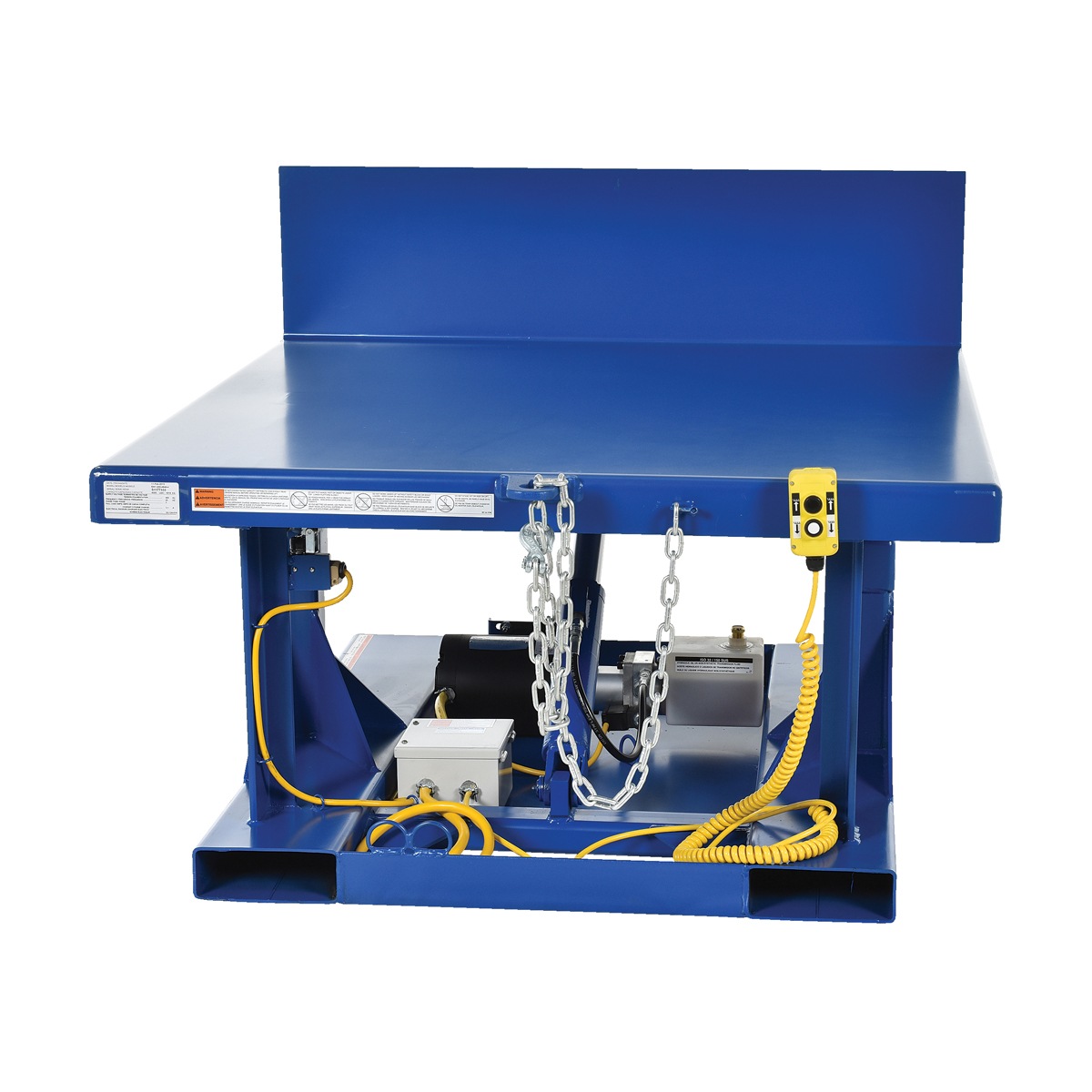

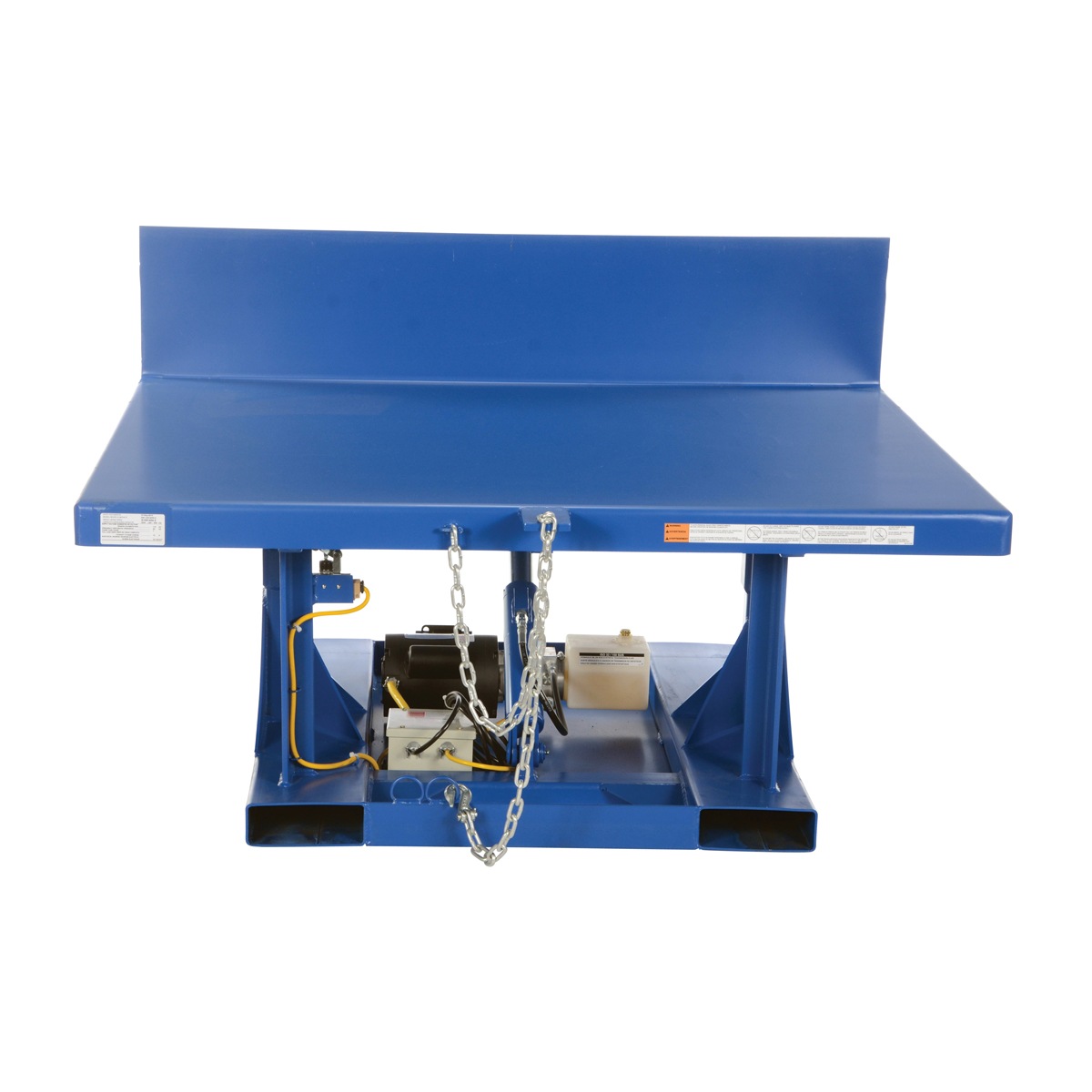

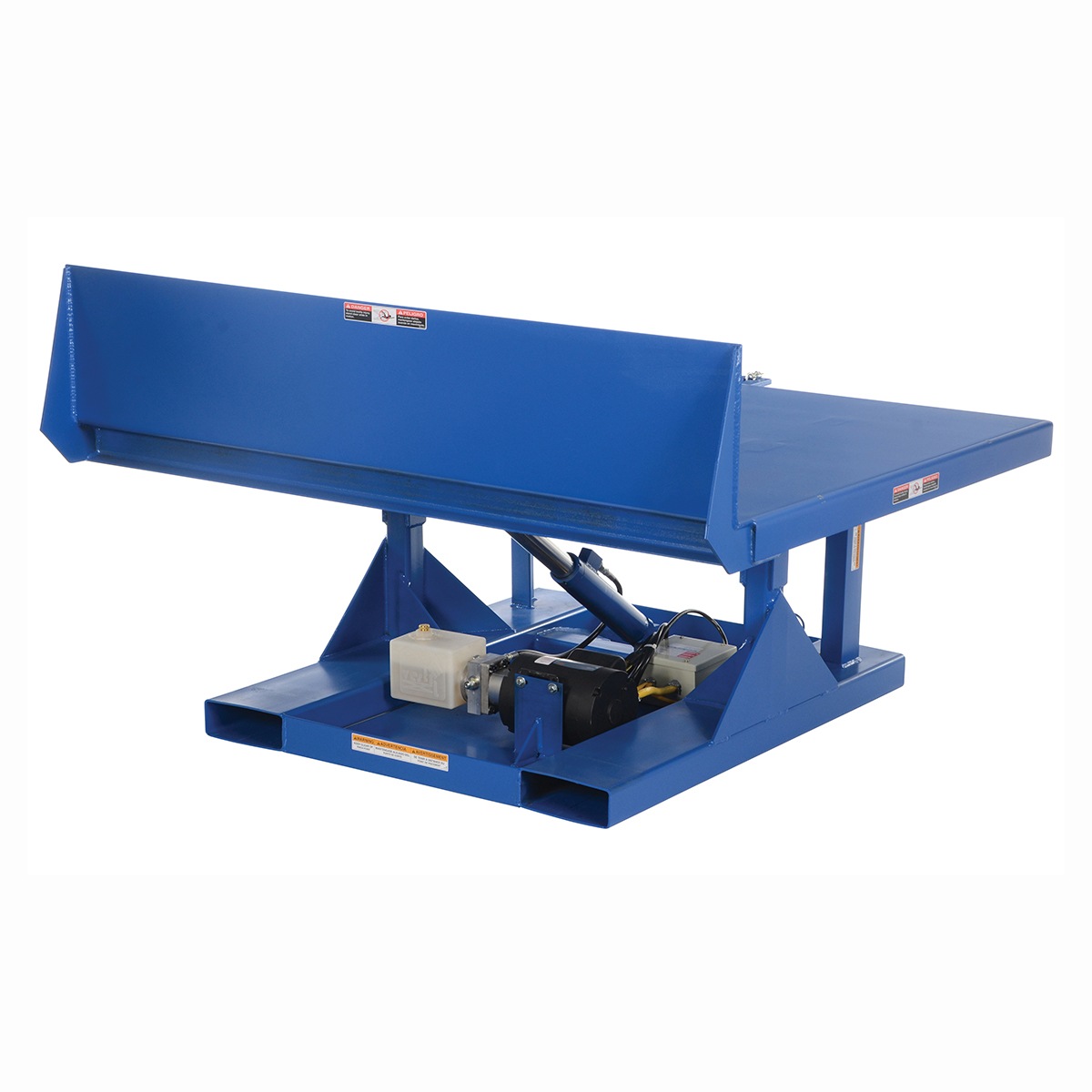

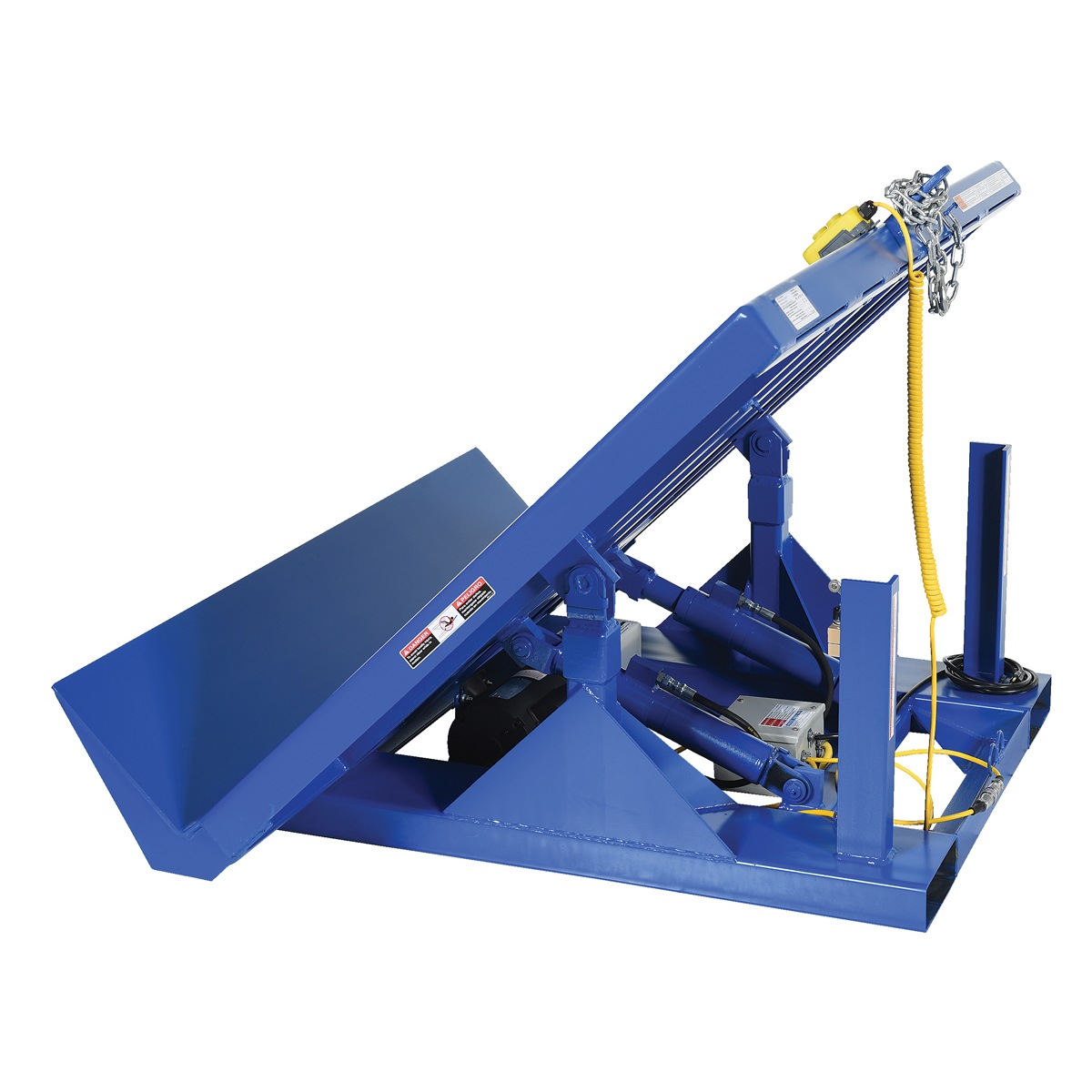

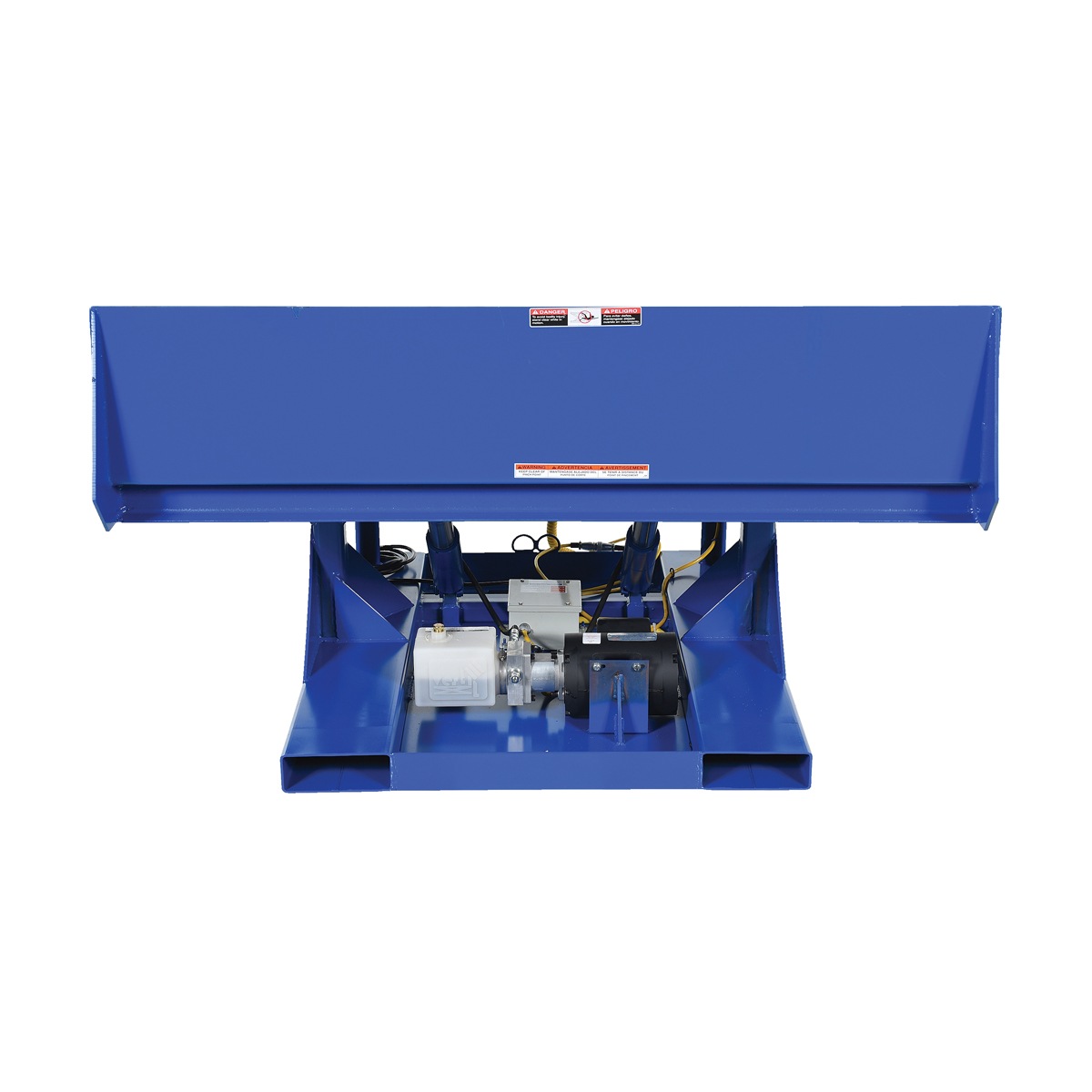

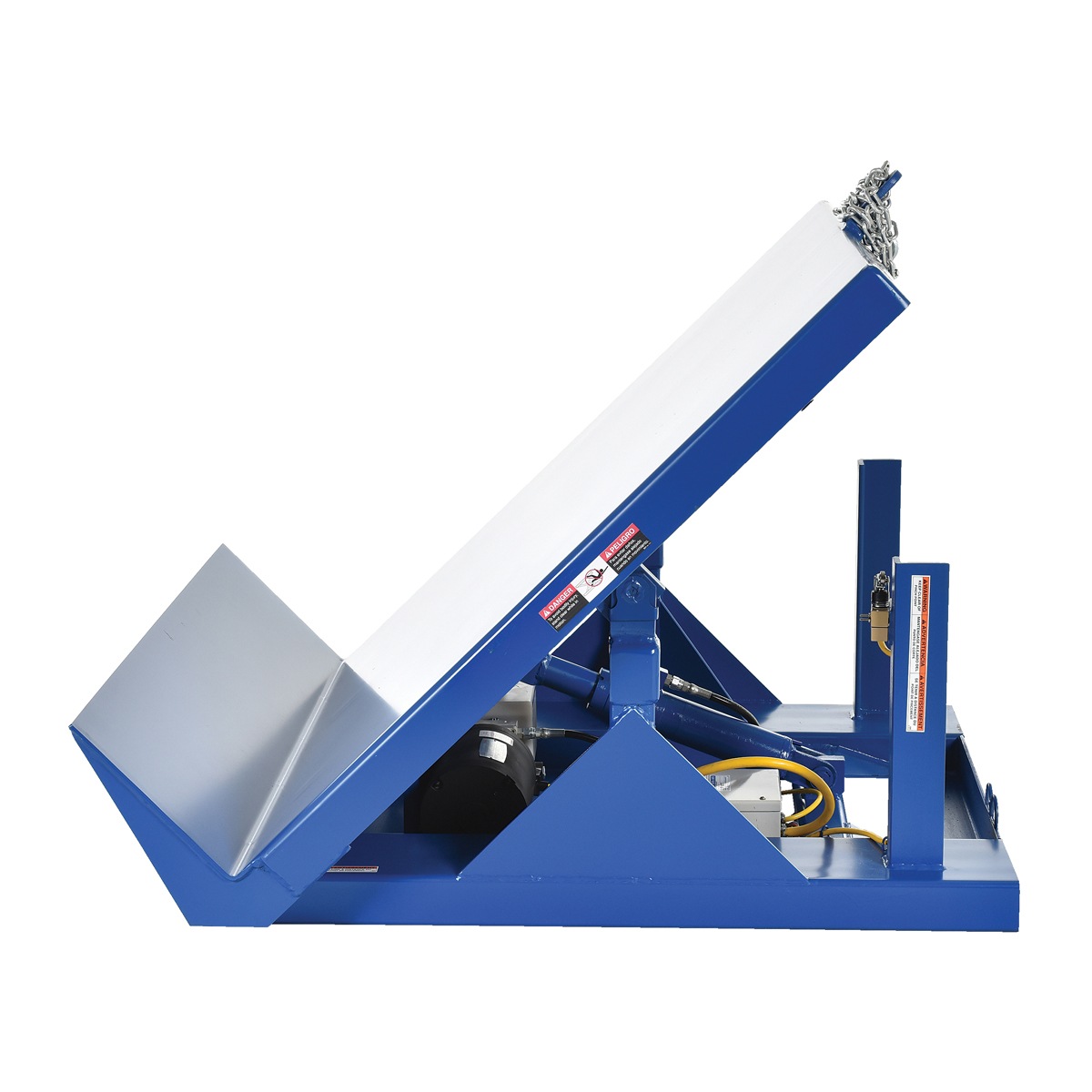

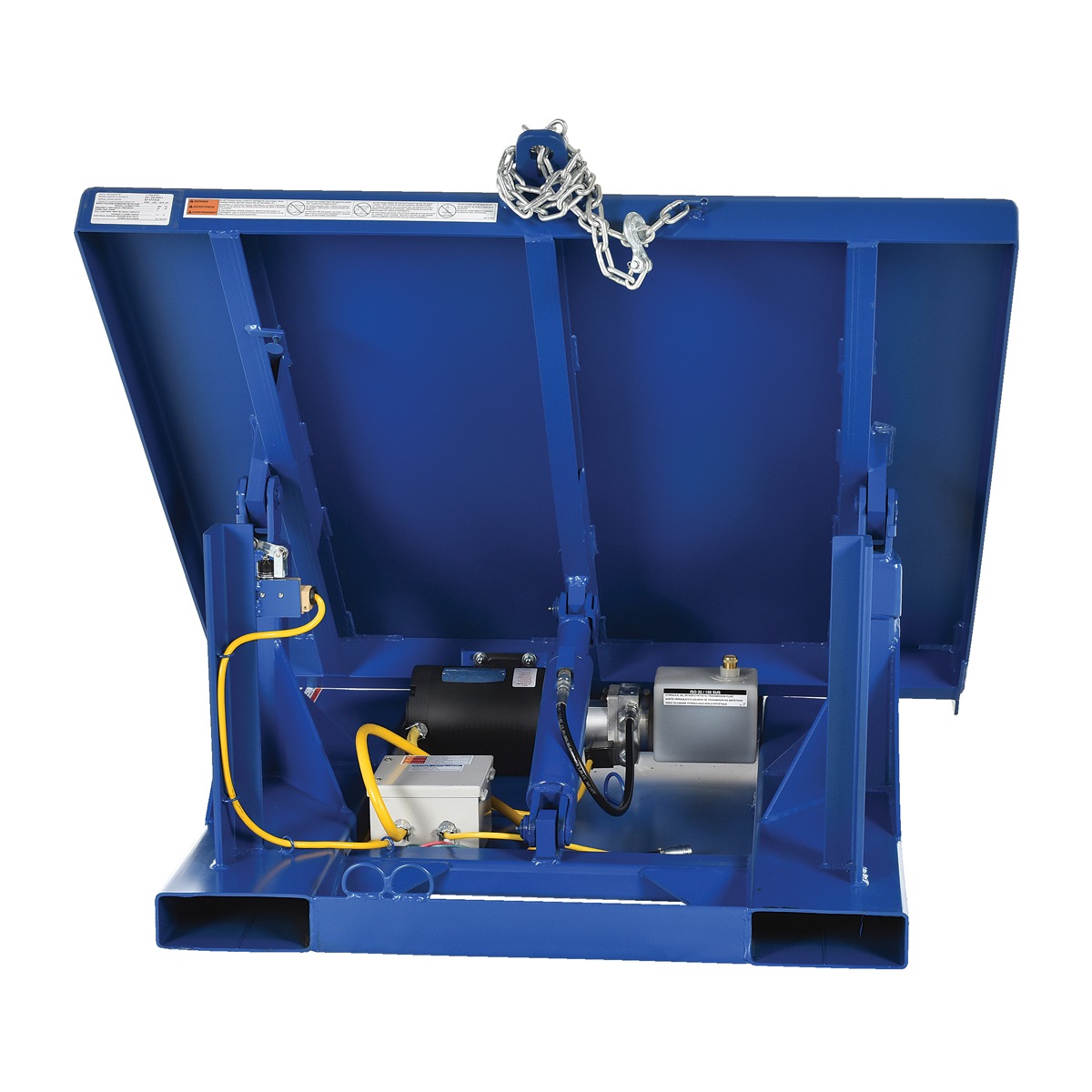

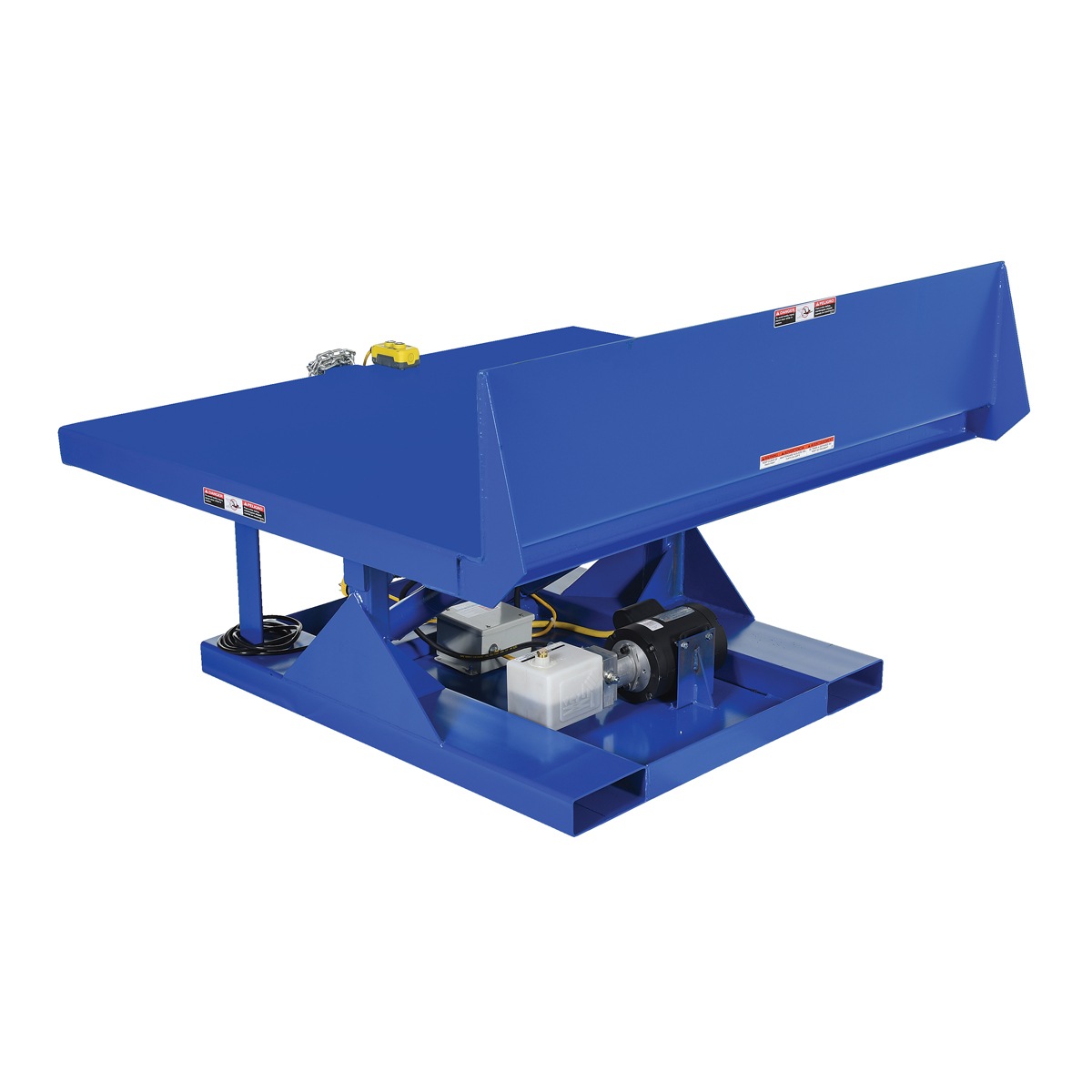

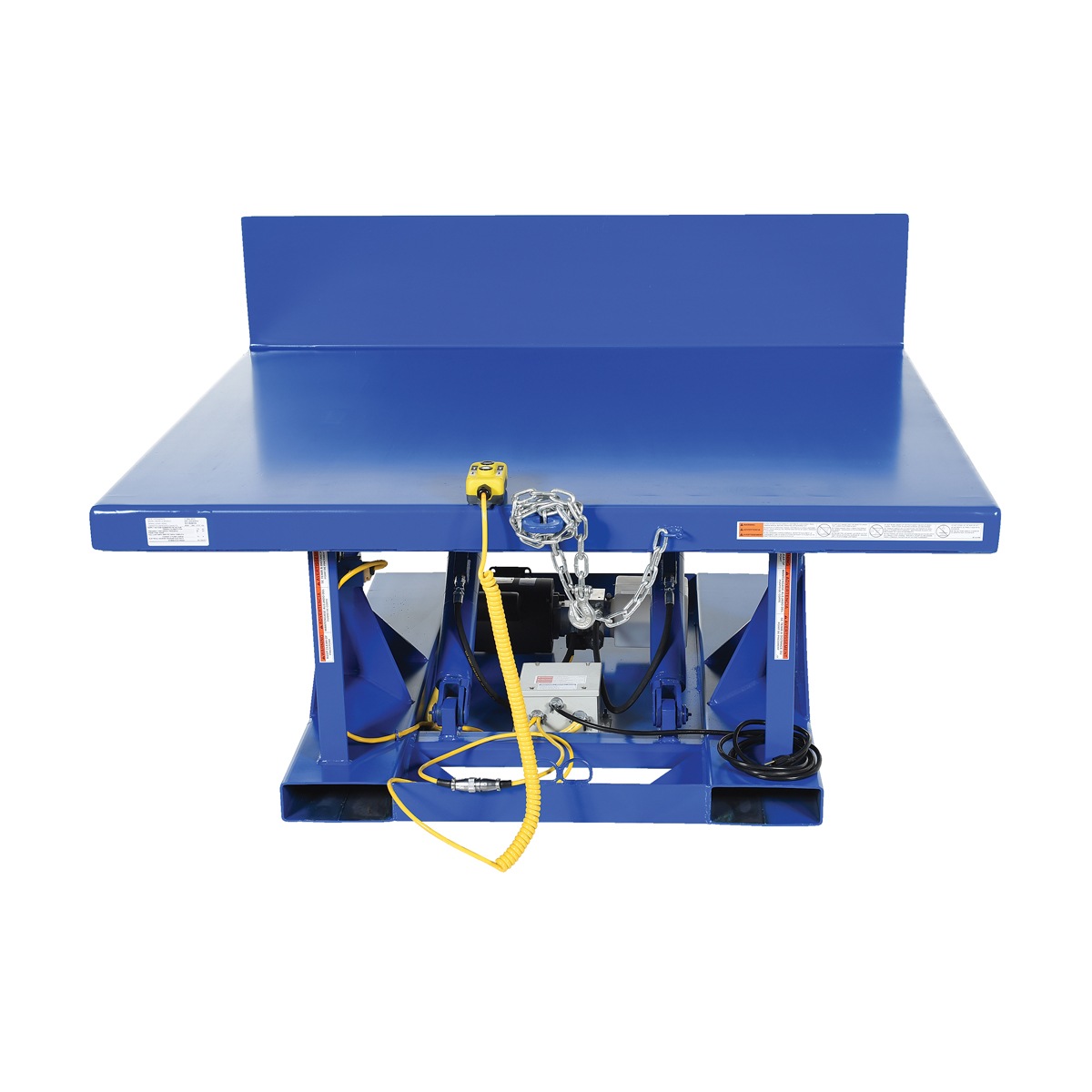

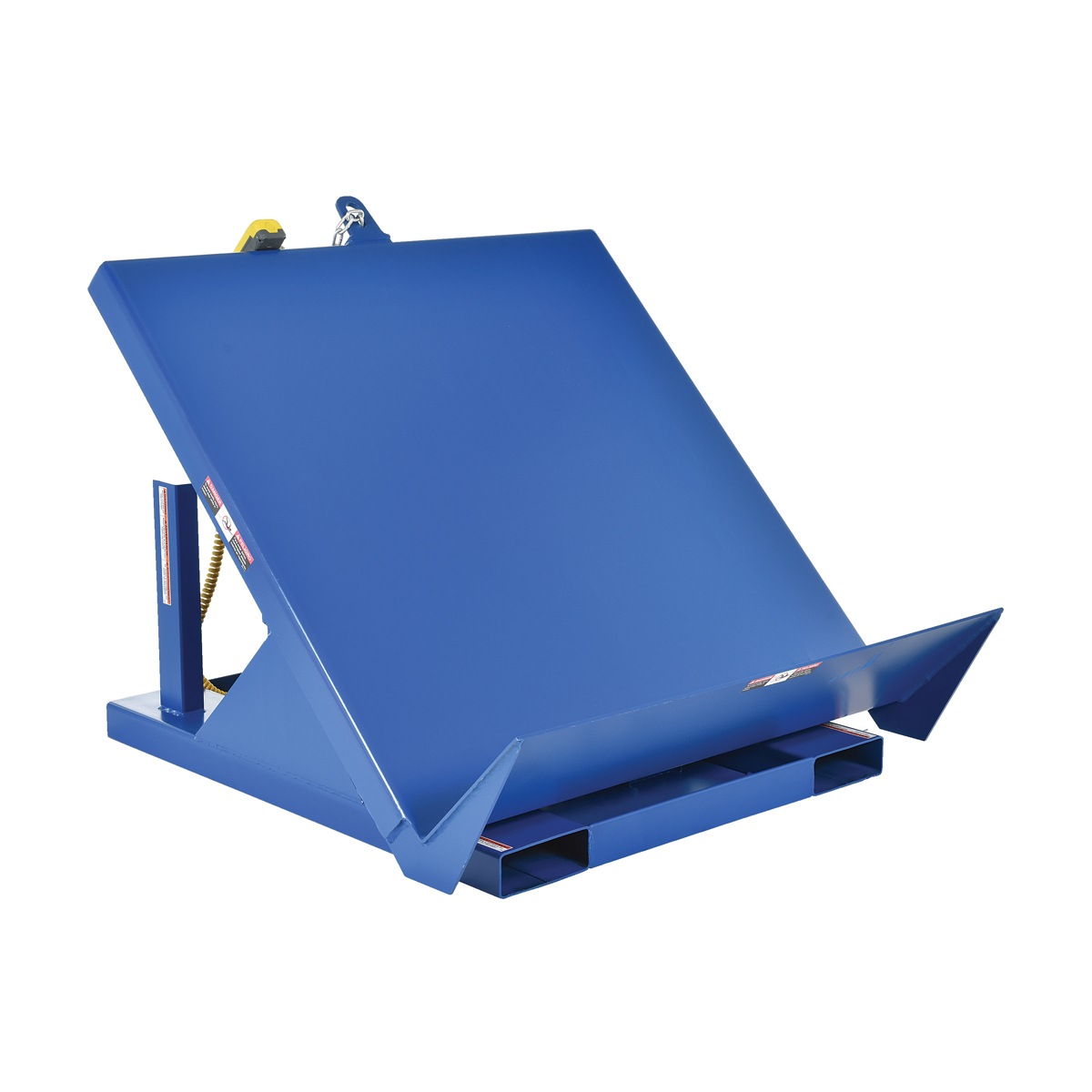

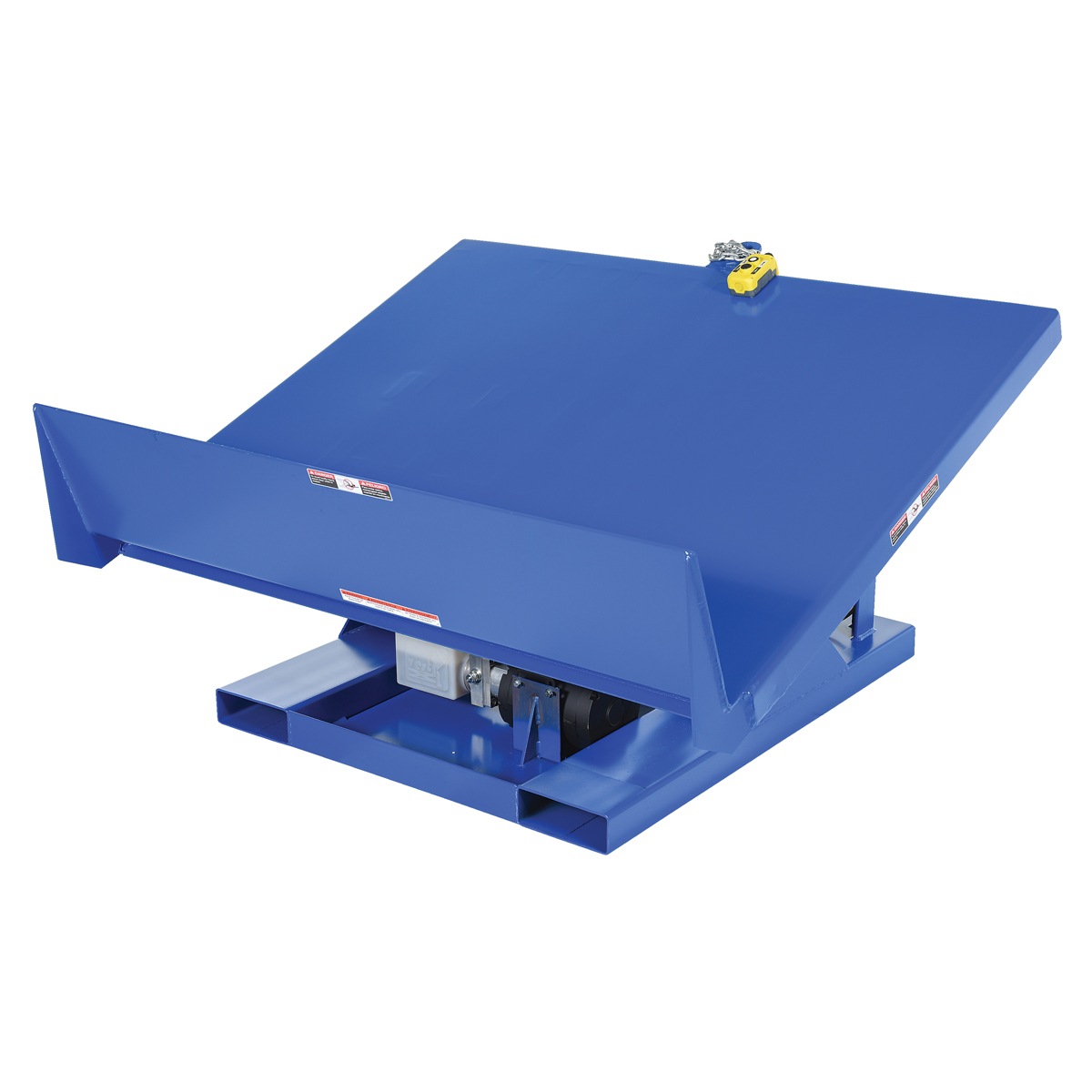

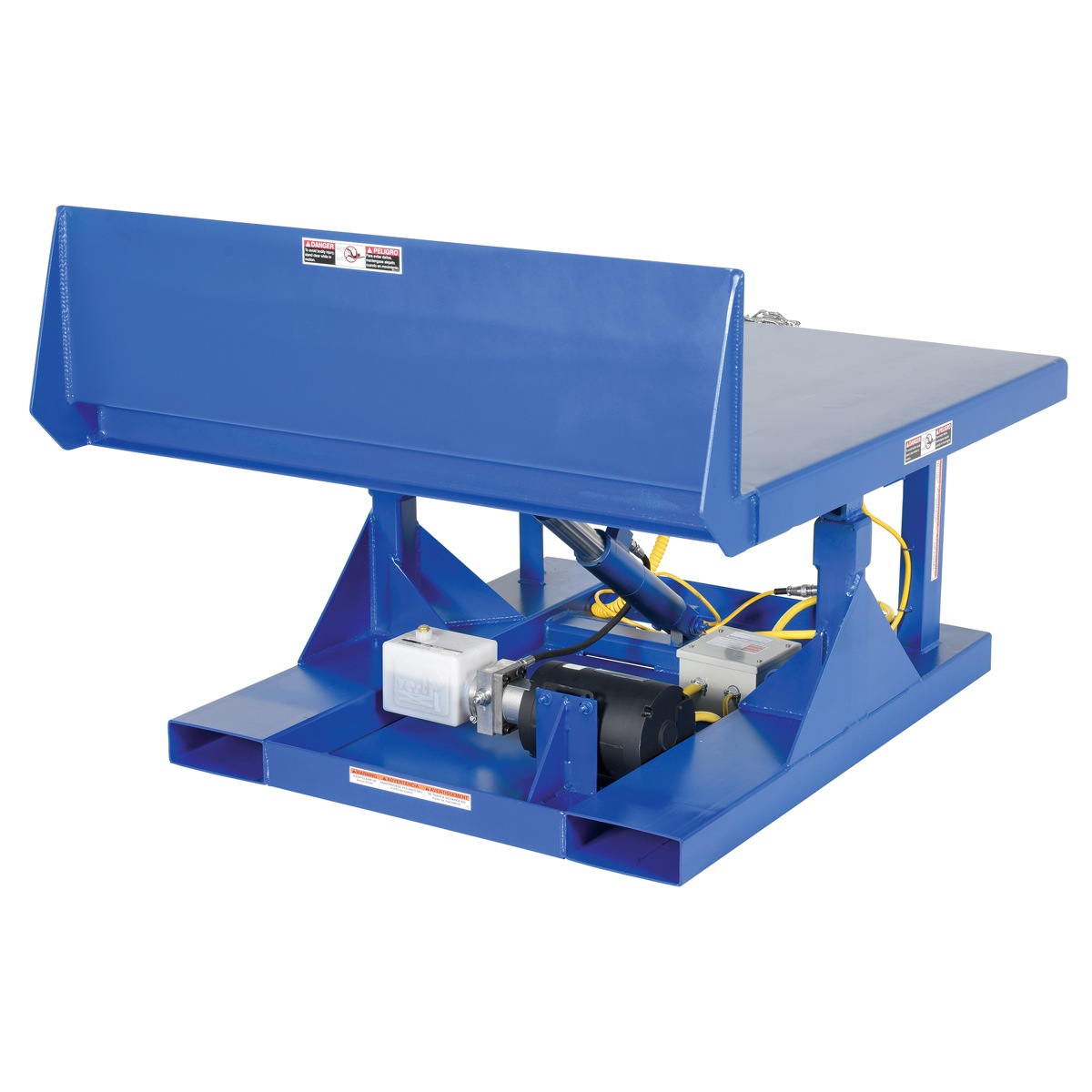

Vestil Efficiency Master Tilt Table 2K

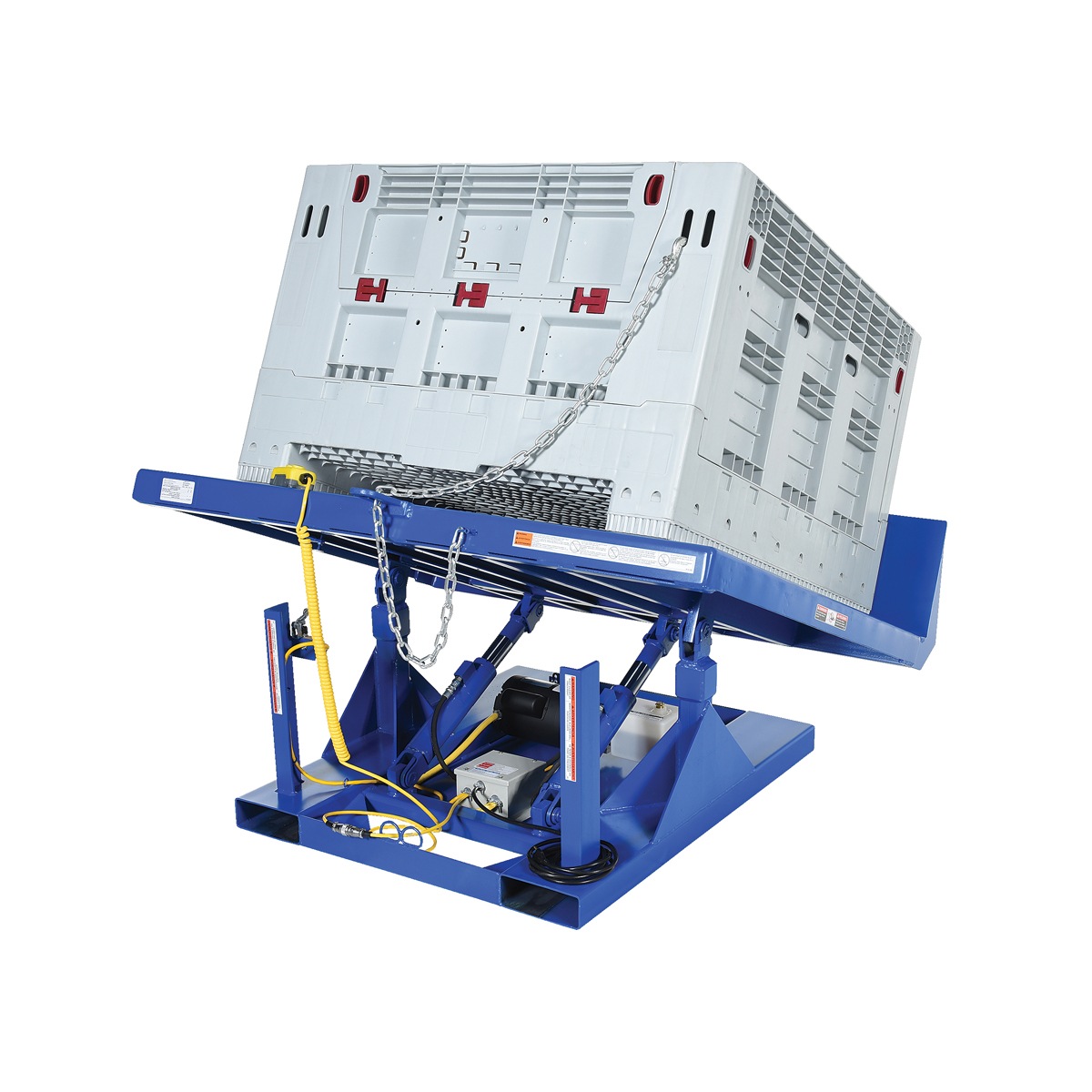

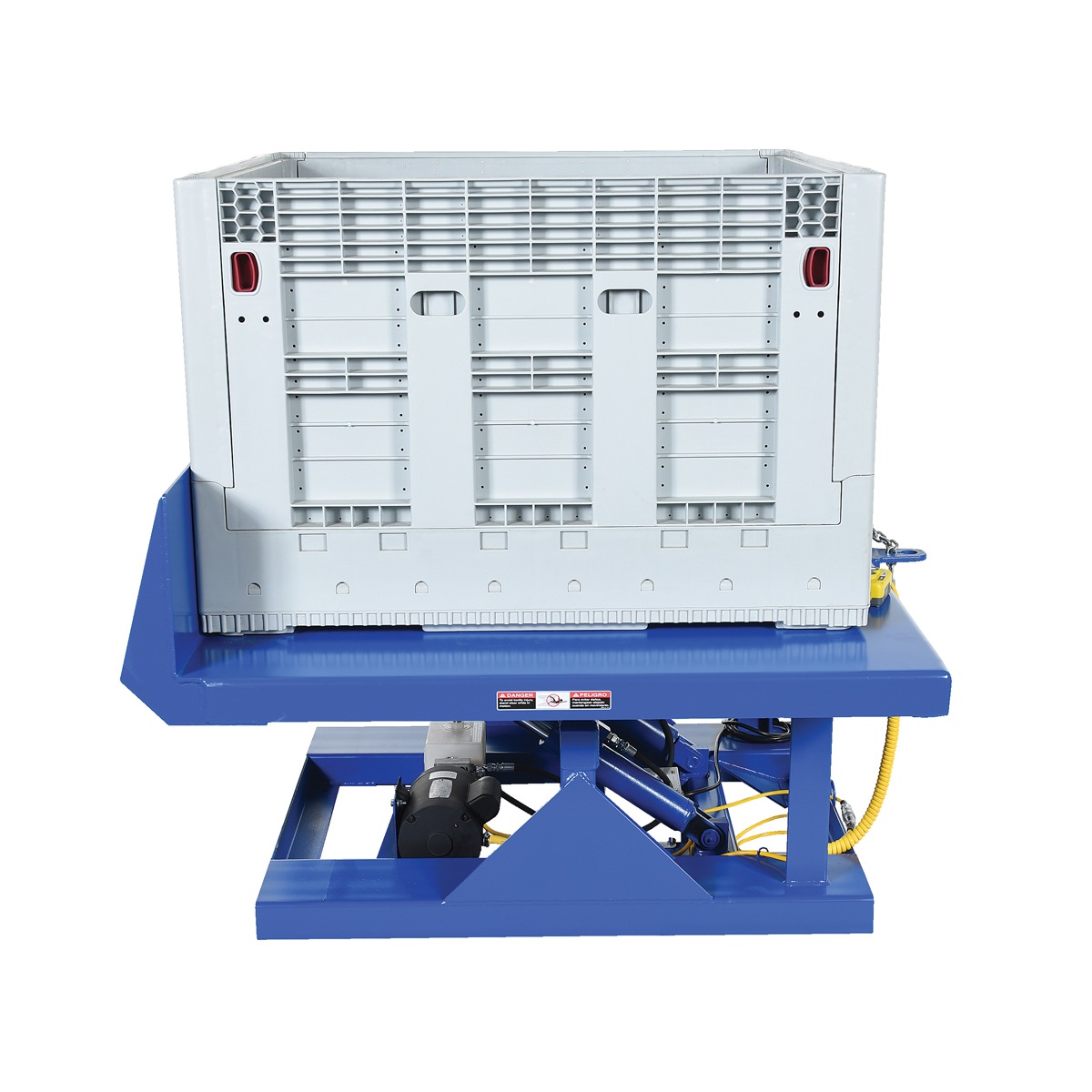

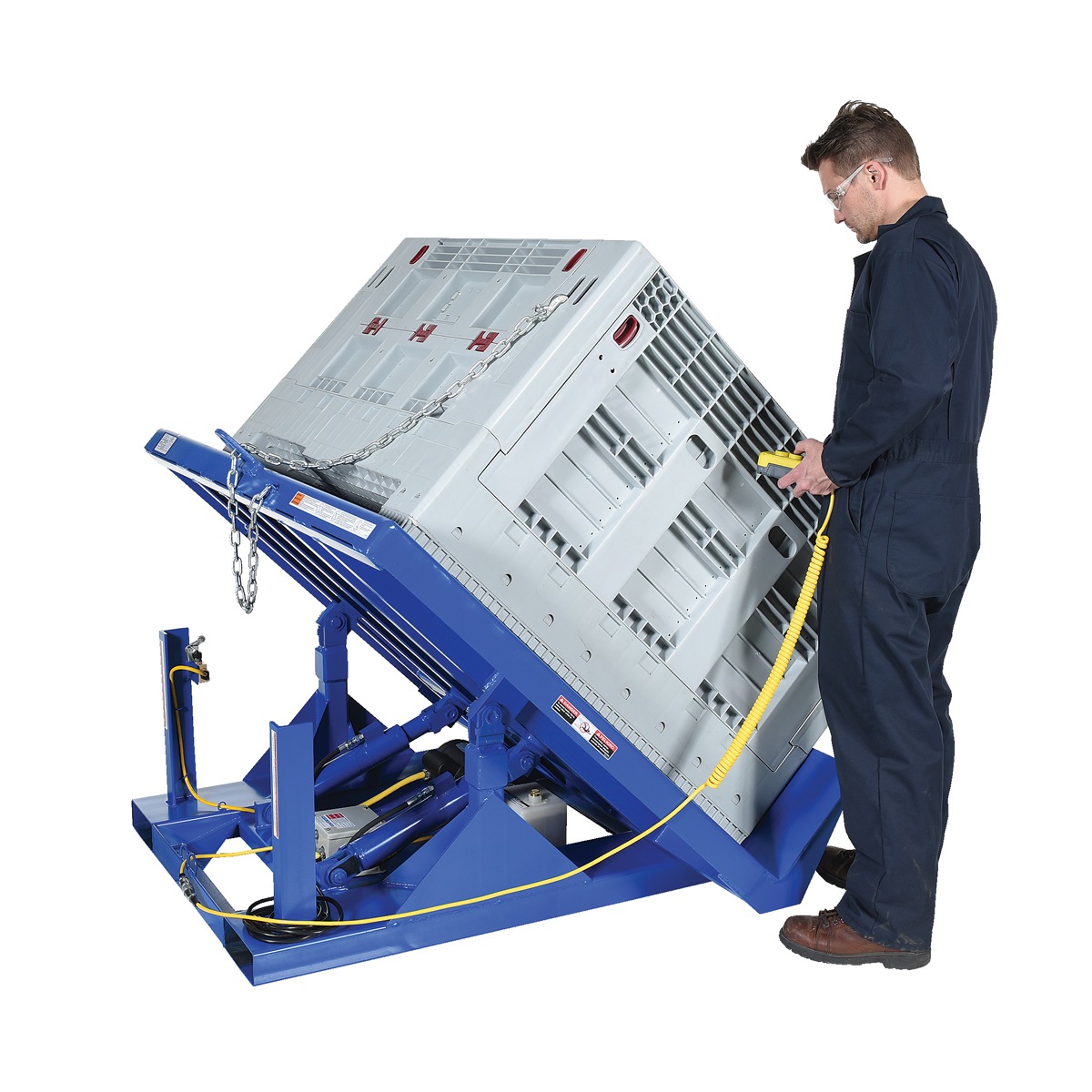

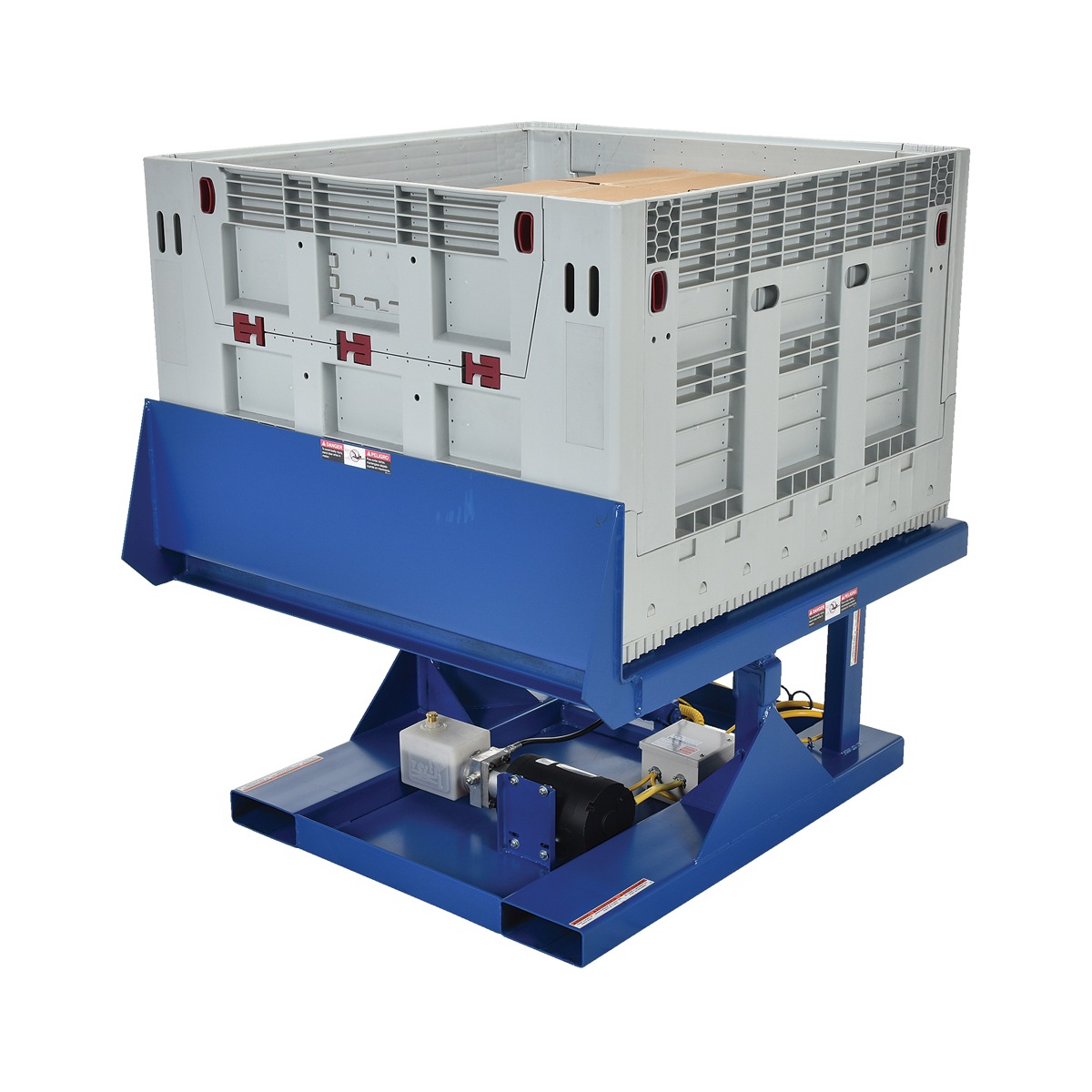

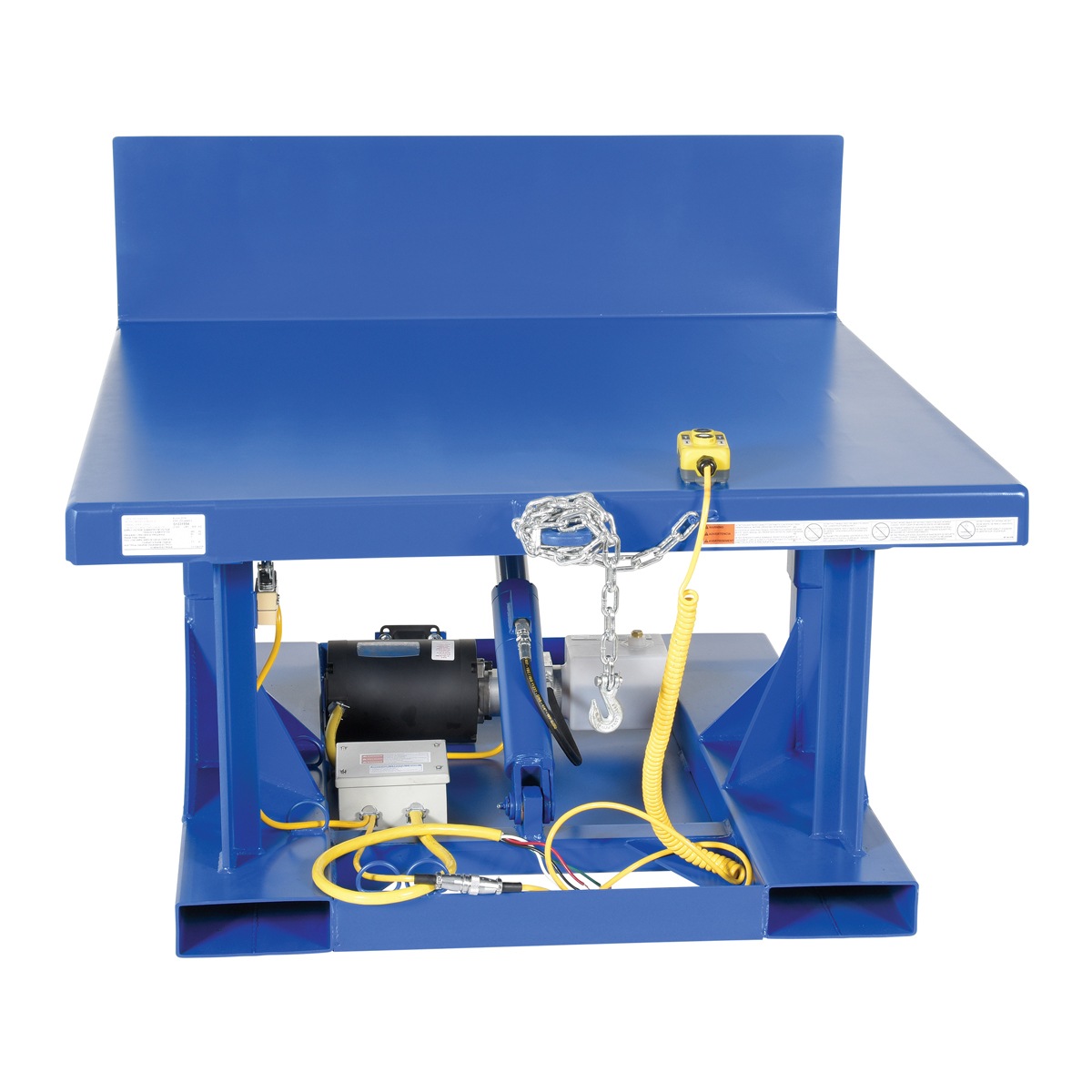

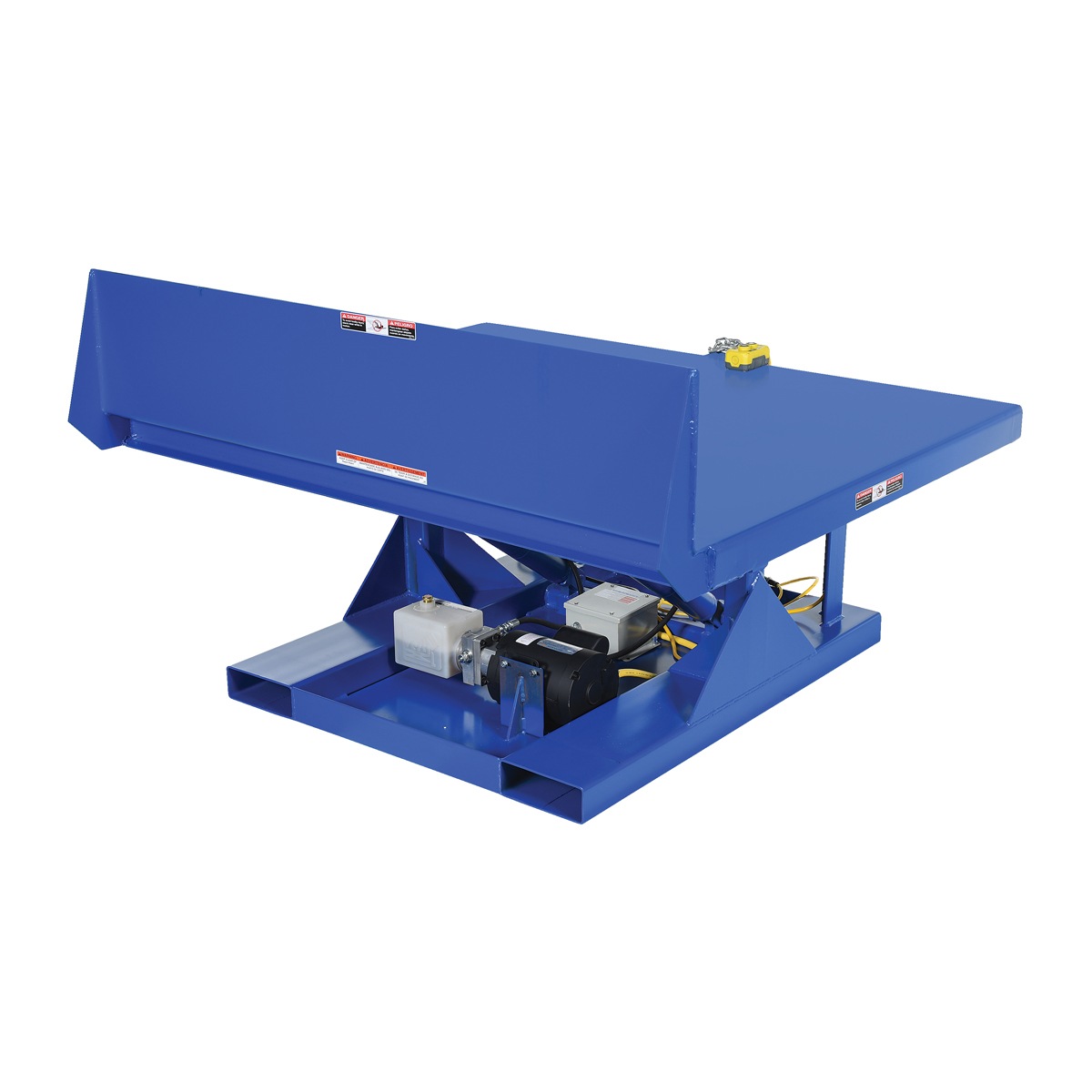

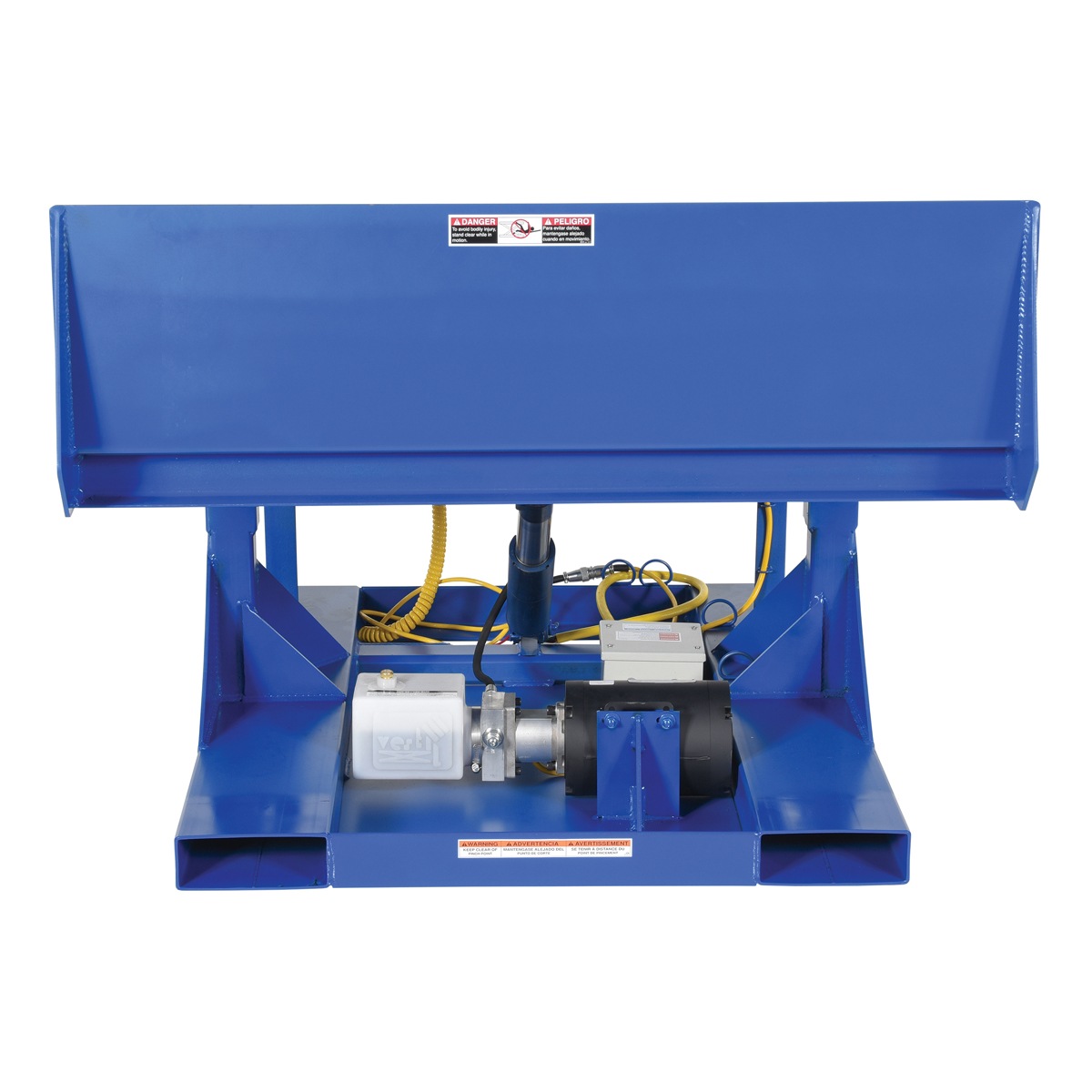

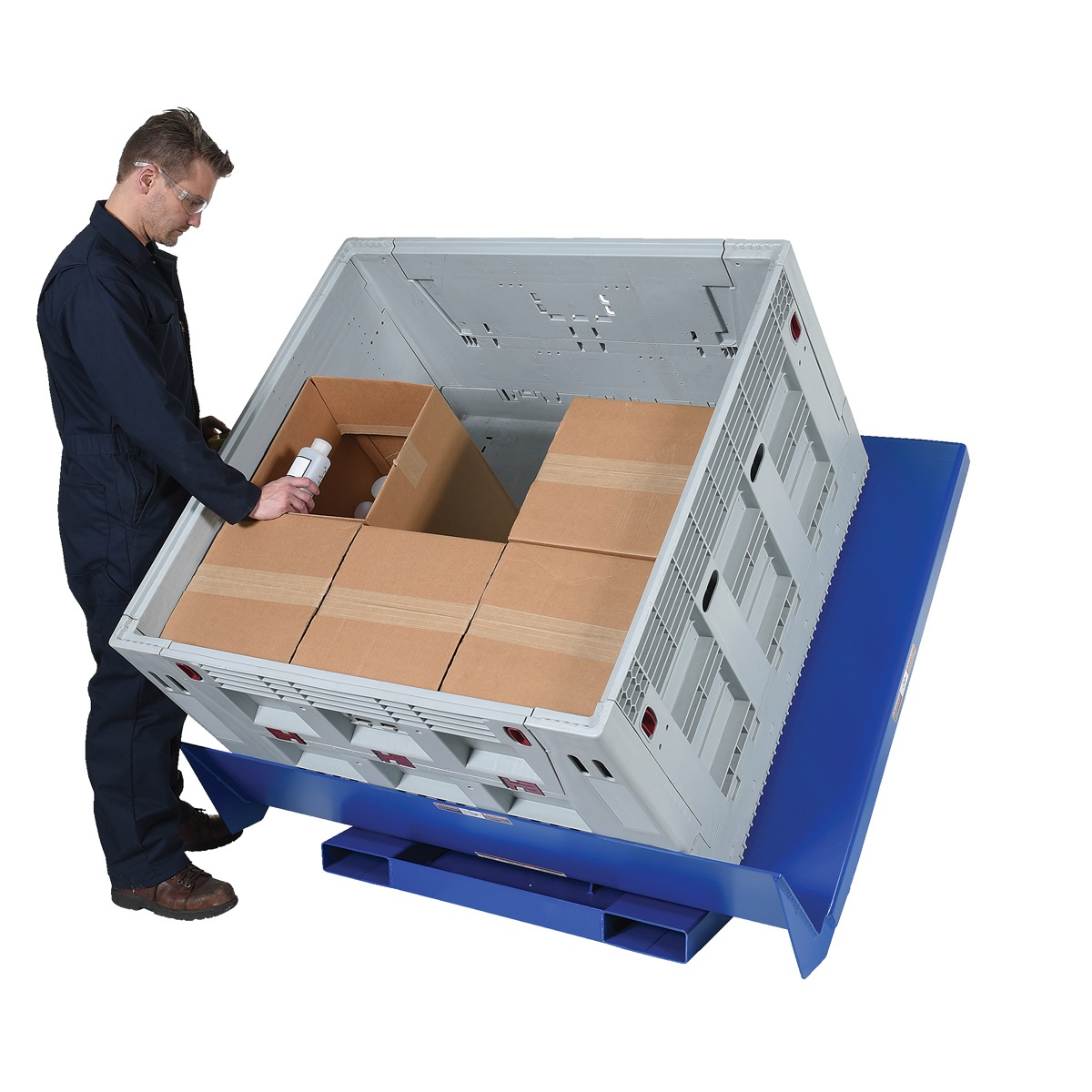

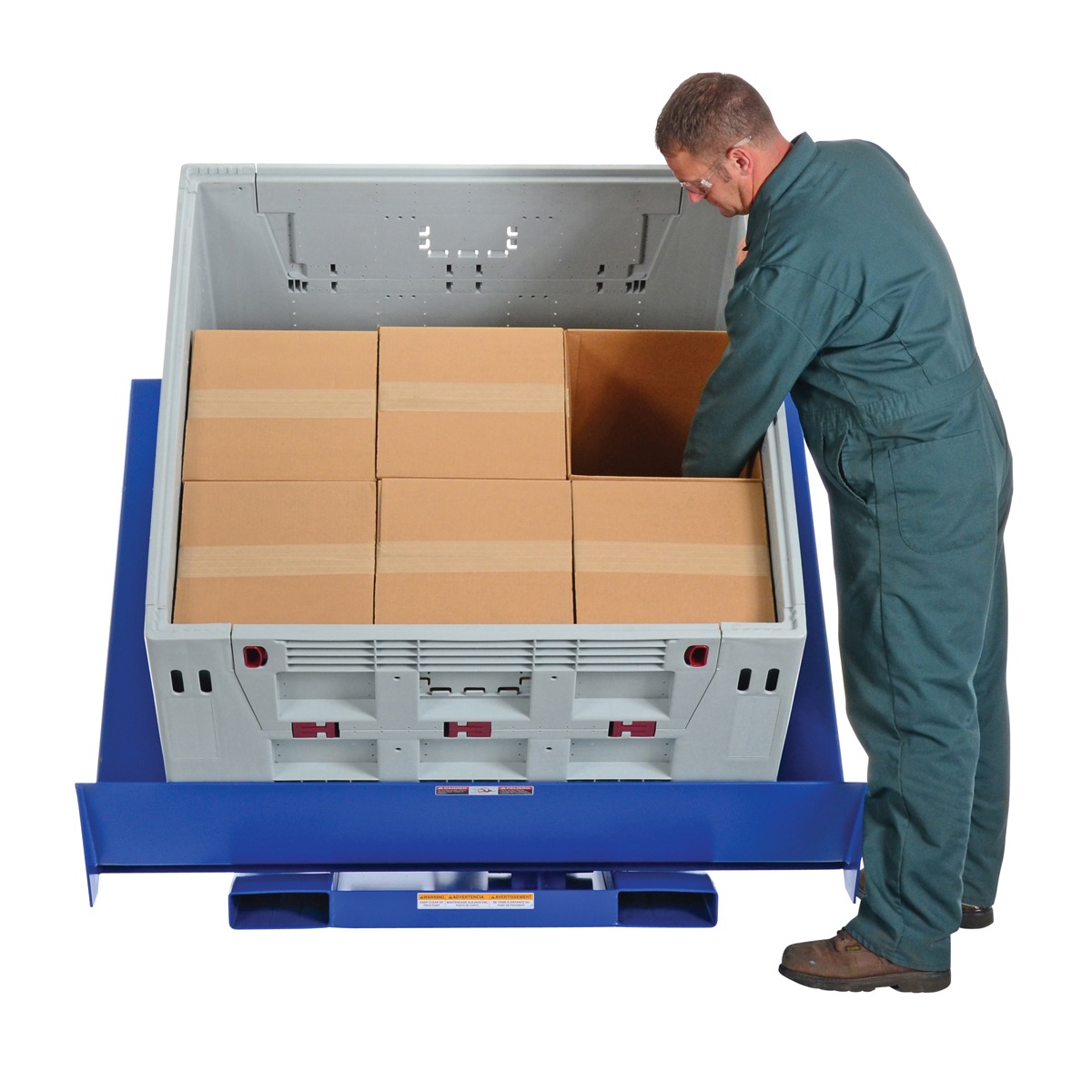

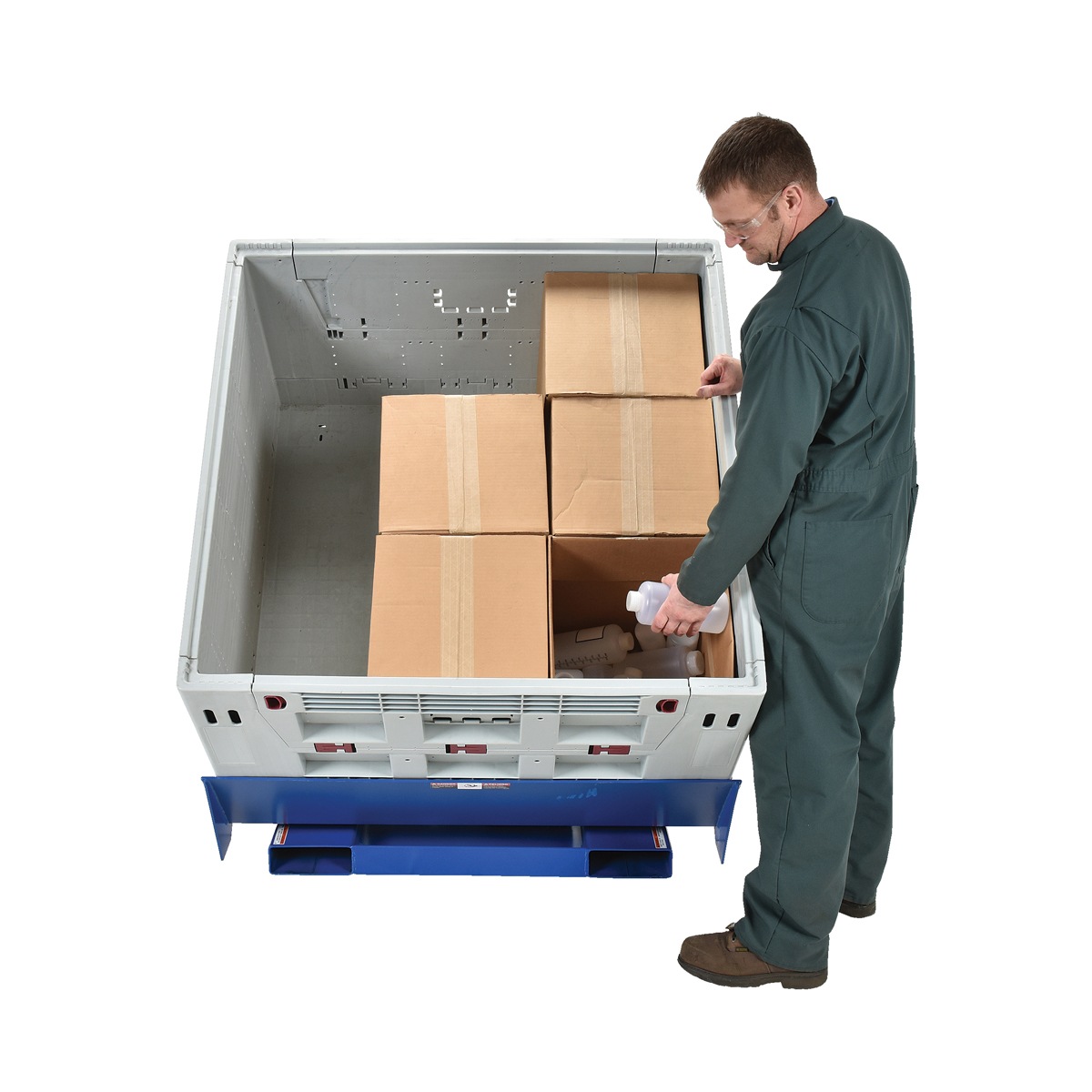

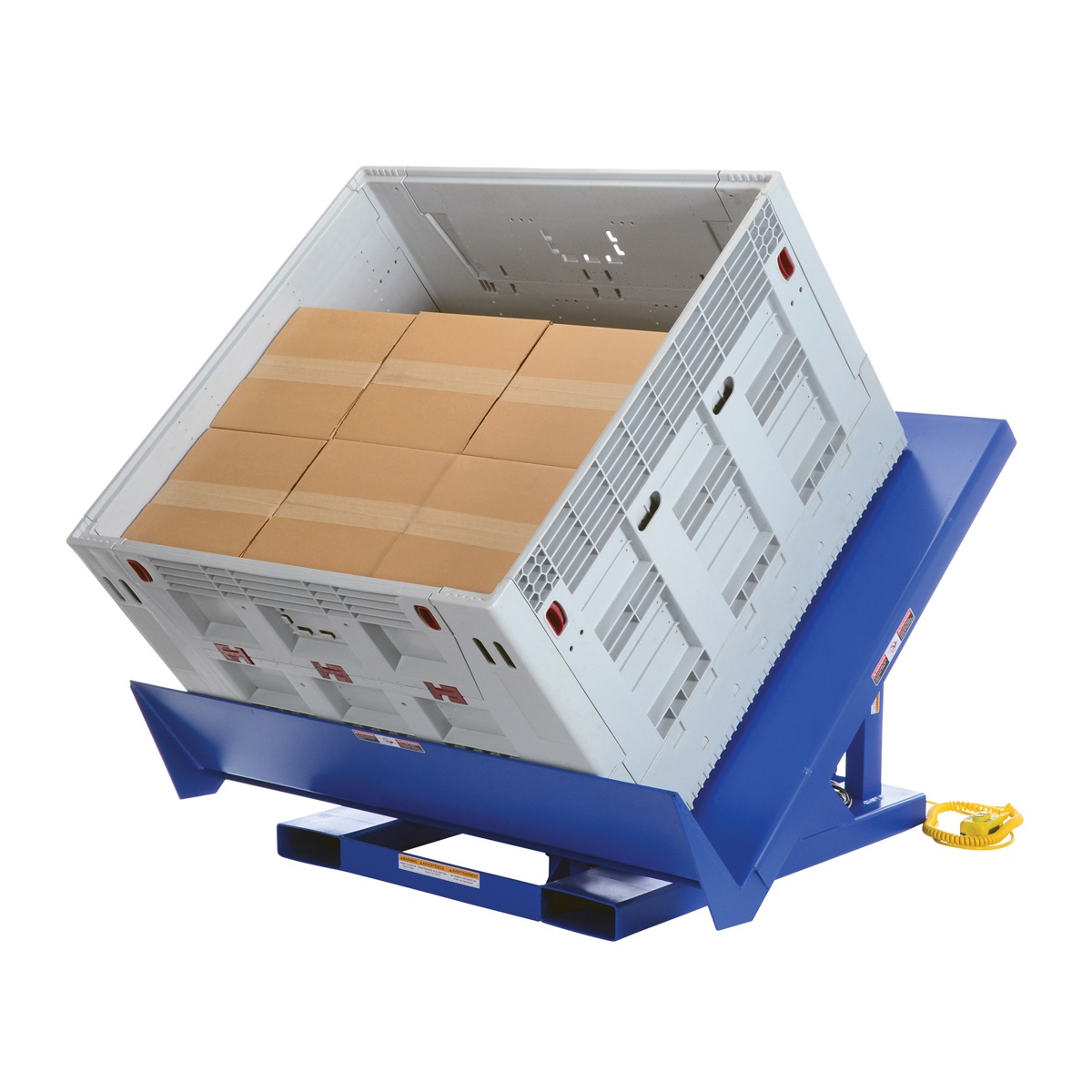

The Efficiency Master Tilt Table tilts pallets, crates, boxes, or baskets to facilitate easy container loading or unloading. The table features all welded steel construction for years of durability. The unique design minimizes pinch points to meet OSHA requirements. This Tilt Table is equipped with an industrial quality motor that delivers the best torque with minimal amperage draw for maximum life with optional voltages available. The Tilt Table has a standard push button hand control. Base includes fork pockets for portability with forklift.

• Ergonomic design reduces fatigue and back injuries increasing productivity
• Welded steel construction provides long lasting rugged use

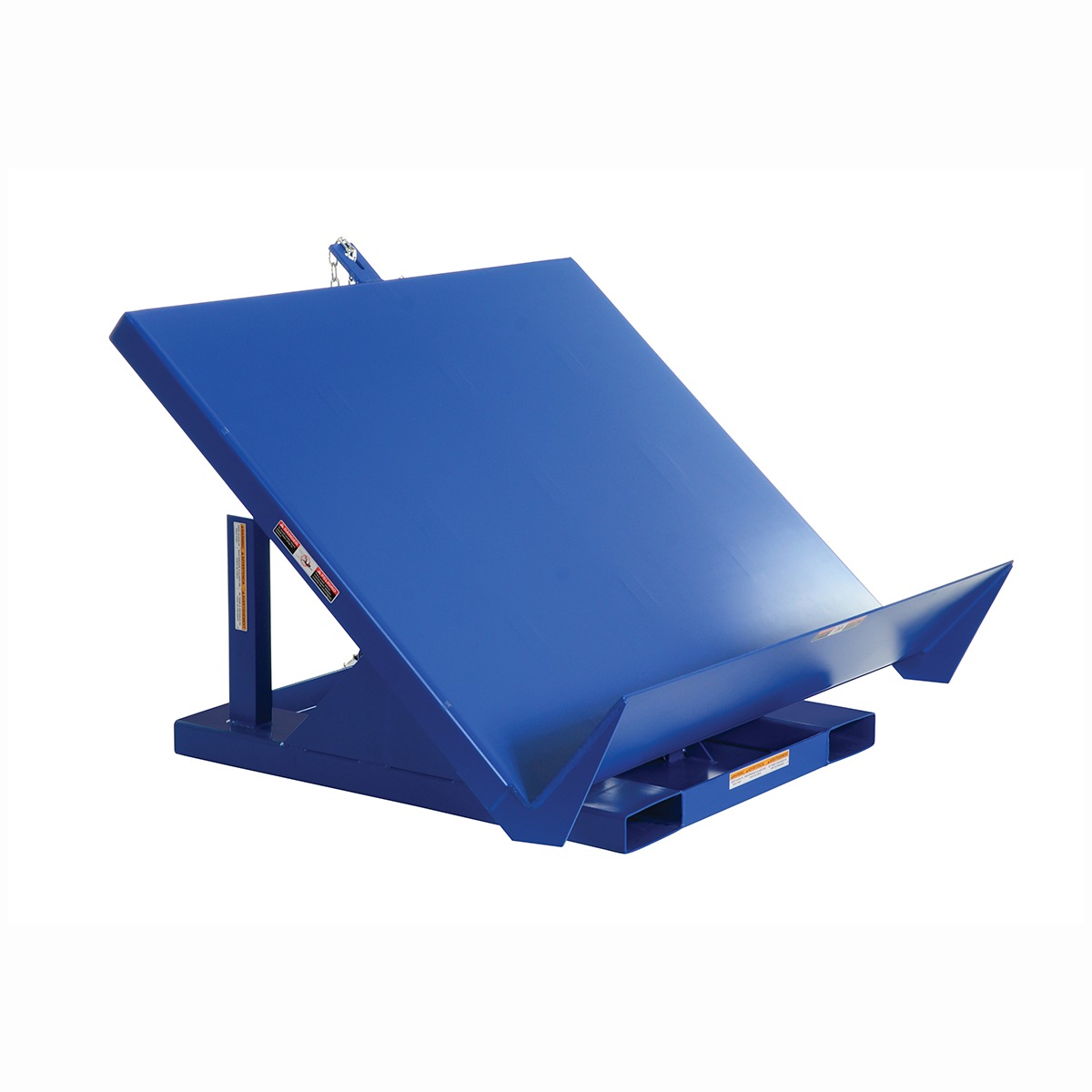

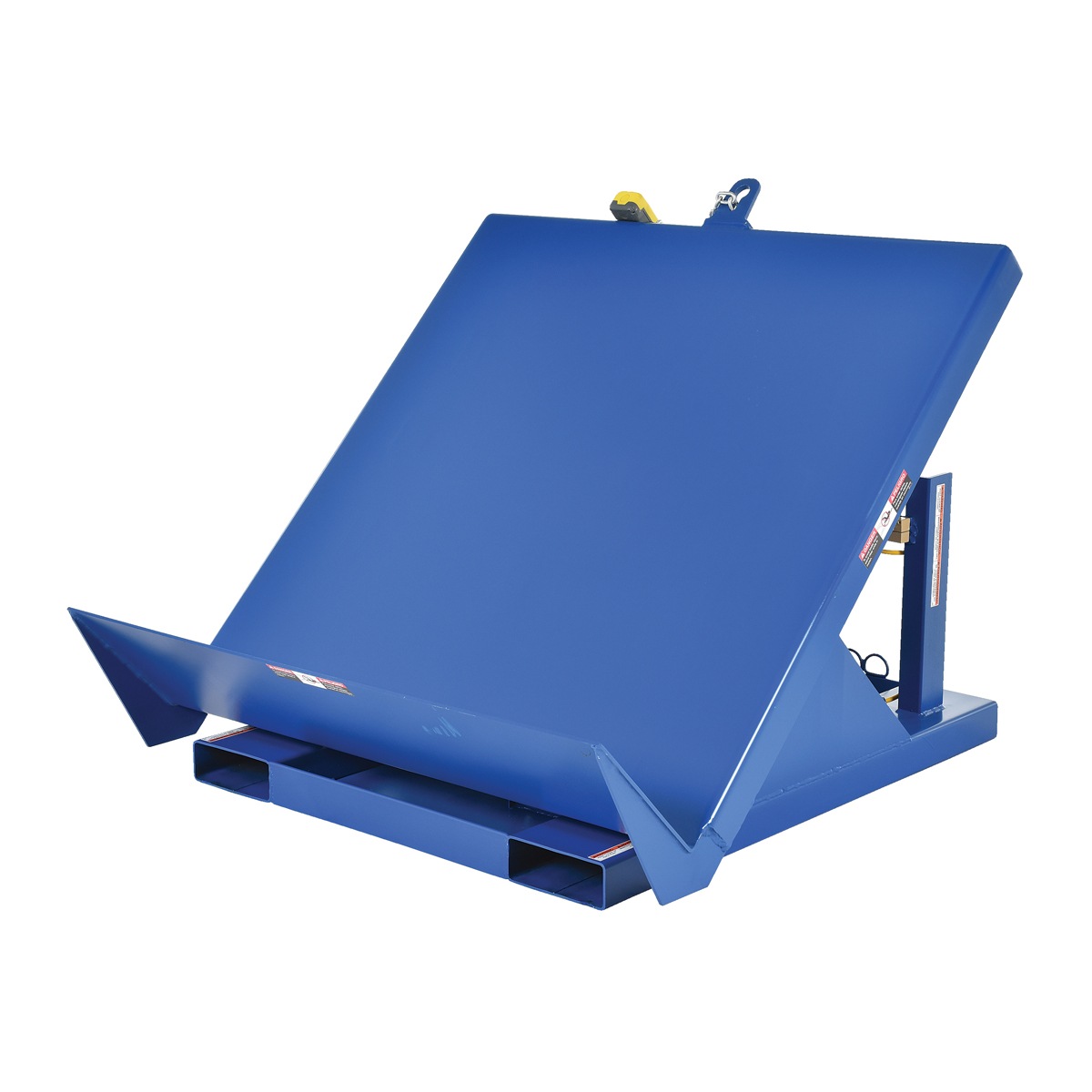

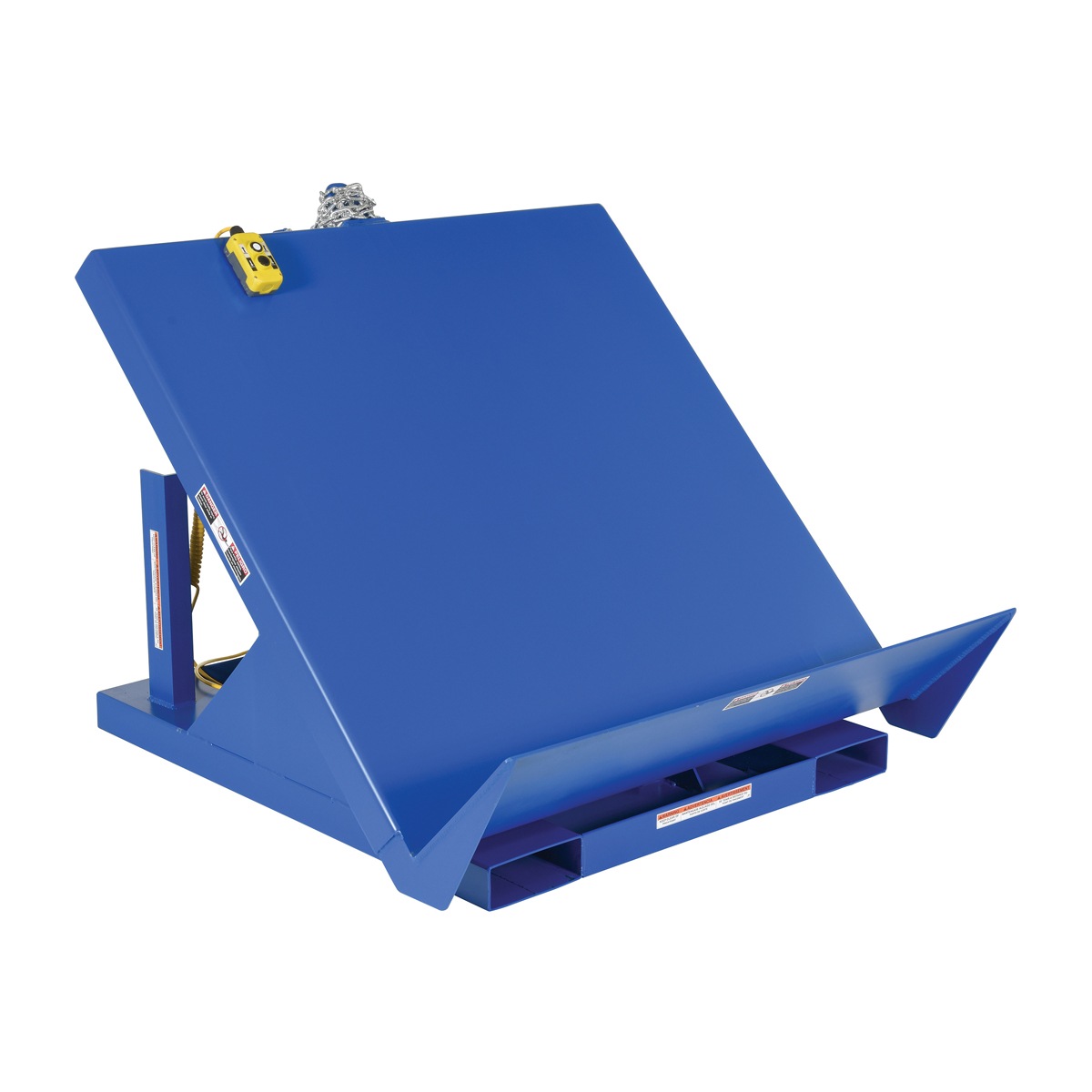

• 45° tilt angle offers better ergonomics and operator comfort
• Platform end lip safely supports containers when tilted

Specification

• Maximum Tilt Degree: 45
• Horizontal Height (in.): 24
• Lip Height (in.): 12
• Voltage/Phase: 460/3
• Motor Horsepower: 2
• Motor Frame: 56
• Push Button Hand Control Voltage: 24
• ANSI: MH 29.2
• Fork Pocket Width (in.): 7-1/2
• Fork Pocket Height (in.): 2-1/2
• Fork Pocket Center (in.): 30

Documents

Click for Manual

Click for EM1-200-4250-2 Approval Drawings

Click for EM1-200-4250-4 Approval Drawings

Click for EM1-200-4250-6 Approval Drawings

Click for EM1-200-4848-2 Approval Drawings

Click for EM1-200-4848-4 Approval Drawings

Click for EM1-200-4848-6 Approval Drawings

Click for EM1-200-6050-2 Approval Drawings

Click for EM1-200-6050-4 Approval Drawings

Click for EM1-200-6050-6 Approval Drawings
