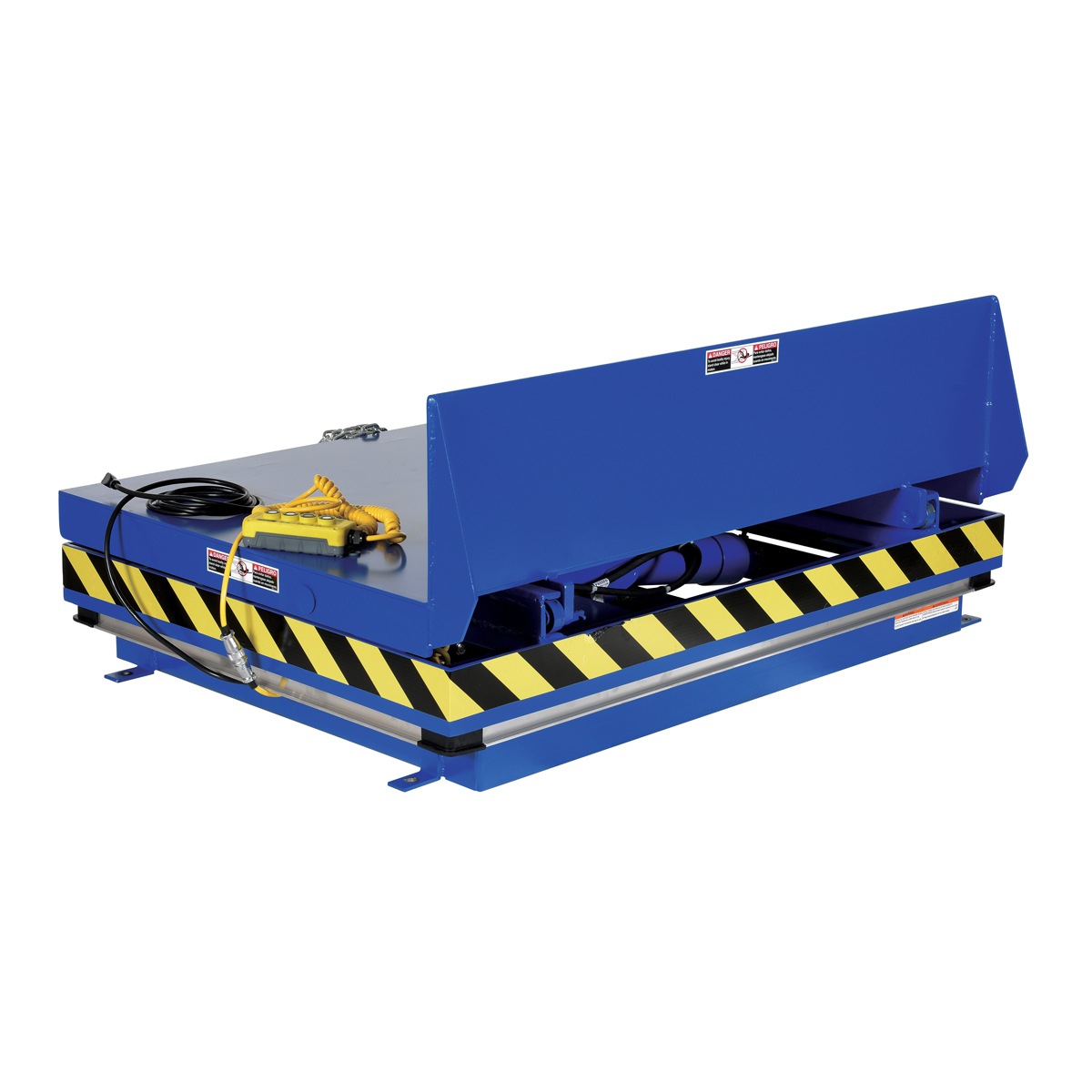

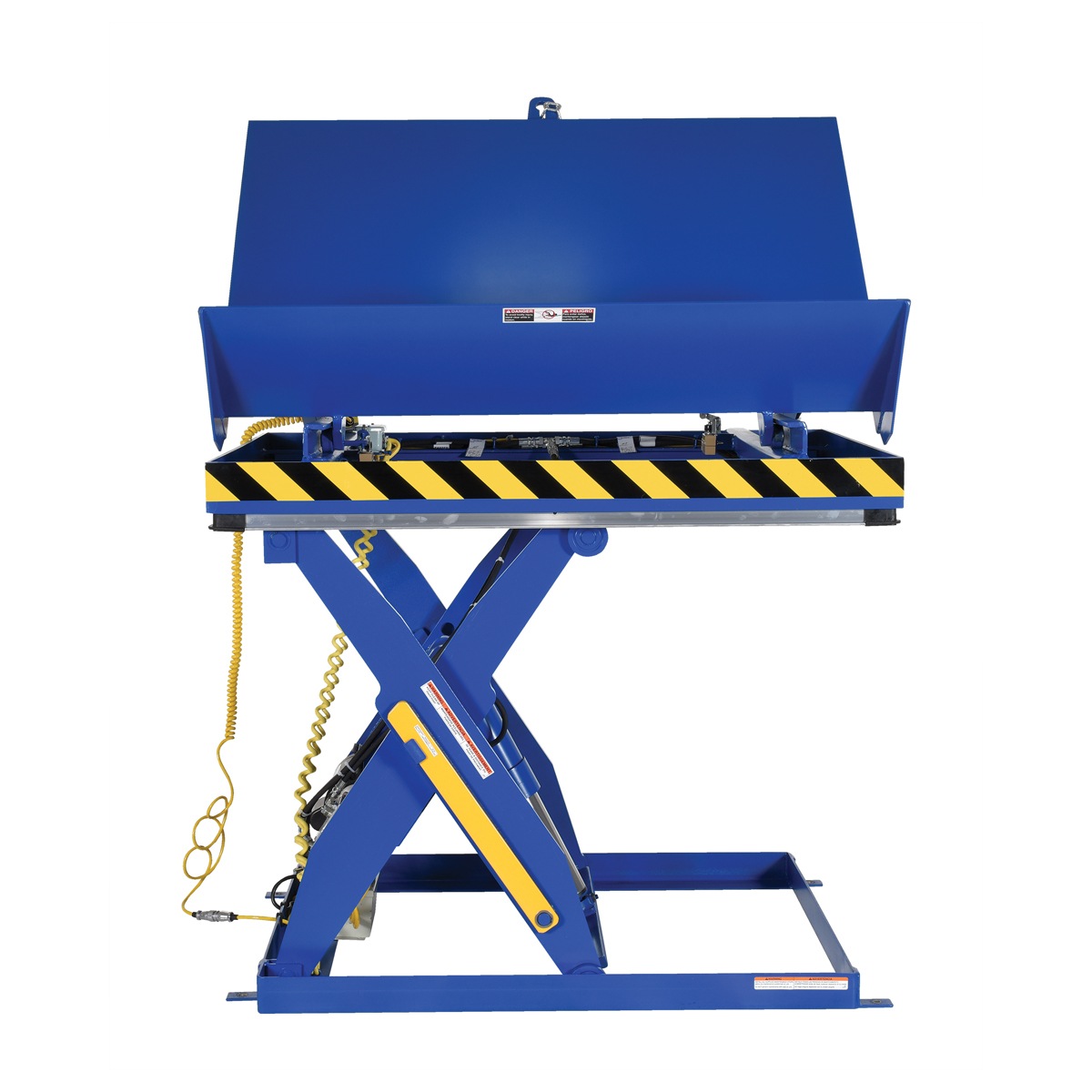

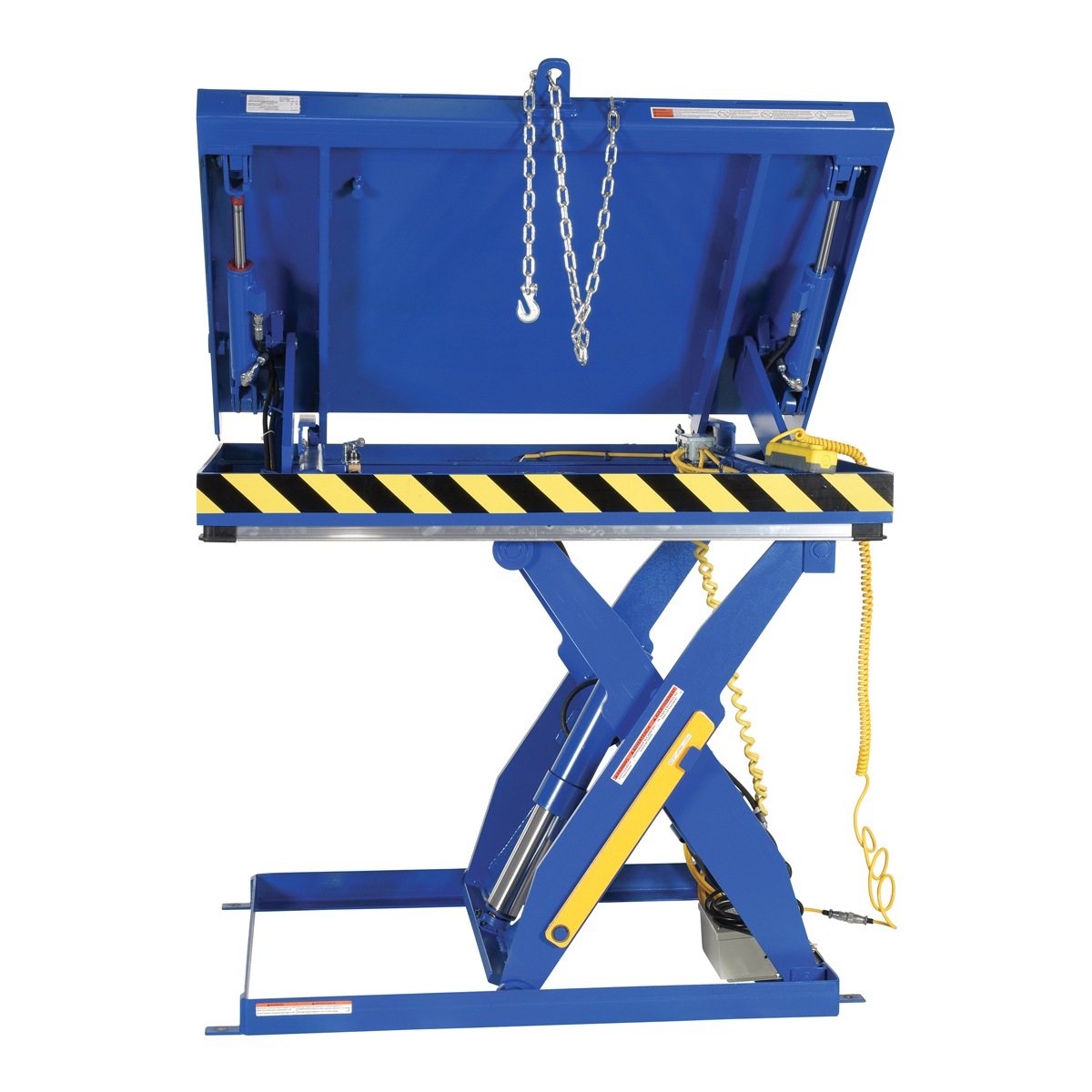

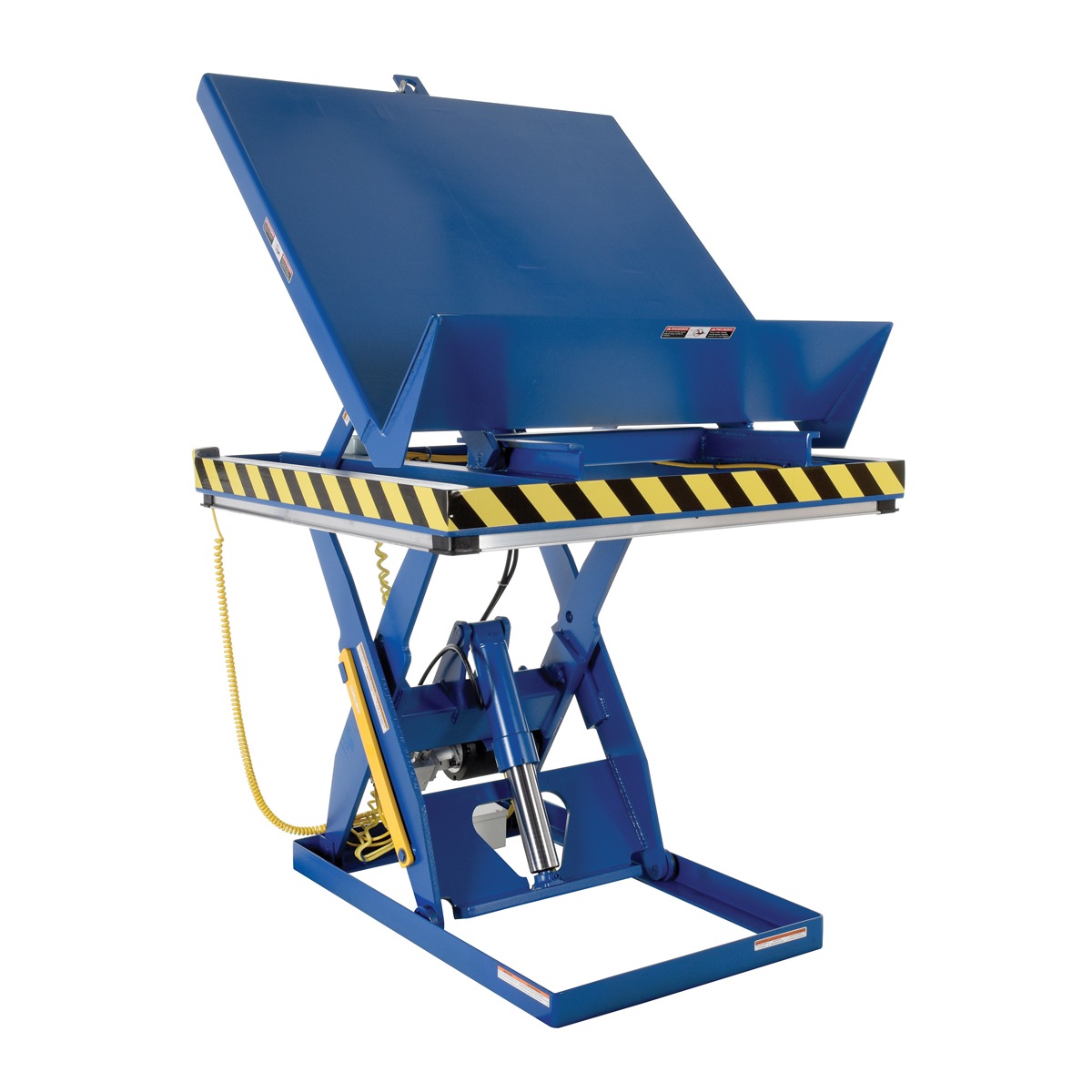

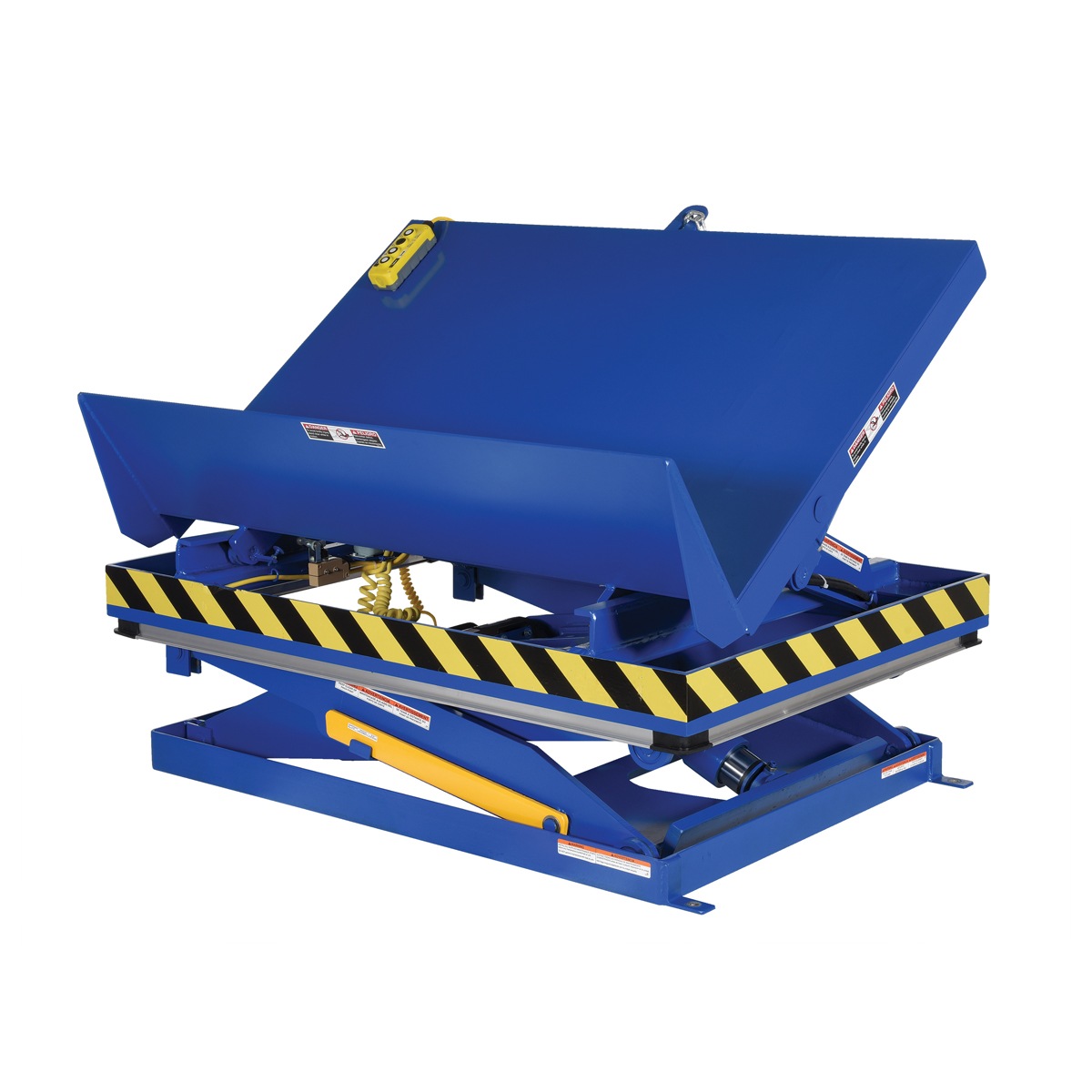

Vestil Lift & Side Link Tilt Scissor Table

The Lift & Tilt Scissor Lift performs both lifting and tilting operations. There is a restraining chain and lip to keep the load in place during tilting. Safety features include: electric toe guard to protect worker from pinch points during lowering of table, velocity fuses to hold platform position in an event of a hose or fitting failure, four (4) push-button hand pendant control, upper limit switch to stop travel at maximum height reducing motor wear, and maintenance prop. The end tilt is standard with a side tilt available. There is optional accordion skirting available for both the lifting and tilting portions of the table.

• Lift & Tilt scissor lift includes a restraining chain and lip to keep load in place
• Features an electric toe guard to protect workers during lowering
• Velocity fuses hold platform position incase of a hose or fitting failure
• Hand pendant control includes a switch to stop travel at maximum height

Specification

• Lowered Height (in.): 12
• Raised Height (in.): 48
• Platform Width (in.): 36-1/4
• Platform Length (in.): 54
• Deck Lip Height (in.): 12
• Coil Cord Length (in.): 96
• End Tilt (degrees): 45

Documents

Click for EHLTTS-3654-2-48 Approval Drawings

Click for EHLTTS-3654-4-48 Approval Drawings
