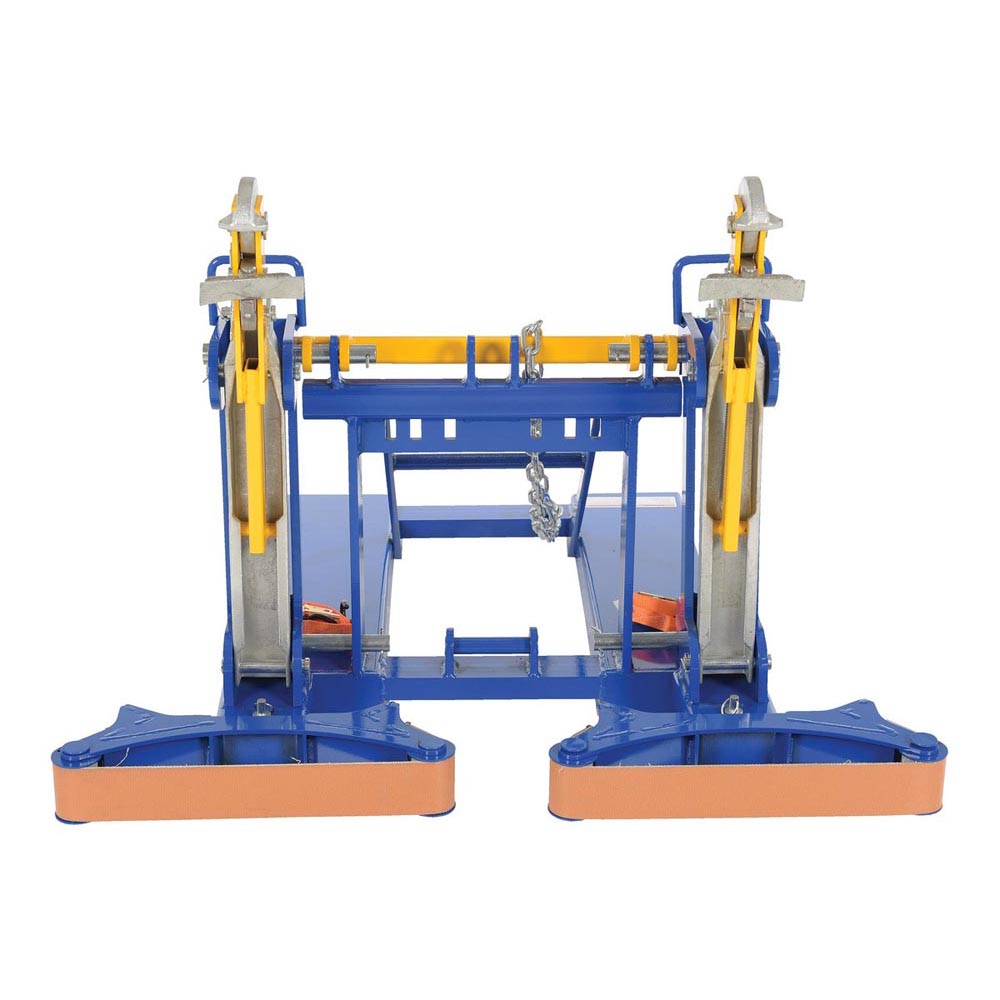

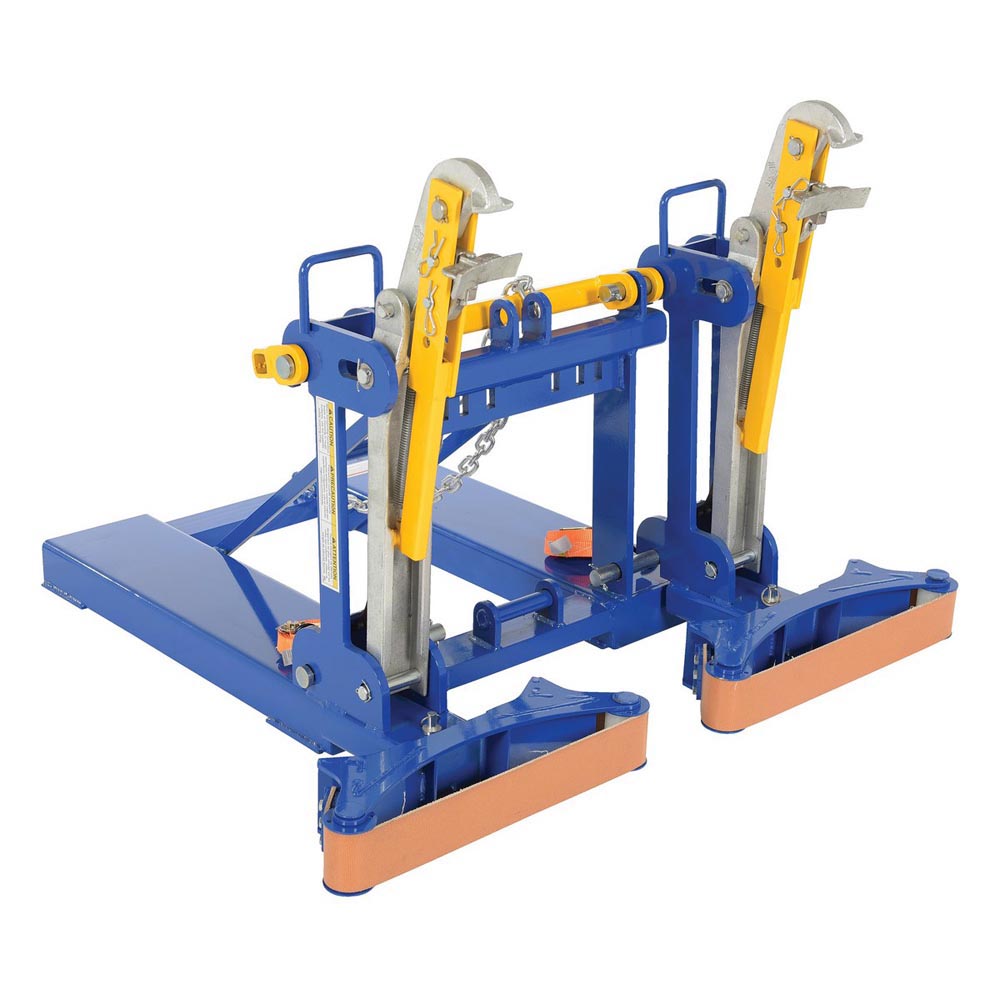

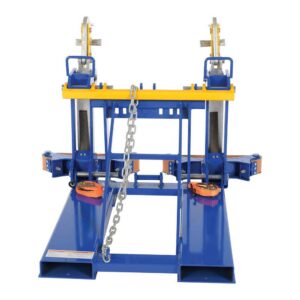

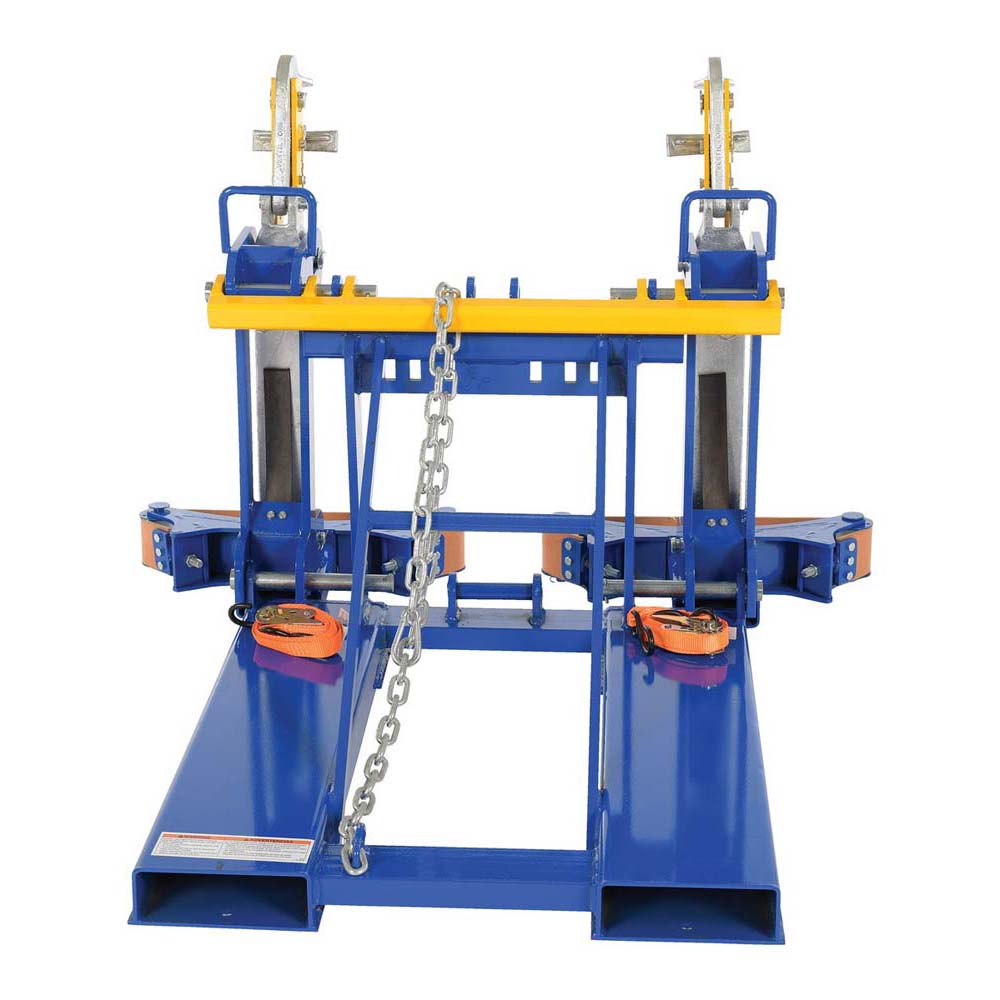

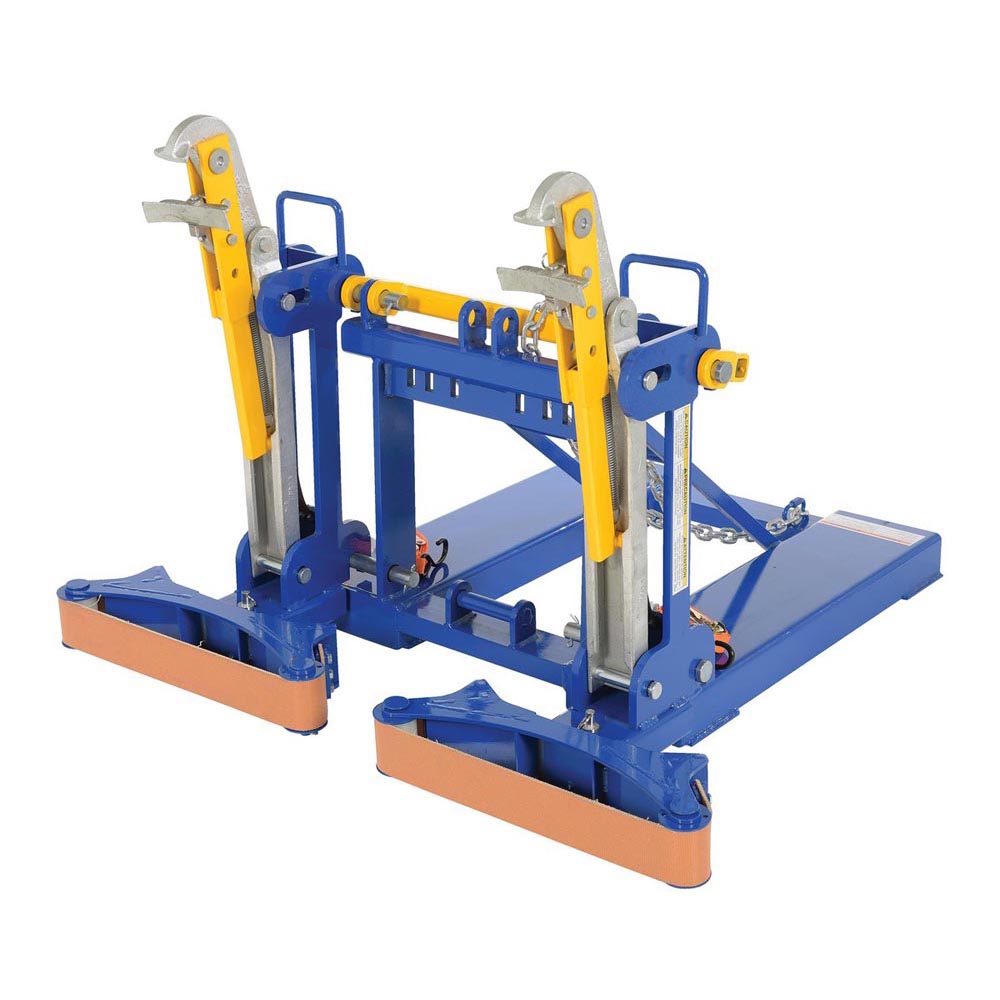

Vestil FMDL-2-LDS-B1 Eagle Beak Drum Lifter Two Drum Belt Saddle

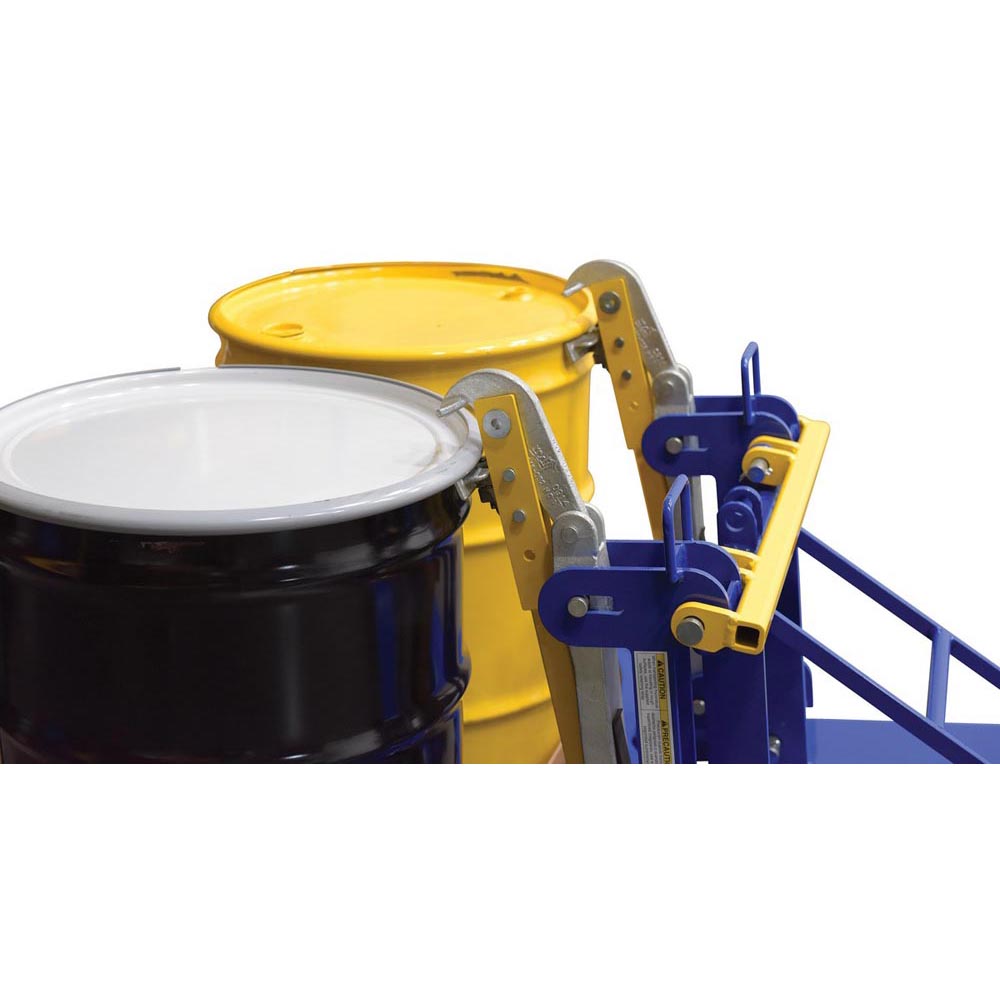

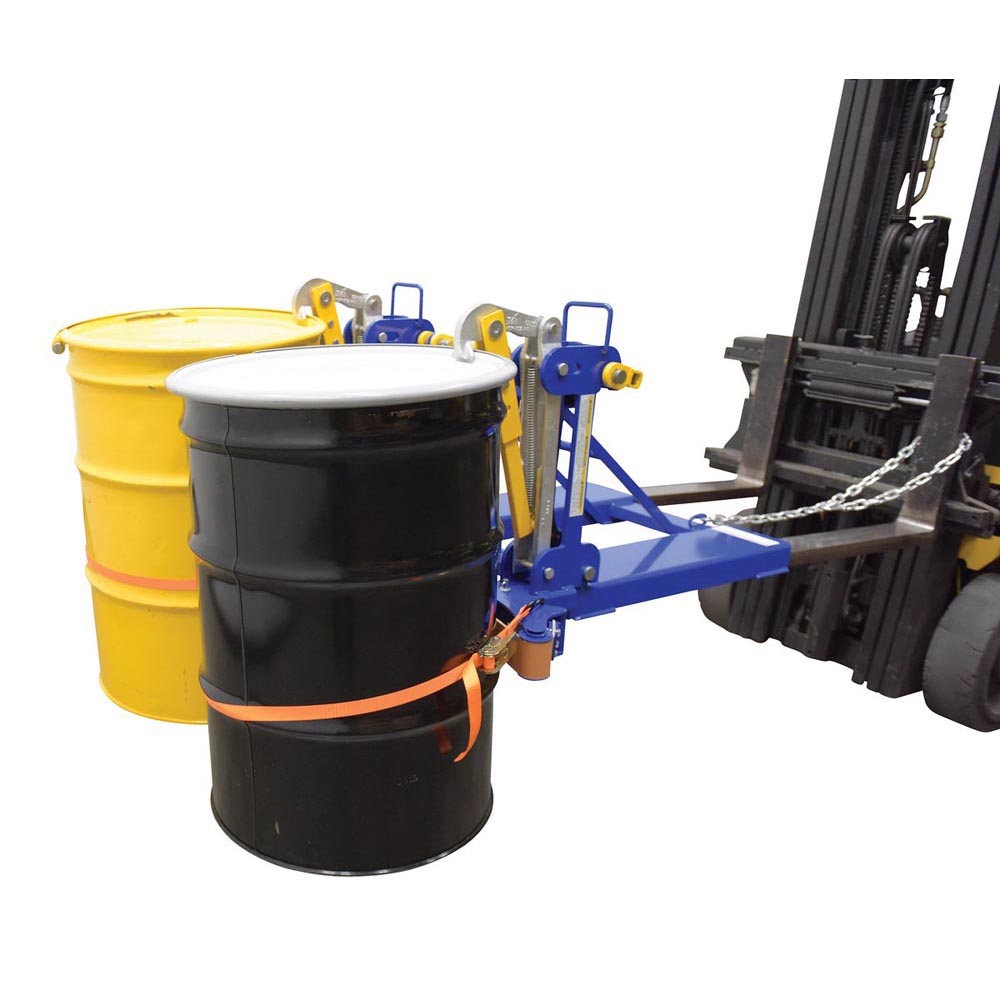

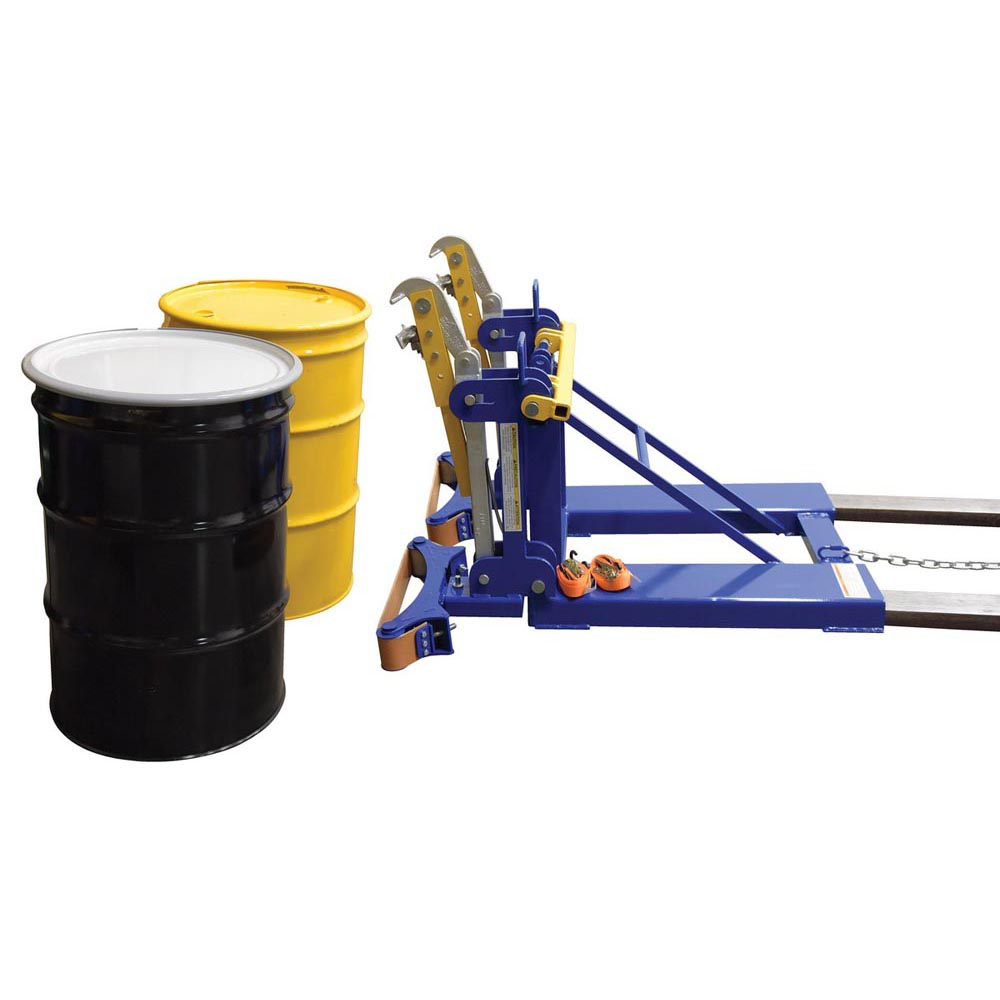

This time tested and proven design allows a fork truck operator to easily secure, move, and release drums without leaving the seat of the fork truck. For use with open (with lid installed and secured) and closed head steel, plastic, and fiber drums with a top lip strong enough to support the weight of the drum. Includes safety restraint to secure unit to the fork truck. Welded steel construction. Baked-in powder-coated toughness. A ratchet strap is supplied to secure the drum to the unit when traveling over rough terrain.

• Solid steel construction offers a rugged long lasting use
• Safety restraint secures unit to the fork truck
• Two Drum Capacity
• Easily attachable to lifting device

Specification

• Uniform Capacity (lb.): 2,000
• Accepts: 30 and 55-gallon drums
• Drums (qty.): 2
• Drum Type: Steel, Plastic or Fiber
• Fork Pockets Width/Height (in.): 7-1/2 x 2-1/2
• Fork Pocket Centers (in.): 20-1/2
• Style: Belt
• Standards: OSHA 1910.178

Documents

Click for FMDL-2-LDS-B1 Approval Drawings

Click for Manual

Click for Manual
