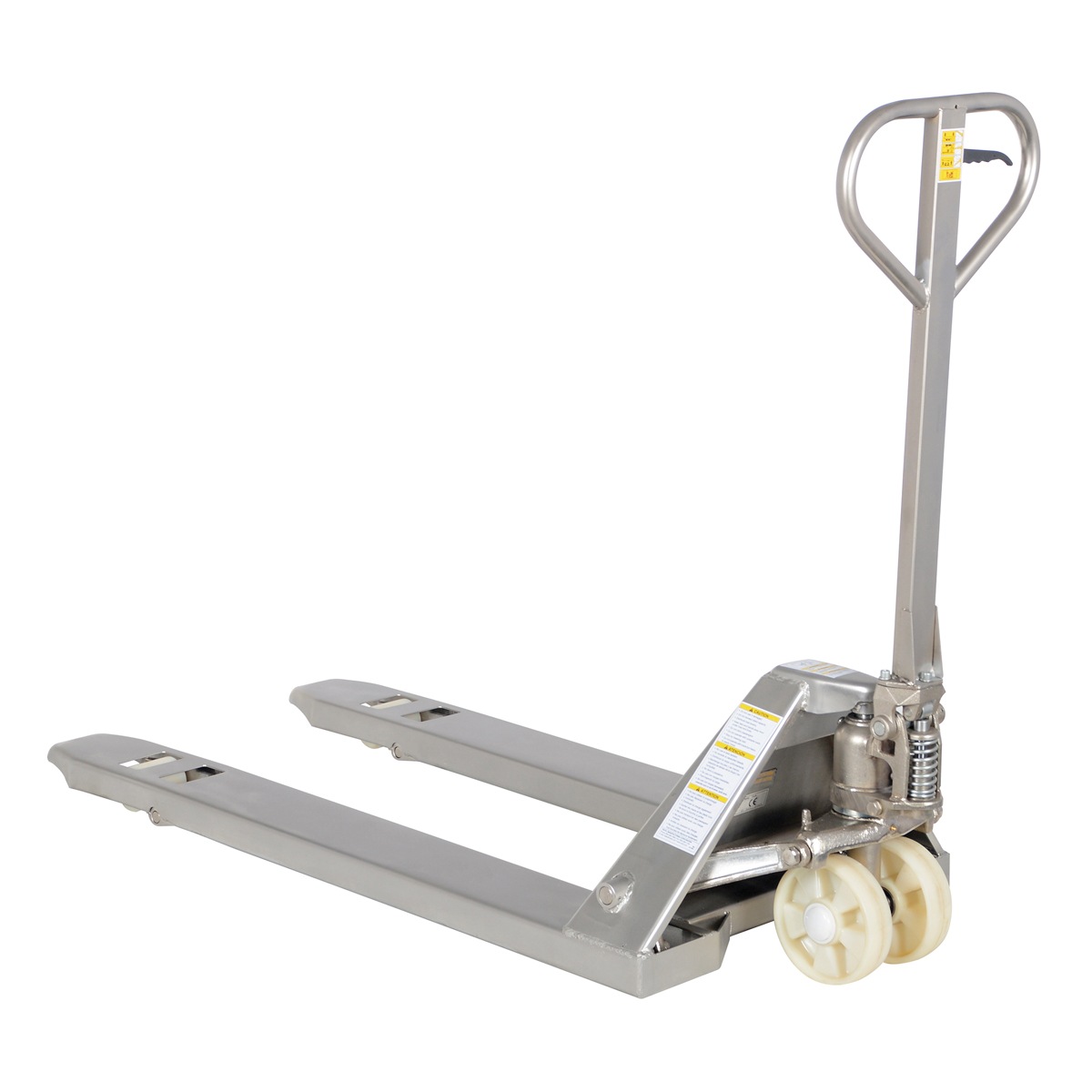

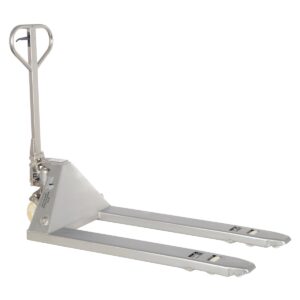

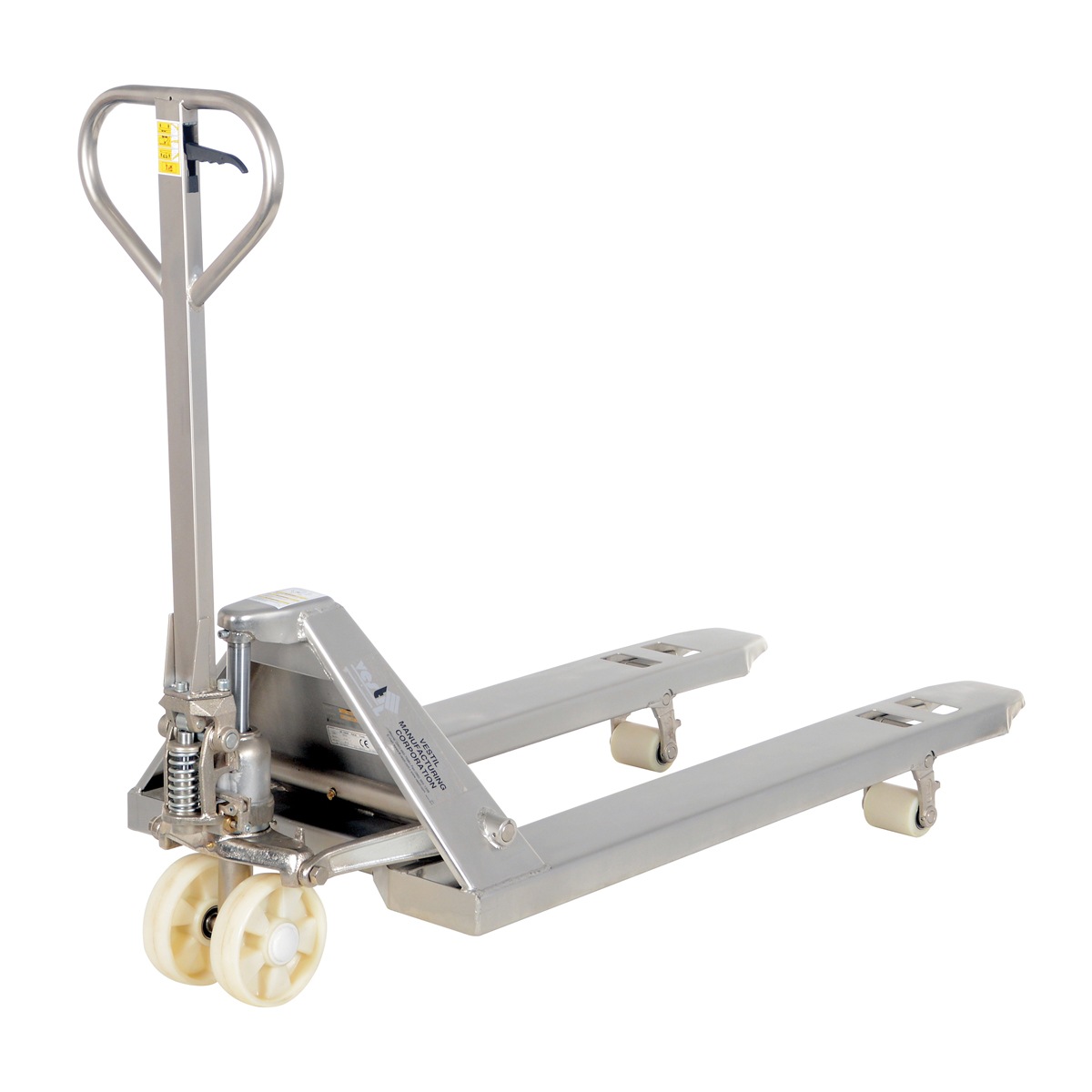

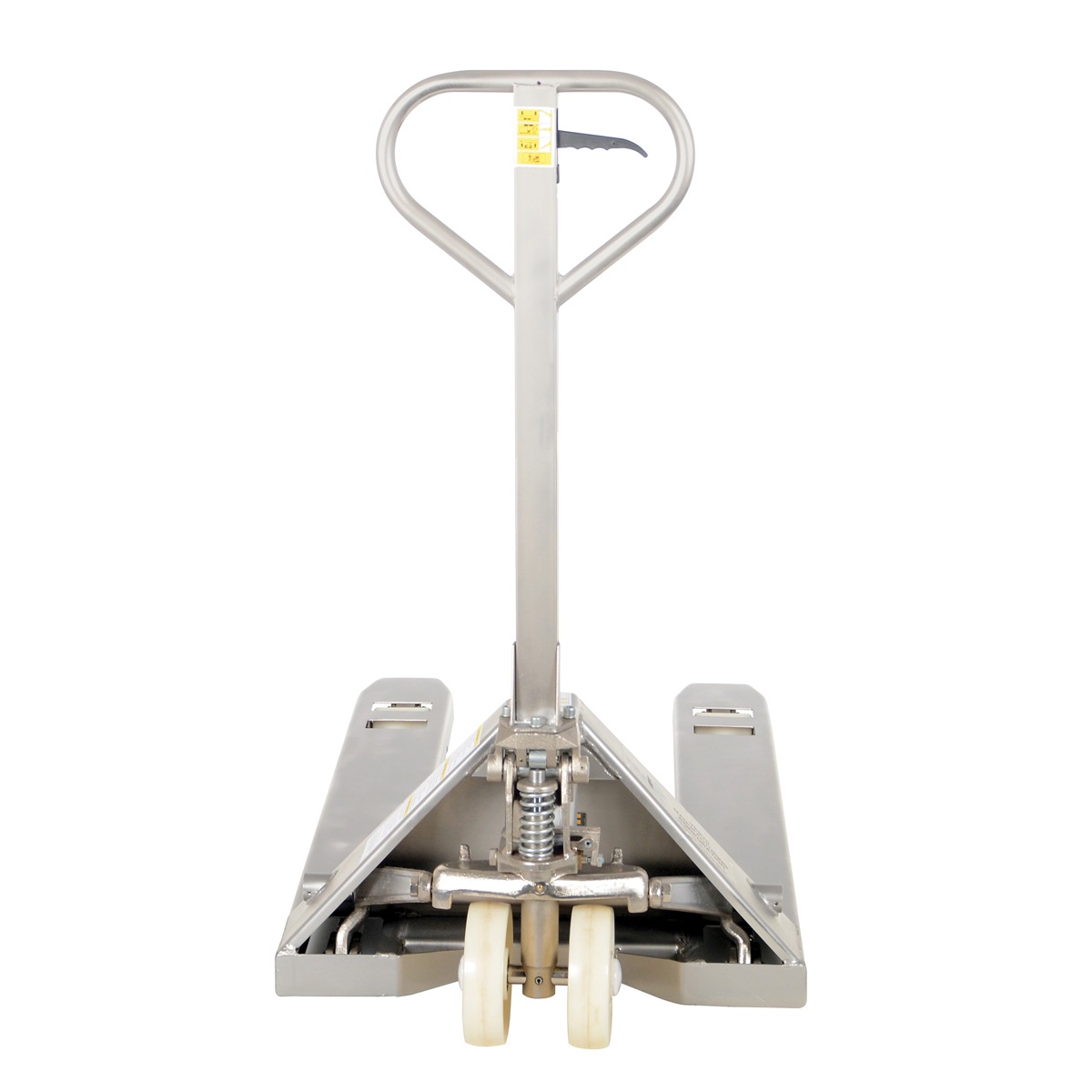

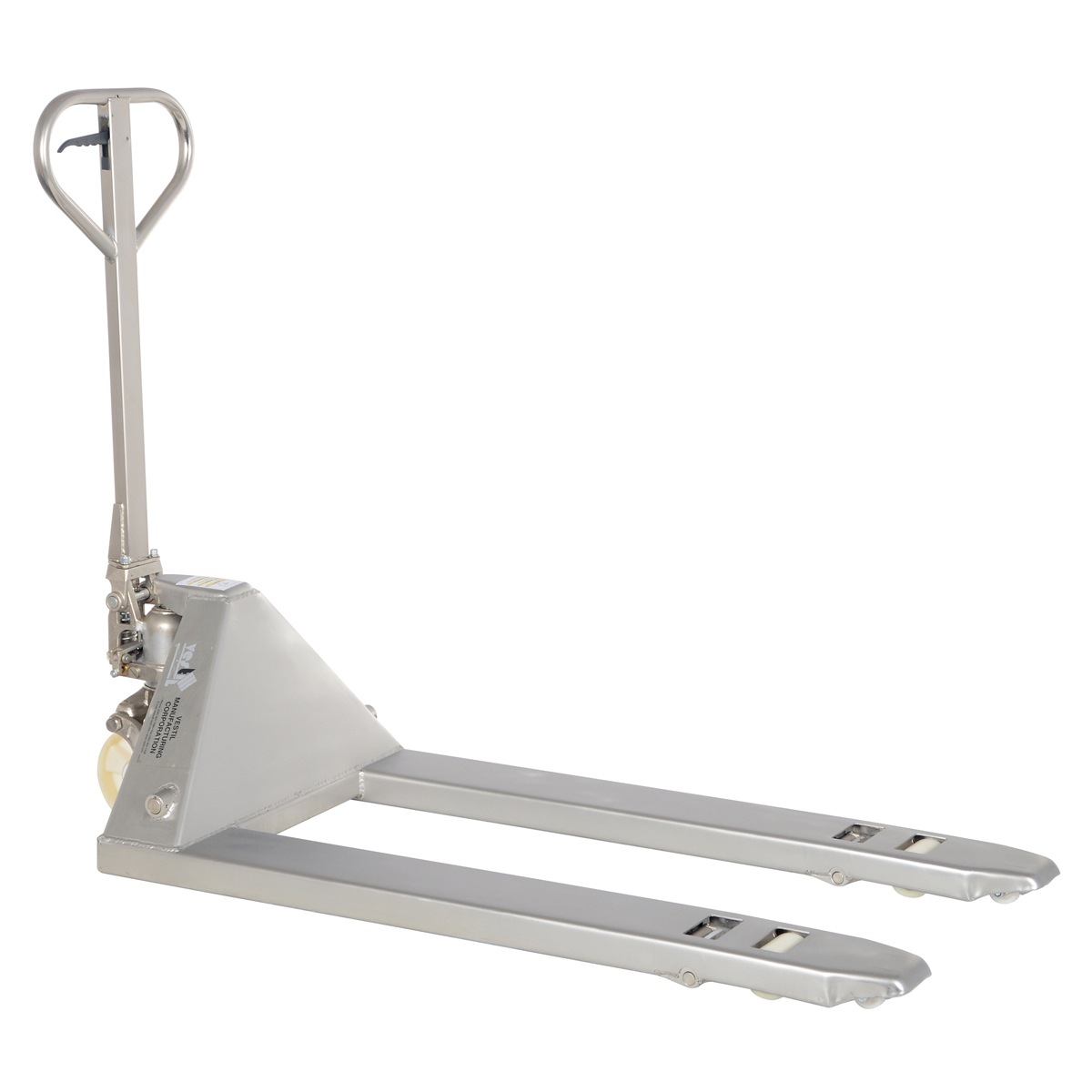

Vestil PM5-2748-SFF Stainless Steel Frame Pallet Truck 27X48

The Specialized Pallet Truck is ideal for sanitary, pharmaceutical, medical, food, and wet environments. Pallet Truck has type 304 stainless steel frame and forks for long life in the most harsh environments.

• Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
• Steering wheels include bearing dust covers for added life
• Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
• Chrome-plated hydraulic pump piston for long seal life

Specification

• Uniform Capacity (lb.): 5500
• Overall Fork Width (in.): 27
• Overall Fork Length (in.): 48
• Lowered Height (in.): 2-7/8
• Raised Height (in.): 7-3/4
• Individual Fork Width (in.): 6-1/2
• Steer Caster Material: Polyurethane
• Steer Caster Diameter (in.): 7
• Steer Caster Width (in.): 2
• Load Roller Material: Polyurethane
• Load Roller Diameter (in.): 4
• Load Roller Width (in.): 3

Documents

Click for PM5-2748-SFF Approval Drawings
