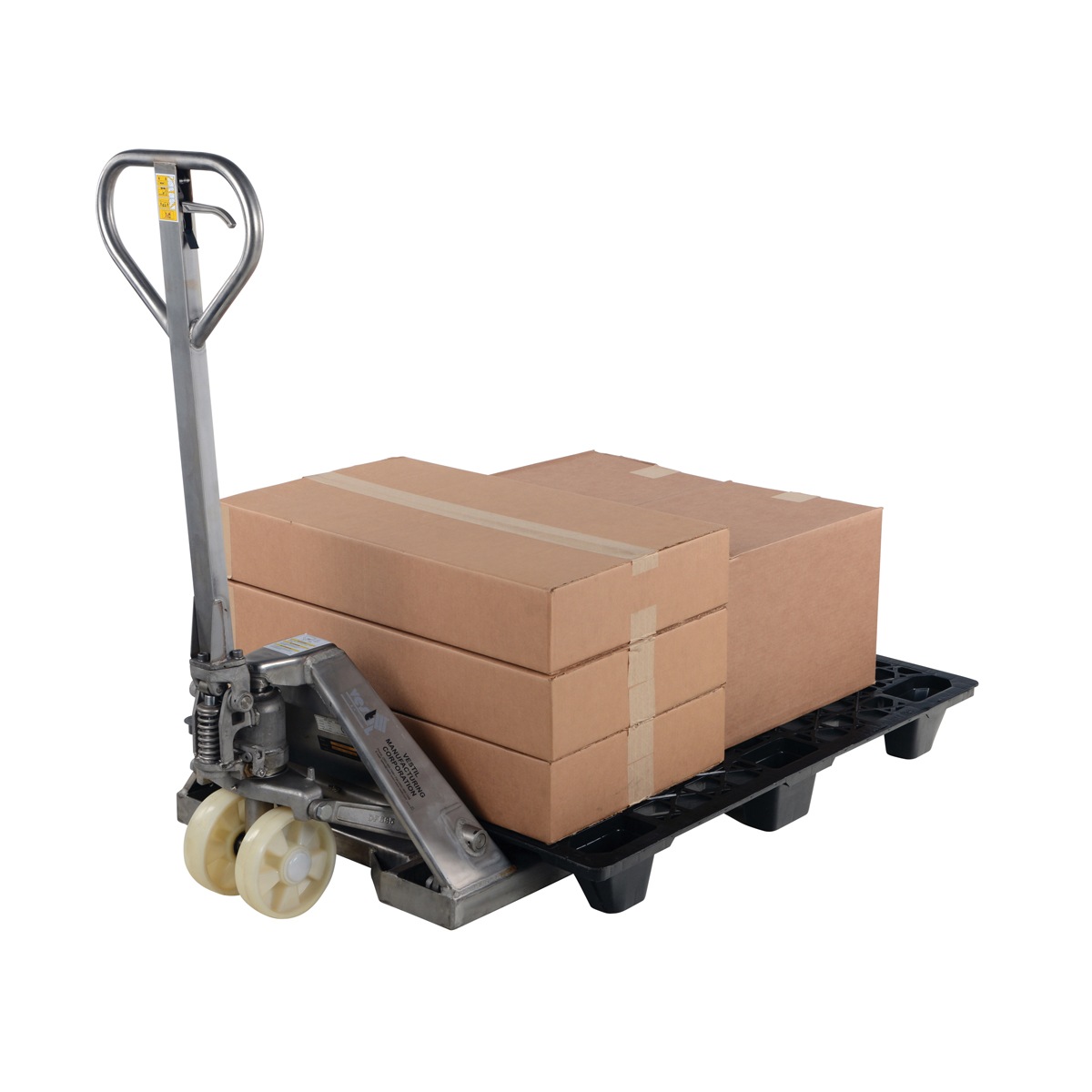

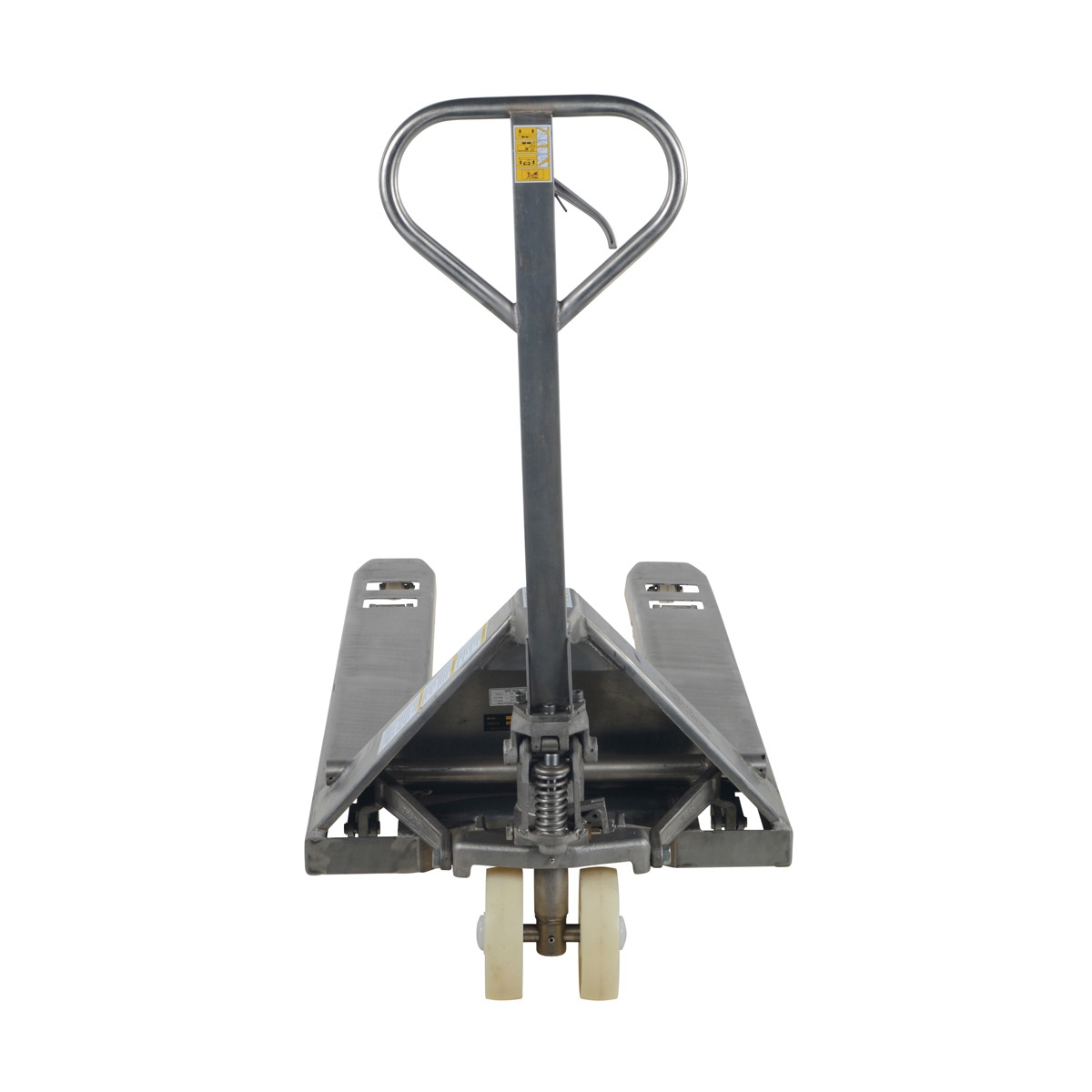

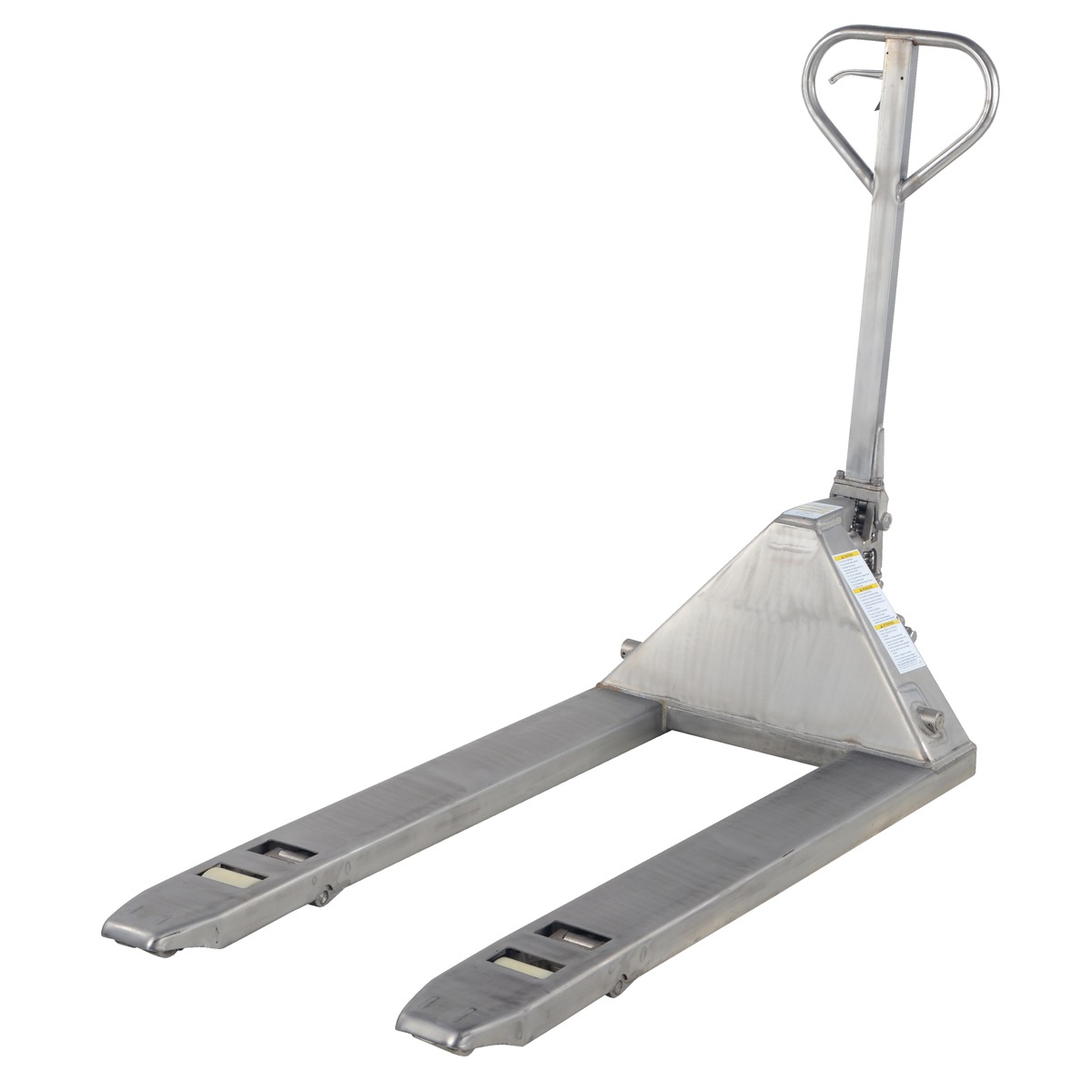

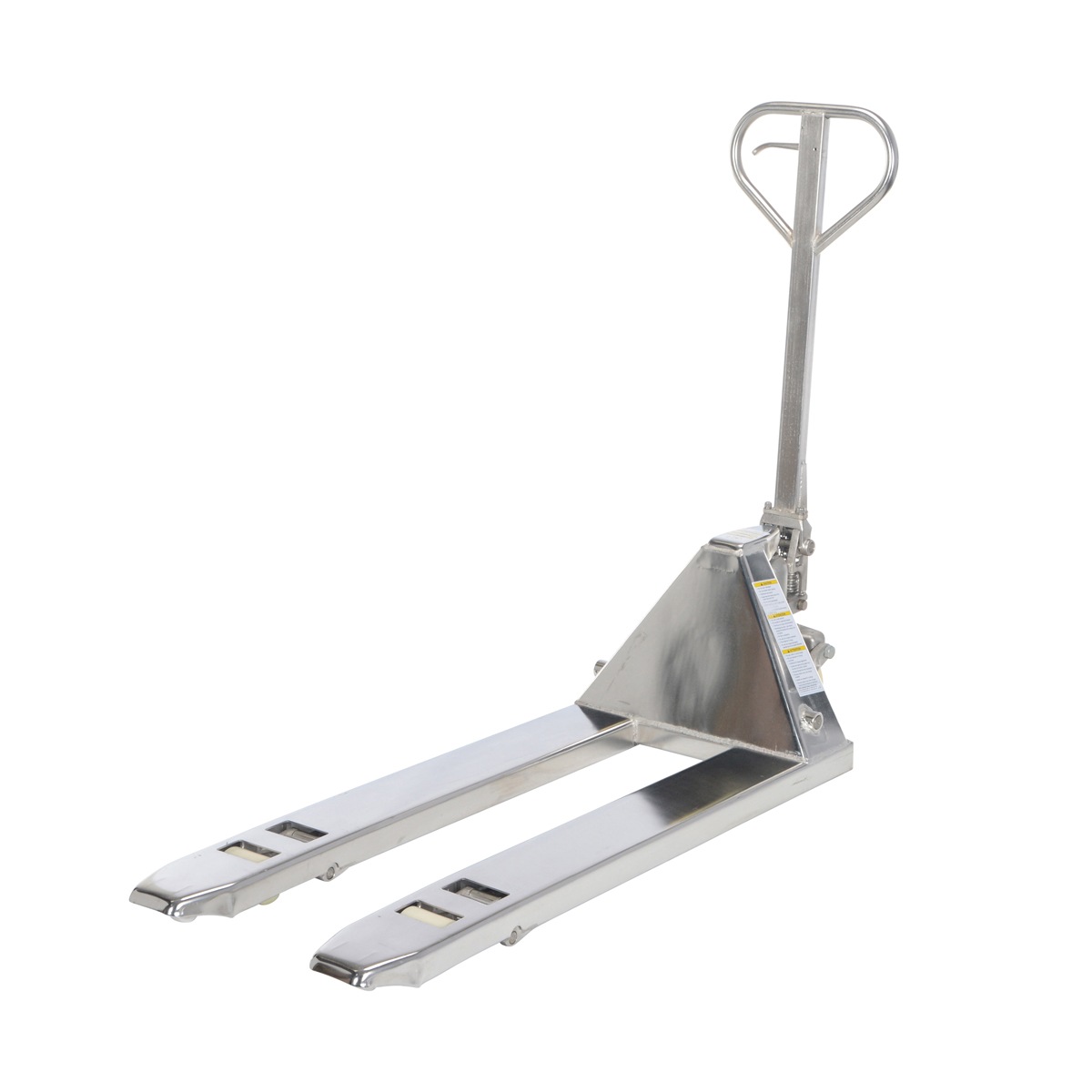

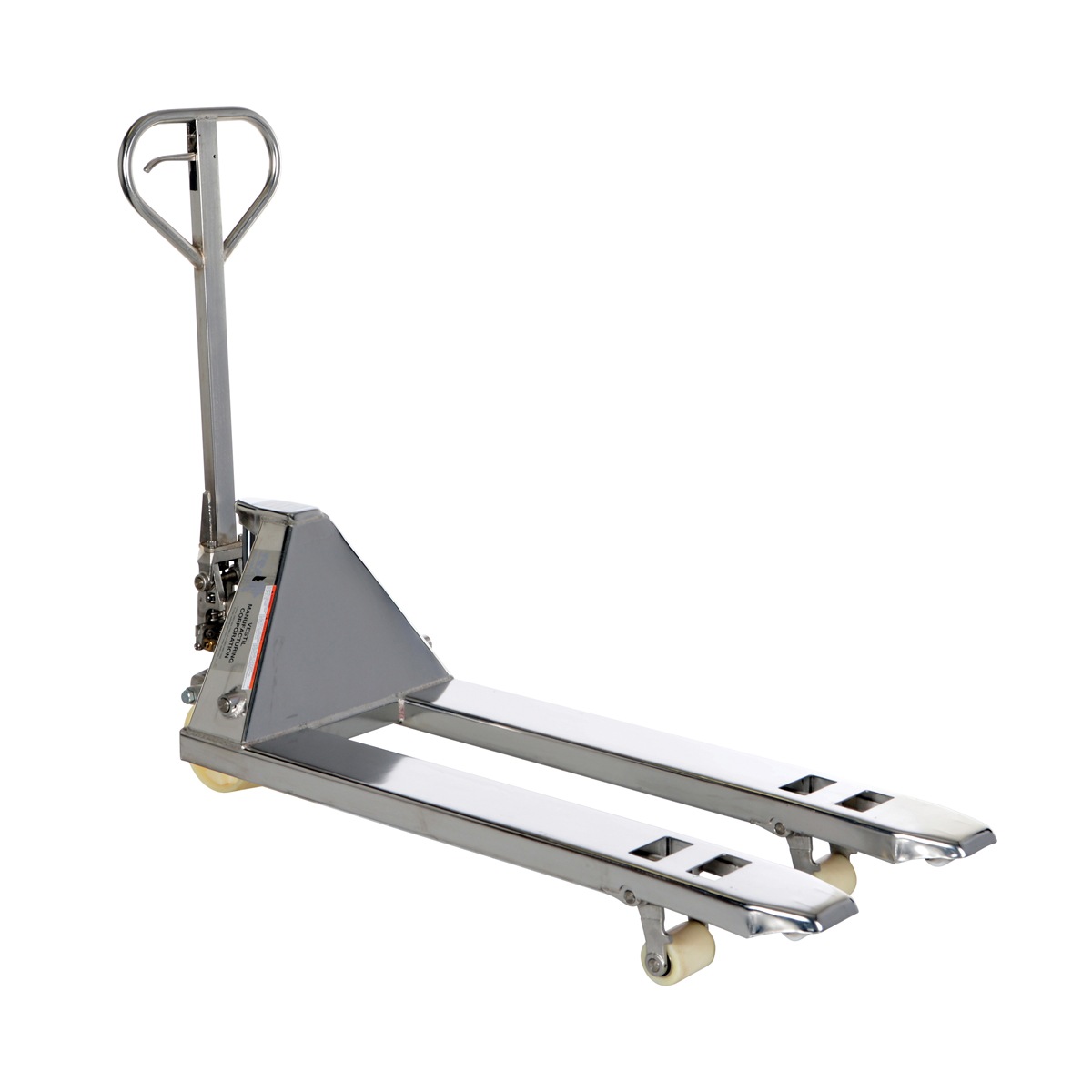

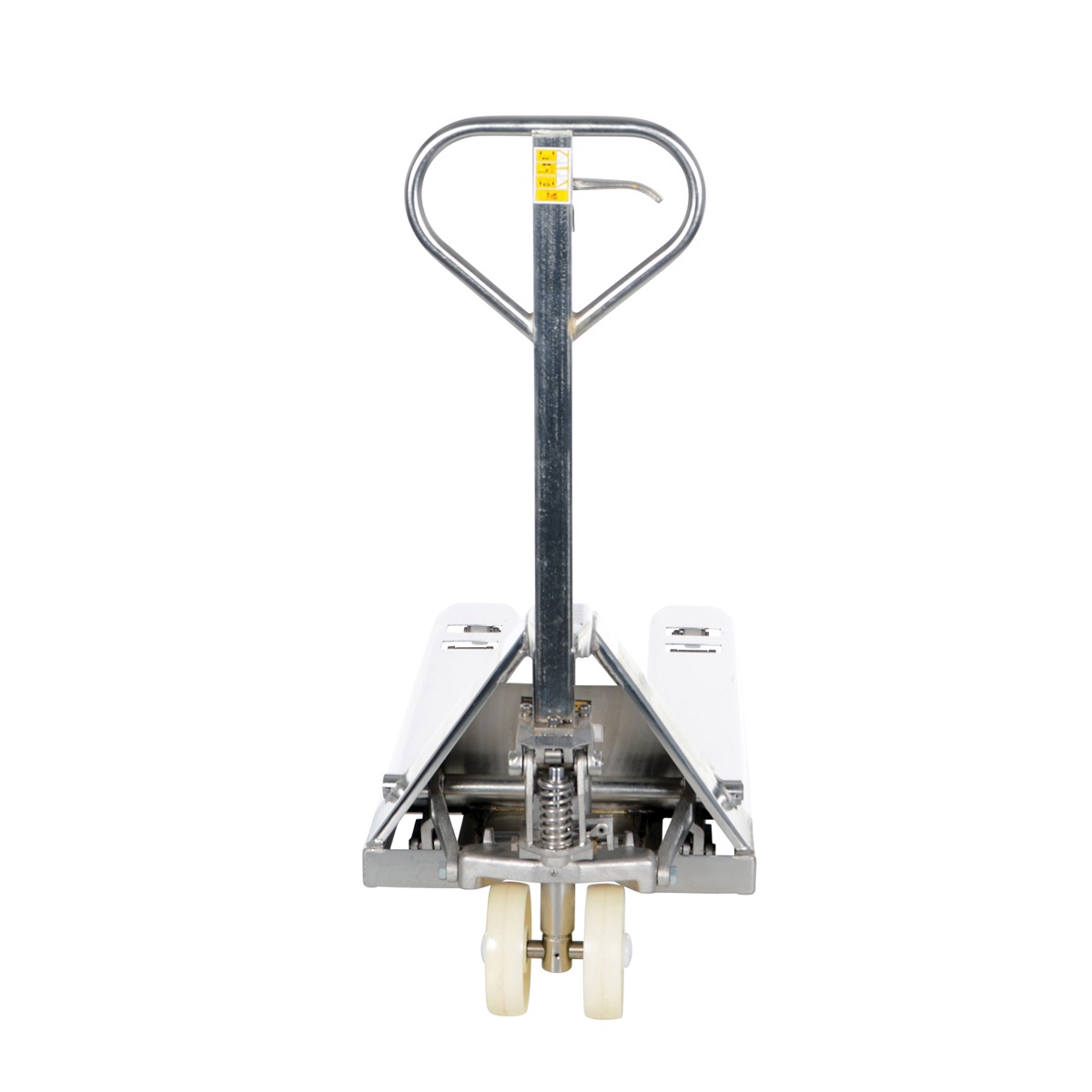

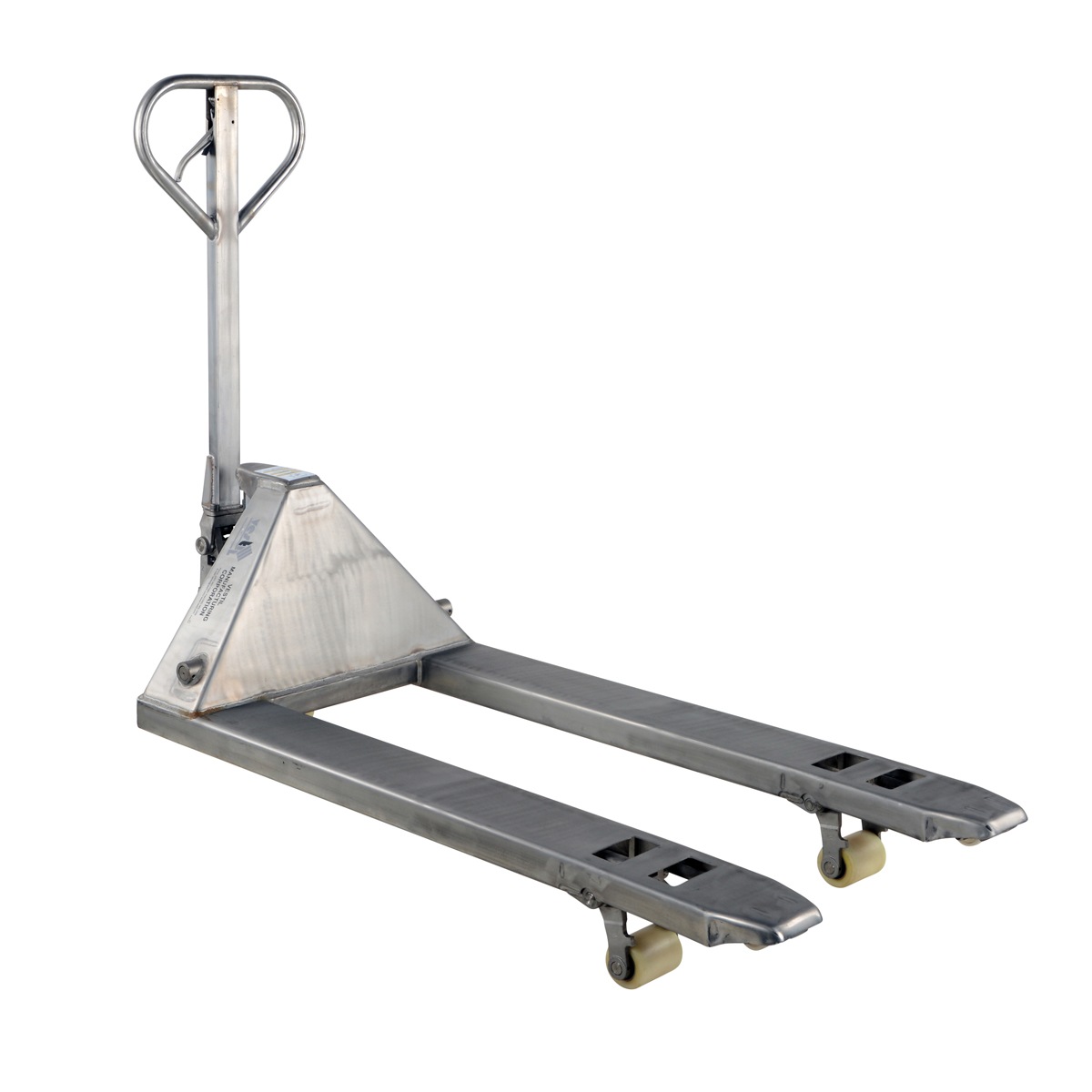

Vestil Stainless Steel Pallet TRK

The Specialized Pallet Truck is ideal for sanitary, pharmaceutical, medical, food, and wet environments. Pallet Truck is one-hundred percent (100%) type 304 stainless steel for long life in the most harsh environments.

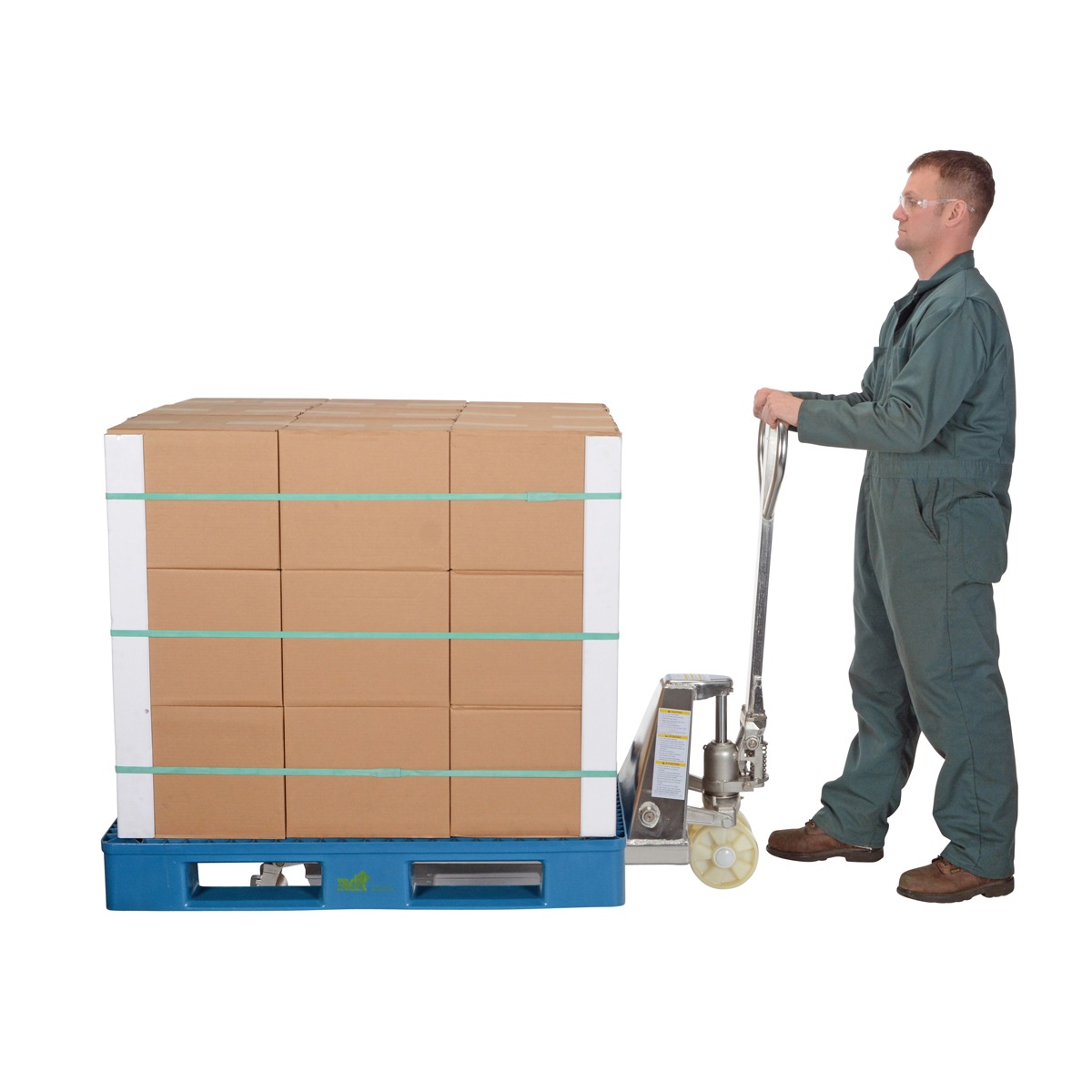

• Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
• Steering wheels include bearing dust covers for added life
• Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
• Chrome-plated hydraulic pump piston for long seal life

Specification

• Uniform Capacity (lb.): 5500
• Lowered Height (in.): 2-7/8
• Raised Height (in.): 7-3/4
• Individual Fork Width (in.): 6-1/2
• Steer Caster Material: Polyurethane
• Steer Caster Diameter (in.): 7
• Steer Caster Width (in.): 2
• Load Roller Diameter (in.): 3
• Load Roller Width (in.): 3-5/8

Documents

Click for PM5-2048-SS Approval Drawings

Click for PM5-2748-SS Approval Drawings
