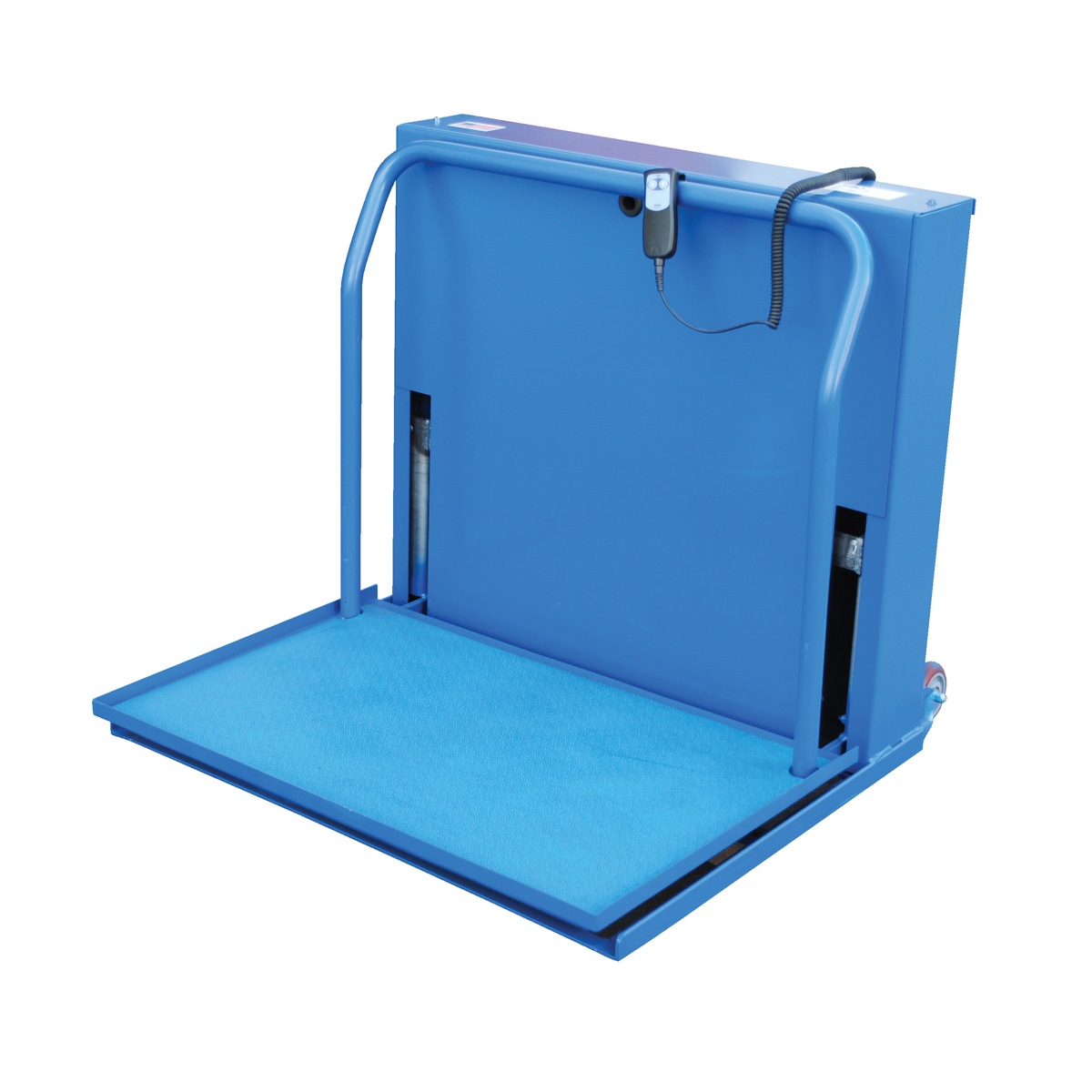

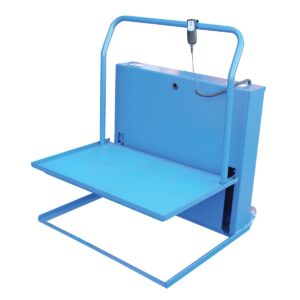

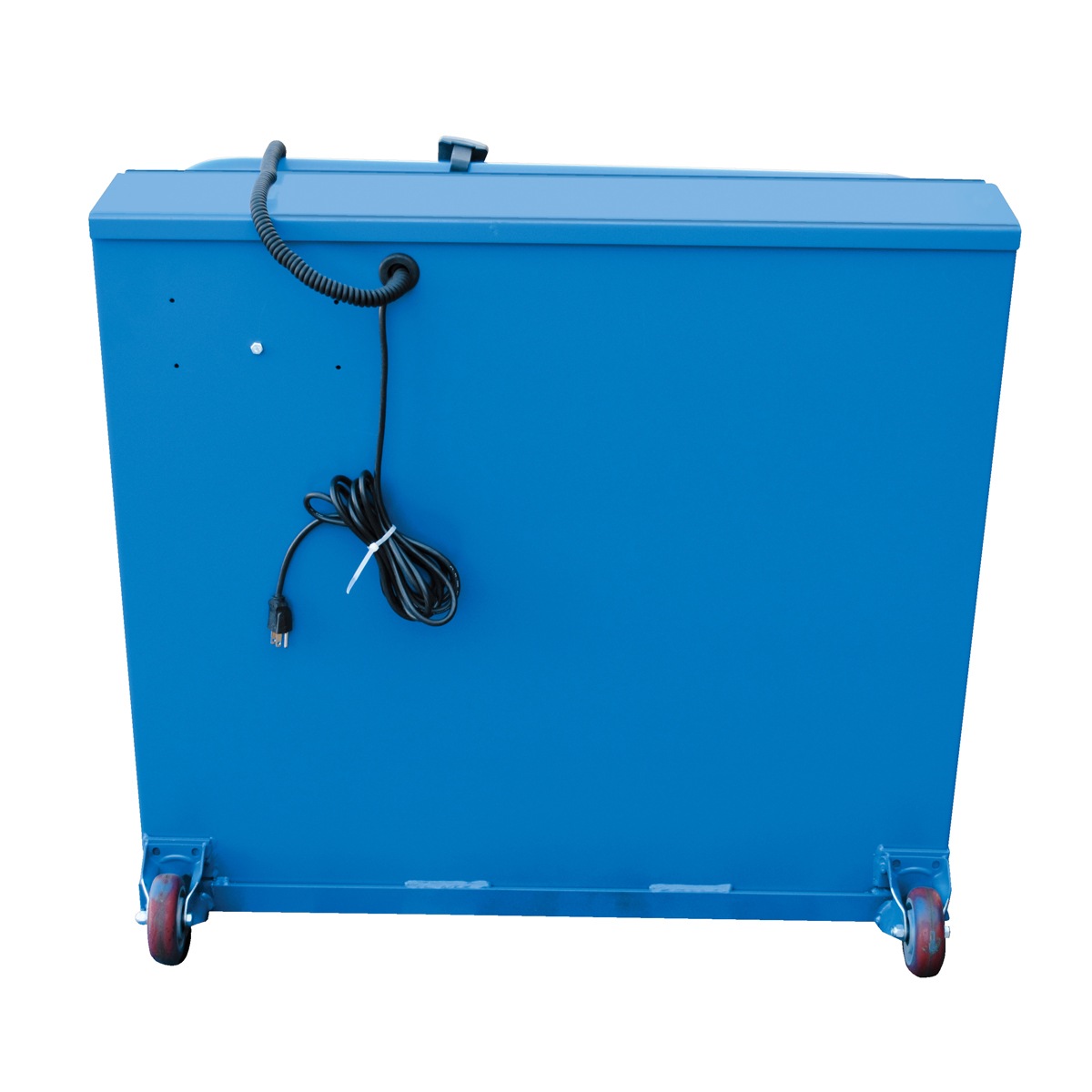

Vestil Powered Steel Work Platform 400 LB

The Linearizer Electric Worker Platform is designed to raise or lower a worker to optimum working height. Typical applications include packaging stations, heavy machinery such as drill presses, or individual work cells. Lifting source is a low maintenance electric linear actuator. An ergonomic anti-fatigue mat is included on the platform. Two (2) rigid casters on back side are standard. The unit is operated with a pendant hand held push button control.

• Designed to raise or lower a worker to optimum working height
• Ideal for packaging stations or heavy machinery such as drill presses
• Ergonomic anti-fatigue mat is included on the platform for user safety

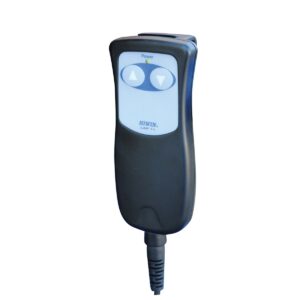

• Unit is operated with a pendant hand held push button for efficient control

Specification

• Operation: 115V AC Linear Actuator
• Uniform Capacity (lb.): 400
• Platform Width (in.): 36
• Platform Length (in.): 24
• Lowered Height (in.): 2-3/4
• Raised Height (in.): 14-5/8
• Hand Held Pendant Control Cord Length (ft.): 6
• Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
• Caster Type: Rigid
• Caster Material: Poly on Poly

Documents

Click for Manual

Click for WP-400-AC Approval Drawings

Click for WP-400-DC Approval Drawings
