Vestil FTDC-6-4400 Forklift Tie-Down Clamps

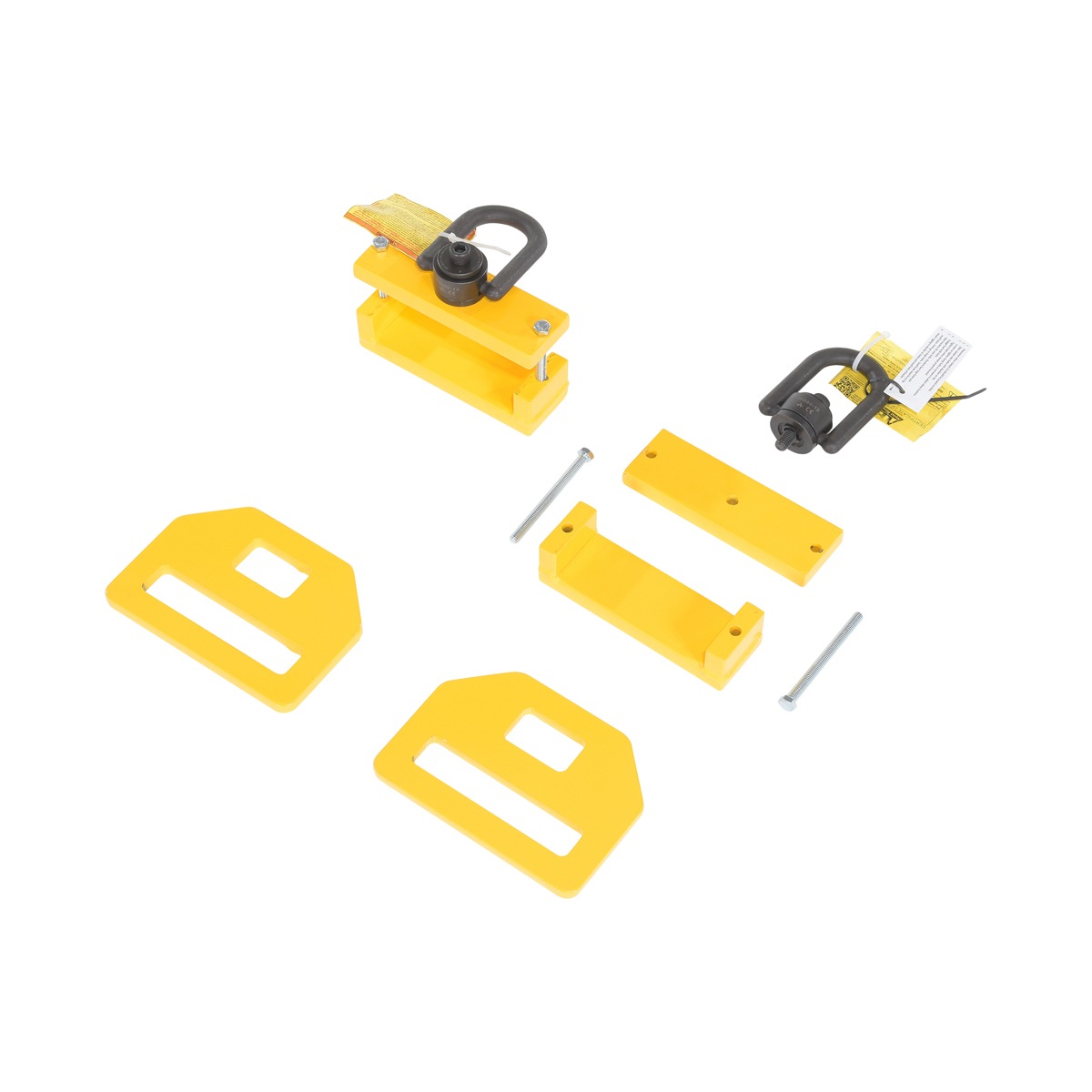

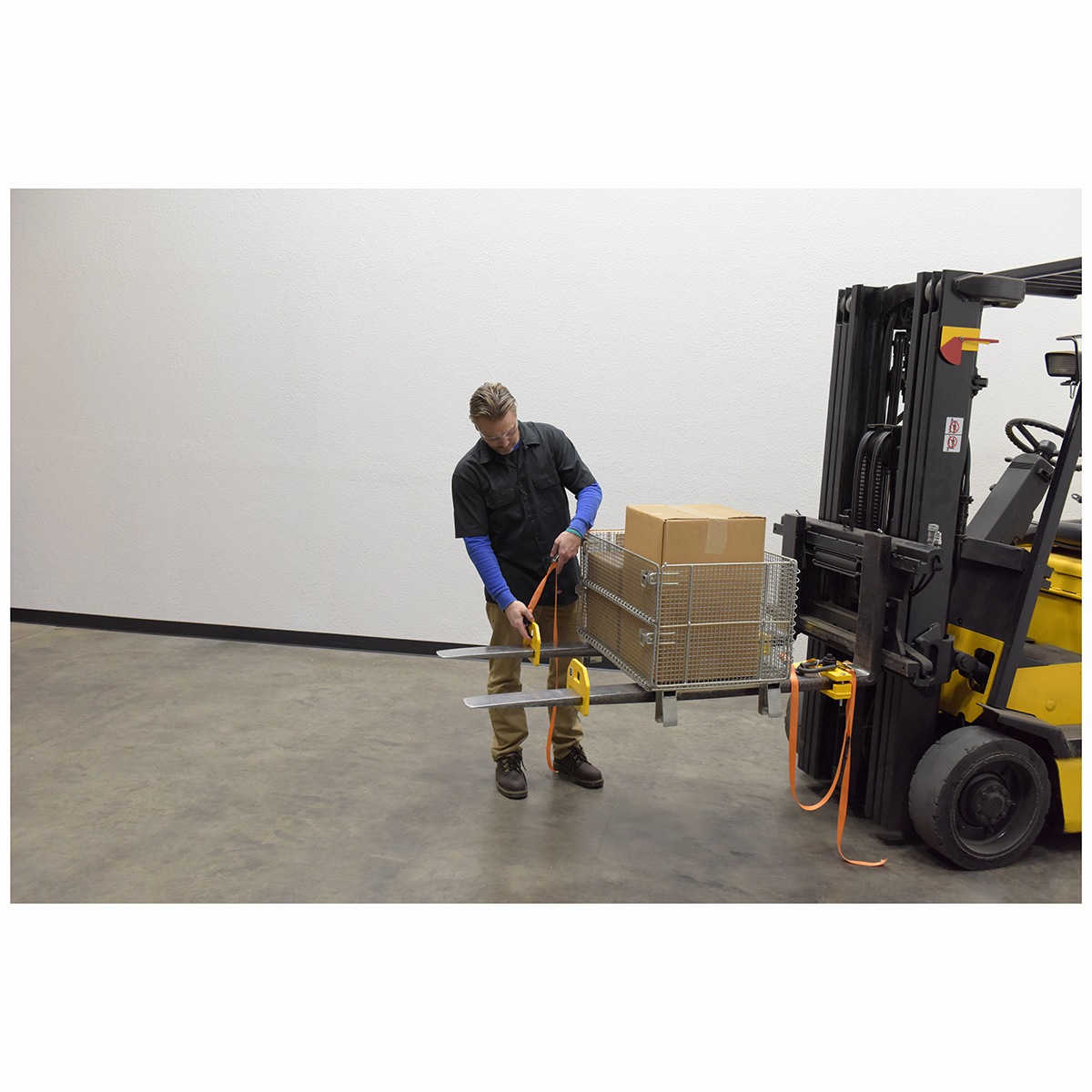

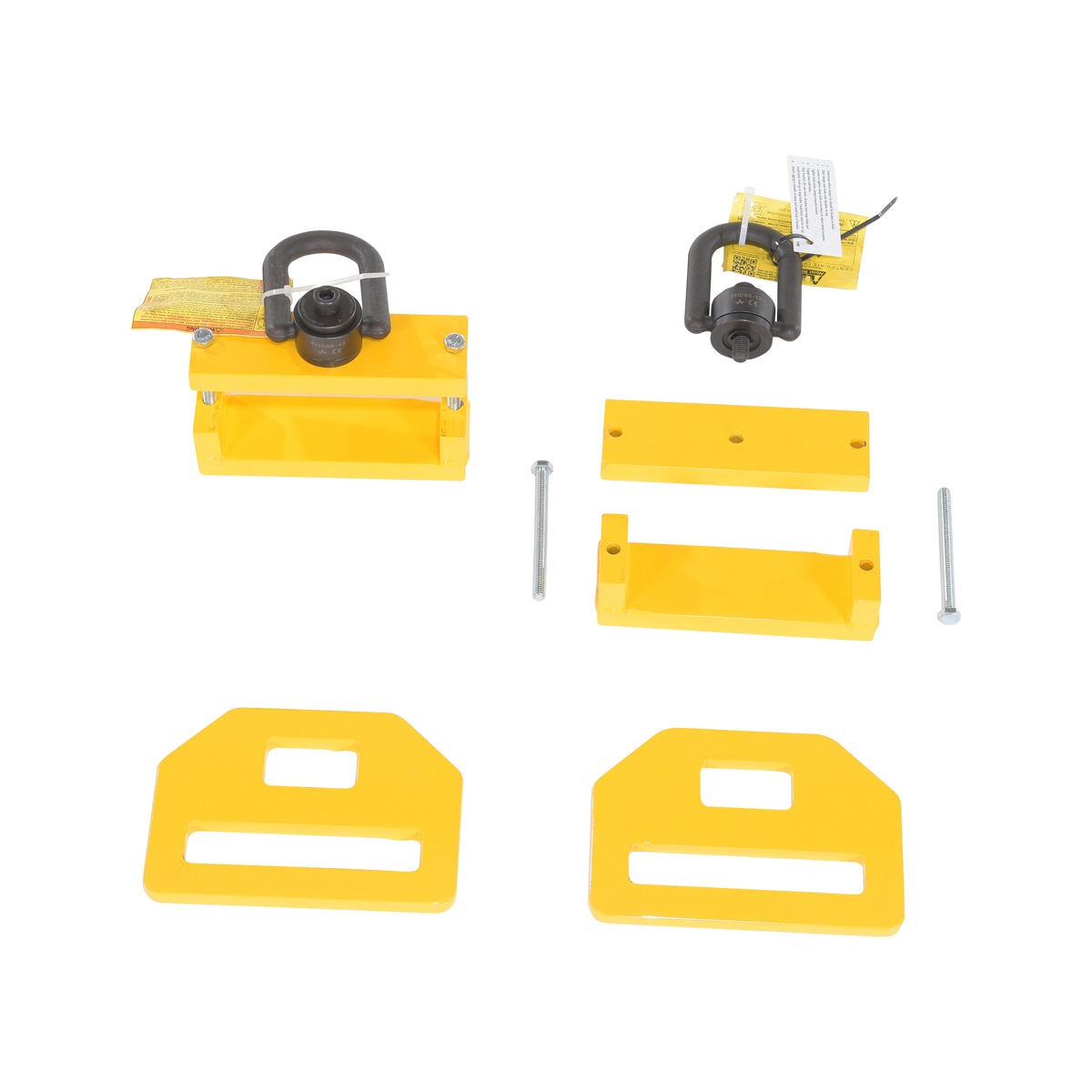

Forklift tie down clamps are a great asset when securing loads for transport. These units are comprised of two pieces each, one bracket and one clamp. An eye bracket is positioned in front of the load while the screw clamp is placed behind the unit, closest to the forklift driver. These are put in place by sliding over the forks. Simply use the preferred type of tie down such as a nylon strap or chain to secure the load (both not included). A powder coat finish diminishes the abrasion and scuffing that may occur during daily use.

• Large capacity for heavy lifting
• Robust construction for long term use
• Tough Baked In Powder Coated Yellow Finish
• Simple compact design for immediate use

Specification

• Uniform Capacity (lbs.): 4400 (2200 per clamp/bracket set)
• Clamps to Fit Forks Width/Height (in.): 6 x 2-3/4
• Overall Eye Bracket Width/Height (in.): 8-1/4 x 6
• Eye Bracket Fork Opening Width/Height (in.): 6-1/4 x 1-1/4
• Eye Bracket Lift Opening Width/Height (in.): 2-1/2 x 1-1/2
• Eye Bracket Thickness (in.): 1/2
• Overall Screw Clamp Width/Depth (in.): 7-3/4 x 2-1/2
• Usable Height Minimum/Maximum (in.): 1-1/4, 2-13/16
• Clamp Includes: Swivel Eye

Documents

Click for FTDC-6-4400 Approval Drawings
