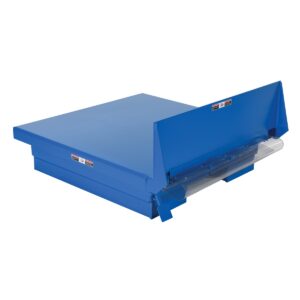

Vestil Portable Uni-Tilt 4000 LB

The Portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available.

• Ergonomic design reduces fatigue and back injuries increasing productivity
• Welded steel construction provides long lasting rugged use
• 40° tilt angle offers better ergonomics and operator comfort
• Platform end lip safely supports containers when tilted

Specification

• Uniform Capacity (lb.): 4000
• Platform Length (in.): 48
• Level Height (in.): 12
• Maximum Tilt Degree: 40
• Power Unit: Internal
• Lip Height (in.): 12
• Motor Horsepower: 2
• Voltage/Phase: 460/3
• Power Cord Length (ft.): 2)
• Usable Fork Pocket Height (in.): 2-1/2
• Usable Fork Pocket Width (in.): 7-1/2
• Fork Pocket Center (in.): 24

Documents

Click for UNI-P-4848-4 Approval Drawings

Click for UNI-P-5448-4 Approval Drawings
