Vestil Electric Hydraulic Dockleveler
Price range: $5,898.82 through $10,868.98
Description

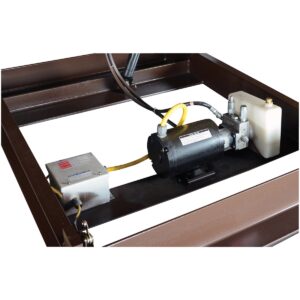

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the “raise” button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the “raise” button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.
- State of the art design consists of a push of the button operation
- Control box includes a red emergency stop button
- Returns automatically to the level cross traffic position
- Includes telescopic steel toe guards and two laminated bumpers
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Capacity | 20000 lbs, 25000 lbs, 30000 lbs, 35000 lbs, 40000 lbs, 45000 lbs, 50000 lbs |
| Size | 6 X 10FT, 6 X 5FT, 6 X 6FT, 6 X 8FT, 7 X 10FT, 7 X 5FT, 7 X 6FT, 7 X 8FT |
Specification
Specification
- Service range above dock (in.): 12
- Service range below dock (in.): 12
- Voltage/Phase: 460/3
- Motor Horsepower: 2
- Installation Type: Crew must install (due to electrical requirements)
- Laminated Bumper Length (in.): 4.5
- Laminated Bumper Width (in.): 14
- Laminated Bumper Height (in.): 10
Documents
Documents
Click for EH-610-20 Approval Drawings
Click for EH-610-25 Approval Drawings
Click for EH-610-30 Approval Drawings
Click for EH-610-40 Approval Drawings
Click for EH-610-50 Approval Drawings
Click for EH-65-20 Approval Drawings
Click for EH-65-25 Approval Drawings
Click for EH-65-30 Approval Drawings
Click for EH-65-40 Approval Drawings
Click for EH-65-50 Approval Drawings
Click for EH-66-20 Approval Drawings
Click for EH-66-25 Approval Drawings
Click for EH-66-30 Approval Drawings
Click for EH-66-40 Approval Drawings
Click for EH-66-50 Approval Drawings
Click for EH-68-20 Approval Drawings
Click for EH-68-25 Approval Drawings
Click for EH-68-30 Approval Drawings
Click for EH-68-40 Approval Drawings
Click for EH-68-50 Approval Drawings
Click for EH-710-20 Approval Drawings
Click for EH-710-25 Approval Drawings
Click for EH-710-30 Approval Drawings
Click for EH-710-40 Approval Drawings
Click for EH-710-50 Approval Drawings
Click for EH-75-20 Approval Drawings
Click for EH-75-25 Approval Drawings
Click for EH-75-30 Approval Drawings
Click for EH-75-40 Approval Drawings
Click for EH-75-50 Approval Drawings
Click for EH-76-20 Approval Drawings
Click for EH-76-25 Approval Drawings
Click for EH-76-30 Approval Drawings
Click for EH-76-40 Approval Drawings
Click for EH-76-50 Approval Drawings
Click for EH-78-20 Approval Drawings
Click for EH-78-25 Approval Drawings
Click for EH-78-30 Approval Drawings
