Vestil WT-2424-LA Linear Actuated Tilt Table 300 LB 24X24

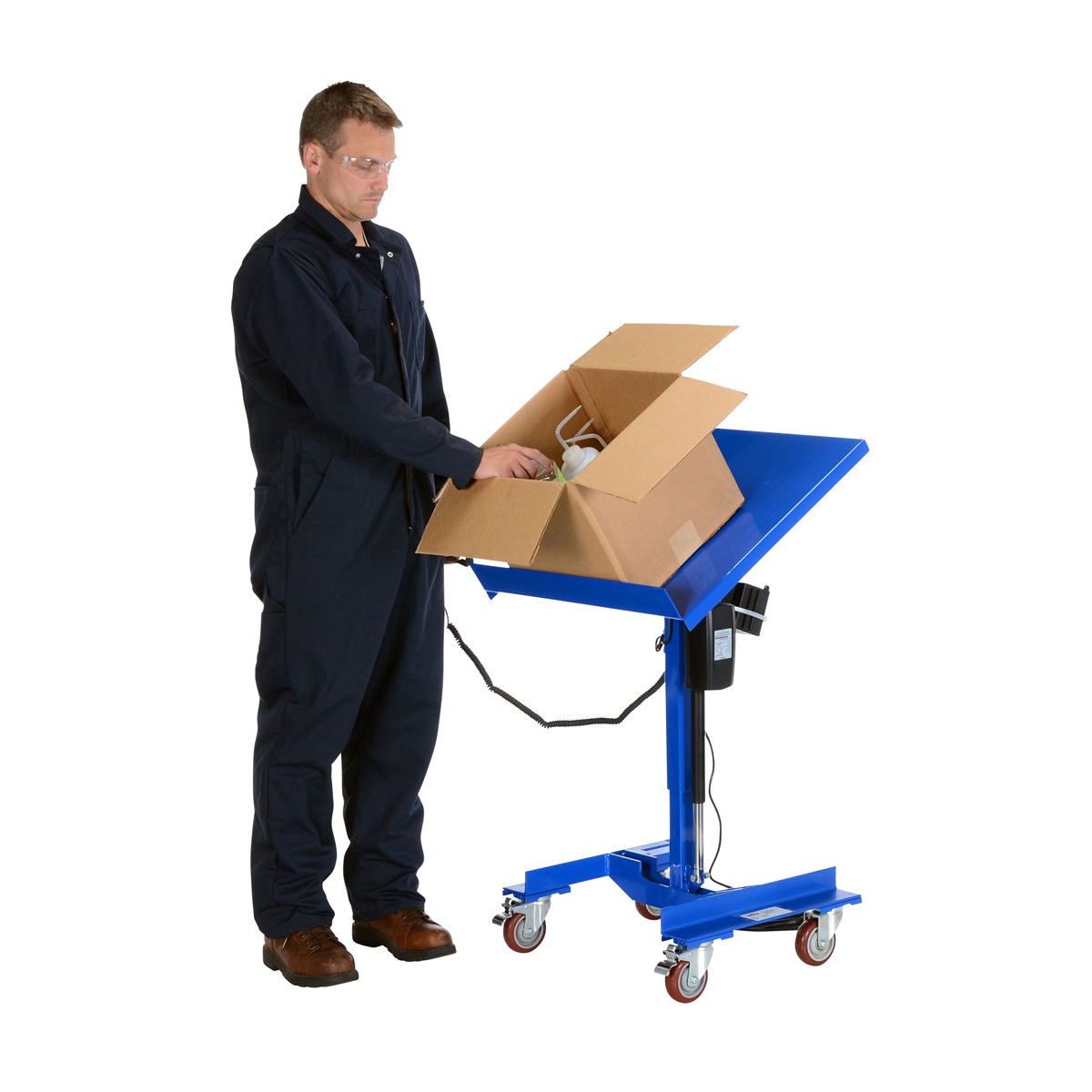

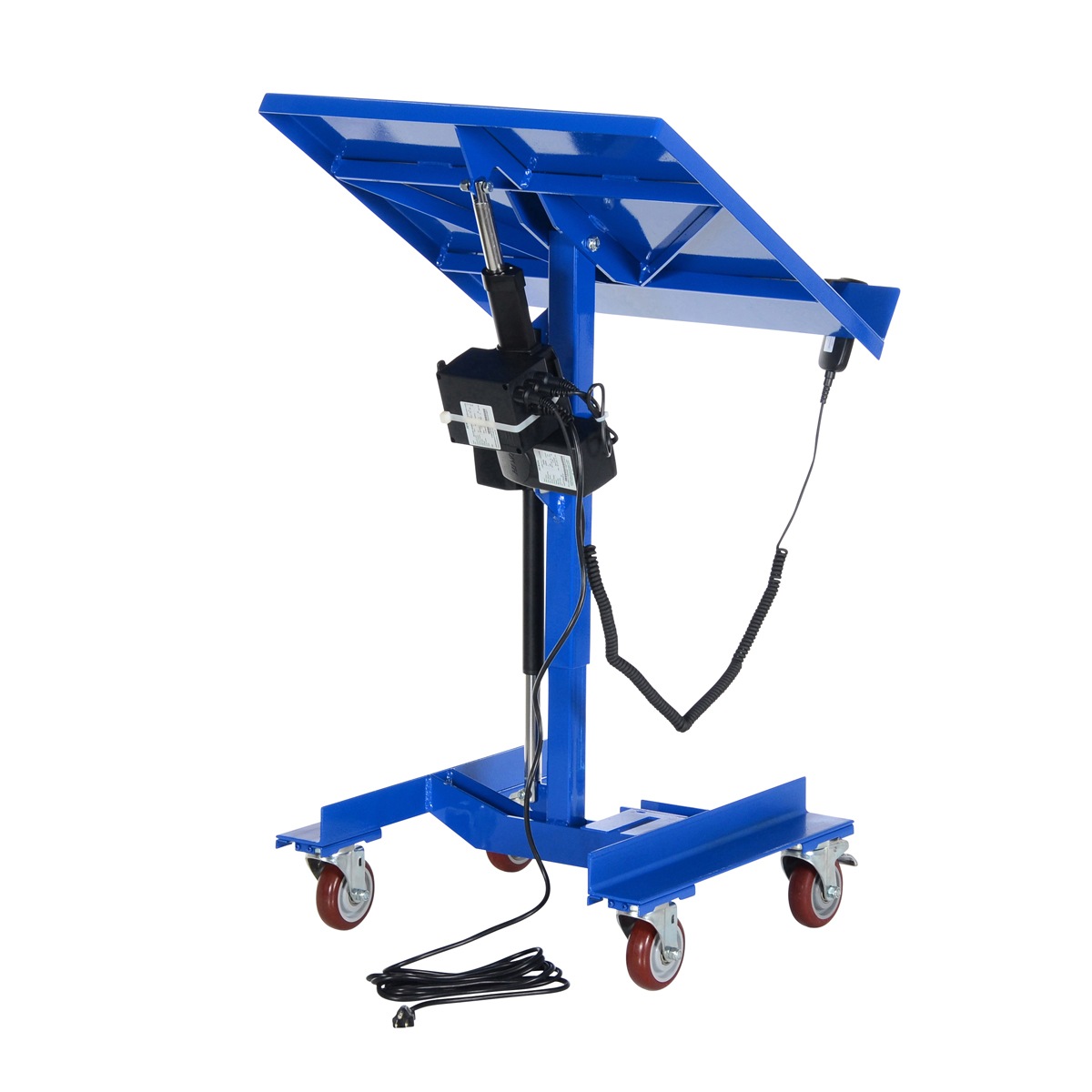

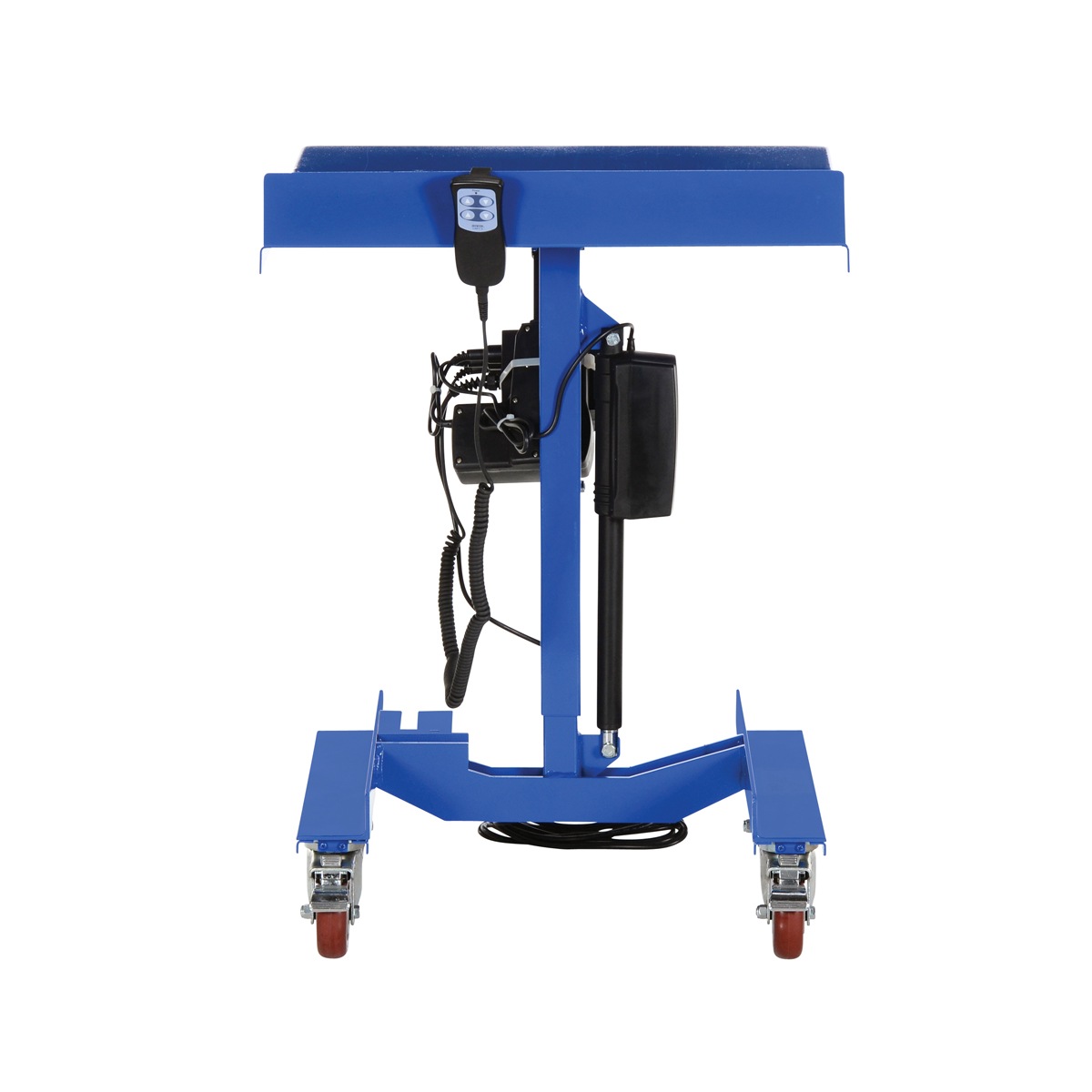

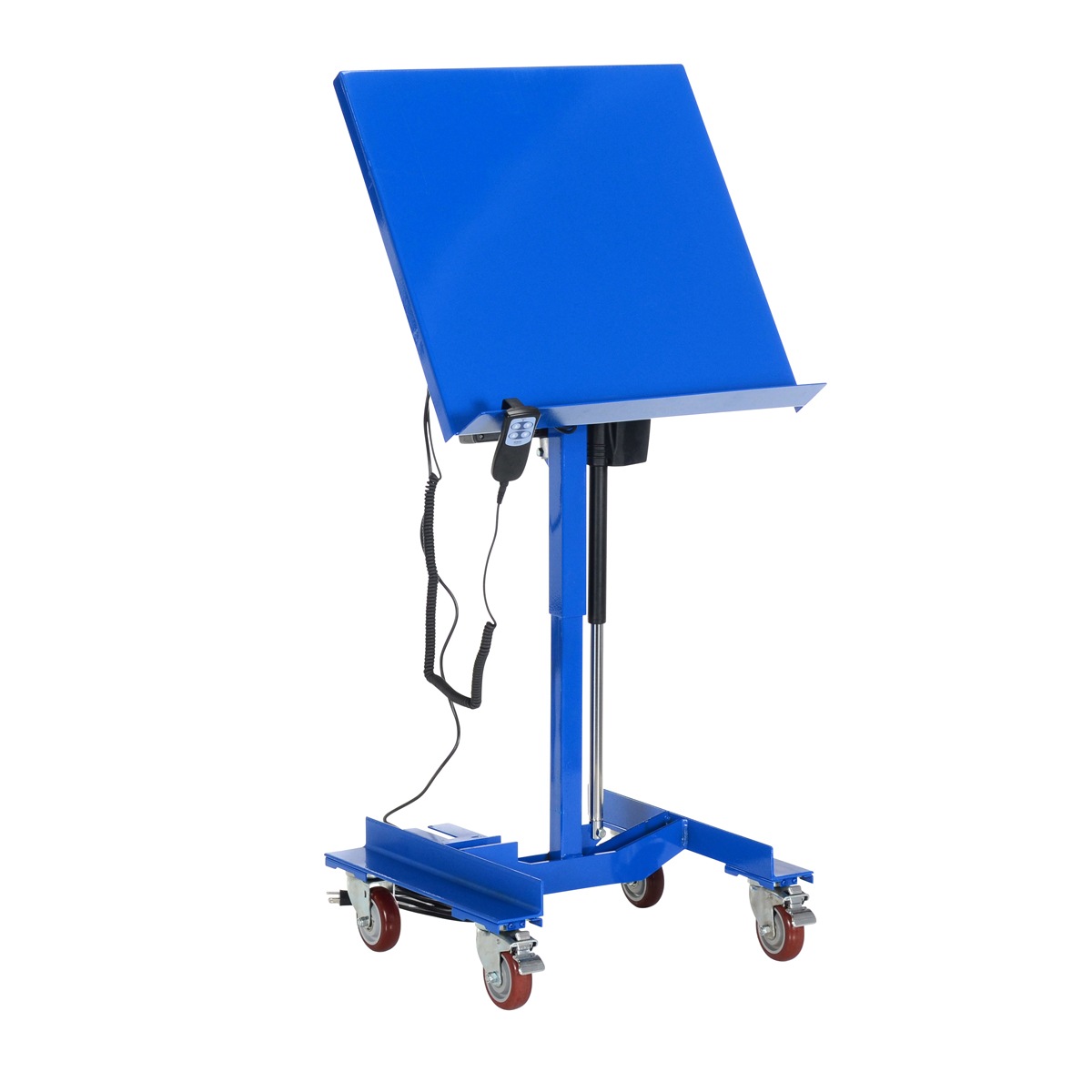

The Mobile Tilting Work Table is designed to bring work to an ergonomically correct position, helping to foster more comfortable and productive work environment. Working in a comfortable position also reduces fatigue and risk of injuries. The platform height and tilt angle are powered by an electric linear actuator with a hand control. The polyurethane swivel casters (two double locking) allow unit to be transported from one work area to another while loaded.

• Highly maneuverable and flexible product design is ergonomic and user friendly
• Platform height and platform tilt is adjustable to fit best position for user
• Each unit includes four swivel casters (two with total locking brake) for maneuverability
• Welded steel construction provides long lasting use

Specification

• Uniform Capacity (lb.): 300
• Platform Width (in.): 24
• Platform Length (in.): 24
• Lip Height (in.): 3
• Platform Tilt Degree: 45
• Lowered Height (in.): 33-9/16
• Raised Height (in.): 42
• Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
• Caster Type: (2) Swivel, (2) Swivel Double Locking
• Caster Material: Polyurethane
• Voltage: 115

Documents

Click for WT-2424-LA Approval Drawings

Click for Manual
